| Brand: | Atom |
| Category: | Sprinklers, Metal Sprinklers |
| Size Range: | 40mm |
| Connection: | BSP Female |
| Size Range: | 40mm |
| Connection: | BSP Female |
Product Description

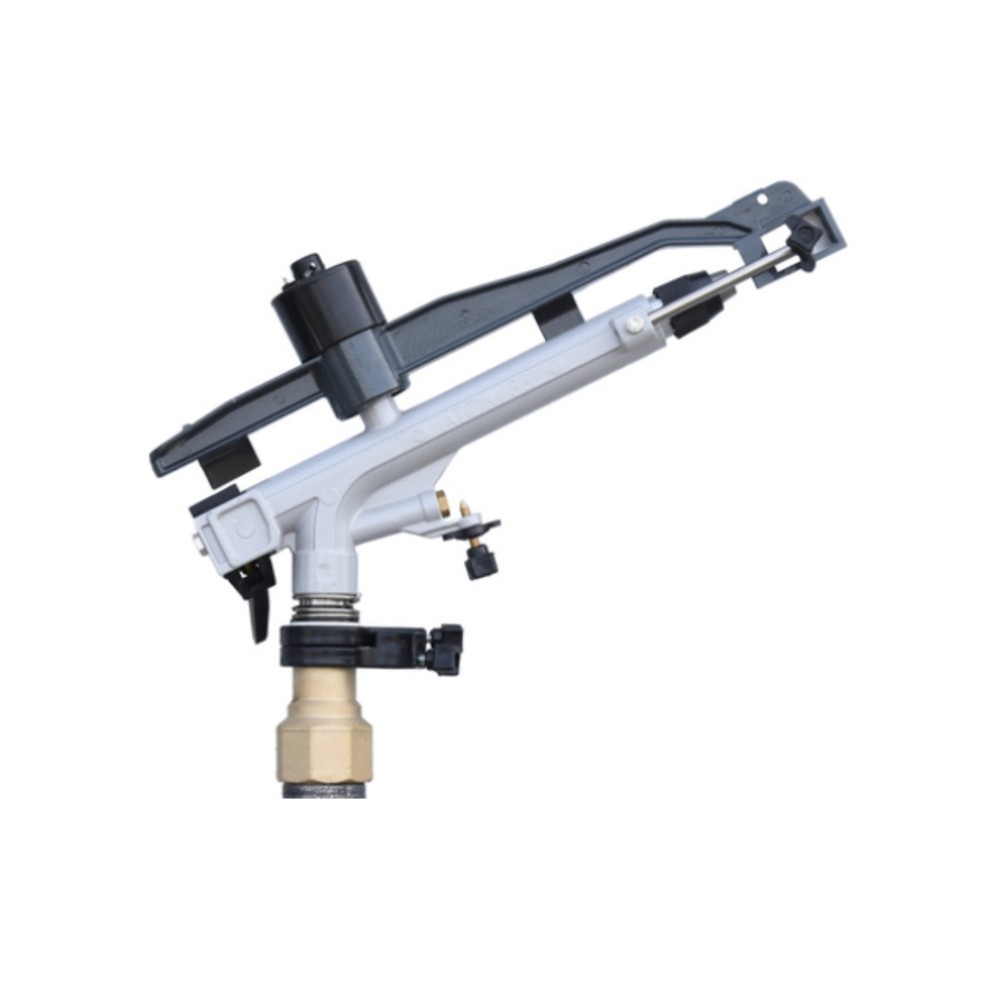

The Atom 35 is a full or part-circle impact sprinkler with an operating range of 2.0 - 6.0 bar. With replaceable sprinkler nozzles the Atom 35 is easily configured to irrigate your field with perfect water distribution uniformity and is ideal for stationery and traveling systems. The body and scoop are aluminium with a lower rotating mechanism made of brass, Teflon, and stainless steel. It is equipped with a standard stationary breaker or moving breaker. The moving breaker is adjustable and breaks water without restricting the range.

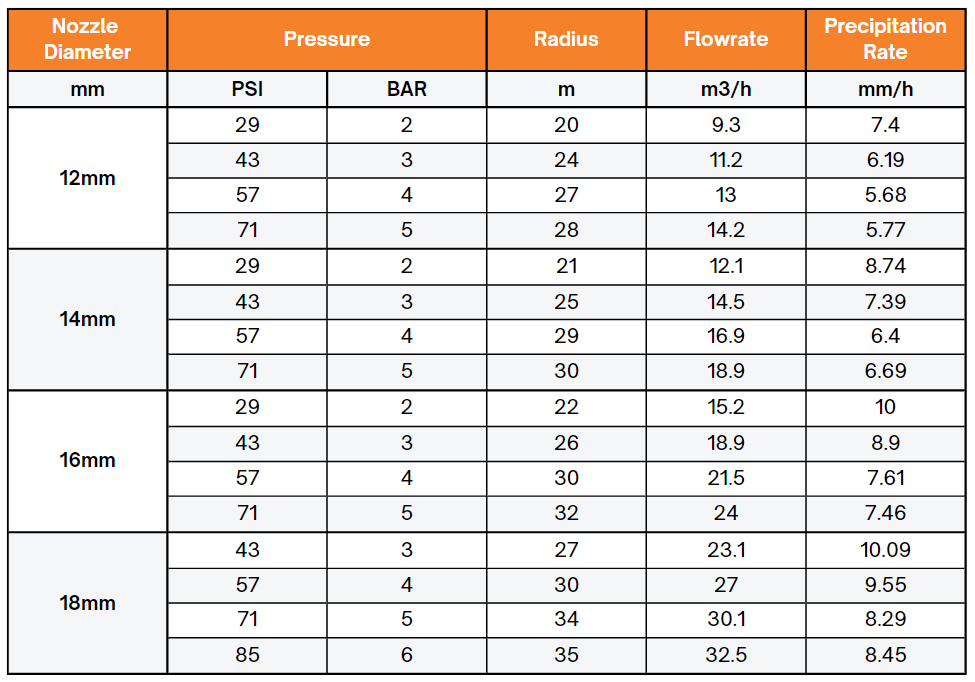

Technical Data
Working Pressure
- 2.0 - 6.0 Bar
Flow Rate
- 9.3 - 32.5 m³/h
Nozzles
- 12, 14, 16, 18 mm
Trajectory
- 27°
Atom35
Impact Sprinkler, 40mm Female Bsp, full & part circle
Atom35
| Product Code | Nozzle Size | Description | Box Qty |
|---|---|---|---|
| Atom35 | 12/14/16/18mm | Atom35, Impact Sprinkler, 40mm Female Bsp, full & part circle. | each |
