Brand: | Bermad |
Category: | Control Valves, 100 Series |
Size Range: | 40-150mm |
Connection: | 40-80mm - Female Threaded BSP 80-150mm - Flanged |
Engineering Data: |
Product Description
The BERMAD Top Pilot Pressure Reducing Control valves offer top performance, compact design, and intuitive plug-and-play operation, thanks to an innovative integrated pilot, equipped with a high-resolution adjustment dial for easy, quick & accurate calibration. Model IR-12T-55-3W-X reduces higher upstream pressure to a calibrated constant downstream pressure, regardless of flow fluctuations, and opens fully when line pressure drops below setting. The valve opens & shuts in response to an electric signal.
Features and Benefits
- Line Pressure Driven, Hydraulically Controlled (on/Off)
- Protects downstream systems
- Opens fully when line pressure drop
- 3-Way Integrated pilot - user-friendly design
- Adjustment knob and high-resolution scale for easy calibration without a pressure gauge
- Compact “Box-Size” solution
- Solenoid control is easily added or removed
- Uniquely suitable to all size range up to 3”
- Engineered Plastic Valve with Industrial Grade Design
- Adaptable on-site to a wide range of end connection sizes and types
- Highly durable, chemical & cavitation resistant
- hYflow ‘Y’ Valve Body with “Look Through” Design
- Ultra-high flow capacity at Low-pressure loss
- Unitized Flexible Super Travel Diaphragm with a Guided Plug
- Accurate and stable regulation with smooth closing
- Requires low actuation pressure
- Prevents diaphragm erosion and distortion
![12T- Features and Benefits](https://deeco-production.s3.amazonaws.com/images/12T-_Features_and_Benefits.width-1000.png)

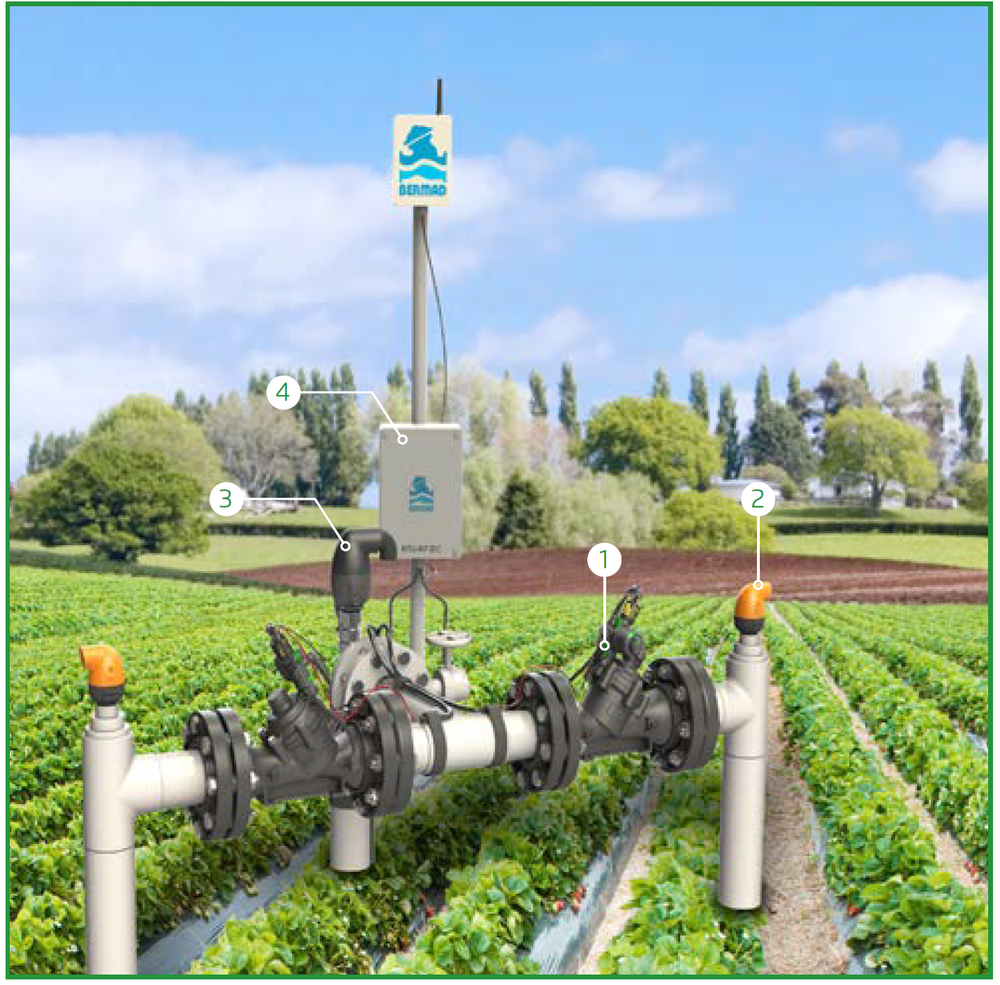

[1] B ERMAD Model IR-12T-55-X establishes reduced pressure Typical Applications
zone, protecting laterals and distribution lines.
[2] Kinetic Air Valve
[3] Combination Air Valve
[4] Remote Terminal Unit
Typical Applications
- Computerized Irrigation Systems
- Systems Subject to Varying Supply Pressure
- Plot valves in Drip & Sprinklers irrigation systems
- Energy Saving Irrigation Systems
Technical Data
Operation
![12T- Operation](https://deeco-production.s3.amazonaws.com/images/12T-_Operation.width-750.png)

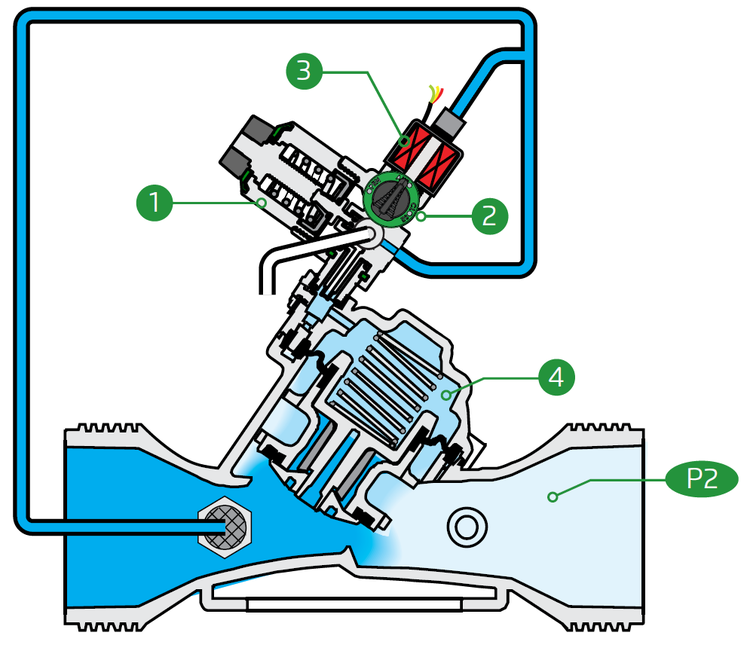

The Pressure Reducing Pilot 1 commands the Valve to throttle closed should Downstream Pressure P2 rise above and to open fully when it drops below setting. The Integrated Trio Selector 2 enables manual closing and opening override or electric control, in which the solenoid 3 connects valve control chamber 4 with line pressure to shut the valve or vents it through the pilot to open the valve.
Materials
Body, Cover, and Plug
- Glass-Filled Nylon
Diaphragm
- NR, Nylon fabric reinforced
Seals
- NR
Spring
- Stainless Steel
Cover Bolts
- Stainless Steel
Control Accessories
Solenoid Voltage Range
- S-390-T-3W: Continues voltage: 12VDC, 24VDC, 24VAC
- S-392-T-3W:Latch 9-20VDC
Pressure Rating
- 10 bar; 145 psi
Operating Pressure Range:
- 0.5-10 bar; 7-145 psi
Setting Range
- 0.8-6 bar; 12-87 psi
Note: Setting ranges vary according to specific pilot springs. Please consult Deeco.

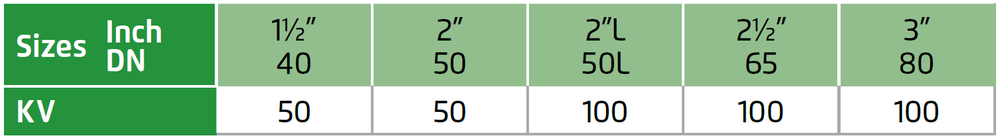

Flow Properties
![12T- Flow properties](https://deeco-production.s3.amazonaws.com/images/12T-_Flow_properties.width-1000.png)

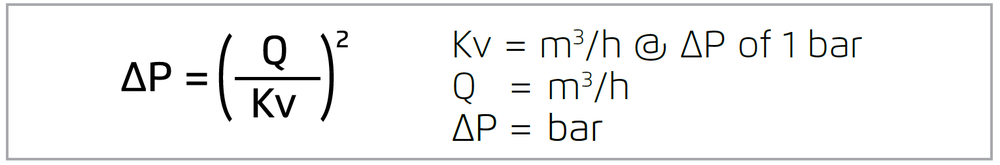

Valve Flow Coefficient
![12T- valve flow coefficient](https://deeco-production.s3.amazonaws.com/images/12T-_valve_flow_coefficient.width-1000.png)

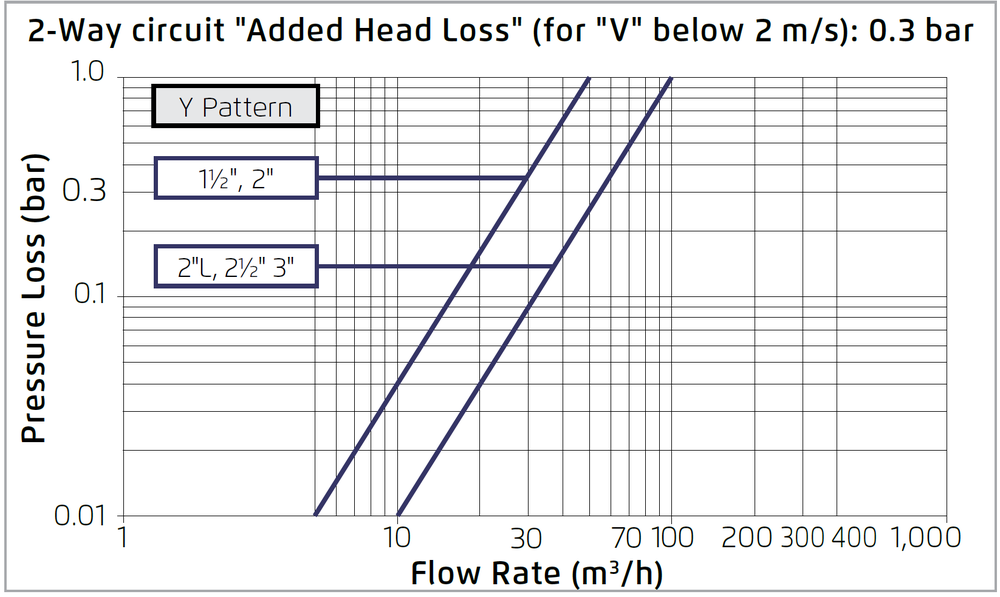

Flow Chart
![12T- flow chart](https://deeco-production.s3.amazonaws.com/images/12T-_flow_chart.width-1000.png)
Technical Specifications

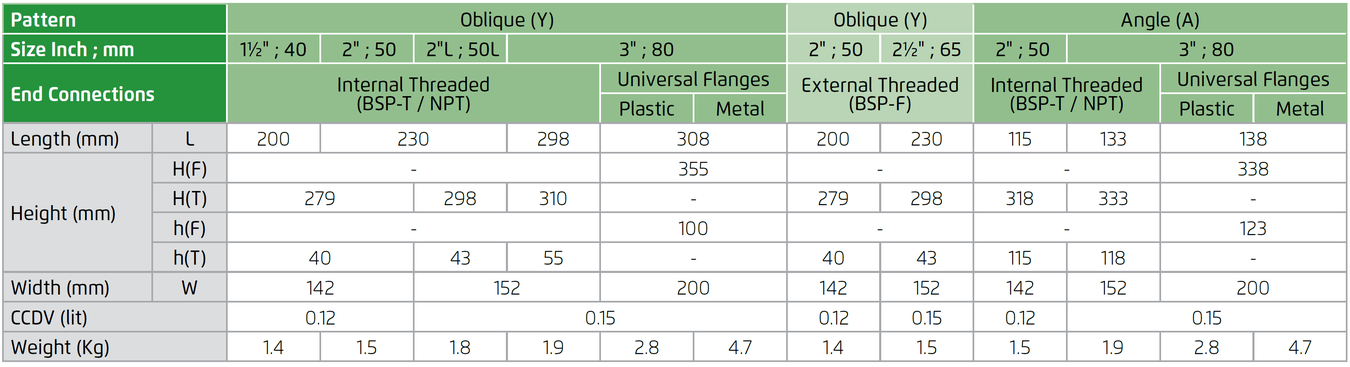

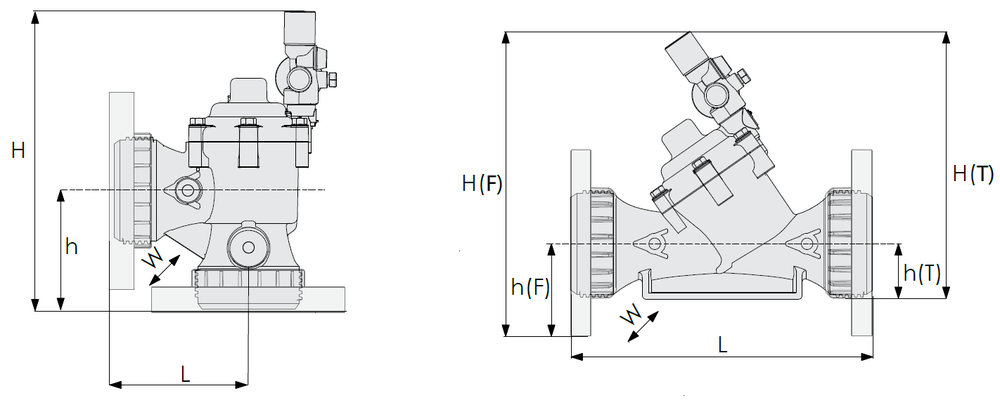

Dimensions and Weights
![12T- Dimensions and Weights](https://deeco-production.s3.amazonaws.com/images/12T-_Dimensions_and_Weights.width-1000.png)
![12T- Dimensions](https://deeco-production.s3.amazonaws.com/images/12T-_Dimensions.width-1350.png)
CCDV = Control Chamber Displacement Volume
Other End Connections are available on request. For dimensions and weights of adapters or valves with adapters please consult with Deeco.
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
