| Brand: | Bermad |
| Category: | Control Valves, 100 Series |
| Engineering Data: | |
| Size Range: | 40-150mm |
| Connection: | 40-80mm - Female Threaded BSP 80-150mm - Flanged |
Product Description
The BERMAD Flow Control Valve with Hydraulic Control is a hydraulically operated, diaphragm-actuated control valve that limits system demand to a preset maximum flow rate.
Features and Benefits
- Line Pressure Driven Hydraulic Flow Control
- Limits fill-up rate and consumer over-demand
- Adjustable Servo Flow Pilot Controlled
- Dynamic integrated needle valve
- Easy flow setting
- Engineered Plastic Valve with Industrial Grade Design.
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- hYflow ‘Y’ Valve Body with “Look Through” Design
- Ultra-high flow capacity - Low-pressure loss
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Accurate and stable regulation with smooth closing
- Requires low actuation pressure
- Prevents diaphragm erosion and distortion
- Internal “Differential Pressure Duct” Flow Sensor
- No moving parts
- Saves space and simplifies installation

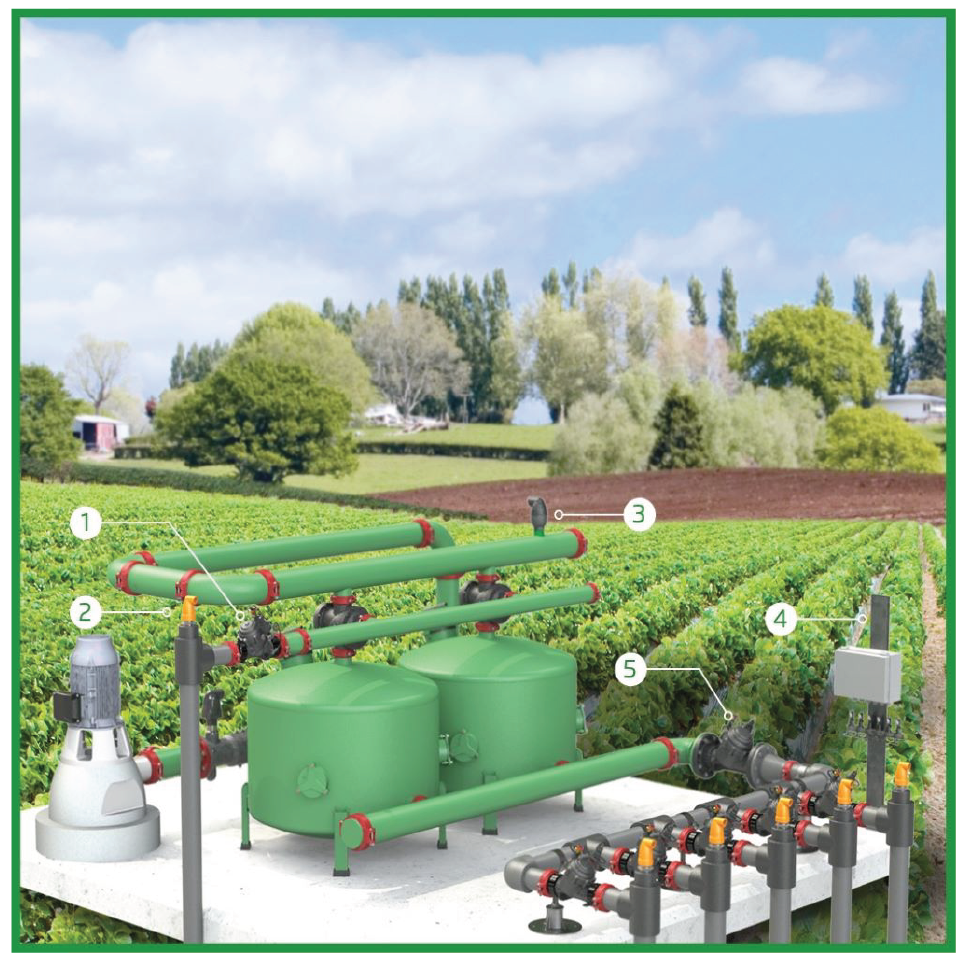

1. BERMAD Model IR-170-DZb protects the supply system from excessive flow and limits fill-up rate and consumer overdemand.
2. Kinetic Air Valve Model IR-K10
3. Combination Air Valve Model IR-C10
4. RTU-Remote Terminal Unit
5. Pressure Sustaining Valve Model IR-130-59-3W-X
Typical Application
- Line Fill-Up Control
- Multiple Independent Consumer Systems
- Systems Subject To Varying Supply Pressure
- Distribution Centers
Technical Specifications

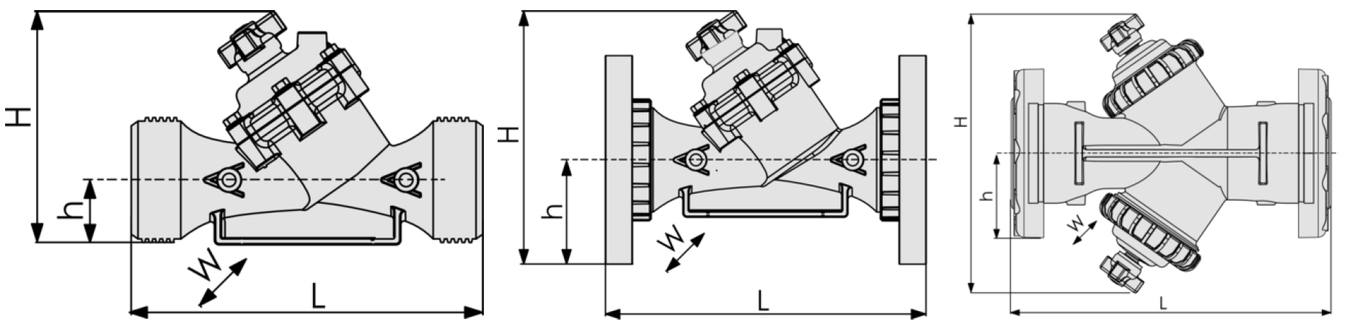

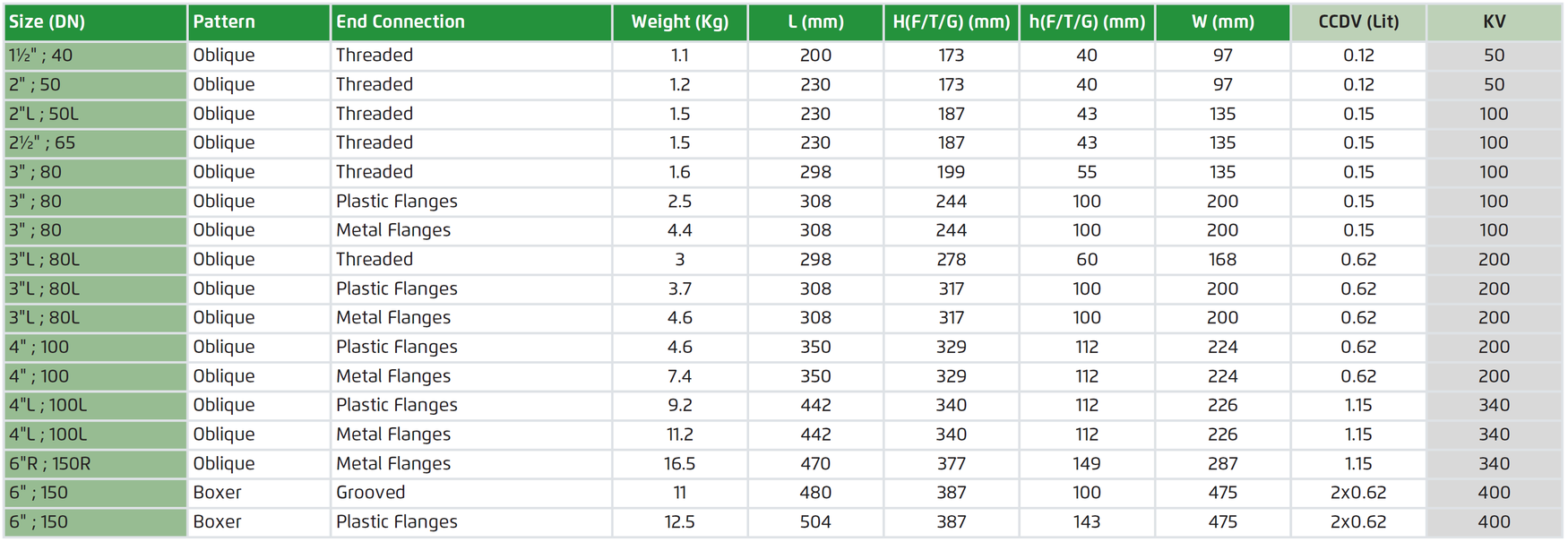

Dimensions and Weights
CCDV = Control Chamber Displacement Volume • Threaded = BSP & NPT are available. The external thread is available for 2" and 2½" only. • Other End Connections are available on request. For dimensions and weights of adapters or valves with adapters please consult with customer service
Technical Data
Operation

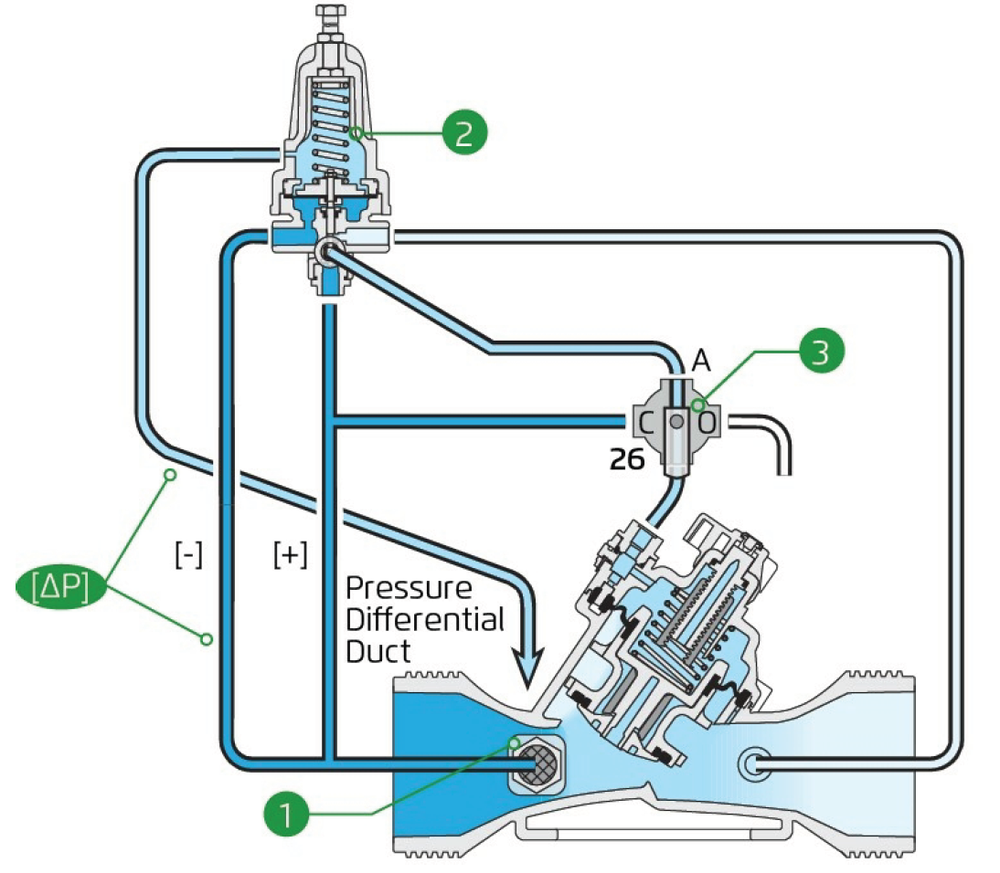

Pressure Differential [ΔP] across the Differential Pressure Duct [1] is in direct proportion to demand. The Flow Pilot [2] continuously senses [ΔP] commanding the Valve to throttle closed should demand rise above the pilot setting, and to modulate open when demand is below the pilot setting. The Manual Selector [3] enables local manual closing.
Pressure Rating
- 10 Bar
Operating Pressure Range
- 0.5-10 Bar
Materials
- Body, Cover and Plug: Polyamide 6 & 30% GF
- Diaphragm: NR, Nylon Fabric Reinforced
- Seals: NR
- Spring: Stainless Steel
- Cover Bolts: Stainless Steel
- Control Accessories: Plastic
- Tubing and Fittings: Plastic
Control Loop Accessories
- Flow Pilot: PC-SD-A-P
- Tubing and Fittings: Polyethylene

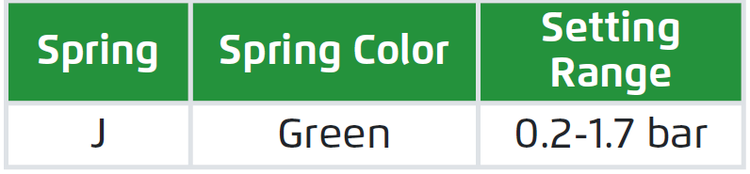

- Pilot Spring Range:

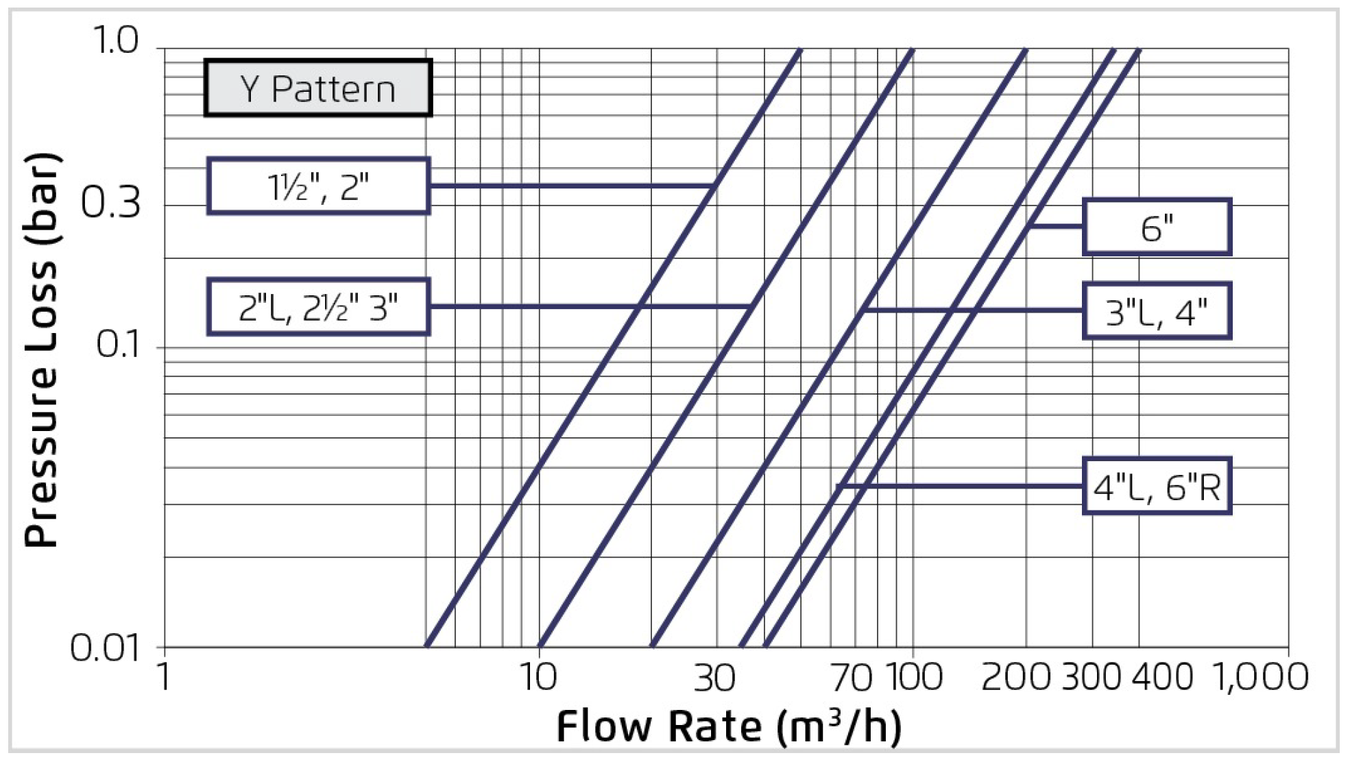

Flow Chart
2-Way circuit "Added Head Loss" (for "V" below 2 m/s): 0.3 bar
Differential Pressure & Flow Calculation
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
