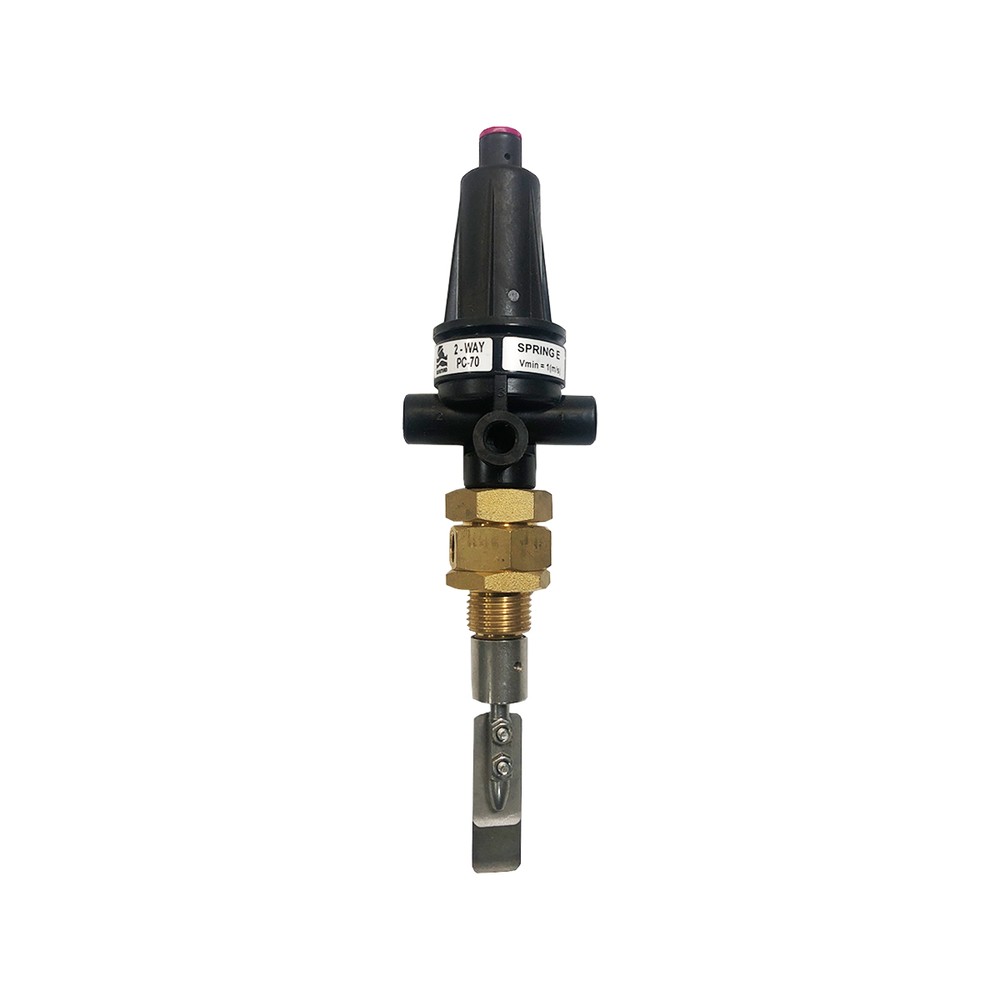

Bermad - Model PC-70-P - 2W Paddle Flow Control Pilot

This flow rate pilot is a direct-acting pilot valve, actuated by a paddle that is positioned within the flow stream. Should demand rise above the setting, the increasing flow dynamic force moves the paddle, which thereby pushes the pilot trim against the spring force. This increases control water flow into the control chamber, causing the main valve to throttle closed limiting system flow to the pilot setting. The pilot's unique internal design dynamically increases and decreases the main valve response speed in direct proportion to the discrepancy between actual demand and pilot setting flow rate.

Typical Application

• Flow Control Valves
• Flow Control and Pressure Reducing Valves
• Level and Flow Control Valves
• Burst Control Valves

Pressure Rating

• 10 bar

Working Temperature

• Water up to 50˚C

Flow Factor

• Kv 0.07 m3/h @ 1bar ∆P; Cv 0.08 GPM @ 1psi ∆P

Standard Materials

• Body & Cover: Polyamide 6+30% F.G
• Elastomers: NBR
• Internals: Stainless Steel & Brass
• Spring: Stainless Steel
• Ports: 1/8" NPT

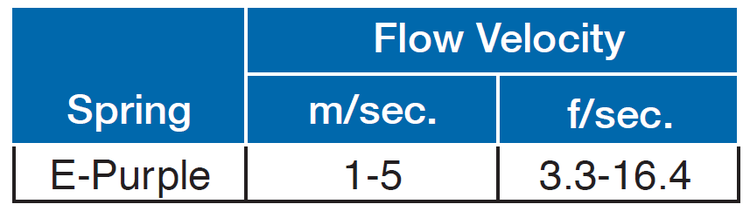

Adjustment Range

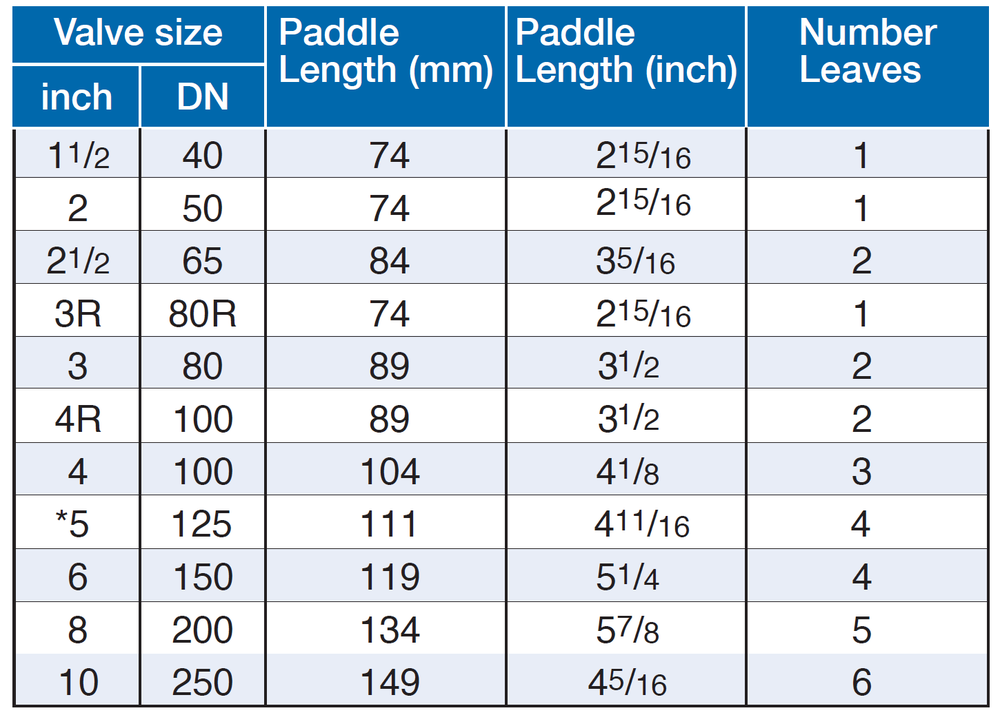

Paddle Length Table

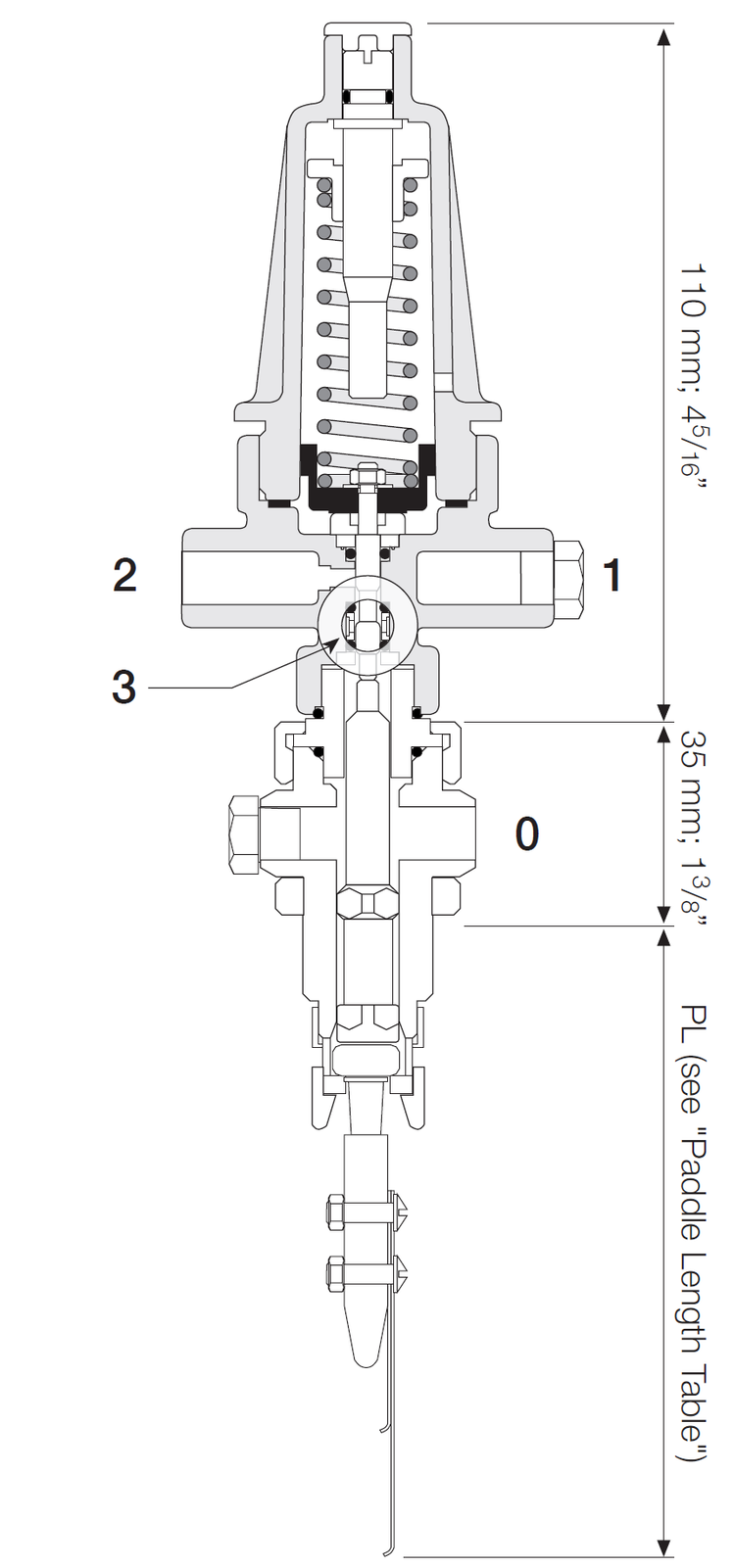

Connections

0 - Upstream

1 - Plugged

2 - Downstream

3 - Valve Control Chamber
