| Brand: | Bermad |
| Category: | Control Valves, PN16 Metal Pilots |
| Pressure Range: | 1-10 Bar |

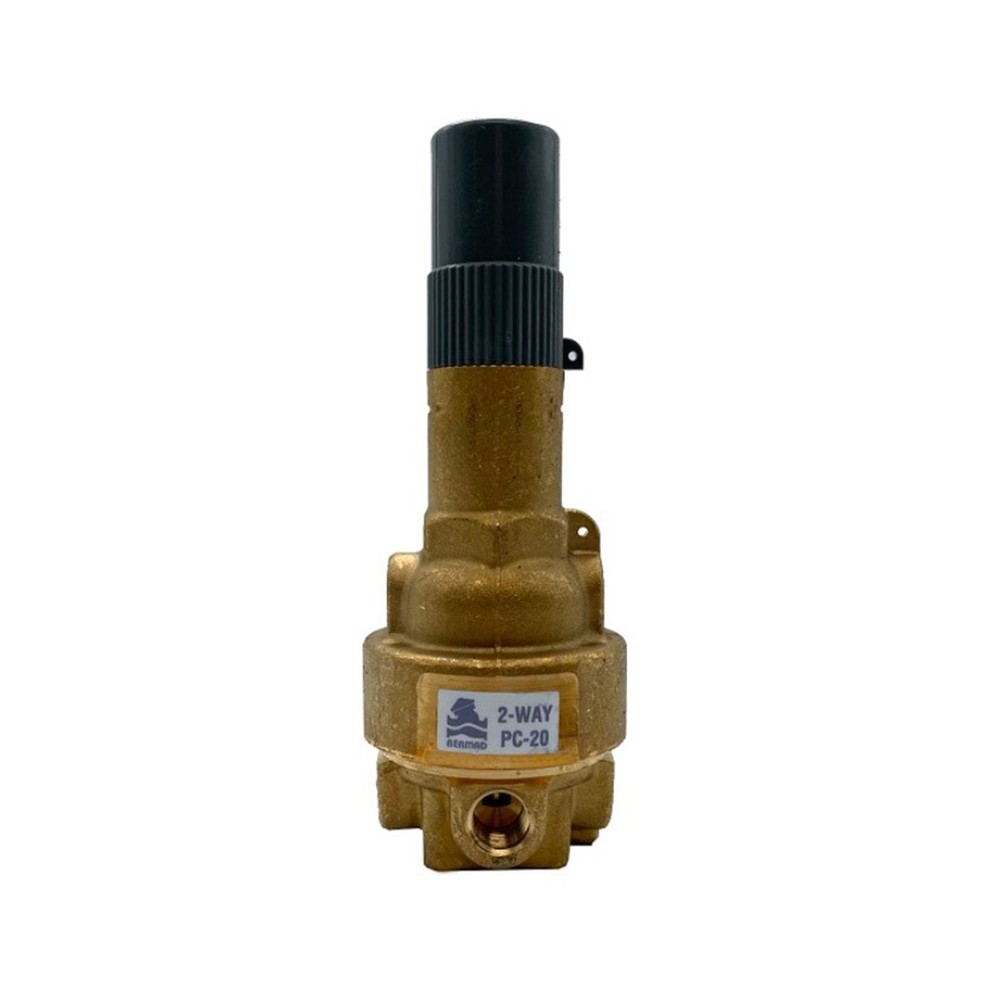

Product Description
This pilot integrates all principal functions of a 2-way control circuit in a single assembly. It is a direct-acting pilot valve, actuated by a pressure-responsive diaphragm, which seeks to reach equilibrium between hydraulic and set spring forces. When used in a pressure-reducing circuit, the pilot modulates closed as downstream pressure rises above the set point. An internal restriction acts as an upstream flow restrictor
Features
- Internal or external upstream flow restrictor
- Internal or external pressure sensing
- Differential pressure sensing
- Direct pressure gauge installation
Typical Applications
- Pressure reducing valves sizes 11/2-10” (Standard model #PC-20-M)
Technical Data
Pressure Rating
- 16 bar; 232 psi
Working Temperature
- Water up to 80˚C; 180˚F
Flow Factor
- Kv 0.44 m3/h @ 1bar ∆P; Cv 0.51 GPM @ 1psi ∆P
Standard Materials
Body: Brass
Cover: Brass
Elastomers: NBR
Internals: Stainless Steel & Brass
Spring: Galvanized Steel
Ports
- 1/4" NPT

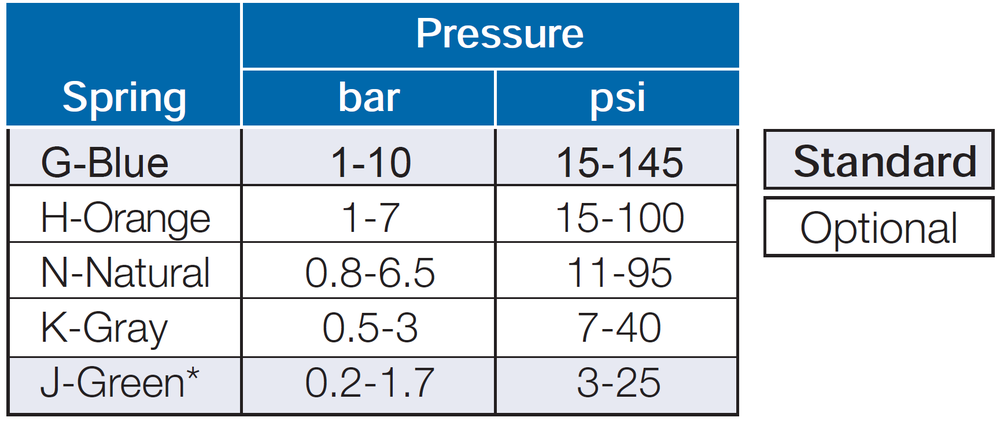

Adjustment Range
* For PC-20-M-D-differential sensing.
Connections
1 or 2 - Downstream / Remote sensing / Pressure gauge
3 - Valve control chamber
4 - Upstream

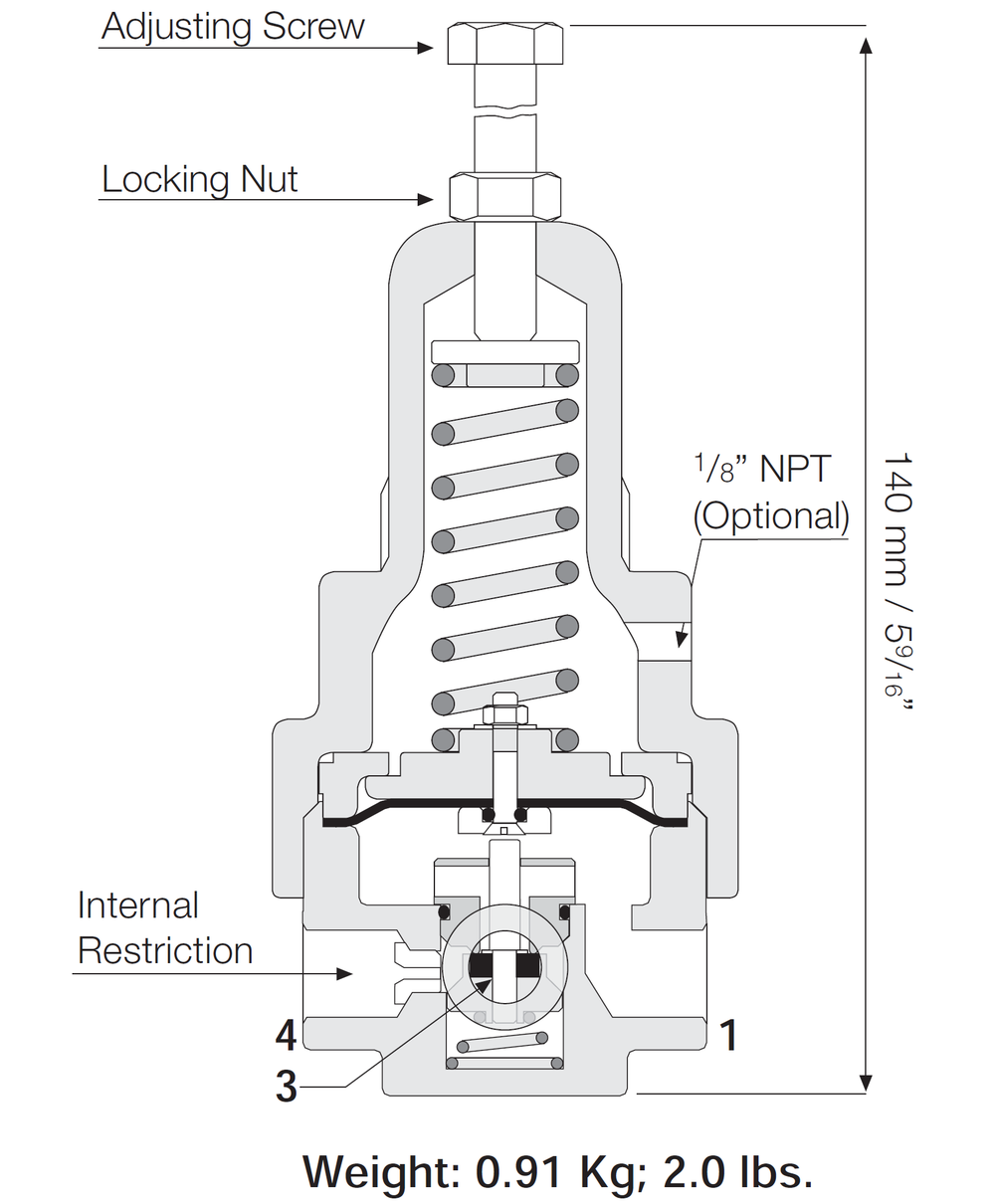

Technical Specifications

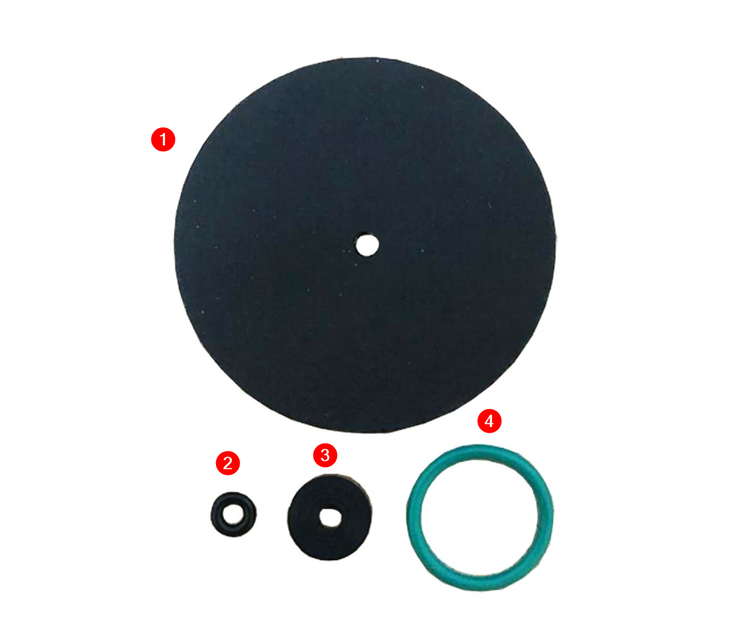

Repair Kit
| Product Code | Description |
|---|---|
| PC20A-RK | Repair Kit for Brass Bermad 2-Way Pressure Reducing Pilot. |
| Pos. | Description | Qty |
|---|---|---|
| 1 | Diaphragm | 1 |
| 2 | O-Ring | 1 |
| 3 | Seal Disc | 1 |
| 4 | O-Ring - Green | 1 |
Spare Parts
| Product Code | Description |
|---|---|
| PC20A-30 | Diaphragm Assembly |
For Spare Parts Diagram Click Here
Bermad - Model PC20-M - 2 Way Reducing Pilot
Bermad - PC20A
| Product Code | Pressure Rating | Description |
|---|---|---|
| PC20A | PN16 | Brass Bermad 2 Way Pressure Reducing Pilot. C/W Spring V (1-10 Bar) |
