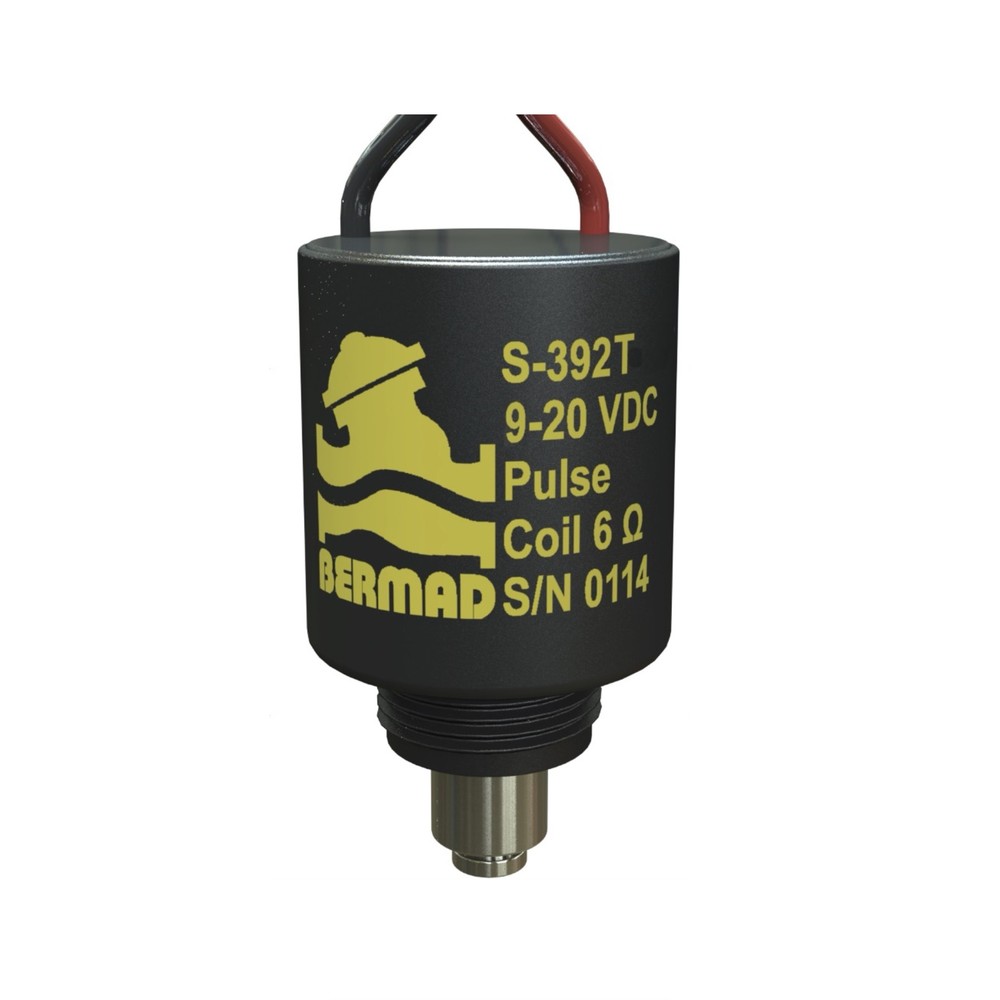

Bermad - Model S392T 2 Way 9-20 Volt DC - TRIO Latching Solenoid

The BERMAD Model S392T-2W is a compact 2-Way Latching Solenoid Actuator, specially designed for reliable long-life service in irrigation systems controlled by Battery Operated Controllers. The BERMAD latching Solenoid Actuator applies directly to the valve cover or with a 2 Way Trio base that enables combining it in various 2-way control circuits. Model S392T-2W consumes power only when switching positions, using a very short electric impulse. This prolongs the life of batteries and enables solar recharging.

Features & Benefits

• Advanced Construction Materials, Unique Plastic Casing
  • Proven pressure, voltage and weather resistance
  • Highly durable in corrosive environments
  • Protection Class- IP68; NEMA Type 6D
• Superb Internal Design and Finish
  • Reliable operation under dirt-loaded water.
• Short Electrical pulse Latch Activation
  • Extremely low power consumption
  • Low-voltage battery operation
  • Saves wires and infrastructures.
  • No coil heating.
  • It suites most Battery-Operated Controllers on the market
  • Applicable in solar-activated systems
• Simple Installation, Operation and Maintenance
• Reliable and Durable Product that Bears the Stamp of BERMAD Quality
• Robust "Trio" 3-position manual override handle, Close, Open & Automatic mode

Applications

• Systems distanced from the control center.
• Unavailable power supply locations
• Solenoid-controlled on/off valves
• Solenoid-controlled pressure and flow control valves
• Multiple valve systems

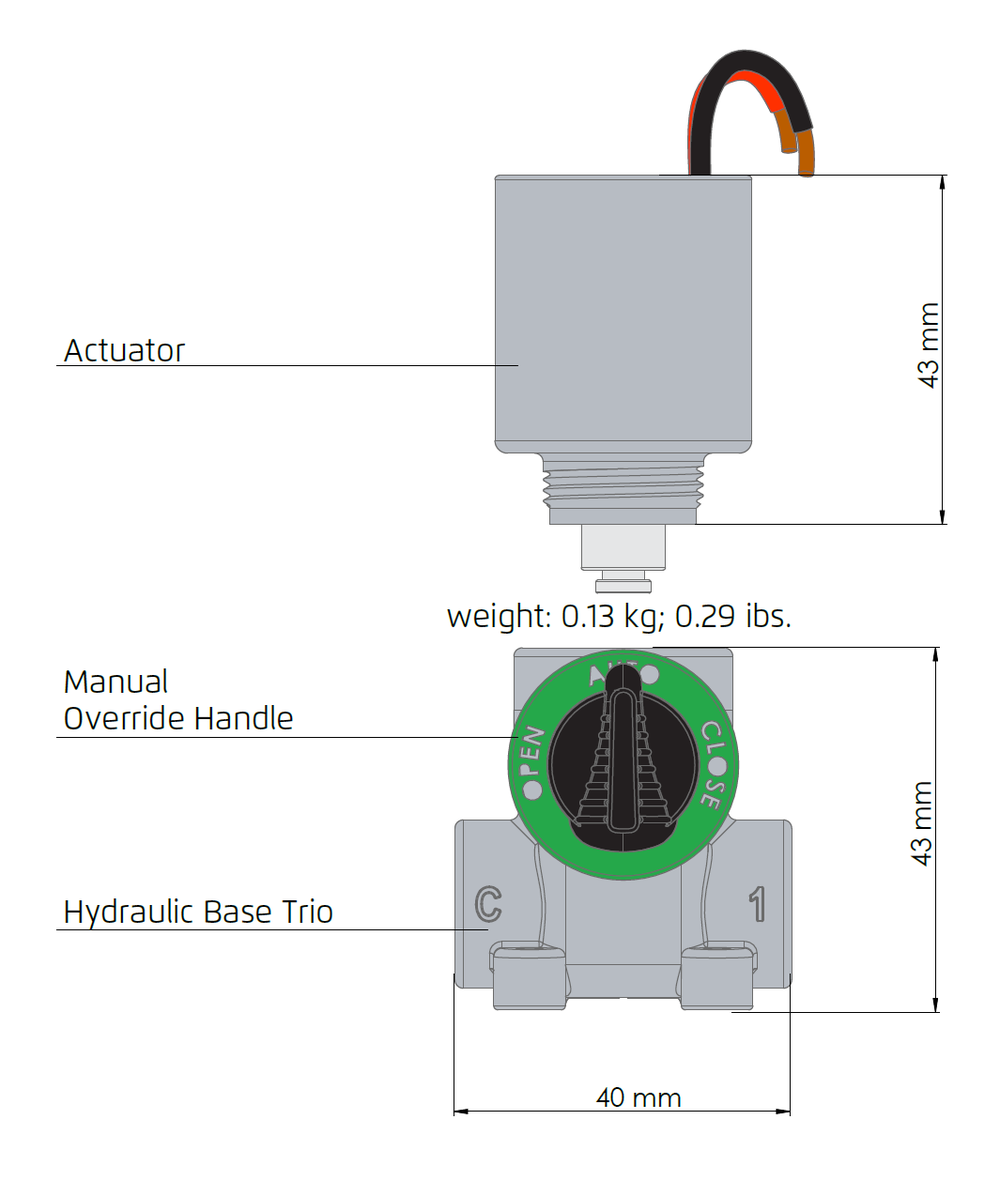

Ports:

Base Port - 1 (1/4" NPT) - Outlet

Base Port - C (1/4" NPT) - Inlet

Leads: 2 leads x 0.32 mm2 x 80 cm

Operating Pressure Range: 0-10 bar

Base Orifice: 2 mm

Base Flow Factor: Kv = 0.10 m3/h @ 1 bar ΔP;

Cv=0.12 GPM @1 psi ΔP

Materials:

Actuator Casing: Nylon

Seals: NBR

Wetted parts: Stainless steel 400 and polyamide

Base: Nylon

Electrical Data:

Voltage Range: 9-20 VDC

Coil Resistance: 6 Ω

Coil Inductance: 90 mH

Pulse Width: 20-100 mSec.

Operation Modes (electrical connections):

+Red & -Black: Latch Position

+Black & -Red: Released Position

Note: To ensure compatibility of the solenoid with your system, please contact Deeco.
