| Brand: | Bermad |
| Category: | Control Valves, Additional Accessories |
| Size Range: | 40mm - 600mm |
Product Description
BERMAD’s V-Port throttling plug is an add-on device for SIGMA-700 and 800 Series control valves. It provides a more accurate, stable and smoother response during pressure and flow regulation while reducing noise and vibration. The V-port plug is easily mounted under the standard flat seal disc of the valve and changes the ratio of flow to stem travel allowing a very wide flow range with relatively high pressure reduction.

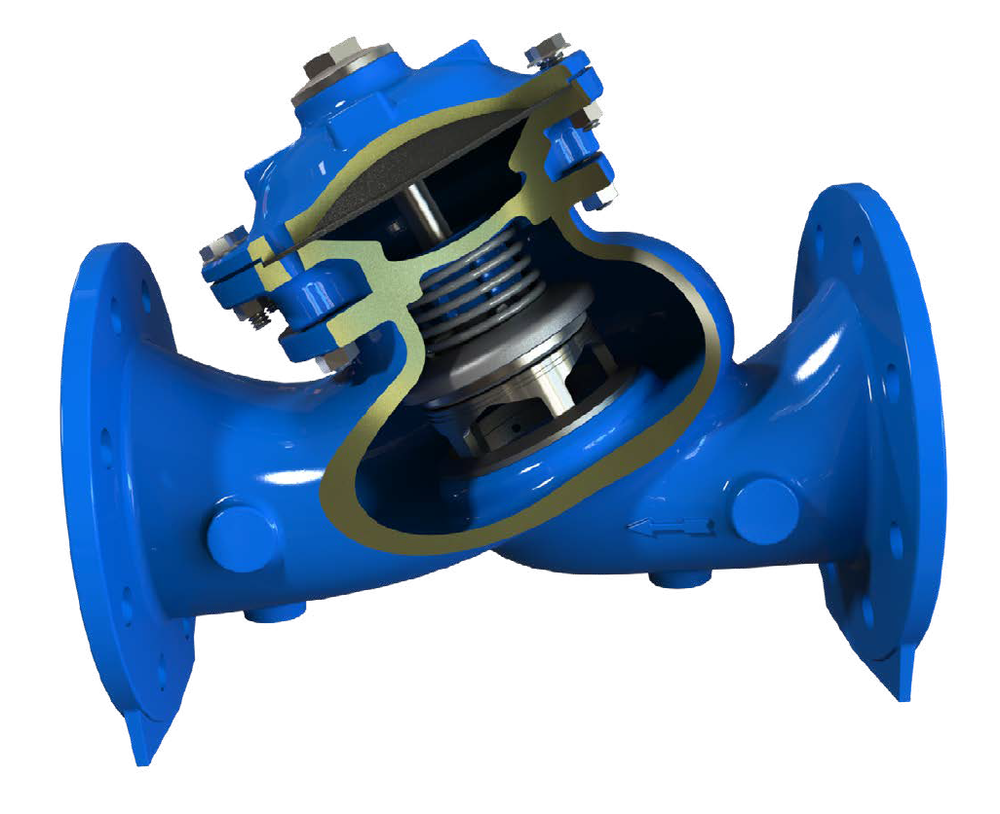

Features and Benefits
- Increases valve stem travel-to-flow ratio
- Accurate, stable & smooth control of flow and pressure regulation
- Easily installed on existing valves
- Eliminates the need to replace the valve when operation conditions change
- Suitable for low-flow
- The optimal solution for low-flow installation sites
- Reduces noise and vibration
- Increases pipeline network life span
Typical Applications
- High-pressure reduction / Low-flow applications
- Pressure sustaining applications
- Modulation float valves
Technical Data
Standard Materials
- POM-C: 1.5”-4” / DN40-100 EN ; 2.5”-4” / DN65-100 ES ;
1.5”-4” / DN40-100 700-00 - Tin-Bronze: 6”-16” / DN150-400 EN ; 8”-24” / DN200-600 ES ;
6”-20” / DN150-500 700-00
Optional Materials
- Stainless Steel, NAB

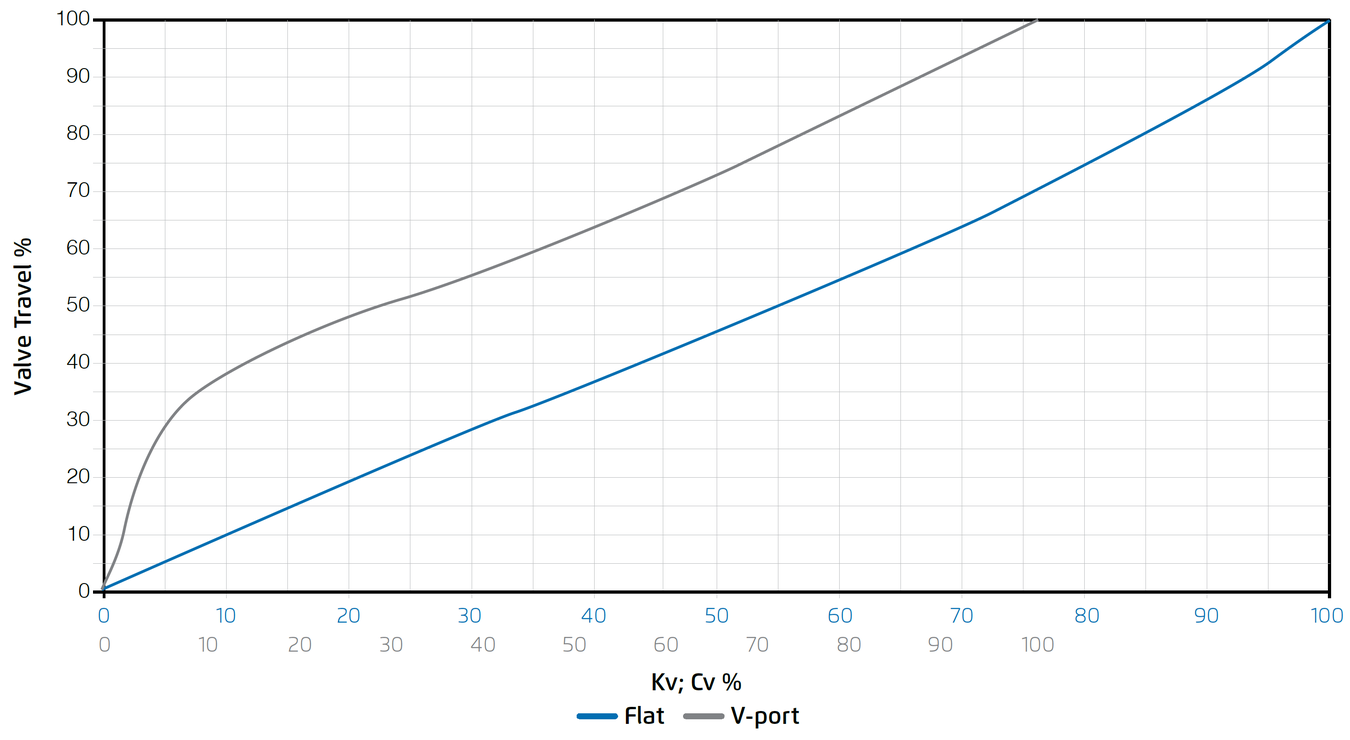

Valve Plugs Characteristics
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
