Brand: | Zurn Wilkins Deeco |
Category: | Backflow Prevention, Pipestand Assembly |
Size Range: | 20-50mm |
Connection: | Threaded Female BSPT |
Product Description
Deeco proudly introduces its new range of Meter and Backflow Prevention Upstand Assemblies, designed to deliver exceptional performance and simplify installations.
Built with premium stainless steel tubing and elbows, these assemblies incorporate the reliable Sensus 620 'C' CLASS inline meter or the Meistream Plus (50mm), paired with either the Zurn Wilkins 375 PRZ or the Zurn Wilkins 350 Testable Double Check.
Featuring EURO-PRESS connections and threaded end connections, our assemblies are engineered for seamless integration into existing lines. This turnkey solution streamlines installation, leaving contractors the flexibility to pair it with their preferred above-ground box or cage style.
Choose Deeco for a smarter, more efficient approach to meter and backflow prevention solutions.
Available from 20mm to 50mm
- The Overall height of the upstand is such that it allows the 300mm above-ground requirement for an RPZ, leaving up to 425mm below to meet the existing pipes.
- Each tubing joint is threaded and sealed, and the final assembly is pressure-tested for water tightness before being dispatched.
Custom Assemblies are available on request.
Pipestands Assembly - Zurn Wilkins 350LXL Backflow Preventer
The 350 Backflow Prevention Assembly is a trusted solution for backflow protection in residential, commercial, and industrial applications. Equipped with the Zurn Wilkins 350 Testable Double Check Valve, this assembly provides peace of mind with robust, reliable performance.

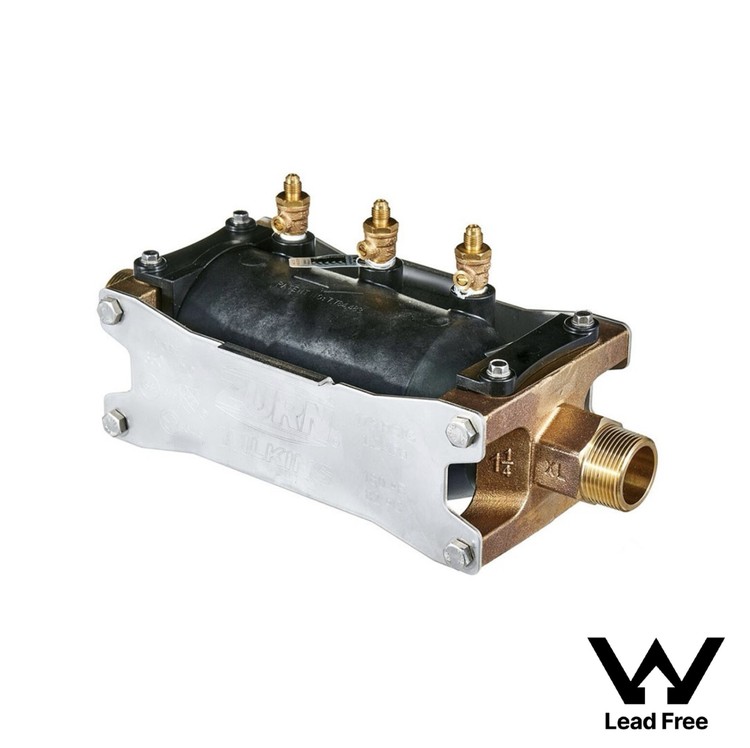

Zurn Wilkins 350LXL - Dual Check - Medium Hazard Backflow Preventer
Connection - Europress
The Europress stainless steel press-fit piping system is an innovative piping system that offers fast and easy installation. Whilst it doesn’t replace welded systems, it offers an efficient alternative system for general services such as hot and cold water reticulation and more.
Key benefits of Europress include:
- Quick Installation – Being a modular system, Europress press-fit is up to 10 times faster to install than conventional piping systems, which can result in project savings of up to 30%.
- Simple Installation – Europress can be installed by competent pipeline installers, increasing productivity and efficiency in your installation team.
- Reduce Downtime – Europress joins can be pressed wet or dry, meaning there is no need to drain the pipework to make alterations completely. This, combined with fast installation, can reduce plant downtime by up to 50%.
- Reliability – Europress pressing tools have pre-set torque settings and safety features to ensure each pressed connection is consistent, leaving no uncertainty of joint integrity.
- Trust – Europress is a reputable European manufactured product that has been successfully used throughout Europe for over 20 years.
- Safety – no naked flames, no hot work permits, no gas bottles, no fire hazards, and no heavy installation equipment makes Europress comply with Health and safety regulations.
Technical Specifications

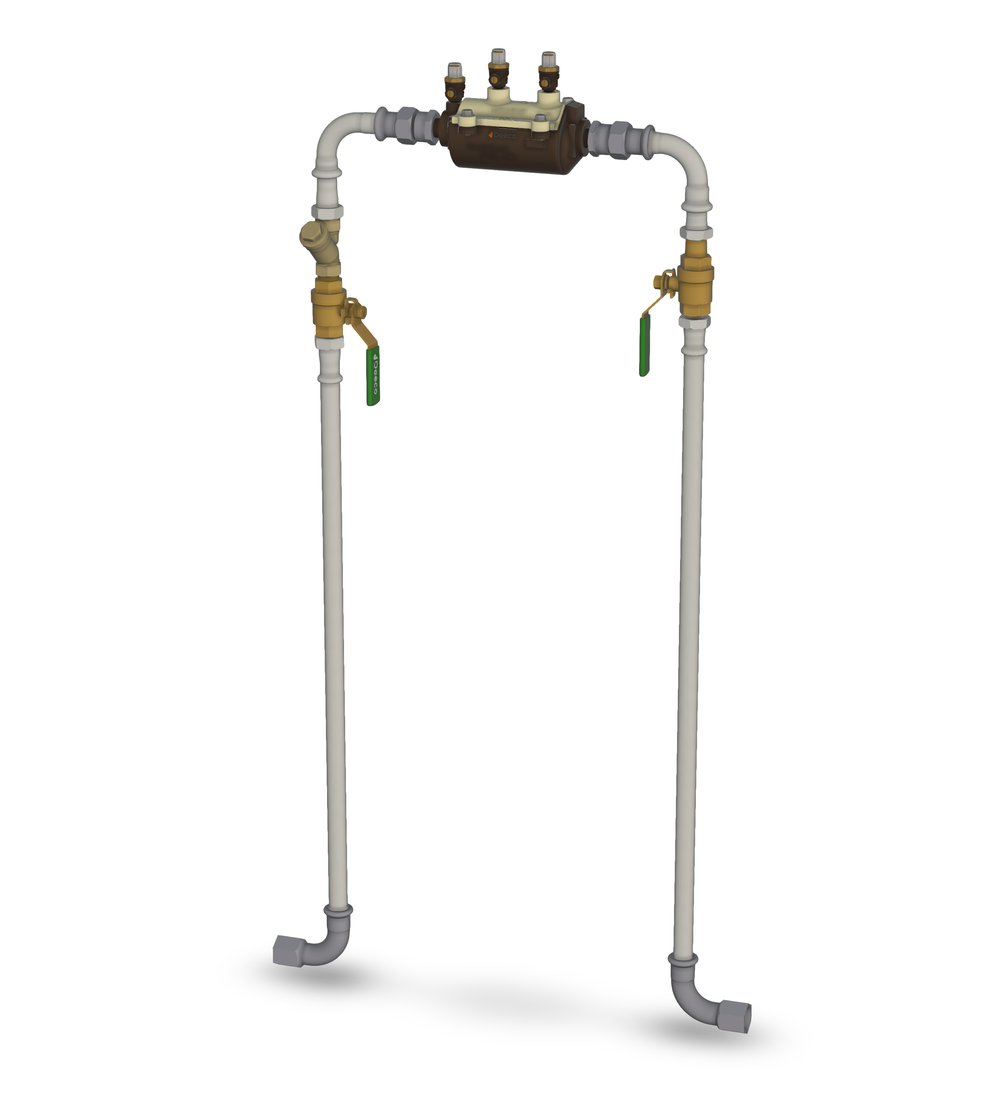

Configuration example:
Product Code: 350.020.PS.EP
Size: 20mm
Backflow Preventer: Zurn Wilkins 375 LXL - 20mm
Water Meter: No Water Meter
Connection: EuroPress
End-Connection: Threaded Female BSPT
Deeco Pipestand Assembly - 350.020.PS.EP
3D - Pipestand Assembly - 350.50.PS.EP

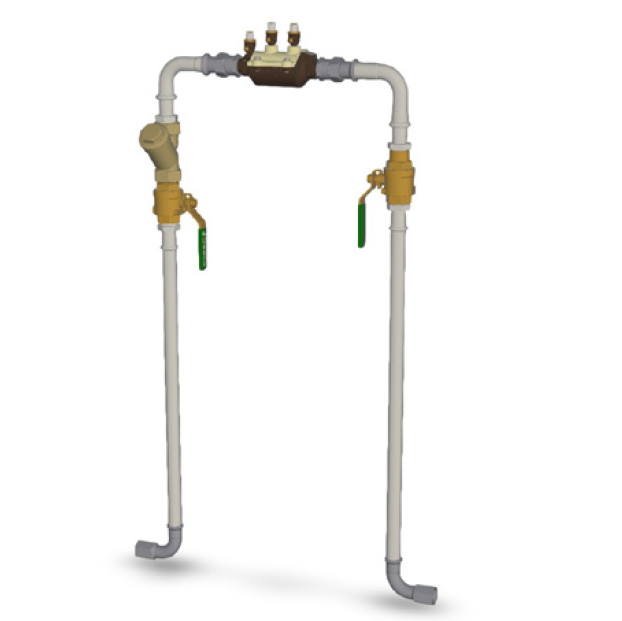

3D - Pipestand Assembly - 350.20.PS.EP

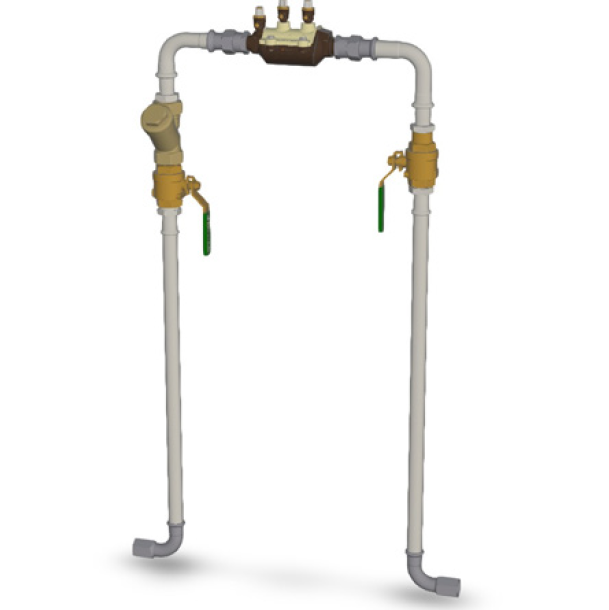

3D - Pipestand Assembly - 350.25.PS.EP
3D - Pipestand Assembly - 350.32.PS.EP

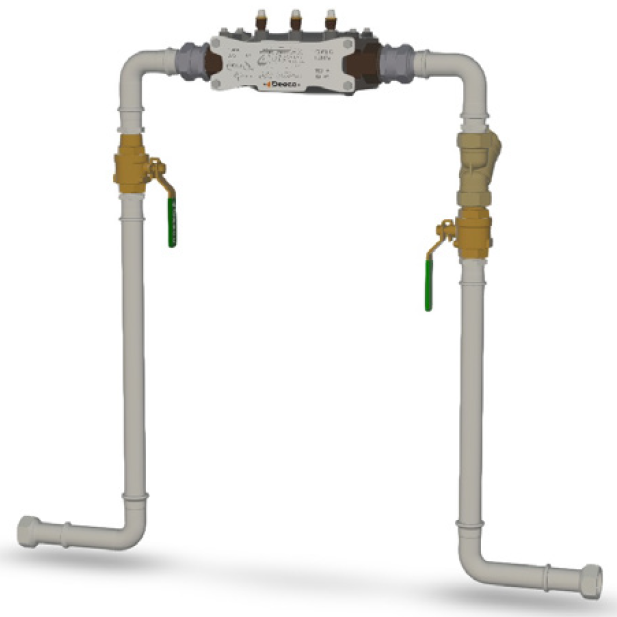

3D - Pipestand Assembly - 350.40.PS.EP
2D - Pipestand Assembly - 350.40.PS.EP
2D - Pipestand Assembly - 350.50.PS.EP
Dimensional Drawing - Pipestand Assembly - 350.20.PS.EP
2D - Pipestand Assembly - 350.25.PS.EP
2D - Pipestand Assembly - 350.32.PS.EP
Ordering Guide
For more configuration options - or custom assemblies - Please contact our engineers.
Deeco Pipe Stand Assembly - Zurn Wilkins 350LXL Series
Assembly c/w unions, isolating valves, Y Strainer
Product Code | Size | Description |
---|---|---|
350.20.PS.EP | 20mm | Pipe Stand Assembly - Zurn Wilkins 350LXL Backflow Preventer - EUROPRESS. BSP Female. |
350.25.PS.EP | 25mm | Pipe Stand Assembly - Zurn Wilkins 350LXL Backflow Preventer - EUROPRESS. BSP Female. |
350.32.PS.EP | 32mm | Pipe Stand Assembly - Zurn Wilkins 350LXL Backflow Preventer - EUROPRESS. BSP Female. |
350.40.PS.EP | 40mm | Pipe Stand Assembly - Zurn Wilkins 350LXL Backflow Preventer - EUROPRESS. BSP Female. |
350.50.PS.EP | 50mm | Pipe Stand Assembly - Zurn Wilkins 350LXL Backflow Preventer - EUROPRESS. BSP Female. |
To download CAD models from our website:
1 - Click on the SHOW BUTTON of the model you want to download.
2 - Click on the Download Button
Note: If the download button is not visible - the model is not available for download. If you want to access the file, please get in touch with our engineers.
The preview ToolBox Bar is divided into two sections.
Section 1 is the View and Model orientation
Section 2 is the ToolBox Bar with the following functions
To use any of these functions, Simply click and select the function you want to use and click Clic&Drag on the model.
Mouse scroll = Zoom IN / OUT
1 - Orbit
2 - Pan
3 - Zoom
4 - First Person View
5 - Camera Interactions
6 - Markup
7 - Hide Markups
8 - Measure
9 - Section Analysis
10 - Document Browser
11 - Explode Model
12 - Model Browser
13 - Properties
14 - Settings
15 - Print
16 - Full Screen
