Pipestands Assembly - Zurn Wilkins 350LXL & Sensus iPerl Water Meter

Deeco proudly introduces its new range of Meter and Backflow Prevention Upstand Assemblies, designed to deliver exceptional performance and simplify installations.

Built with premium stainless steel tubing and elbows, these assemblies incorporate the reliable Sensus 620 'C' CLASS inline meter, Sensus iPerl RF water meter, or the Meistream Plus (50mm), paired with either the Zurn Wilkins 375 PRZ or the Zurn Wilkins 350 Testable Double Check.

Featuring EURO-PRESS connections and threaded end connections, our assemblies are engineered for seamless integration into existing lines. This turnkey solution streamlines installation, leaving contractors the flexibility to pair it with their preferred above-ground box or cage style.

Choose Deeco for a smarter, more efficient approach to meter and backflow prevention solutions.

Available from 20mm to 50mm

• The Overall height of the upstand is such that it allows the 300mm above-ground requirement for an RPZ, leaving up to 425mm below to meet the existing pipes.
• Each tubing joint is threaded and sealed, and the final assembly is pressure-tested for water tightness before being dispatched.

Custom Assemblies are available on request.

Pipestands Assembly - Zurn Wilkins 350LXL Backflow Preventer & Sensus iPerl Water Meter

Featuring the Zurn Wilkins 350 Testable Double Check Valve and the innovative Sensus iPerl water meter, this assembly delivers robust backflow prevention and accurate water usage monitoring. The 50mm version uses a 40mm iPerl meter with 50mm flanges to fit larger installations. With stainless steel tubing and EURO-PRESS connections, it offers durability and ease of installation.

Available in sizes: 20mm, 25mm, 32mm, 40mm, and 50mm.

Backflow Preventer

Zurn Wilkins 350LXL - Dual Check - Medium Hazard Backflow Preventer

Learn more about Zurn Wilkins 350LXL

Water Meter

Learn more about Sensus iPerl Water Meter

Connection - Europress

The Europress stainless steel press-fit piping system is an innovative piping system that offers fast and easy installation. Whilst it doesn’t replace welded systems, it offers an efficient alternative system for general services such as hot and cold water reticulation and more.

Key benefits of Europress include:

• Quick Installation – Being a modular system, Europress press-fit is up to 10 times faster to install than conventional piping systems, which can result in project savings of up to 30%.
• Simple Installation – Europress can be installed by competent pipeline installers, increasing productivity and efficiency in your installation team.
• Reduce Downtime – Europress joins can be pressed wet or dry, meaning there is no need to drain the pipework to make alterations completely. This, combined with fast installation, can reduce plant downtime by up to 50%.
• Reliability – Europress pressing tools have pre-set torque settings and safety features to ensure each pressed connection is consistent, leaving no uncertainty of joint integrity.
• Trust – Europress is a reputable European manufactured product that has been successfully used throughout Europe for over 20 years.
• Safety – no naked flames, no hot work permits, no gas bottles, no fire hazards, and no heavy installation equipment makes Europress comply with Health and safety regulations.

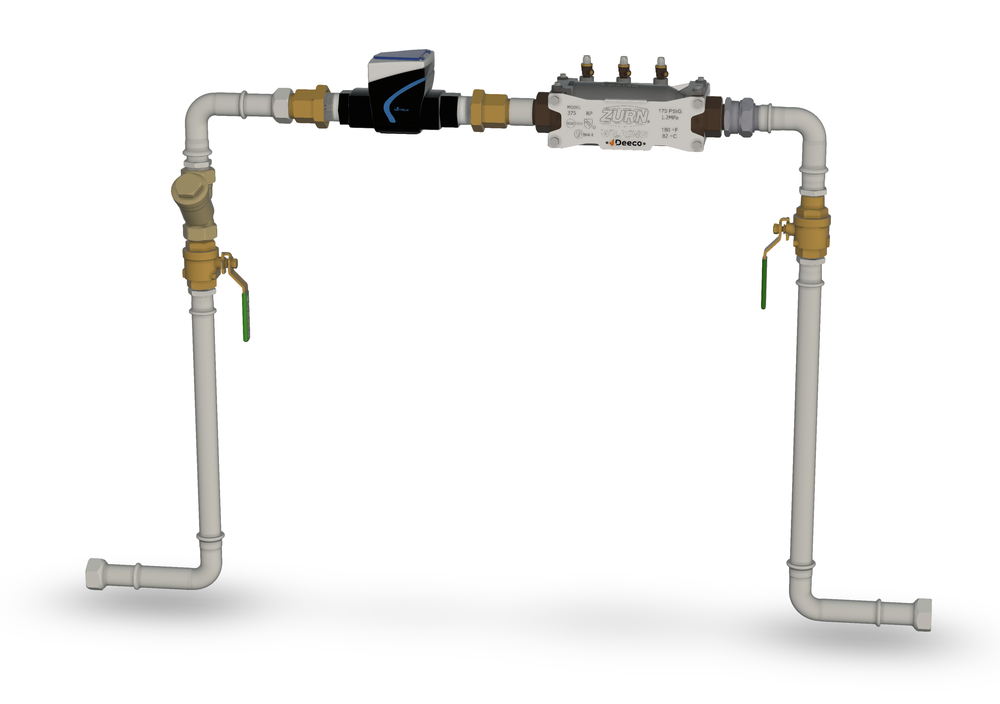

Configuration example:

Product Code: 350.IP.040.PS.EP

Size: 40mm

Backflow Preventer: Zurn Wilkins 350 LXL - 40mm

Water Meter: Sensus iPerl - 40mm

Connection: EuroPress

End-Connection: Threaded Female BSPT
