Data Logger App allows the collection of in-depth data from SensusRF water meters.

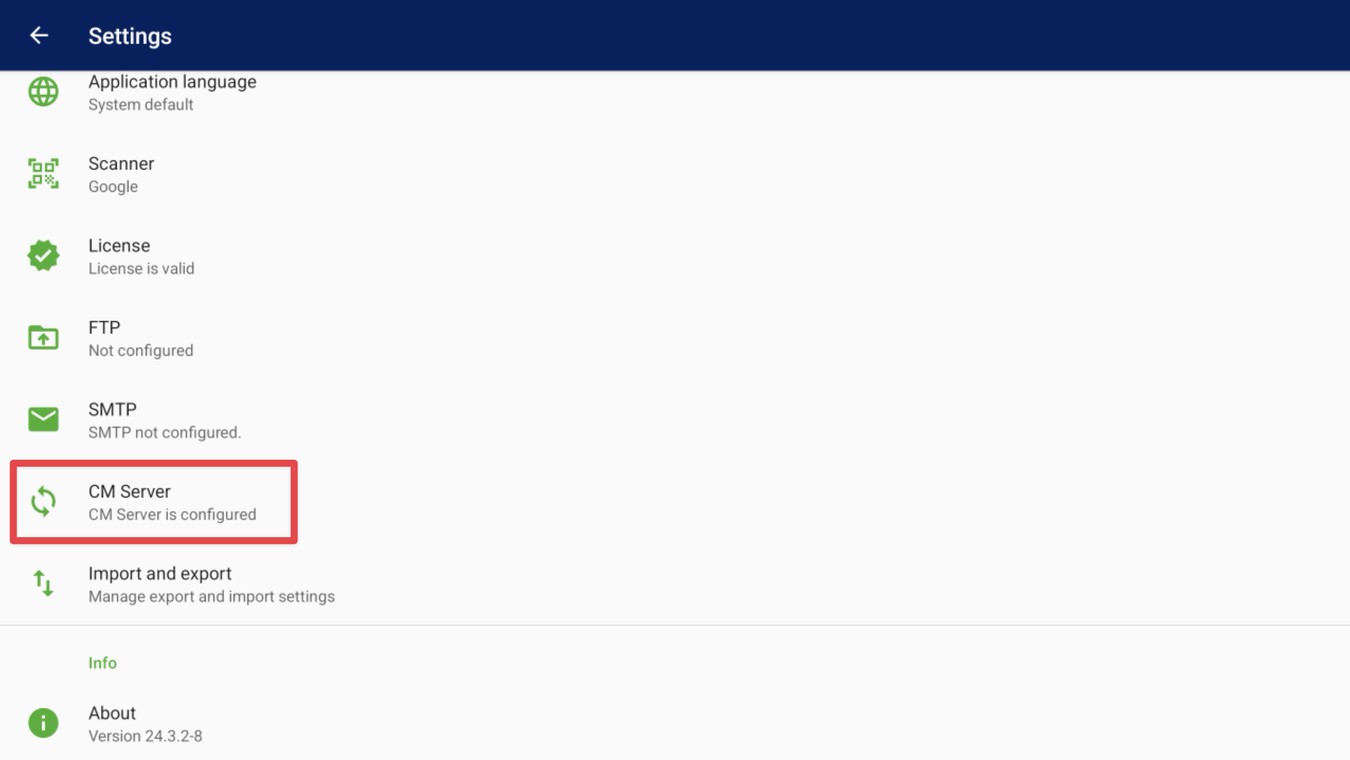

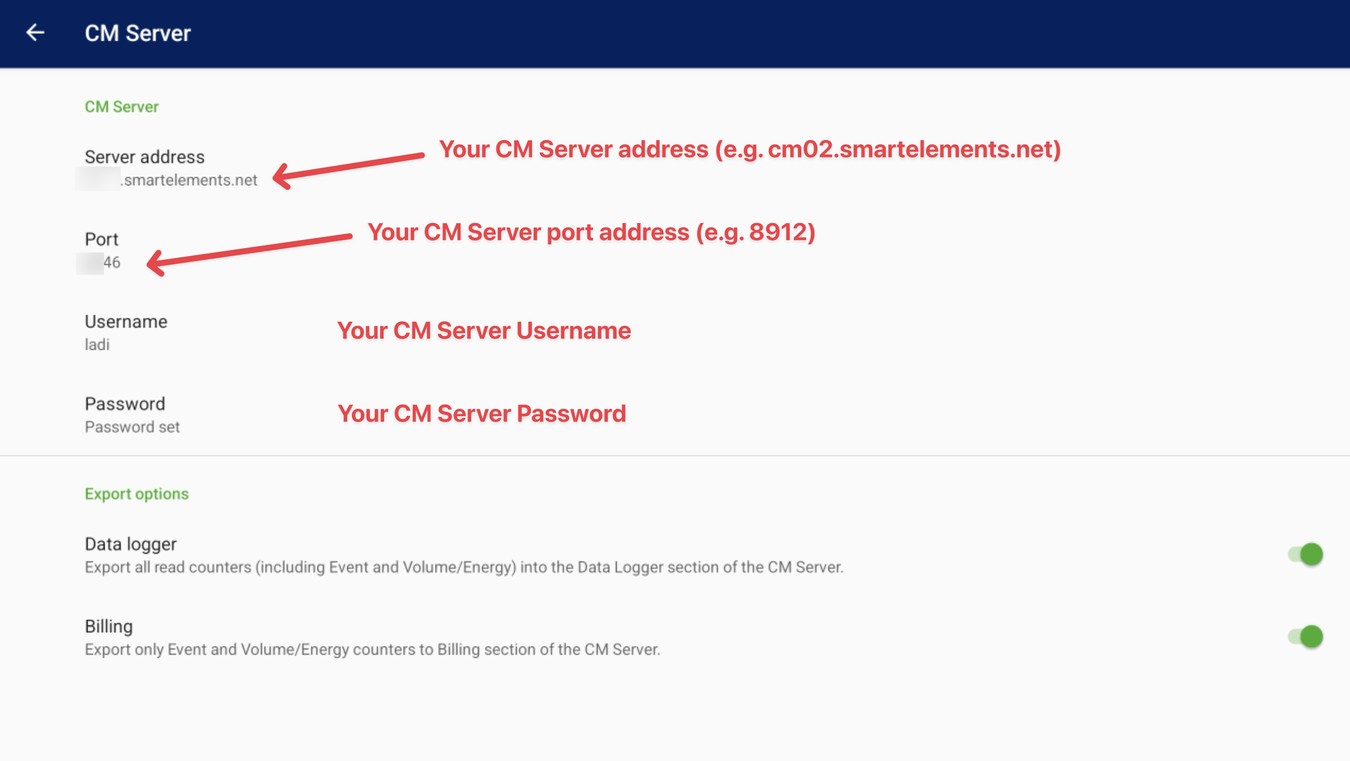

Step 1: Configure the CM Server

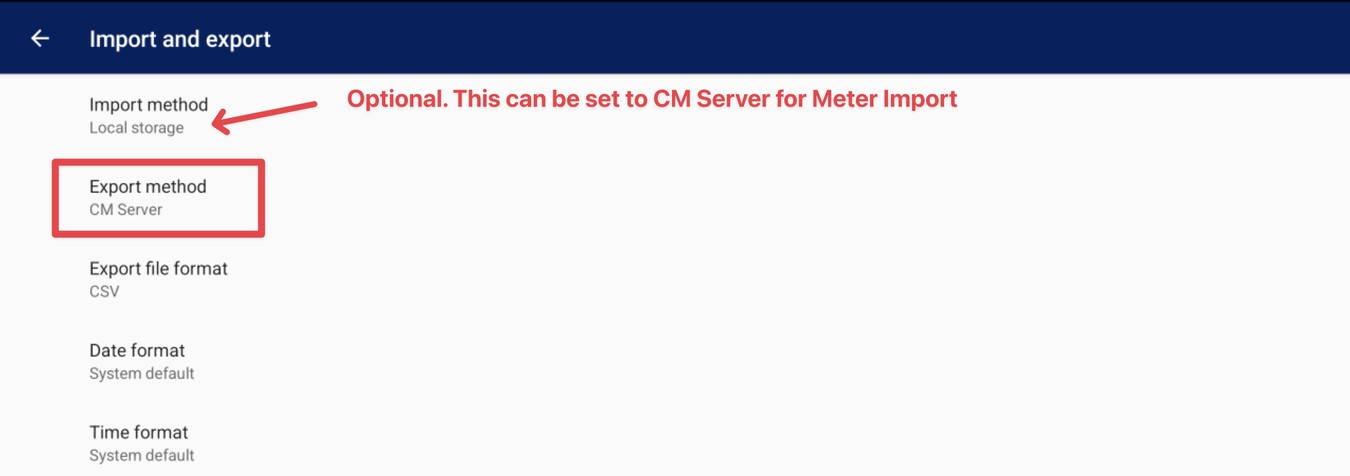

Step 2: Configure the Export & Import Method
Step 2: Add the Meter & Assign the Route
To allow data export to the CM Server, ensure the meter is included in an existing route and imported. Assign the meter to either a new or an existing route as required.

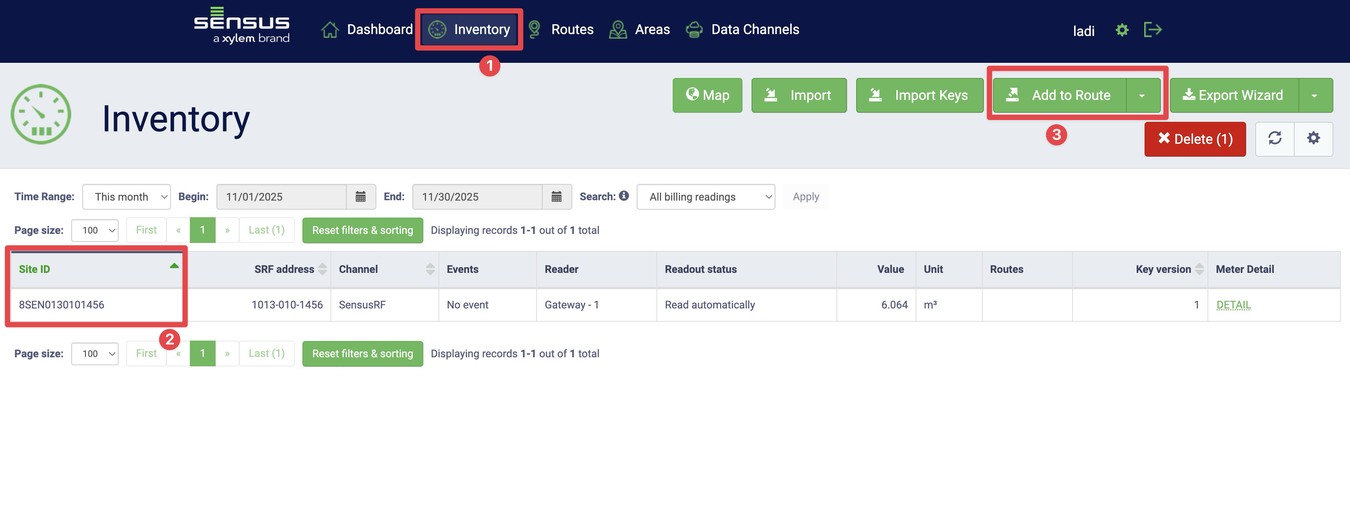

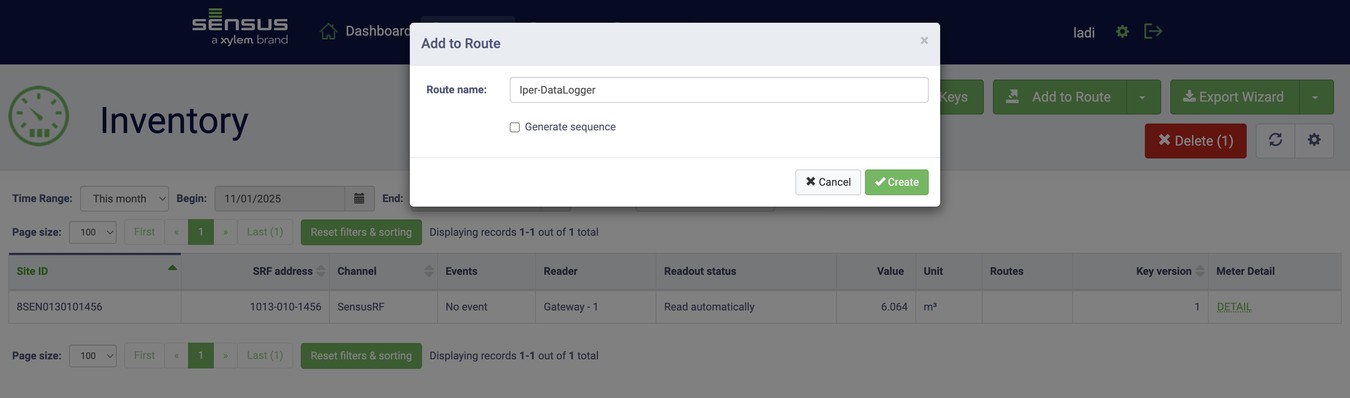

Meter can be added to a route either by Importing new CSV file - or if the meter is already in your inventory, by clicking on the 'Add to Route' button.
Pro Tip - Use the Site ID filter to show only the meter you want to add to the route. If you see multiple site IDs - you will add all of them.

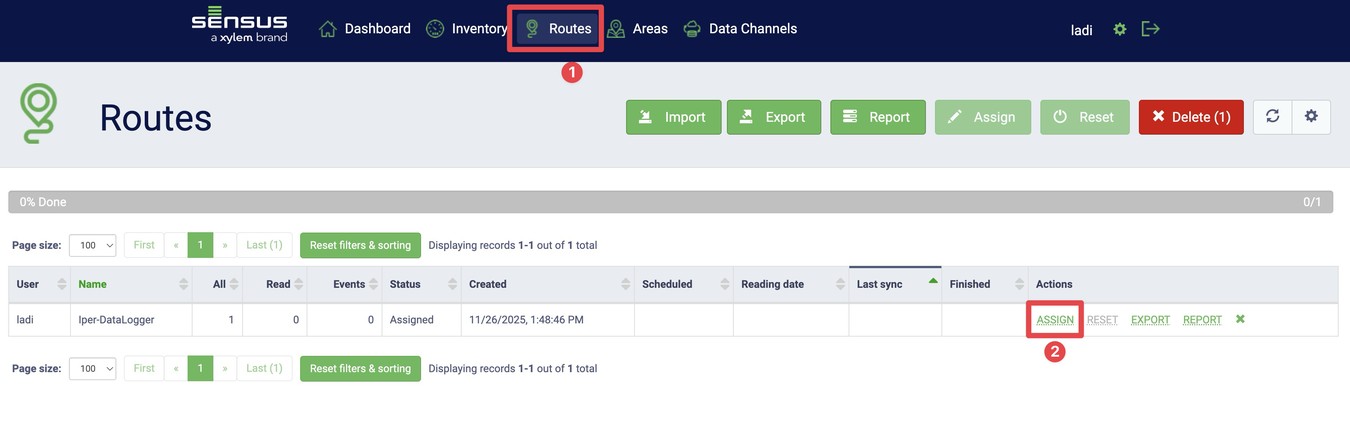

After you created new route - Asign it to the same username you've configured in Step 1
Step 3 - Import the meter to the Data Logger Application

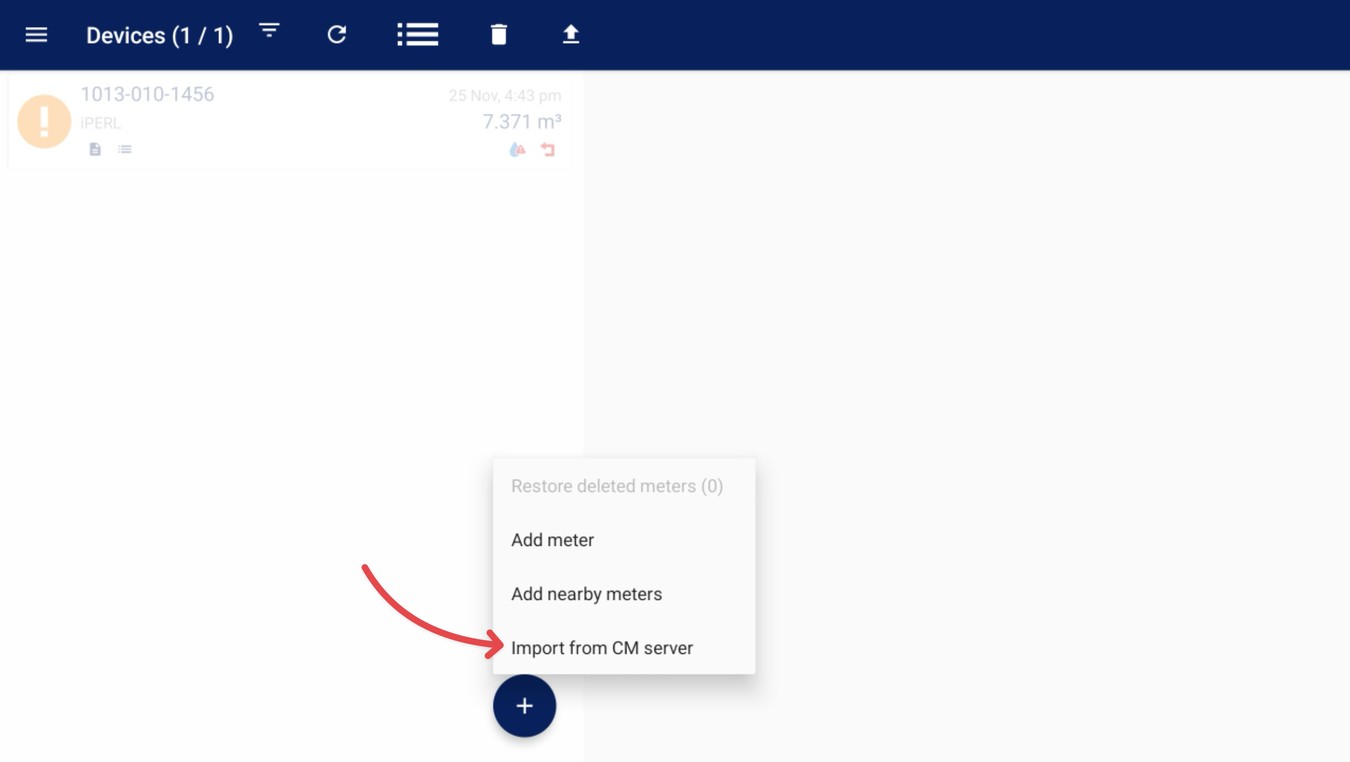

Open the Data Logger App, and click on the '+' sign. Select Import from CM
Note - this require internet connection.
Step 4: Download the Data Log File
For more details on how to download Data Log File - Follow the insturctions here.

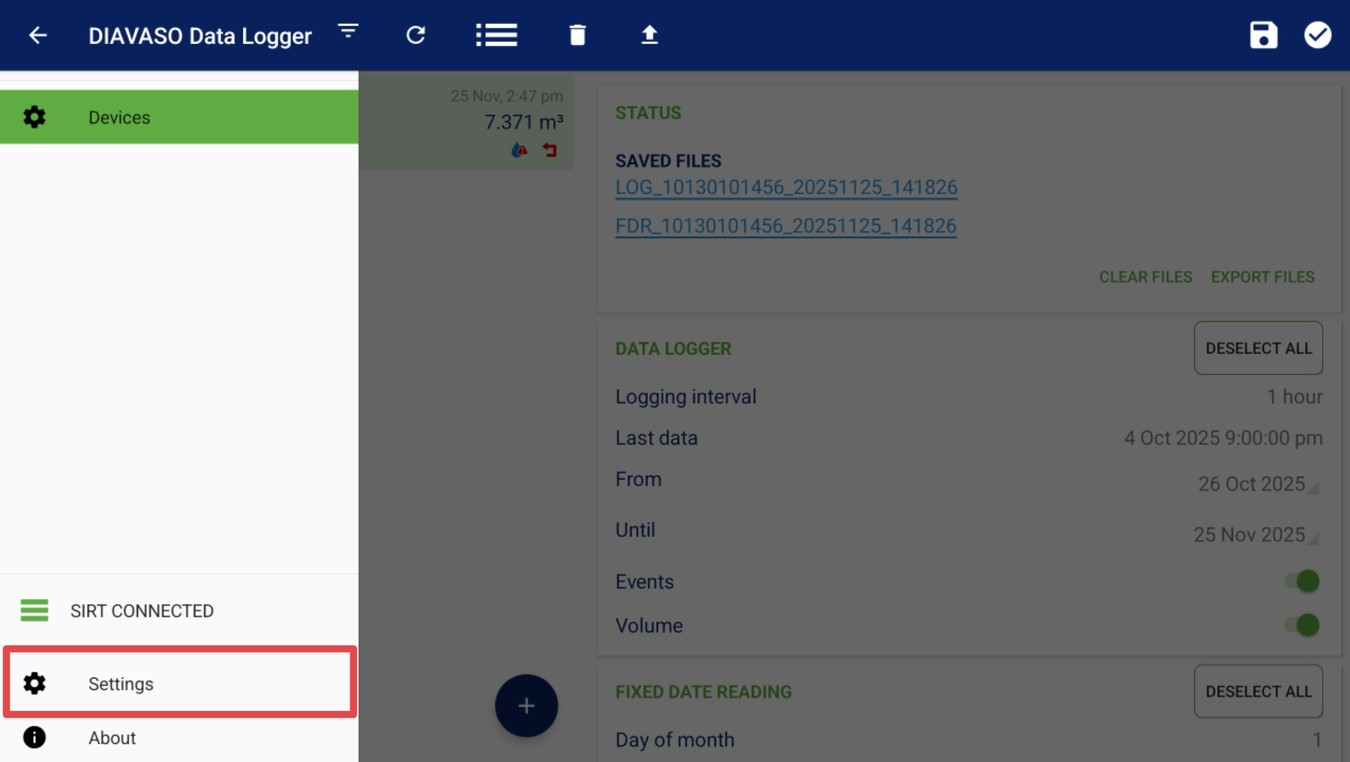

After the download, the files will be stored on the tablet as two separate files:
- LOG_ for the Data Logger file
- FDR_ for the Fixed Date Reading file
To export - Press Export File
Note: Internet connection is required

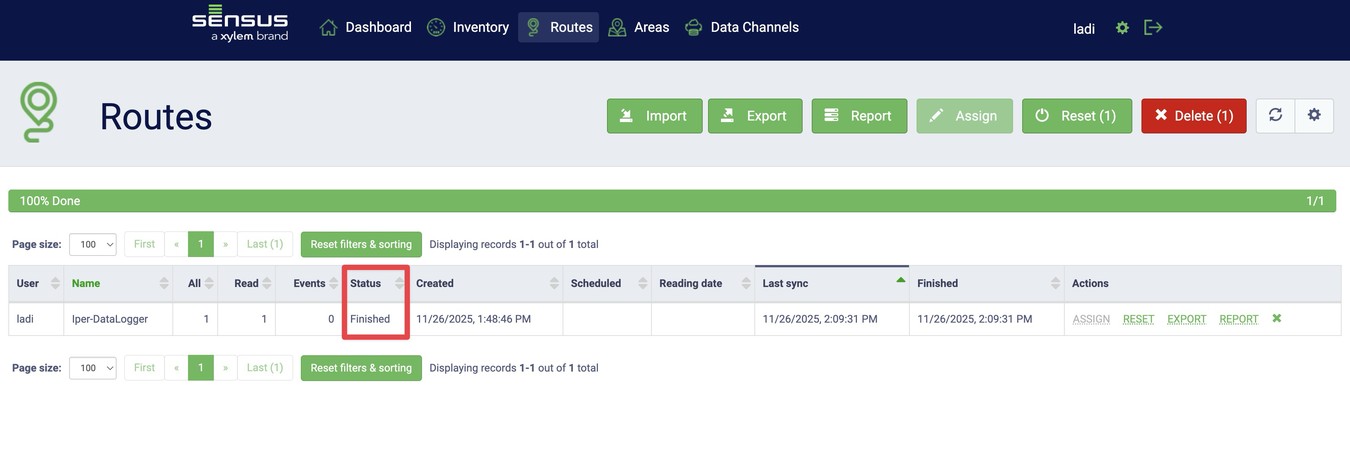

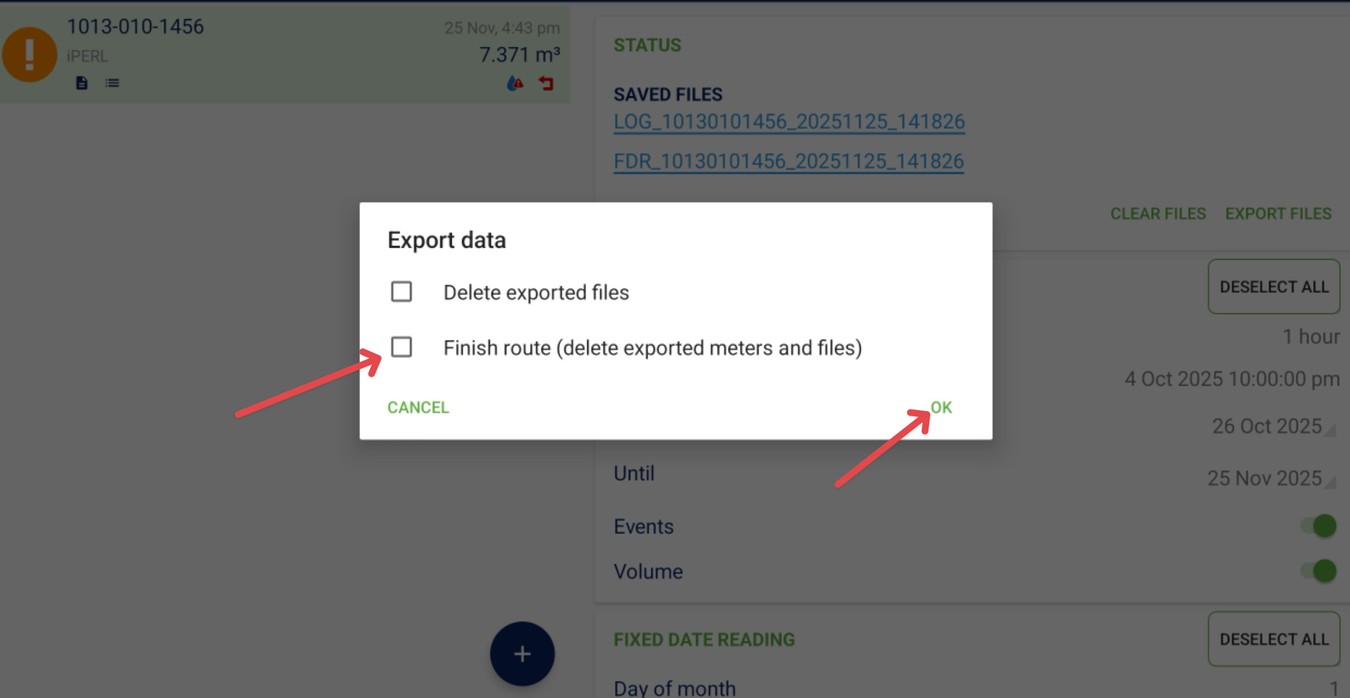

Optional - You can select the 'Finish Route' option to mark the route in your CM server as finished and delete the exported meters and files from your Data Logger Application.

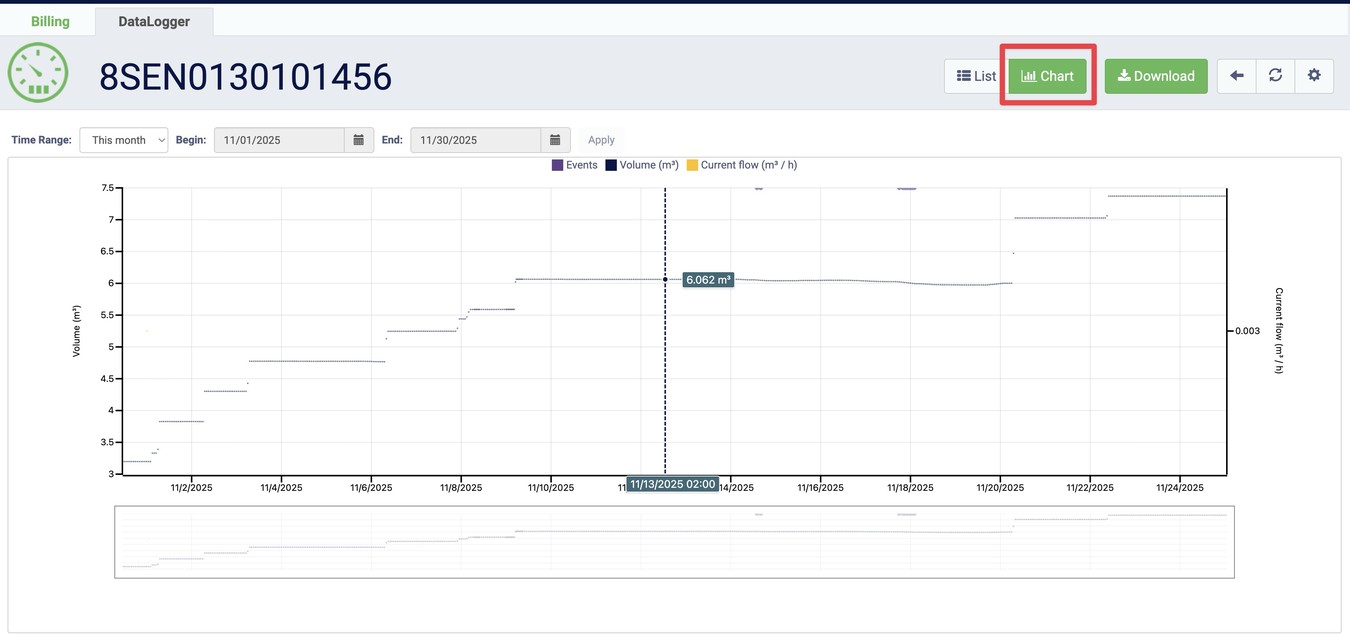

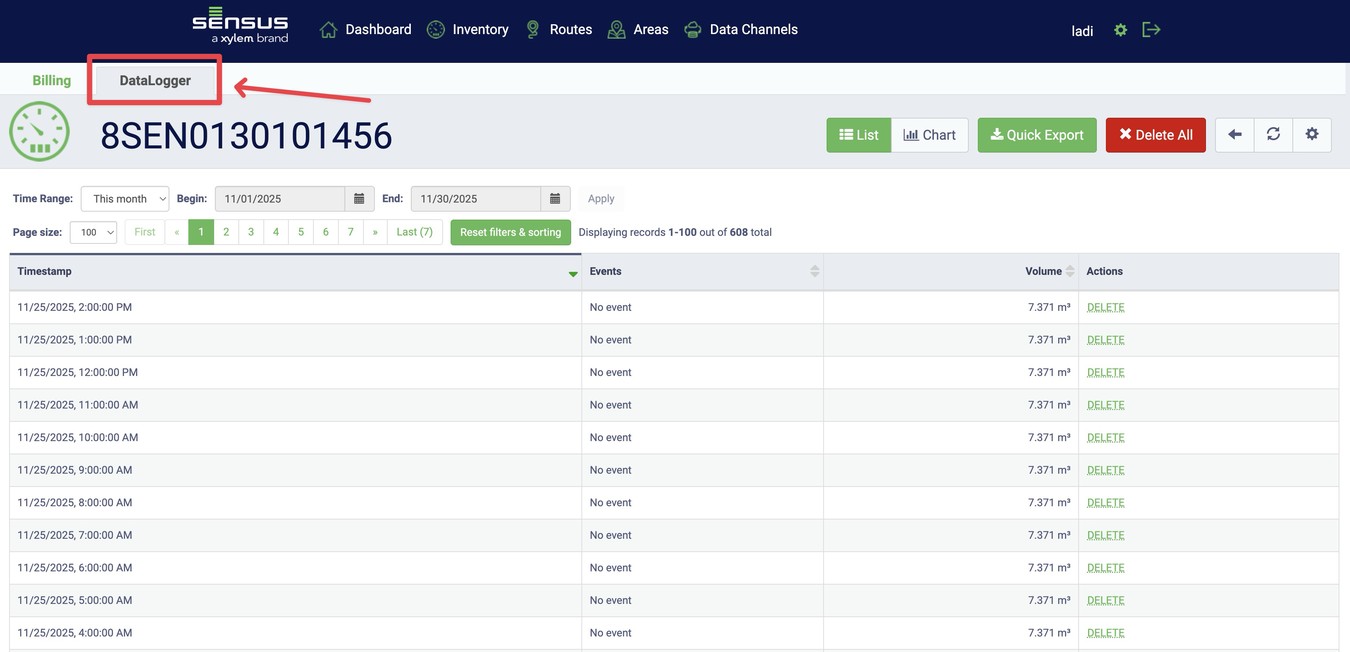

Important: Readings will be available under DATALOGGER Tab
