The purpose of the pulse divider unit is to enable controllers to read short or high-rate pulses at a scanning rate of once in a second or lower.
The unit expects to receive dry contact inputs, usually from devices such as water meters or fertilizer meters. It will count the pulses and emit a symmetric pulse per each "x" pulse counted, based on the selected setting.
A special case is when x equals 1, then for each pulse received at the input, there will be one pulse generated as output (not necessarily symmetric) whose width will be no less than 1 second. This way, even if the input pulse is narrow, the output pulse will be wide enough not to be missed by the controller. This pulse rate, in this case, cannot be higher than one pulse every 2 seconds.
Note: The minimum pulse is approximately 15 milli-second (33 pulses per second).

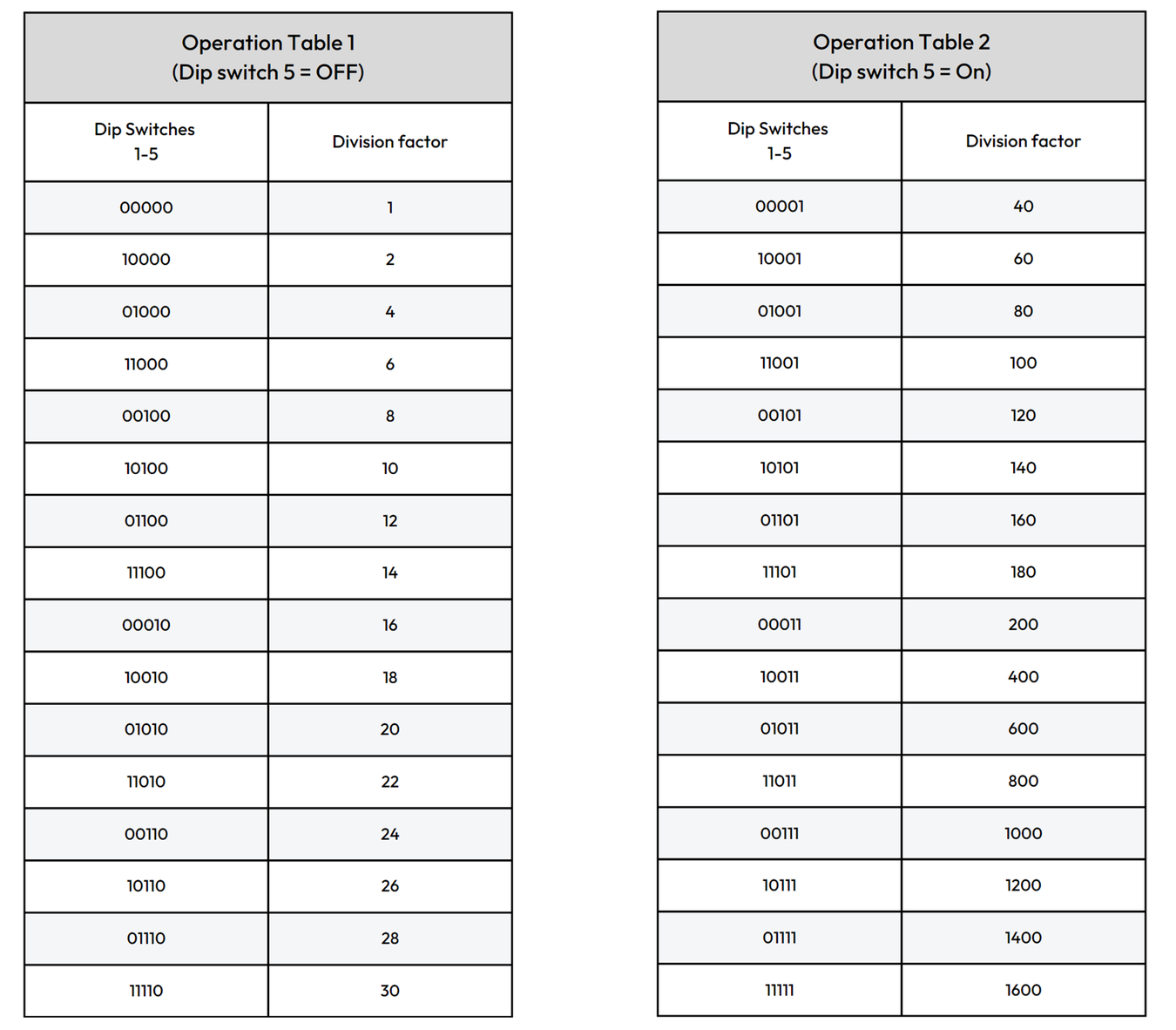

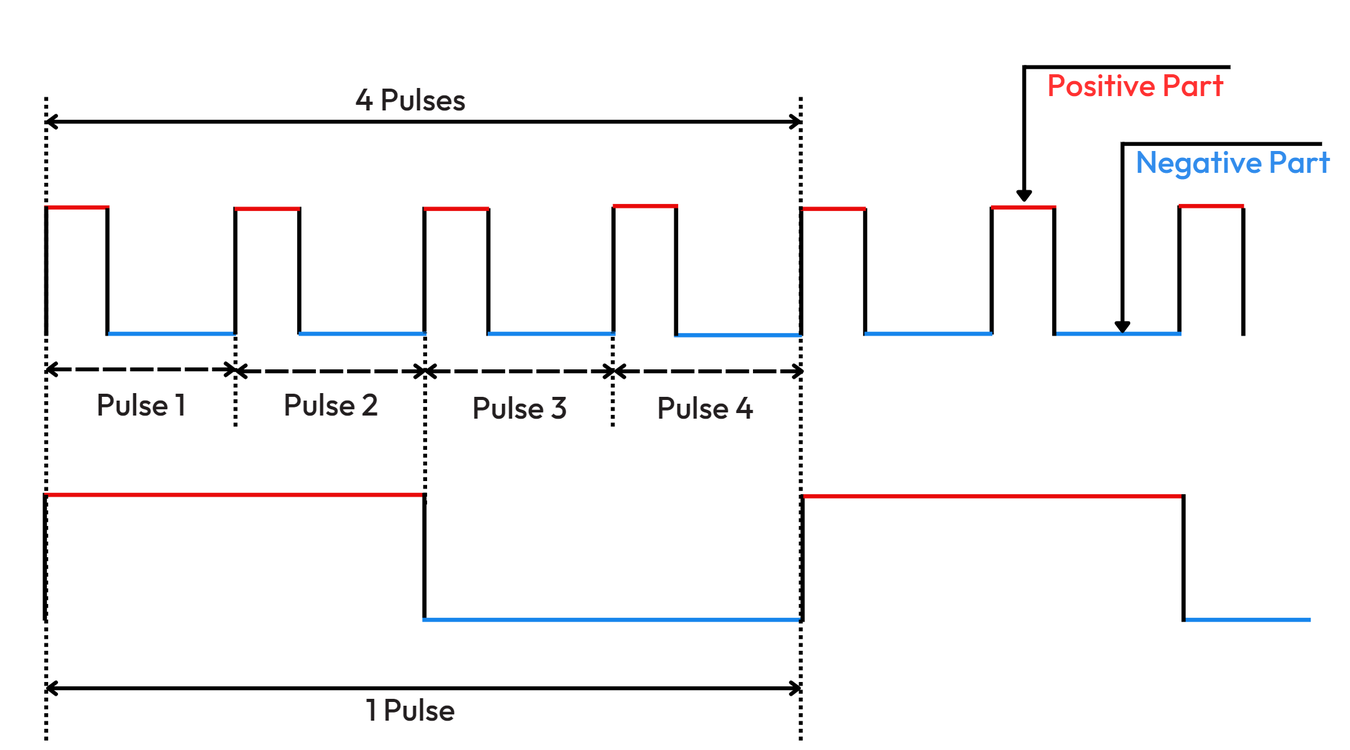

In the operation tables below, the division factor defines how many input pulses will be represented by each output pulse. Notice that a complete pulse consists of the positive and the negative parts of the pulse.
Example: Let's assume that Dip switch 5 = OFF (Table 1 is selected) and the Dip switches 1-4 are set to 0100 (division 4). Therefore, each 4 pulses at the input will cause 1 symmetric pulse to be emitted at the output. Notice that a complete pulse consists of both the positive and the negative parts.

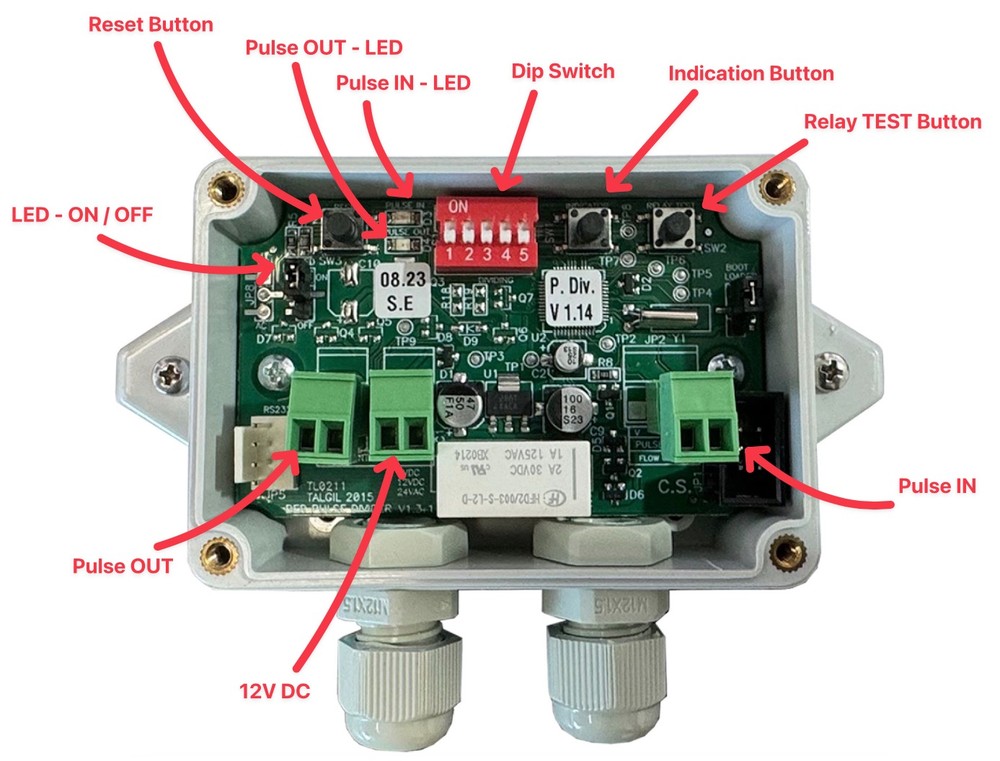

The Push Buttons
There are 3 push buttons with the following functions:
- Reset button - restarts software
- The indicator button changes the function of the indication LEDs (explained below)
- The test relay button turns the output relay ON and OFF repeatedly
LED Indicators
There are 2 LED indications, the RED LED represents the input and the GREEN LED represents the output.
The two LED behavior depends on the indicator button.
Regularly when the indicator buttons are not pushed, the Green LED blinks a short blink whenever a pulse is emitted at the output.
The RED LED will regularly remain off but it will blink a short blink when the rate of input pulses is too high, in this case, a higher division factor should be selected.
When the indicator button is pushed and held down, the LEDs show the actual status of the input and the output, a closed contact is indicated by LED = ON, and open contact is indicated by LED = OFF.
The Jumper
JP4 - when in the upper position, enables LED operation, and when in the lower position, disables the LED operation.
Energy
the unit can be powered either by 6VDC, 12VDC, or 24VAC. The current consumption is 15-60 μA with LEDS OFF, 2.8 mA with one LED ON, and 5.6 mA with 2 LEDs ON.
