| Brand: | Amiad / Arkal |
| Category: | Filtration, Automatic Filters - Screen |
| Optional Filtration Grades: | 50-500 micron |
| Size Range: | 50-100mm |
Product Description
The automatic Mini Sigma is a lightweight, reliable and durable screen filter for industrial water filtration, offering a compact, modular design for maximum installation flexibility.
The polymeric construction makes the Mini Sigma corrosion-free, and it is also available for seawater filtration applications (per request) and for various other industrial water treatment requirements. Equipped with Amiad’s suction-scanning cleaning technology, the Mini Sigma is low maintenance, easy to install and operate, and saves time and money. The Mini Sigma Series includes 3 models, all with automatic cleaning for uninterrupted flow and maximum water savings.
Features & Benefits
- Reliable and durable
- Amiad’s unique suction-scanner cleaning technology
- Modular design with various installation configurations
- Polymeric filter – corrosion free
- Low water and energy consumption
- Compact design and small footprint
- Easy installation and low maintenance
- Ideal for many landscape and agricultural irrigation applications
- Amiad’s innovative and user-friendly ADI-P electronic controller, operated by a mobile app for advanced monitoring capabilities.

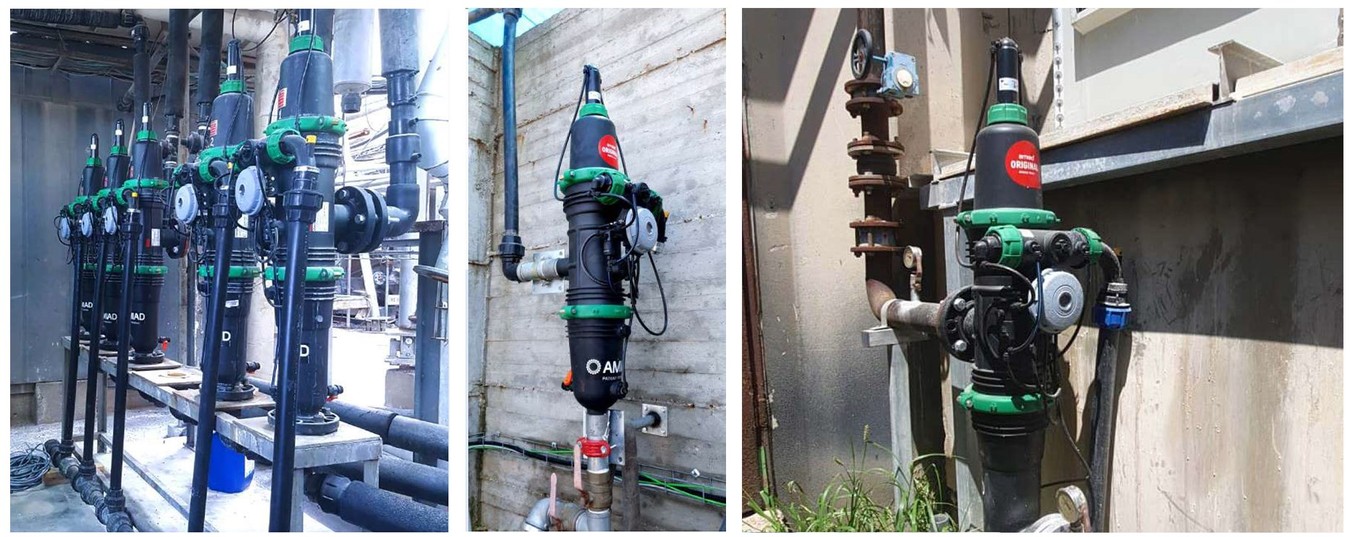

Amiad - Mini Sigma - Typical Installations
Additional Features & Accessories
The ADI-P Controller
The ADI-P Controller operates the automated processes that flush your Mini Sigma filters, allowing you to control and monitor them easily and conveniently.
The ADI-P App
Access your site’s filtration performance data directly from the ADI-P app.
Here are some of the data that you can access via the ADI-P app:
- Flush logs
- Flush frequency
- Current DP
- Current outlet and inlet pressure
- Flush quality - measuring DP on the filter before and after the flush cycle
- Malfunctions with descriptions of each event
- Battery status and low battery alerts

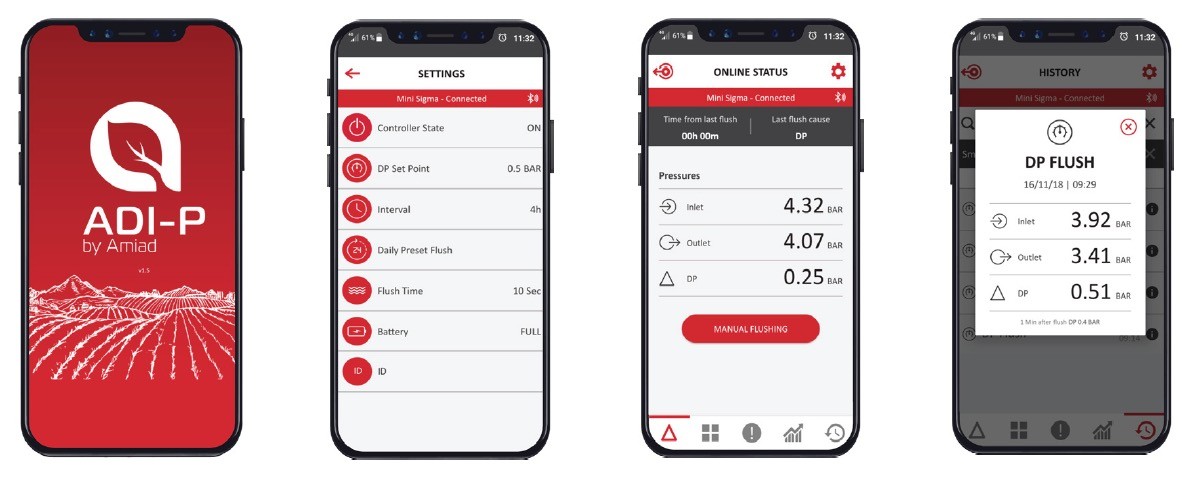

Amiad - Mini Sigma - ADI-P App
Technical Data

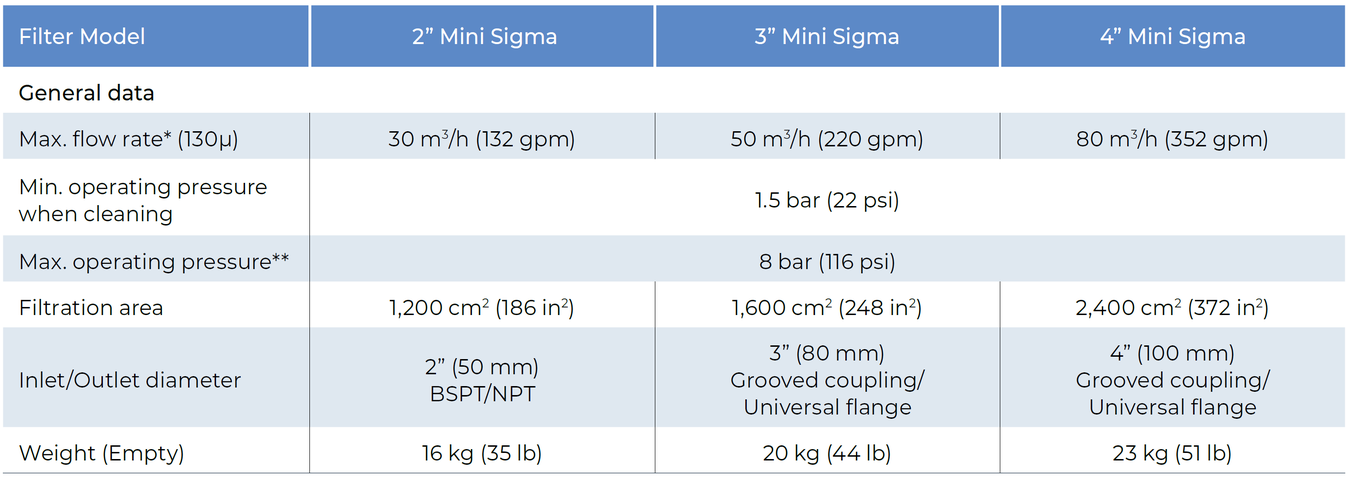

Amiad - Mini Sigma - General Data
* Amiad’s flow recommendation per water quality
** Maximum operating pressure and temperature are interdependent parameters and are given for general reference only. Please consult Deeco for the application-specific parameters.

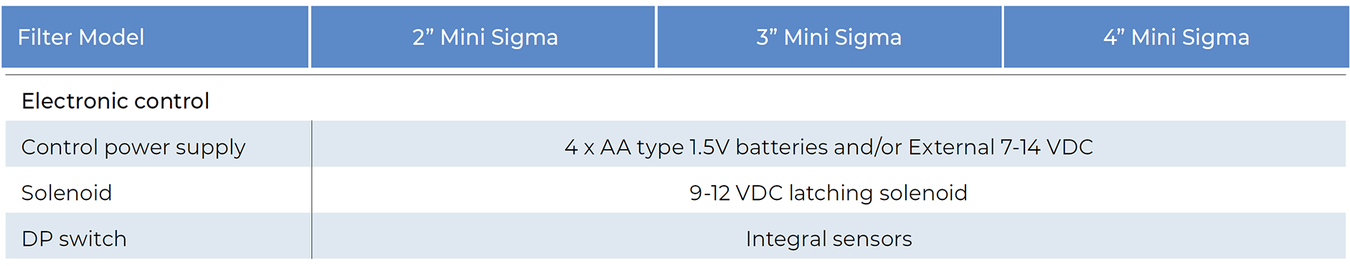

Electronic Control
* Also available for single-phase electric power with a transformer.

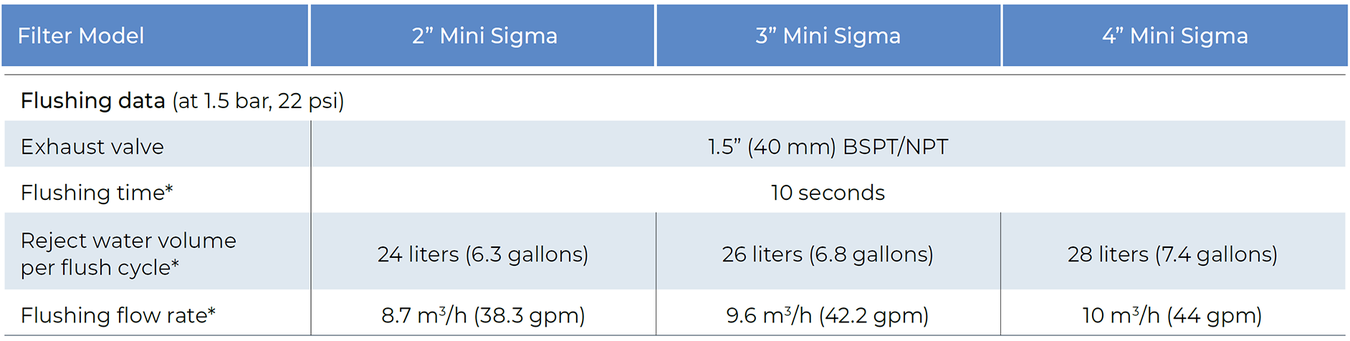

Flushing Data
* Any pressure between 1.5 bar (22 psi) and 8 bar (116 psi) will improve these parameters.

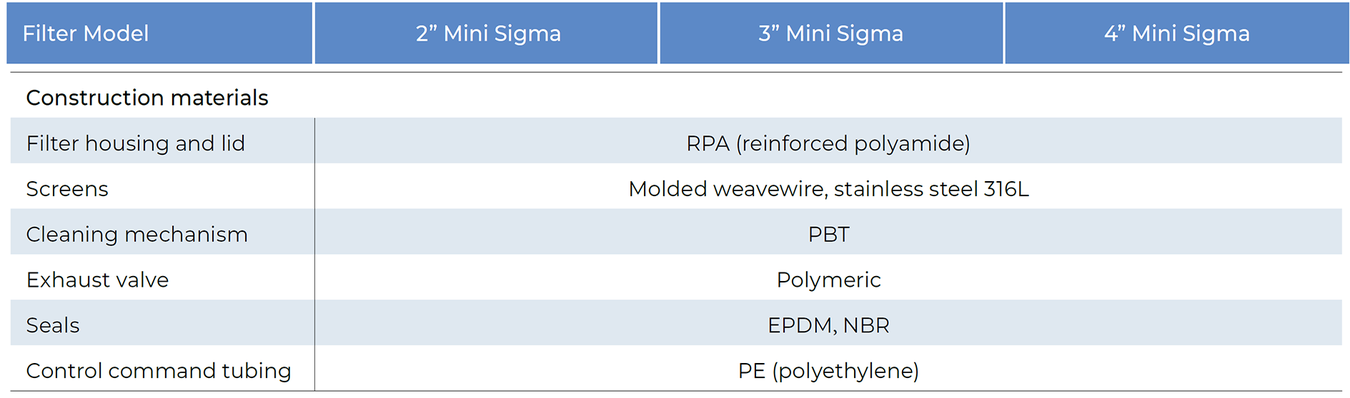

Construction Materials
The Mini Sigma is also available for seawater filtration applications. Please consult with Deeco.
Standard Filtration Degrees

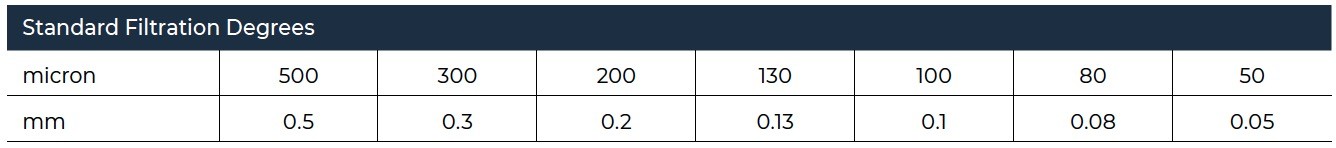

Amiad - Mini Sigma - Standard Filtration Degrees
Mini Sigma Models and Head Loss Graphs
50mm MINISIGMA | on-line

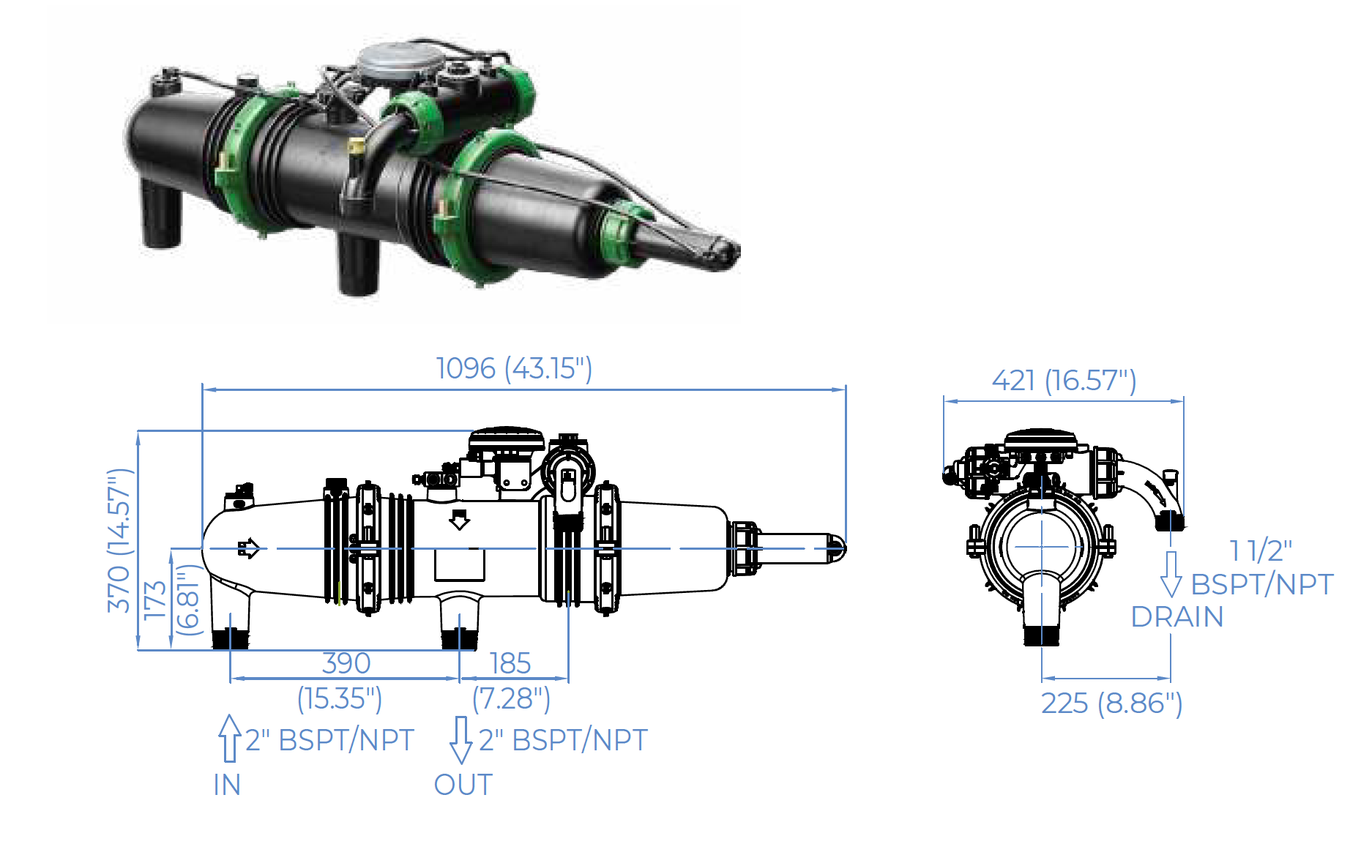

Amiad - Mini Sigma - 2 Inch-online
Head Loss Graph (in clean water)

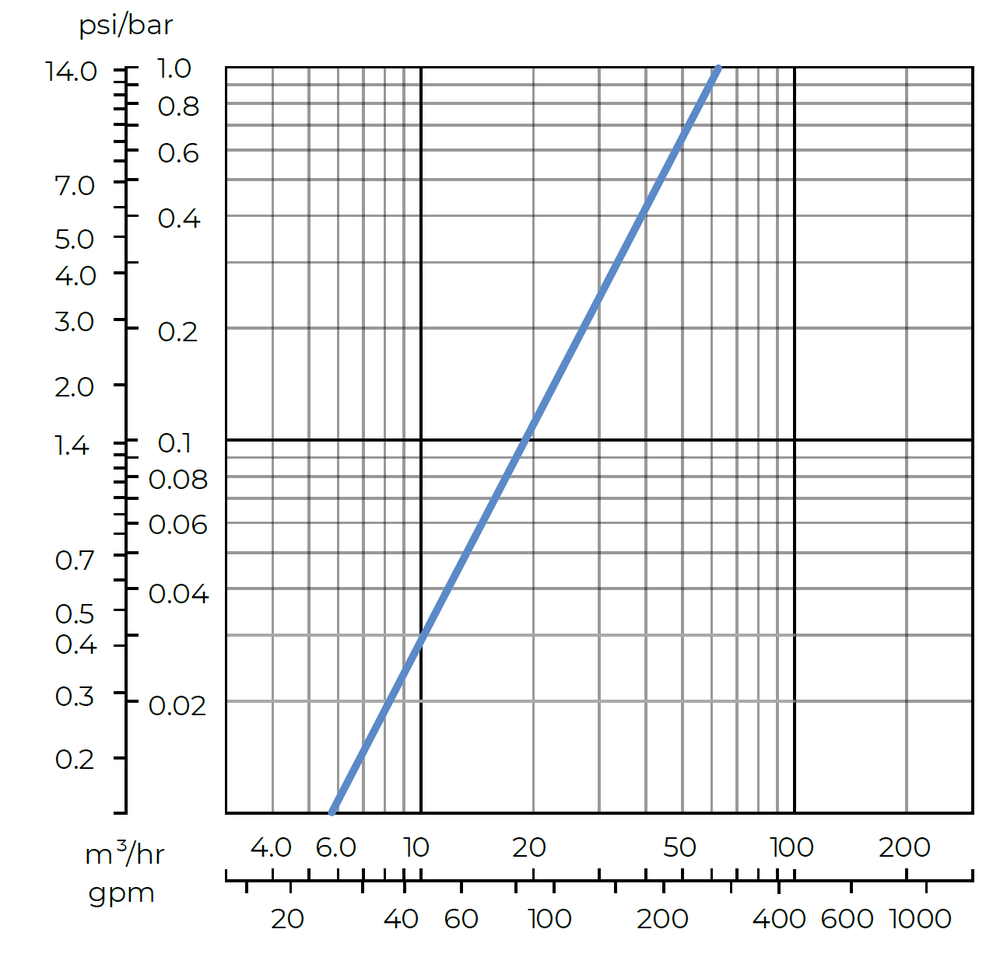

Amiad - Mini Sigma - 50mm-online - Head Loss Graph
50mm MINISIGMA | angle

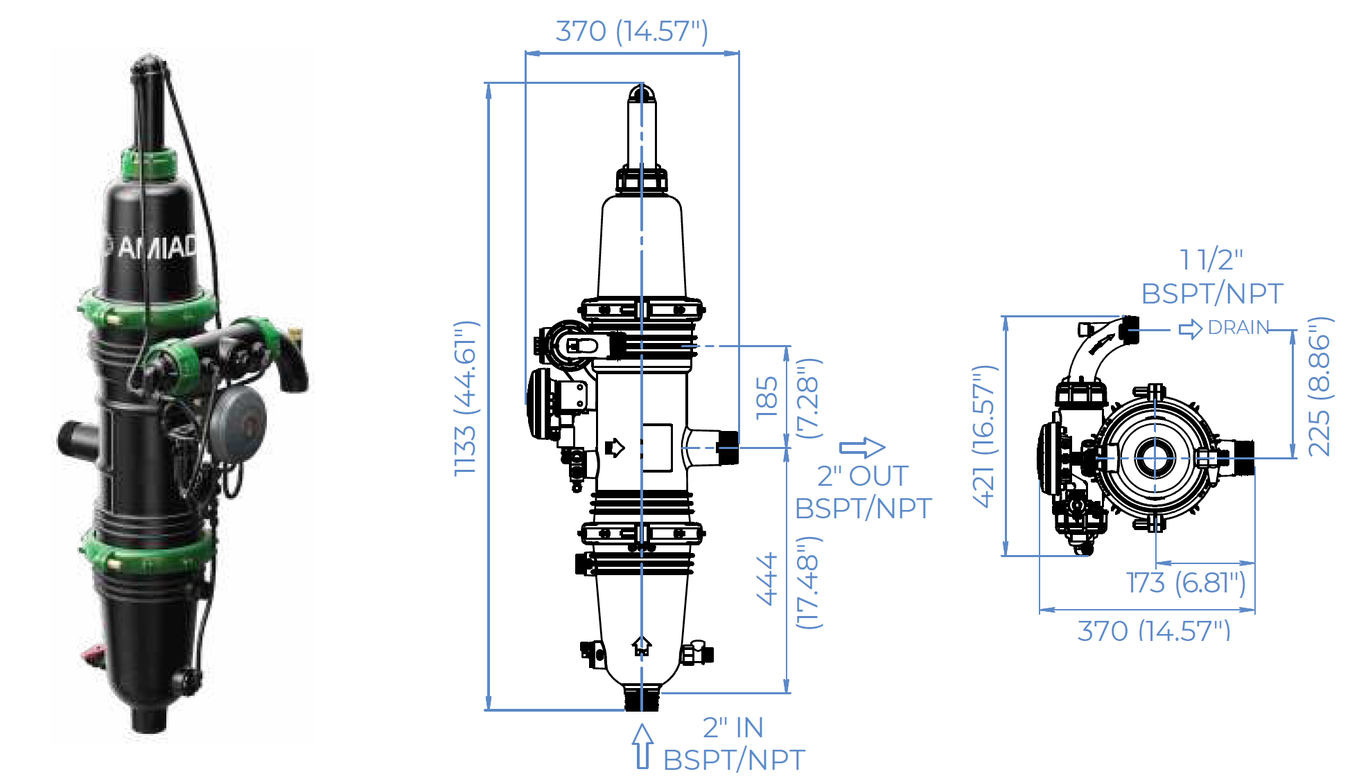

Amiad - Mini Sigma - 50mm-angle
Head Loss Graph (in clean water)

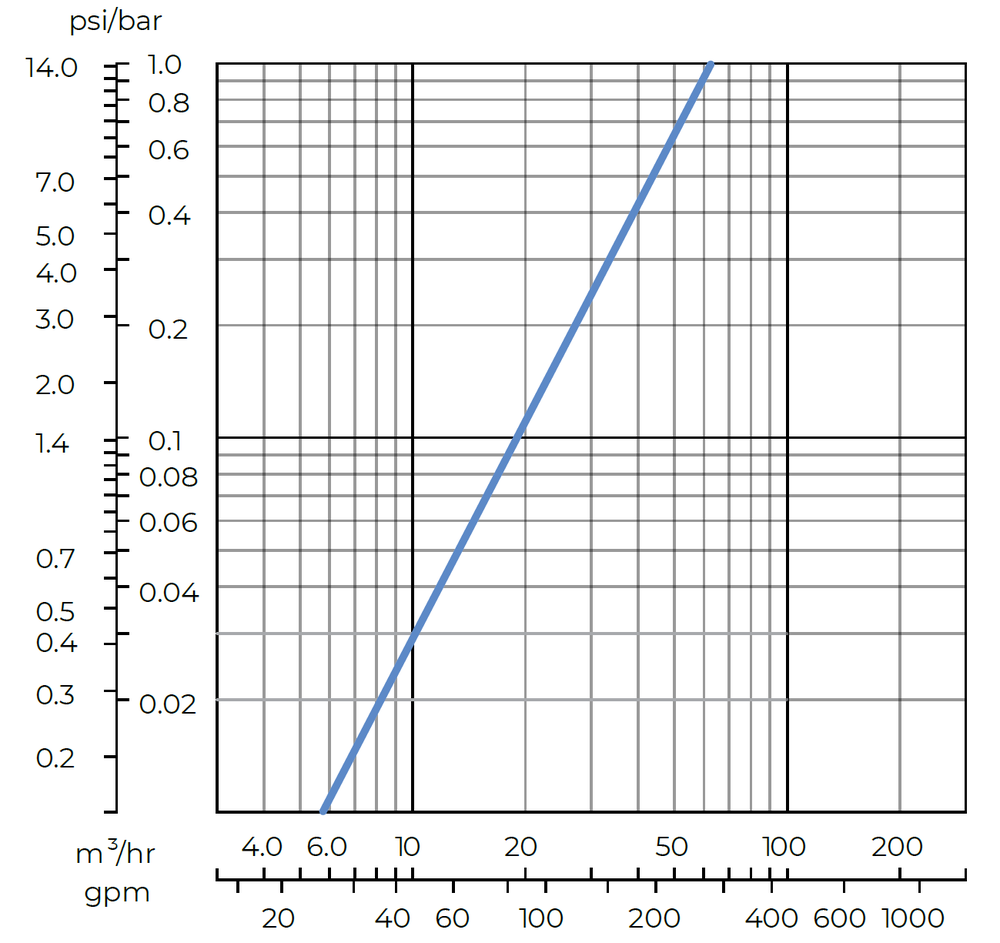

Amiad - Mini Sigma - 50mm-angle - Head Loss Graph
80mm MINISIGMA | on-line

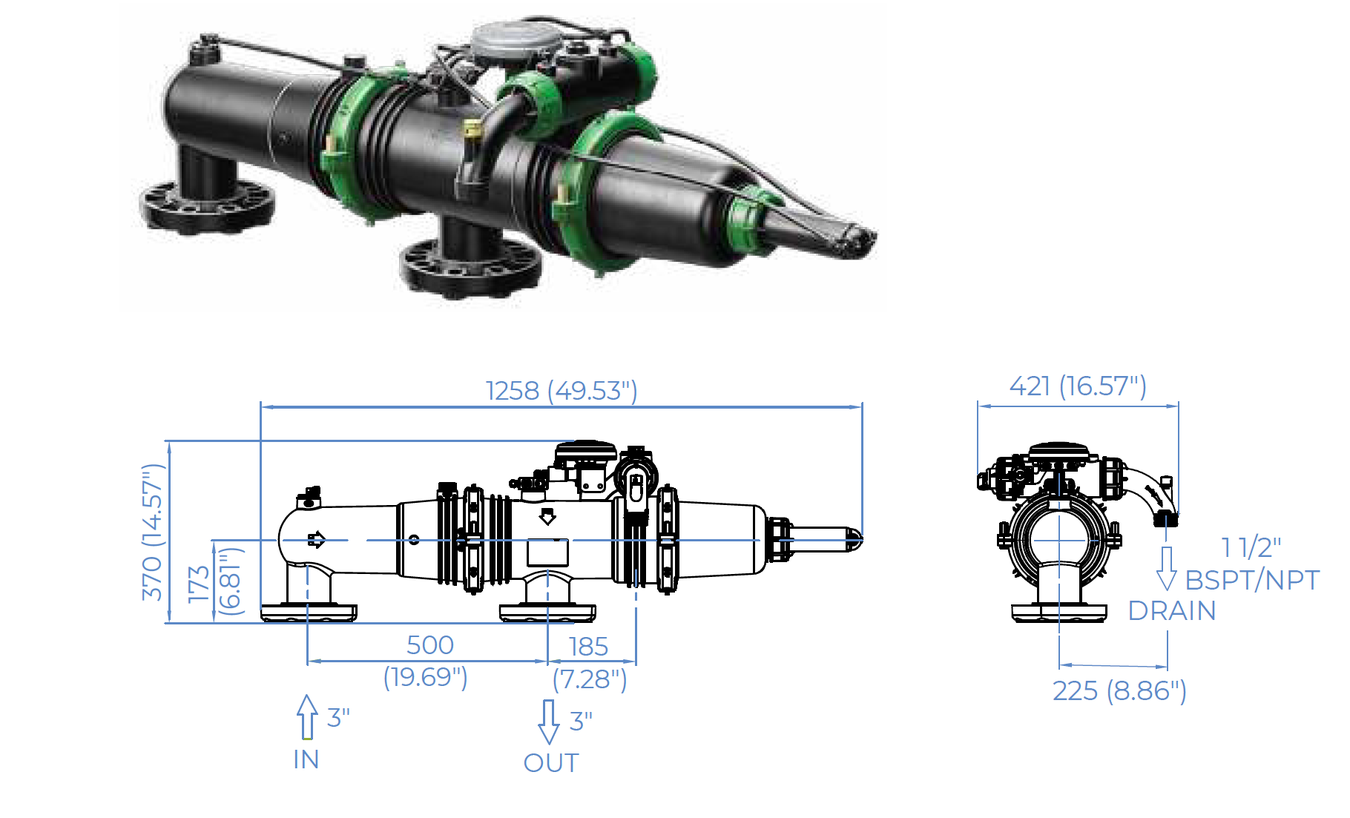

Amiad - Mini Sigma - 80mm-online
Head Loss Graph (in clean water)

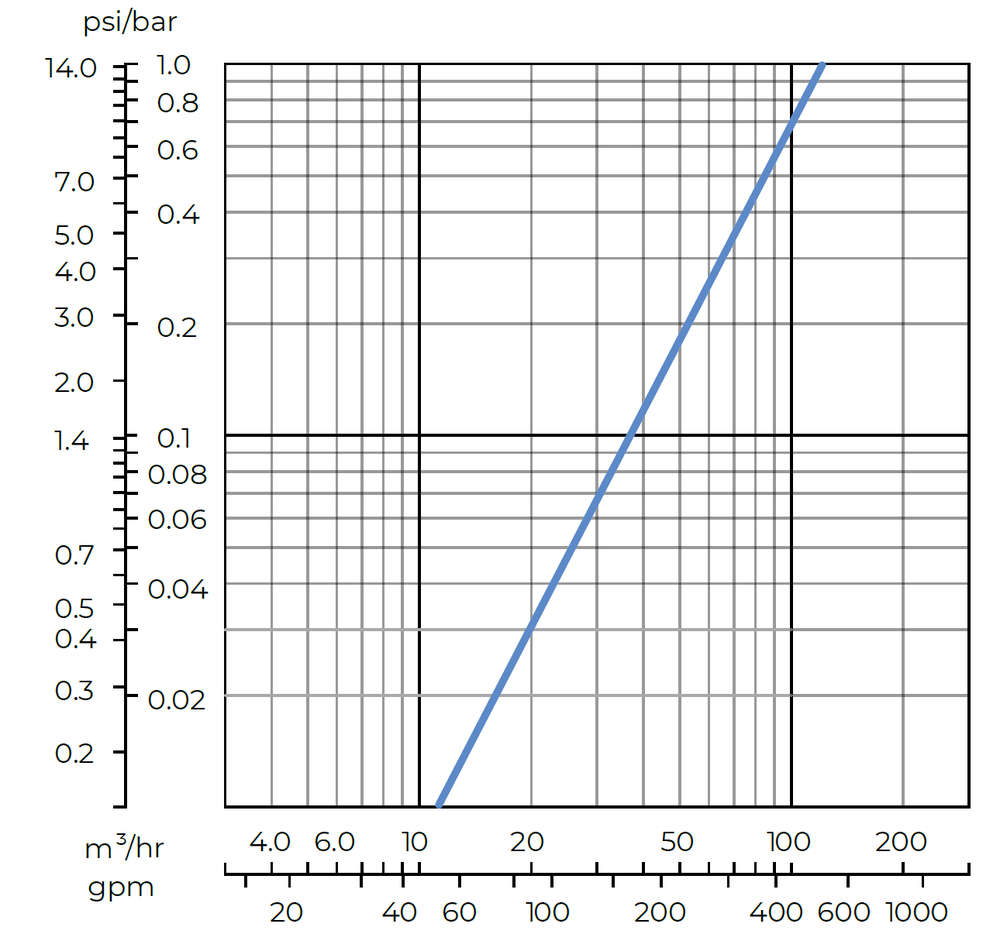

Amiad - Mini Sigma - 80mm-online - Head Loss Graph
80mm MINISIGMA | angle
Amiad - Mini Sigma - 80mm-angle
Head Loss Graph (in clean water)

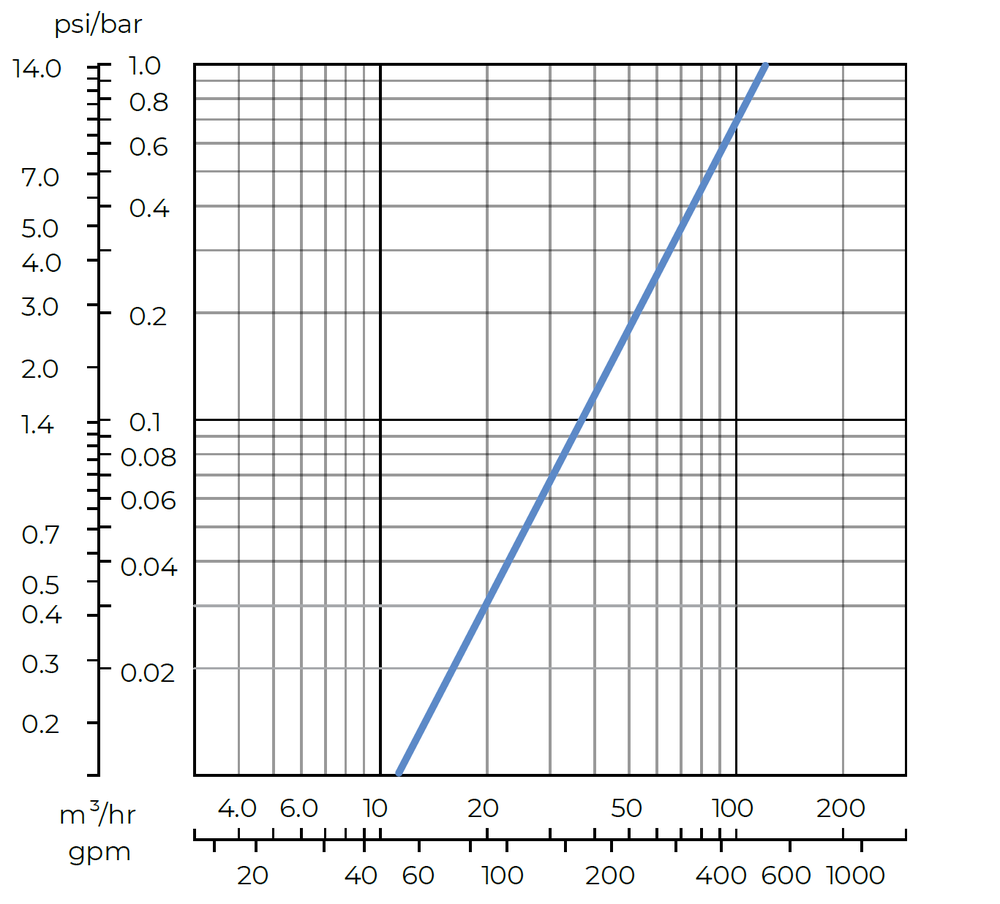

Amiad - Mini Sigma - 80mm-angle - Head Loss Graph

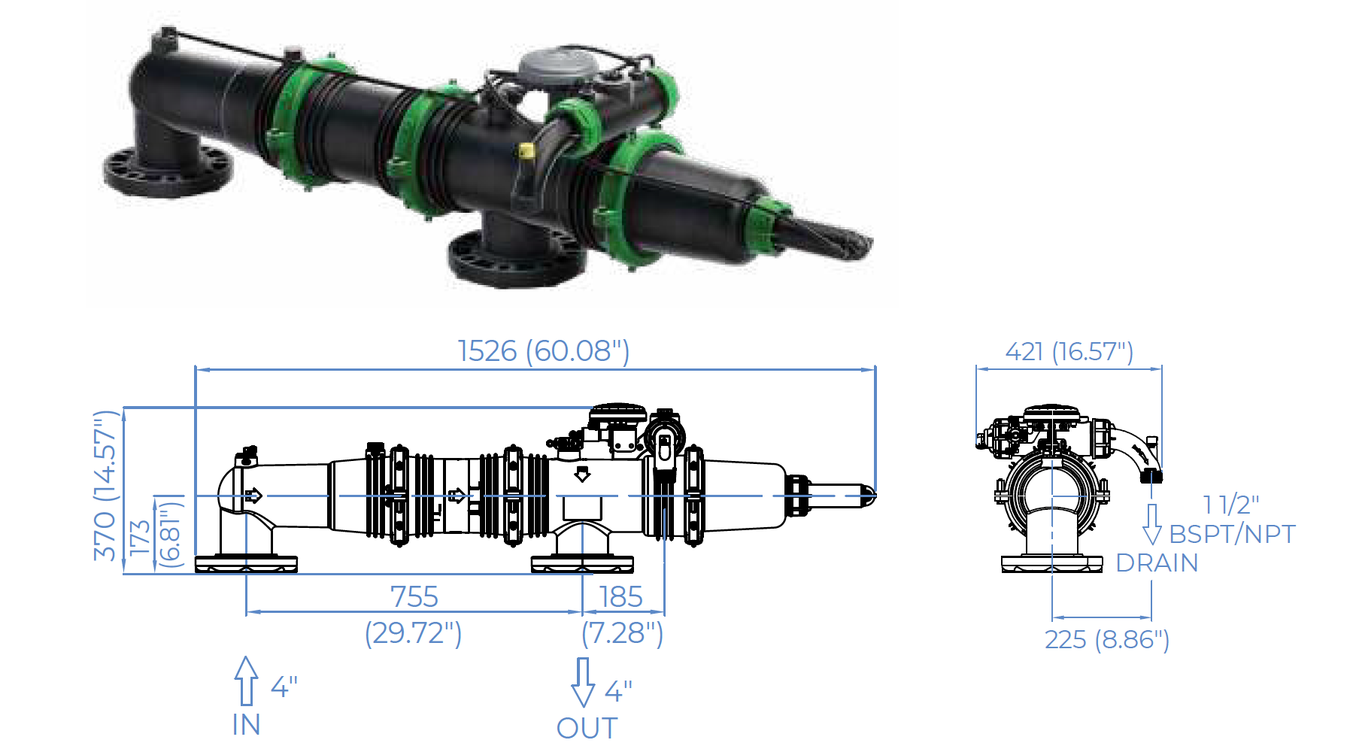

100mm MINISIGMA | on-line
Amiad - Mini Sigma - 100mm-online
Head Loss Graph (in clean water)

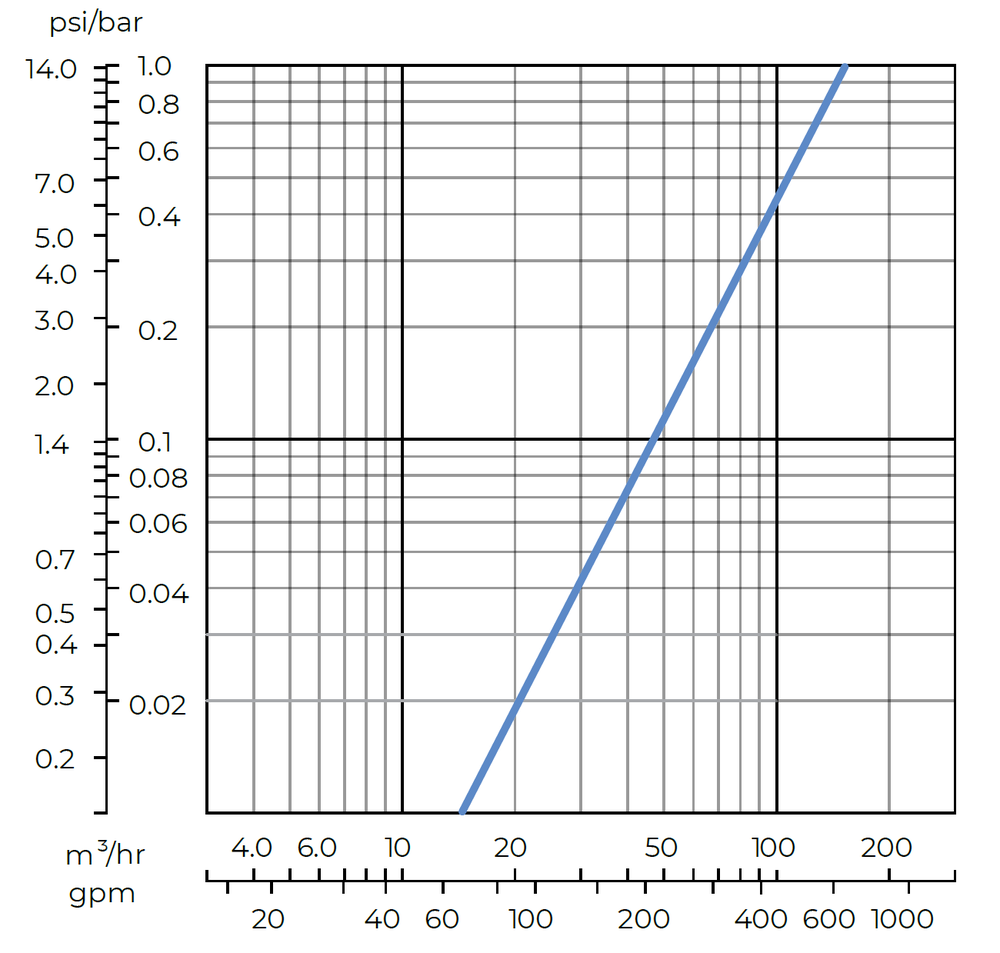

Amiad - Mini Sigma - 100mm-online - Head Loss Graph

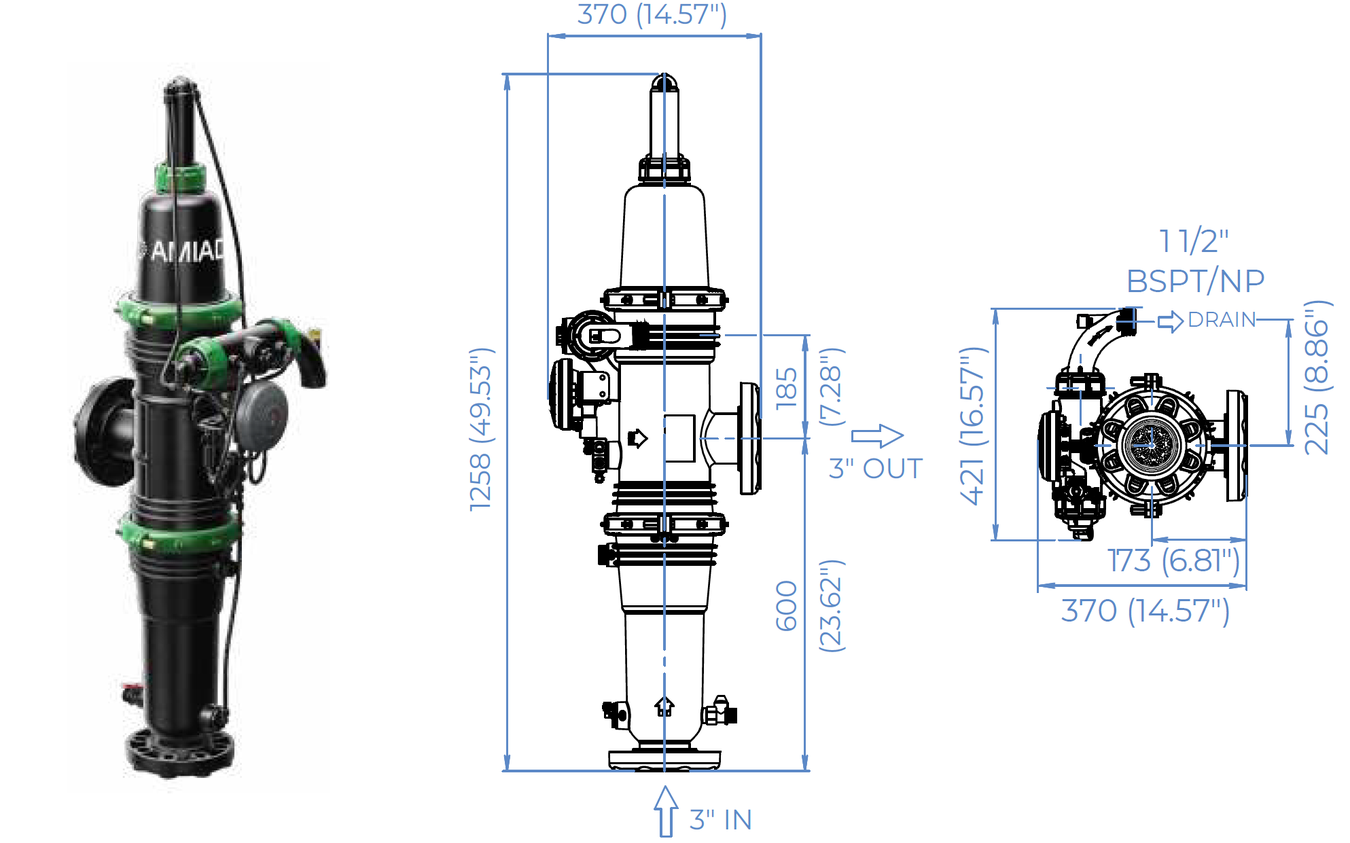

100mm MINISIGMA | angle

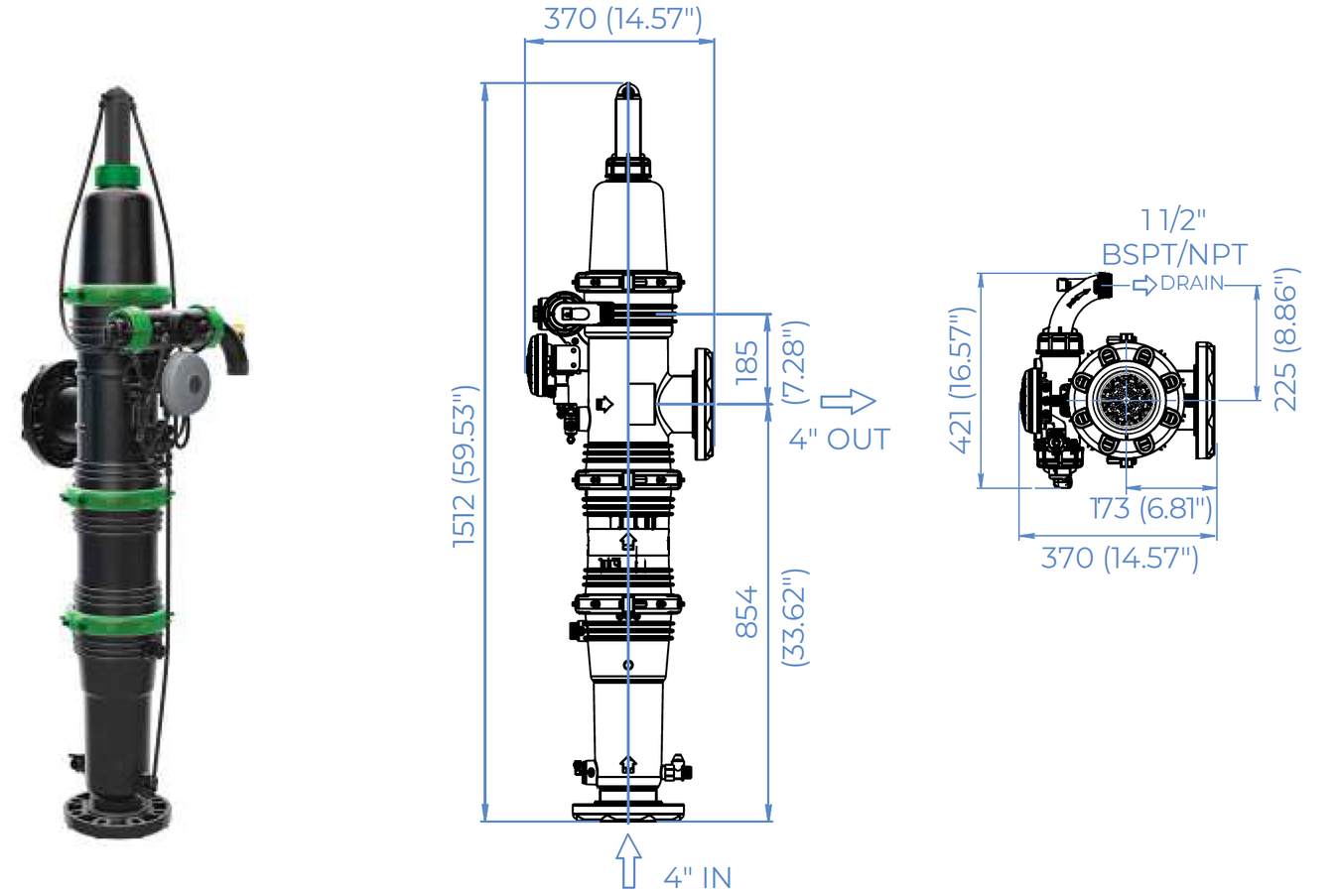

Amiad - Mini Sigma - 100mm-angle
Head Loss Graph (in clean water)

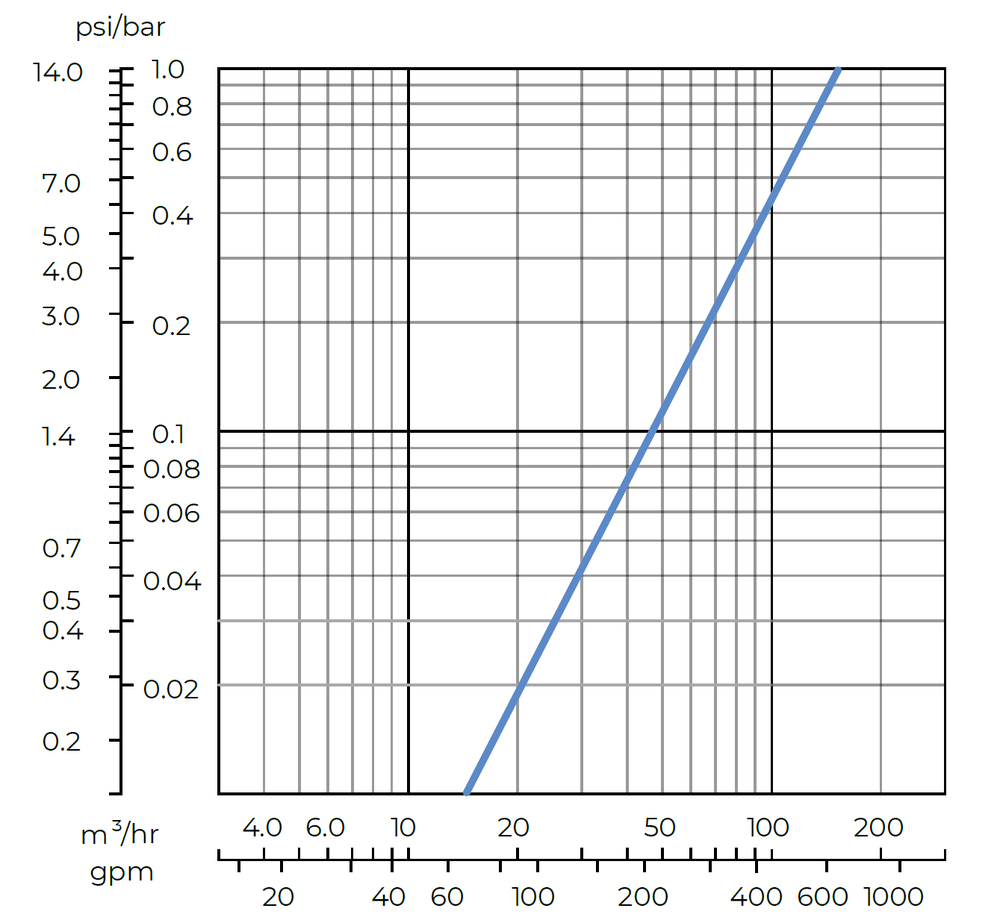

Amiad - Mini Sigma - 100mm-angle - Head Loss Graph
Technical Specifications

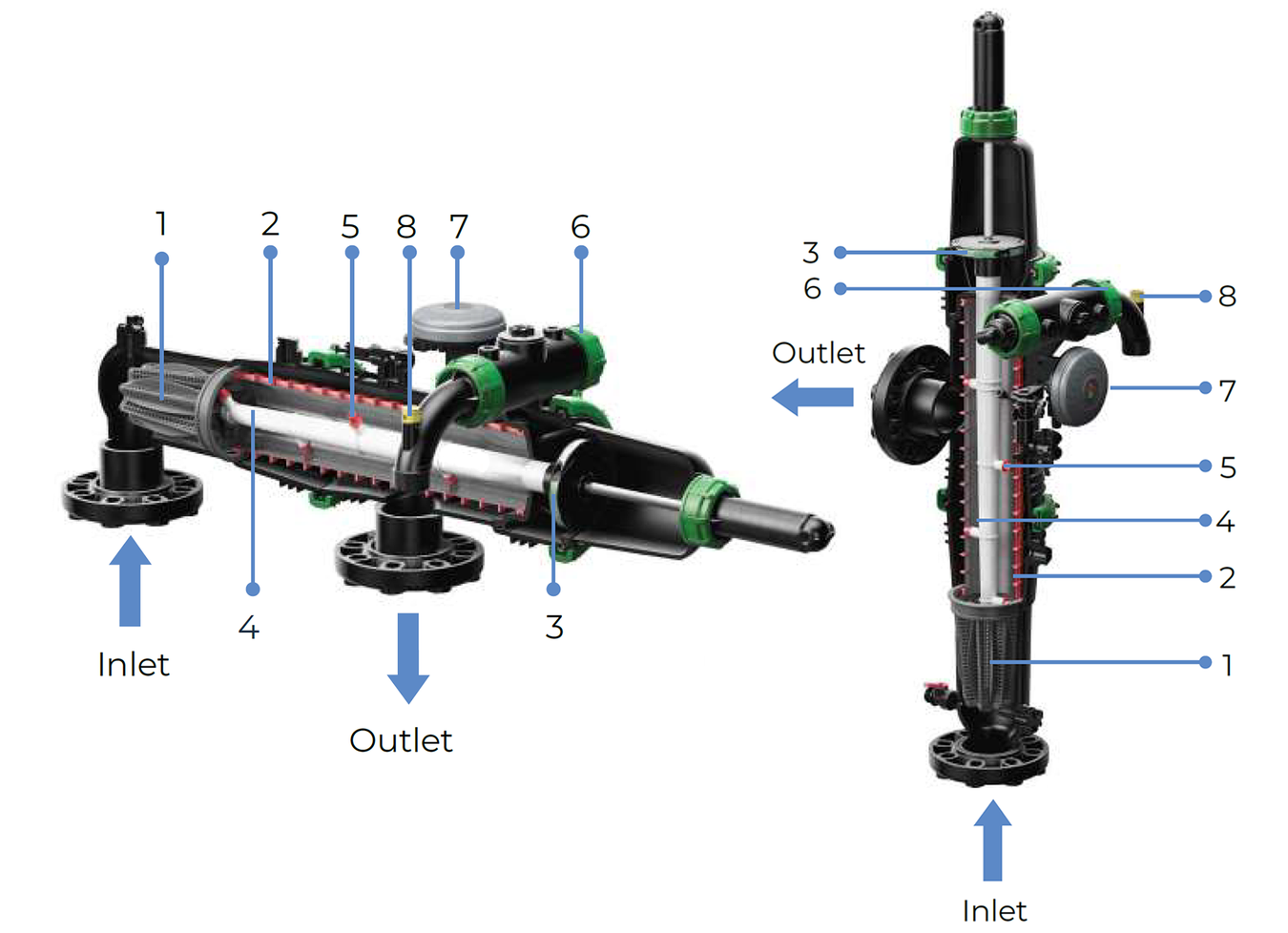

Mini Sigma Parts
1. Coarse screen
2. Fine screen
3. Hydraulic turbine
4. Suction-scanner shaft
5. Suction-scanner nozzles
6. Flush valve
7. ADI-P controller
8. Integral anti vacuum

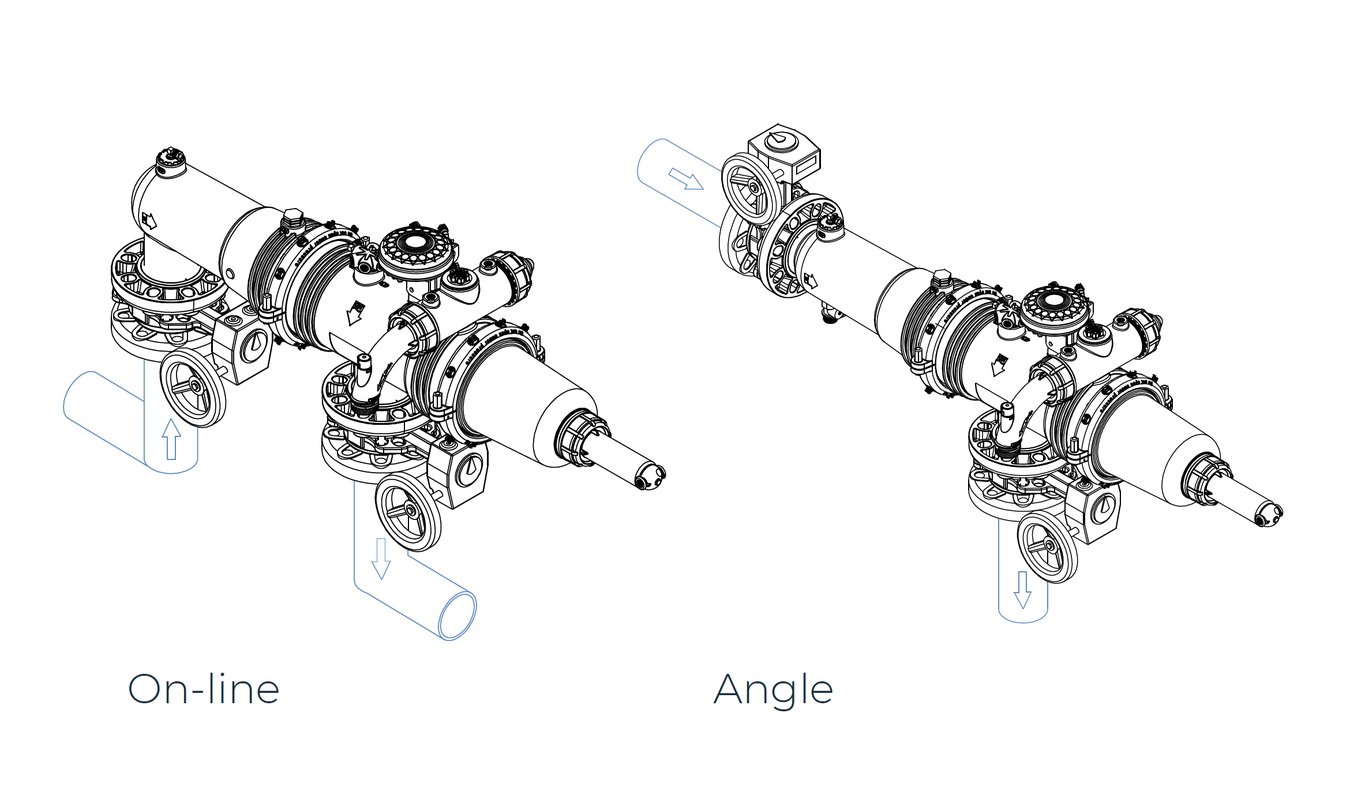

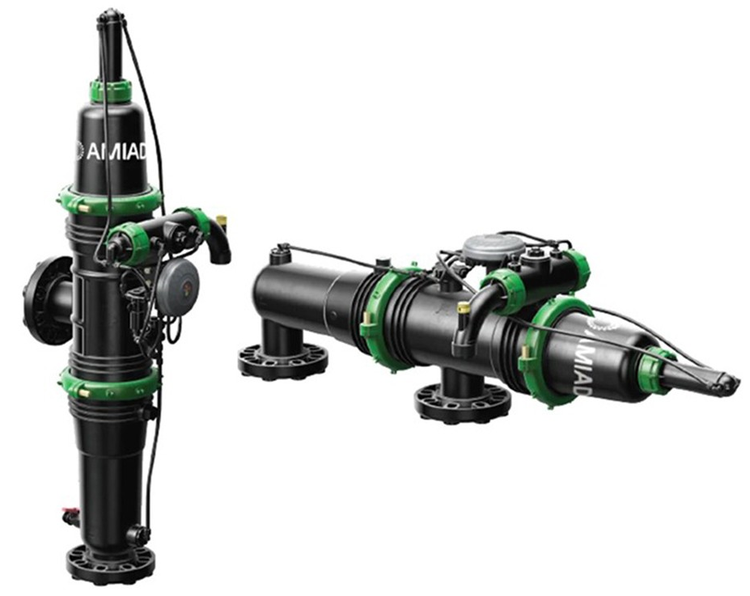

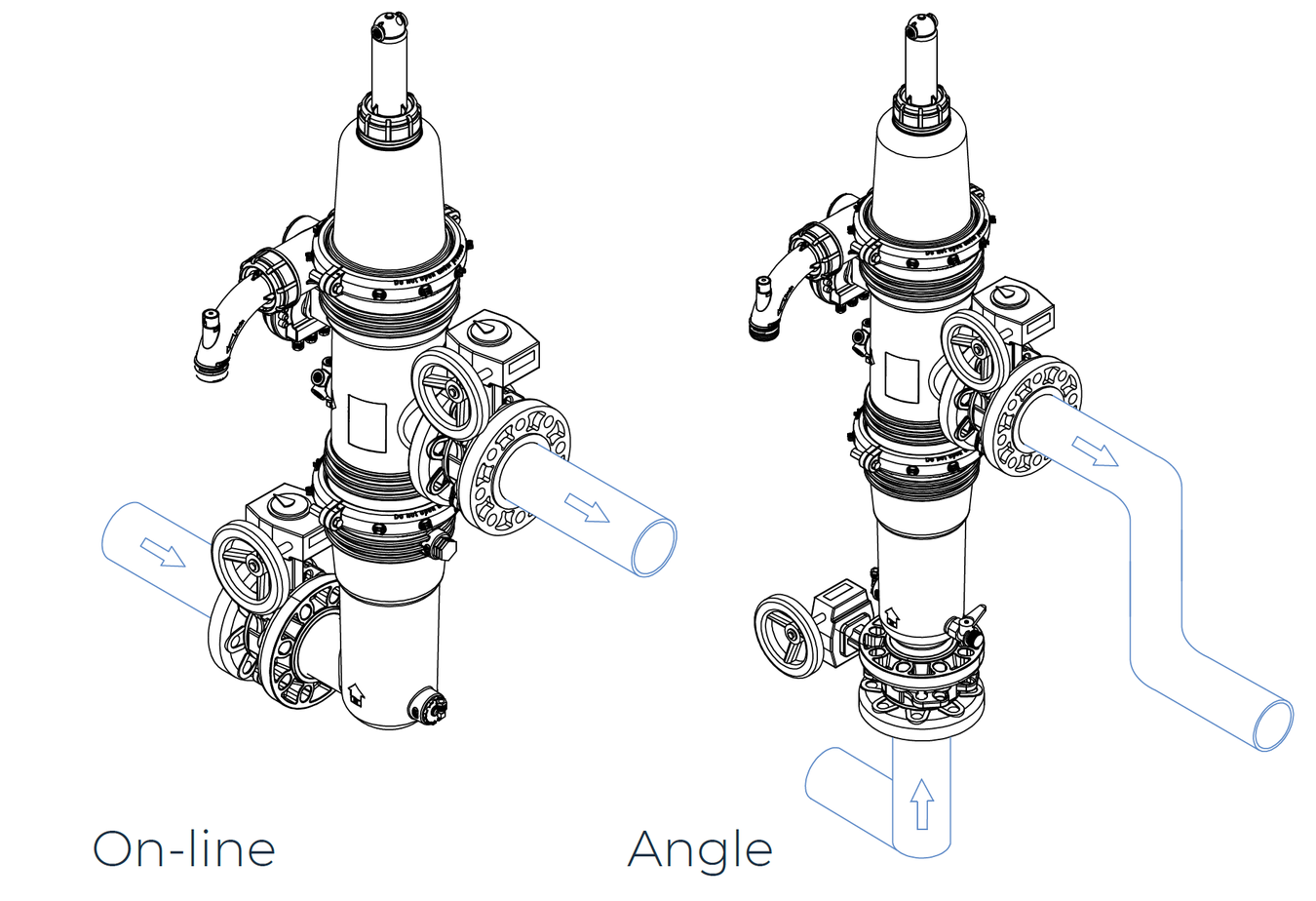

Installation Configurations

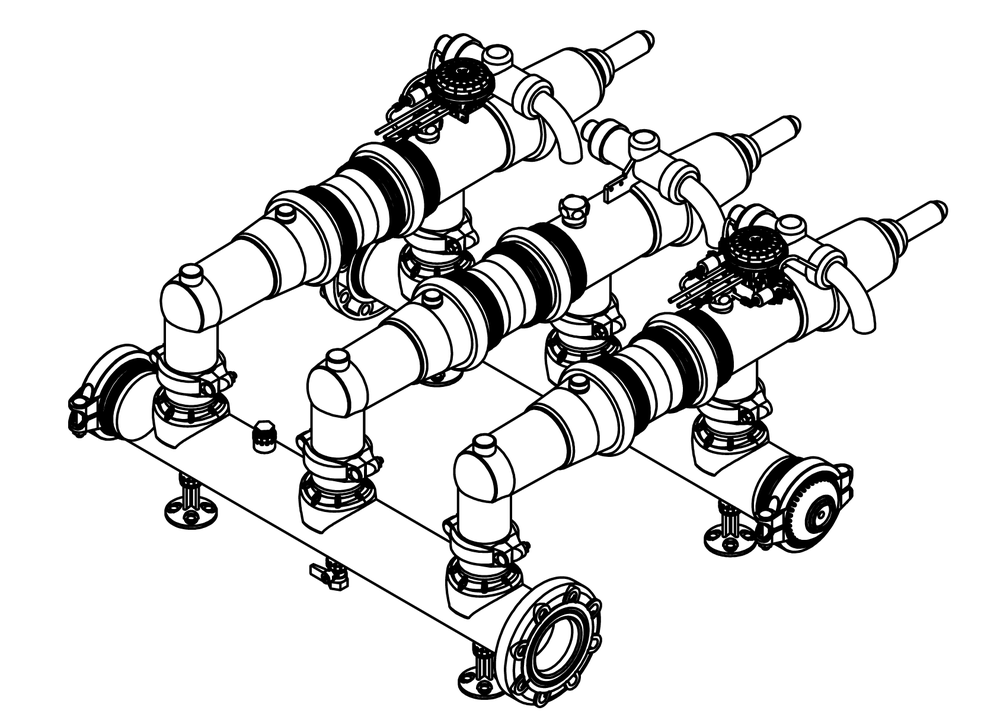

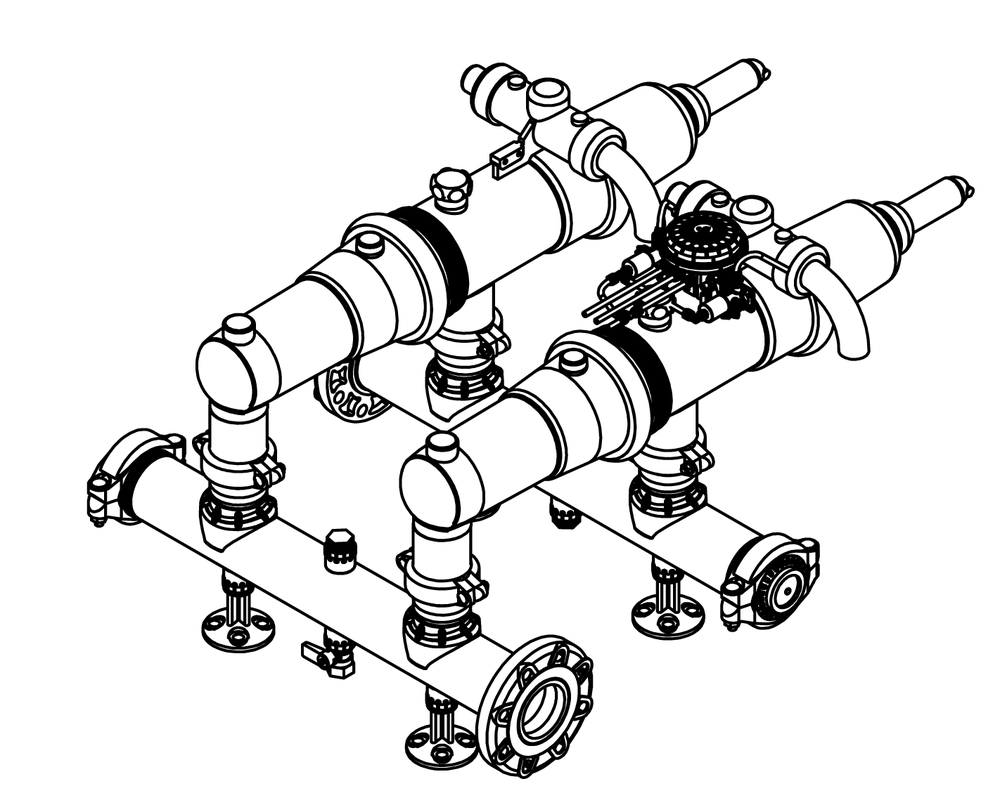

Battery Design
2 units of 80mm Mini Sigma for flow rates up to 100 m3 /h (440 gpm)
3 units of 100mm Mini Sigma for flow rates up to 240 m3 /h (1,057 gpm)
Android App - ADI-BLE - Amiad ADI-P Controller
Apple iOS App - ADI-BLE - Amiad ADI-P Controller

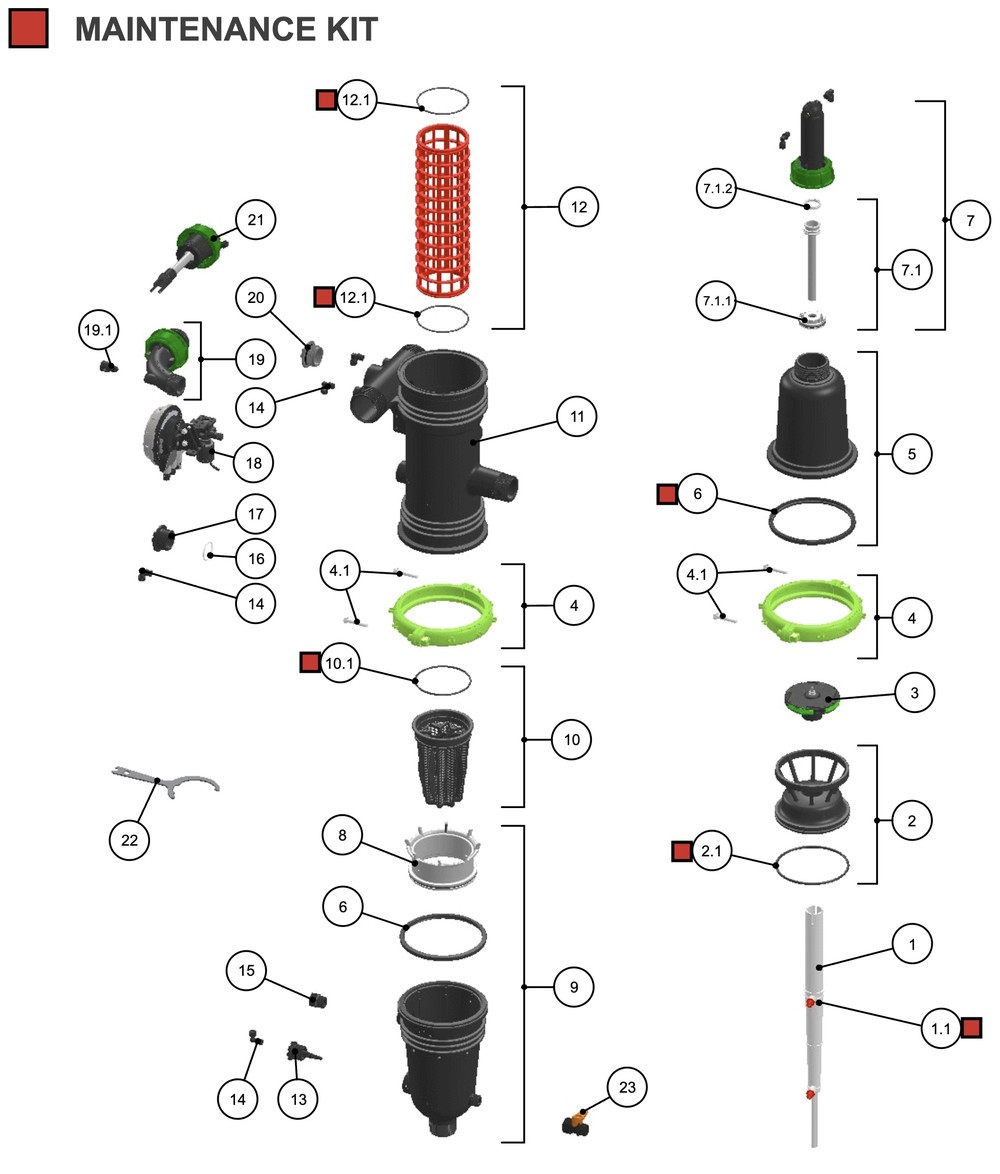

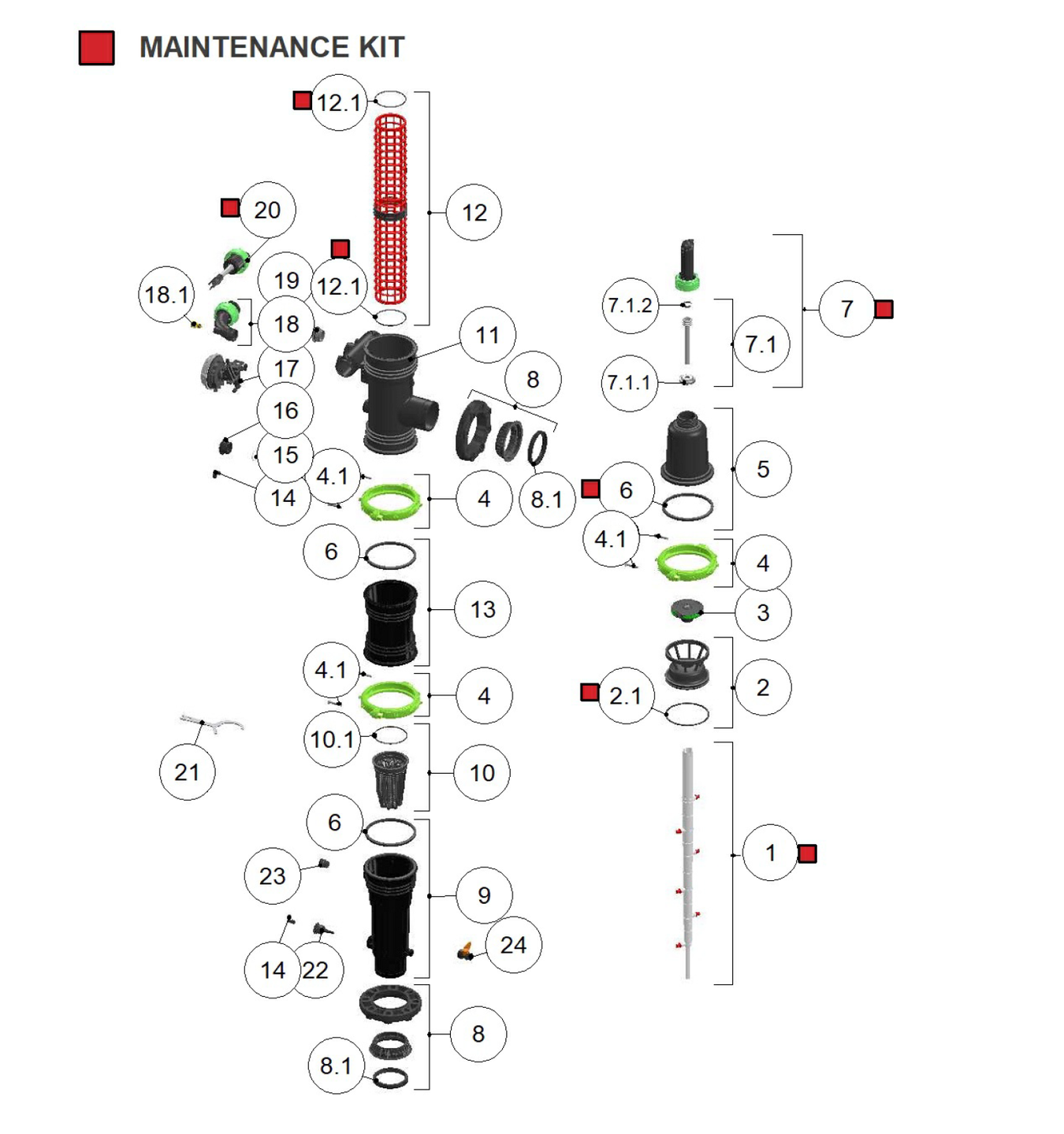

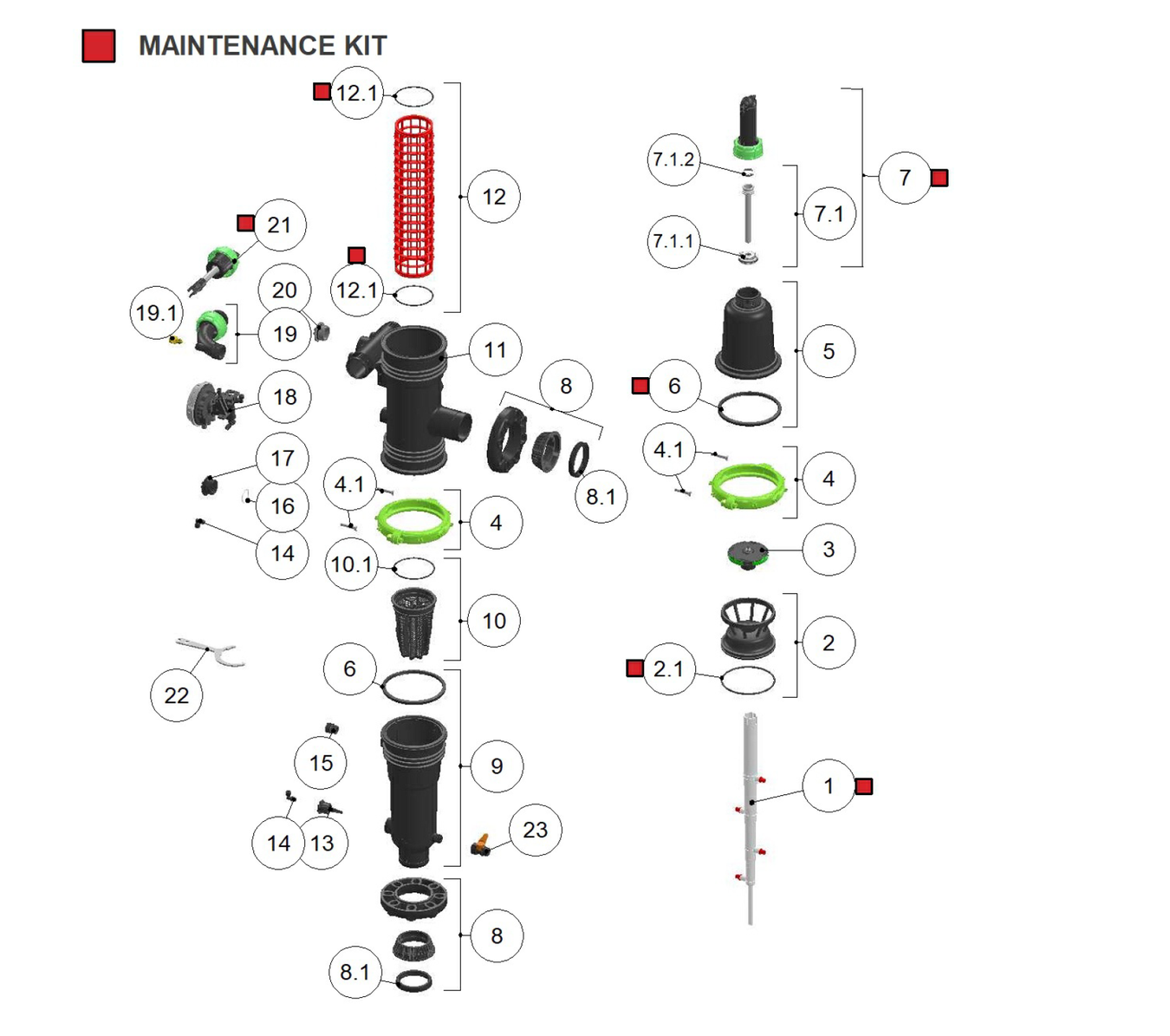

Spare Parts
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700190-005106 | SCANNER 375 ASSEMBLY W/STRAIGHT NOZZLE 8MM F/SIGMA 4" | 1 |
| 2 | 700190-005252 | SEPARATION PLATE ASSEMBLY W/O-RING 2-361 EPDM | 1 |
| 2.1 | 770102-000048 | PARKER O-RING 2-361 EPDM 70 SHORE YELLOW DOT | 1 |
| 3 | 700190-005150 | TURBINE ASSEMBLY F/MINI AND PRO SIGMA | 1 |
| 4 | 700190-005396 | CLAMP ASSEMBLY FOR MINI SIGMA | 2 |
| 4.1 | 700190-005413 | SET BOLTS NUTS WASHERS F/CLAMP MINI SIGMA ASSY | 1 |
| 5 | 700190-005395 | COVER ASSEMBLY F/MINI SIGMA W/HYDRAULIC SEAL | 1 |
| 6 | 770104-000439 | HYDRAULIC SEAL EPDM OD190MM 80 SHORE MINI SIGMA | 2 |
| 7 | 700190-005154 | ACTUATOR ASSEMBLY F/MINI SIGMA | 1 |
| 7.1 | 700190-005161 | ACTUATOR PISTON ASSEMBLY F/MINI SIGMA | 1 |
| 7.1.1 | 700190-005153 | SEAL HOLDER ASSEMBLY F/MINI SIGMA | 1 |
| 7.1.2 | 770105-000010 | U-CUP NBR OD38MM ID30MM H6.35MM 70SH | 1 |
| 8 | 700190-005253 | COARSE SCREEN ASSEMBLY 2" ADAPTOR W/O-RING 2-255 EPDM | 1 |
| 9 | 700190-005397 | 2" MINI SIGMA ANGLE LOW BODY BSPT ASSEMBLY W/HYD SEAL | 1 |
| 9 | 700190-005398 | ASSEMBLY MINI SIGMA ANGLE LOWER BODY 2" NPT W/HYD SEAL | 1 |
| 9 | 700190-005399 | 2" MINI SIGMA ON-LINE LOW BODY BSPT ASSEMBLY W/HYD SEAL | 1 |
| 9 | 700190-005400 | 2" MINI SIGMA ON-LINE LOW BODY NPT ASSEMBLY W/HYD SEAL | 1 |
| 10 | 700190-005149 | COARSE SCREEN ASSEMBLY F/M.SIGMA | 1 |
| 10.1 | 770101-000198 | MM O-RING SEAL ID117MM TH4MM EPDM 70 SHORE | 1 |
| 11 | 710101-001381 | MINI SIGMA BODY 2”BSPT RPA BLACK | 1 |
| 11 | 710101-001382 | MINI SIGMA BODY NPT RPA BLACK | 1 |
| 12 | 700101-001505 | MWW SCREEN S/ST316L 1200SQ.CM 130MIC SIGMA EPDM SEALS | 1 |
| 12 | 700101-001506 | MWW SCREEN S/ST316L 1200SQ.CM 100MIC SIGMA EPDM SEALS | 1 |
| 12 | 700101-001507 | MWW SCREEN S/ST316L 1200SQ.CM 200MIC SIGMA EPDM SEALS | 1 |
| 12 | 700101-001508 | MWW SCREEN S/ST316L 1200SQ.CM 300MIC SIGMA EPDM SEALS | 1 |
| 12 | 700101-001509 | MWW SCREEN S/ST316L 1200SQ.CM 80MIC SIGMA EPDM SEALS | 1 |
| 12 | 700101-001634 | MWW SCREEN S/ST316L 1200SQ.CM 500MIC SIGMA EPDM SEALS | 1 |
| 12 | 700101-002360 | MWW SCREEN S/ST316L 1200SQ.CM 50MIC SIGMA EPDM SEALS | 1 |
| 12.1 | 770102-000384 | PARKER O-RING 2-244 EPDM 70 SHORE | 2 |
| 13 | 700190-000206 | 1''*1/4''BUSHING+SEAL ASSY | 1 |
| 14 | 720501-000139 | L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK TEFEN | 2 |
| 15 | 780101-000113 | PLUG+SEAL 3/4" PP TAVLIT | 1 |
| 16 | 770102-000287 | PARKER O-RING 2-128 EPDM 70 SHORE | 1 |
| 17 | 710101-001565 | ADAPTOR 1"X1/4" PBT BLACK | 1 |
| 18 | 700103-001749 | ADI-P DC KIT PACKAGE ONE SOLENOID NO | 1 |
| 19 | 700190-005151 | DRAIN PIPE ASSEMBLY 1.5" BSPT F/MINI SIGMA | 1 |
| 19 | 700190-005255 | ASSEMBLY DRAIN PIPE 1.5" NPT F/MINI SIGMA | 1 |
| 19.1 | 700190-005152 | VACUUM BREAKER ASSEMBLY F/MINI SIGMA | 1 |
| 20 | 700190-005254 | 1.5"-1/4'' PLUG ASSEMBLY W/O-RING 2-131 EPDM | 1 |
| 21 | 700190-005241 | VALVE ACTUATOR ASSEMBLY F/MINI SIGMA | 1 |
| 22 | 760109-000472 | WRENCH GALVANIZED F/NUT MINI SIGMA | 1 |
| 23 | 300005-000006 | BALL VALVE AC 3/4" 10 BAR BLACK FOR 2"T | 1 |
| 700194-000032 | 700194-000032 | 2" MINI SIGMA SPARE PARTS KIT | 1 |
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700190-005105 | SCANNER 500 ASSEMBLY W/STRAIGHT NOZZLE 8MM F/SIGMA 6"/8" | 1 |
| 2 | 700190-005252 | SEPARATION PLATE ASSEMBLY W/O-RING 2-361 EPDM | 1 |
| 2.1 | 770102-000048 | PARKER O-RING 2-361 EPDM 70 SHORE YELLOW DOT | 1 |
| 3 | 700190-005150 | TURBINE ASSEMBLY F/MINI AND PRO SIGMA | 1 |
| 4 | 700190-005396 | CLAMP ASSEMBLY FOR MINI SIGMA | 2 |
| 4.1 | 700190-005413 | SET BOLTS NUTS WASHERS F/CLAMP MINI SIGMA ASSY | 2 |
| 5 | 700190-005395 | COVER ASSEMBLY F/MINI SIGMA W/HYDRAULIC SEAL | 1 |
| 6 | 770104-000439 | HYDRAULIC SEAL EPDM OD190MM 80 SHORE MINI SIGMA | 2 |
| 7 | 700190-005154 | ACTUATOR ASSEMBLY F/MINI SIGMA | 1 |
| 7.1 | 700190-005161 | ACTUATOR PISTON ASSEMBLY F/MINI SIGMA | 1 |
| 7.1.1 | 700190-005153 | SEAL HOLDER ASSEMBLY F/MINI SIGMA | 1 |
| 7.1.2 | 770105-000010 | U-CUP NBR OD38MM ID30MM H6.35MM 70SH | 1 |
| 8 | 700190-000223 | 3" AKF UNIVERSAL ASSY | 2 |
| 8.1 | 770104-000034 | GASKET 3" EPDM 65 SHORE QUICK FLANGE | 1 |
| 9 | 700190-005401 | 3" MINI SIGMA ANGLE LOW BODY GRV ASSEMBLY W/HYD SEAL | 1 |
| 9 | 700190-005402 | 3" MINI SIGMA ON-LINE LOW BODY GRV ASSEMBLY W/HYD SEAL | 1 |
| 10 | 700190-005149 | COARSE SCREEN ASSEMBLY F/M.SIGMA | 1 |
| 10.1 | 770101-000198 | MM O-RING SEAL ID117MM TH4MM EPDM 70 SHORE | 1 |
| 11 | 710101-001383 | MINI SIGMA BODY 3"GRV RPA BLACK | 1 |
| 12 | 700101-002042 | MWW SCREEN S/ST316L 1600SQ.CM 130MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002108 | MWW SCREEN S/ST316L 1600SQ.CM 200MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002109 | MWW SCREEN S/ST316L 1600SQ.CM 80MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002119 | MWW SCREEN S/ST316L 1600SQ.CM 100MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002181 | MWW SCREEN S/ST316L 1600SQ.CM 300MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002182 | MWW SCREEN S/ST316L 1600SQ.CM 500MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002361 | MWW SCREEN S/ST316L 1600SQ.CM 50MIC MINI SIGMA EPDM SEALS | 1 |
| 12.1 | 770102-000384 | PARKER O-RING 2-244 EPDM 70 SHORE | 2 |
| 13 | 700190-000206 | 1''*1/4''BUSHING+SEAL ASSY | 1 |
| 14 | 720501-000139 | L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK TEFEN | 2 |
| 15 | 780101-000113 | PLUG+SEAL 3/4" PP TAVLIT | 1 |
| 16 | 770102-000287 | PARKER O-RING 2-128 EPDM 70 SHORE | 1 |
| 17 | 710101-001565 | ADAPTOR 1"X1/4" PBT BLACK | 1 |
| 18 | 700103-001749 | ADI-P DC KIT PACKAGE ONE SOLENOID NO | 1 |
| 19 | 700190-005151 | DRAIN PIPE ASSEMBLY 1.5" BSPT F/MINI SIGMA | 1 |
| 19.1 | 700190-005152 | VACUUM BREAKER ASSEMBLY F/MINI SIGMA | 1 |
| 20 | 700190-005254 | 1.5"-1/4'' PLUG ASSEMBLY W/O-RING 2-131 EPDM | 1 |
| 21 | 700190-005241 | VALVE ACTUATOR ASSEMBLY F/MINI SIGMA | 1 |
| 22 | 760109-000472 | WRENCH GALVANIZED F/NUT MINI SIGMA | 1 |
| 23 | 300005-000006 | BALL VALVE AC 3/4" 10 BAR BLACK FOR 2"T | 1 |
| 700194-000083 | 700194-000083 | 3" MINI SIGMA SPARE PARTS KIT | 1 |
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700190-005532 | SCANNER 754 ASSEMBLY W/STRAIGHT NOZZLE 8MM F/MINI SIGMA 4" | 1 |
| 2 | 700190-005252 | SEPARATION PLATE ASSEMBLY W/O-RING 2-361 EPDM | 1 |
| 2.1 | 770102-000048 | PARKER O-RING 2-361 EPDM 70 SHORE YELLOW DOT | 1 |
| 3 | 700190-005150 | TURBINE ASSEMBLY F/MINI AND PRO SIGMA | 1 |
| 4 | 700190-005396 | CLAMP ASSEMBLY FOR MINI SIGMA | 3 |
| 4.1 | 700190-005413 | SET BOLTS NUTS WASHERS F/CLAMP MINI SIGMA ASSY | 1 |
| 5 | 700190-005395 | COVER ASSEMBLY F/MINI SIGMA W/HYDRAULIC SEAL | 1 |
| 6 | 770104-000439 | HYDRAULIC SEAL EPDM OD190MM 80 SHORE MINI SIGMA | 3 |
| 7 | 700190-005154 | ACTUATOR ASSEMBLY F/MINI SIGMA | 1 |
| 7.1 | 700190-005161 | ACTUATOR PISTON ASSEMBLY F/MINI SIGMA | 1 |
| 7.1.1 | 700190-005153 | SEAL HOLDER ASSEMBLY F/MINI SIGMA | 1 |
| 7.1.2 | 770105-000010 | U-CUP NBR OD38MM ID30MM H6.35MM 70SH | 1 |
| 8 | 700190-000227 | 4" AKF UNIVERSAL ASSEMBLY | 2 |
| 8.1 | 770104-000253 | GASKET 4" EPDM YELLOW DOT 70 SHORE QUICK FLANGE | 1 |
| 9 | 700190-005403 | 4" MINI SIGMA ANGLE LOW BODY GRV ASSEMBLY W/HYD SEAL | 1 |
| 9 | 700190-005404 | 4" MINI SIGMA ON-LINE LOW BODY GRV ASSEMBLY W/HYD SEAL | 1 |
| 10 | 700190-005149 | COARSE SCREEN ASSEMBLY F/M.SIGMA | 1 |
| 10.1 | 770101-000198 | MM O-RING SEAL ID117MM TH4MM EPDM 70 SHORE | 1 |
| 11 | 710101-001384 | MINI SIGMA BODY 4" VIC RPA BLACK | 1 |
| 12 | 700101-002142 | MWW SCREEN S/ST316L 2400SQ.CM 130MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002188 | MWW SCREEN S/ST316L 2400SQ.CM 80MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002189 | MWW SCREEN S/ST316L 2400SQ.CM 100MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002190 | MWW SCREEN S/ST316L 2400SQ.CM 200MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002191 | MWW SCREEN S/ST316L 2400SQ.CM 300MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002192 | MWW SCREEN S/ST316L 2400SQ.CM 500MIC MINI SIGMA EPDM SEALS | 1 |
| 12 | 700101-002362 | MWW SCREEN S/ST316L 2400SQ.CM 50MIC MINI SIGMA EPDM SEALS | 1 |
| 12.1 | 770102-000384 | PARKER O-RING 2-244 EPDM 70 SHORE | 4 |
| 13 | 700190-005533 | SPACER ASSEMBLY W/HYD SEAL F/4" MINI SIGMA | 1 |
| 14 | 720501-000139 | L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK TEFEN | 2 |
| 15 | 770102-000287 | PARKER O-RING 2-128 EPDM 70 SHORE | 1 |
| 16 | 710101-001565 | ADAPTOR 1"X1/4" PBT BLACK | 1 |
| 17 | 700103-001749 | ADI-P DC KIT PACKAGE ONE SOLENOID NO | 1 |
| 18 | 700190-005151 | DRAIN PIPE ASSEMBLY 1.5" BSPT F/MINI SIGMA | 1 |
| 18.1 | 700190-005152 | VACUUM BREAKER ASSEMBLY F/MINI SIGMA | 1 |
| 19 | 700190-005254 | 1.5"-1/4'' PLUG ASSEMBLY W/O-RING 2-131 EPDM | 1 |
| 20 | 700190-005241 | VALVE ACTUATOR ASSEMBLY F/MINI SIGMA | 1 |
| 21 | 760109-000472 | WRENCH GALVANIZED F/NUT MINI SIGMA 1 | 1 |
| 22 | 700190-000206 | 1''*1/4''BUSHING+SEAL ASSY | 1 |
| 23 | 780101-000113 | PLUG+SEAL 3/4" PP TAVLIT | 1 |
| 24 | 300005-000006 | BALL VALVE AC 3/4" 10 BAR BLACK FOR 2"T | 1 |
Amiad - Mini Sigma - Automatic Screen Filter
Small, lightweight Single-Screen polymeric, self-cleaning filter. Available with 80, 100, 130, 200, 300, and 500-micron screen options.
| Product Code | Size | Description |
|---|---|---|
| MiniSig 050 | 50mm | Mini Sigma On-Line Automatic Filter. C/W 1,200cm2 Screen and ADI-P Controller |
| MiniSig 080 | 80mm | Mini Sigma On-Line Automatic Filter. C/W 1,600cm2 Screen and ADI-P Controller |
| MiniSig 100S | 100mm | Mini Sigma On-Line Automatic Filter. C/W 1,600cm2 Screen and ADI-P Controller |
| MiniSig 100L | 100mm | Mini Sigma On-Line Automatic Filter. C/W 2,400cm2 Screen and ADI-P Controller |
| MiniSig Adap | - | Mini Sigma On-Line to Angle Adaptor |
