Arkal - 50mm Spin Klin - Automatic Disc Filter

Amiad - 2Inch Spin Klin - Product Image
Brand: Amiad / Arkal
Category: Filtration, Automatic Filters - Disc.
Size Range:

50mm

Filtration degree:

10-400 microns

Product Description

The modular, polymeric 50mm Spin Klin automatic disc filter for industrial water filtration with Spin Klin disc technology provides micron-precise depth filtration and high retention of solids. Its short backwash cycle has a regulated volume and is environmentally friendly by minimizing flush water use and automatically cleansing the filter element.

50mm Spin Klin consists of various modular batteries for easy system expansion and is available in external source or air-aided configurations.

Features & Benefits

  • Micron-precise depth filtration of solids
  • Reliable and durable
  • Compact design
  • Polymeric
  • Low water and energy consumption
  • Minimal maintenance

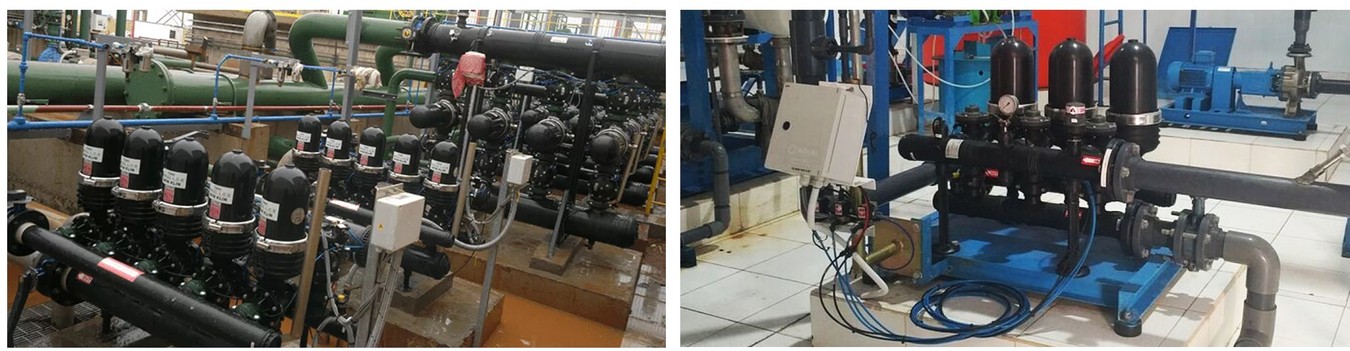

Amiad - 2Inch Spin Klin - Typical Installation

Arkal - 50mm Spin Klin - Typical Installation

Technical Data

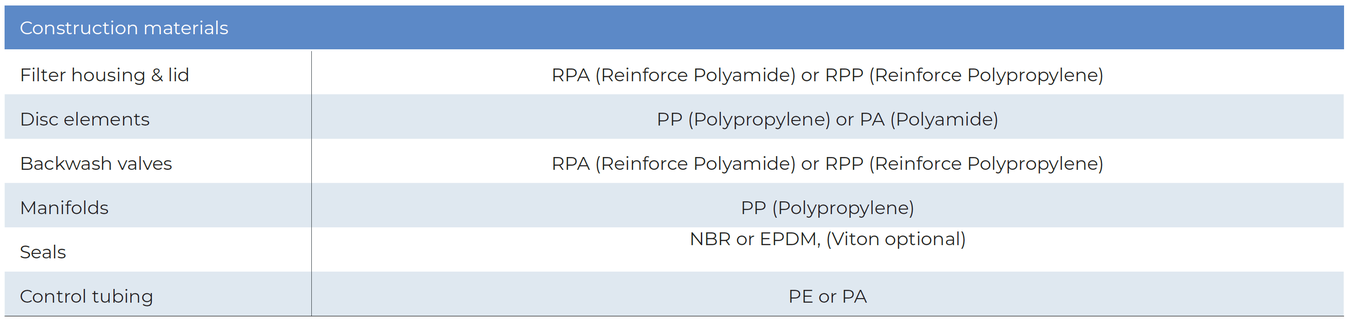

Construction Materials

Amiad - 3Inch Spin Klin - Construction Materials

Arkal - 50mm Spin Klin - Construction Materials

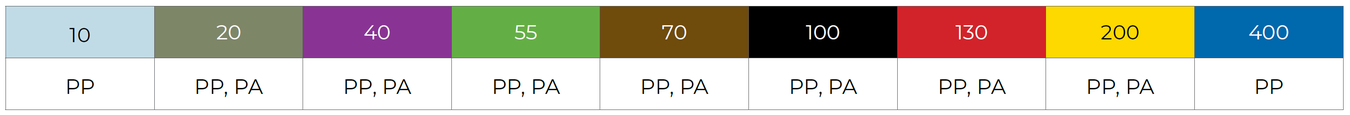

Disc material type availability according to filtration degree:

Amiad - 3Inch Spin Klin - Disc Material According to Filtration Degree

Arkal - 50mm Spin Klin - Disc Material According to Filtration Degree

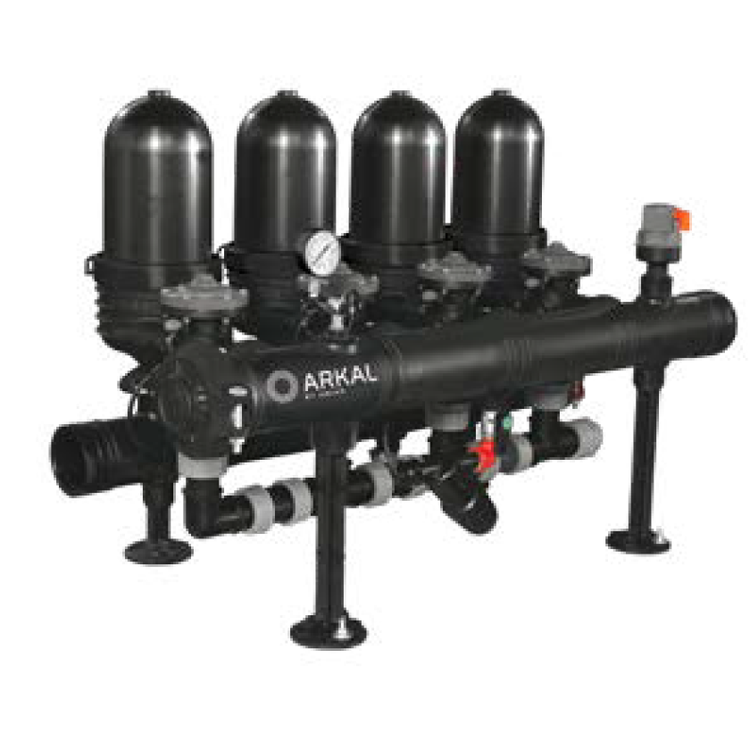

50mm Spin Klin

Amiad - 2Inch Spin Klin - Image

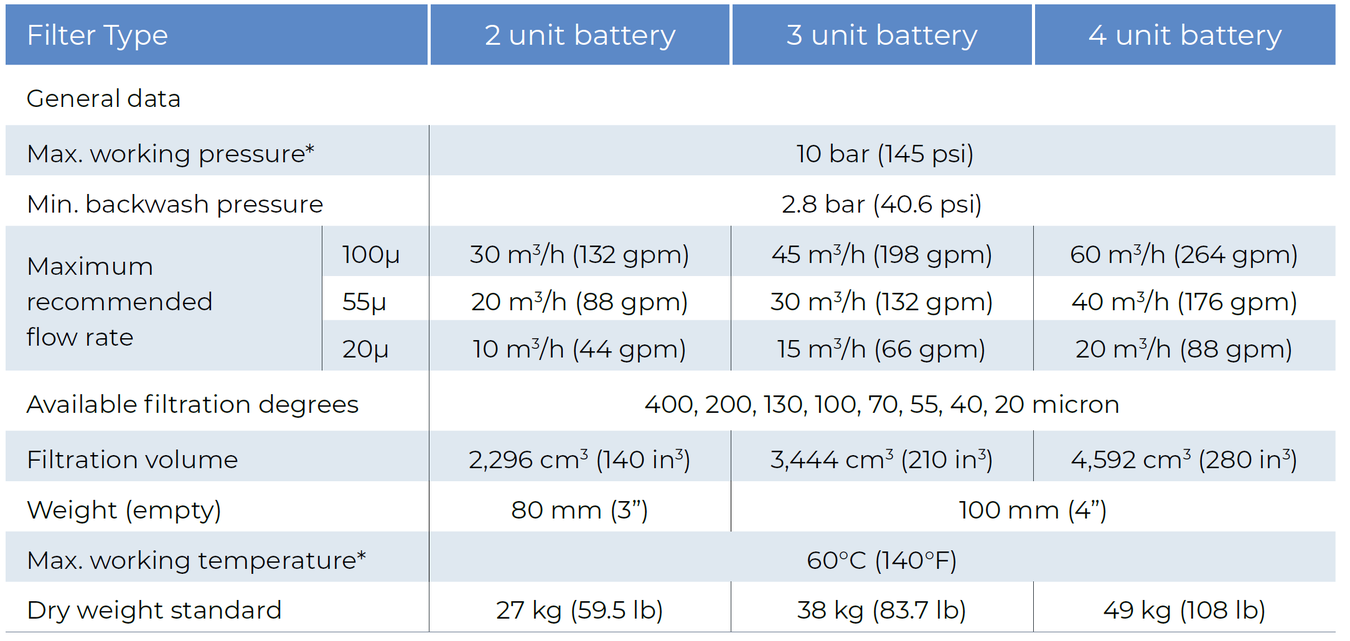

General Data

Amiad - 2Inch Spin Klin - General Data

Arkal - 50mm Spin Klin - General Data

*Maximum operating pressure and temperature are interdependent parameters and are given for general reference only. Please consult Deeco for the application-specific parameters.

Backwash data

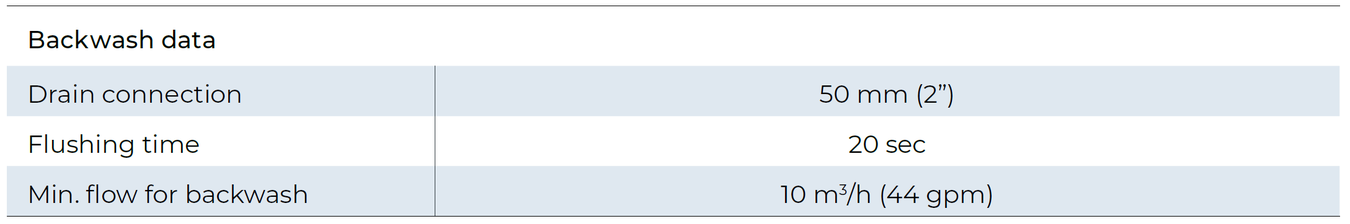

Amiad - 2Inch Spin Klin - Backwash Data

Arkal - 50mm Spin Klin - Backwash Data

** Air Aided system flushing time and volume depends on air tank size

Head Loss Graph

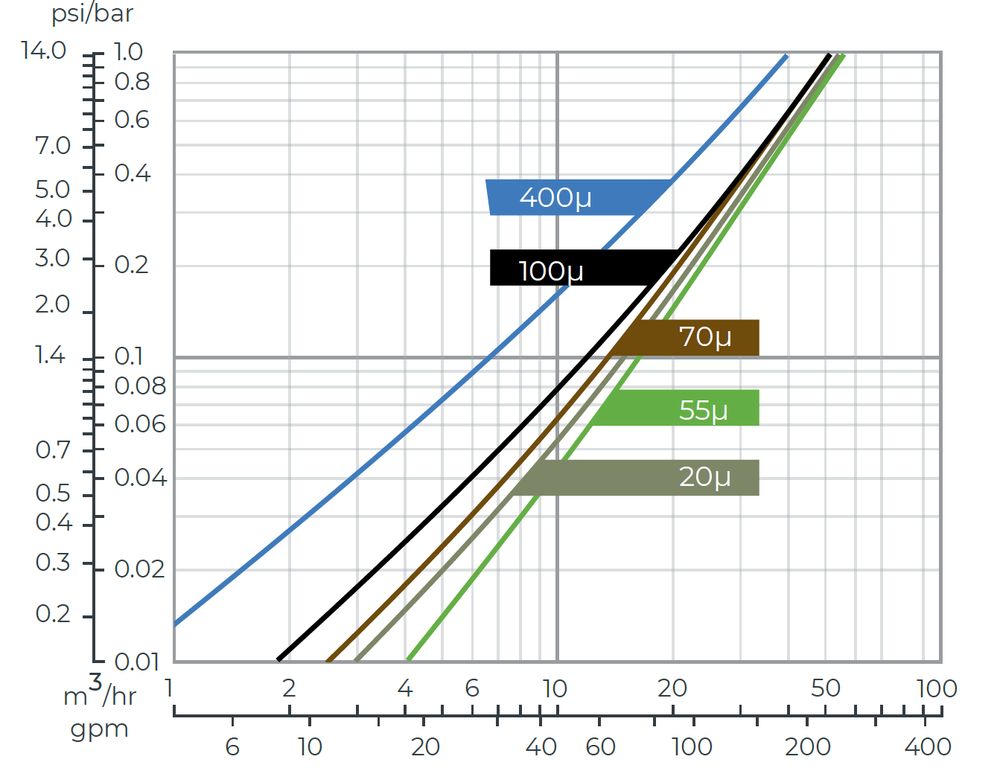

2 x 50mm Spin Klin Battery

Amiad - 2Inch Spin Klin - 2x2 -Head Loss Graph

Arkal - 50mm Spin Klin - 2x2 Spin Klin Battery - Head Loss Graph

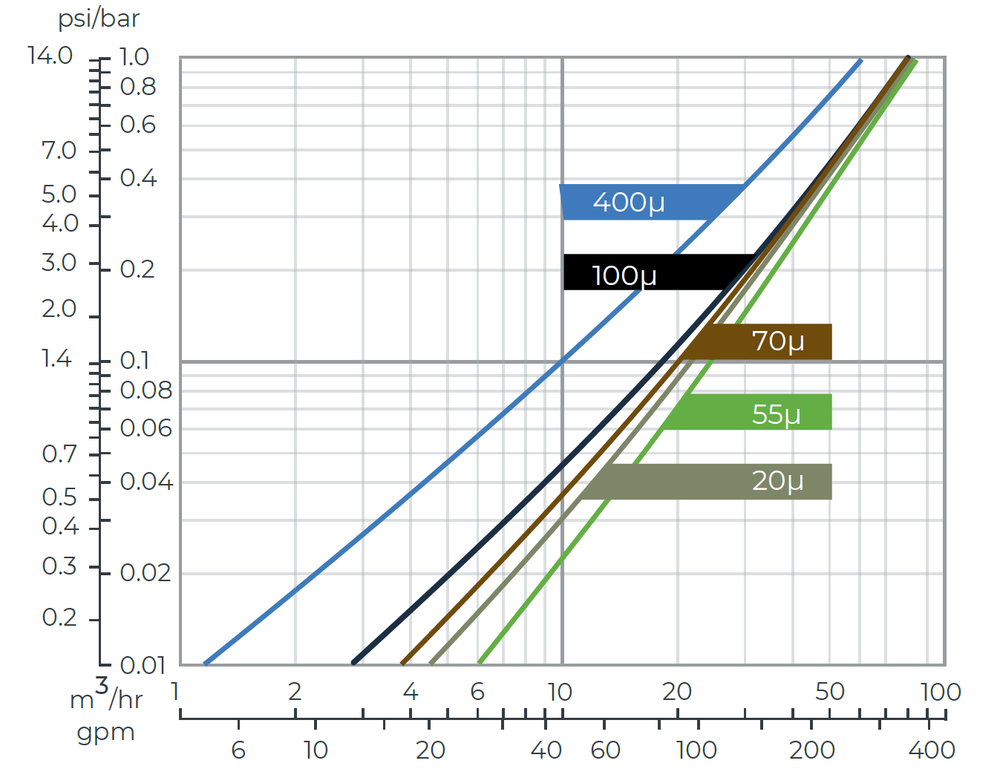

3 x 50mm Spin Klin Battery

Amiad - 2Inch Spin Klin - 3x2 -Head Loss Graph

Arkal - 50mm Spin Klin - 3x2 Spin Klin Battery - Head Loss Graph

4 x 50mm Spin Klin Battery

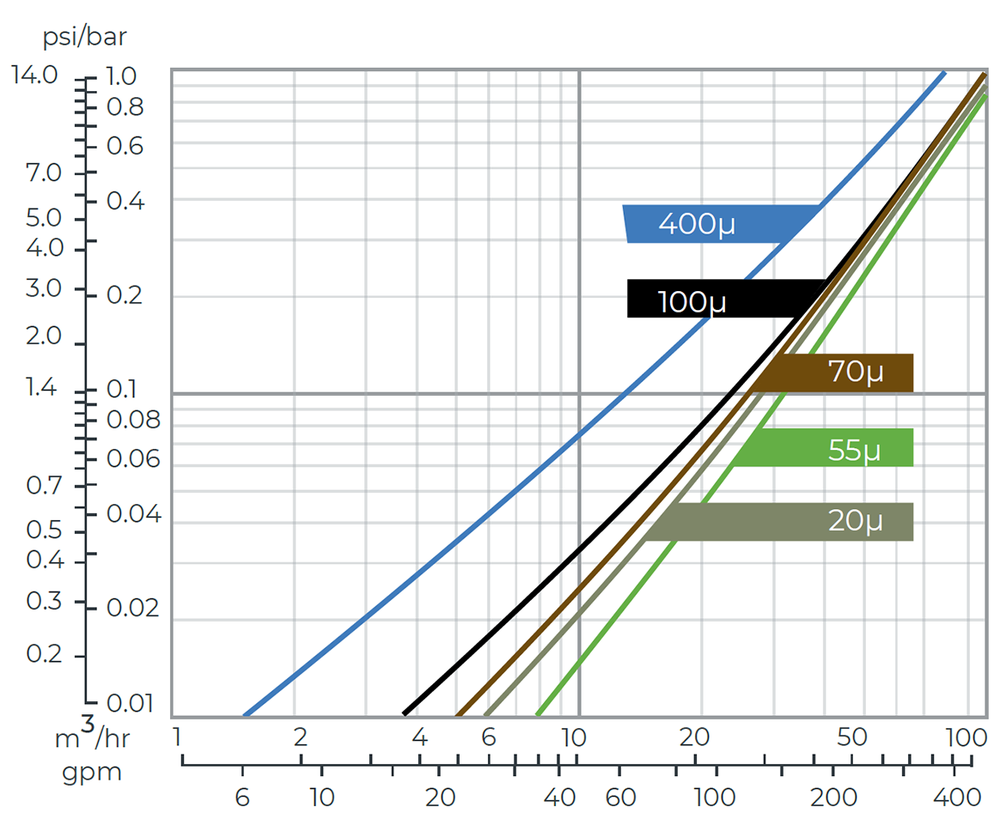

Amiad - 2Inch Spin Klin - 4x2 -Head Loss Graph

Arkal - 50mm Spin Klin - 4x2 Spin Klin Battery - Head Loss Graph

Typical Installation Drawing

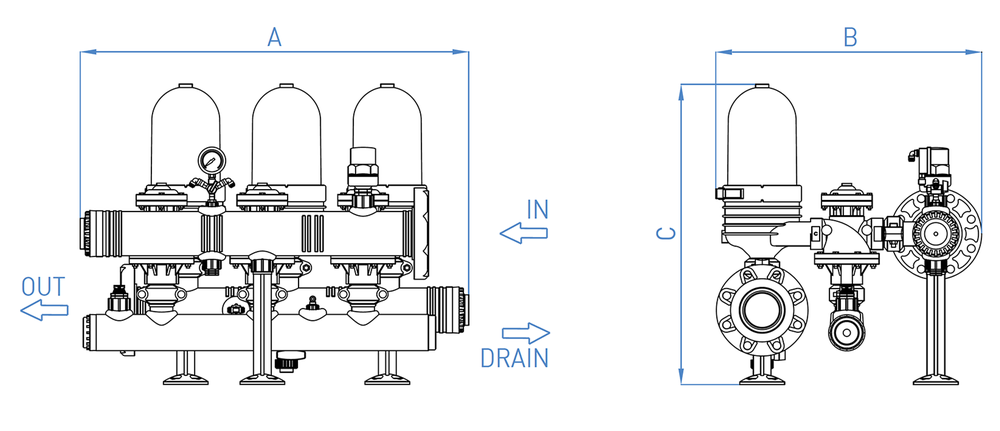

Amiad - 2Inch Spin Klin - Typical Installation Drawing

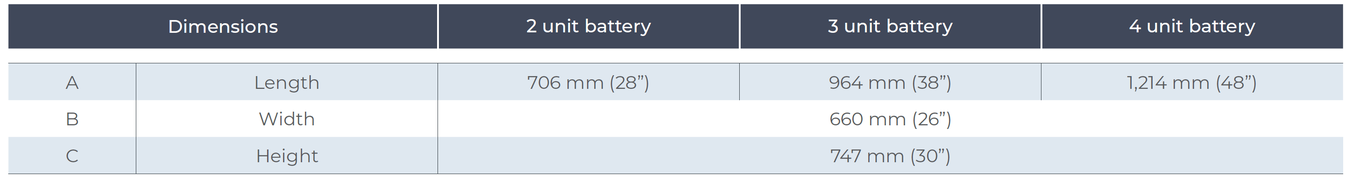

Dimensions

Amiad - 2Inch Spin Klin - Dimensions

Arkal - 50mm Spin Klin - Dimensions

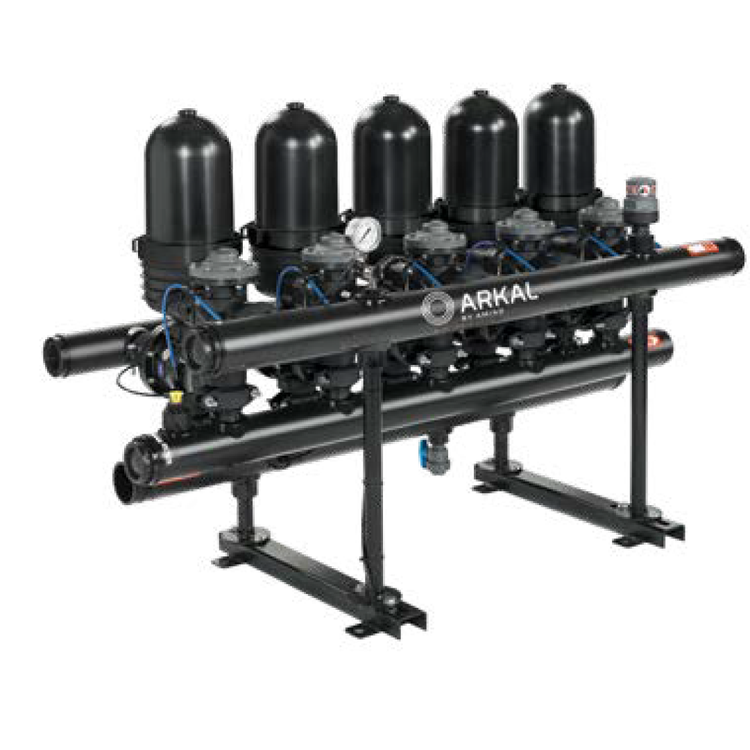

50mm Spin Klin External Source

Amiad - 2Inch Spin Klin Ext.S - Image

General Data

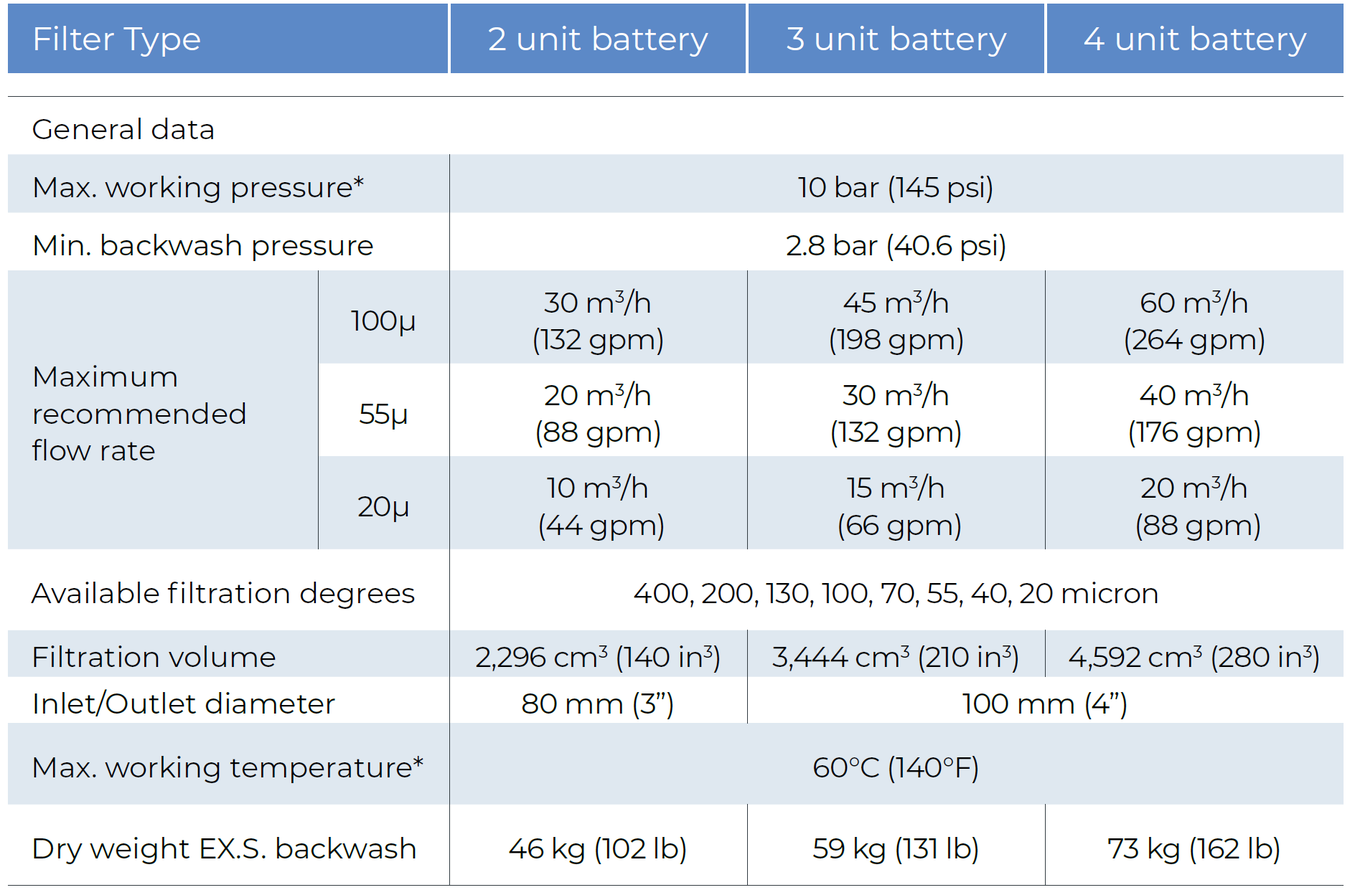

Amiad - 2Inch Spin Klin Ext.S - General Data

Arkal - 50mm Spin Klin Ext.S - General Data

*Maximum operating pressure and temperature are interdependent parameters and are given for general reference only. Please consult your authorized Deeco for the application-specific parameters.

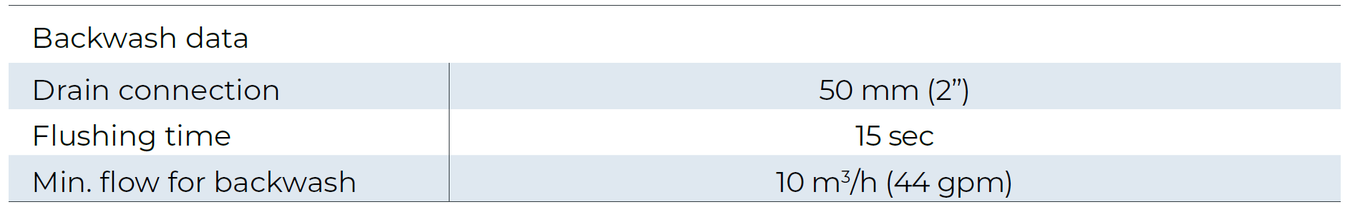

Backwash Data

Amiad - 2Inch Spin Klin Ext.S - Backwash Data

Arkal - 50mm Spin Klin Ext.S - Backwash Data

* Maximum operating pressure and temperature are interdependent parameters and are given for general reference only. Please consult Deeco for the application-specific parameters.

Head Loss Graphs (in clean water)

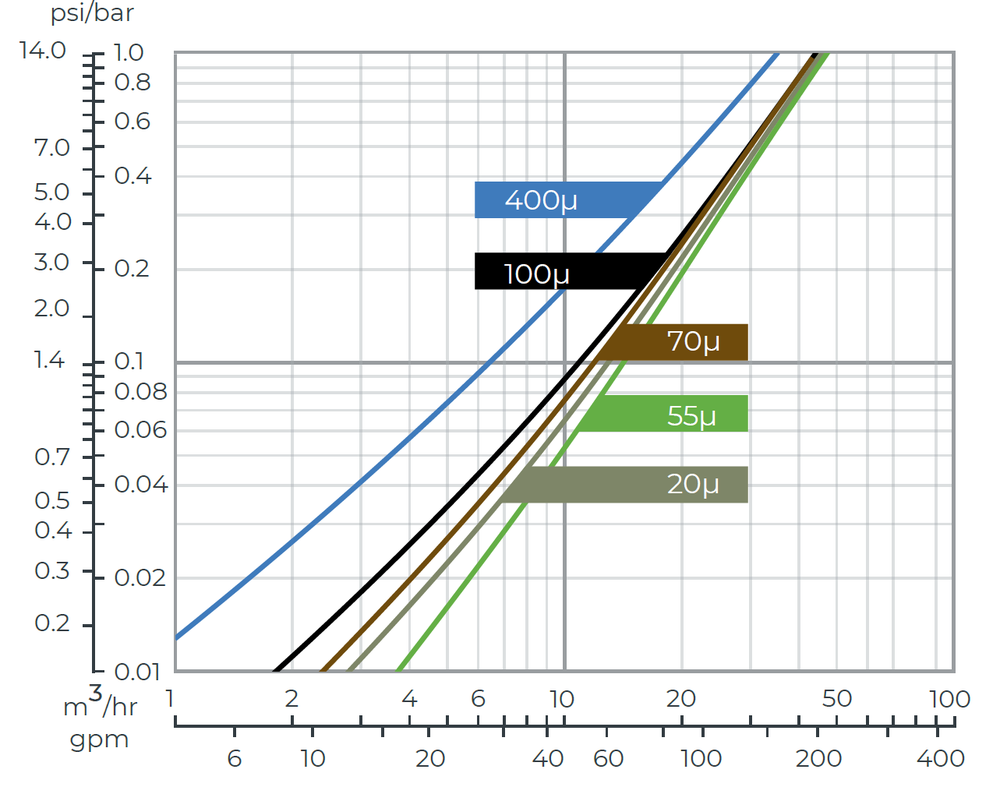

2 x 50mm Spin Klin Battery EX.S.

Amiad - 2Inch Spin Klin Ext.S -2x2 Spin Klin Battery

Arkal - 50mm Spin Klin Ext.S -2x2 Spin Klin Battery

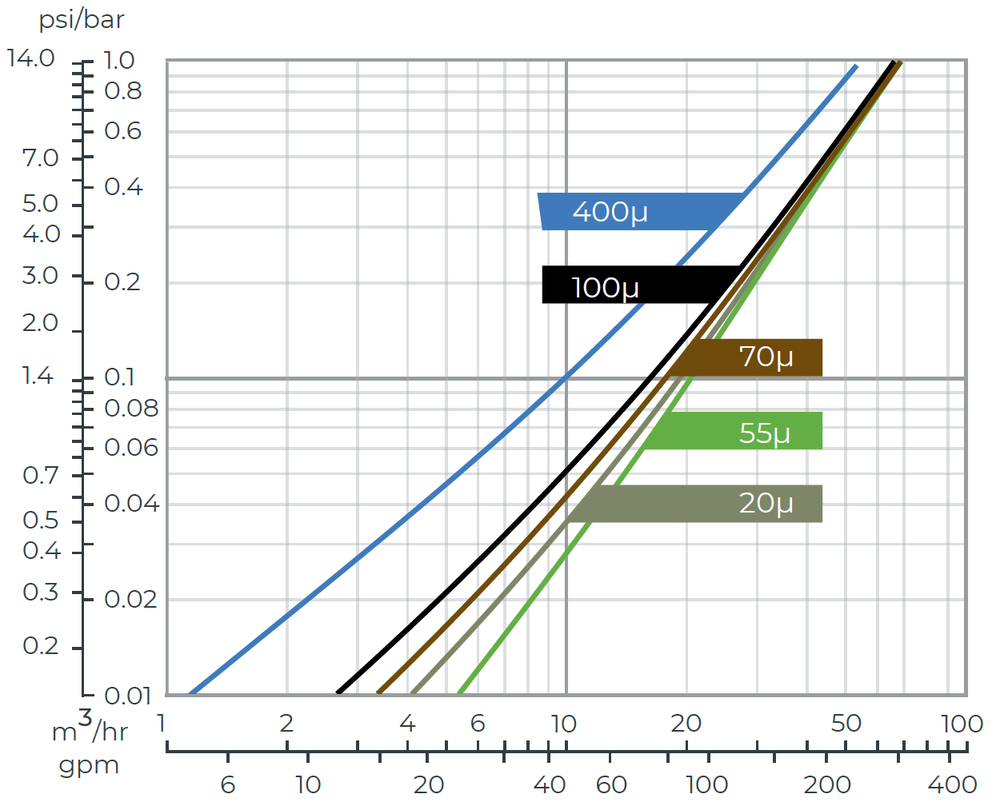

3 x 50mm Spin Klin Battery EX.S.

Amiad - 2Inch Spin Klin Ext.S -3x2 Spin Klin Battery

Arkal - 50mm Spin Klin Ext.S -3x2 Spin Klin Battery

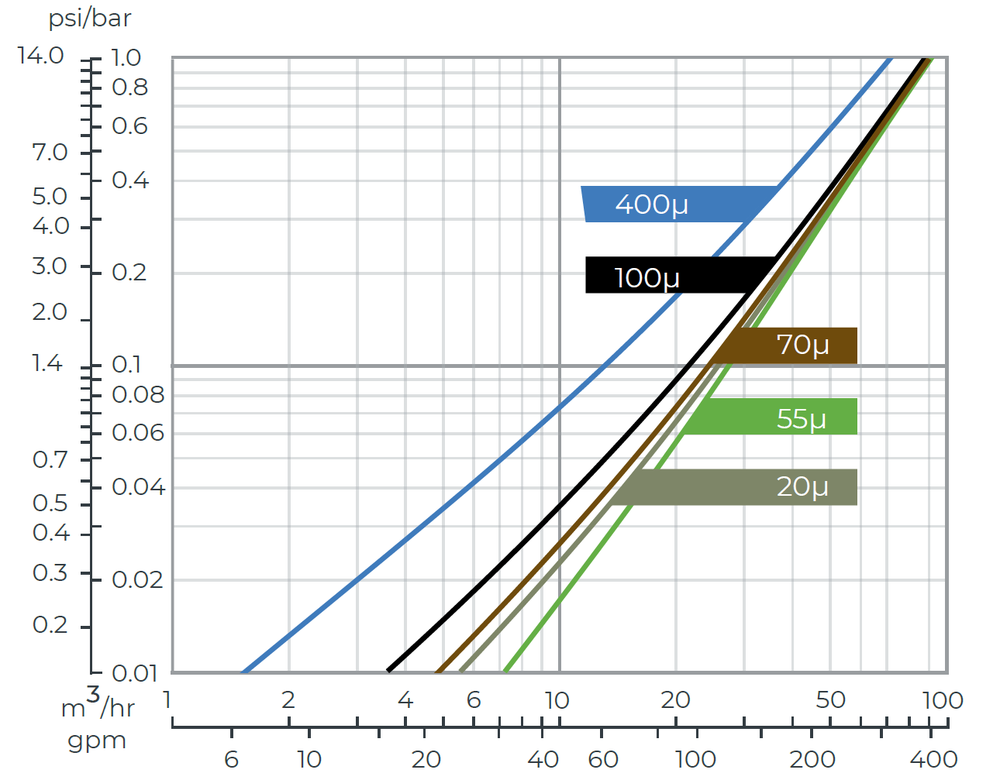

4 x 50mm Spin Klin Battery EX.S.

Amiad - 2Inch Spin Klin Ext.S -4x2 Spin Klin Battery

Arkal - 50mm Spin Klin Ext.S -4x2 Spin Klin Battery

Typical Installation Drawing

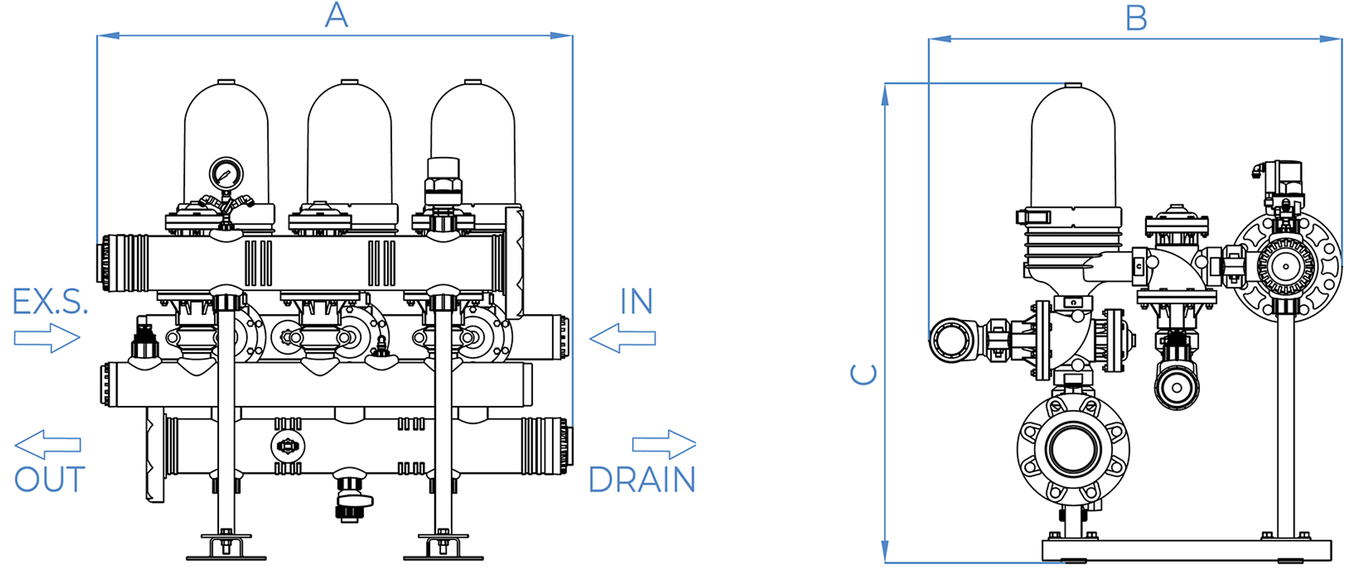

Amiad - 2Inch Spin Klin Ext.S - Typical Installation Drawing

Dimensions

Amiad - 2Inch Spin Klin Ext.S - Dimensions

Arkal - 50mm Spin Klin Ext.S - Dimensions

50mm Spin Klin Air Aided

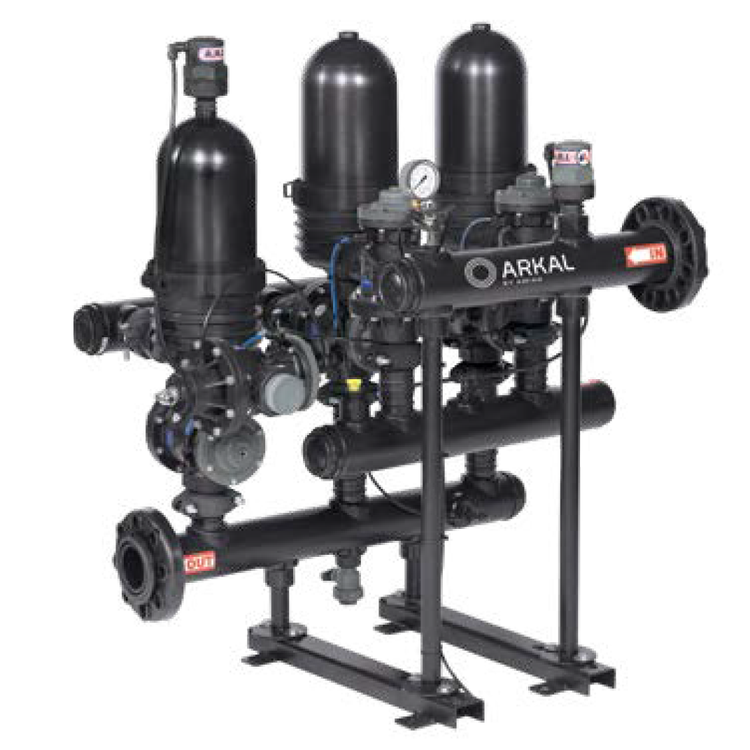

Amiad - 2Inch Spin Klin Air-Aided - Image

General Data

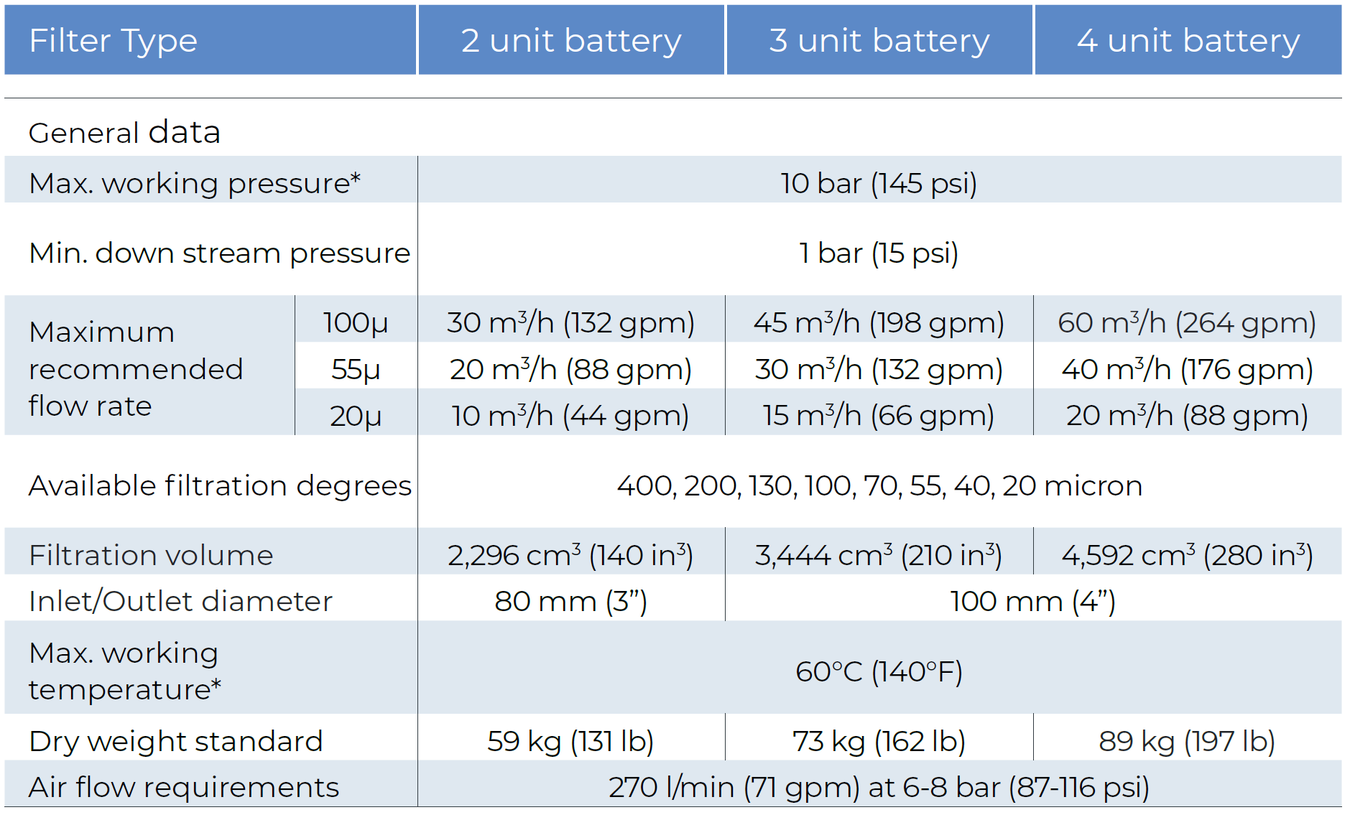

Amiad - 2Inch Spin Klin Air-Aided - General Data

Arkal - 50mm Spin Klin Air-Aided - General Data

*Maximum operating pressure and temperature are interdependent parameters and are given for general reference only. Please consult Deeco for the application-specific parameters.

Backwash Data

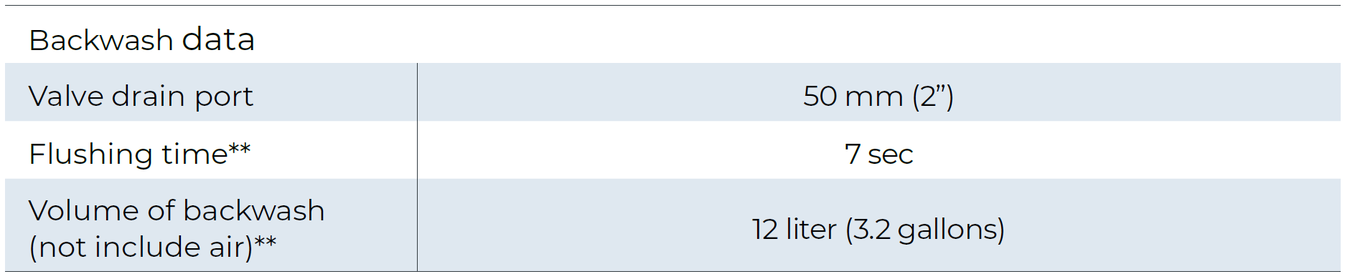

Amiad - 2Inch Spin Klin Air-Aided - Backwash Data

Arkal - 50mm Spin Klin Air-Aided - Backwash Data

**Air Aided system flushing time and volume depend on air tank size

Head Loss Graphs (in clean water)

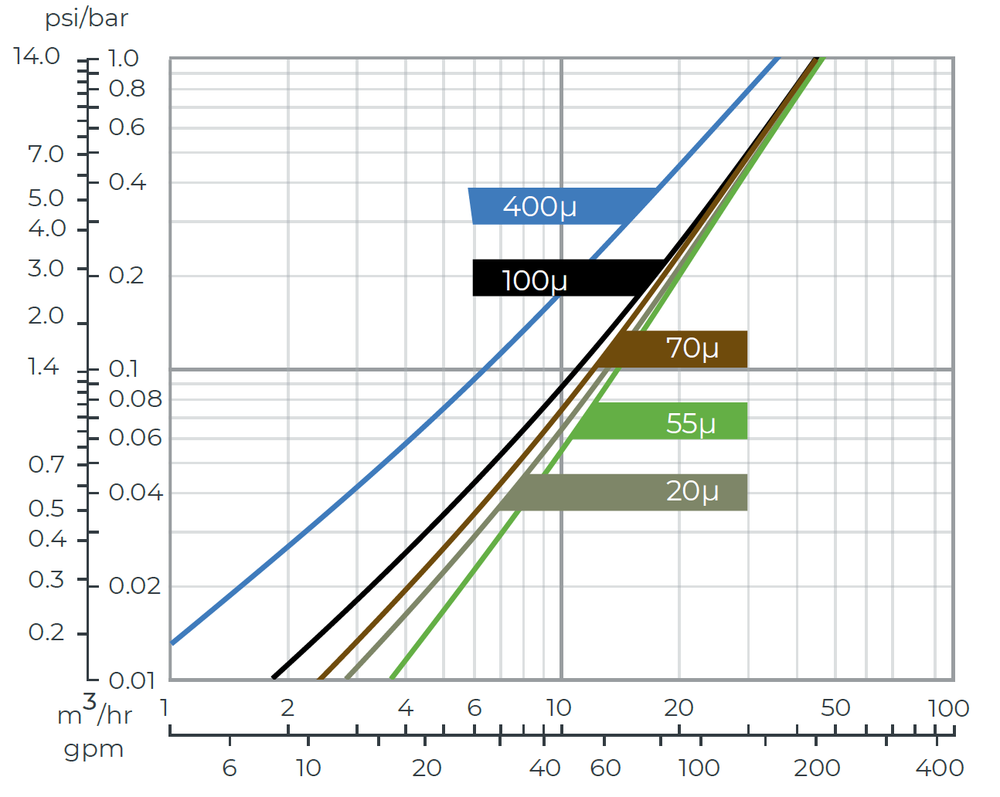

2 x 50mm Spin Klin Battery AAF

Amiad - 2Inch Spin Klin Air-Aided - 2x2 Spin Klin Battery AAF - Head loss Graph

Arkal - 50mm Spin Klin Air-Aided - 2x2 Spin Klin Battery AAF - Head loss Graph

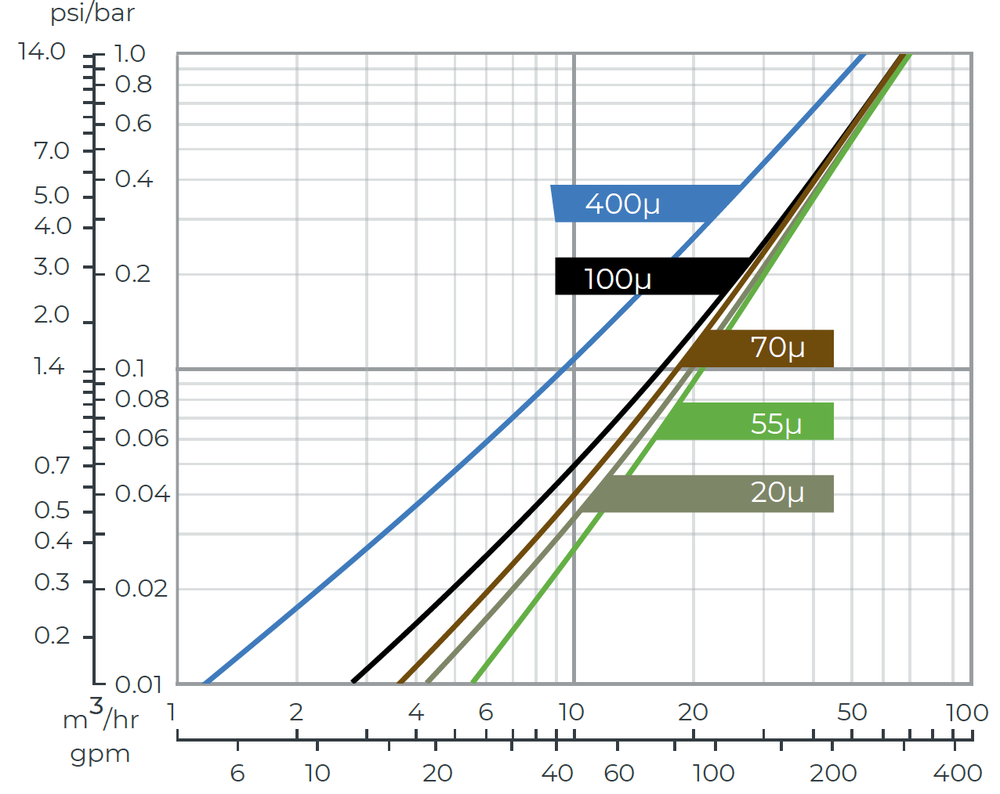

3 x 50mm Spin Klin Battery AAF

Amiad - 2Inch Spin Klin Air-Aided - 3x2 Spin Klin Battery AAF - Head loss Graph

Arkal - 50mm Spin Klin Air-Aided - 3x2 Spin Klin Battery AAF - Head loss Graph

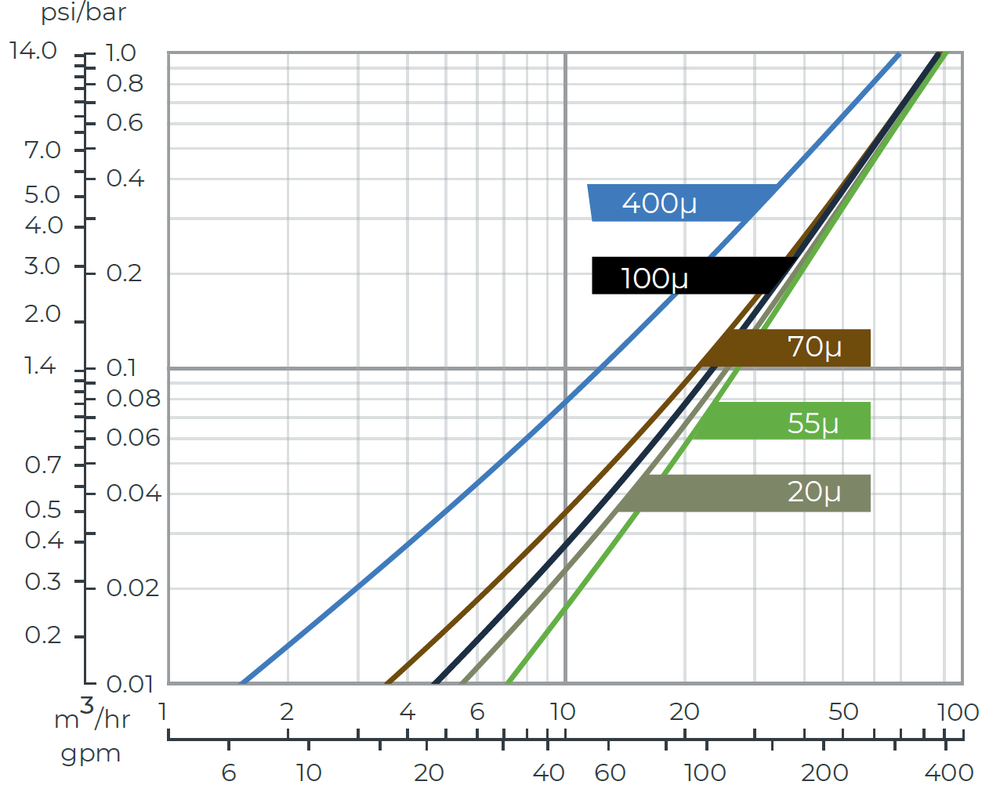

4 x 50mm Spin Klin Battery AAF

Amiad - 2Inch Spin Klin Air-Aided - 4x2 Spin Klin Battery AAF - Head loss Graph

Arkal - 50mm Spin Klin Air-Aided - 4x2 Spin Klin Battery AAF - Head loss Graph

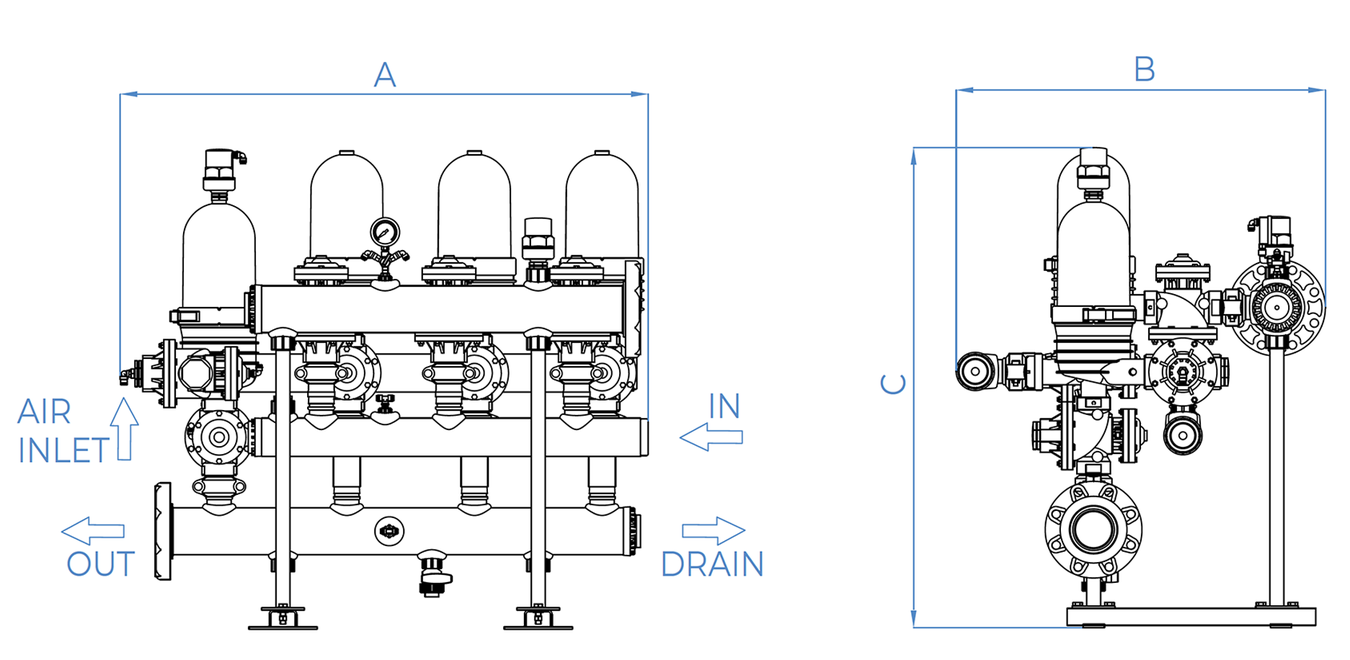

Typical Installation Drawing

Amiad - 2Inch Spin Klin Air-Aided - Typical Installation Drawing

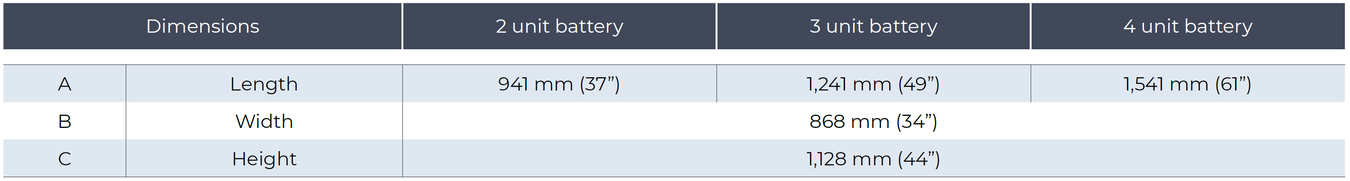

Dimensions

Amiad - 2Inch Spin Klin Air-Aided - Dimensions

Arkal - 50mm Spin Klin Air-Aided - Dimensions

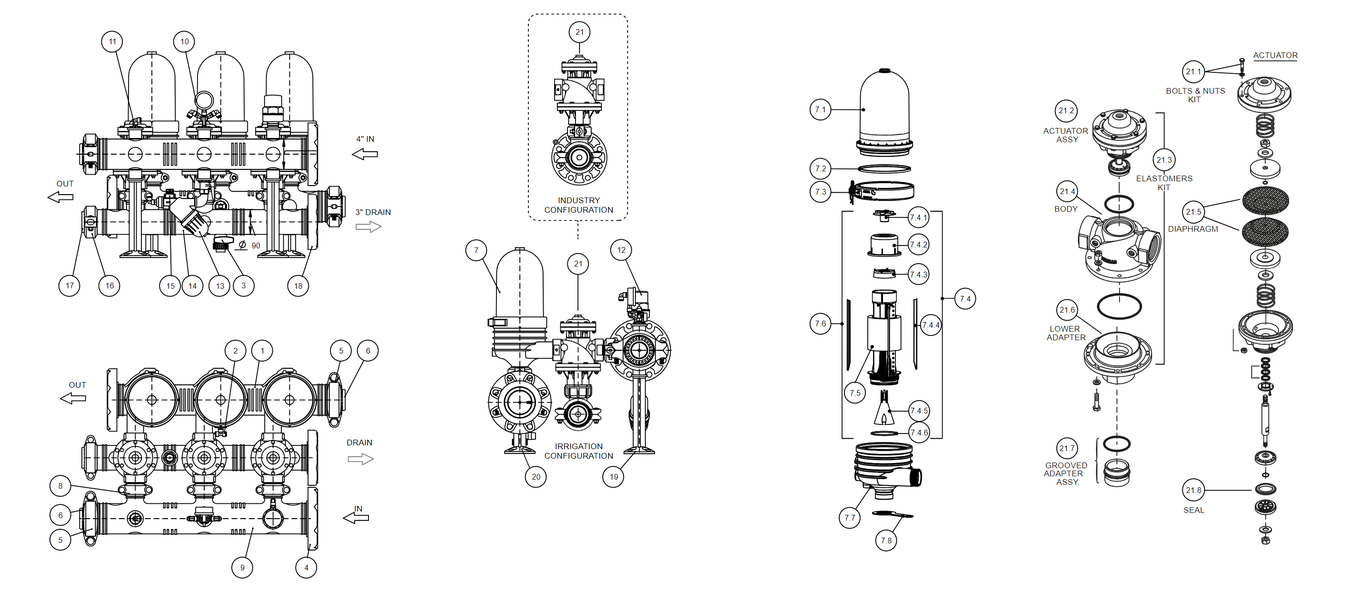

Spare Parts

Arkal - 50mm Spin Klin - Automatic Disc Filter

Deeco - 2 Inch - Spin Klin - Spare Parts
Pos. Part No. Description
1 750101-008677 OUTLET MANIFOLD PP BLACK 110MM INJECTED WELDING ROUND 3X 2" SK GRV/GRV W/B
2 720501-000008 T-CONNECTOR 8MMX1/4"M X8MM BSPT ACETAL BLACK JOHN-GUEST
2 720501-000136 T-CONNECTOR 8MMX1/4"M X8MM BSPT RPP BLACK TEFEN
3 730104-000032 2-WAY BALL VALVE 3/4" M/F PVC GREY MANUAL PLASSON
3 730104-000232 2-WAY BALL VALVE 3/4" M/F
4 700190-000227 4" AKF UNIVERSAL ASSEMBLY
5 780102-000032 4" GRV CONNECTOR C/ST RED POLYESTER RAL3000
5 780102-000055 4" GRV CONNECTOR C/ST BLUE POLYESTER RAL5010 STYLE75 DW
6 710101-000433 CAP 4" PP GRV BLACK
7 600000-xxxxxx 2" SK RPA THR. PP W/TRH1/2”
7.1 710103-004798 COVER 2"-3" FILTER RPP DW
7.1 710103-005233 COVER 2"-3" FILTER RPA BLACK
7.1 710103-010675 TRANSPARENT COVER 2"-3" SK PC
7.2 770104-000001 HYDRAULIC SEAL 2"-3" VITON 70 SHRE
7.2 770104-000248 HYDRAULIC SEAL 2"-3" EPDM
7.2 770104-000251 HYDRAULIC SEAL 2" NBR 70 SHORE
7.3 760108-000002 FILTER CLAMP 2"-3" S/ST304
7.4 700101-002255 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA
7.4 700101-002256 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA LCE
7.4 700101-002257 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPP EPDM SEALS DW
7.4 700101-002258 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA AW
7.4 700101-002259 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA SW
7.4.1 710101-000435 2"SK BUTTERFLY NUT RPA BLACK
7.4.2 710101-000106 2"SK SPINE TIGHTENING CYLINDER RPA BLACK
7.4.3 710101-000436 SK SPINE PISTON HDPE NATURAL DW
7.4.4 760109-000045 ANTI FRICTION S/ST316 F/SK DW
7.4.4 760109-000467 ANTI FRICTION SUPER DUPLEX F/2.7SK DW
7.4.5 770104-000065 CONE MEMBRANE NATURAL 65 SHORE 2"SPIN KLIN (2.7 SPINE)
7.4.5 770104-000372 CONE MEMBRANE NATURAL 65 SHORE 2.8 2"SPIN KLIN
7.4.5 770104-000375 CONE MEMBRANE EPDM 70 SHORE 2.7SPIN KLIN DW
7.4.5 770104-000384 CONE MEMBRANE NATURAL 65 SHORE LCE 2.8 SPINE SK
7.4.6 770102-000034 PARKER O-RING 2-237 EPDM 70 SHORE YELLOW DOT
7.5 700101-000269 DISC SET PP 10MIC 2-3-4-6" SK
7.5 700101-001176 DISC SET PP 130MIC 2-3-4-6" SK DW
7.5 700101-001177 DISC SET PP 100MIC 2-3-4-6" SK DW
7.5 700101-001182 DISC SET PP 20MIC 2-3-4-6" SK DW
7.5 700101-001183 DISC SET PP 55MIC 2-3-4-6" SK DW
7.5 700101-001184 DISC SET PP 70MIC 2-3-4-6" SK DW
7.5 700101-001187 DISC SET PP 400MIC 2-3-4-6" SK DW
7.5 700101-001188 DISC SET PP 200MIC 2-3-4-6" SK DW
7.5 700101-001189 DISC SET PP 40MIC 2-3-4-6" SK DW
7.6 700101-002260 DISC ELEMENT PP 400MIC 2-3" SK RPA
7.6 700101-002261 DISC ELEMENT PP 70MIC 2-3" SK RPA
7.6 700101-002262 DISC ELEMENT PP 200MIC 2-3" SK RPA
7.6 700101-002263 DISC ELEMENT PP 100MIC 2-3" SK RPA
7.6 700101-002264 DISC ELEMENT PP 55MIC 2-3" SK RPA
7.6 700101-002265 DISC ELEMENT PP 40MIC 2-3" SK RPA
7.6 700101-002266 DISC ELEMENT PP 20MIC 2-3"SK RPA CLASSIC
7.6 700101-002267 DISC ELEMENT PP 130MIC 2-3" SK RPA
7.6 700101-002377 DISC ELEMENT PP 10MIC 2-3" SK RPA
7.7 710103-006082 BODY 2" SK BATTERY RPA GRV
7.8 760109-000055 WRENCH GALVANIZED F/BUTTERFLY NUT
8 780102-000020 2" VICTAULIC CONNECTOR
8 780102-000058 2" GRV CONNECTOR C/ST BLUE POLYESTER RAL5010 STYLE75 DW
10 700190-000339 PRESSURE GAUGE ASSEMBLY F/2" 8MM PL.J.G.
10 700190-001980 PRESSURE GAUGE ASSEMBLY F/2" 8MM TEF.
11 720501-000006 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK JOHN-GUEST
11 720501-000139 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK TEFEN
12 700190-000372 1''BARAK AIR REL.VAL.AS 8MM PL.J.G. ASSY
12 730108-000025 AIR RELEASE VALVE A.R.I BARAK 1" BSPT NYLON3 GREY 10BAR
13 700190-000447 3/4''CONTROL FILTER 8MM PL.J.G. BLUE ASSY.
13 700190-000450 3/4''CONTROL FILTER 8MM TF.RED ASSY
14 750101-001477 DRAIN MANIFOLD PP BL 90MM INJ WELD ROUND 3X 2" THR/F 3"GRV 3"GRV/2"THR
14 750101-008088 DRAIN MANIFOLD PP BLACK 90MM INJECTED WELDING ROUND 3X 2" SK 3"GRV 3"GRV/2"THR
15 700190-003406 1" VACUUM BREAKER (ARKAL/SIGMA) ASSEMBLY
16 780102-000025 3" GRV CONNECTOR C/ST RED POLYESTER RAL3000
16 780102-000057 3" GRV CONNECTOR C/ST BLUE POLYESTER RAL5010 STYLE75 DW
17 710101-000165 CAP 3" PP GRV BLACK W/O R
18 700190-000195 ADAPTOR ASSY NUT+SEALS
18 700190-000223 3" AKF UNIVERSAL ASSY
19 710101-000278 2"SK LEG 300MM RPA BLACK
20 710101-000439 LEG 110MM RPA BLACK
21 730102-000106 STRAIGHT FLOW 2X2 350 BSP RPA/DUPLEX BLACK SW BERMAD
21 730102-000108 STRAIGHT FLOW 2X2 350 BSP RPA BLACK AGRESSIVE WATER BERMAD
21 730102-000119 ANGLE FLOW 2X2 350 BSP RPA BLACK AGRESSIVE WATER BERMAD
21 730102-000167 ANGLE FLOW 2X2 350 BSP RPA BLACK BERMAD
21 730102-000169 STRAIGHT FLOW 2X2 350 BSP RPA BLACK BERMAD
21 730102-000283 STRAIGHT FLOW 2X2 350 BSP RPA BLACK BERMAD DW
21 730102-000290 ANGLE FLOW 2X2 350 BSP RPA BLACK BERMAD DW
21.1 730113-000761 BOLTS-NUTS KIT F/2" 350 BERMAD
21.1 730113-000762 BOLTS-NUTS KIT F/2" 350 BERMAD WA
21.2 730113-000331 VALVE ASSY. F/2" STRAIGHT FLOW PLASTIC BERMAD WA
21.2 730113-000346 VALVE ASSY. F/2" ANGLE FLOW BERMAD
21.2 730113-000507 VALVE ASSY. F/2" STRAIGHT FLOW PLASTIC BERMAD
21.2 730113-000589 ACTUATOR F/2" STRAIGHT FLOW BERMAD WA-S.DUPLEX
21.2 730113-000869 ACTUATOR ASSY. F/2" ANGLE FLOW PLASTIC BERMAD DW
21.2 730113-000871 ACTUATOR ASSY. F/2" STRAIGHT FLOW PLASTIC BERMAD DW
21.3 730113-000763 SEALS + DIAPHRAGM KIT F/2" 350 BERMAD
21.3 730113-000867 ELASTOMERS KIT F/2" 350 BERMAD DW
21.4 730113-000317 BODY ASSY. F/2" STRAIGHT FLOW BERMAD
21.4 730113-000339 BODY ASSY.+LOW ADAPTOR F/2" STRAIGHT FLOW BERMAD
21.4 730113-000754 BODY ASSY. F/2" 350 PLASTIC BERMAD WA-DUPLEX-S/S316
21.4 730113-000759 BODY ASSY. F/2" 350 PLASTIC BERMAD WA
21.4 730113-000872 BODY ASSY. F/2" 350 BLACK PLASTIC BERMAD BSP DW
21.5 730113-000446 DIAPHRAGM F/2" STRAIGHT FLOW BERMAD
21.6 730113-000315 LOWER ADAPTOR F/2" STRAIGHT FLOW PLASTIC BERMAD
21.6 730113-000753 LOWER ADAPTOR F/2" 350 PLASTIC BERMAD WA-DUPLEX-S/S316
21.6 730113-000758 LOWER ADAPTOR F/2" 350 PLASTIC BERMAD WA
21.6 730113-000873 LOWER ADAPTOR F/2" 350 BLACK PLASTIC BERMAD BSP DW
21.7 700190-003407 2" GROOVED-BSP THREAD CONNECTOR ASSY
21.7 730113-000883 ADAPTOR+SEAL F/2" 350 BLACK PLASTIC BERMAD GRV/TRH DW
21.8 730113-000324 PLUG SEAL F/2" STRAIGHT FLOW BERMAD
21.8 730113-000881 SEAL F/2" VALVE EPDM BERMAD DW

Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.

Please contact us for more information.
