Amiad - Omega - Automatic Screen Filter

Automatic Omega filters offer exceptional filtration efficiency, with a large filtration area and a suction scanning SLN cleaning technology, for quick, uninterrupted flow and maximum water savings. The single electrical drive unit operates the suction scanners and multiple filtration elements. With six models and a variety of flanges and sizes, the Omega Series is ideal for industrial water filtration applications affected by high TSS and challenging loads.

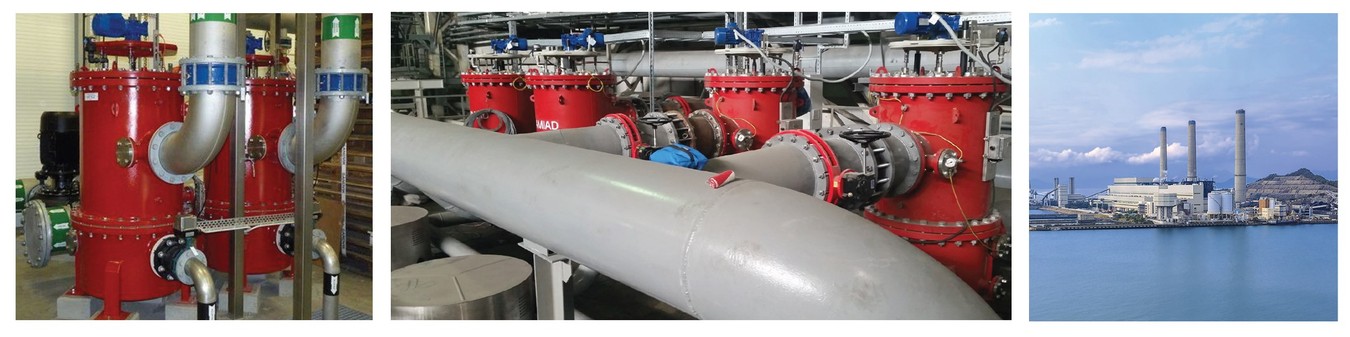

Features and Benefits

• Large filtration area - Multiple filtration elements with advanced weave wire mesh enabling the filter to handle high TSS loads at high flow rates.
• High cleaning efficiency - Excellent cleaning ability at less than 30 seconds with minimal water waste, even in low-pressure conditions
• Compact footprint - Designed to handle big jobs in small areas. Two installation orientation options.
• High flow rate - Up to 2,200 m³/h (9,700 gpm)
• Efficient fine filtration - Excellent filtration results even down to 10 microns
• Dependable self-cleaning mechanism - Continuous flow of filtered water

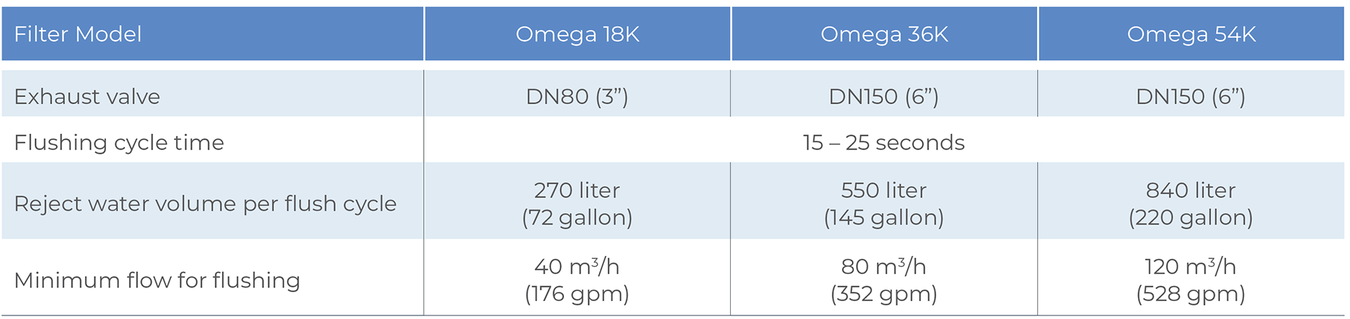

Flushing Data

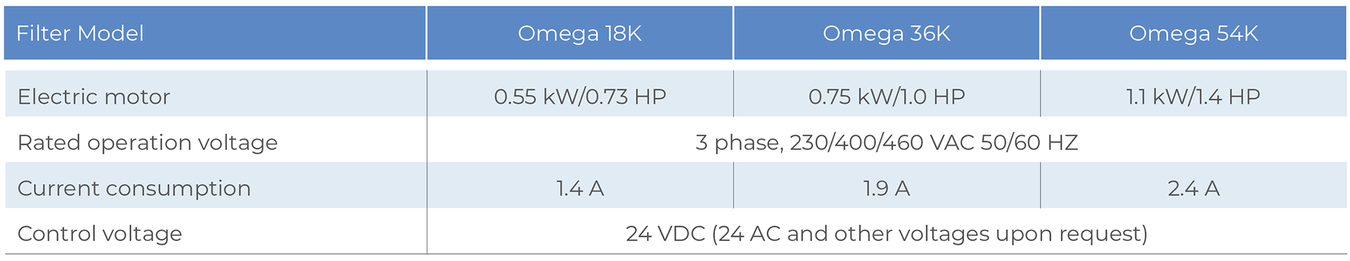

Control and Electricity **

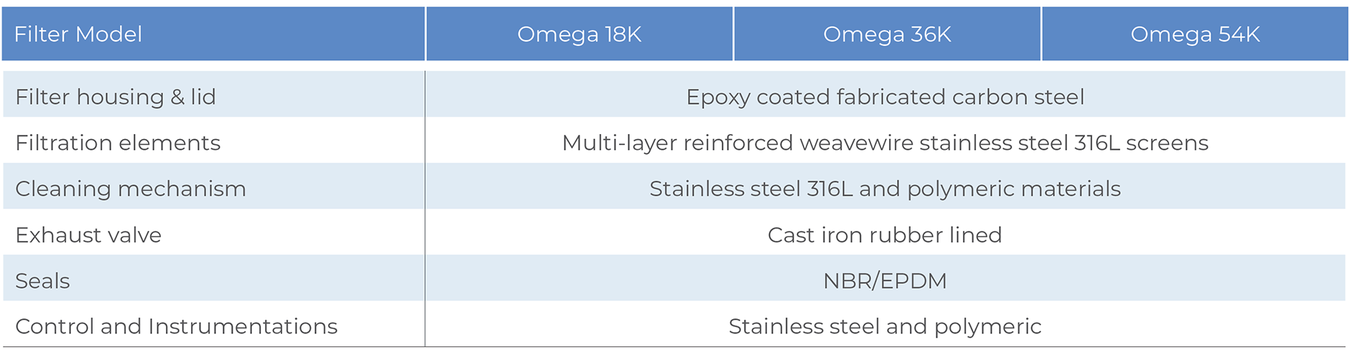

Construction materials ***

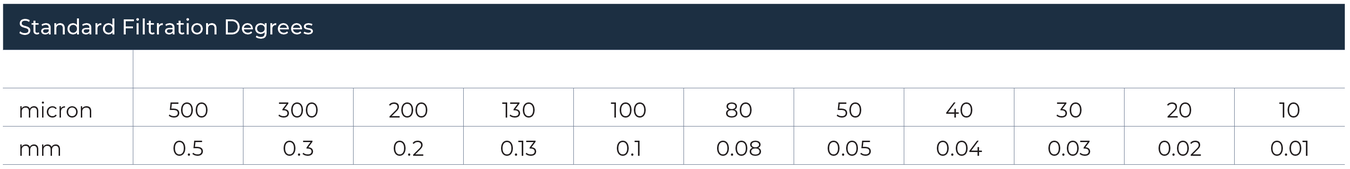

Standard Filtration Degrees

Omega Models and Head Loss Graphs

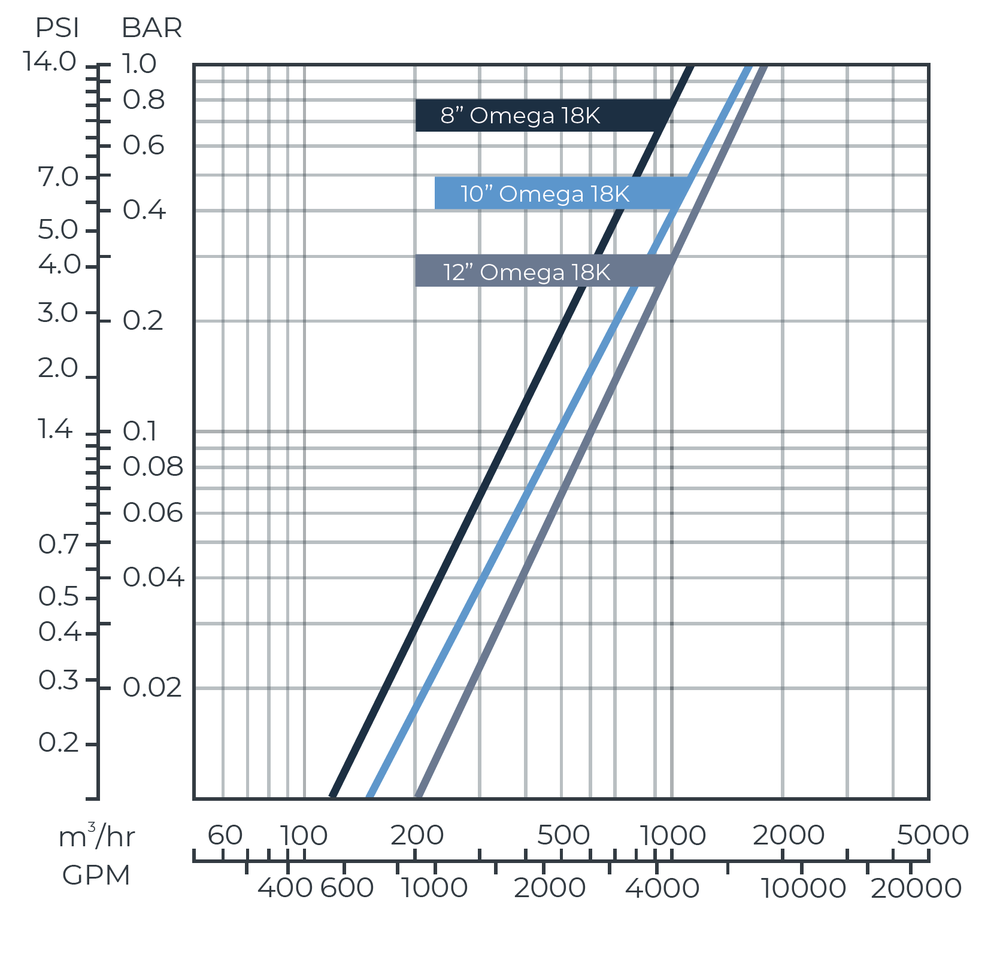

Omega 18K

Head Loss Graph (in clean water)

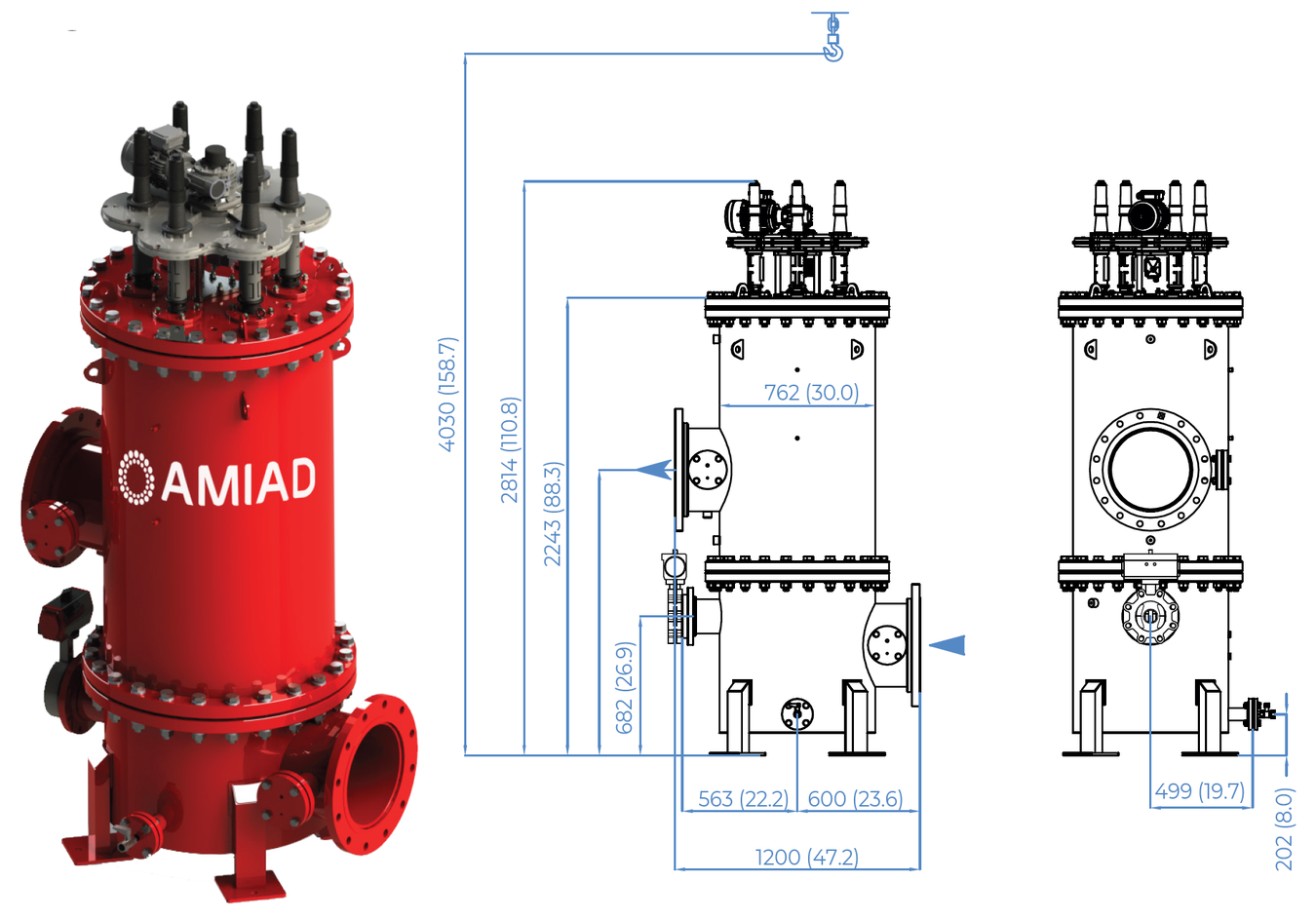

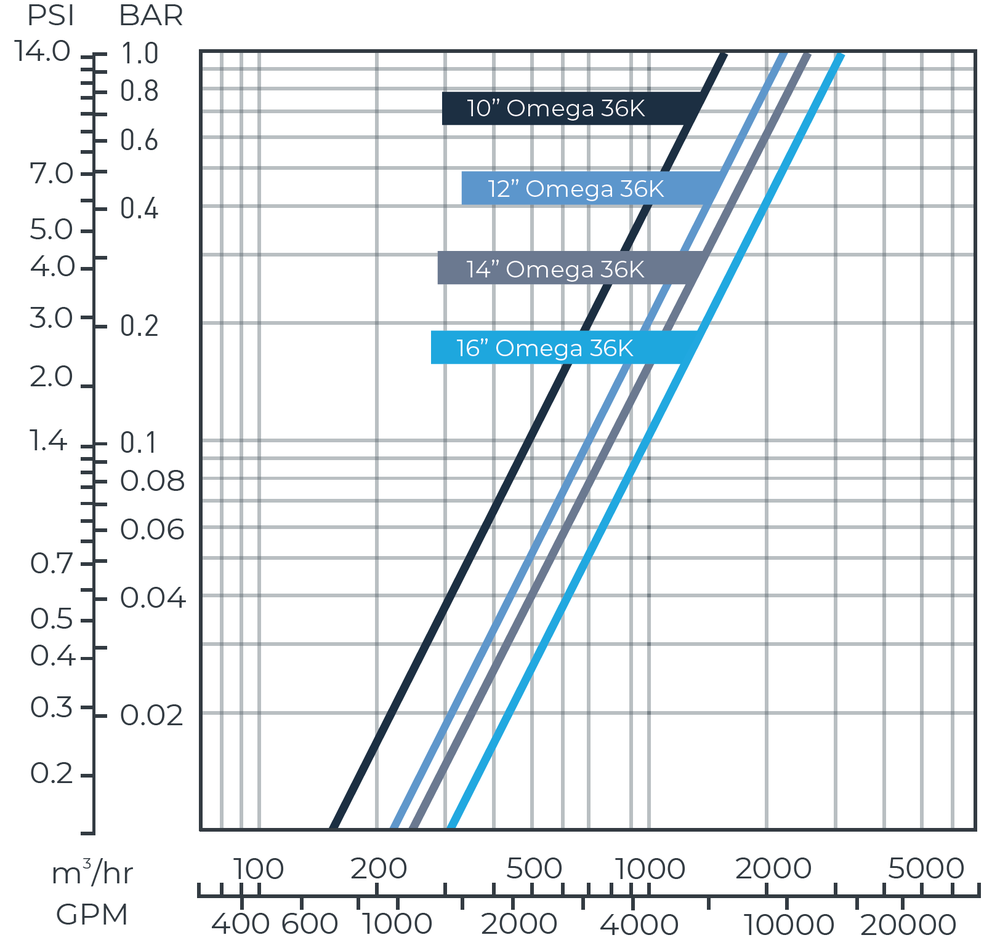

Omega 36K

Head Loss Graph (in clean water)

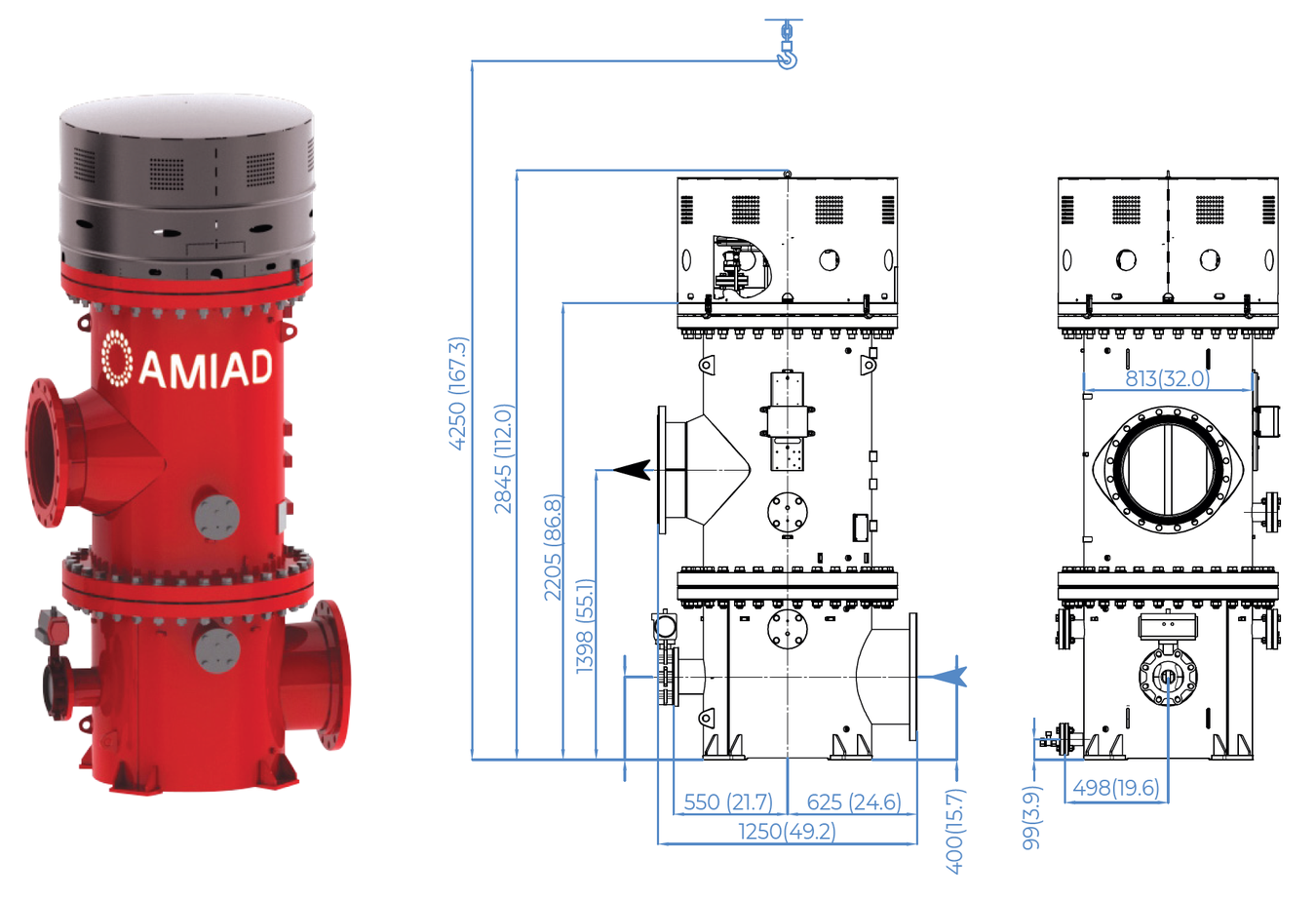

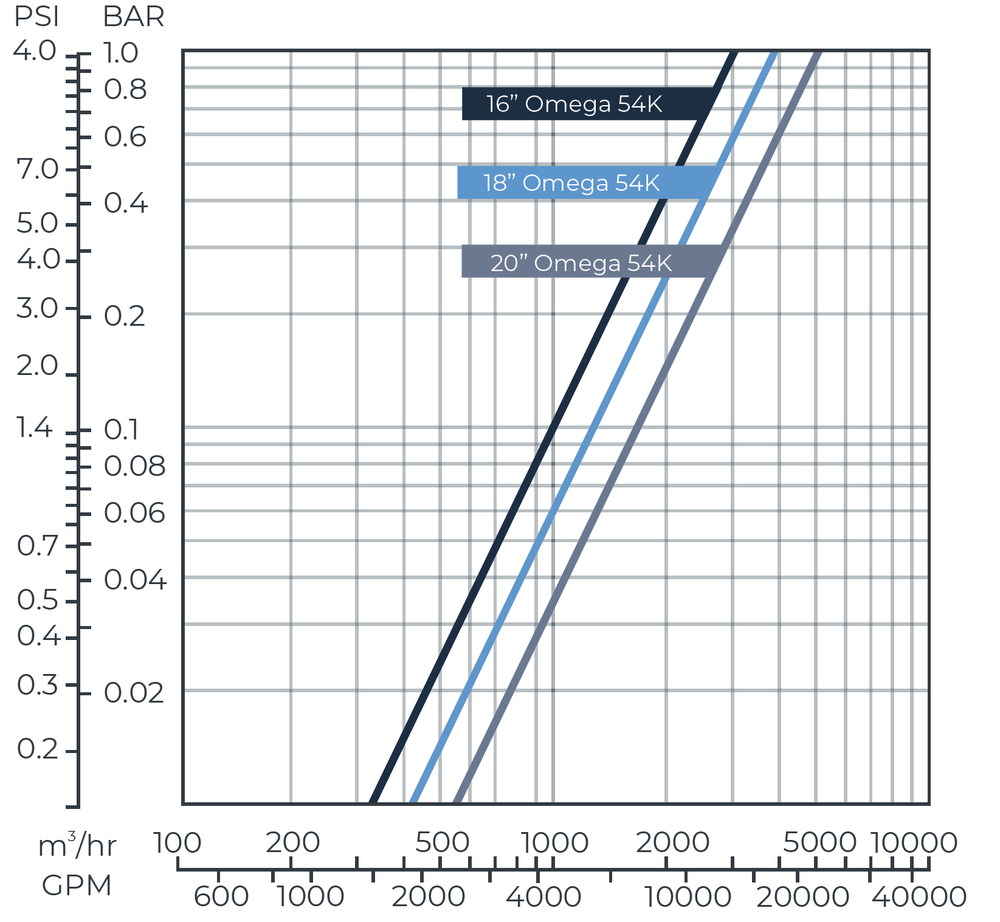

Omega 54K

Head Loss Graph (in clean water)

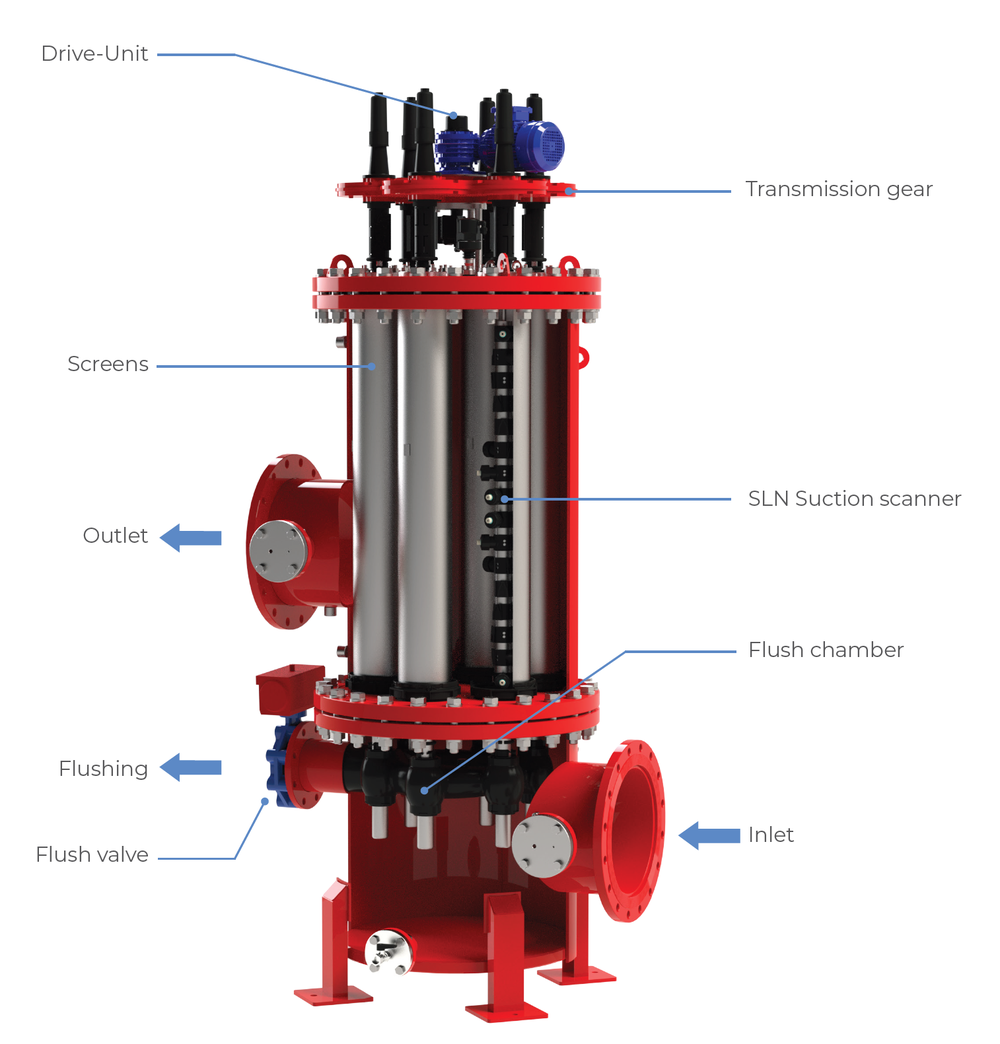

Omega Parts

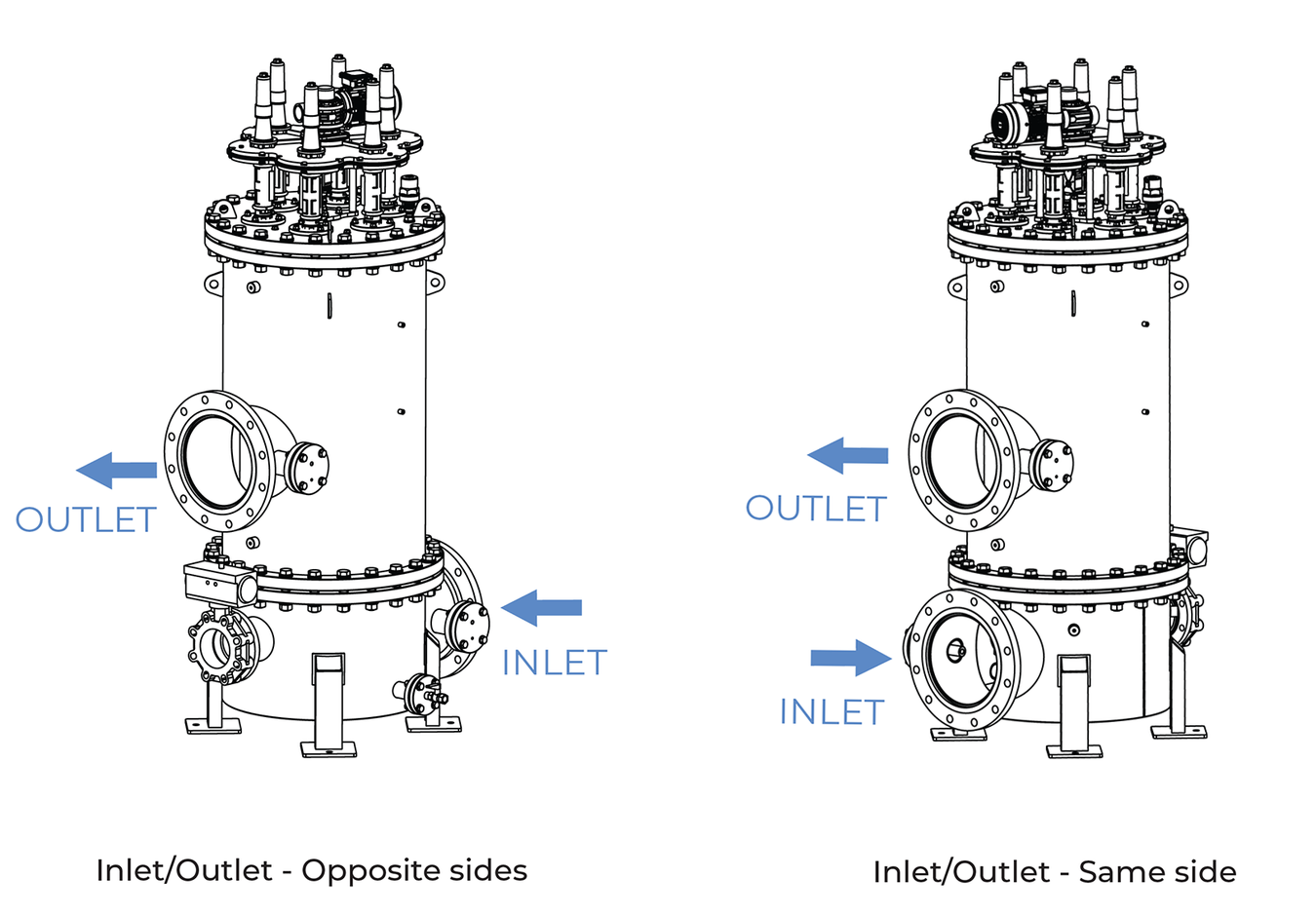

Optional Inlet-Outlet Configurations

The inlet and outlet flanges can be configured in different positions, and easily integrated into the required layout.

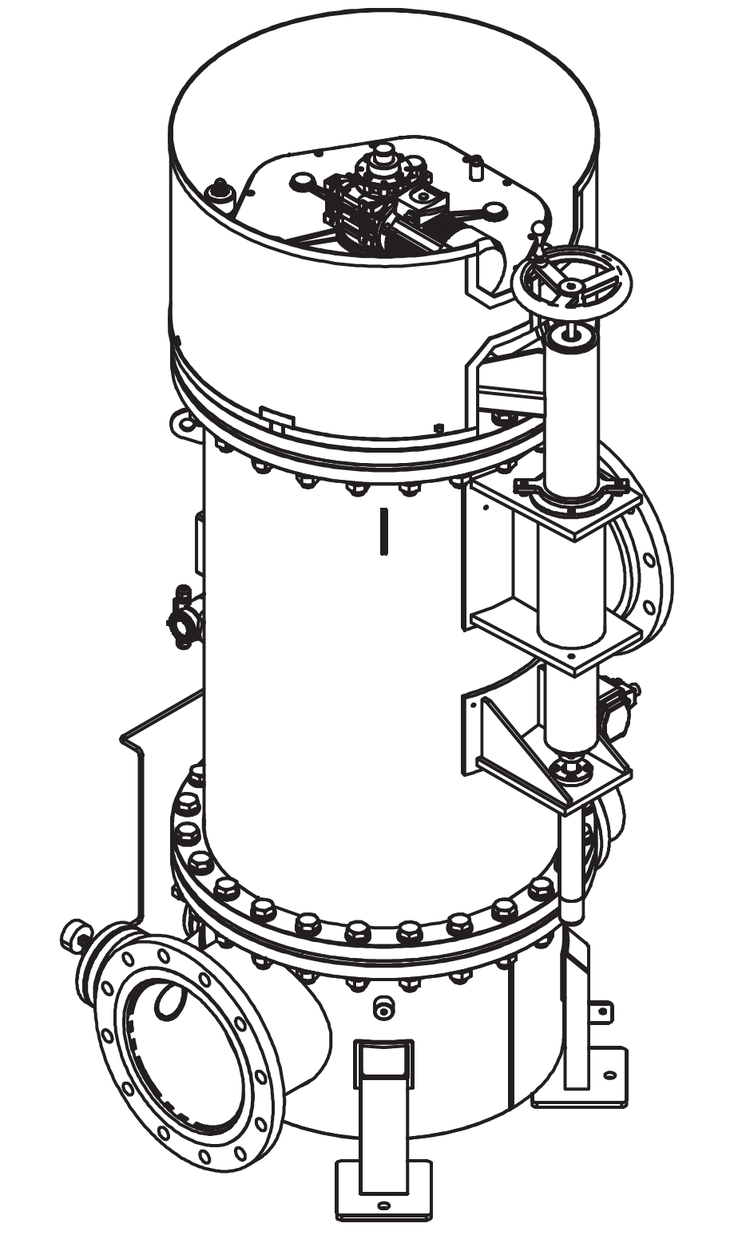

Optional Davit Arm Lift

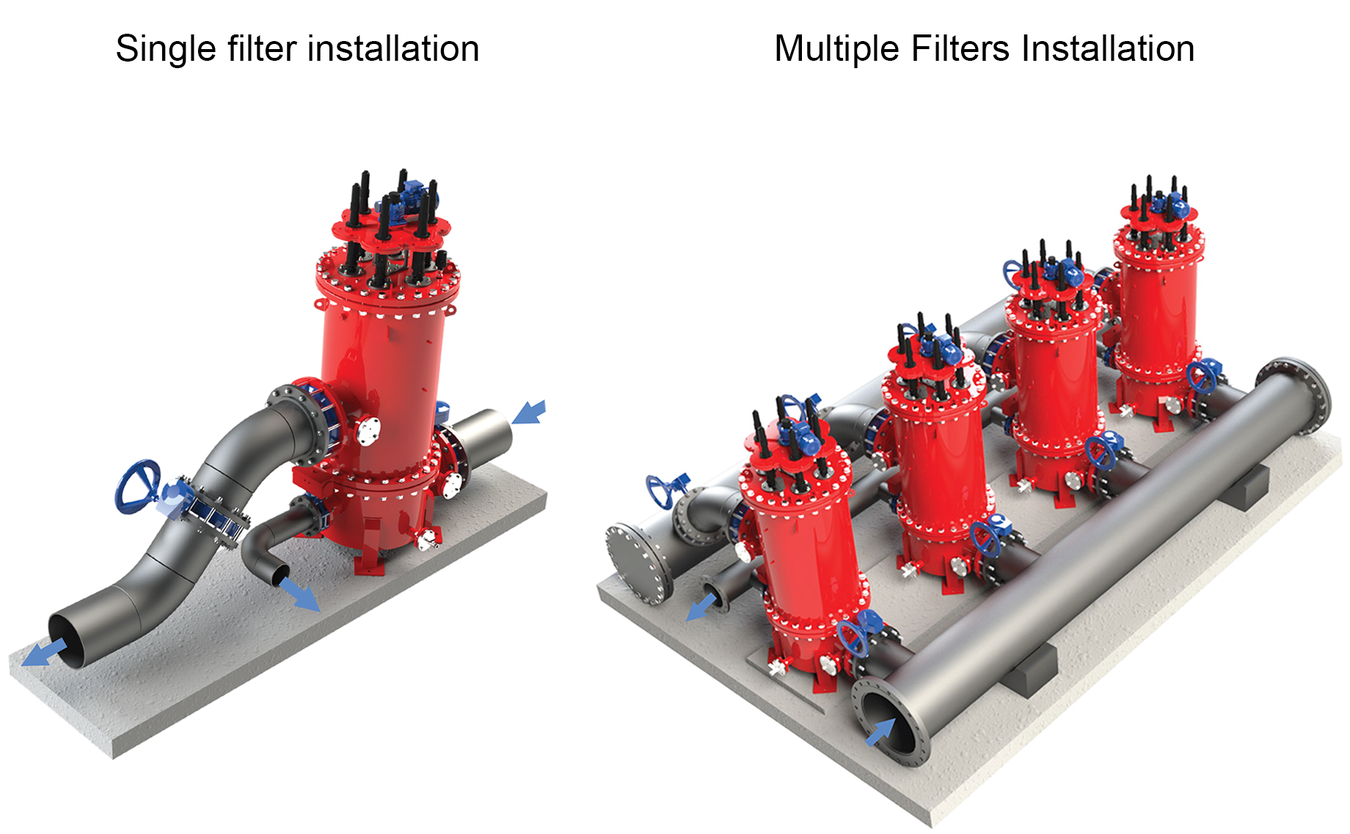

Typical Installation
