| Brand: | Amiad / Arkal |
| Category: | Filtration, Automatic Filters - Screen |
| Size Range: | 50-250mm |
| Filtration Degree: | 10-800 microns |

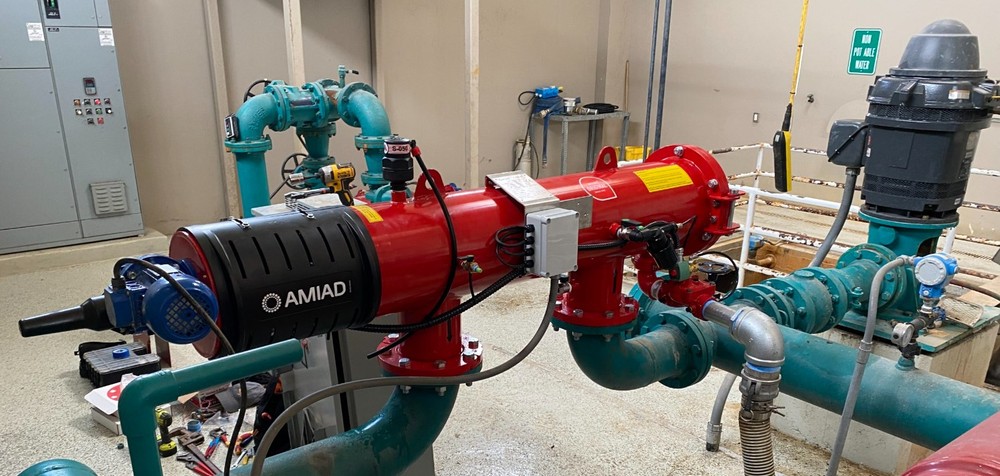

Product Description
The SAF-X automatic filters are the next generation of the SAF Series, with the same electrical suction-scanning cleaning technology.
Now with simpler maintenance, more installation options and superior usability, the SAF-X Series is an efficient industrial water treatment solution.
With its reliable operating system and large filtration area, this series is suitable for many challenging industrial water filtration applications where heavy loads and high TSS are an issue.
The SAF-X Series includes 3 models and a variety of flange connections, all with automatic cleaning for uninterrupted flow and minimum water waste.
These filters support flow rates of up to 400 m³/h (1760 GPM), with various screens designed to cover a range of 800-10-micron filtration degrees and are available in inlet/outlet diameters of 50-250mm
Features and Benefits

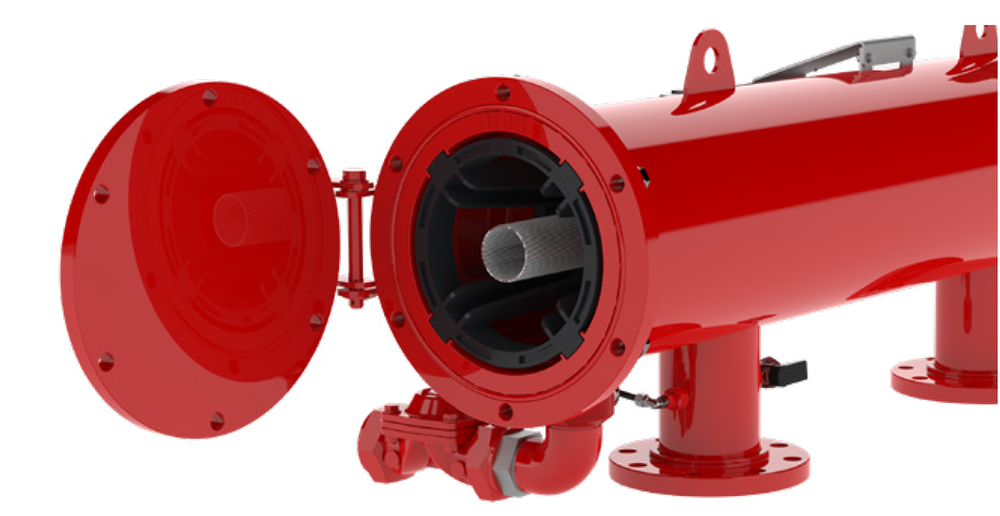

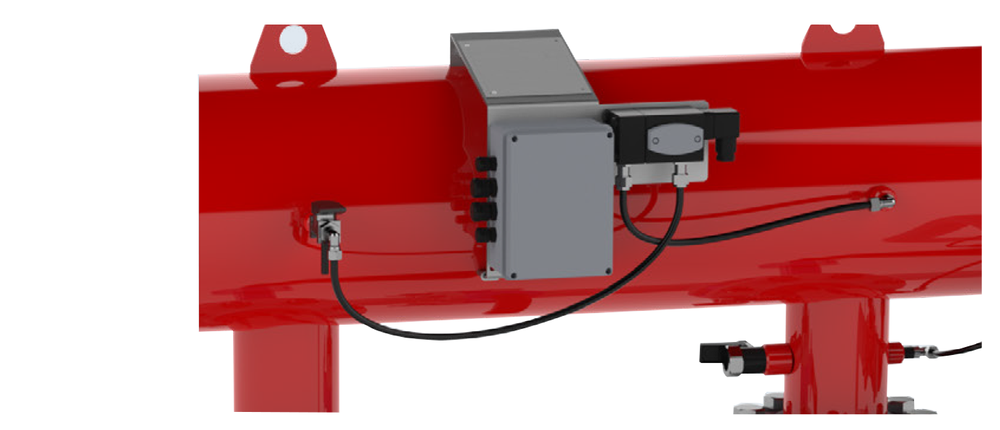

- Simple Maintenance Hinged lid for convenient opening and easy access.
- Installation Flexibility Instrumentation can be installed on either side of the filter.

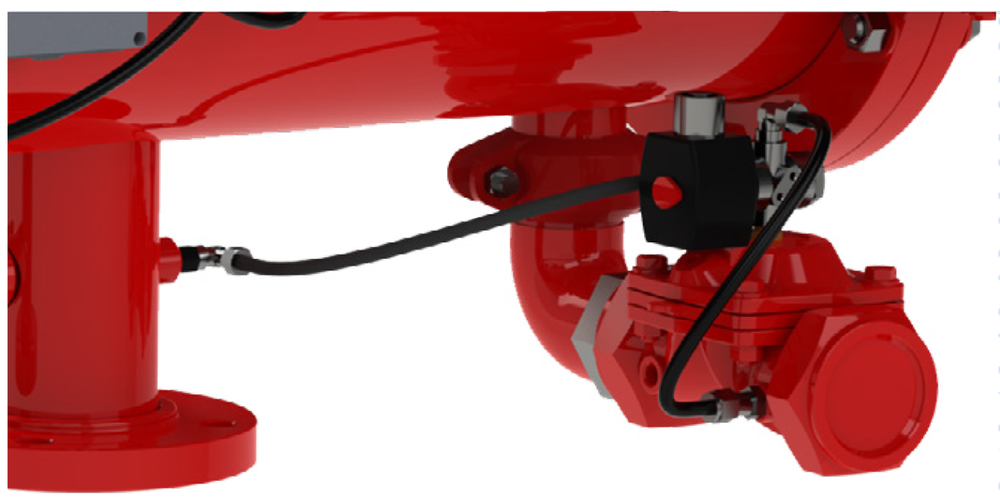

- Swivel Flushing Valve Enables positioning according to installation
Technical Data

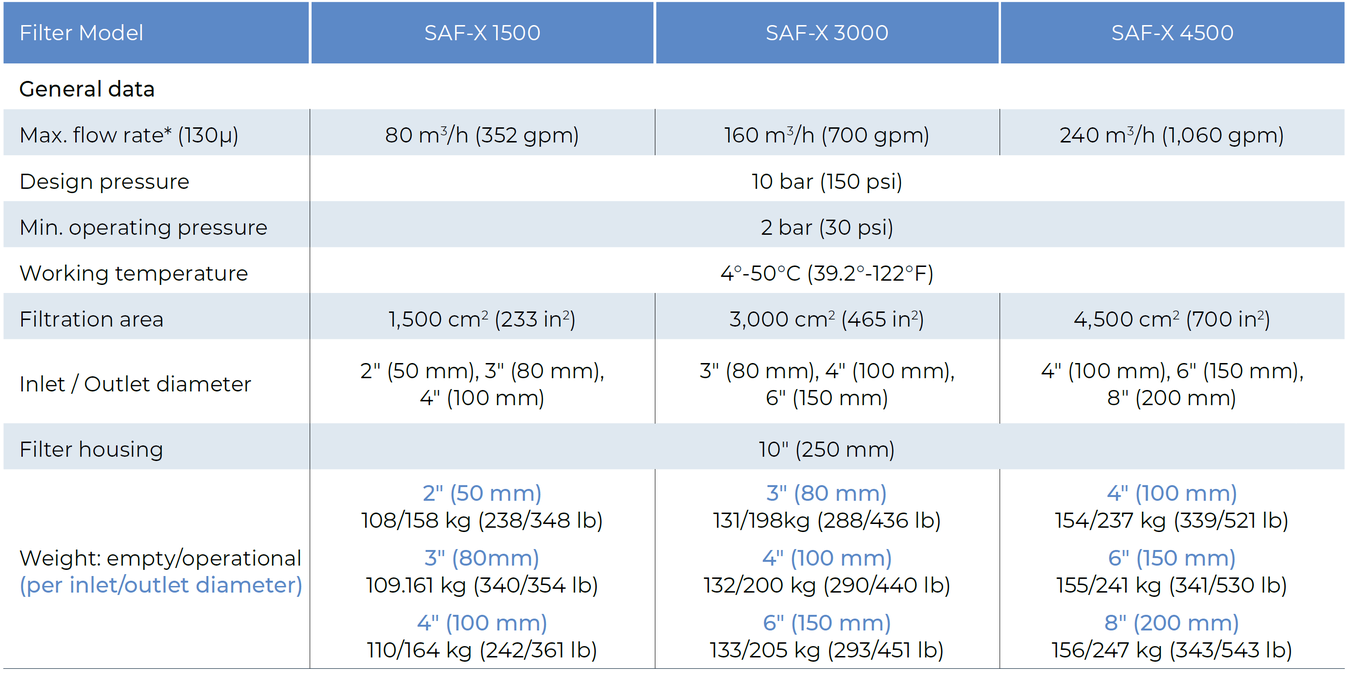

Amiad - SAF-X - General Data
* Consult manufacturer for optimum flow depending on filtration degree & water quality.
Electronic control

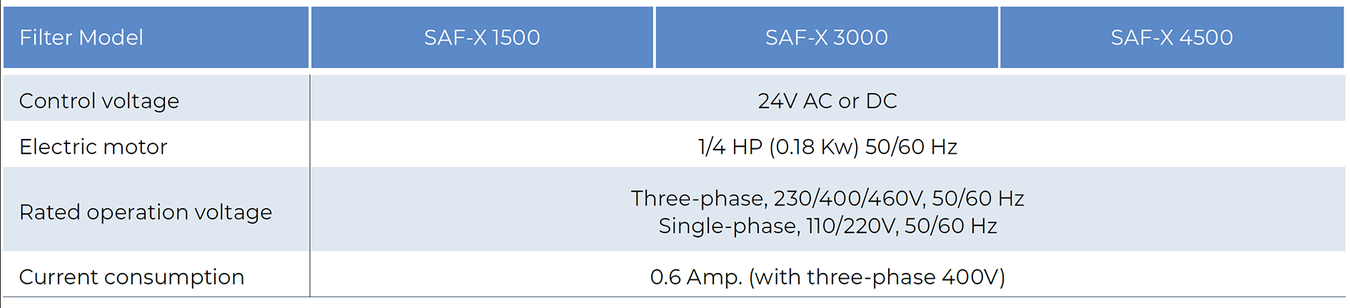

Amiad - SAF-X - Electronic Control
Flushing data**

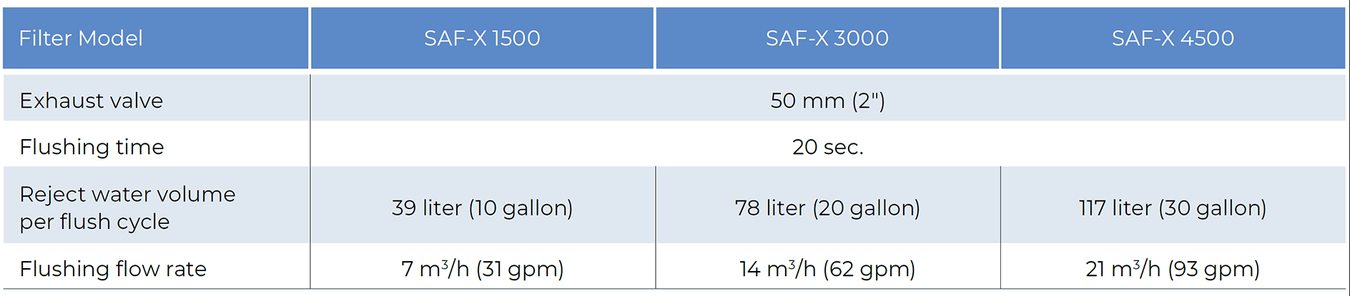

Amiad - SAF-X - Flushing Data
** Standard nozzle at 2.5 bar (35 psi)
Construction materials

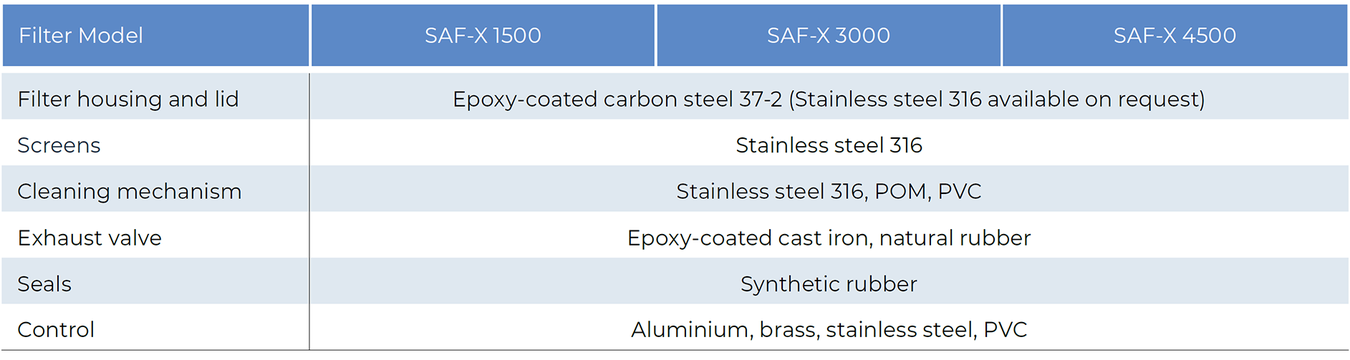

Amiad - SAF-X - Construction Materials

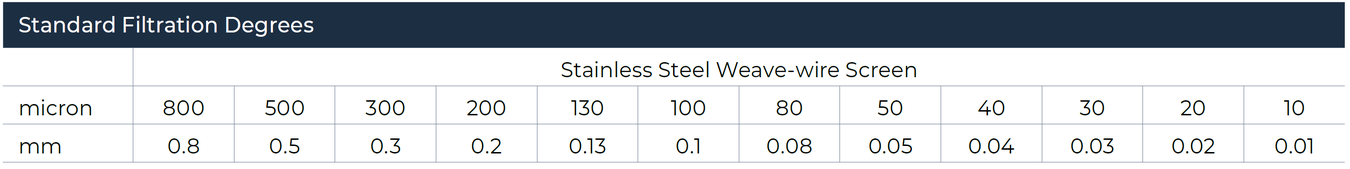

Standard Filtration Degrees
Amiad - SAF-X - Standard Filtration Degrees
SAF-X Models and Head Loss Graphs

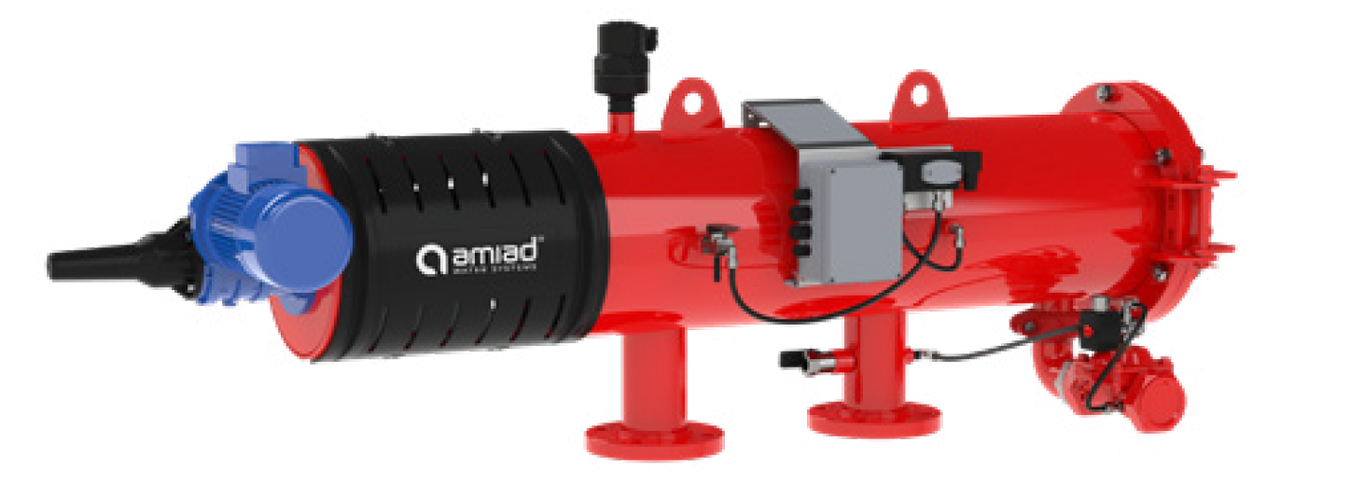

SAF-X 1500

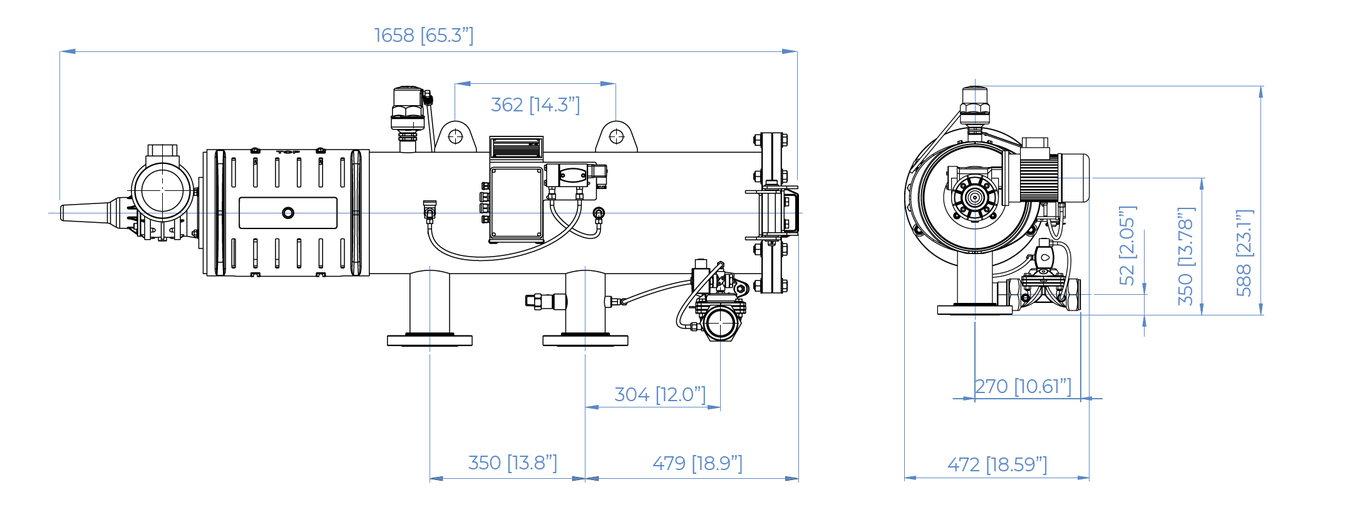

Amiad - SAF-X - 1500

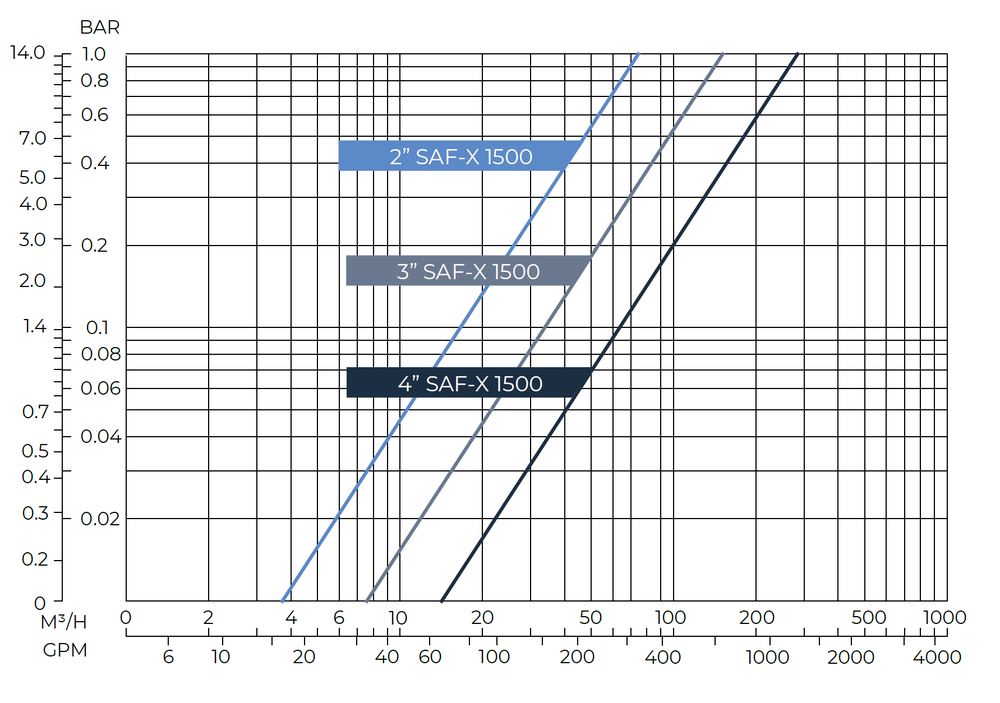

Head Loss Graph (in clean water)
Amiad - SAF-X - 1500 - Head Loss Graph

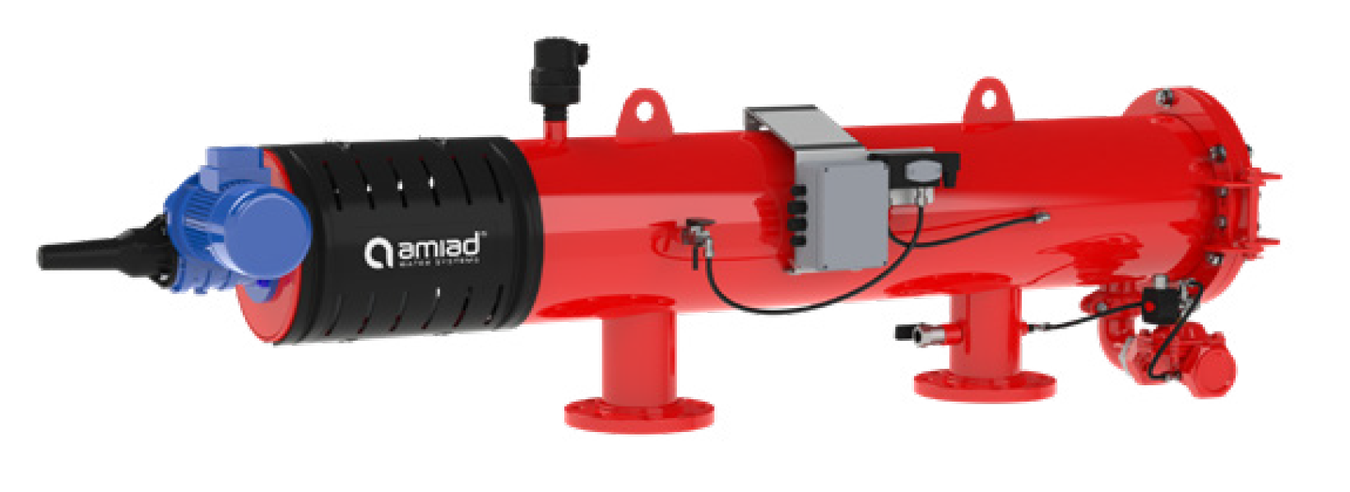

SAF-X 3000

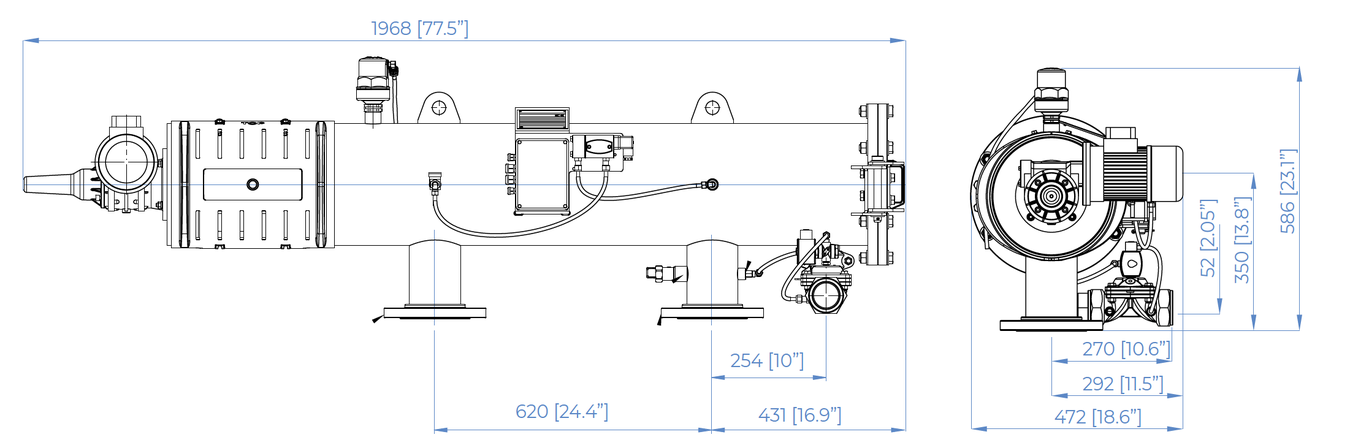

Amiad - SAF-X - 3000

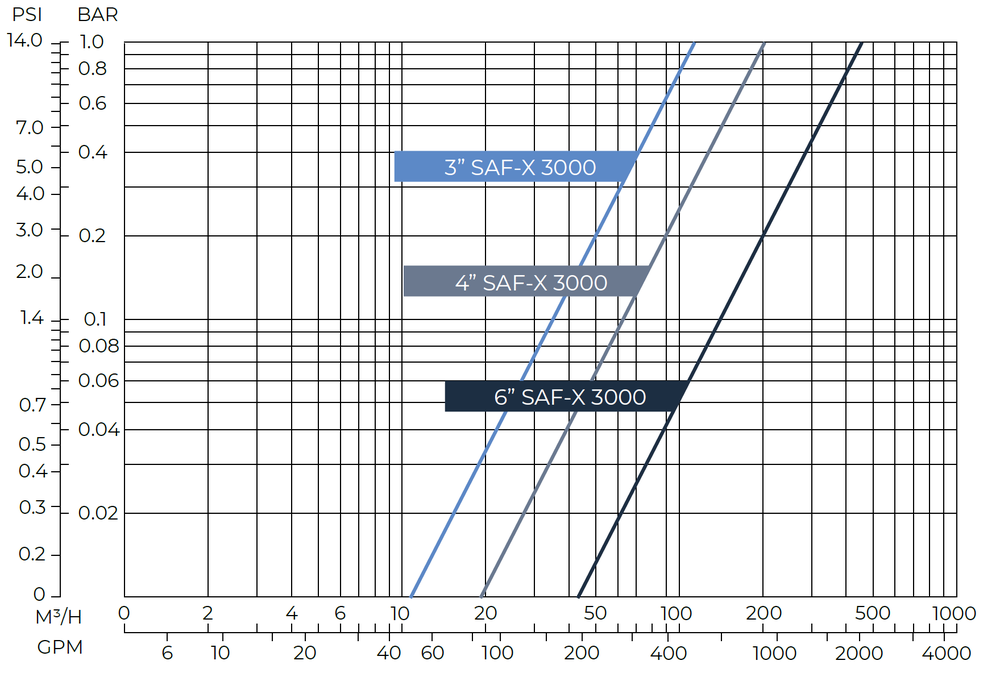

Head Loss Graph (in clean water)
Amiad - SAF-X - 3000 - Head Loss Graph
SAF-X 4500
Amiad - SAF-X - 4500

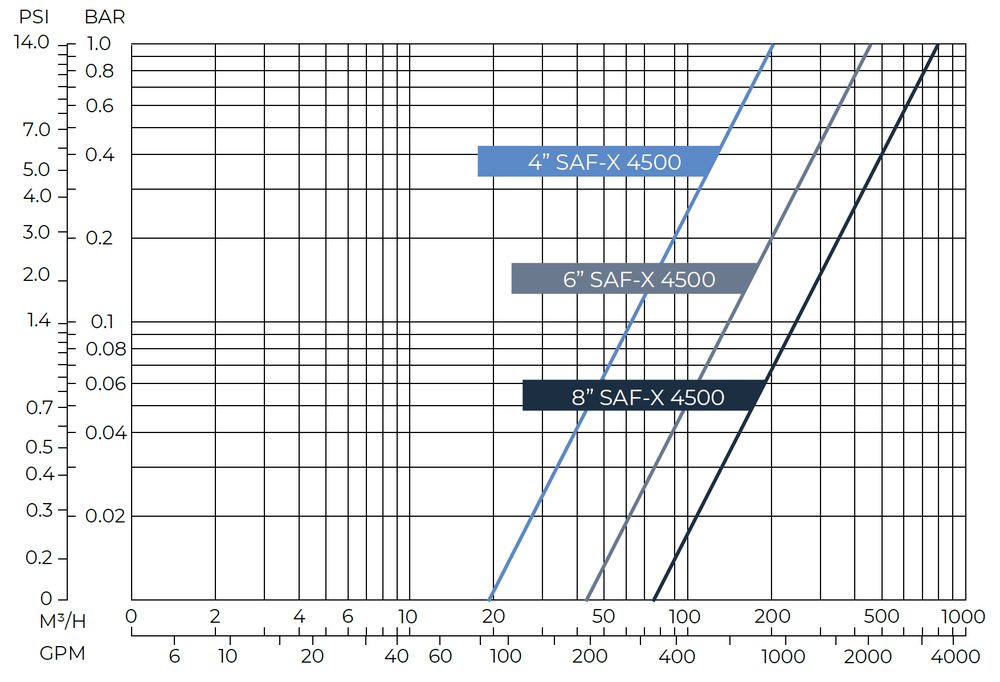

Head Loss Graph (in clean water)
Amiad - SAF-X - 4500 - Head Loss Graph

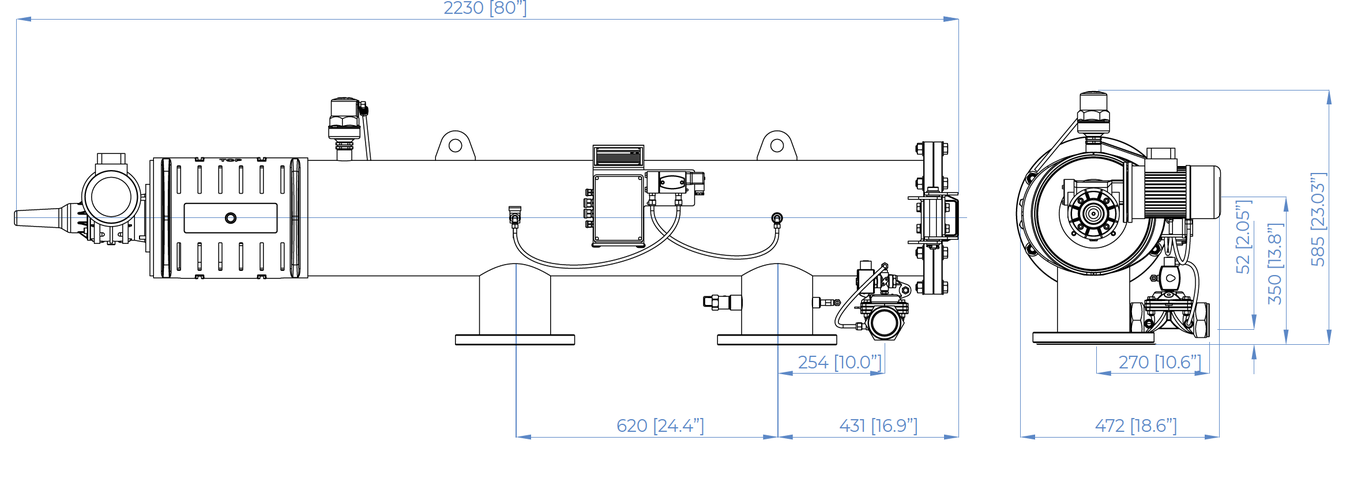

Technical Specifications

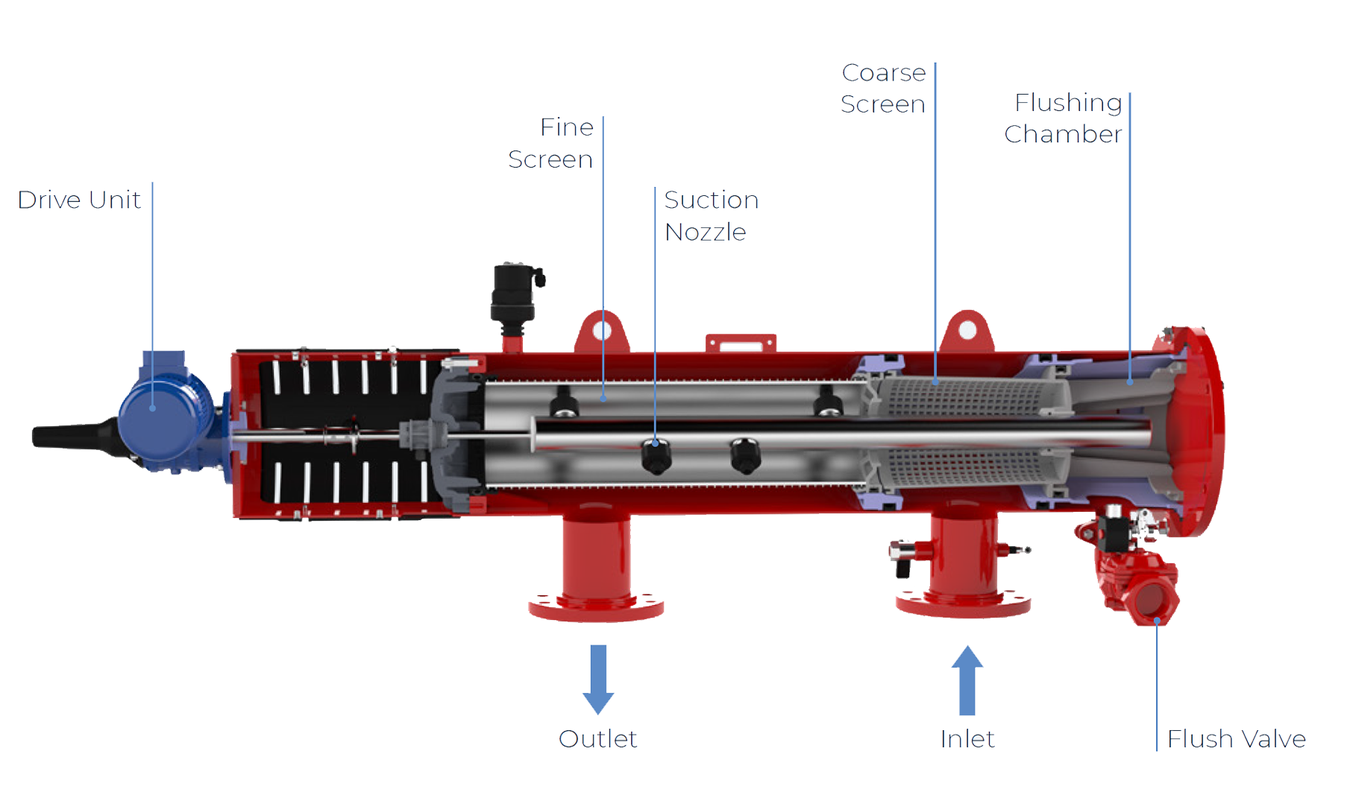

Cross Section
Amiad - SAF-X - Cross Section

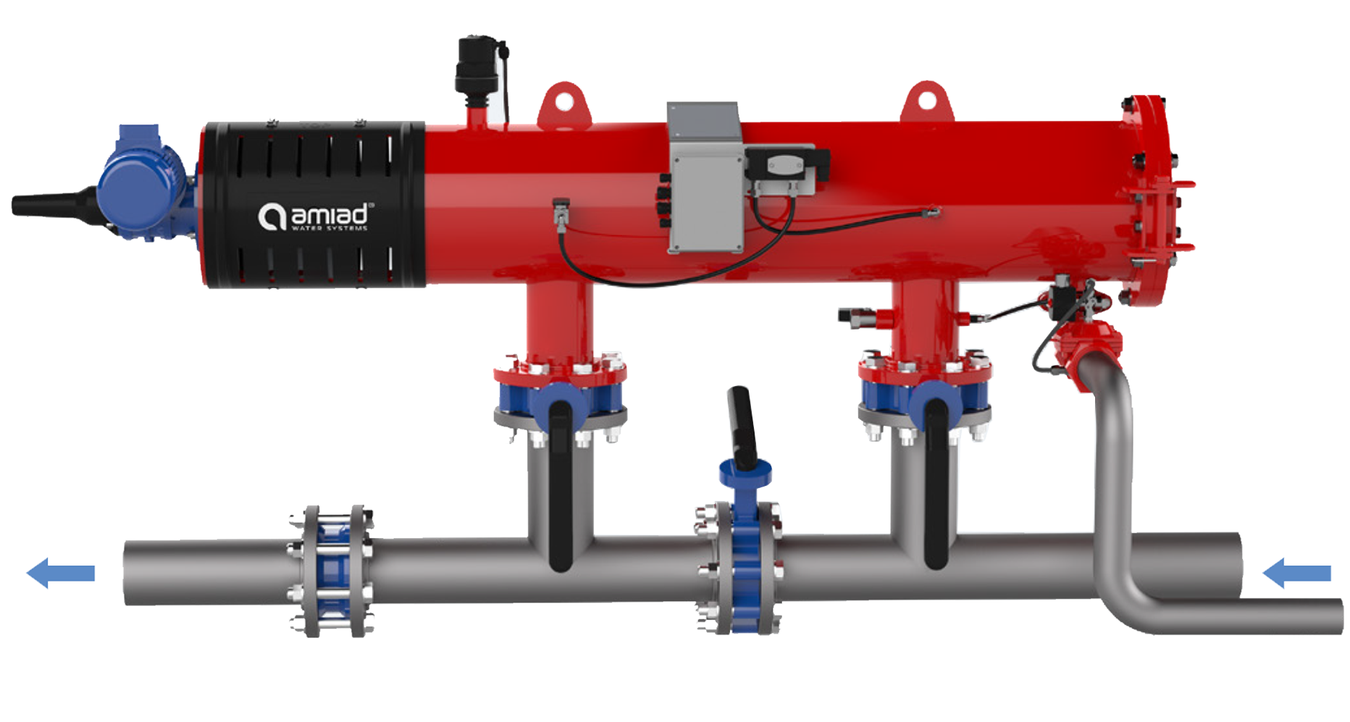

Typical Installation

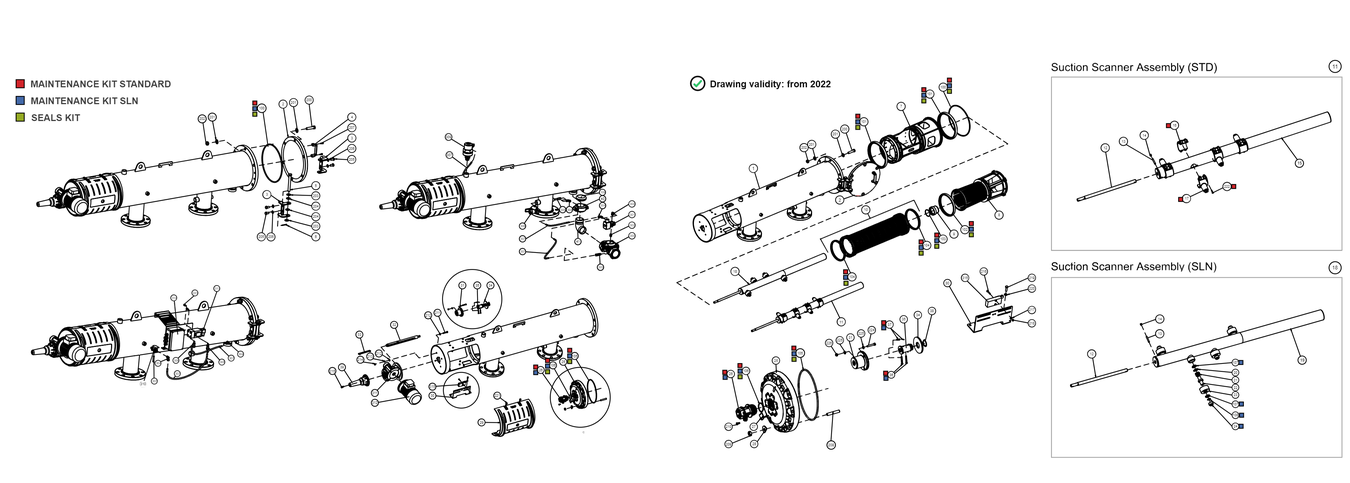

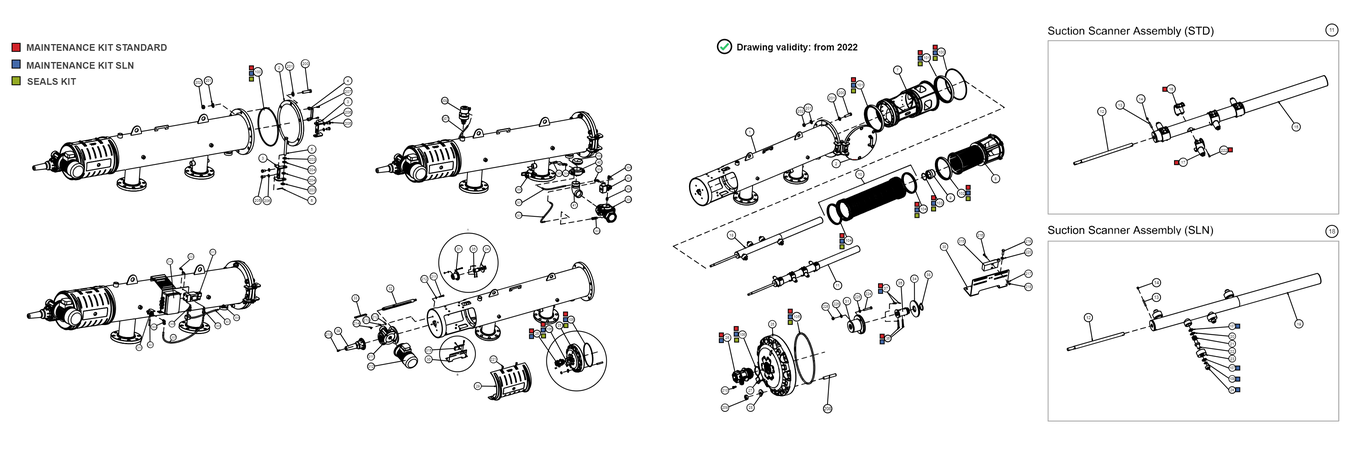

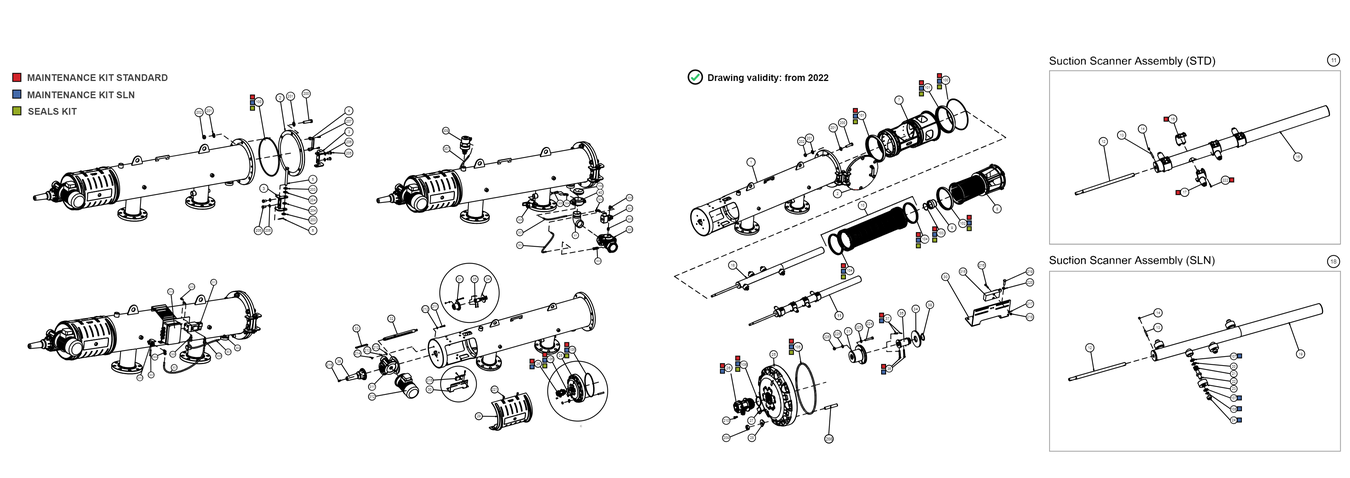

Spare Parts
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700105-SAF-X 1500 | SAF-X-HOUSING | 1 |
| 2 | 710105-005905 | SAF-X FRONT LID | 1 |
| 3 | 710105-006505 | SAF-X HINGE PLATE PK 3002 ST.37-2 POLYESTER | 2 |
| 4 | 760111-000004 | SAF-X FRONT FLANGE HANDLE | 1 |
| 5 | 710103-011309 | SAF-X FRONT FLANGE HINGE PIN | 1 |
| 6 | 760105-000009 | PIN COTTER 4 X 40 MM DIN 94 | 1 |
| 7 | 710101-001625 | SAF-X SEALING SLEEVE | 1 |
| 8 | 710101-001607 | SAF-X COARSE SCREEN | 1 |
| 9 | 710103-002117 | FLUSH CHAMBER SCANNER BEARING | 1 |
| 10 | 700101-002435 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 130MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002436 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 50MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002467 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 200MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002525 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 100MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002535 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 20MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002548 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 30MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002549 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 40MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002550 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 80MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002551 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 300MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002552 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 500MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002562 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 10MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 10 | 700101-002563 | WEAVEWIRE SCREEN S/ST316L 1500SQ.CM 800MIC MOLDED ENDS SAF-X-1500 EPDM SEALS | 1 |
| 11 | 700190-006223 | SCANNER ASSEMBLY FOR SAF-X 1500 – INJECTED NOZZLES | 1 |
| 12 | 710103-011319 | SUCTION SCANNER SHAFT SAF-X | 1 |
| 13 | 760105-000098 | DOWEL PIN 6X36 DIN7 | 1 |
| 14 | 710103-002501 | PLUG NM SAF FOR SCANNER | 1 |
| 15 | 710102-004616 | SAF-X-1500 SUCTION SCANNER S/ST316 NON SLN | 1 |
| 16 | 710101-000922 | MOLDED SCANNER NOZZLE | 2 |
| 17 | 710101-000922 | MOLDED SCANNER NOZZLE | 2 |
| 18 | 700190-006222 | SAF-X 1500 SLN SCANNER | 1 |
| 19 | 710102-004615 | SAF-X-1500 SUCTION SCANNER SLN | 1 |
| 20 | 710103-002103 | SLN SPRING SEAT | 2 |
| 21 | 760107-000049 | SLN SPRING | 2 |
| 22 | 710103-002106 | SLN HOUSING FOR SAF | 2 |
| 23 | 710103-002105 | TIGHTENING NUT FOR SAF SLN | 2 |
| 24 | 710103-002104 | SLN CAP FOR SAF | 2 |
| 25 | 710103-011692 | SAF-X REAR-SIDE FLANGE | 1 |
| 26 | 700190-006190 | SAF-X SHAFT SEALING ASSEMBLY | 1 |
| 27 | 710103-011299 | SAF-X SHAFT SEALING STOPPER | 1 |
| 28 | 710103-011298 | SAF-X BACK FLANGE SHAPED WASHER | 10 |
| 29 | 710101-001609 | SAF-X SIDE COVER | 2 |
| 30 | 710103-011329 | SAF-X BRACKET FOR LIMIT SWITCH | 1 |
| 31 | 710103-002233 | DRIVE BUSHING | 1 |
| 32 | 710103-011314 | SAF-X DRIVE SHAFT | 1 |
| 33 | 710103-002237 | DRIVE SHAFT KEY | 1 |
| 34 | 710103-011328 | SAF-X PLATE FOR LIMIT SWITCH | 1 |
| 35 | 710103-011313 | SAF-X SHAFT ADAPTOR | 1 |
| 36 | 760105-000097 | CLEVIS PIN 3 /16 " X 1-1/16 " | 2 |
| 37 | 760105-000052 | PIN COTTER 3/ 64 X 5/8MM | 2 |
| 38 | 760106-000010 | EXTERNAL RETAINING RING 25 MM DIN 471 | 1 |
| 39 | 710101-001613 | DRIVE SHAFT COVER | 1 |
| 40 | 780102-000020 | 2 " VICTAULIC CONNECTOR | 1 |
| 41 | 710105-006723 | ELBOW 2 " BSPT PKPK 3002 CAST POLYESTER | 1 |
| 100 | 770102-000176 | O - RIN G 2-452 70 SHORE | 1 |
| 101 | 770104-000403 | SAF-X SEALING SLEEVE HYDRAULIC SEAL | 2 |
| 102 | 770104-000404 | SAF-X COARSE SCREEN HYDRAULIC SEAL | 1 |
| 103 | 770101-000040 | O-RING 60 X 470 SHORE | 1 |
| 104 | 770104-000400 | SAF-X SCREEN HYDRAULIC SEAL | 2 |
| 105 | 770102-000161 | O-RING P 2-370 70 SHORE | 1 |
| 106 | 770102-000093 | O-RING P 2-126 70 SHORE | 1 |
| 107 | 710101-001281 | SLN SEAL 16MM TPU | 4 |
| 108 | 770102-000064 | O-RING P2-016 70 SHORE | 2 |
| 109 | 770104-000027 | GASKET FOR 2" VICTAULIC CONNECTOR | 1 |
| 200 | 760101-000329 | HEX BOLT PARTIALTHRD M16 65MM C/ST DIN931 Z.PLATED | 6 |
| 201 | 760103-000069 | FLAT WASHER M16 DIN125 C/ST ZINC PLATED | 12 |
| 202 | 760102-000067 | HEX NUT M16 C/ST ZINC PLATED DIN934 | 6 |
| 203 | 760103-000100 | FLAT WASHER M16 DIN125 | 2 |
| 204 | 760103-000229 | FLAT WASHER M16 DIN125 | 2 |
| 205 | 760101-000798 | M12 20MM DIN933 | 4 |
| 206 | 760103-000098 | FLAT WASHER M12 DIN125 | 4 |
| 207 | 760101-000696 | SOCKET HEAD CAP SCREW M6 15MM DIN912 | 2 |
| 208 | 760101-000703 | SOCKET SET SCREW M10 X 60 DIN916 | 10 |
| 209 | 760102-000087 | HEX NUT M10 S/ST316 DIN934 | 10 |
| 210 | 760101-001552 | PHILLIPS PAN TAPPING SCREW NO.10 1/2" | 2 |
| 211 | 760101-000308 | HEX BOLT FULLTHRD M8 40MM C/ST DIN933 Z.PLATED | 4 |
| 212 | 760103-000075 | FLAT WASHER M8 DIN125 C/ST ZINC PLATED | 8 |
| 213 | 760103-000085 | SPRING WASHER M8 DIN127 | 4 |
| 214 | 760102-000063 | HEX NUT M8 DIN934 | 4 |
| 215 | 760101-001208 | SOCKET HEAD CAP SCREW M8 16MM DIN912 | 4 |
| 216 | 760101-000511 | PHIL PAN MACHIN M4 20MM DIN7985 | 4 |
| 217 | 760103-000092 | FLAT WASHER M4 DIN125 | 4 |
| 218 | 760102-000099 | NYLON INSERT LOCKNUT M4 DIN985 | 4 |
| 219 | 760101-000444 | HEX BOLT FULLTHRD M6 20MM DIN933 | 2 |
| 220 | 760103-000109 | SPRING WASHER M6 DIN127 S/ST316 | 2 |
| 221 | 760101-001553 | HEX BOLT FULLTHRD M6 30MM | 4 |
| 222 | 760101-000537 | PHILLIPS PAN TAP SCREW PT4X20 | 8 |
| 223 | 760101-000545 | SOCKET SET SCREW M6X25 DIN916 | 2 |
| 224 | 760101-000447 | HEX BLT FULTH M6 35MM S/ST304 DIN933 | 3 |
| 225 | 760103-000094 | FLAT WASHER M6 DIN125 S/ST316 | 3 |
| 226 | 760102-000101 | NYLON INSERT LOCKNUT M6 S/ST304 DIN985 | 3 |
| 300 | 730103-000466 | VALVE 2" BERMAD RAM405 BSP RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000467 | VALVE 2" DOROT GAL44 BSP RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000480 | VALVE 2" BERMAD RAM405 NPT RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000482 | VALVE 2" DOROT GAL44 NPT RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 301 | 720103-000182 | SOL ASCO 3/2 NO 24AC 60HZ 2MM BRAS | 1 |
| 301 | 720103-000766 | SOL BACC 3/2 NO 24AC 50/60HZ 2MM BRAS | 1 |
| 302 | 710103-000591 | NIPPLE 1/4" BRASS BSPT PRESSURE CHECK | 1 |
| 303 | 720501-000206 | CONNECTOR 5/16" X1/4" BRASS AIGNEP | 5 |
| 304 | 720501-000202 | L-CONNECTOR 1/4"M X5/16" BSPT BRASS AIGNEP | 1 |
| 305 | 730110-000034 | 1/4"M/F FINGER FILTER PLASTIC BLACK | 1 |
| 306 | 730104-000232 | 2-WAY BALL VALVE 3/4" M/F | 1 |
| 307 | 720502-000036 | CONTROLTUBE 5/16" PA BLACK BACCARA | 6 |
| 308 | 720501-000213 | CONNECTOR 5/16"X1/8" 68F | 2 |
| 309 | 730108-000113 | AIR RELEASE VALVE D-040-P 3/4" BSPT | 1 |
| 310 | 700190-002336 | MANOMETER VALVE 1/4" W/ DRAIN ASSY | 1 |
| 311 | 720202-000019 | GEAR RMI50 63 B5 1/28 SITI MT-5010 | 1 |
| 312 | 720203-000033 | MOTOR SITI/STM 380/480V AC 3P .18KW | 1 |
| 313 | 700190-002457 | PRESSOSTAT SUB-ASSY UE W/O FITTINGS | 1 |
| 313 | 700190-002618 | PD SWITCH SUB-AS. MIDWEST W/O FITTING ASSY | 1 |
| 314 | 700190-002421 | ELECTRIC JUNCTION BOX OSEA 24VDC IP55 GEWISS POLYESTER SOLENOID L.S. DPS | 1 |
| 315 | 720302-000004 | LIMIT SWITCH PIZZATO FA 4131-2DN METALEBS/SAF 2M CABLE NC | 2 |
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700105-SAF-X 3000 | SAF-X-HOUSING | 1 |
| 2 | 710105-005905 | SAF-X FRONT LID | 1 |
| 3 | 710105-006505 | SAF-X HINGE PLATE PK 3002 ST.37-2 POLYESTER | 2 |
| 4 | 760111-000004 | SAF-X FRONT FLANGE HANDLE | 1 |
| 5 | 710103-011309 | SAF-X FRONT FLANGE HINGE PIN | 1 |
| 6 | 760105-000009 | PIN COTTER 4 X 40 MM DIN 94 | 1 |
| 7 | 710101-001625 | SAF-X SEALING SLEEVE | 1 |
| 8 | 710101-001607 | SAF-X COARSE SCREEN | 1 |
| 9 | 710103-002117 | FLUSH CHAMBER SCANNER BEARING | 1 |
| 10 | 700101-002437 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 130MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002438 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 100MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002465 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 200MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002466 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 300MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002536 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 50MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002537 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 20MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002538 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 30MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002539 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 40MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002540 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 80MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002541 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 500MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002564 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 10MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 10 | 700101-002565 | WEAVEWIRE SCREEN S/ST316L 3000SQ.CM 800MIC MOLDED ENDS SAF-X-3000 EPDM SEALS | 1 |
| 11 | 700190-006224 | SCANNER ASSEMBLY FOR SAF-X 3000 – INJECTED NOZZLES | 1 |
| 12 | 710103-011319 | SUCTION SCANNER SHAFT SAF-X | 1 |
| 13 | 760105-000098 | DOWEL PIN 6X36 DIN7 | 1 |
| 14 | 710103-002501 | PLUG NM SAF FOR SCANNER | 1 |
| 15 | 710102-004617 | SAF-X-3000 Suction Scanner S/ST316 Non SLN | 1 |
| 16 | 710101-000922 | MOLDED SCANNER NOZZLE | 2 |
| 17 | 710101-000922 | MOLDED SCANNER NOZZLE | 2 |
| 18 | 700190-006221 | SAF-X 3000 SLN SCANNER | 1 |
| 19 | 710102-004614 | SAF-X-3000 SUCTION SCANNER SLN | 1 |
| 20 | 710103-002103 | SLN SPRING SEAT | 4 |
| 21 | 760107-000049 | SLN SPRING | 4 |
| 22 | 710103-002106 | SLN HOUSING FOR SAF | 4 |
| 23 | 710103-002105 | TIGHTENING NUT FOR SAF SLN | 4 |
| 24 | 710103-002104 | SLN CAP FOR SAF | 4 |
| 25 | 710103-011692 | SAF-X REAR-SIDE FLANGE | 1 |
| 26 | 700190-006190 | SAF-X SHAFT SEALING ASSEMBLY | 1 |
| 27 | 710103-011299 | SAF-X SHAFT SEALING STOPPER | 1 |
| 28 | 710103-011298 | SAF-X BACK FLANGE SHAPED WASHER | 10 |
| 29 | 710101-001609 | SAF-X SIDE COVER | 2 |
| 30 | 710103-011329 | SAF-X BRACKET FOR LIMIT SWITCH | 1 |
| 31 | 7 10103-002233 | DRIVE BUSHING | 1 |
| 32 | 710103-011314 | SAF-X DRIVE SHAFT | 1 |
| 33 | 710103-002237 | DRIVE SHAFT KEY | 1 |
| 34 | 710103-011328 | SAF-X PLATE FOR LIMIT SWITCH | 1 |
| 35 | 710103-011313 | SAF-X SHAFT ADAPTOR | 1 |
| 36 | 760105-000097 | CLEVIS PIN 3/16" X 1-1/16" | 2 |
| 37 | 760105-000052 | PIN COTTER 3/64 X 5/8MM | 2 |
| 38 | 760106-000010 | EXTERNAL RETAINING RIN G 25 MM DIN 471 | 1 |
| 39 | 710101-001613 | DRIVE SHAFT COVER | 1 |
| 40 | 780102-000020 | 2 " VICTAULIC CONNECTOR | 1 |
| 41 | 710105-006723 | ELBOW 2 " BSPT PKPK 3002 CAST POLYESTER | 1 |
| 100 | 770102-000176 | O-RIN G 2-452 70 SHORE | 1 |
| 101 | 770104-000403 | SAF - X SEALING SLEEVE HYDRAULIC SEAL | 2 |
| 102 | 770104-000404 | S A F-X COARSE SCREEN HYDRAULIC SEAL | 1 |
| 103 | 770101-000040 | O - RING 6 0 X 470 SHORE | 1 |
| 104 | 770104-000400 | SAF - X SCREEN HYDRAULIC SEAL | 2 |
| 105 | 770102-000161 | O-RING P 2-370 70 SHORE | 1 |
| 106 | 770102-000093 | O-RING P 2-126 70 SHORE | 1 |
| 107 | 710101-001281 | SLN SEAL 16 MM TPU | 8 |
| 108 | 770102-000064 | O-RING P2-016 70 SHORE | 4 |
| 109 | 770104-000027 | GASKET FOR 2" VICTAULIC CONNECTOR | 1 |
| 200 | 760101-000329 | HEX BOLT PARTIALTHRD M16 65MM C/ST DIN931 Z.PLATED | 6 |
| 201 | 760103-000069 | FLAT WASHER M16 DIN125 C/ST ZINC PLATED | 12 |
| 202 | 760102-000067 | HEX NUT M16 C/ST ZINC PLATED DIN934 | 6 |
| 203 | 760103-000100 | FLAT WASHER M16 DIN125 | 2 |
| 204 | 760103-000229 | FLAT WASHER M16 DIN125 | 2 |
| 205 | 760101-000798 | M12 20MM DIN933 | 4 |
| 206 | 760103-000098 | FLAT WASHER M12 DIN125 | 4 |
| 207 | 760101-000696 | SOCKET HEAD CAP SCREW M6 15MM DIN912 | 2 |
| 208 | 760101-000703 | SOCKET SET SCREW M10 X 60 DIN916 | 10 |
| 209 | 760102-000087 | HEX NUT M10 S/ST316 DIN934 | 10 |
| 210 | 760101-001552 | PHILLIPS PAN TAPPING SCREW NO.10 1/2" | 2 |
| 211 | 760101-000308 | HEX BOLT FULLTHRD M8 40MM C/ST DIN933 Z.PLATED | 4 |
| 212 | 760103-000075 | FLAT WASHER M8 DIN125 C/ST ZINC PLATED | 8 |
| 213 | 760103-000085 | SPRING WASHER M8 DIN127 | 4 |
| 214 | 760102-000063 | HEX NUT M8 DIN934 | 4 |
| 215 | 760101-001208 | SOCKET HEAD CAP SCREW M8 16MM DIN912 | 4 |
| 216 | 760101-000511 | PHIL PAN MACHIN M4 20MM DIN7985 | 4 |
| 217 | 760103-000092 | FLAT WASHER M4 DIN125 | 4 |
| 218 | 760102-000099 | NYLON INSERT LOCKNUT M4 DIN985 | 4 |
| 219 | 760101-000444 | HEX BOLT FULLTHRD M6 20MM DIN933 | 2 |
| 220 | 760103-000109 | SPRING WASHER M6 DIN127 S/ST316 | 2 |
| 221 | 760101-001553 | HEX BOLT FULLTHRD M6 30MM | 4 |
| 222 | 760101-000537 | PHILLIPS PAN TAP SCREW PT4X20 | 16 |
| 223 | 760101-000545 | SOCKET SET SCREW M6X25 DIN916 | 2 |
| 224 | 760101-000447 | HEX BLT FULTH M6 35MM S/ST304 DIN933 | 3 |
| 225 | 760103-000094 | FLAT WASHER M6 DIN125 S/ST316 | 3 |
| 226 | 760102-000101 | NYLON INSERT LOCKNUT M6 S/ST304 DIN985 | 3 |
| 300 | 730103-000466 | VALVE 2" BERMAD RAM405 BSP RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000467 | VALVE 2" DOROT GAL44 BSP RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000480 | VALVE 2" BERMAD RAM405 NPT RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000482 | VALVE 2" DOROT GAL44 NPT RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 301 | 720103-000182 | SOL ASCO 3/2 NO 24AC 60HZ 2MM BRAS | 1 |
| 301 | 720103-000766 | SOL BACC 3/2 NO 24AC 50/60HZ 2MM BRAS | 1 |
| 302 | 710103-000591 | NIPPLE 1/4" BRASS BSPT PRESSURE CHECK | 1 |
| 303 | 720501-000206 | CONNECTOR 5/16" X1/4" BRASS AIGNEP | 1 |
| 304 | 720501-000202 | L-CONNECTOR 1/4"M X5/16" BSPT BRASS AIGNEP | 5 |
| 305 | 730110-000034 | 1/4"M/F FINGER FILTER PLASTIC BLACK | 1 |
| 306 | 730104-000232 | 2-WAY BALL VALVE 3/4" M/F | 1 |
| 307 | 720502-000036 | CONTROLTUBE 5/16" PA BLACK BACCARA | 6 |
| 308 | 720501-000213 | CONNECTOR 5/16"X1/8" 68F | 2 |
| 309 | 730108-000113 | AIR RELEASE VALVE D-040-P 3/4" BSPT | 1 |
| 310 | 700190-002336 | MANOMETER VALVE 1/4" W/ DRAIN ASSY | 1 |
| 311 | 720202-000019 | GEAR RMI50 63 B5 1/28 SITI MT-5010 | 1 |
| 312 | 720203-000033 | MOTOR SITI/STM 380/480V AC 3P .18KW | 1 |
| 313 | 700190-002457 | PRESSOSTAT SUB-ASSY UE W/O FITTINGS | 1 |
| 313 | 700190-002618 | PD SWITCH SUB-AS. MIDWEST W/O FITTING ASSY | 1 |
| 314 | 700190-002421 | ELECTRIC JUNCTION BOX OSEA 24VDC IP55 GEWISS POLYESTER SOLENOID L.S. DPS | 1 |
| 315 | 720302-000004 | LIMIT SWITCH PIZZATO FA 4131-2DN METALEBS/SAF 2M CABLE NC | 2 |
| 700194-000066 | 700194-000066 | SAF-X SEALS SET | 0 |
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700105-SAF-X 4500 | SAF-X-HOUSING | 1 |
| 2 | 710105-005905 | SAF-X FRONT LID | 1 |
| 3 | 710105-006505 | SAF-X HINGE PLATE PK 3002 ST.37-2 POLYESTER | 2 |
| 4 | 760111-000004 | SAF-X FRONT FLANGE HANDLE | 1 |
| 5 | 710103-011309 | SAF-X FRONT FLANGE HINGE PIN | 1 |
| 6 | 760105-000009 | PIN COTTER 4 X 40 MM DIN 94 | 1 |
| 7 | 710101-001625 | SAF-X SEALING SLEEVE | 1 |
| 8 | 710101-001607 | SAF-X COARSE SCREEN | 1 |
| 9 | 710103-002117 | FLUSH CHAMBER SCANNER BEARING | 1 |
| 10 | 700101-002428 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 130MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002429 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 30MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002439 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 100MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002440 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 50MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002534 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 20MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002543 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 40MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002544 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 80MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002545 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 200MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002546 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 300MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002547 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 500MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002566 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 10MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 10 | 700101-002567 | WEAVEWIRE SCREEN S/ST316L 4500SQ.CM 800MIC MOLDED ENDS SAF-X-4500 EPDM SEALS | 1 |
| 11 | 700190-006201 | SCANNER ASSEMBLY FOR SAF-X 4500 – INJECTED NOZZLES | 1 |
| 12 | 710103-011319 | SUCTION SCANNER SHAFT SAF-X | 1 |
| 13 | 760105-000098 | DOWEL PIN 6X36 DIN7 | 1 |
| 14 | 710103-002501 | PLUG NM SAF FOR SCANNER | 1 |
| 15 | 710102-004605 | SAF-X-3000 SUCTION SCANNER S/ST316 NON SLN | 1 |
| 16 | 710101-000922 | MOLDED SCANNER NOZZLE | 2 |
| 17 | 710101-000922 | MOLDED SCANNER NOZZLE | 2 |
| 18 | 700190-006206 | SAF-X 4500 SLN SCANNER | 1 |
| 19 | 710102-004610 | SAF-X-4500 SUCTION SCANNER SLN | 1 |
| 20 | 710103-002103 | SLN SPRING SEAT | 6 |
| 21 | 760107-000049 | SLN SPRING | 6 |
| 22 | 710103-002106 | SLN HOUSING FOR SAF | 6 |
| 23 | 710103-002105 | TIGHTENING NUT FOR SAF SLN | 6 |
| 24 | 710103-002104 | SLN CAP FOR SAF | 6 |
| 25 | 710103-011692 | SAF-X REAR-SIDE FLANGE | 1 |
| 26 | 700190-006190 | SAF-X SHAFT SEALING ASSEMBLY | 1 |
| 27 | 710103-011299 | SAF-X SHAFT SEALING STOPPER | 1 |
| 28 | 710103-011298 | SAF-X BACK FLANGE SHAPED WASHER | 10 |
| 29 | 710101-001609 | SAF-X SIDE COVER | 2 |
| 30 | 710103-011329 | SAF-X BRACKET FOR LIMIT SWITCH | 1 |
| 31 | 710103-002233 | DRIVE BUSHING | 1 |
| 32 | 710103-011314 | SAF-X DRIVE SHAFT | 1 |
| 33 | 710103-002237 | DRIVE SHAFT KEY | 1 |
| 34 | 710103-011328 | SAF-X PLATE FOR LIMIT SWITCH | 1 |
| 35 | 710103-011313 | SAF-X SHAFT ADAPTOR | 1 |
| 36 | 760105-000097 | CLEVIS PIN 3/16 " X1-1/16" | 2 |
| 37 | 760105-000052 | PIN COTTER 3/64 X 5/8MM | 2 |
| 38 | 760106-000010 | EXTERNAL RETAINING RING 25 MM DIN 471 | 1 |
| 39 | 710101-001613 | DRIVE SHAFT COVER | 1 |
| 40 | 780102-000020 | 2" VICTAULIC CONNECTOR | 1 |
| 41 | 710105-006723 | ELBOW 2 " BSPT PKPK 3002 CAST POLYESTER | 1 |
| 100 | 770102-000176 | O-RING 2-452 70 SHORE | 1 |
| 101 | 770104-000403 | SAF-X SEALING SLEEVE HYDRAULIC SEAL | 2 |
| 102 | 770104-000404 | SAF-X COARSE SCREEN HYDRAULIC SEAL | 1 |
| 103 | 770101-000040 | O-RING 60 X 4 70 SHORE | 1 |
| 104 | 770104-000400 | SAF-X SCREEN HYDRAULIC SEAL | 2 |
| 105 | 770102-000161 | O-RING P 2-370 70 SHORE | 1 |
| 106 | 770102-000093 | O-RING P 2 - 126 70 SHORE | 1 |
| 107 | 710101-001281 | SLN SEAL 16 MM TPU | 16 |
| 108 | 770102-000064 | O-RING P2-016 70 SHORE | 6 |
| 109 | 770104-000027 | GASKET FOR 2" VICTAULIC CONNECTOR | 1 |
| 200 | 760101-000329 | HEX BOLT PARTIALTHRD M16 65MM C/ST DIN931 Z.PLATED | 6 |
| 201 | 760103-000069 | FLAT WASHER M16 DIN125 C/ST ZINC PLATED | 12 |
| 202 | 760102-000067 | HEX NUT M16 C/ST ZINC PLATED DIN934 | 6 |
| 203 | 760103-000100 | FLAT WASHER M16 DIN125 | 2 |
| 204 | 760103-000229 | FLAT WASHER M16 DIN125 | 2 |
| 205 | 760101-000798 | M12 20MM DIN933 | 4 |
| 206 | 760103-000098 | FLAT WASHER M12 DIN125 | 4 |
| 207 | 760101-000696 | SOCKET HEAD CAP SCREW M6 15MM DIN912 | 2 |
| 208 | 760101-000703 | SOCKET SET SCREW M10 X 60 DIN916 | 10 |
| 209 | 760102-000087 | HEX NUT M10 S/ST316 DIN934 | 10 |
| 210 | 760101-001552 | PHILLIPS PAN TAPPING SCREW NO.10 1/2" | 2 |
| 211 | 760101-000308 | HEX BOLT FULLTHRD M8 40MM C/ST DIN933 Z.PLATED | 4 |
| 212 | 760103-000075 | FLAT WASHER M8 DIN125 C/ST ZINC PLATED | 8 |
| 213 | 760103-000085 | SPRING WASHER M8 DIN127 | 4 |
| 214 | 760102-000063 | HEX NUT M8 DIN934 | 4 |
| 215 | 760101-001208 | SOCKET HEAD CAP SCREW M8 16MM DIN912 | 4 |
| 216 | 760101-000511 | PHIL PAN MACHIN M4 20MM DIN7985 | 4 |
| 217 | 760103-000092 | FLAT WASHER M4 DIN125 | 4 |
| 218 | 760102-000099 | NYLON INSERT LOCKNUT M4 DIN985 | 4 |
| 219 | 760101-000444 | HEX BOLT FULLTHRD M6 20MM DIN933 | 2 |
| 220 | 760103-000109 | SPRING WASHER M6 DIN127 S/ST316 | 2 |
| 221 | 760101-001553 | HEX BOLT FULLTHRD M6 30MM | 4 |
| 222 | 760101-000537 | PHILLIPS PAN TAP SCREW PT4X20 | 24 |
| 223 | 760101-000545 | SOCKET SET SCREW M6X25 DIN916 | 2 |
| 224 | 760101-000447 | HEX BLT FULTH M6 35MM S/ST304 DIN933 | 3 |
| 225 | 760103-000094 | FLAT WASHER M6 DIN125 S/ST316 | 3 |
| 226 | 760102-000101 | NYLON INSERT LOCKNUT M6 S/ST304 DIN985 | 3 |
| 300 | 730103-000466 | VALVE 2" BERMAD RAM405 BSP RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000467 | VALVE 2" DOROT GAL44 BSP RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000480 | VALVE 2" BERMAD RAM405 NPT RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 300 | 730103-000482 | VALVE 2" DOROT GAL44 NPT RED HYDRAULIC CAST IRON FLUSHING | 1 |
| 301 | 720103-000182 | SOL ASCO 3/2 NO 24AC 60HZ 2MM BRAS | 1 |
| 301 | 720103-000766 | SOL BACC 3/2 NO 24AC 50/60HZ 2MM BRAS | 1 |
| 302 | 710103-000591 | NIPPLE 1/4" BRASS BSPT PRESSURE CHECK | 1 |
| 303 | 720501-000206 | CONNECTOR 5/16" X1/4" BRASS AIGNEP | 1 |
| 304 | 720501-000202 | L-CONNECTOR 1/4"M X5/16" BSPT BRASS AIGNEP | 5 |
| 305 | 730110-000034 | 1/4"M/F FINGER FILTER PLASTIC BLACK | 1 |
| 306 | 730104-000232 | 2-WAY BALL VALVE 3/4" M/F | 1 |
| 307 | 720502-000036 | CONTROLTUBE 5/16" PA BLACK BACCARA | 6 |
| 308 | 720501-000213 | CONNECTOR 5/16"X1/8" 68F | 2 |
| 309 | 730108-000113 | AIR RELEASE VALVE D-040-P 3/4" BSPT | 1 |
| 310 | 700190-002336 | MANOMETER VALVE 1/4" W/ DRAIN ASSY | 1 |
| 311 | 720202-000019 | GEAR RMI50 63 B5 1/28 SITI MT-5010 | 1 |
| 312 | 720203-000033 | MOTOR SITI/STM 380/480V AC 3P .18KW | 1 |
| 313 | 700190-002457 | PRESSOSTAT SUB-ASSY UE W/O FITTINGS | 1 |
| 313 | 700190-002618 | PD SWITCH SUB-AS. MIDWEST W/O FITTING ASSY | 1 |
| 314 | 700190-002421 | ELECTRIC JUNCTION BOX OSEA 24VDC IP55 GEWISS POLYESTER SOLENOID L.S. DPS | 1 |
| 315 | 720302-000004 | LIMIT SWITCH PIZZATO FA 4131-2DN METALEBS/SAF 2M CABLE NC | 2 |
| 700194-000066 | 700194-000066 | SAF-X SEALS SET | 0 |

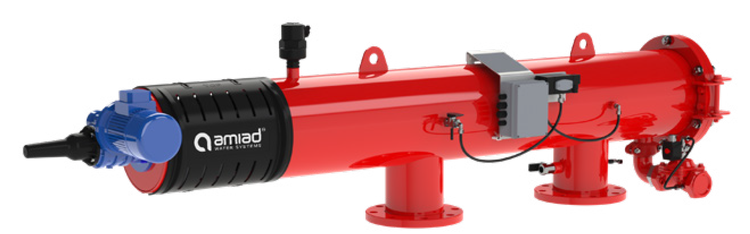

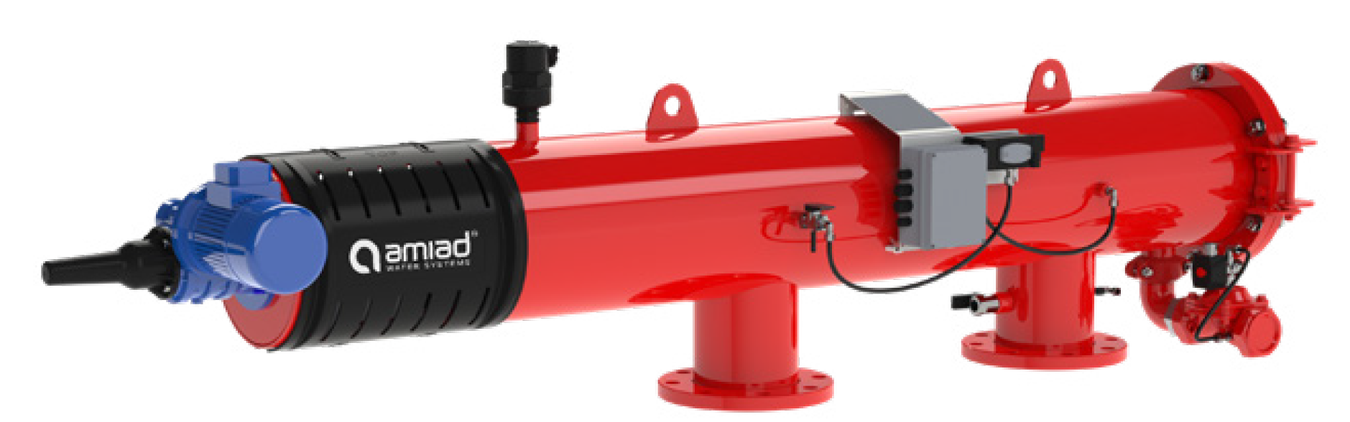

Amiad - SAF-X - Automatic Screen Filter
| Product Code | Size | Description |
|---|---|---|
| SAF-X-1500-50 | 50mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-X-1500-80 | 80mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-X-1500-100 | 100mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-X-3000-80 | 80mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-X-3000-100 | 100mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-X-3000-150 | 150mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-X-4500-100 | 100mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-X-4500-150 | 150mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-X-4500-200 | 200mm | Amiad Automatic Electric Filter SAF-X-Series |
| SAF-6000-150 | 150mm | Amiad Automatic Electric Filter SAF-Series |
| SAF-6000-200 | 200mm | Amiad Automatic Electric Filter SAF-Series |
| SAF-6000-250 | 250mm | Amiad Automatic Electric Filter SAF-Series |
