| Brand: | Amiad / Arkal |
| Category: | Filtration, Automatic Filters - Screen |
| Size Range: | 50-150mm |
| Filtration Degree: | 50-3500 micron |
Product Description
Durable, high-quality manual steel filters for a wide range of filtration for agriculture applications.
With their various filter elements, Amiad’s all-purpose steel filters are made for a wide range of water filtering applications and filtration degrees and are easy to install and maintain. They are made of carbon steel with a high-quality polyester coating. Stainless steel or rubber-lined housings are also available.
Features and Benefits
- Reliable & durable
- Semi-automatic option
- Clogging indicator
- Large filtration area

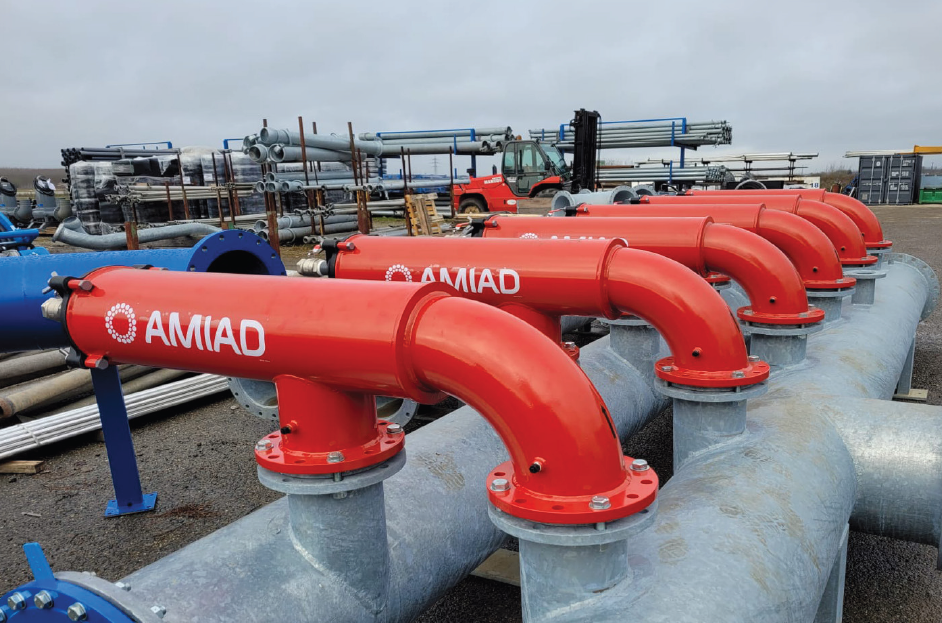

Amiad - Steel - Features and Benefits
Technical Data

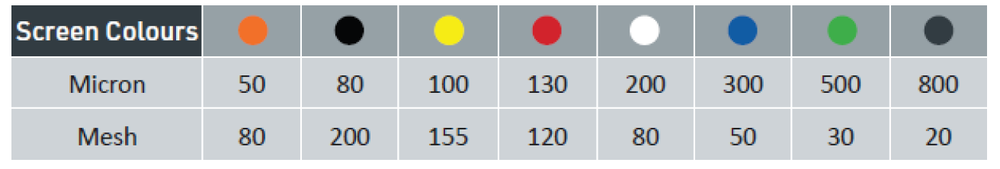

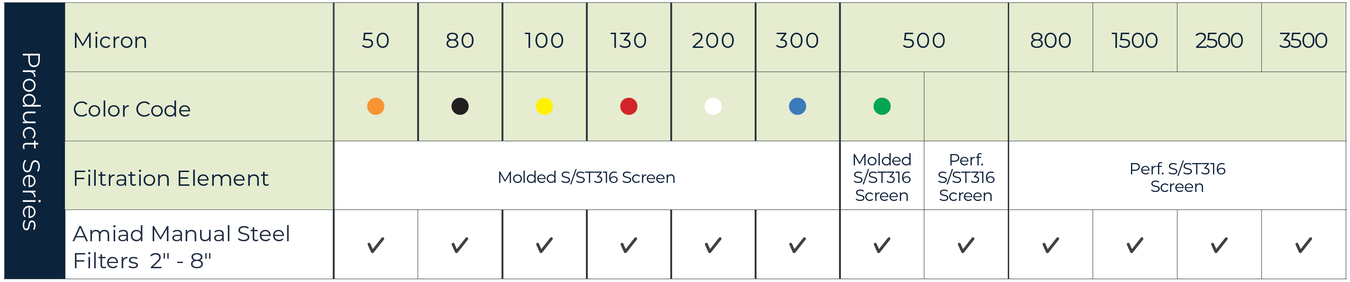

Filtration Degrees
Amiad - Steel - Filtration Degrees

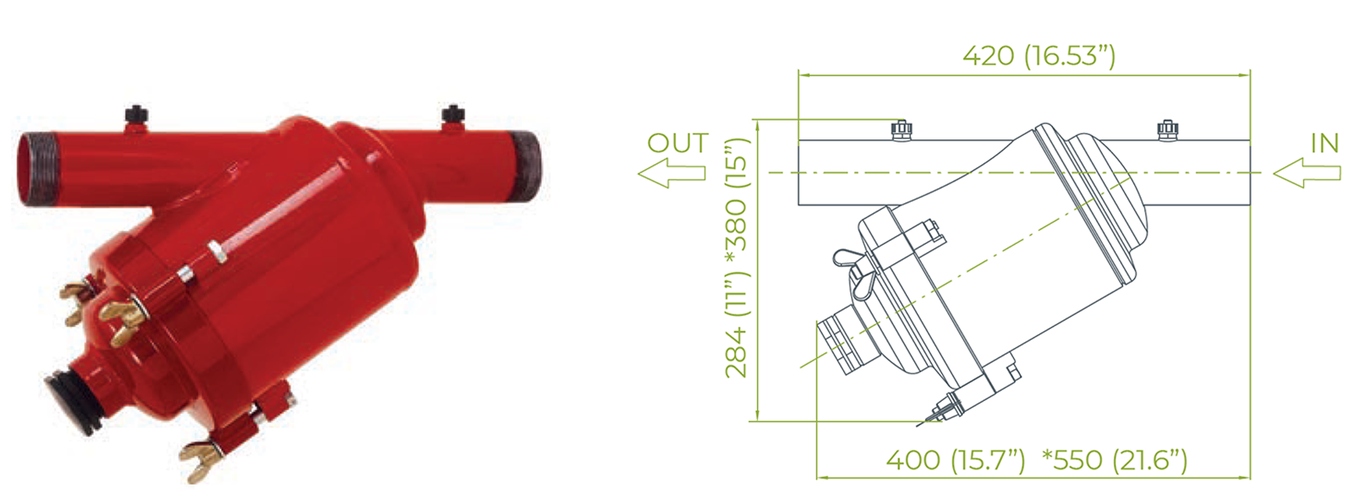

50mm in-line
Amiad - Steel - 50mm In line with Dimensions

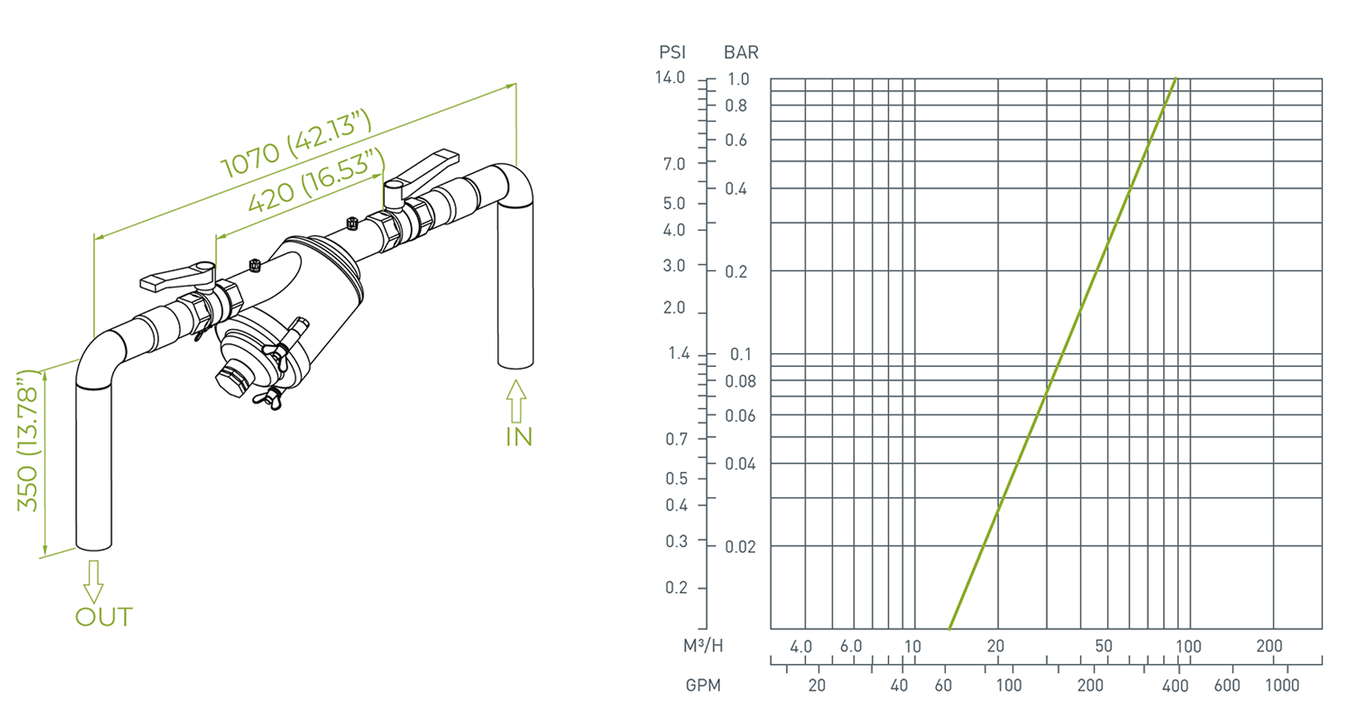

Typical Installation Drawing and Pressure Loss Graph
Amiad - Steel - 50mm In line - Installation Drawing and Graph

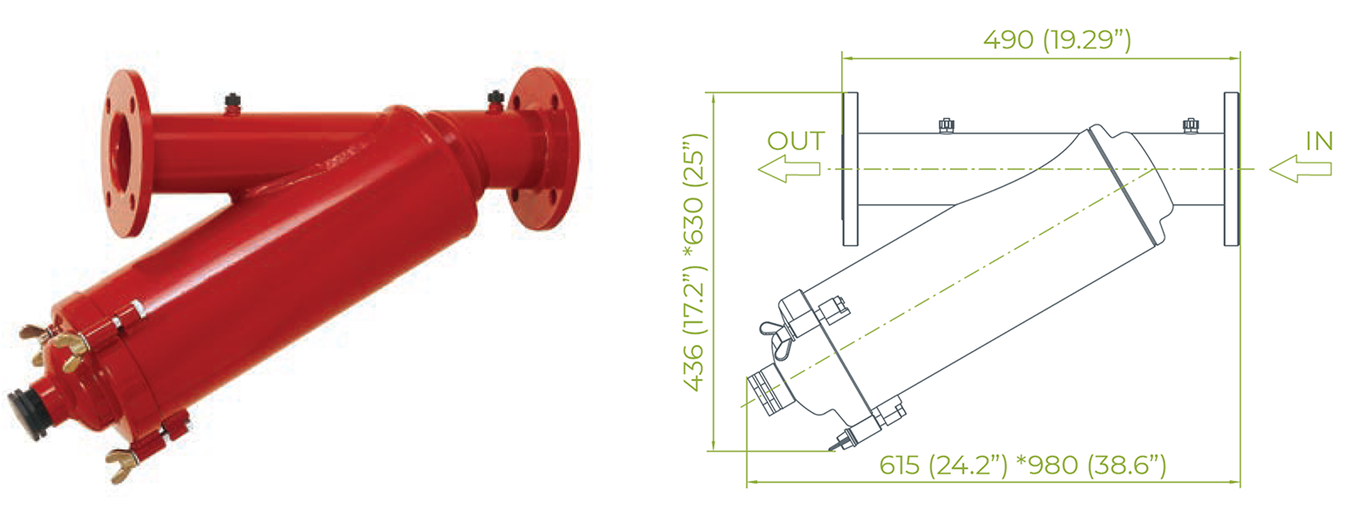

80mm in-line
Amiad - Steel - 80mm In line

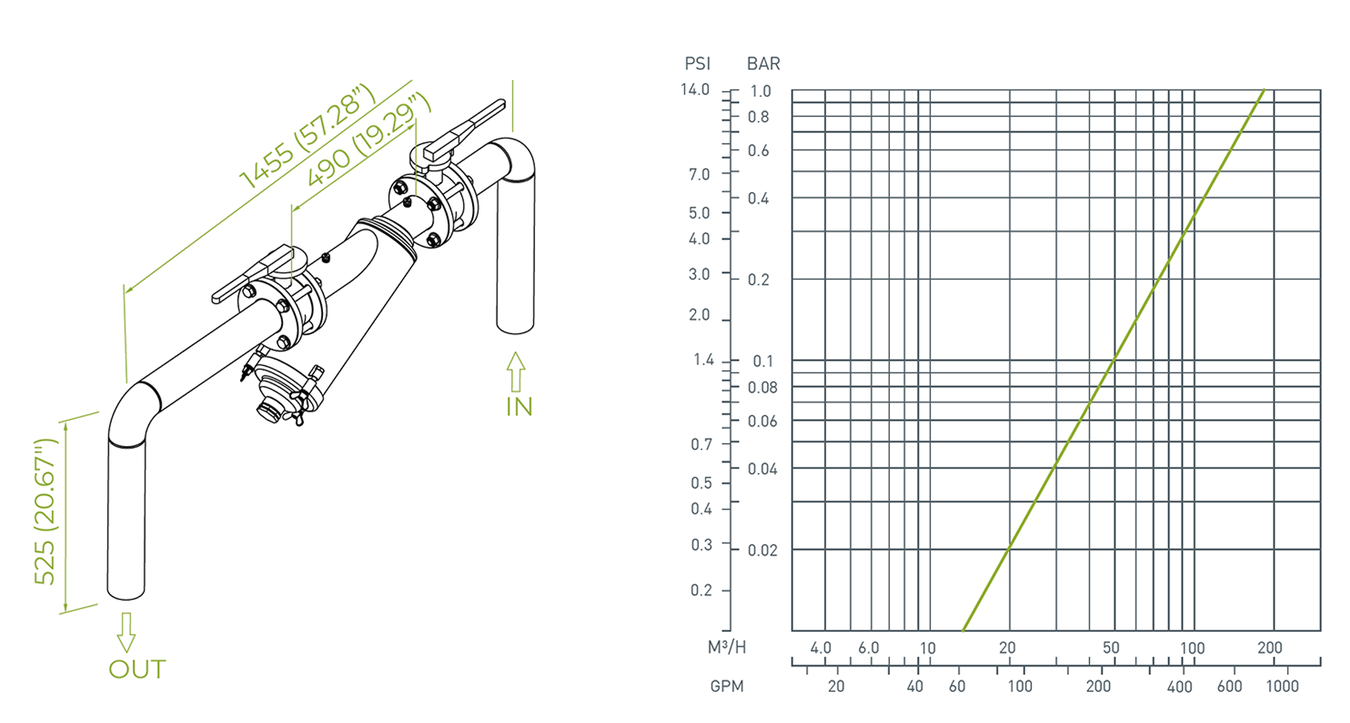

Typical Installation Drawing and Pressure Loss Graph
Amiad - Steel - 80mm In line - Installation Drawing and Graph

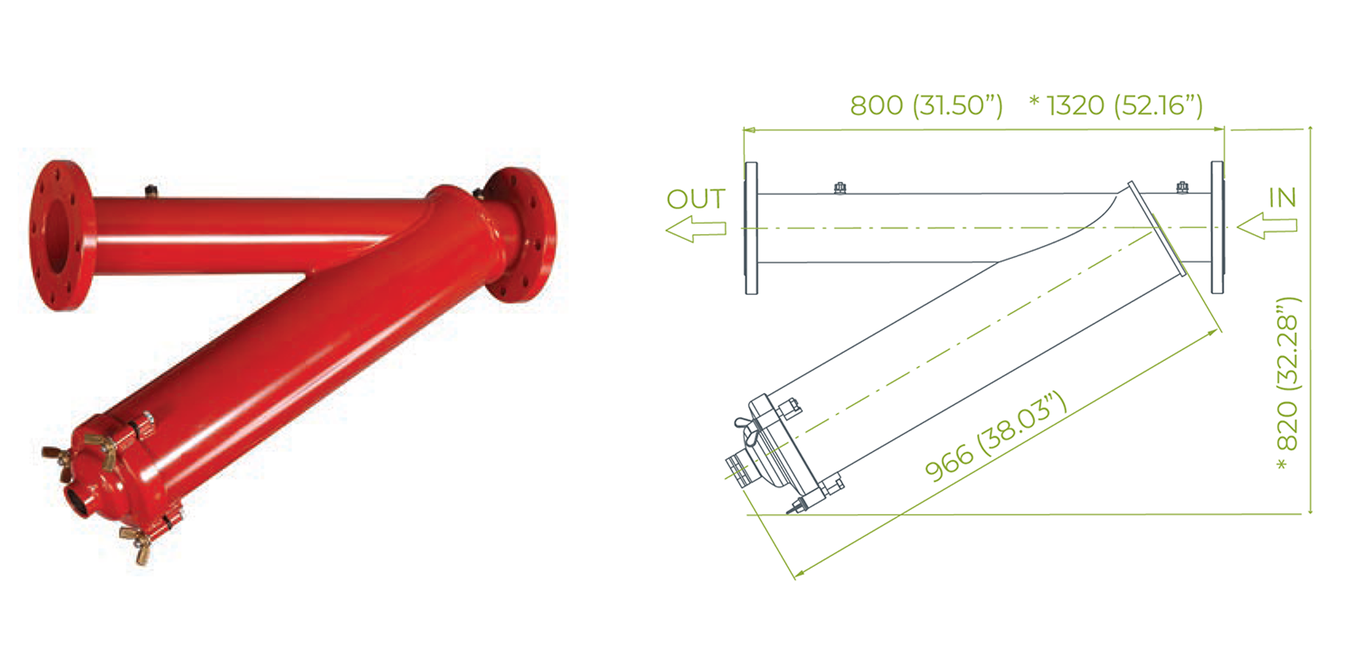

100mm Compact in-line
Amiad - Steel - 4Inch Compact In line.

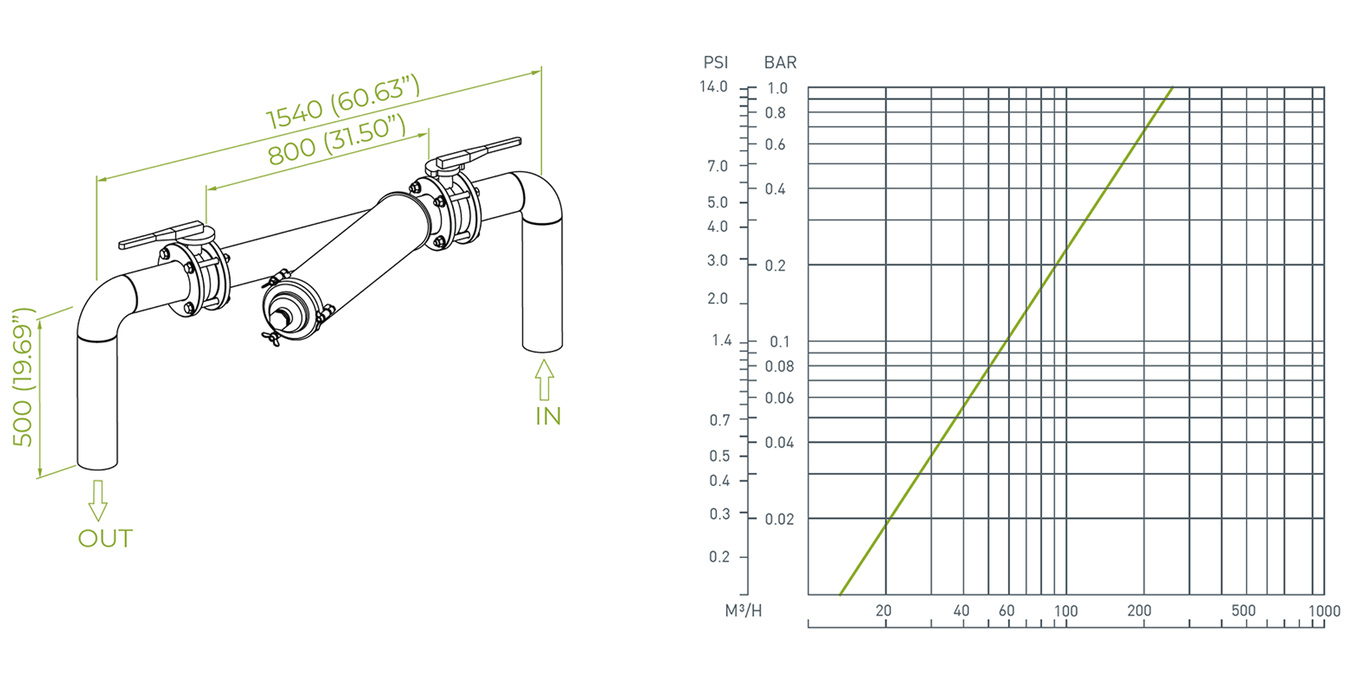

Typical Installation Drawing and Pressure Loss Graph
Amiad - Steel - 100mm Compact Inline - Installation Drawing and Pressure Loss Graph

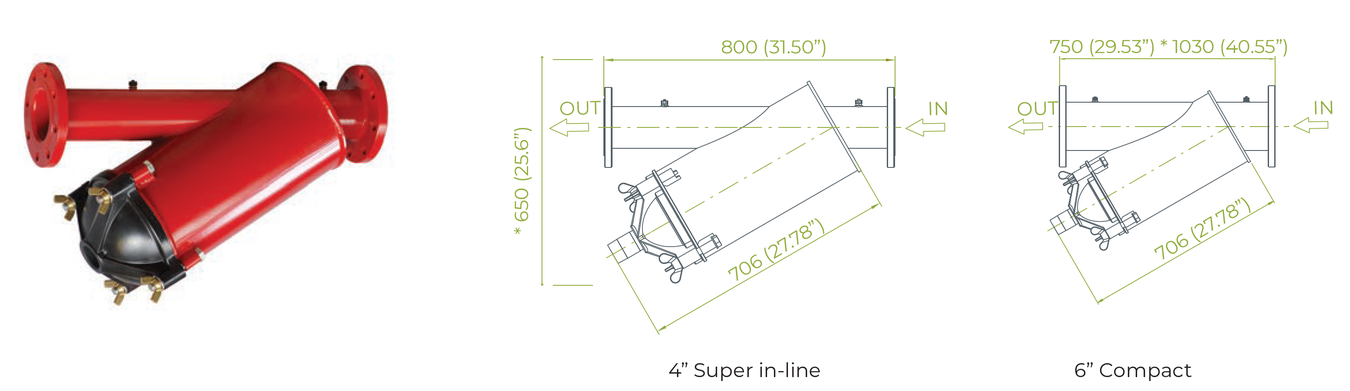

100mm Super in-line | 150mm Compact
Amiad - Steel - 100mm Super Inline and 150mm Compact

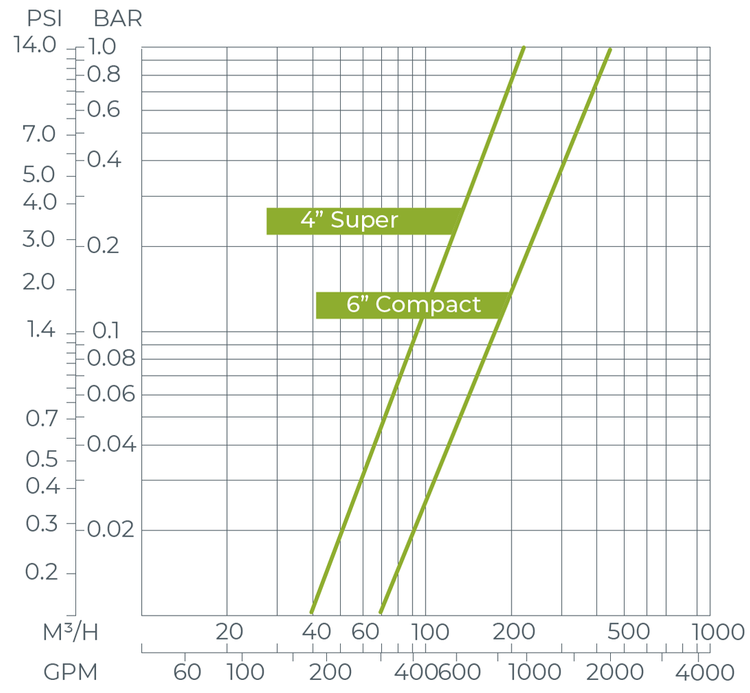

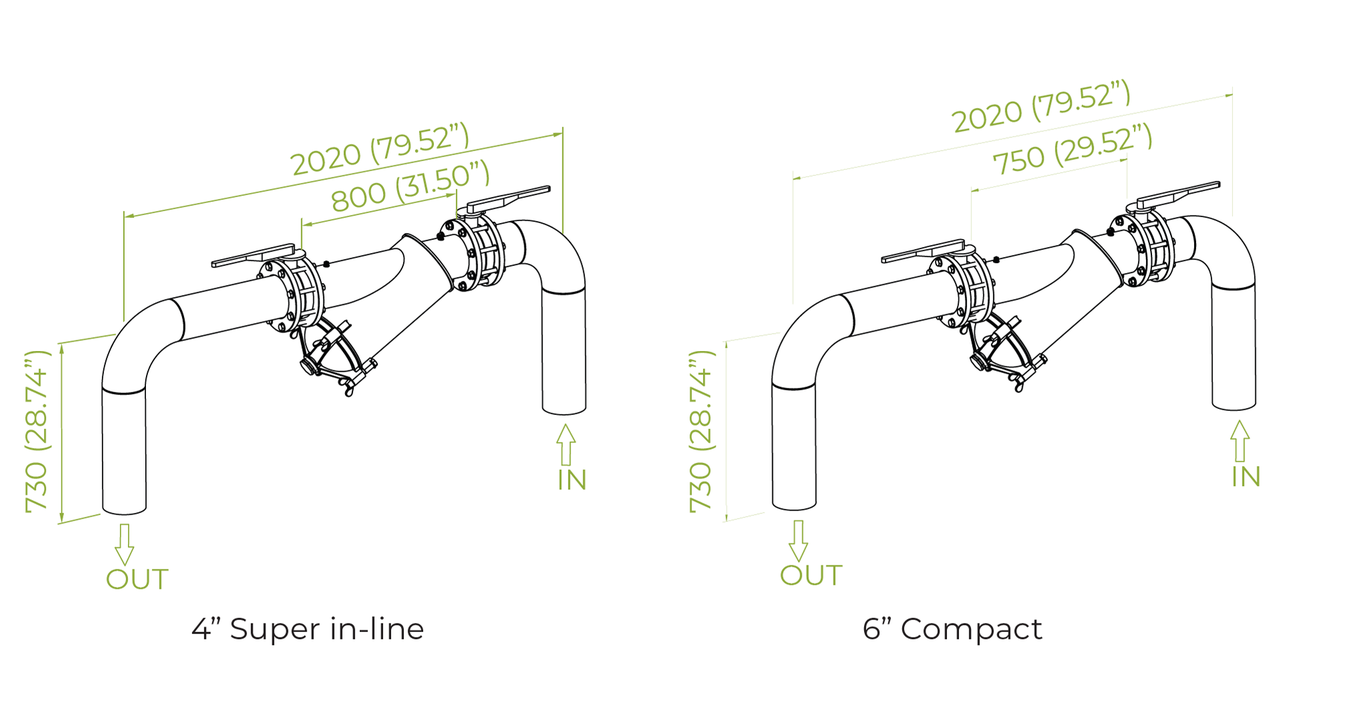

Typical Installation Drawing and Pressure Loss Graph
Amiad - Steel - 100mm Sper Inline and 150mm Inch Compact - Installation Drawing and Pressure Loss Graph

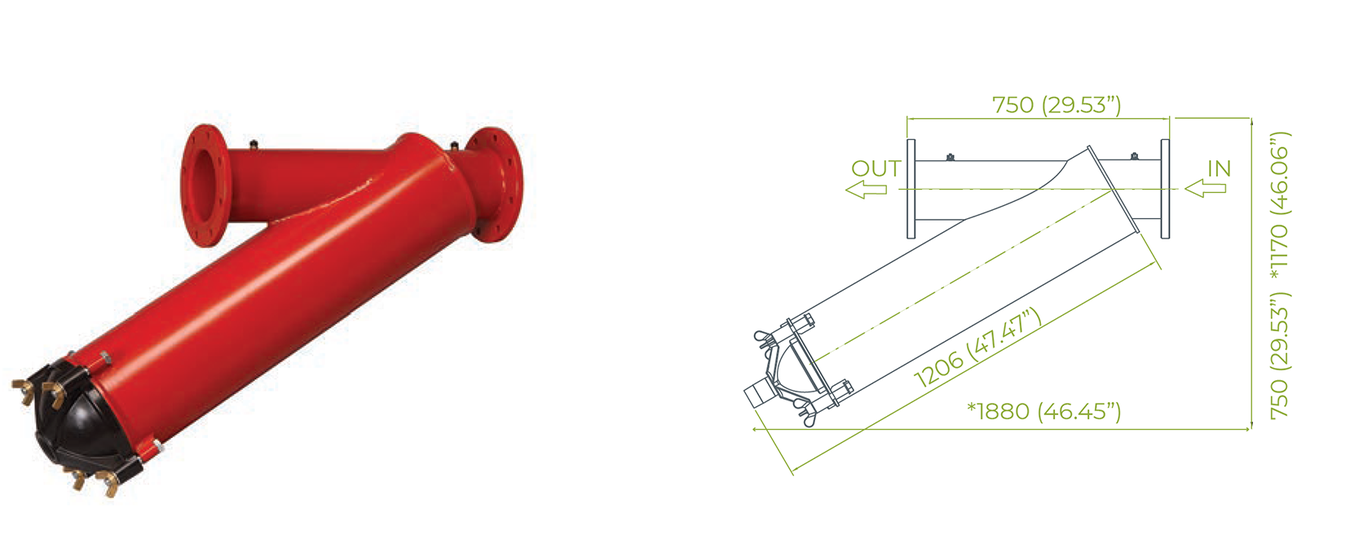

150mm Super in-line | 200mm in-line
Amiad - Steel - 150mm Super Inline | 200mm In line with Dimensional drawing.

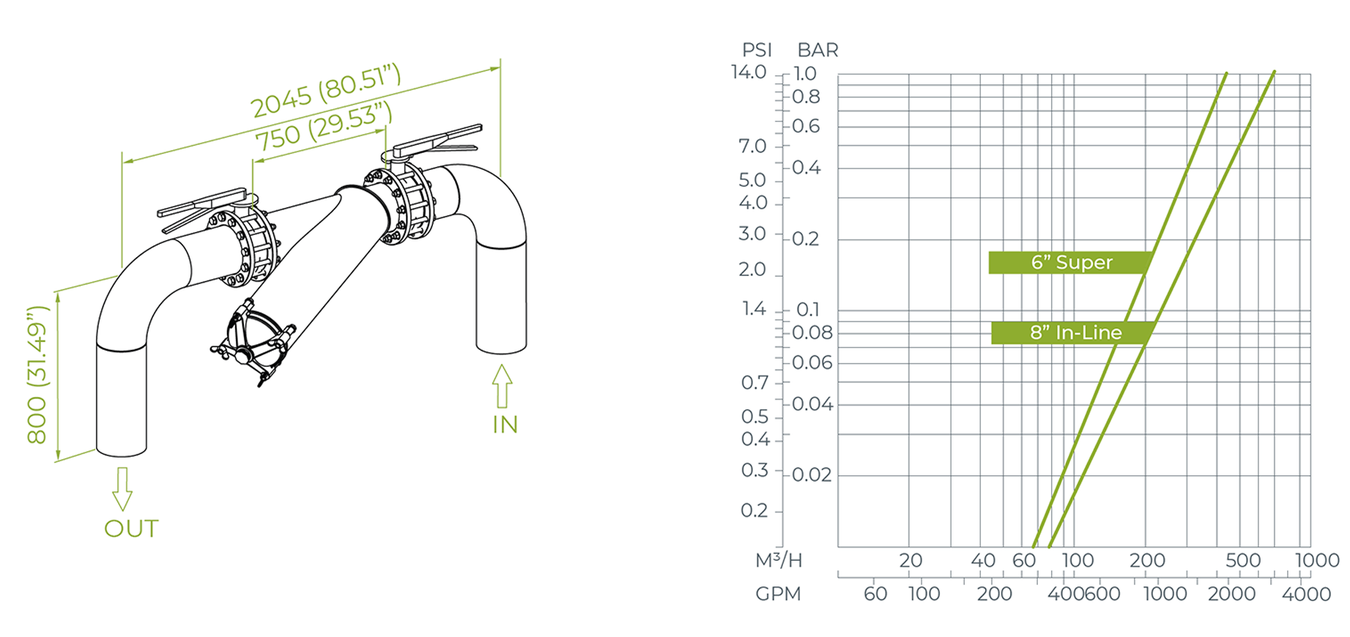

Typical Installation Drawing and Pressure Loss Graph
Amiad - Steel - 150mm Super Inline | 200mm Inline - Installation Drawing and Pressure Loss Graph

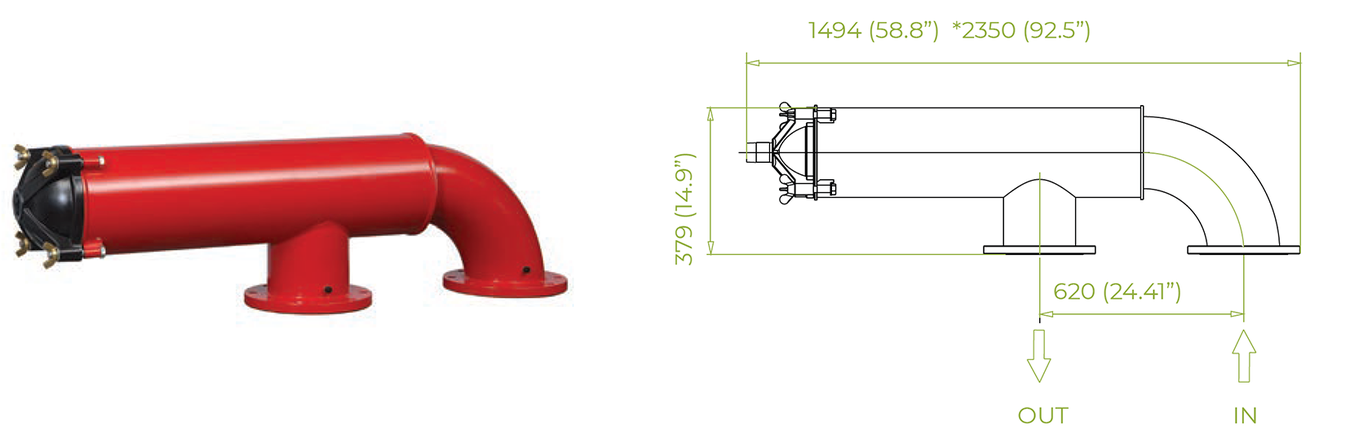

150mm Super modular | 200mm modular
Amiad - Steel - 150mm Super Modular | 200mm Modular

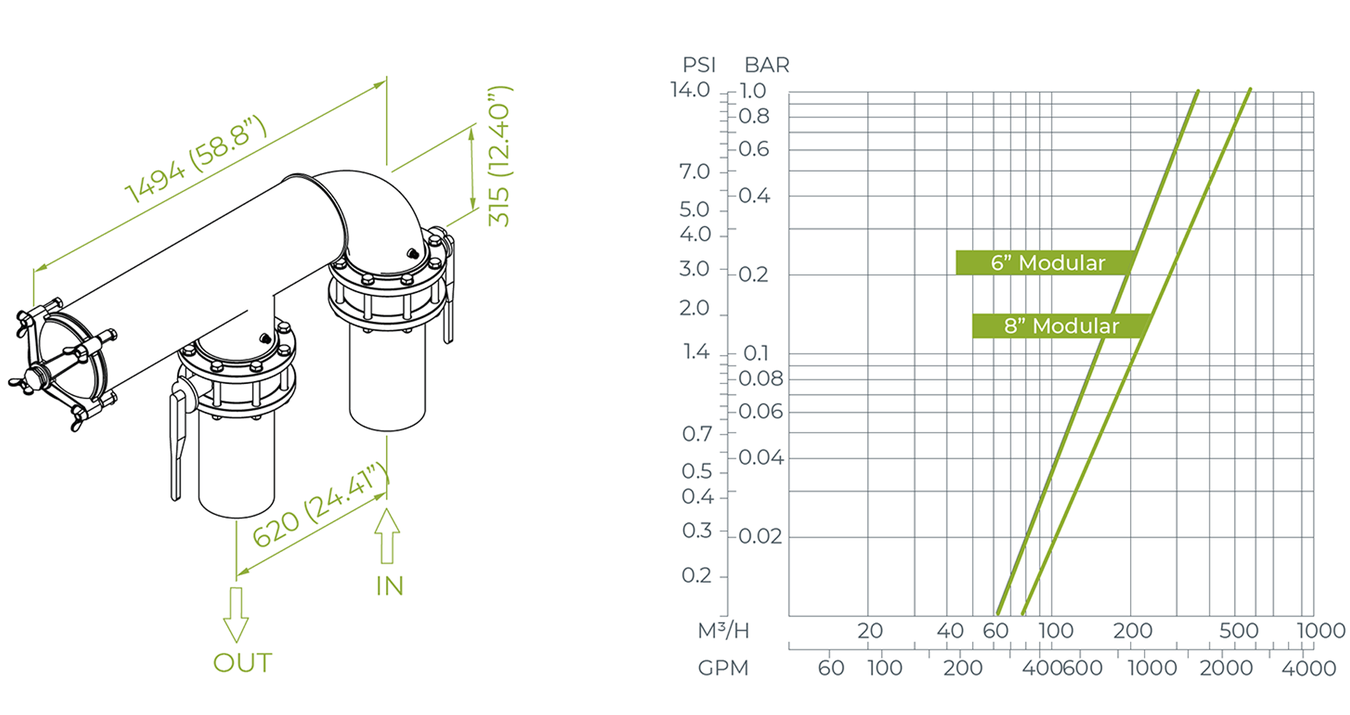

Typical Installation Drawing and Pressure Loss Graph
Amiad - Steel - 150mm Super Modular | 200mm Modular - Installation drawing and Pressure Loss Graph
Technical Specifications

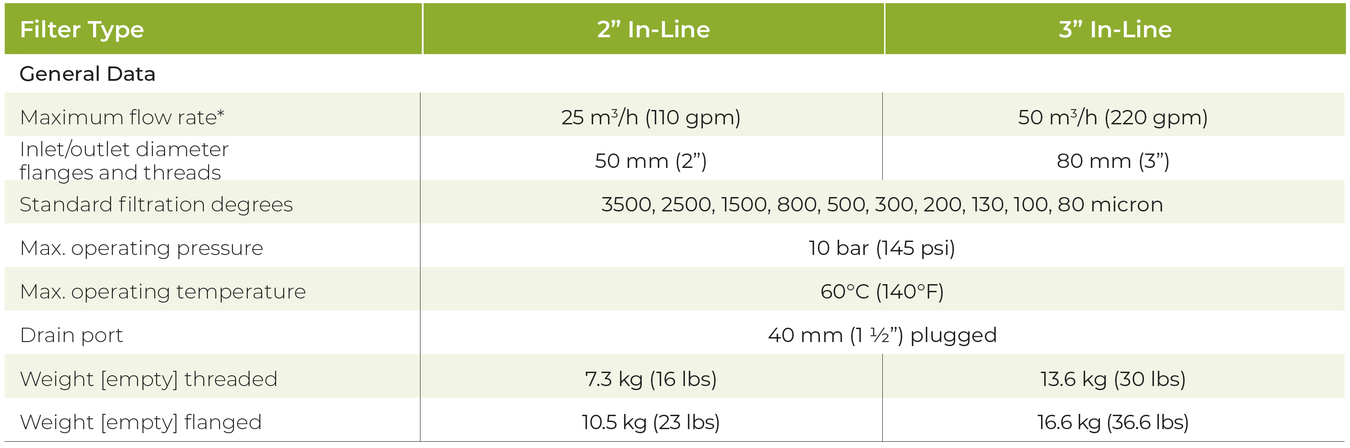

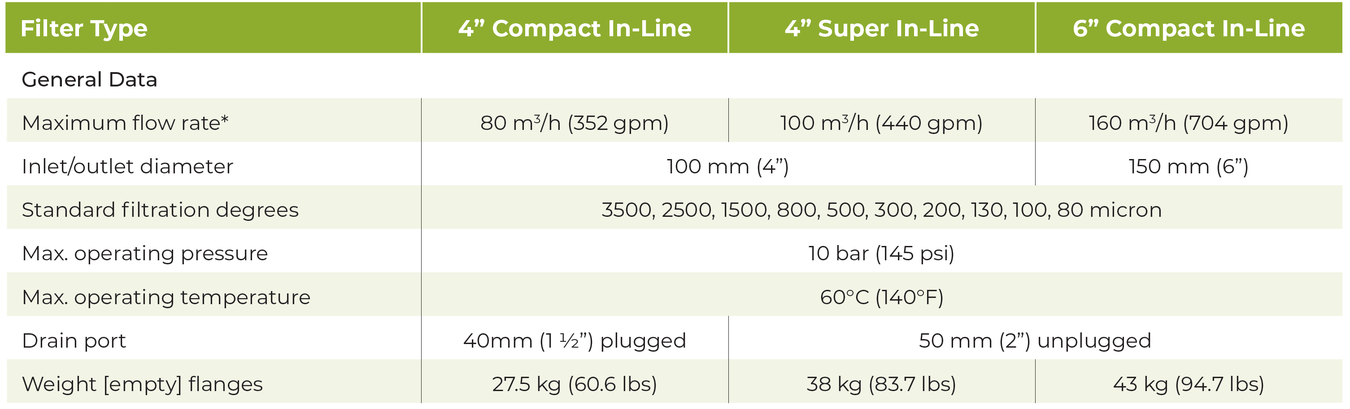

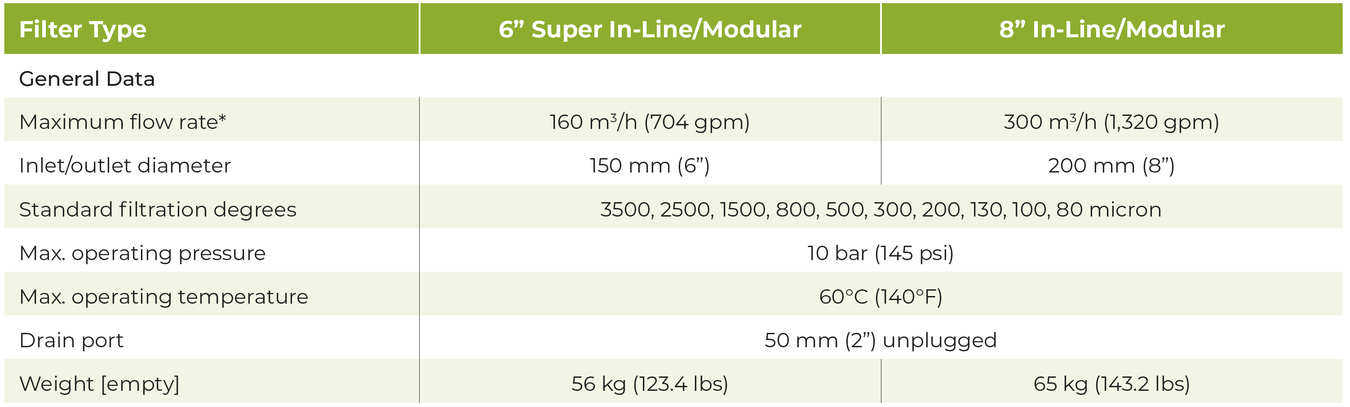

General data
* Consult Deeco for optimum flow depending on filtration degree & water quality.

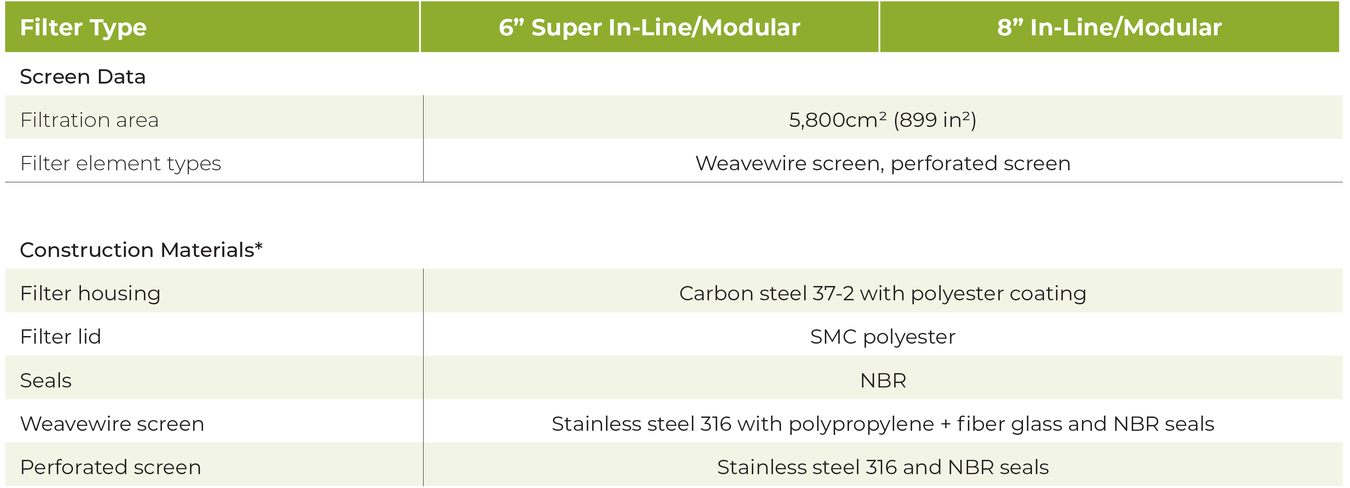

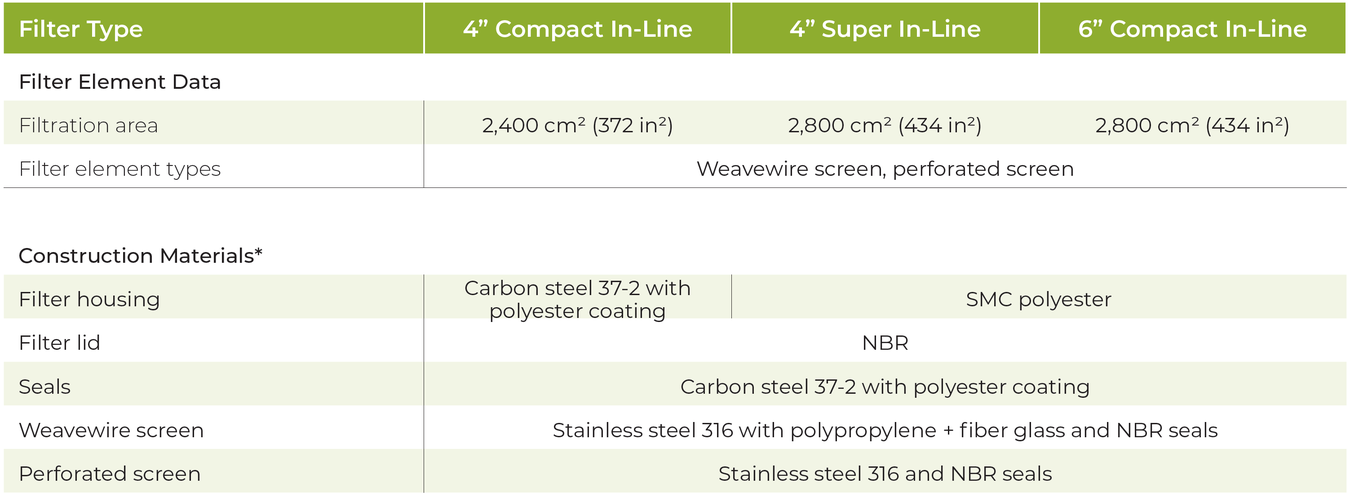

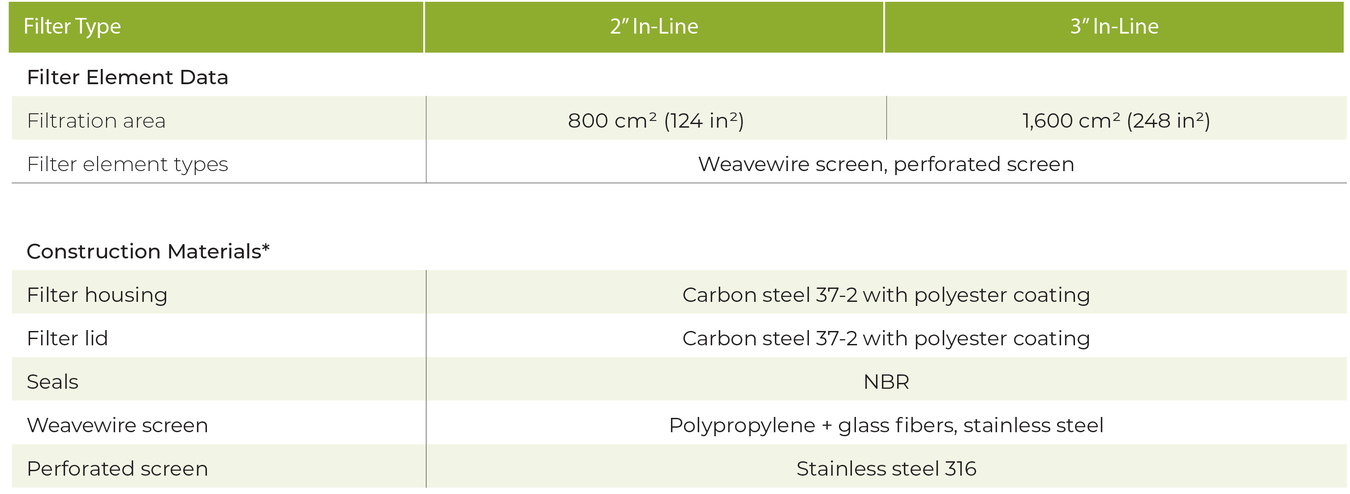

Engineering Data
* a variety of construction materials are on offer. Consult Deeco for specifications.

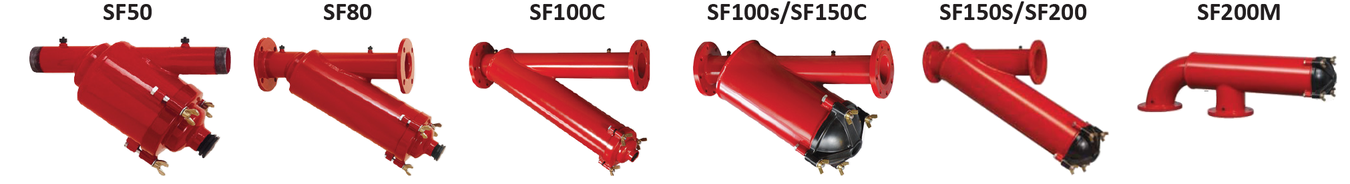

Amiad - Steel - Manual Filters
Complete with Screen - Maximum Working Pressure 10 Bar
| Product Code | Size | Working Pressure | Filtration Surface Area | Description |
|---|---|---|---|---|
| SF50 | 50mm | 10 Bar | 700.0cm² | BSP Metal Filter - 0 to 25m3/h. 50 to 3500 micron |
| SF80 | 80mm | 10 Bar | 1430.0cm² | Flanged Metal Filter - 0 to 50m3/h. 50 to 3500 micron |
| SF100C | 100mm | 10 Bar | 2175.0cm² | Flanged Metal Filter - 0 to 80m3/h. 50 to 3500 micron |
| SF100S | 100mm | 10 Bar | 2740.0cm² | Flanged Metal Filter - 0 to 100m3/h. 80 to 3500 micron |
| SF150C | 150mm | 10 Bar | 2740.0cm² | Flanged Metal Filter - 0 to 160m3/h. 80 to 3500 micron |
| SF150S | 150mm | 8 Bar | 5720.0cm² | Flanged Metal Filter - 0 to 160m3/h. 80 to 3500 micron |
| SF200 | 200mm | 10 Bar | 5720.0cm² | Flanged Metal Filter - 0 to 300m3/h. 80 to 3500 micron |
| SF200M | 200mm | 8 Bar | 5720.0cm² | Flanged Metal Filter Modular - 0 to 300m3/h. 80 to 3500 micron |
| SF250 | 250mm | 10 Bar | 11440.0cm² | Flanged Metal Filter - 0 to 500m3/h. 80 to 3500 micron |

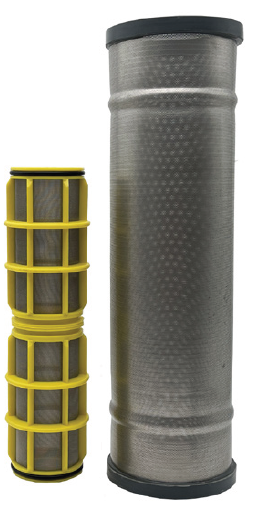

| Product Code | Size | Compatible Filters | Description |
|---|---|---|---|
| FSM50- | 50mm | SF50 | S/S Screen for 50mm Amiad Metal Screen. 50-3500 micron |
| FSM80- | 80mm | SF80 | S/S Screen for 80mm Amiad Metal Screen. 50-3500 micron |
| FSM100- | 100mm | SF100C | S/S Screen for 100mm Amiad Metal Screen. 50-3500 micron |
| FSM100S | 100/150mm | SF100S/SF150C | S/S Screen for 100mm S/150mm C Amiad Metal Screen. 80-3500 micron |
| FSM150S | 150/200/250mm | SF150S/SF200/SF250 | S/S Screen for 150mm S/200mm/250mm Amiad Metal Screen. 80-3500 micron |
