Bermad - Model 100DC - Double Chamber Basic Hydraulic Valve

Deeco - Bermad - 100 DC Series - Product Image
Brand: Bermad
Category: Control Valves, 100 Series
Size Range:

50-100mm

Connection:

50-80mm - Female Threaded BSP

80-100mm - Flanged

Product Description

The BERMAD Model 100DC Hydraulic Control Valve is a hydraulically operated, diaphragm-actuated control valve that opens and shuts in response to a local or remote pressure command. The valve comprises two major components: the body and the actuator assembly. The actuator assembly is removable from the body as an integral unit. It consists of both upper and lower control chambers, providing an Isolated and protected diaphragm. The double-chambered valve operation is independent of valve differential pressure. This develops maximum power, ensuring immediate valve response combined with inherent soft closing.

Features & Benefits

  • Hydraulic Control Valve with On/Off feature
    • Line Pressure Driven
    • Suitable also for remote and/or elevated systems
  • Double chamber design
    • Full-powered opening and closing
    • Non-slam closing characteristic
    • Protected diaphragm
  • Engineered Plastic Valve with Industrial Grade Design
    • hYflow ‘Y’ Valve Body with “Look Through” Design
    • Ultra-high flow capacity - Low-pressure loss User-Friendly Design
  • User-Friendly Design
    • Simple in-line inspection and service, Easy maintenance
    • Simple in-line conversion from a single to a double chamber

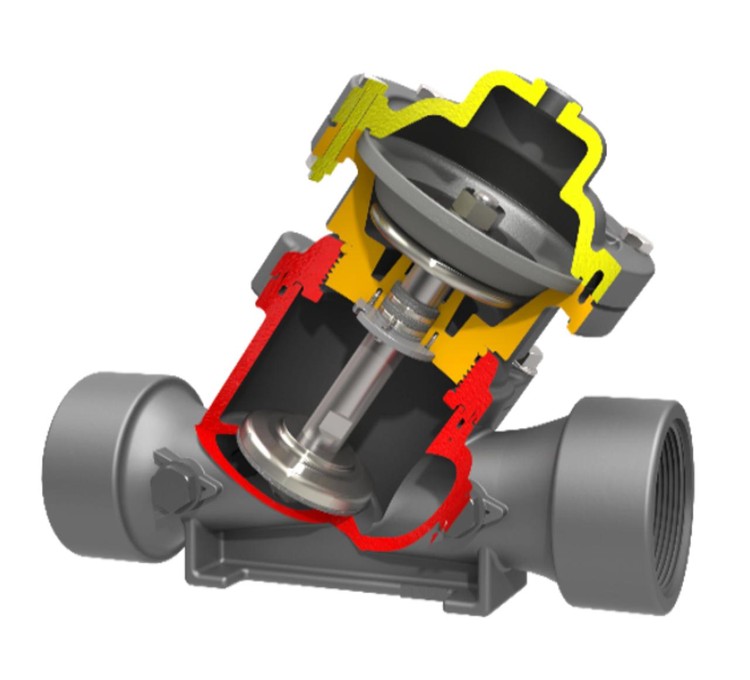

100dc - image

Typical Applications

  • Computerized Irrigation Systems
  • Drip Systems
  • Sprinklers & Micro-Sprinklers
  • Greenhouses Irrigation
  • Low-pressure Systems
  • End-line Flushing (Distribution Line, Irrigation Machine) - "Flush-’n-Stop"
  • ֺ Proportional Pressure Reducing
  • Non-slam Closing (or moderate closing)
  • Active Double Chambered (B) - full Powered Opening & Closing

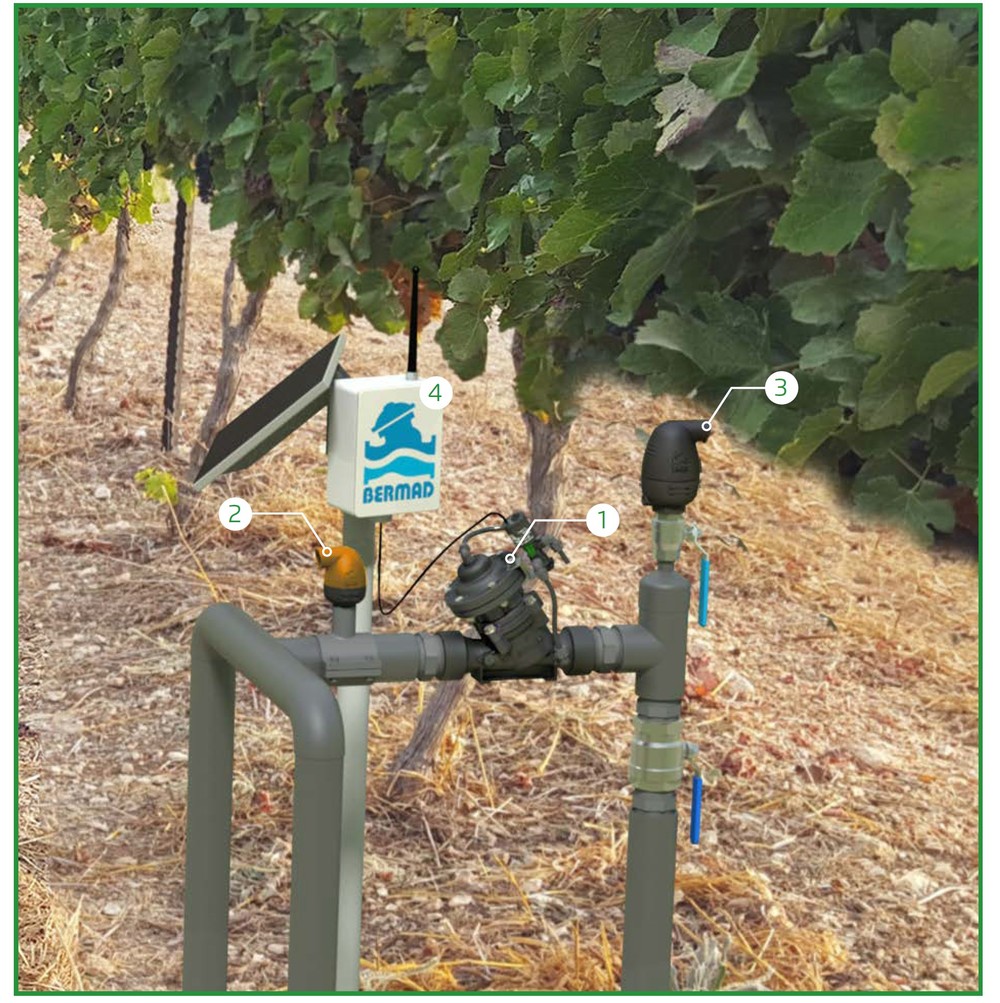

Bermad - Model 100DC - Features and Benefits

1. BERMAD Model IR-100-DC-Z Open upon to local manual command

2. BERMAD Kinetic Air Valve Model IR-K10

3. BERMAD Combination Air Valve Model IR-C10

4. BERMAD RF RTU Battery Operated with Solar Kit

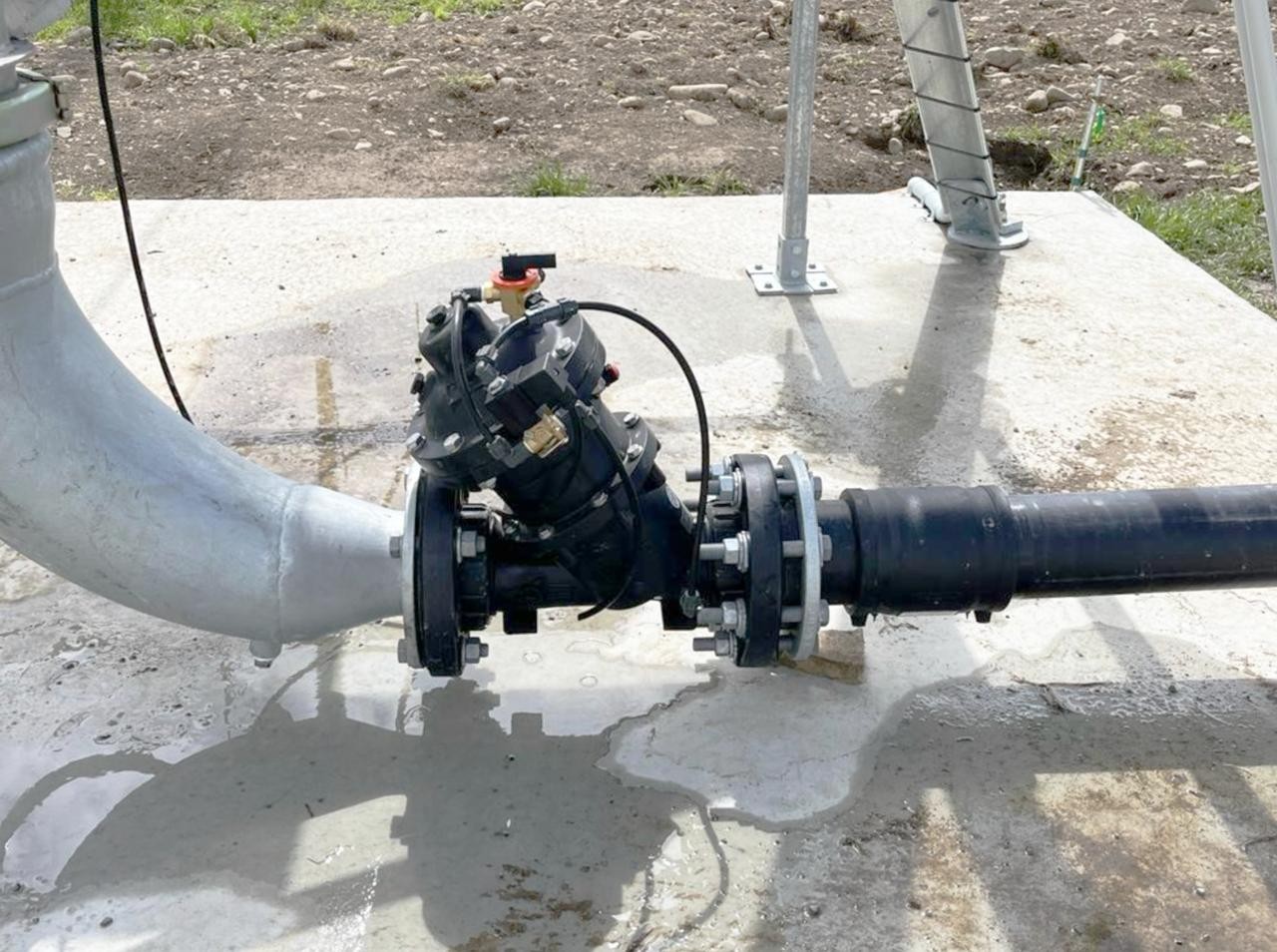

WhatsApp Image 2024-05-24 at 13.14.10_e76b7d1c

100DC - Customer Installation

Technical Data

Operation

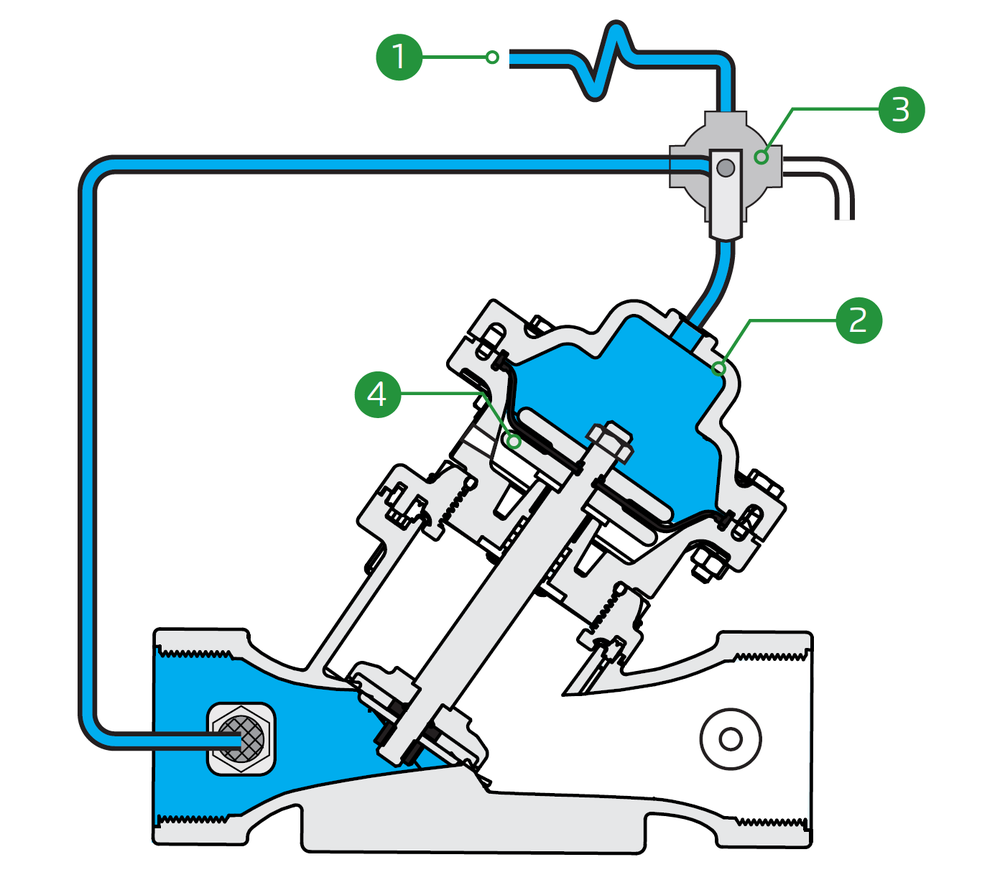

Bermad - Model 100DC - Operation

Hydraulic Command 1 is applied to Control Chamber 2 through the Manual Selector 3. This creates a superior closing force that moves the Diaphragm Assembly 4 to a closed position. Discharging the pressure in the upper control chamber to the atmosphere causes the line pressure acting on the seal disk to move the valve to the open position.

Materials

Body, Cover and Plug

  • Polyamide 6 & 30% GF

Diaphragm

  • NR, Nylon fabric reinforced

Seals

  • NR

Spring

  • Stainless Steel

Cover Bolts

  • Stainless Steel

Actuator

  • Composite Material & Stainless Steel

Pressure Rating

  • 10 bar

Operating Pressure Range

  • 0.5-10 bar

Control Accessories

Tubing and Fittings

  • Polyethylene

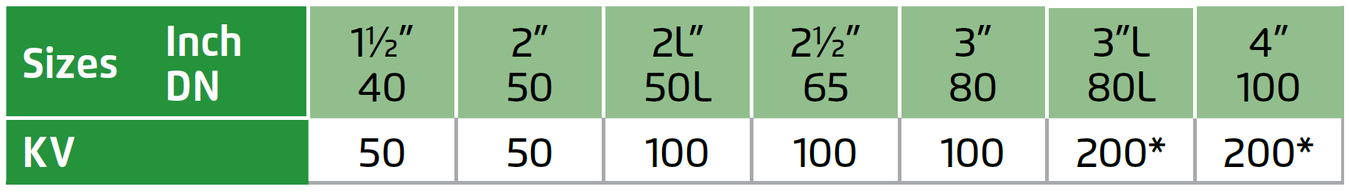

Flow Properties

Bermad - Model 100DC - Flow Properties

Bermad - Model 100DC - Flow Properties

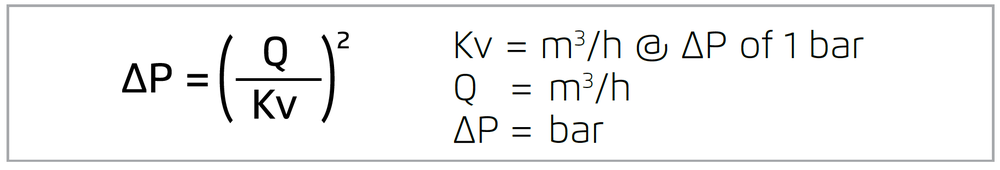

Valve Flow Coefficient

Bermad - Model 100DC - Flow Coefficient

Bermad - Model 100DC - Flow Coefficient

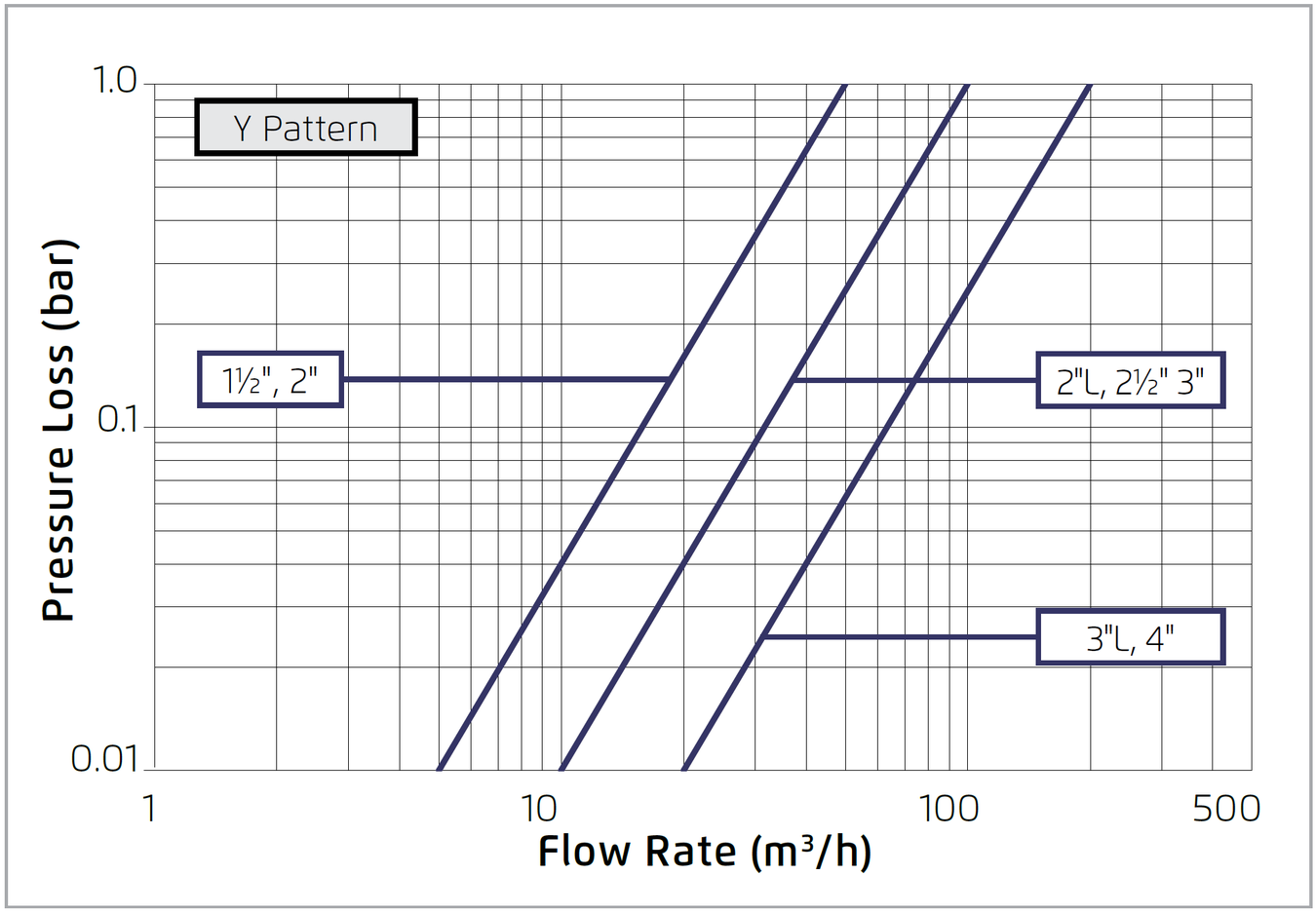

Flow Chart

Bermad - Model 100DC - Flow Chart

Bermad - Model 100DC - Flow Chart

Technical Specifications

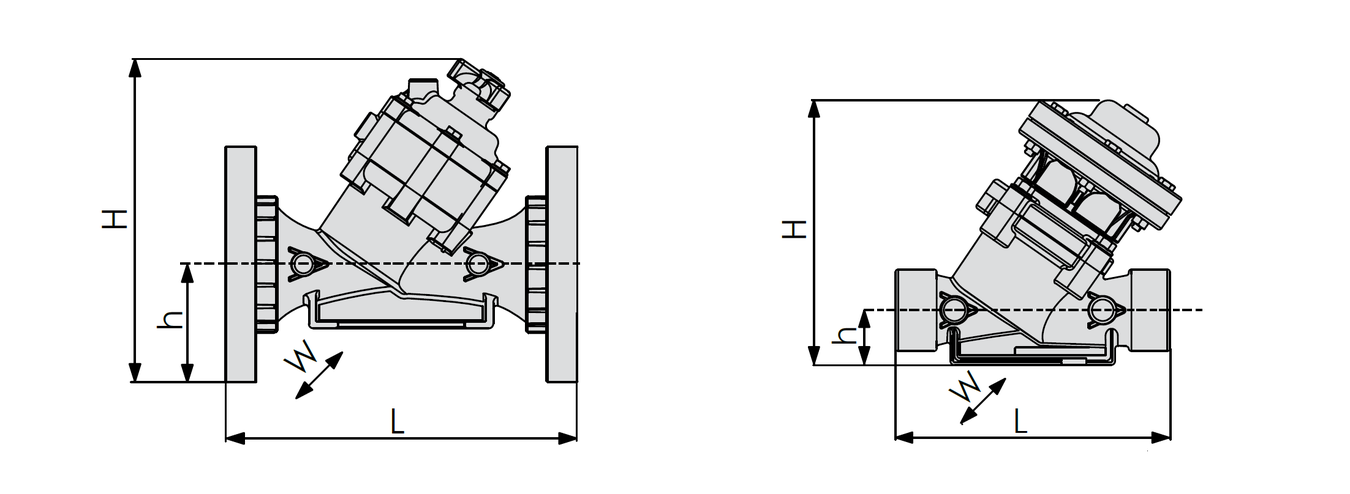

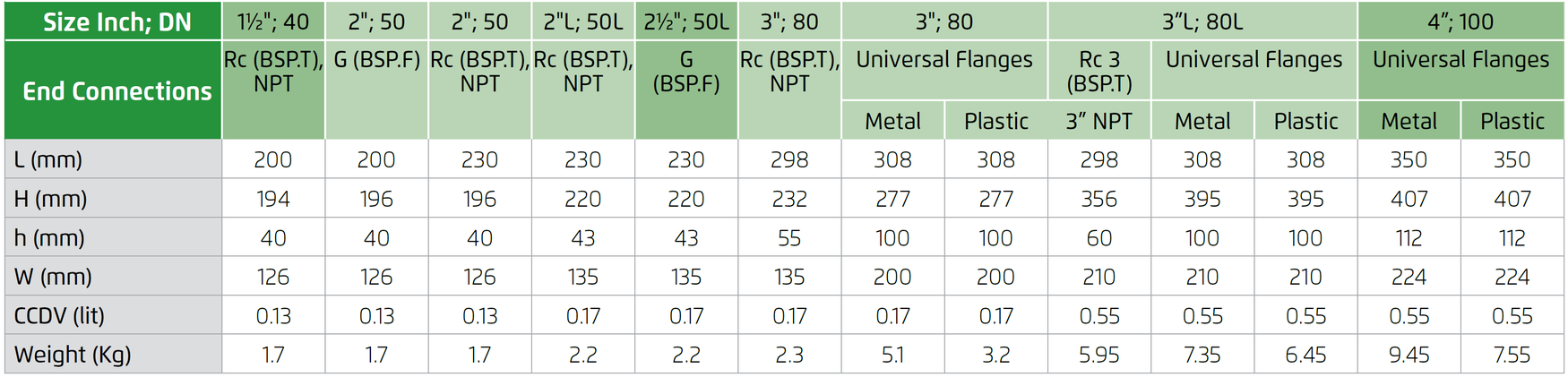

Y Pattern Valves Dimensions & Weights

Bermad - Model 100DC - Technical Specification
Bermad - Model 100DC - Dimensions and Weights

Bermad - Model 100DC - Dimensions and Weights

CCDV = Control Chamber Displacement Volume
BSP.T = Internal Threaded
BSP.F = External Threaded

  • Other End Connections are available on request. For dimensions and weights of adapters or valves with adapters, please consult with Deeco.

Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.

Please consult with Deeco engineers for more information.
