| Brand: | Bermad |
| Category: | Control Valves, PN16 Metal Pilots |
| Brand: | Bermad |
| Pressure Ranges: | Spring 3 - 0.5-3 bar Spring 10 - 0.5-10 bar Spring 16 - 1-16 bar Spring 25* - 2-25 bar |
Product Description
This is a direct acting valve, actuated by a pressure responsive diaphragm, which tends to reach equilibrium with the set spring force.
Fully balanced trim ensures high accuracy and stability.
When used in a pressure reducing circuit, the pilot modulates closed as downstream pressure rises above set point.
Features and Benefits
- Internal or external pressure sensing
- Differential pressure sensing
- Direct Pressure gauge installation
- Non-tamper safety cap
Typical Applications
- High-quality Direct Acting Pressure Reducing Valve with superior regulation performance
- Pressure Reducing Valves sizes 16-32" (Standard model #2HC)
- Flow Control Valves sizes 16-32" (Modified to differential sensing #2HC-DR)
- Surge Anticipating Valves sizes 6-20" as low pressure pilot (Modified to external pressure sensing #2HC-R)
- Closing surge control (additional geature 49) for sizes 16-32" (Modified to external pressure sensing #2HC-R)
- Low Flow Bi-Pass
Technical Data
Pressure Rating: 25 bar
Working Temperature: Water up to 70C
Flow Factor: Kv 4.7; Cv 5.1
Standard Materials
Body: Stainless Steel 316
Cover & Lower Plug: Stainless Steel 316
Elastomers: NBR
Internals: Stainless Steel & Brass
Spring: Galvanized Steel
Optional Materials:
- Internals: Stainless Steel 316, NAB, Hastalloy
- Springs: Stainless Steel 316, Stainless Steel 302, Inconel, Titanium
- Elastomers: EPDM, VITON
Technical Specifications

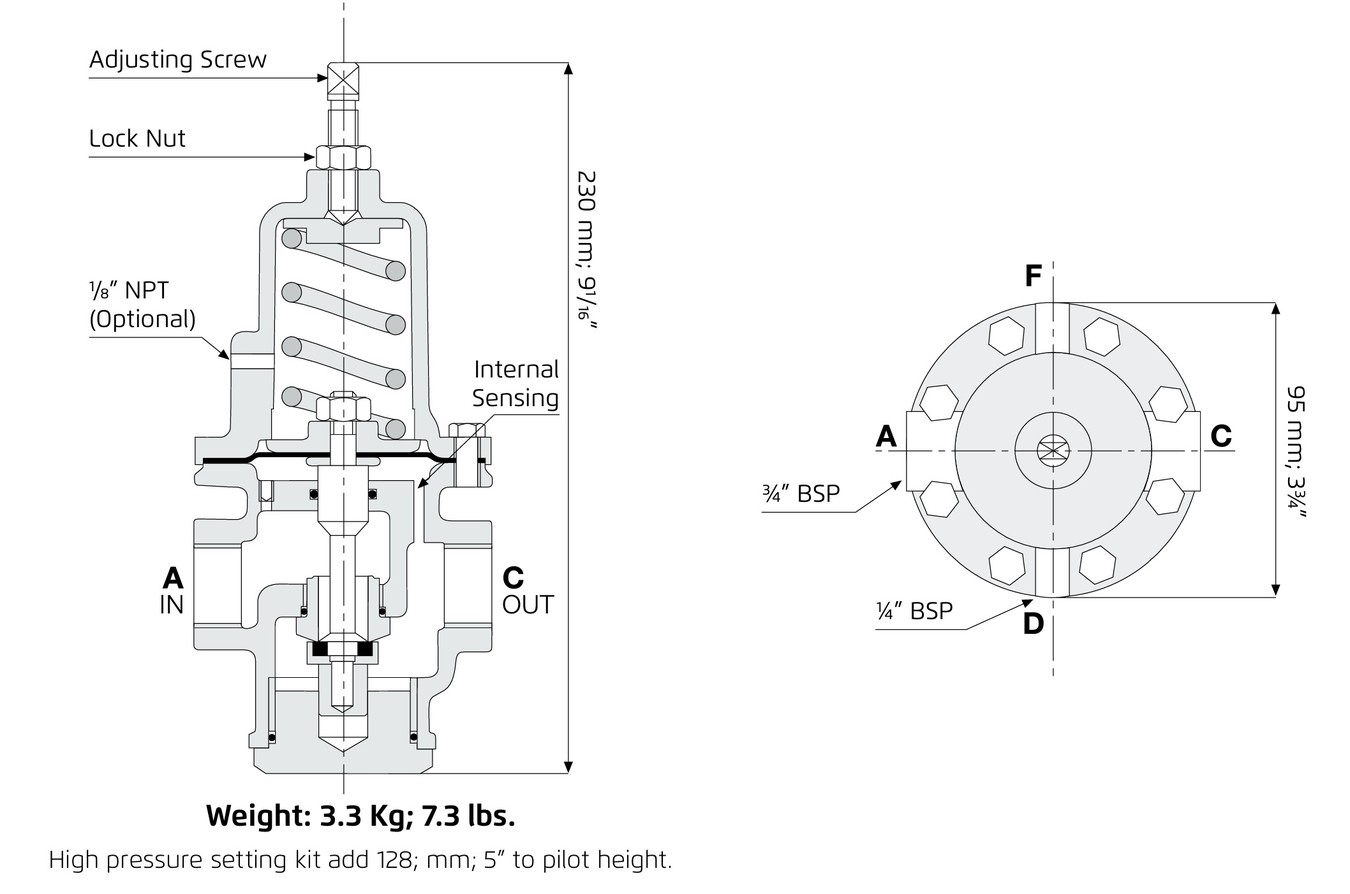

Dimensions & Weight

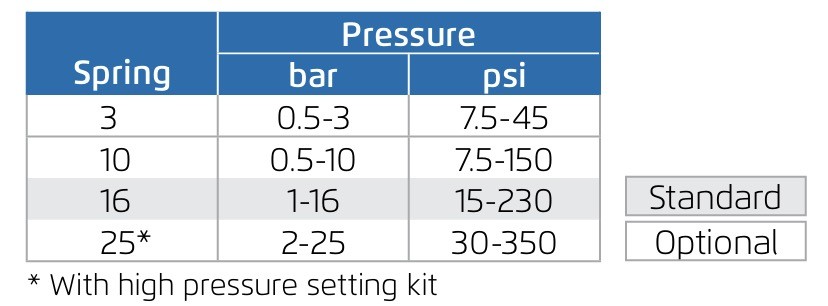

Adjustment Range
| Product Code | Description |
|---|---|
2HC |
#2 BERMAD PRESSURE REDUCING PILOT 316 SS - HIGH CAPACITY |
