| Brand: | Bermad |
| Category: | Control Valves, PN16 Metal Pilots |
| Brand: | Bermad |
| Pressure Ranges: | Spring 3 - 0.5-3 bar Spring 10 - 0.5-10 bar Spring 16 - 1-16 bar Spring 25* - 2-25 bar |
Product Description
This is a direct acting valve by a pressure responsive diaphragm, which tends to reach equilibrium with the set spring force.
When used in a pressure relief/sustaining circuit, the pilot modulates open as upstream pressure rises above set point.
Features and Benefits
- Internal or external pressure sensing
- Differential pressure sensing
- Direct Pressure gauge installation
- Non-tamper safety cap
Typical Applications
- Pressure Relief/Sustaining Valves (Standard model #3HC)
- Differential Pressure Sustaining (Modified to differential sensing #3HC-DR)
- Surge Anticipating Valve as high pressure pilot (Modified to external pressure sensing #3HC-R)
Technical Data
Pressure Rating: 25 bar
Working Temperature: Water up to 150C
Flow Factor: Kv 4.7; Cv 5.5
Valve Size Range: Large
Standard Materials
Body: Stainless Steel 316
Cover & Lower Plug: Stainless Steel 316
Elastomers: NBR
Internals: Stainless Steel & Brass
Spring: Galvanized Steel
Optional Materials:
- Internals: Stainless Steel 316, NAB, Hastalloy
- Springs: Stainless Steel 316, Stainless Steel 302, Inconel, Titanium
- Elastomers: EPDM, VITON
Technical Specifications

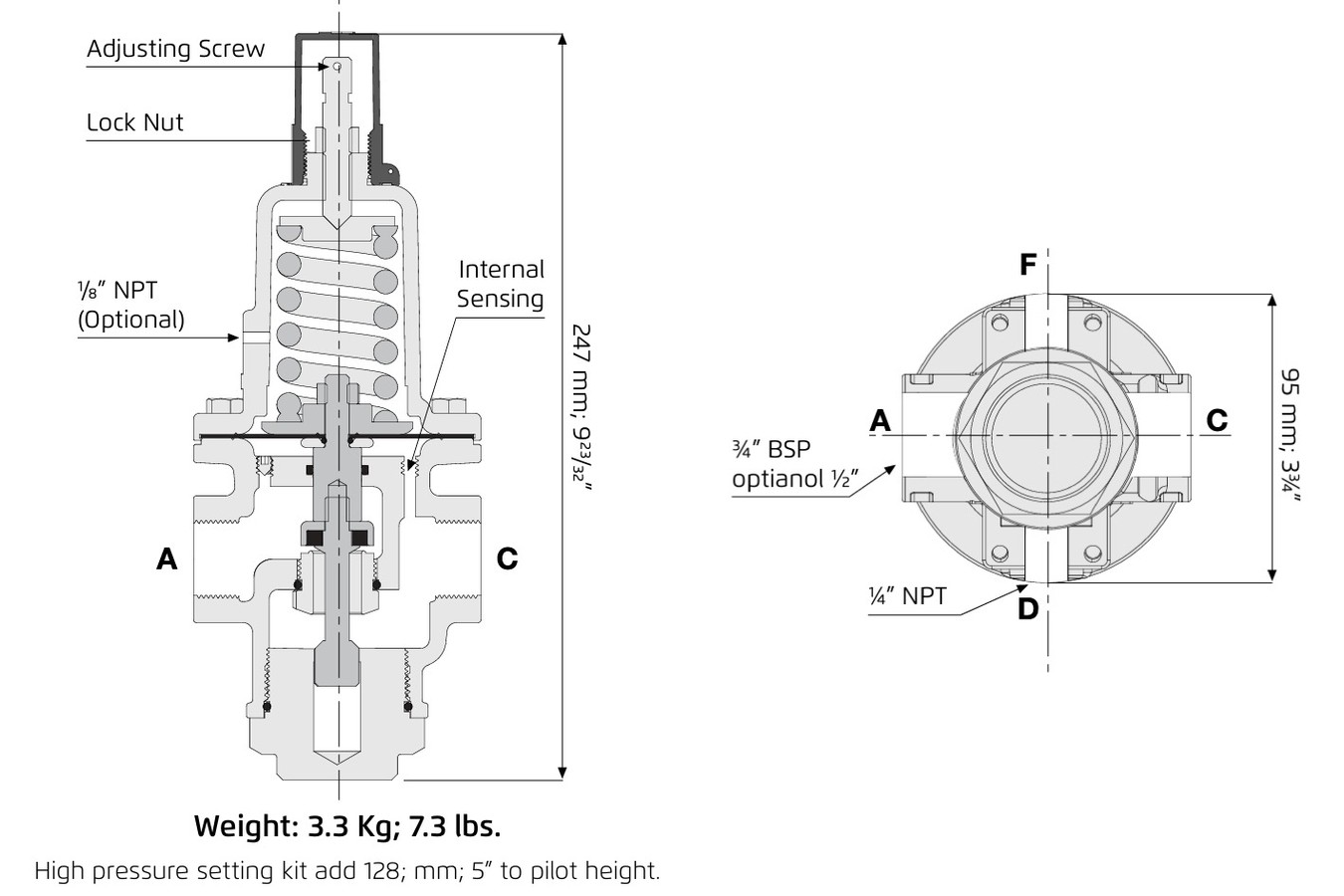

Dimensions & Weight

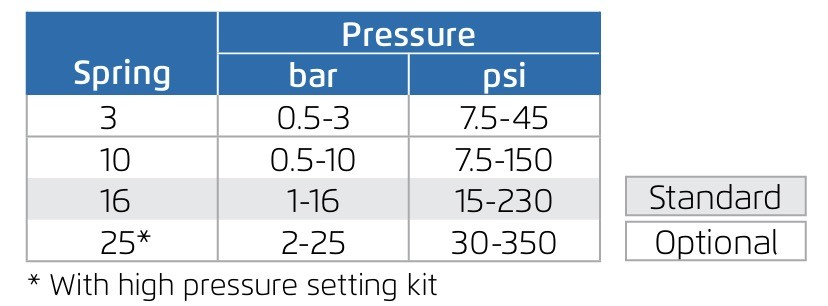

Adjustment Range
| Product Code | Description |
|---|---|
3HC |
#3 HC BERMAD PRESSURE SUSTAINING / RELIEF PILOT 316 SS - REMOTE SENSE |
