| Brand: | Bermad |
| Category: | Control Valves, PN16 Metal Pilots |
| Pressure Range: | 1-16 Bar |
| Pressure Range: | 1-16 Bar |

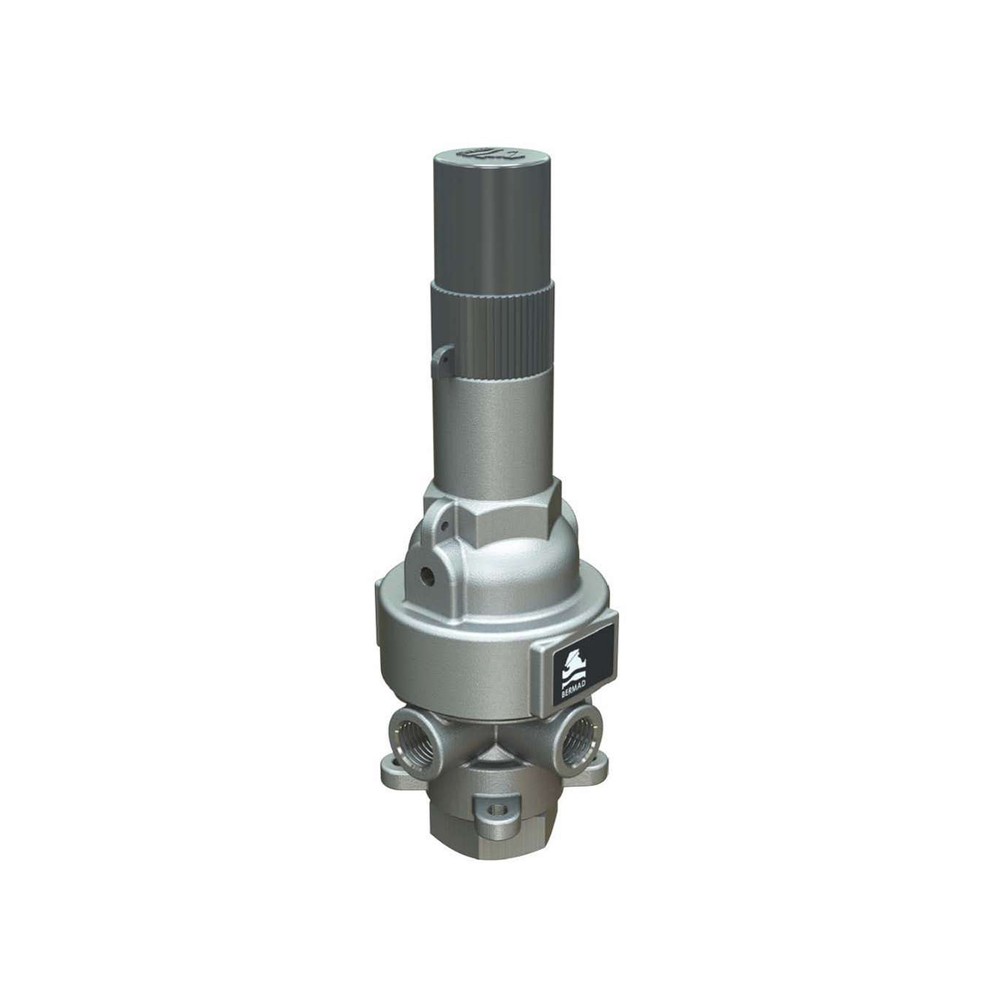

Product Description
This is a direct-acting valve, actuated by a pressure-responsive diaphragm, which tends to reach equilibrium with the set spring force. When used in a pressure relief/sustaining circuit, the pilot modulates open as upstream pressure rises above the set point.
Features and Benefits
- Internal or external pressure rating
- Differential pressure sensing
- Direct pressure gauge installation
Typical Application
- Pressure relief/sustaining valve ( Standard model #3PBL)
- Differential pressure sustaining valve (Modified to differential sensing #3PBL)
Technical Data
Pressure Rating
- 25 Bar
Working Temperature
- Water upto to 60°C
Flow Factor
- Kv 0.96 ; Cv 1.13
Valve Size Range
- Small - Medium
Standard Materials
Body: Bronze/Stainless Steel
Cover: Brass/Stainless Steel/Polyamide 6+30% G.F
Elastomers: NBR/EPDM
Internals: Stainless Steel & Brass
Spring: Stainless Steel 302/316
Optional Materials
Metal Parts: Nickel Aluminum Bronze, Duplex, Hastalloy
Elastomers: FPM (Viton®)
Adjustment Range
* For #3PBL-DR - differential sensing

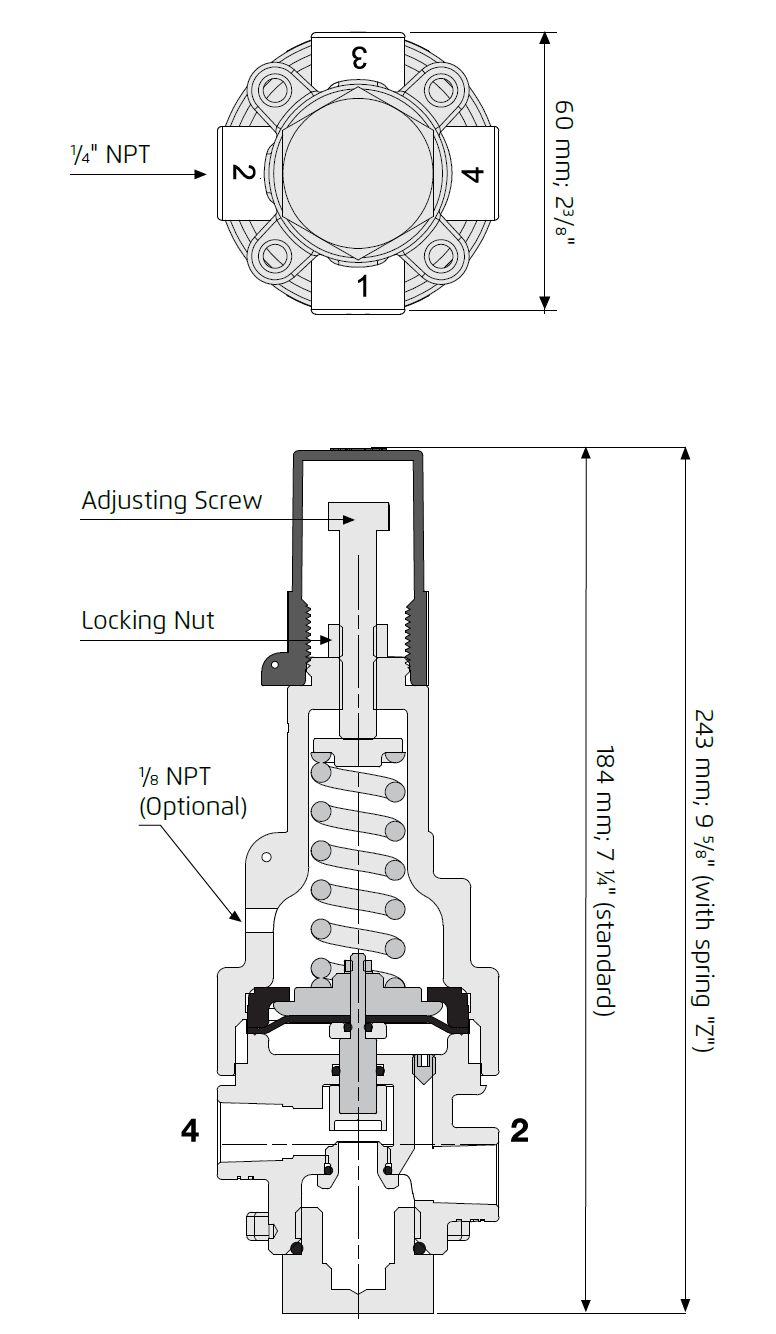

Connections
1 - Remote sensing or pressure gauge 2 - IN
3 - Remote sensing or pressure gauge 4 - OUT
Technical Specifications
Weight
1.2 Kg; 2.6 lbs. - Bronze, Stainless Steel
1.7 Kg; 3.7 lbs. - with 25 bar spring
Repair Kits
| Product Code | Decsription |
|---|---|
| 3PB-L-RK-E | Repair Kit for 3-PB-SS-L |
| Product Code | Pressure Rating | Description |
|---|---|---|
| 3PB-SS-L | PN16 | Stainless Steel Bermad Pressure Sustaining Pilot. C/W W Spring (1-16 Bar) |
