| Brand: | Bermad |
| Category: | Control Valves, Additional Accessories |
Product Description

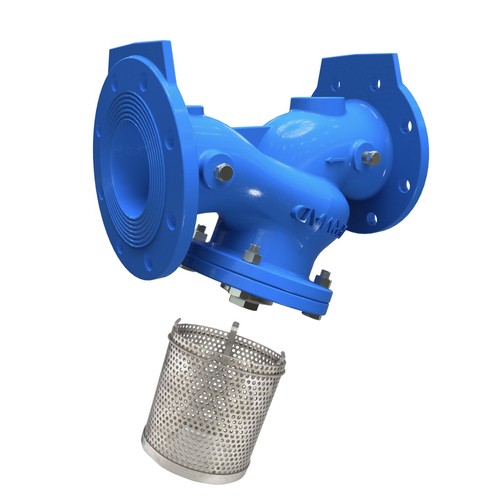

The BERMAD 70F Strainer is engineered to effectively remove foreign matter such as stones, sticks, and other debris from the pipeline. It is recommended to install the strainer upstream of control valves, flow meters, and other system appliances to ensure optimal performance and protection.
Features & Benefits
- Large trap capacity
- Low pressure loss
- Blow‑off port for easy cleaning In‑line serviceable
- Certified for potable water
Technical Data
Main Valve:
- Valve Patterns: "Y" (Globe)
- Size Range: 1½"-16"; DN40-400
- Pressure Rating: 25 bar
- End Connections: Flanged, Grooved
- Temperature Rating: 60°C
Standard materials:
- Body: Ductile Iron
- Cover: Ductile Iron
- Bolts & Nuts: Stainless Steel
- Screen / Basket: Stainless Steel 304
- Seals: Synthetic rubber
- Coating: Dark blue Fusion bonded epoxy
Optional materials:
- Body: Stainless Steel 316
- Cover: Stainless Steel 316
- Screen / Basket: Stainless Steel 316
Technical Specifications

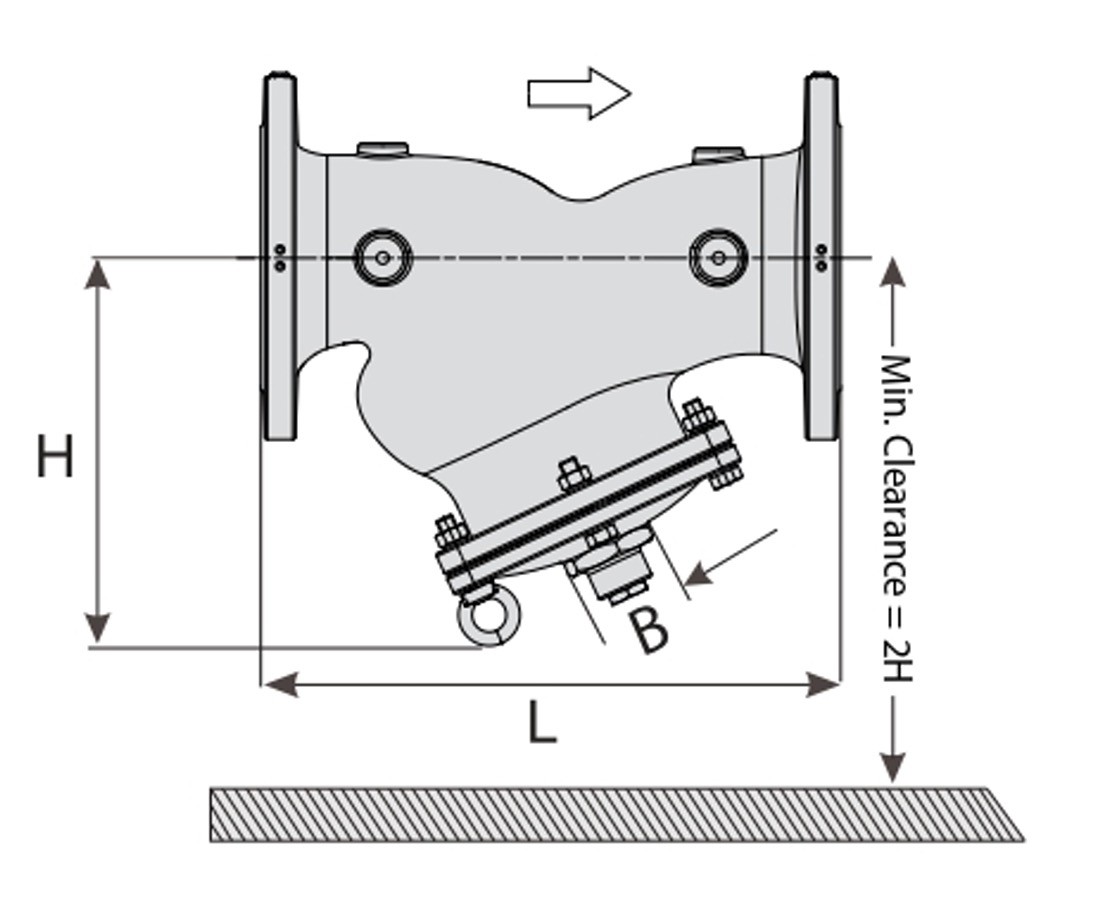

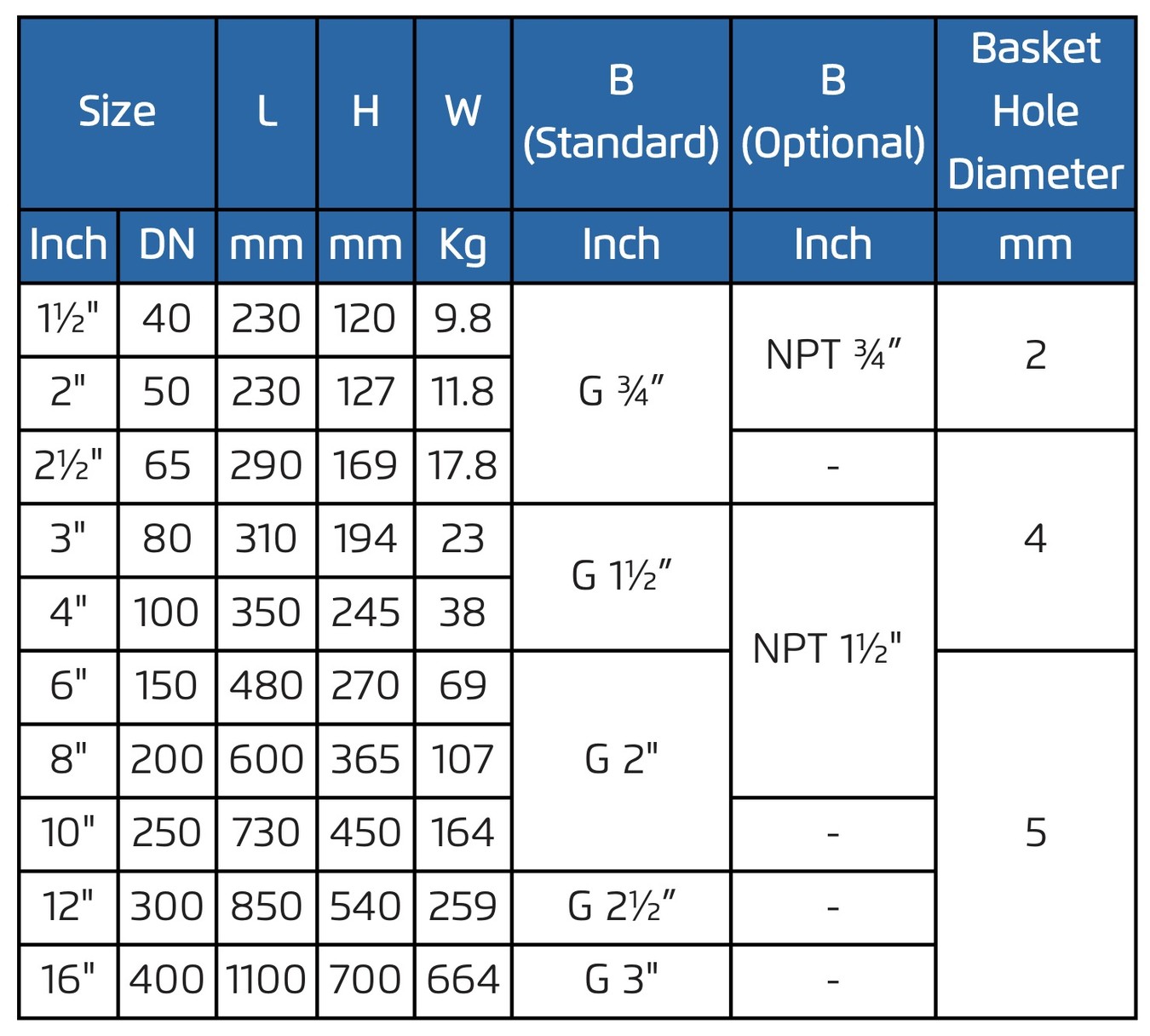

Technical Specifications Dimensions and Weights (70F-EN)

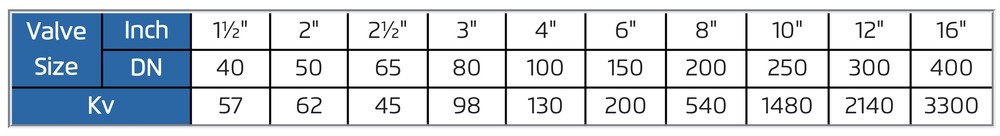

Flow Factor
Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.
Please contact us for more information.
