Bermad - Model C15P - Combination Air Valve

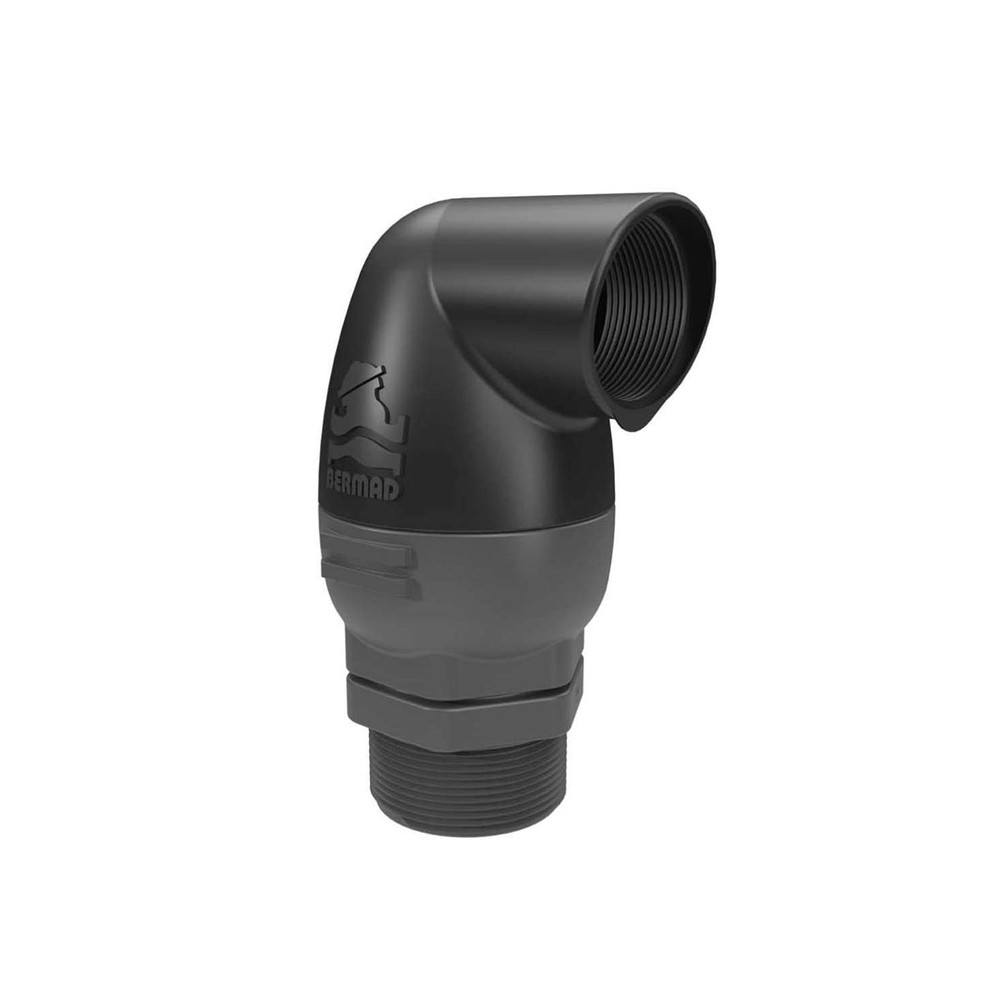

Bermad - C15P - Product Image
Brand: Bermad
Category: Air Valves, Combination Air Valves
Size Range:

50mm

Connection:

Threaded Male BSPT

Product Description

BERMAD C15P is a high-quality combination air valve for a variety of networks and operating conditions. It reliefs air during pipeline filling, allows efficient release of air pockets from pressurized pipes and enables large volume air intake in the event of network draining. With its advanced aerodynamic design, this valve provides excellent protection against air accumulation and vacuum formation, with improved sealing in low-pressure conditions.

Features & Benefits

  • Straight flow body with large diameter automatic orifice: Higher than usual flow rates.
  • Aerodynamic full-body kinetic shield: Prevents premature closing without disturbing air intake or discharge
  • Dynamic sealing: Prevents leakage under low-pressure conditions (1.5 psi; 0.1 bar).
  • Compact, simple, and reliable structure with full corrosion, chemical, and fertilizer-resistant parts: Lower maintenance and increased life span.
  • Design in compliance with EN-1074/4 standard.
  • Factory approval and Quality Control: Performance and specification tested and measured with a specialized test bench, including vacuum pressure conditions.
  • Field-proven designed for use in irrigation applications with water quality such as river water, channel water, dam water or treated effluent with high reliability.

Additional Features & Accessories

  • Service Port fitted with ¼” Plug (code P)
  • Test point (code T)

Typical Applications

  • Main Irrigation Networks: Protection against air accumulation and vacuum formation downstream of pumps, along supply lines, and at elevations in main irrigation networks
  • Irrigation Control Heads: Protection against air accumulation and vacuum formation at filtration and fertilization stations and downstream of main control valves.
  • Infield Systems: Protection against air accumulation and vacuum formation in proximity to water meters and automatic regulators
  • Landscape Irrigation: Protection against air accumulation and vacuum formation.

Technical Data

Inlet and Outlet Connection

  • Inlet: Male Threaded DN50.
  • Outlet: Side Outlet DN40 Female Threaded.

Materials

  • Body: Glass-reinforced Nylon
  • Float Assembly: Polypropylene, Glass Reinforced Nylon.
  • Elastomers: EPDM

Operational Data

  • Minimum operating pressure: 1.5 psi; 0.1 bar.
  • Maximum operating pressure: 175 psi; 12 bar.
  • Media and operating temperature: Water 1-60 °C.

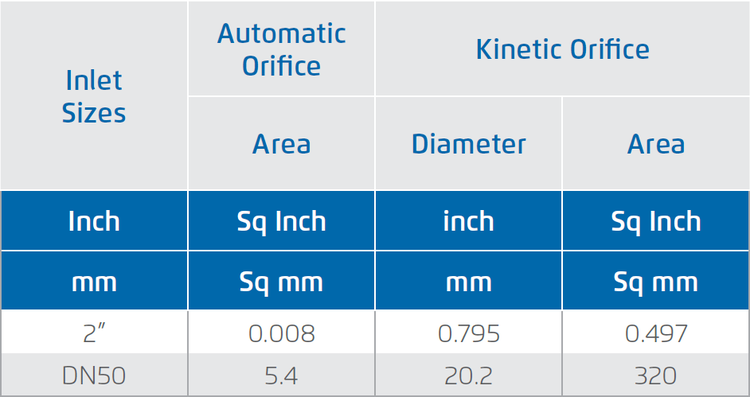

Orifice Specifications

Bermad - Model C15P - Orifice Specification

Bermad - Model C15P - Orifice Specification

Air Flow Performance Charts

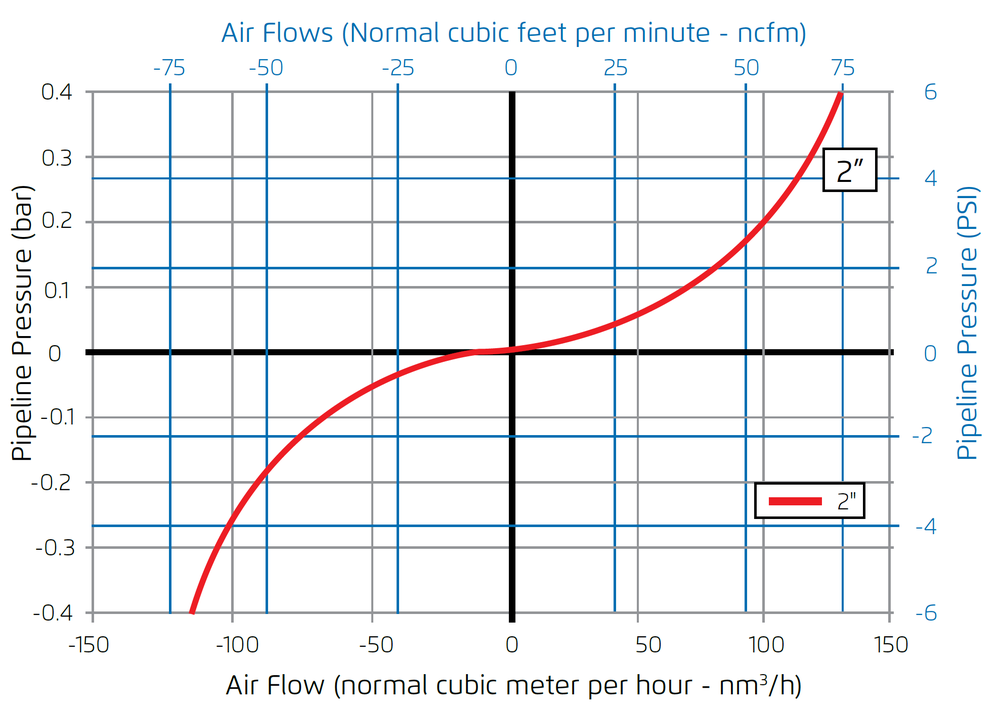

Air Relief and Intake (Pipeline Filling, Draining, and Vacuum Conditions)

Bermad - Model C15P - Air Flow Performance Chart

Bermad - Model C15P - Air Flow Performance Chart

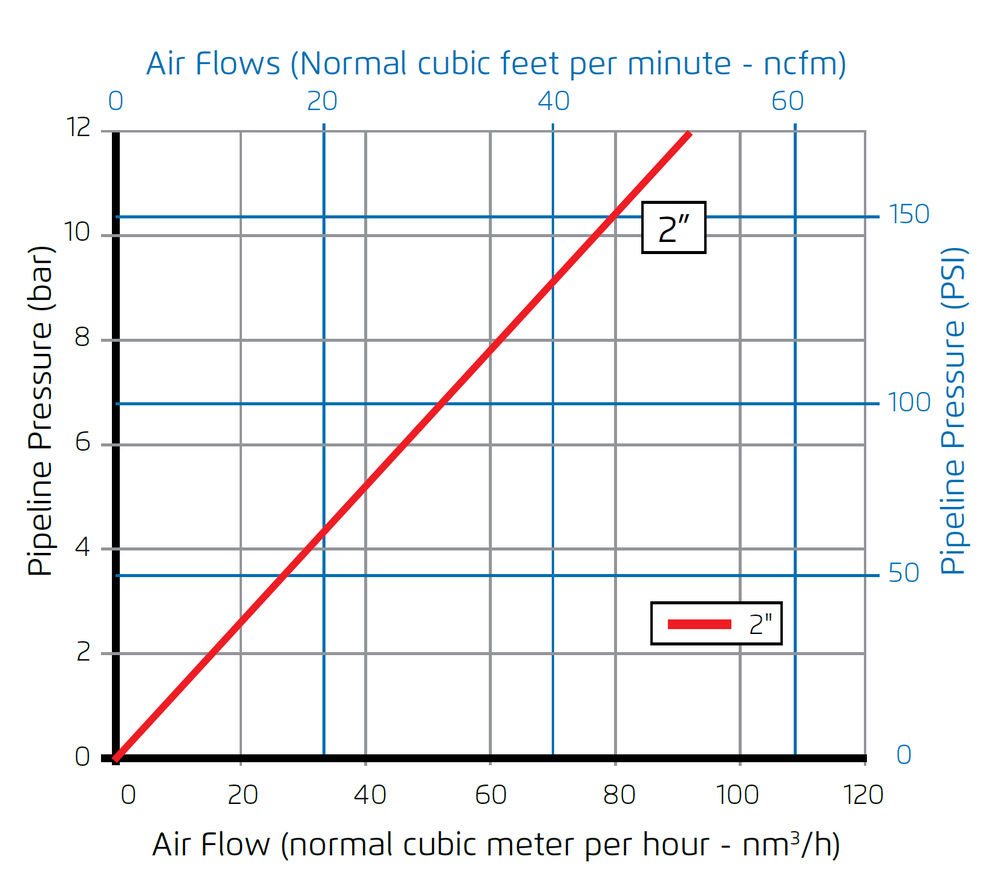

Air Release (Pressurized Operation)

Bermad - Model C15P - Air Flow Performance Chart

Bermad - Model C15P - Air Flow Performance Chart

Air relief and intake charts are based on actual measurements, made in Bermad Air Flow test bench, according to EN-1074/4 standard, and refer to the Side outlet

Technical Specifications

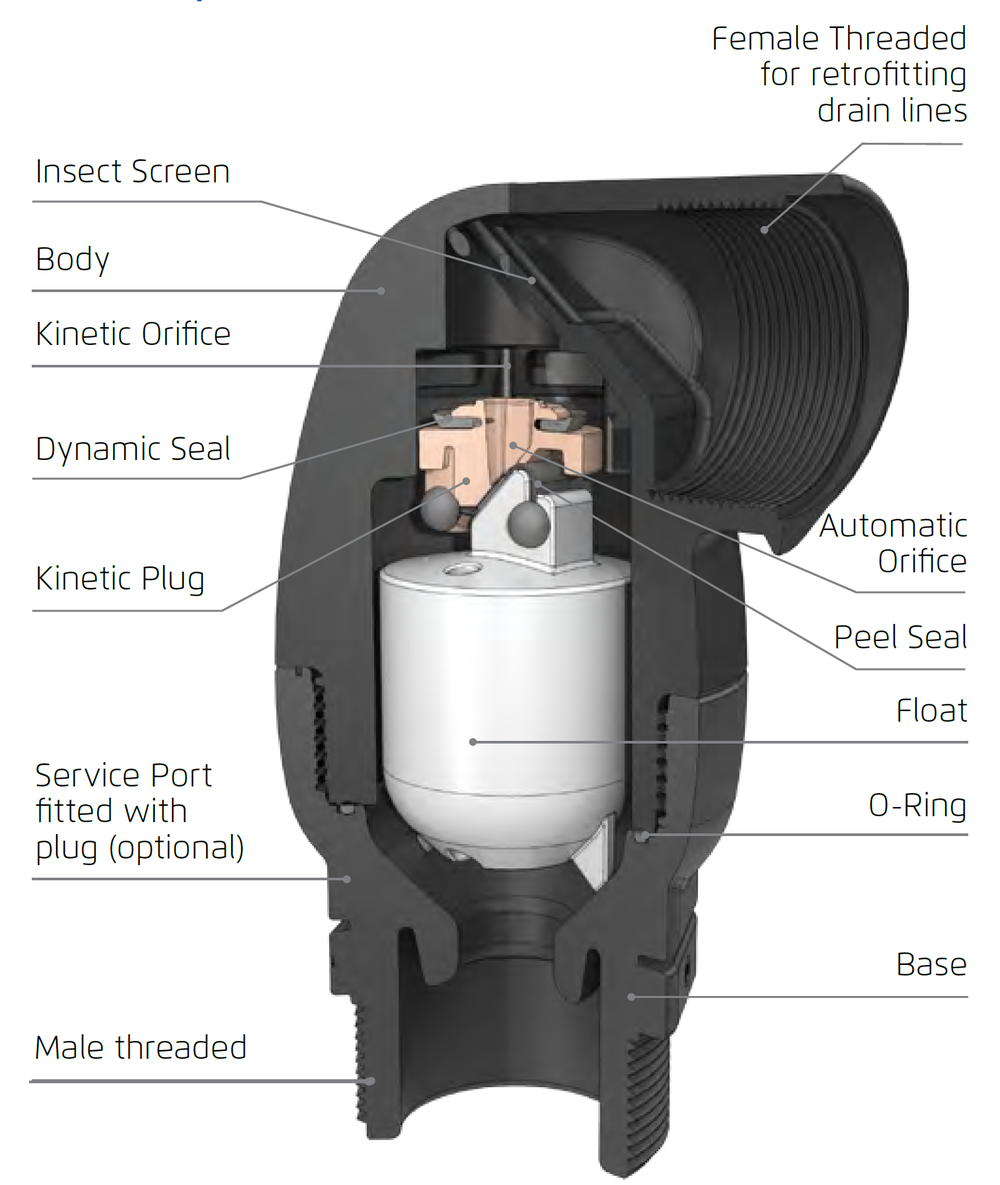

Cutaway

Bermad - Model C15P - Cutaway

Bermad - Model C15P - Cutaway

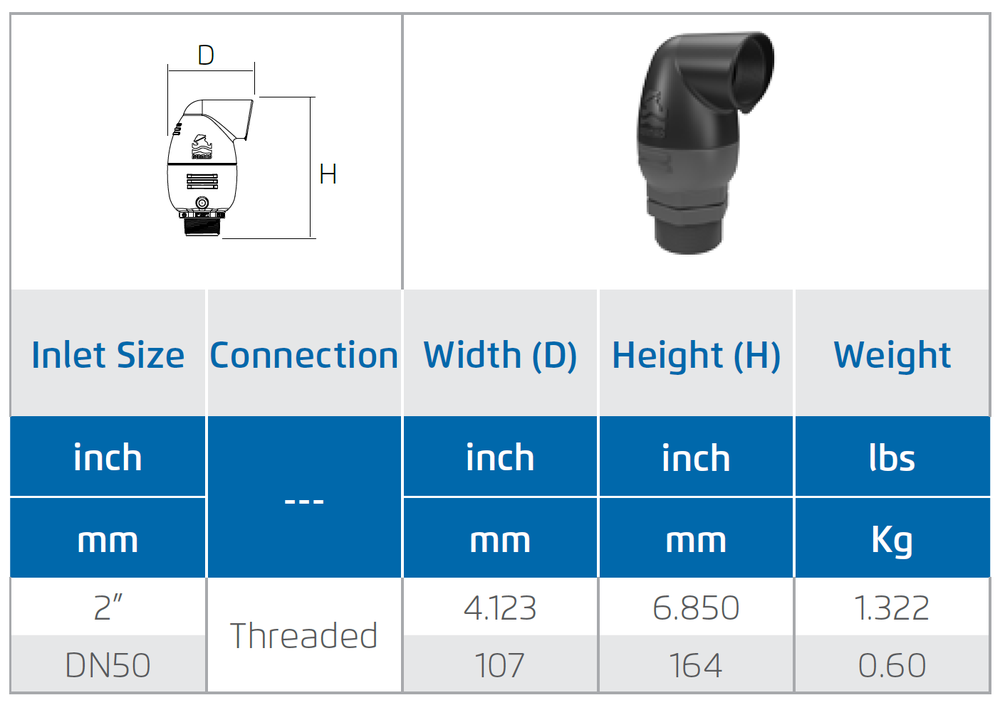

Dimensions & Weights

Bermad - Model C15P - Dimensions and Weight

Bermad - Model C15P - Dimensions and Weight

Bermad - Model C15P - Combination Air Valve

High capacity air valve suitable for filling and drainage of all pipelines (large orifice), and secondary automatic orifice for entrapped air release.

Product Code Size Pressure Rating Description
ARC15-050 50mm 12 Bar Plastic - Combination Air Release Valve - Threaded Male BSP



Bermad - Addition Air Valve Performance and Protection Options

Product Code Size Description
AR-SP 50-100mm Bermad - Surge Protection Option fitted as standard
AR-IP 50-100mm Bermad - Air Release Only Option fitted
AR-AC 50-100mm Assisted Closing Assy. With Threaded Inlet & Outlet BSP
AR-DE 20-25mm Drain Elbow - Bermad 20-25mm ARA/ARC Valves. 20mm BSP
