| Brand: | Zurn Wilkins |
| Category: | Pressure Regulators, Pressure Reducing Valves |
| Size Range: | 15 - 40mm |
| Connection: | 15 - 40mm - Threaded Male / Female BSPT |
Product Description
Designed to relieve pressure once it reaches a set pressure limit. Suitable for use with air, water, steam, non-corrosive gas and non-corrosive liquids. Non-Potable Applications Only
- Min / Max Working Temperature Range: -45°c to 185°c
- Reduced Pressure Range: 300kPa - 1000kPa
- Factory Preset: 1000kPa
Non-Potable Applications Only
Technical Data

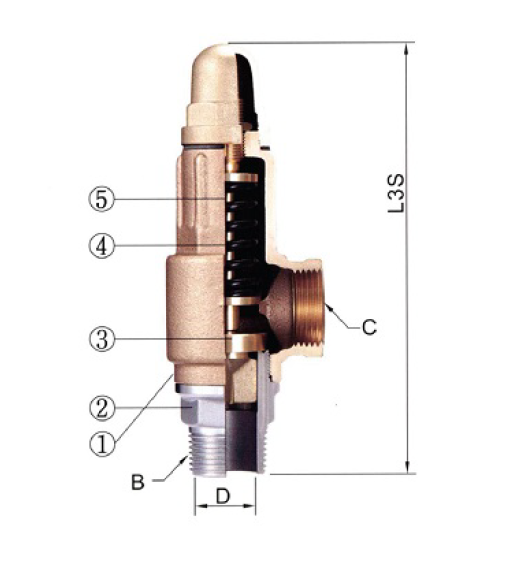

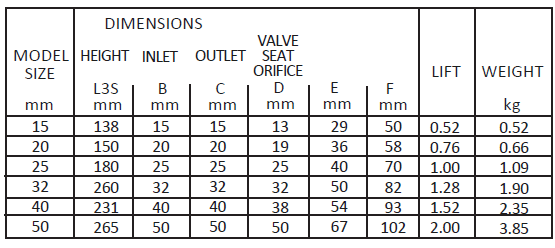

Dimensions & Weights
Technical Specifications
Materials
1. Main Valve Body: Cast Bronze
2. Valve Seat: Stainless Steel
3. Disc: Forging Brass
4. Spring: Steel or Stainless Steel
5. Stem: Brass
Zurn Wilkins - Model Prel - Pressure Relief Valve
Designed to relieve pressure once it reaches a set pressure limit. Suitable for use with air, water, steam, non-corrosive gas and non-corrosive liquids

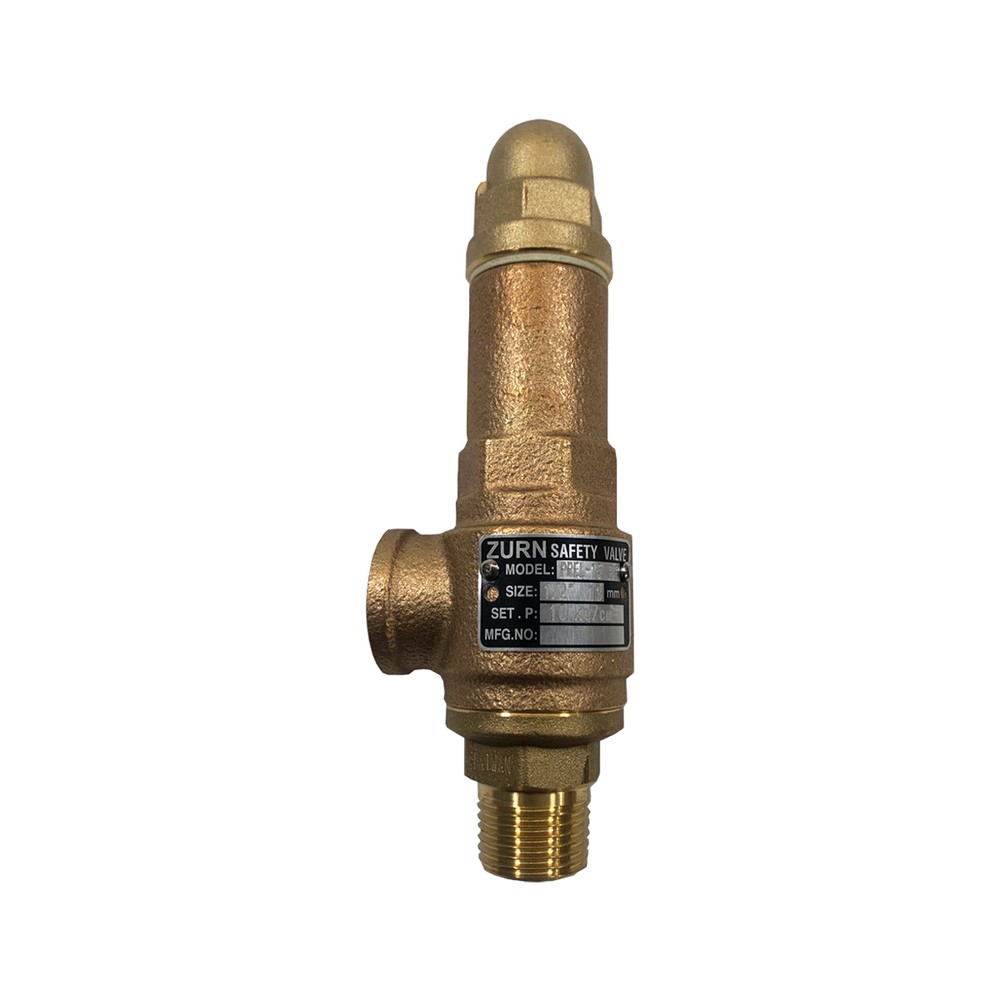

Zurn Wilkins - PREL15
Zurn Wilkins -PREL25
Zurn Wilkins -PREL32

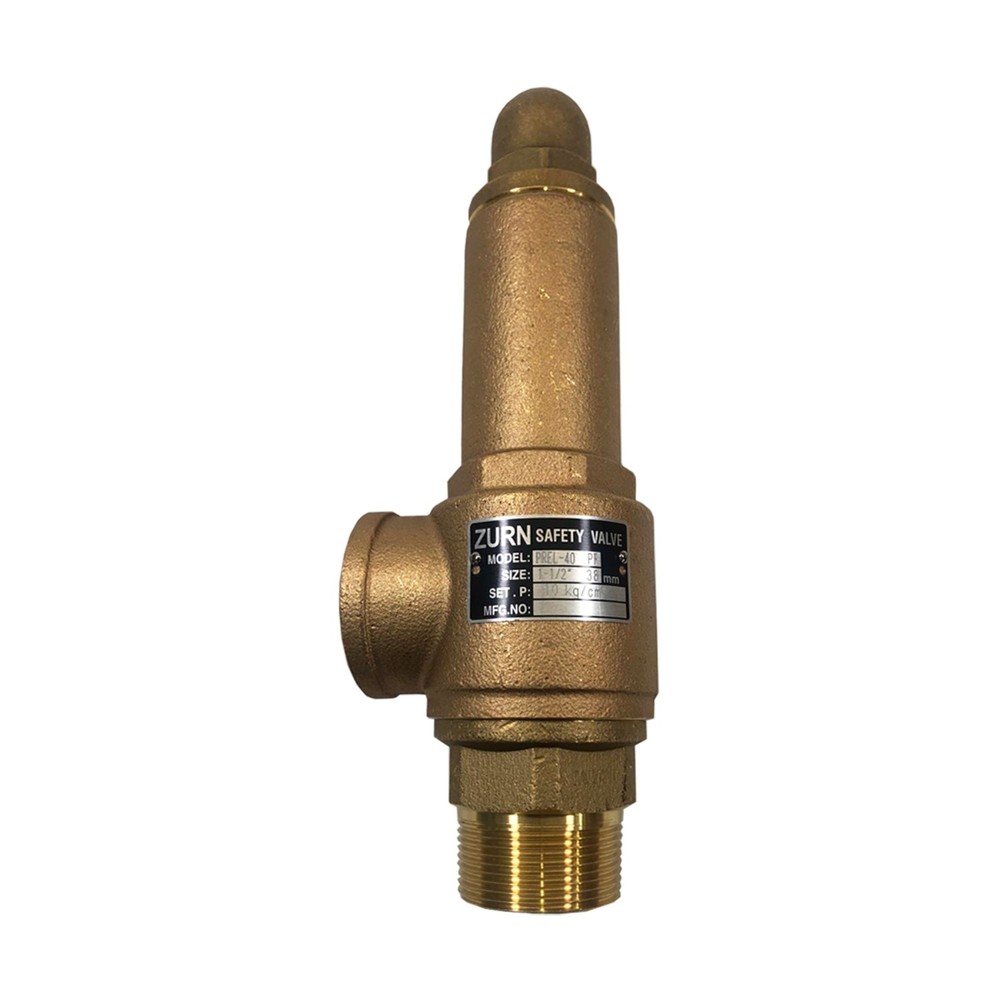

Zurn Wilkins -PREL40
| Product Code | Size | Adjustment Range | Description |
|---|---|---|---|
| PREL15 | 15mm | 3-10 Bar | 15mm Zurn Wilkins Pressure Relief Valve 3-10 bar |
| PREL25 | 25mm | 3-10 Bar | 25mm Zurn Wilkins Pressure Relief Valve 3-10 bar |
| PREL32 | 32mm | 3-10 Bar | 32mm Zurn Wilkins Pressure Relief Valve 3-10 bar |
| PREL40 | 40mm | 3-10 Bar | 40mm Zurn Wilkins Pressure Relief Valve 3-10 bar |
