| Brand: | Amiad / Arkal |
| Category: | Filtration, Automatic Filters - Screen |
| Size Range: | 100-200mm |
| Filtration Degree: | 50-500 Micron |
Product Description
The Sigma Pro is an automatic multi-screen, polymeric filter for industrial water applications such as wastewater treatment, cooling water, seawater and more. Designed for low pressures, the Sigma Pro Series is compact but with a large filtration area and is water and energy efficient.
It is easy to install, requires minimal maintenance and is highly reliable and durable.
The filter capacity range is up to 280 m3/h (1,233 gpm), with filtration degrees from 50-500 microns. Inlet/outlet connections are available in 100 mm (4”), 150 mm (6”) and 200 mm (8”) diameter. Filters include a 50 mm (2”) exhaust valve.
Features and Benefits
- Low energy consumption
- Large filtration area
- Polymeric filter - corrosion free
- Easy installation and low maintenance
- Powerful suction-scanning cleaning
- Reliable and durable
- Registered patent

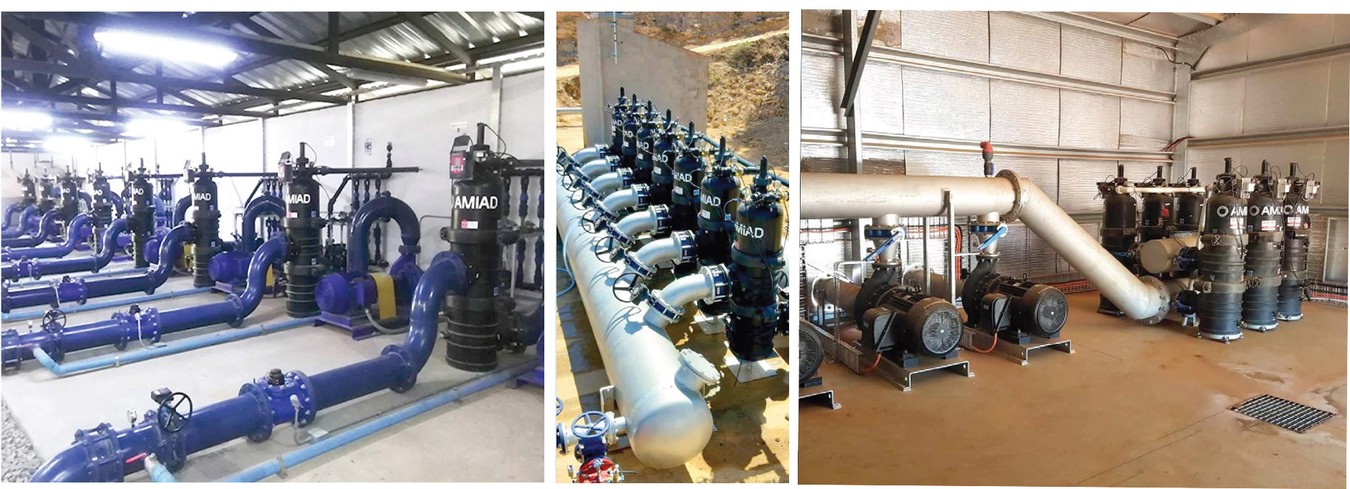

Amiad - SigmaPro - Typical Installations
Additional Features & Accessories
The ADI-P Controller
The ADI-P Controller operates the automated processes that flush your Mini Sigma filters, allowing you to control and monitor them easily and conveniently.
The ADI-P App
Access your site’s filtration performance data directly from the ADI-P app.
Here are some of the data that you can access via the ADI-P app:
- Flush logs
- Flush frequency
- Current DP
- Current outlet and inlet pressure
- Flush quality - measuring DP on the filter before and after the flush cycle
- Malfunctions with descriptions of each event
- Battery status and low battery alerts
Amiad - SigmaPro - Additional Features and Benefits

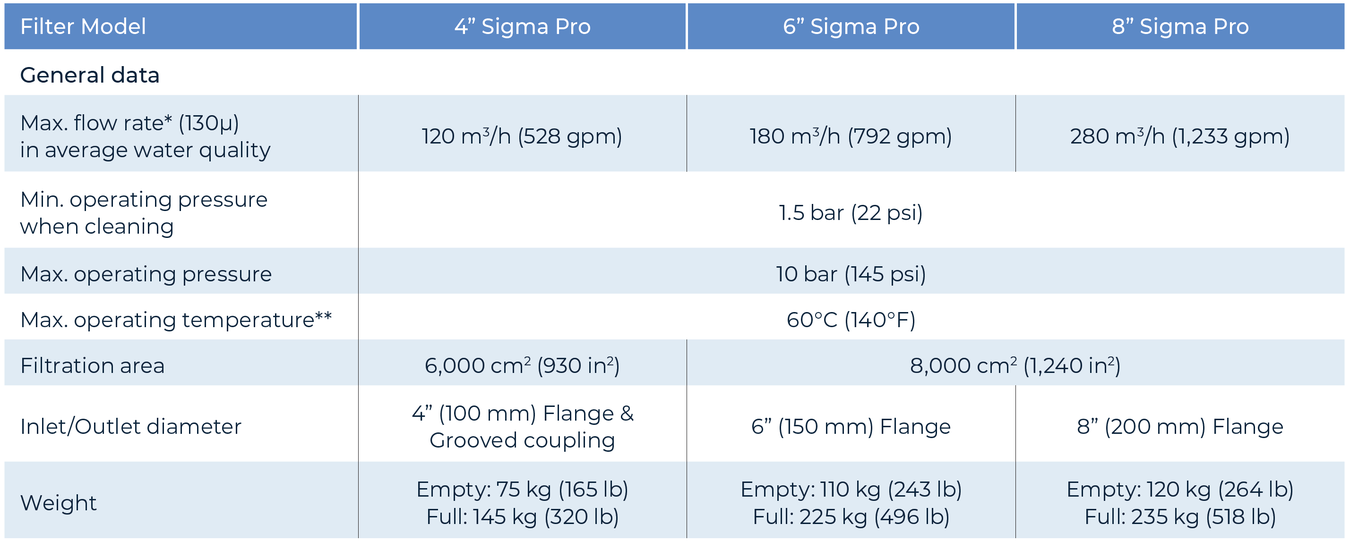

Technical Data
* Maximum flow rates depend on water quality and micron size.
** Maximum operating pressure and temperature are interdependent parameters and are given for general reference only. Please consult your authorized Amiad representative for the application specific parameters.

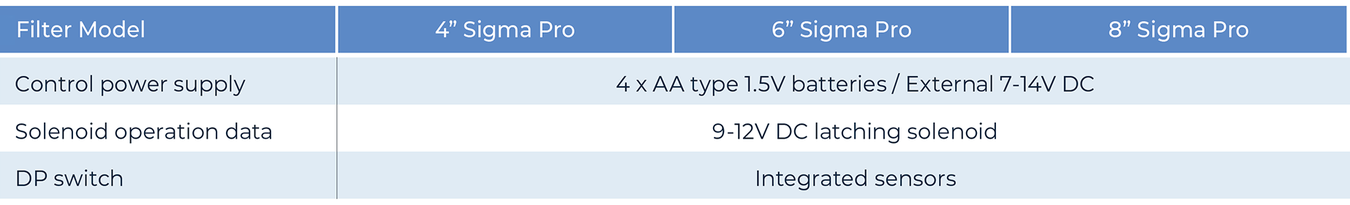

Electronic Circuit
Amiad - SigmaPro - Electronic Circuit

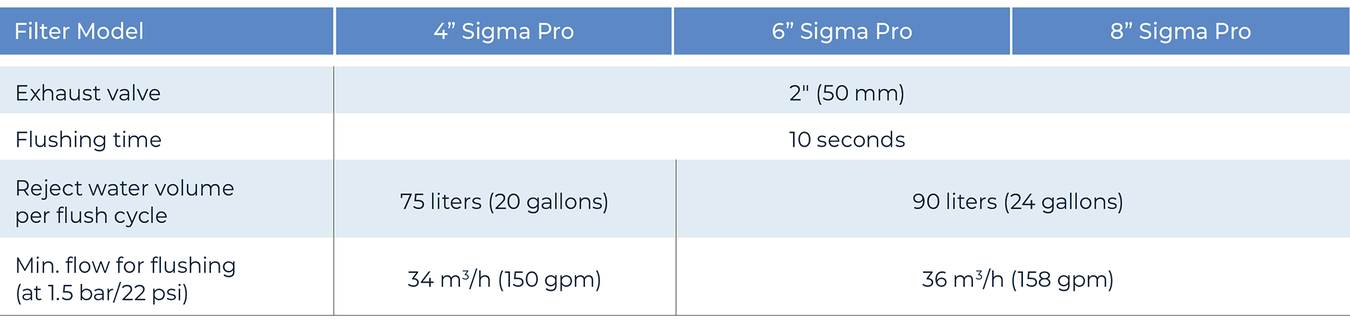

Flushing Data
Amiad - SigmaPro - Flushing Data

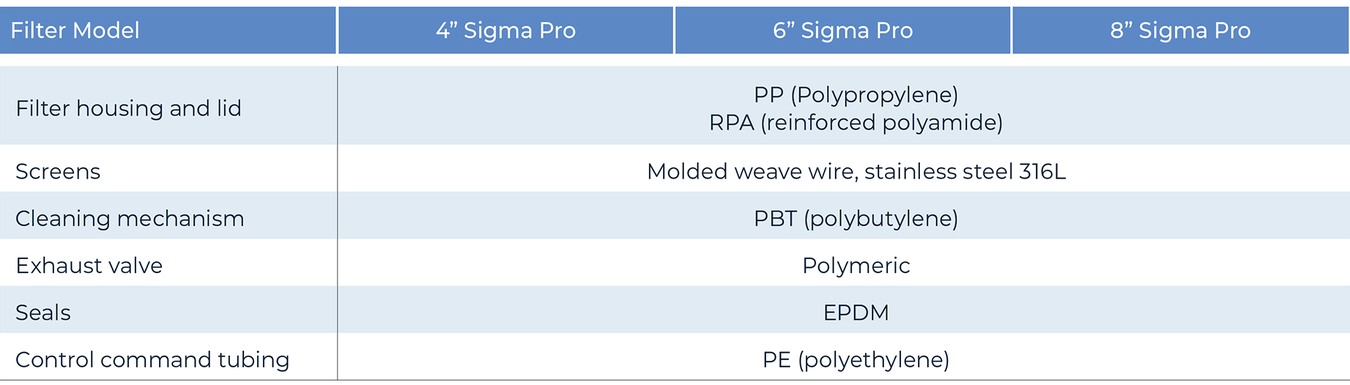

Construction Materials
Amiad - SigmaPro - Construction Materials

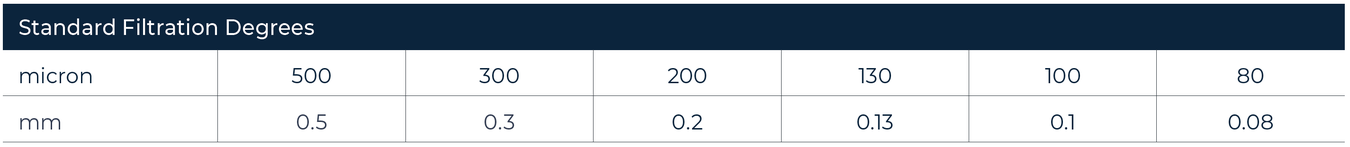

Standard Filtration Degrees
The Mini Sigma is also available for seawater filtration applications. Please consult with Deeco.
Amiad - SigmaPro - Standard Filtration Degrees
Sigma Pro Models and Head Loss Graphs

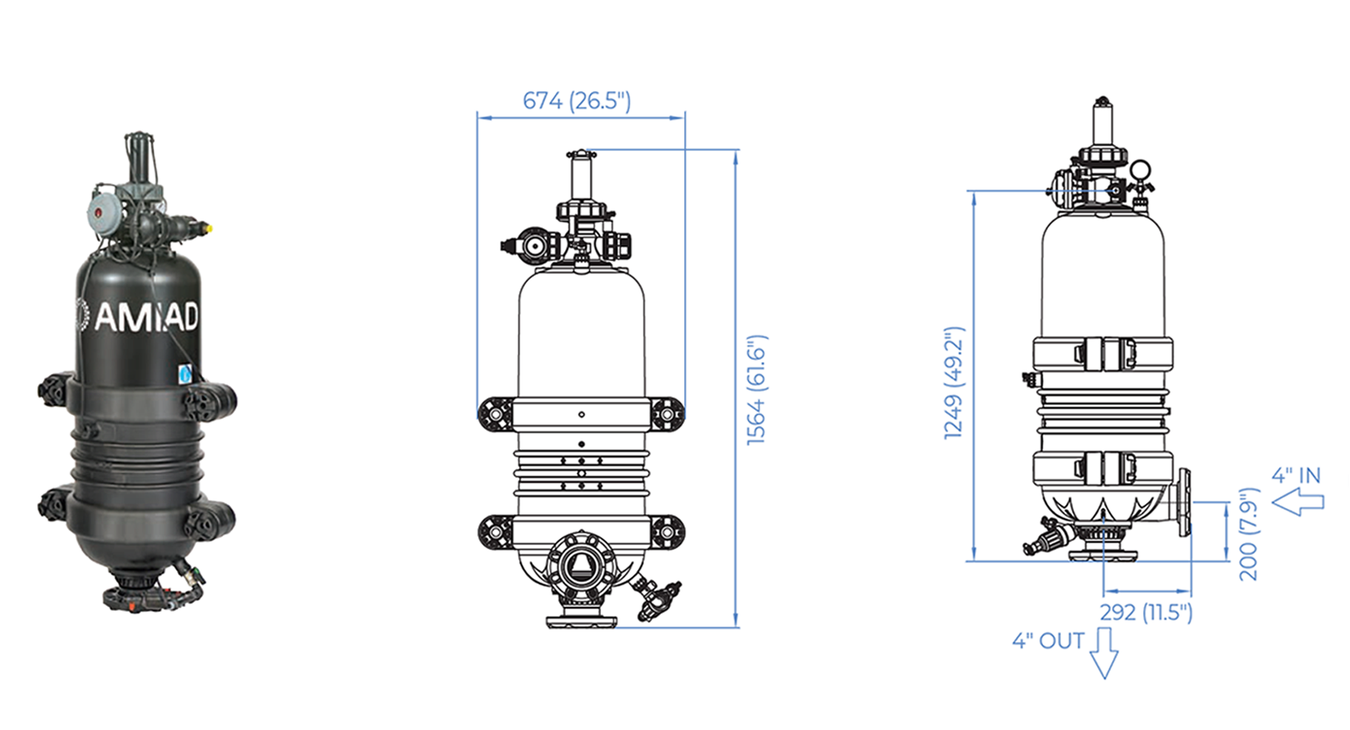

100mm SIGMAPRO
Amiad - SigmaPro - 100mm

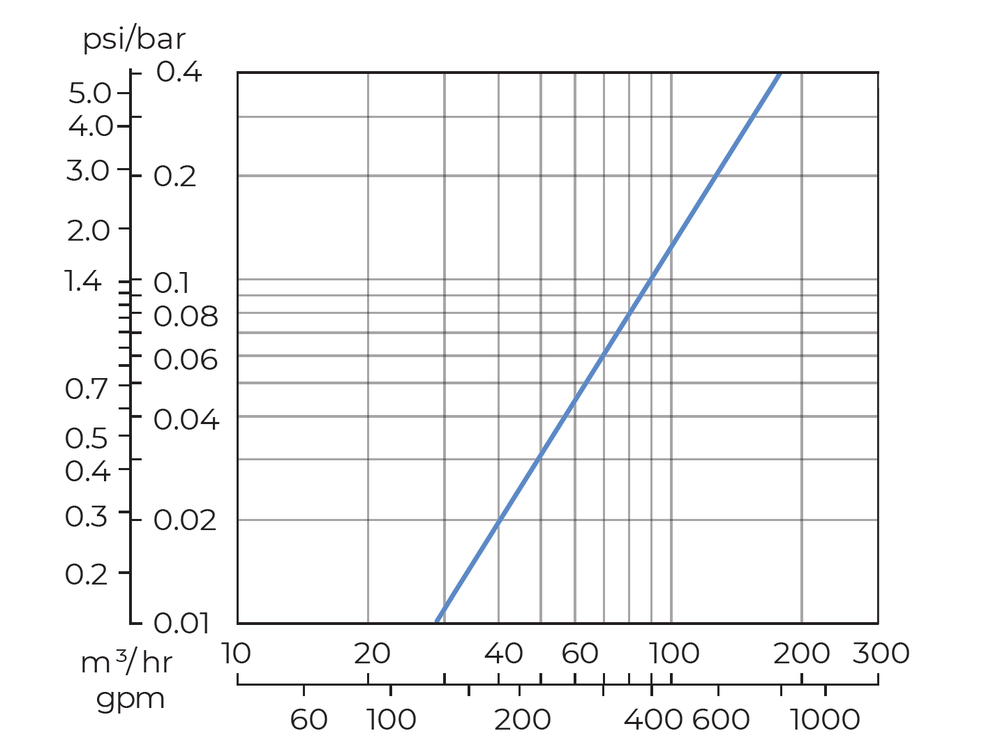

Head Loss Graph (in Clear Water)
Amiad - SigmaPro - 100mm - Head Loss Graph

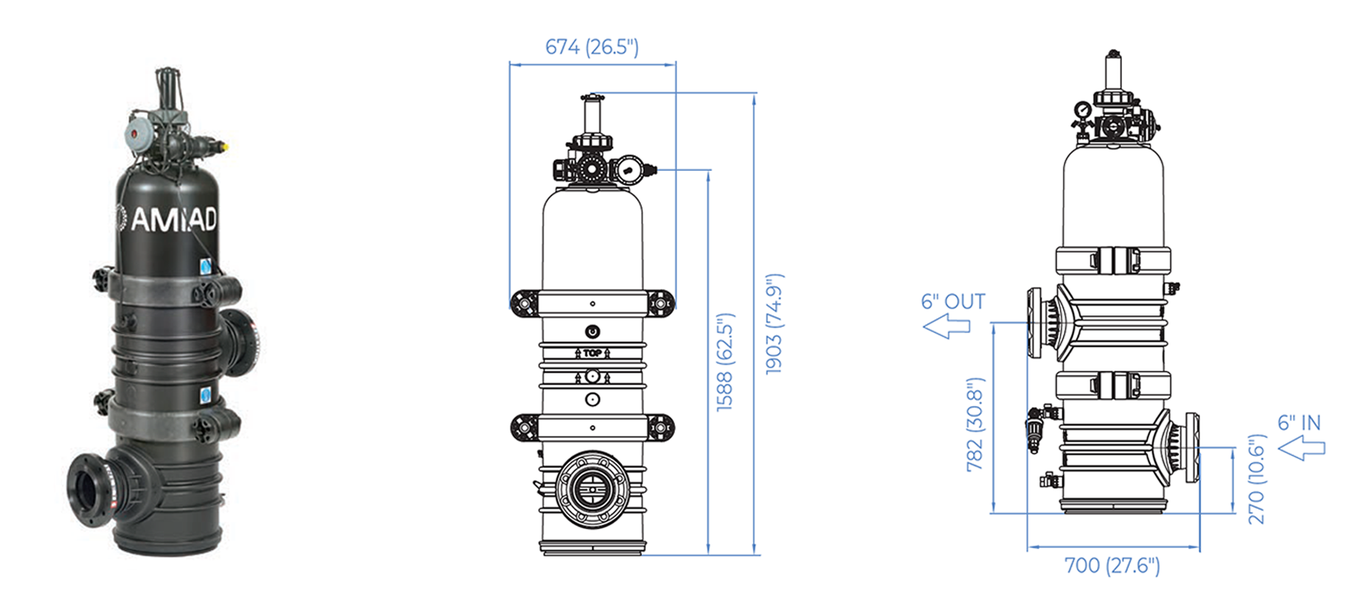

150mm SIGMAPRO
Amiad - SigmaPro - 150mm

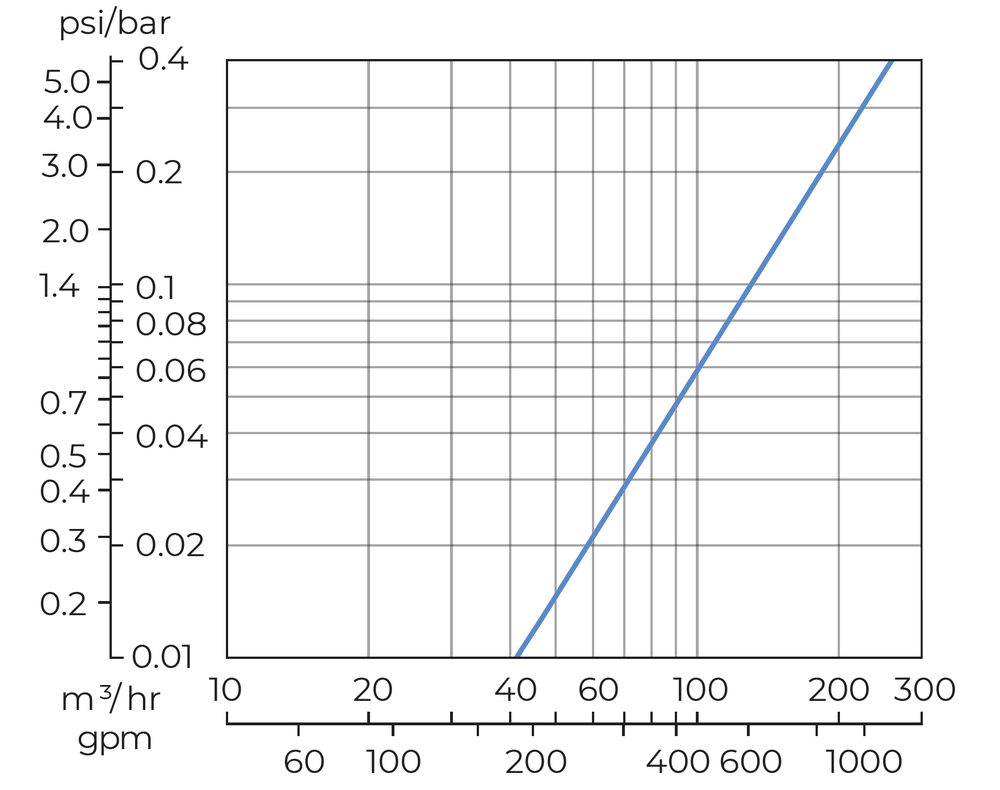

Head Loss Graph (in Clear Water)
Amiad - SigmaPro - 150mm - Head Loss Graph

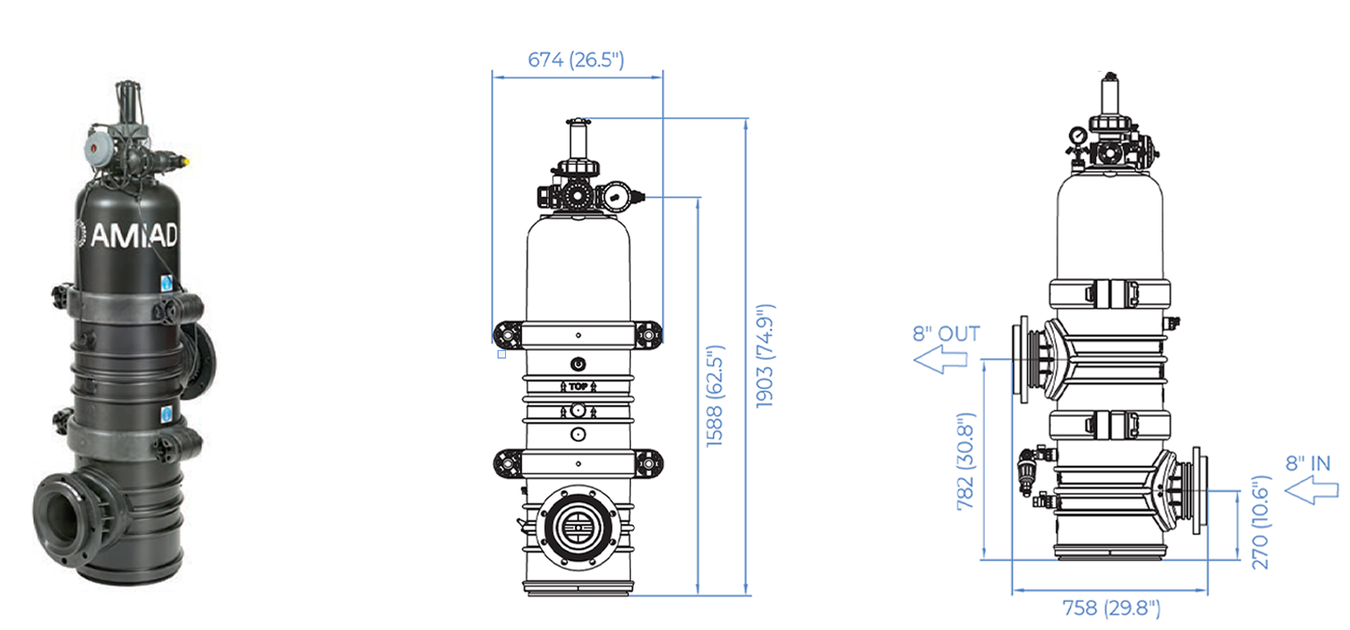

200mm SIGMAPRO
Amiad - SigmaPro - 200mm

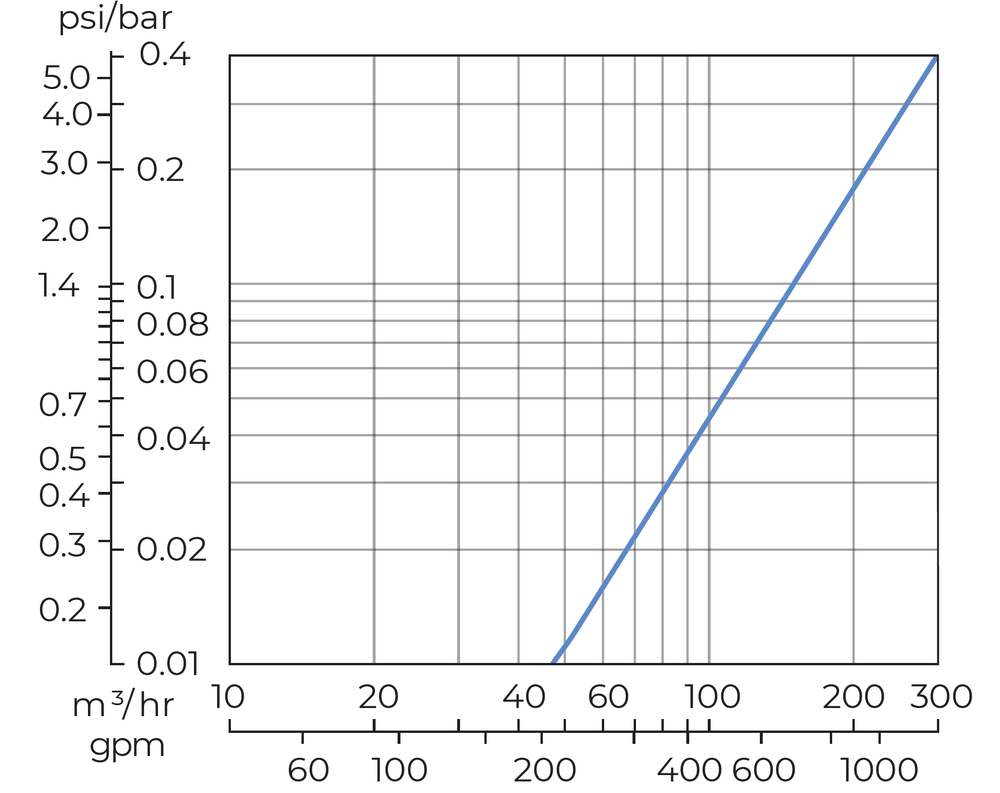

Head Loss Graph (in Clear Water)
Amiad - SigmaPro - 200mm - Head Loss Graph
Technical Specifications

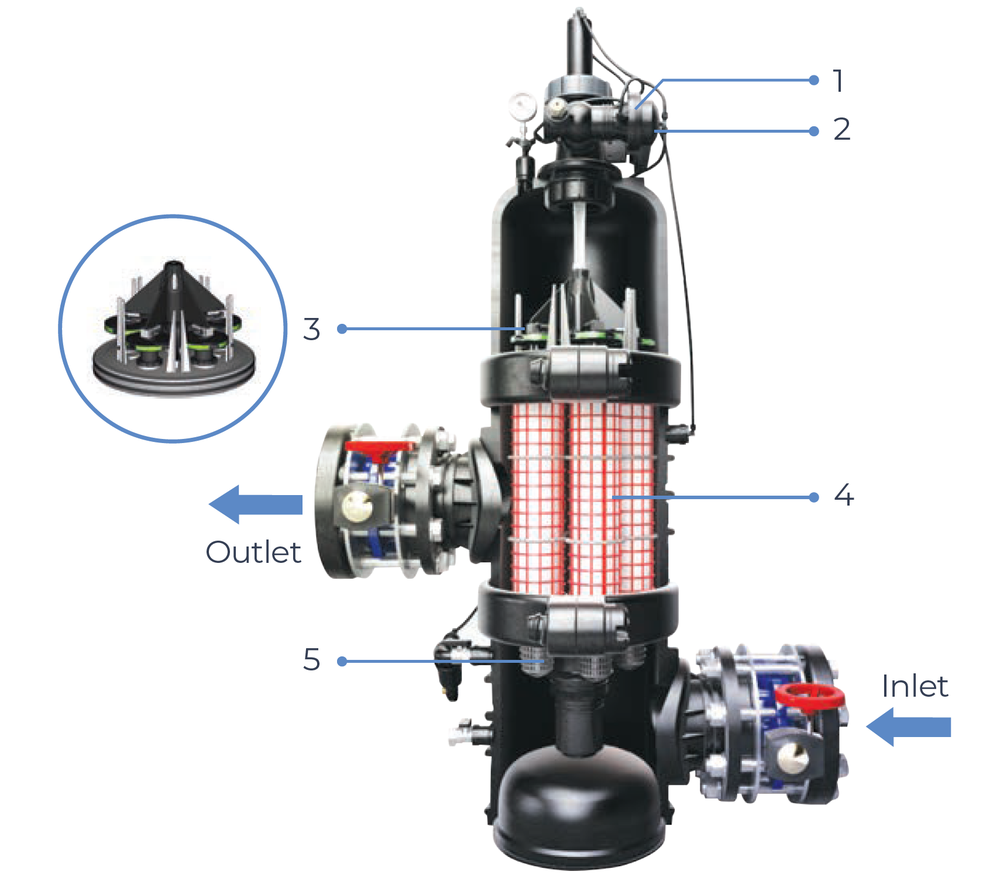

Sigma Pro Parts
1. Flush valve
2. ADI-P controller
3. Hydraulic turbines
4. Fine screens 5. Coarse screens

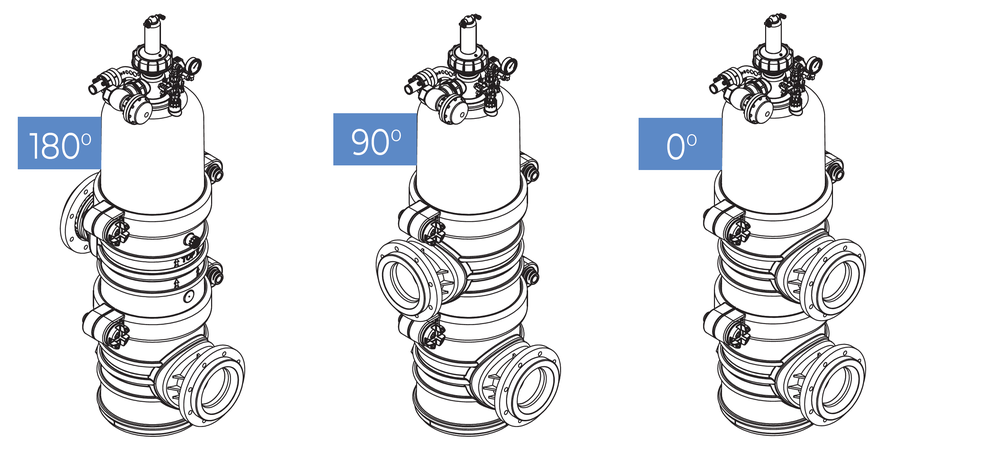

Various Inlet / Outlet Configurations
Amiad - SigmaPro - Various Inlet Outlet Configurations
Installation
Sigma Pro 200mm

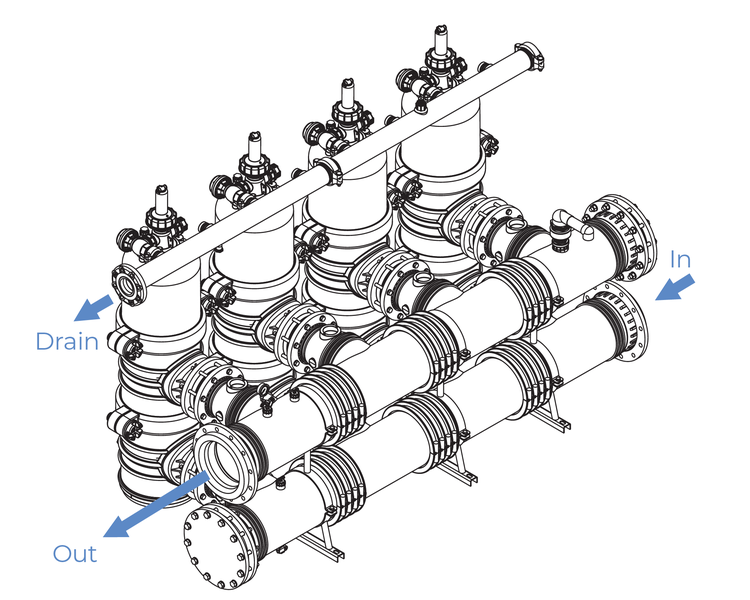

Sigma Pro 200mm installation of 4 units with manifold, for flow rates up to 1,120 m3/h (4,932 gpm)
Sigma Pro 150mm

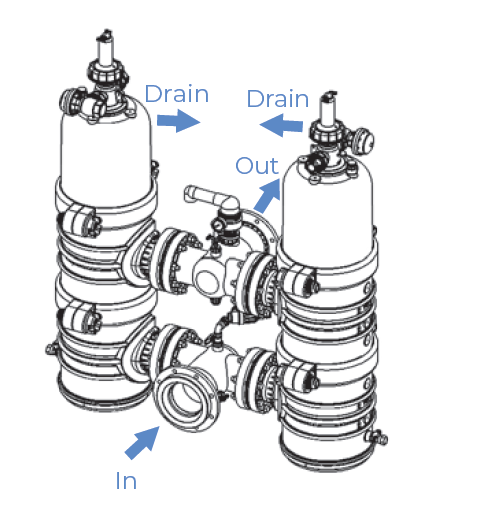

Sigma Pro 150mm installation of 2 units with manifold, for flow rates up to 360 m3/h (1,584 gpm)

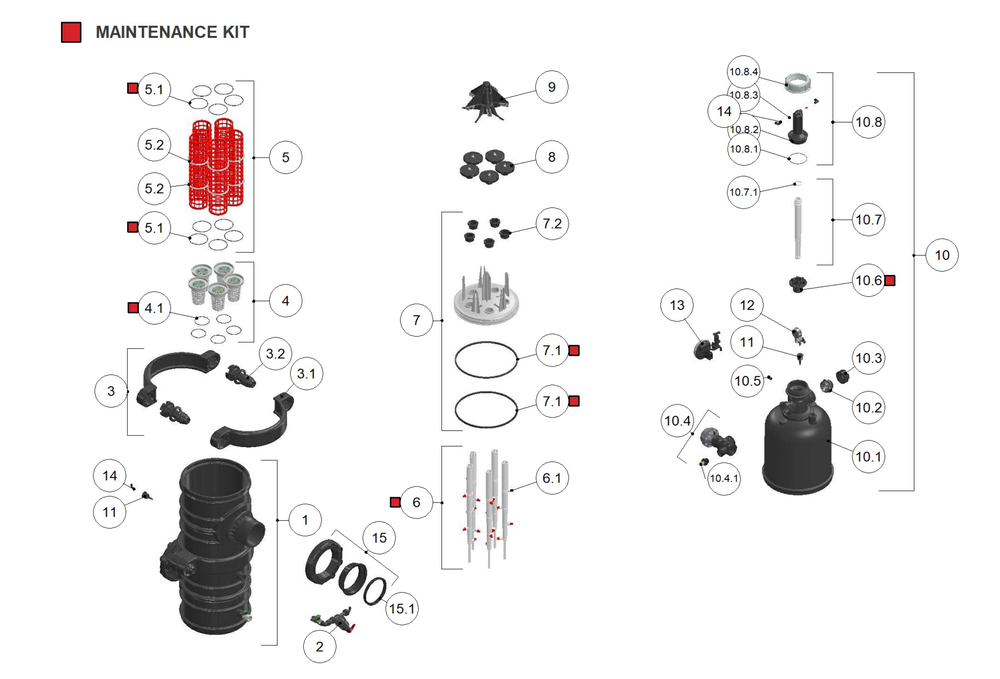

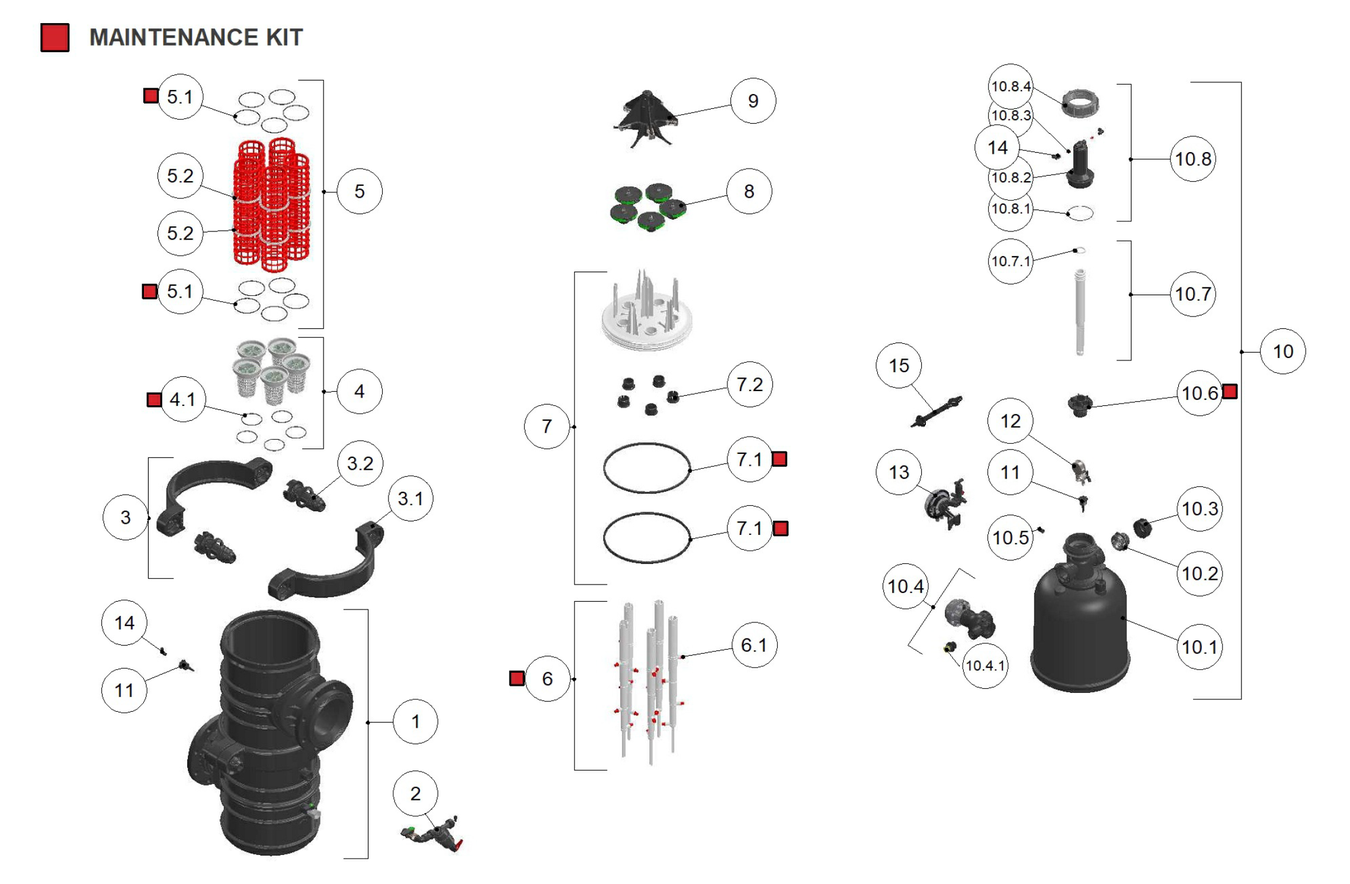

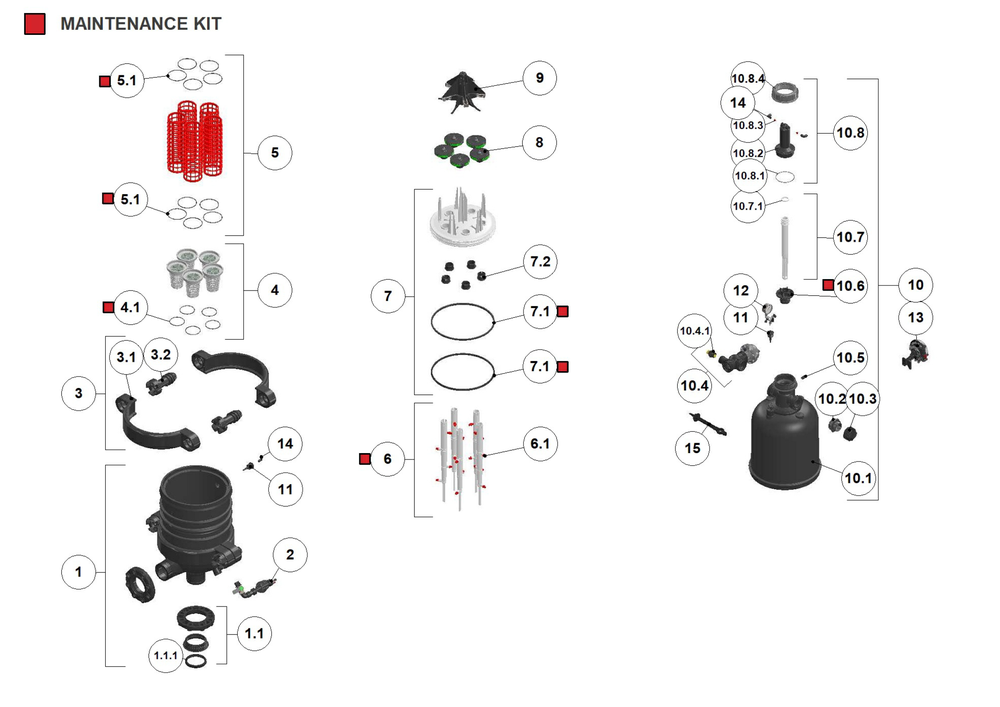

Spare Parts
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700190-004220 | ASSEMBLY BODY W/SLEEVE F/SIGMA 4" 4"AKF | 1 |
| 1.1 | 700190-000227 | 4" AKF UNIVERSAL ASSEMBLY | 2 |
| 1.1.1 | 770104-000253 | GASKET 4" EPDM YELLOW DOT 70 SHORE QUICK FLANGE | 1 |
| 2 | 700190-004877 | 1''CONTROL FILTER ASSY 8MM TF F/SIGMA | 1 |
| 3 | 700190-004133 | CLAMP ASSEMBLY FOR 4"GALAXY/SIGMA | 1 |
| 3.1 | 710101-000183 | GALAXY /SIGMA PRO CLAMP RPA BLACK | 2 |
| 3.2 | 700190-005415 | SET SCREW WASHER F/CLAMP SIGMA PRO | 2 |
| 4 | 700190-004222 | ASSEMBLY BOTTOM W/PR.SCREEN F/SIGMA PRO | 5 |
| 4.1 | 770102-000034 | PARKER O-RING 2-237 EPDM 70 SHORE YELLOW DOT | 1 |
| 5 | 700101-001505 | MWW SCREEN S/ST316L 1200SQ.CM 130MIC SIGMA EPDM SEALS | 5 |
| 5 | 700101-001506 | MWW SCREEN S/ST316L 1200SQ.CM 100MIC SIGMA EPDM SEALS | 5 |
| 5 | 700101-001507 | MWW SCREEN S/ST316L 1200SQ.CM 200MIC SIGMA EPDM SEALS | 5 |
| 5 | 700101-001508 | MWW SCREEN S/ST316L 1200SQ.CM 300MIC SIGMA EPDM SEALS | 5 |
| 5 | 700101-001509 | MWW SCREEN S/ST316L 1200SQ.CM 80MIC SIGMA EPDM SEALS | 5 |
| 5 | 700101-001634 | MWW SCREEN S/ST316L 1200SQ.CM 500MIC SIGMA EPDM SEALS | 5 |
| 5 | 700101-002360 | MWW SCREEN S/ST316L 1200SQ.CM 50MIC SIGMA EPDM SEALS | 5 |
| 5.1 | 770102-000384 | PARKER O-RING 2-244 EPDM 70 SHORE | 2 |
| 6 | 700190-005106 | SCANNER 375 ASSEMBLY W/STRAIGHT NOZZLE 8MM F/SIGMA 4" | 5 |
| 6.1 | 700190-005419 | SET STRAIGHT NOZZLE 8MM HDPE RED F/SIGMA PRO | 1 |
| 7 | 700190-005418 | ASSEMBLY UPPER PLATE F/SIGMA PRO | 1 |
| 7.1 | 770104-000311 | HYDRAULIC SEAL EPDM SIGMA | 2 |
| 7.2 | 710101-001444 | SIGMA PRO BUSHING PBT BLACK | 5 |
| 8 | 700190-005150 | TURBINE ASSEMBLY F/MINI AND PRO SIGMA | 5 |
| 9 | 700190-005416 | ASSEMBLY BRIDGE W/CLIPS F/SIGMA PRO | 1 |
| 10 | 700190-004641 | FLUSHING ASSEMBLY F/SIGMA 6"/8" | 1 |
| 10.1 | 700190-004685 | ASSEMBLY COVER W/DRAIN BODY F/SIGMA 6"/8" | 1 |
| 10.2 | 700190-000195 | ADAPTOR ASSY NUT+SEALS | 1 |
| 10.3 | 700190-001241 | CAP ASSEMBLY 2"T BSP | 1 |
| 10.4 | 700190-004807 | POLY FLUSH VALVE ASSEMBLY 2"NC BSP STD | 1 |
| 10.4.1 | 700190-003406 | 1" VACUUM BREAKER (ARKAL/SIGMA) ASSEMBLY | 1 |
| 10.5 | 720501-000134 | STR.CON. 1/4"F X8MM BSPT RPP BLK TEFEN | 1 |
| 10.6 | 700190-005420 | ASSEMBLY PISTON BUSHING W/O-RINGS F/SIGMA PRO | 1 |
| 10.7 | 700190-005441 | PISTON W/U-CAP SEAL F/SIGMA PRO | 1 |
| 10.7.1 | 770105-000011 | U-CUP SEAL NBR OD50MM ID40MM H7MM 70SH | 1 |
| 10.8 | 700190-005421 | ASSEMBLY PISTON CYLINDER F/SIGMA PRO | 1 |
| 10.8.1 | 770102-000027 | PARKER O-RING 2-156 EPDM 70 SHORE YELLOW DOT | 1 |
| 10.8.2 | 710101-001295 | SIGMA PISTON CYLINDER PBT BLACK | 1 |
| 10.8.3 | 710101-001308 | SIGMA PISTON NOZZLE 1.2 MM PP RED | 2 |
| 10.8.4 | 710103-010056 | PISTON HOUSING EXTERNAL NUT SIGMA RPA | 1 |
| 11 | 700190-000206 | 1''*1/4''BUSHING+SEAL ASSY | 2 |
| 12 | 700190-001980 | PRESSURE GAUGE ASSEMBLY F/2" 8MM TEF | 1 |
| 13 | 700103-001749 | ADI-P DC KIT PACKAGE ONE SOLENOID NO | 1 |
| 14 | 720501-000139 | L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK TEFEN | 3 |
| 700194-000033 | 700194-000033 | 4" SIGMA PRO SPARE PARTS KIT | 1 |
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700190-005116 | ASSEMBLY BODY W/SLEEVE F/SIGMA 6"VIC | 1 |
| 2 | 700190-004877 | 1''CONTROL FILTER ASSY 8MM TF F/SIGMA | 1 |
| 3 | 700190-004133 | CLAMP ASSEMBLY FOR 4"GALAXY/SIGMA | 1 |
| 3.1 | 710101-000183 | GALAXY /SIGMA PRO CLAMP RPA BLACK | 2 |
| 3.2 | 700190-005415 | SET SCREW WASHER F/CLAMP SIGMA PRO | 2 |
| 4 | 700190-004222 | ASSEMBLY BOTTOM W/PR.SCREEN F/SIGMA PRO | 5 |
| 4.1 | 770102-000034 | PARKER O-RING 2-237 EPDM 70 SHORE YELLOW DOT | 1 |
| 5 | 700101-001534 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 130MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001603 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 80MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001604 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 100MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001605 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 200MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001606 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 300MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001633 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 500MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-002363 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 50MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5.1 | 770102-000384 | PARKER O-RING 2-244 EPDM 70 SHORE | 2 |
| 5.2 | 710101-001380 | SIGMA SCREEN SUPPORT RING RPP GREY | 4 |
| 6 | 700190-005105 | SCANNER 500 ASSEMBLY W/STRAIGHT NOZZLE 8MM F/SIGMA 6"/8" | 5 |
| 6.1 | 700190-005419 | SET STRAIGHT NOZZLE 8MM HDPE RED F/SIGMA PRO | 5 |
| 7 | 700190-005418 | ASSEMBLY UPPER PLATE F/SIGMA PRO | 1 |
| 7.1 | 770104-000311 | HYDRAULIC SEAL EPDM SIGMA | 2 |
| 7.2 | 710101-001444 | SIGMA PRO BUSHING PBT BLACK | 5 |
| 8 | 700190-005150 | TURBINE ASSEMBLY F/MINI AND PRO SIGMA | 5 |
| 9 | 700190-005416 | ASSEMBLY BRIDGE W/CLIPS F/SIGMA PRO | 1 |
| 10 | 700190-004641 | FLUSHING ASSEMBLY F/SIGMA 6"/8" | 1 |
| 10.1 | 700190-004685 | ASSEMBLY COVER W/DRAIN BODY F/SIGMA 6"/8" | 1 |
| 10.2 | 700190-000195 | ADAPTOR ASSY NUT+SEALS | 1 |
| 10.3 | 700190-001241 | CAP ASSEMBLY 2"T BSP | 1 |
| 10.4 | 700190-004807 | POLY FLUSH VALVE ASSEMBLY 2"NC BSP STD | 1 |
| 10.4.1 | 700190-003406 | 1" VACUUM BREAKER (ARKAL/SIGMA) ASSEMBLY | 1 |
| 10.5 | 720501-000134 | STR.CON. 1/4"F X8MM BSPT RPP BLK TEFEN | 1 |
| 10.6 | 700190-005420 | ASSEMBLY PISTON BUSHING W/O-RINGS F/SIGMA PRO | 1 |
| 10.7 | 700190-005441 | PISTON W/U-CAP SEAL F/SIGMA PRO | 1 |
| 10.7.1 | 770105-000011 | U-CUP SEAL NBR OD50MM ID40MM H7MM 70SH | 1 |
| 10.8 | 700190-005421 | ASSEMBLY PISTON CYLINDER F/SIGMA PRO | 1 |
| 10.8.1 | 770102-000027 | PARKER O-RING 2-156 EPDM 70 SHORE YELLOW DOT | 1 |
| 10.8.2 | 710101-001295 | SIGMA PISTON CYLINDER PBT BLACK | 1 |
| 10.8.3 | 710101-001308 | SIGMA PISTON NOZZLE 1.2 MM PP RED | 2 |
| 10.8.4 | 710103-010056 | PISTON HOUSING EXTERNAL NUT SIGMA RPA | 1 |
| 11 | 700190-000206 | 1''*1/4''BUSHING+SEAL ASSY | 2 |
| 12 | 700190-001980 | PRESSURE GAUGE ASSEMBLY F/2" 8MM TEF. | 1 |
| 13 | 700103-001749 | ADI-P DC KIT PACKAGE ONE SOLENOID NO | 1 |
| 14 | 720501-000139 | L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK TEFEN | 3 |
| 15 | 700190-000238 | 6" AKF UNIVERSAL ASSY | 2 |
| 15.1 | 770104-000036 | GASKET 6" EPDM YELLOW DOT 70 SHORE QUICK FLANGE | 1 |
| 700194-000085 | 700194-000085 | 6-8" SIGMA PRO SPARE PARTS KIT | 1 |
| Pos. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 700190-004636 | BODY W/SLEEVE ASSEMBLY F/SIGMA 8"BSTD | 1 |
| 1 | 700190-004635 | BODY W/SLEEVE ASSEMBLY F/SIGMA 8" ASA | 1 |
| 2 | 700190-004877 | 1''CONTROL FILTER ASSY 8MM TF F/SIGMA | 1 |
| 3 | 700190-004133 | CLAMP ASSEMBLY FOR 4"GALAXY/SIGMA | 1 |
| 3.1 | 710101-000183 | GALAXY /SIGMA PRO CLAMP RPA BLACK | 2 |
| 3.2 | 700190-005415 | SET SCREW WASHER F/CLAMP SIGMA PRO | 2 |
| 4 | 700190-004222 | ASSEMBLY BOTTOM W/PR.SCREEN F/SIGMA PRO | 5 |
| 4.1 | 770102-000034 | PARKER O-RING 2-237 EPDM 70 SHORE YELLOW DOT | 1 |
| 5 | 700101-001534 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 130MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001603 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 80MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001604 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 100MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001605 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 200MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001606 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 300MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-001633 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 500MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5 | 700101-002363 | MOLDED WEAVEWIRE SCREEN S/ST316L 1600SQ.CM 50MIC 6"-8" SIGMA EPDM SEALS | 5 |
| 5.1 | 770102-000384 | PARKER O-RING 2-244 EPDM 70 SHORE | 2 |
| 5.2 | 710101-001380 | SIGMA SCREEN SUPPORT RING RPP GREY | 4 |
| 6 | 700190-005105 | SCANNER 500 ASSEMBLY W/STRAIGHT NOZZLE 8MM F/SIGMA 6"/8" 5 | 5 |
| 6.1 | 700190-005419 | SET STRAIGHT NOZZLE 8MM HDPE RED F/SIGMA PRO | 5 |
| 7 | 700190-005418 | ASSEMBLY UPPER PLATE F/SIGMA PRO | 1 |
| 7.1 | 770104-000311 | HYDRAULIC SEAL EPDM SIGMA | 2 |
| 7.2 | 710101-001444 | SIGMA PRO BUSHING PBT BLACK | 5 |
| 8 | 700190-005150 | TURBINE ASSEMBLY F/MINI AND PRO SIGMA | 5 |
| 9 | 700190-005416 | ASSEMBLY BRIDGE W/CLIPS F/SIGMA PRO | 1 |
| 10 | 700190-004641 | FLUSHING ASSEMBLY F/SIGMA 6"/8" | 1 |
| 10.1 | 700190-004685 | ASSEMBLY COVER W/DRAIN BODY F/SIGMA 6"/8" | 1 |
| 10.2 | 700190-000195 | ADAPTOR ASSY NUT+SEALS | 1 |
| 10.3 | 700190-001241 | CAP ASSEMBLY 2"T BSP | 1 |
| 10.4 | 700190-004807 | POLY FLUSH VALVE ASSEMBLY 2"NC BSP STD | 1 |
| 10.4.1 | 700190-003406 | 1" VACUUM BREAKER (ARKAL/SIGMA) ASSEMBLY | 1 |
| 10.5 | 720501-000134 | STR.CON. 1/4"F X8MM BSPT RPP BLK TEFEN | 1 |
| 10.6 | 700190-005420 | ASSEMBLY PISTON BUSHING W/O-RINGS F/SIGMA PRO | 1 |
| 10.7 | 700190-005441 | PISTON W/U-CAP SEAL F/SIGMA PRO | 1 |
| 10.7.1 | 770105-000011 | U-CUP SEAL NBR OD50MM ID40MM H7MM 70SH | 1 |
| 10.8 | 700190-005421 | ASSEMBLY PISTON CYLINDER F/SIGMA PRO | 1 |
| 10.8.1 | 770102-000027 | PARKER O-RING 2-156 EPDM 70 SHORE YELLOW DOT | 1 |
| 10.8.2 | 710101-001295 | SIGMA PISTON CYLINDER PBT BLACK | 1 |
| 10.8.3 | 710101-001308 | SIGMA PISTON NOZZLE 1.2 MM PP RED | 2 |
| 10.8.4 | 710103-010056 | PISTON HOUSING EXTERNAL NUT SIGMA RPA | 1 |
| 11 | 700190-000206 | 1''*1/4''BUSHING+SEAL ASSY | 2 |
| 12 | 700190-001980 | PRESSURE GAUGE ASSEMBLY F/2" 8MM TEF. | 1 |
| 13 | 700103-001749 | ADI-P DC KIT PACKAGE ONE SOLENOID NO | 1 |
| 14 | 720501-000139 | L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK TEFEN | 3 |
| 700194-000085 | 700194-000085 | 6-8" SIGMA PRO SPARE PARTS KIT | 1 |
Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.
Please contact us for more information.
