Arkal - 80mm Spin Klin - Automatic Disc Filter

Deeco - Amiad - 3 Inch Spin Klin - Product Image (1)
Brand: Amiad / Arkal
Category: Filtration, Automatic Filters - Disc.
Size Range:

80mm

Filtration Degree:

10-400 micron

Product Description

The 80mm Spin Klin is an automatic polymeric disc filter for industrial water filtration for micron-precise depth filtration and high retention of solids. The cost-saving automatic backwash cycle is short and has a regulated volume using a minimal amount of flush water.

80mm Spin Klin comes in a variety of modular batteries making system expansion simple and is also available in external source configurations.

Features & Benefits

  • Micron-precise depth filtration of solids
  • Reliable and durable
  • Compact design
  • Polymeric
  • Low water and energy consumption
  • Minimal maintenance

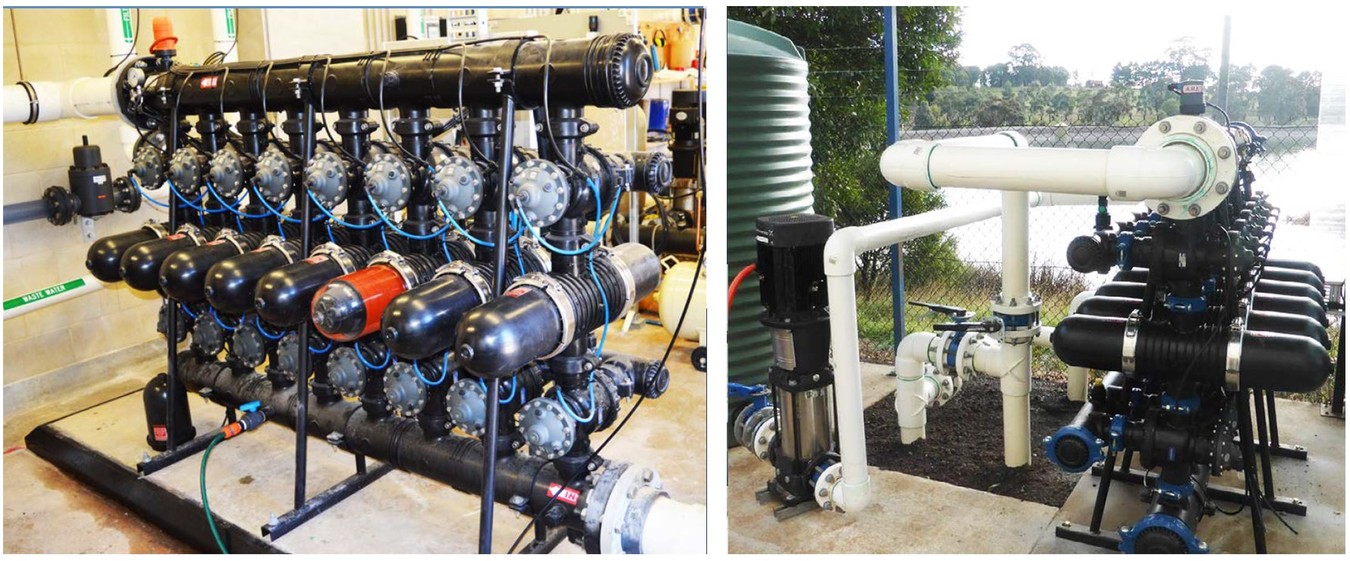

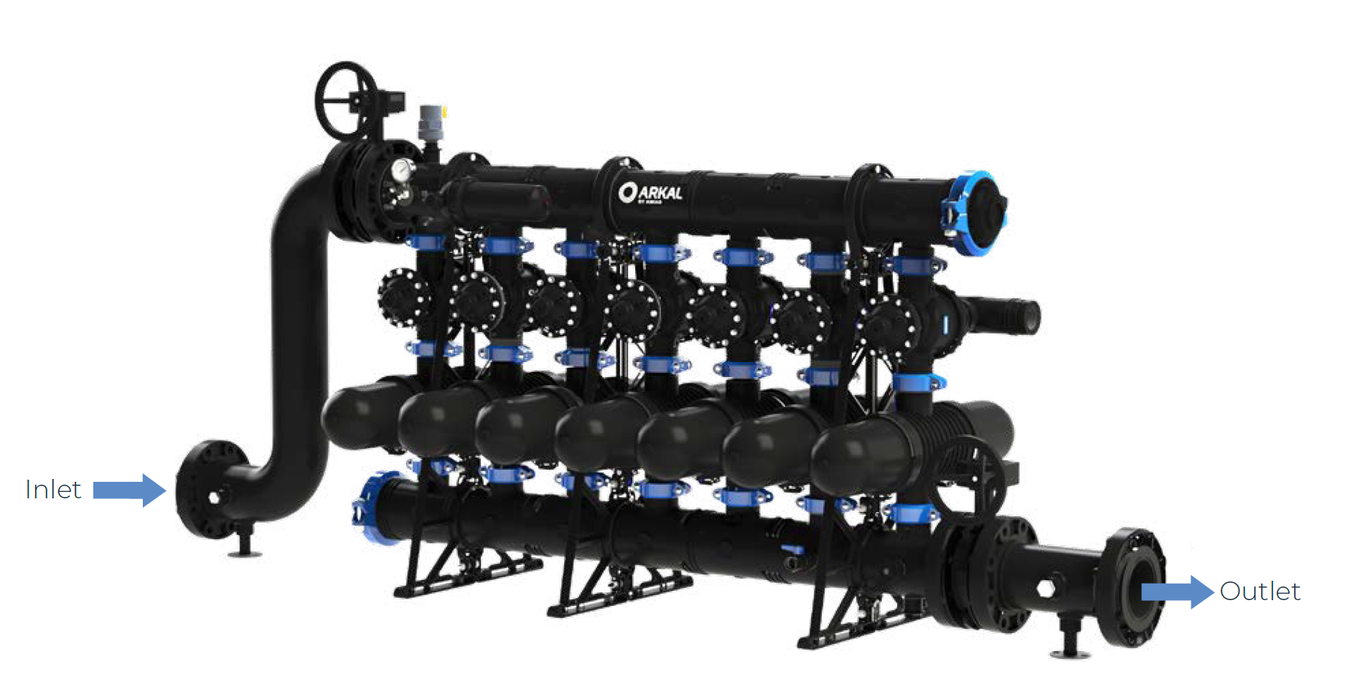

Amiad - 3Inch Spin Klin - Typical Installation

Arkal - 80mm Spin Klin - Typical Installation

Technical Data

Construction Materials

Amiad - 3Inch Spin Klin - Construction Materials

Arkal - 80mm Spin Klin - Construction Materials

Disc material type availability according to filtration degree:

Amiad - 3Inch Spin Klin - Disc Material According to Filtration Degree

Arkal - 80mm Spin Klin - Disc Material According to Filtration Degree

80mm Spin Klin

General Data

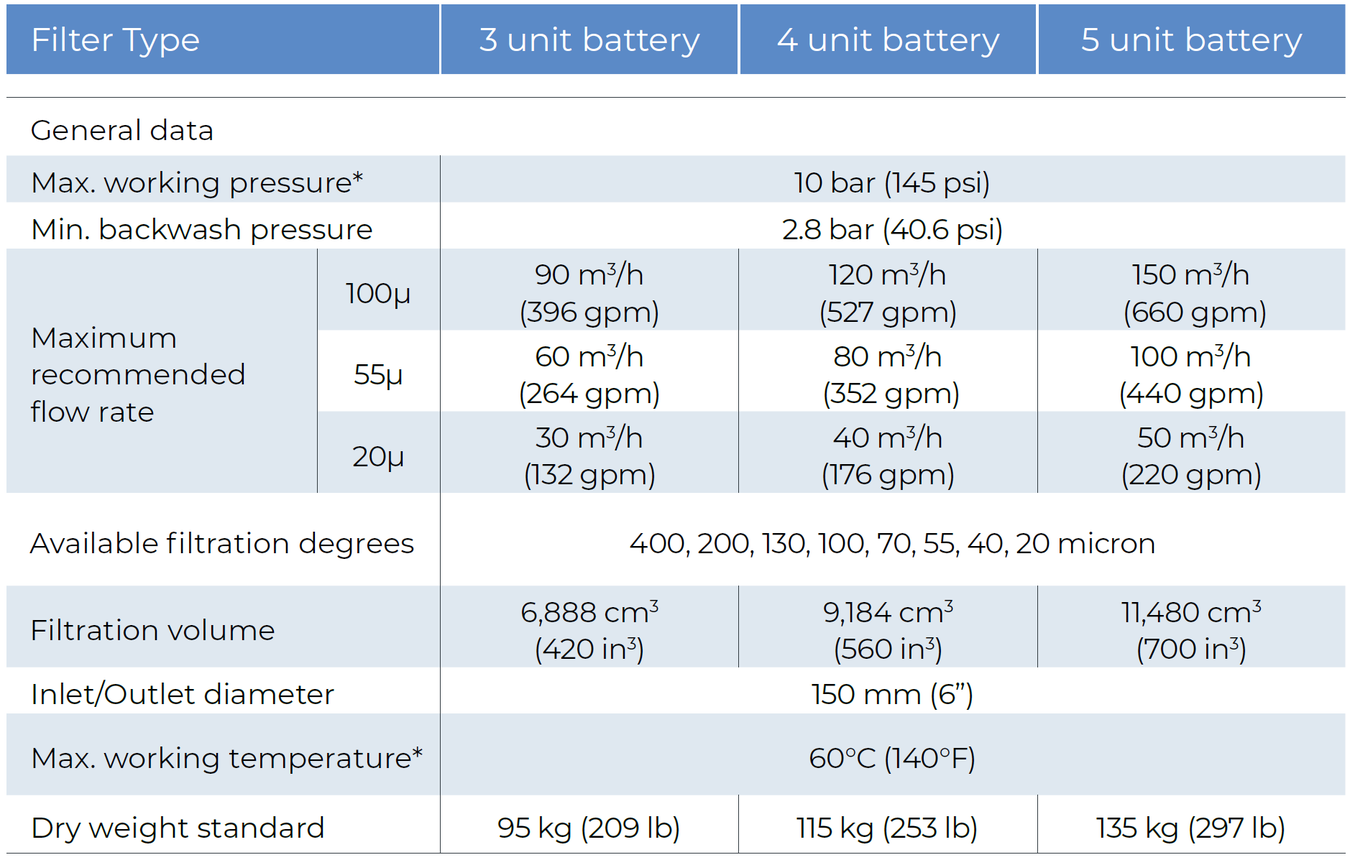

Amiad - 3Inch Spin Klin - General Data

Arkal - 80mm Spin Klin - General Data

* Maximum operating pressure and temperature are interdependent parameters and are given for general reference only. Please consult Deeco for the application-specific parameters.

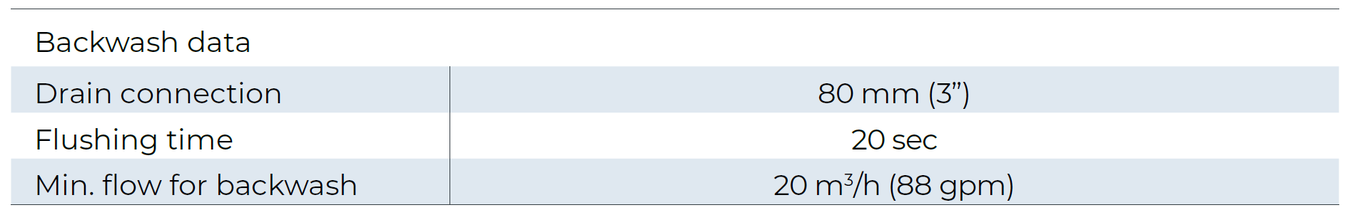

Backwash Data

Amiad - 3Inch Spin Klin - Backwash Data

Arkal - 80mm Spin Klin - Backwash Data

Head Loss Graphs (in clean water)

3 x 80mm SPIN KLIN Battery

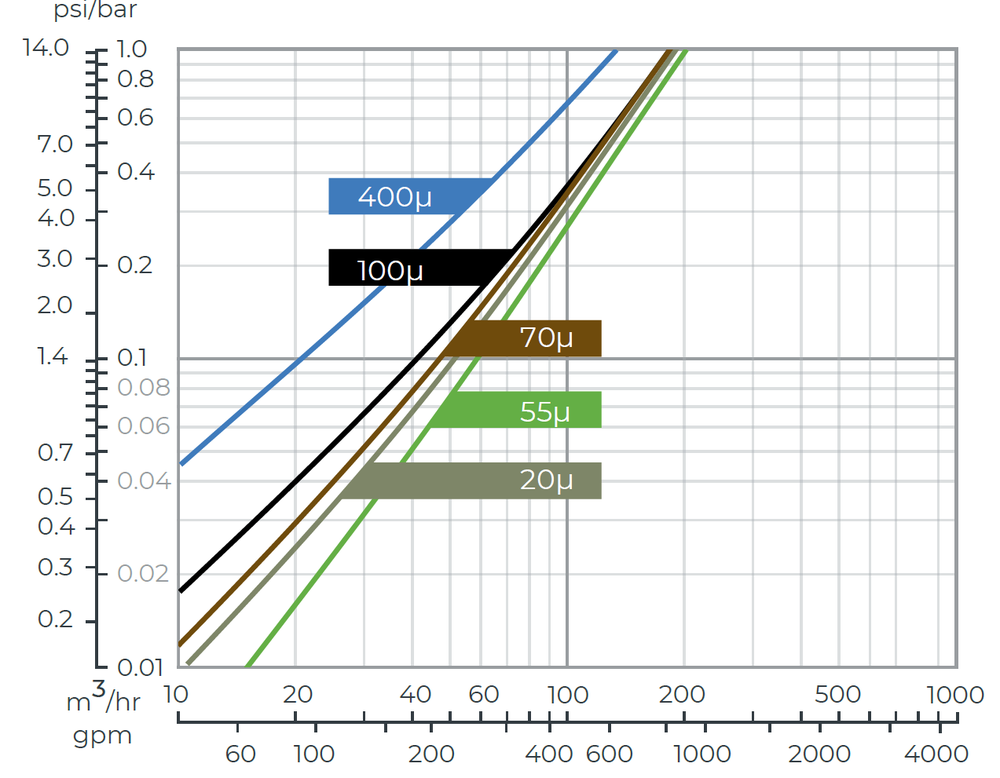

Amiad - 3Inch Spin Klin - 3x3 Spn Klin Battery - Head Loss Graph

Arkal - 80mm Spin Klin - 3x3 Spn Klin Battery - Head Loss Graph

4 x 80mm SPIN KLIN Battery

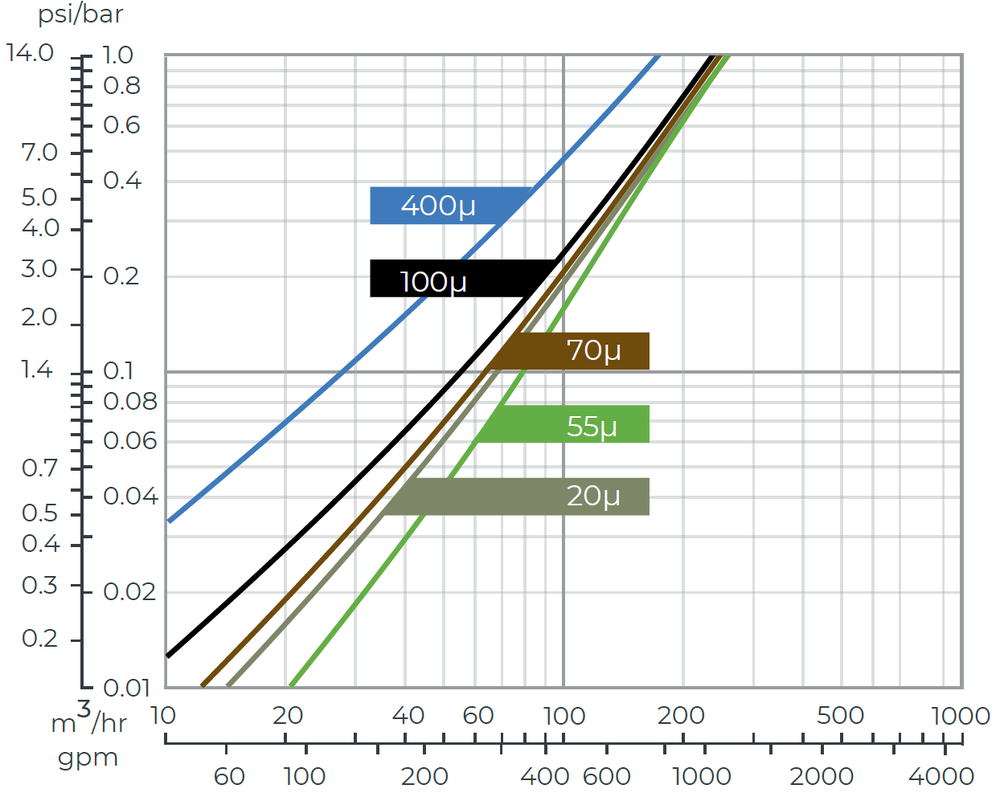

Amiad - 3Inch Spin Klin - 4x3 Spn Klin Battery - Head Loss Graph

Arkal - 80mm Spin Klin - 4x3 Spin Klin Battery - Head Loss Graph

5 x 80mm SPIN KLIN Battery

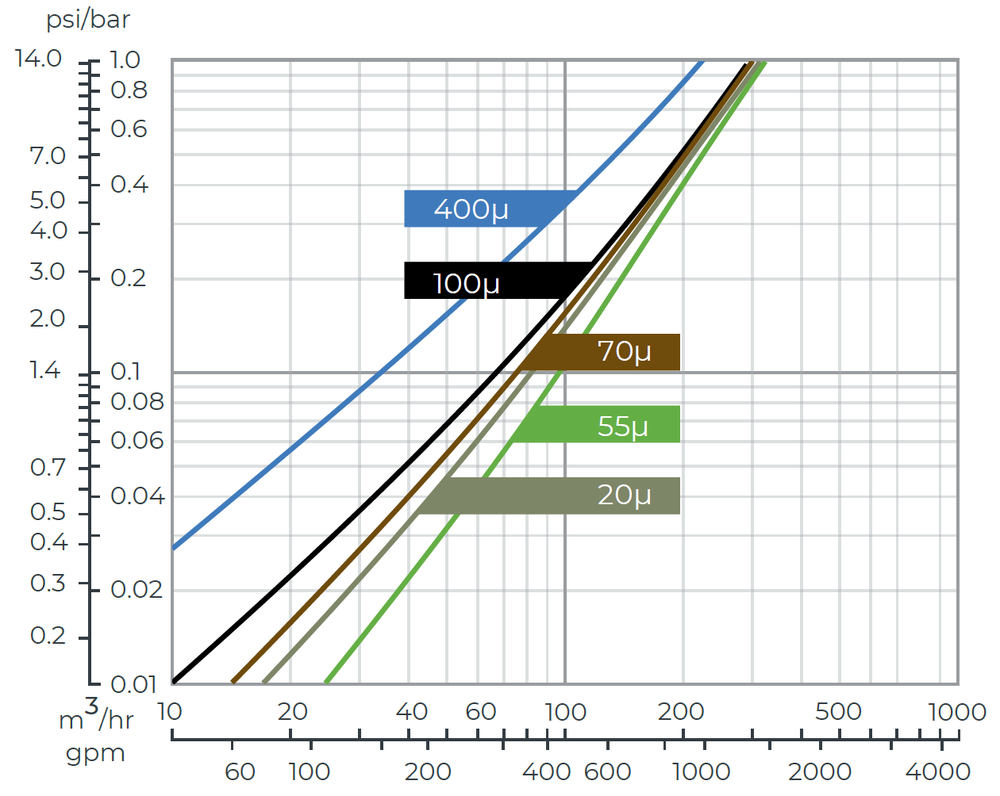

Amiad - 3Inch Spin Klin - 5x3 Spn Klin Battery - Head Loss Graph

Arkal - 3Inch Spin Klin - 5x3 Spin Klin Battery - Head Loss Graph

Typical Installation Drawing

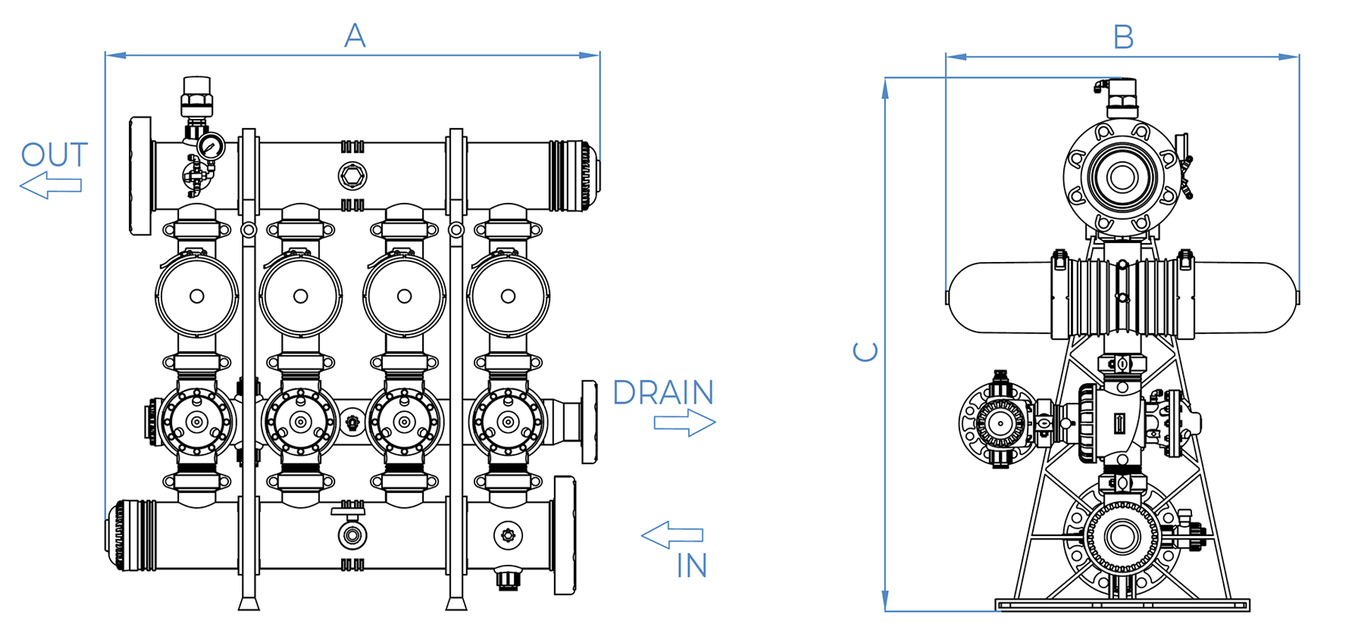

Amiad - 3Inch Spin Klin - Typical Installation Drawing

Arkal - 80mm Spin Klin - Typical Installation Drawing

Dimensions

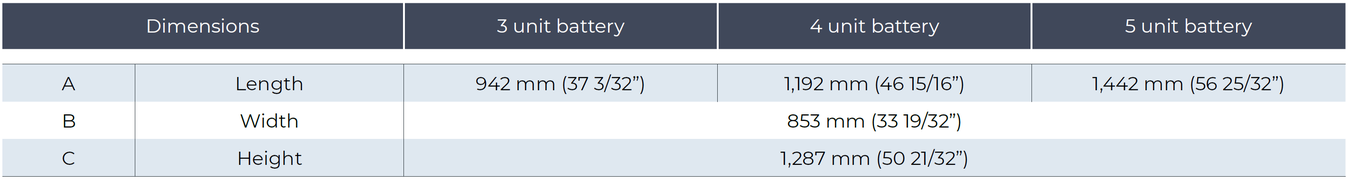

Amiad - 3Inch Spin Klin - Dimensions

Arkal - 80mm Spin Klin - Dimensions

80mm Spin Klin External Source

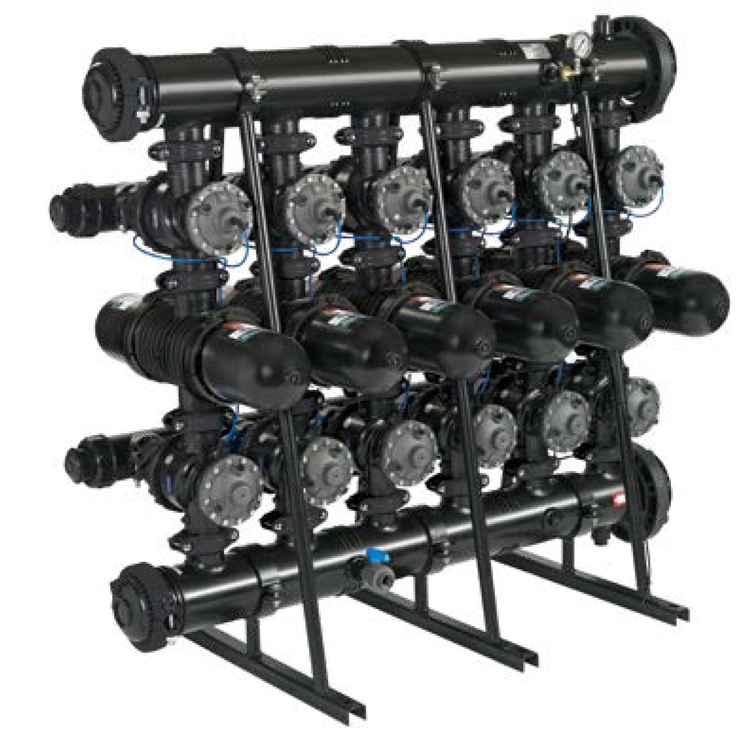

Amiad - 3Inch Spin Klin Ext.S - Image

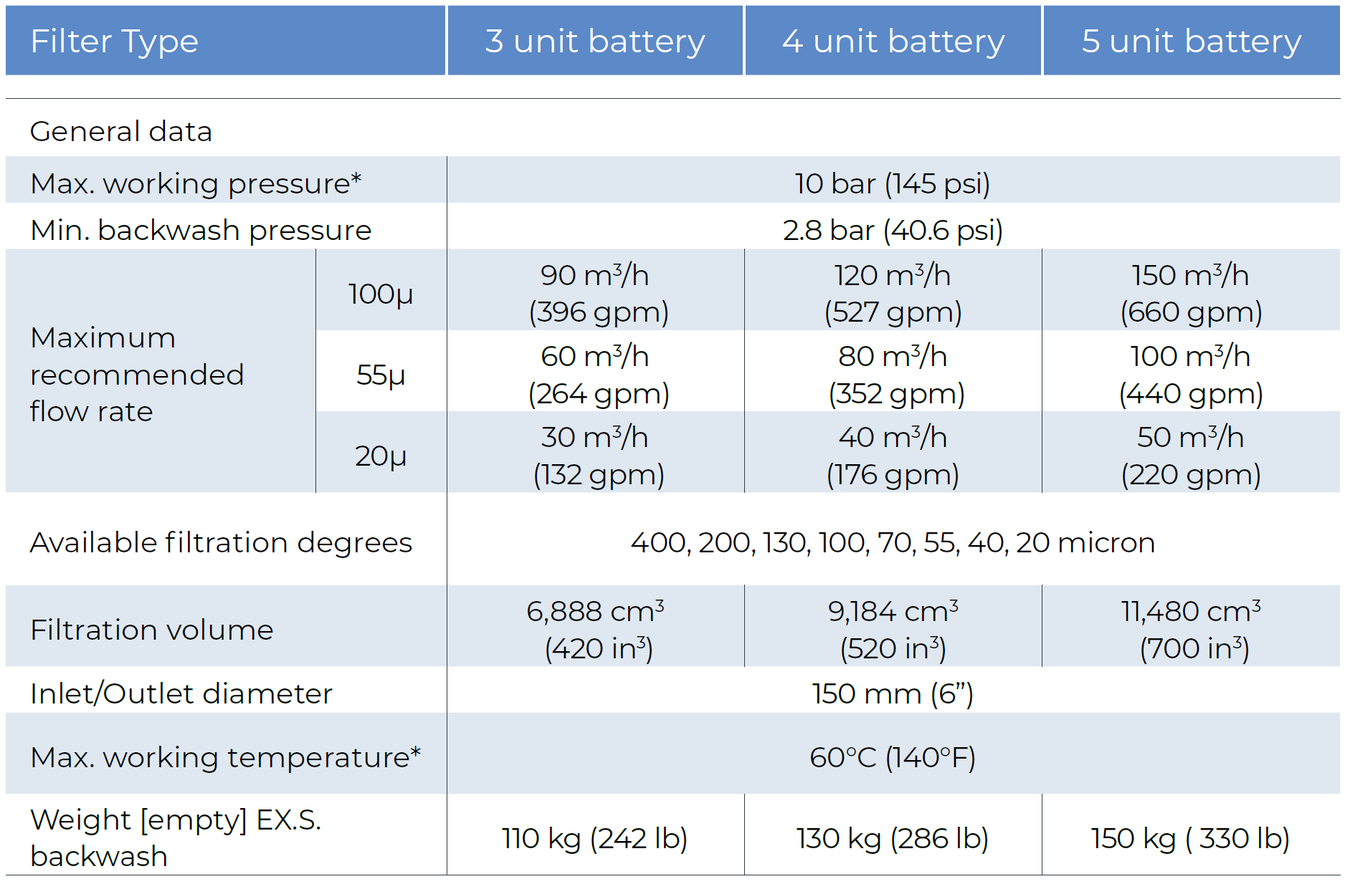

General Data

Amiad - 3Inch Spin Klin Ext.S - General Data

Arkal - 80mm Spin Klin Ext.S - General Data

*Maximum operating pressure and temperature are interdependent parameters and are given for general reference only. Please consult Deeco for the application-specific parameters.

Backwash Data

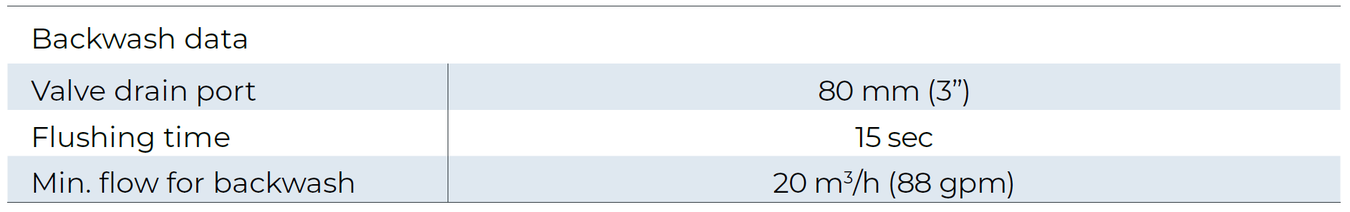

Amiad - 3Inch Spin Klin Ext.S - Backwash Data

Arkal - 80mm Spin Klin Ext.S - Backwash Data

Head Loss Graphs (in clean water)

3 x 80mm SPIN KLIN Battery EX.S.

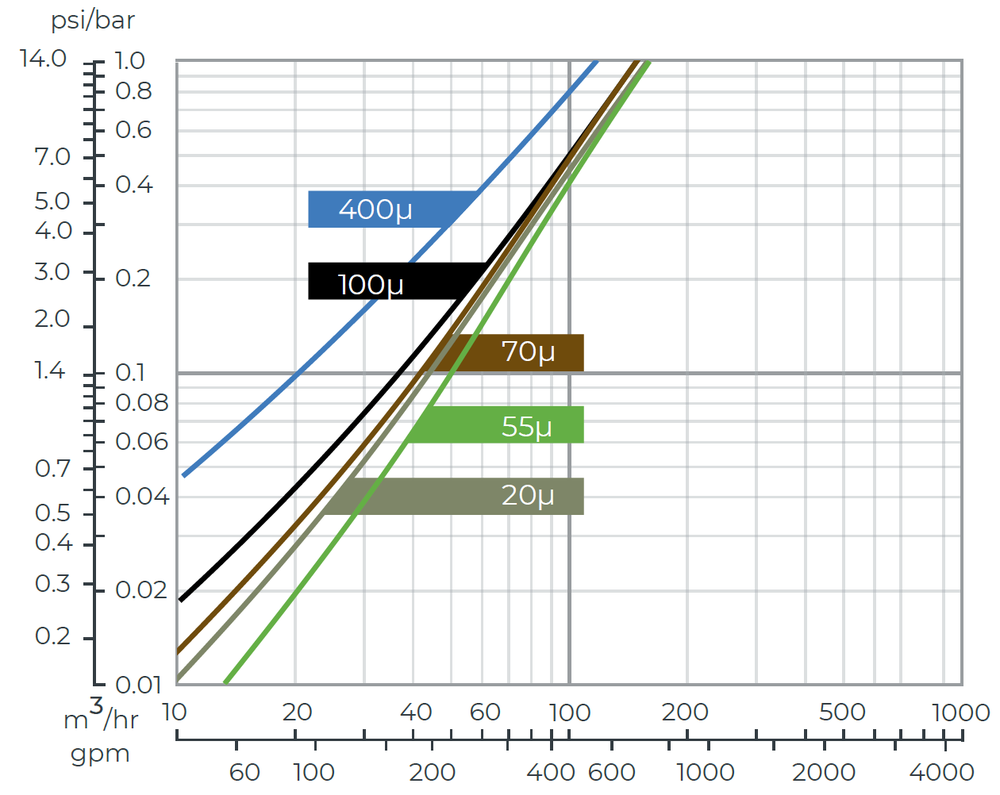

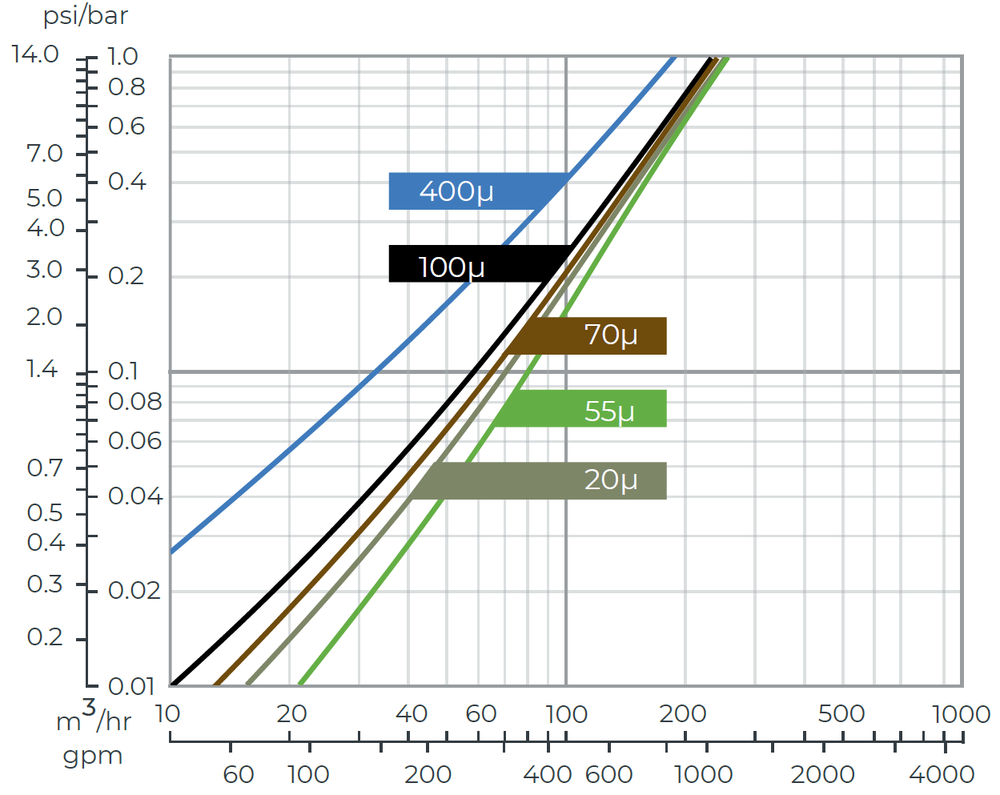

Amiad - 3Inch Spin Klin Ex.S - 3x3 Spn Klin Battery - Head Loss Graph

Arkal - 80mm Spin Klin Ex.S - 3x3 Spn Klin Battery - Head Loss Graph

4 x 80mm SPIN KLIN Battery EX.S.

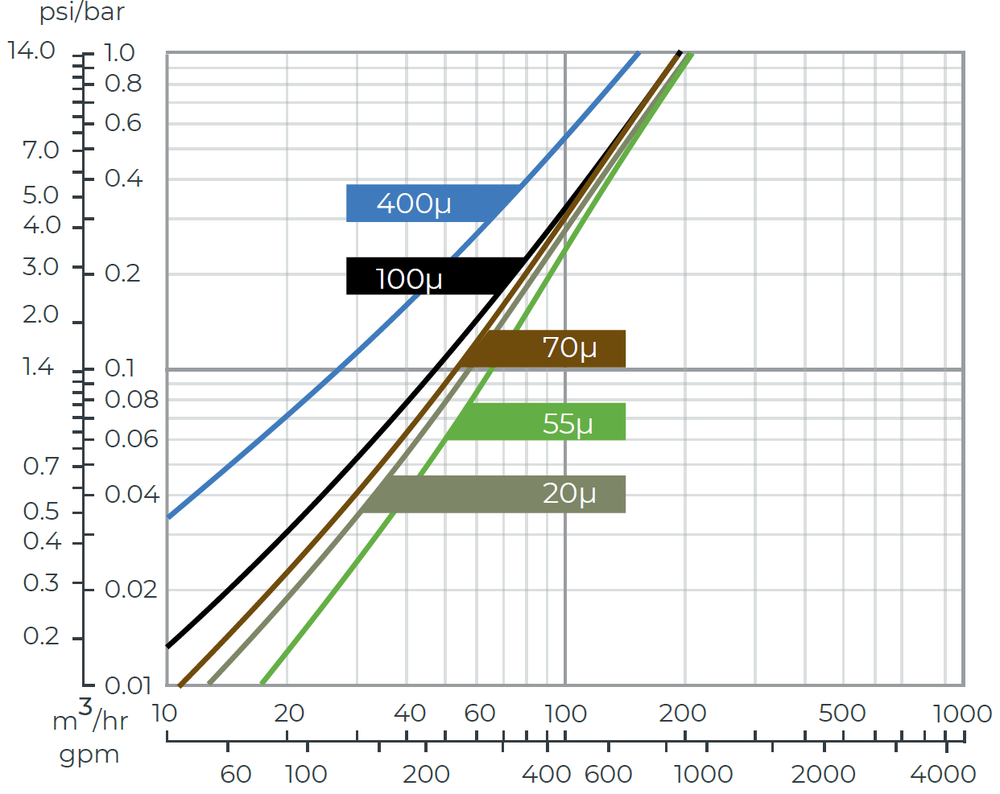

Amiad - 3Inch Spin Klin Ex.S - 4x3 Spn Klin Battery - Head Loss Graph

Arkal - 80mm Spin Klin Ex.S - 4x3 Spn Klin Battery - Head Loss Graph

5 x 80mm SPIN KLIN Battery EX.S

Amiad - 3Inch Spin Klin Ex.S - 5x3 Spn Klin Battery - Head Loss Graph

Arkal - 80mm Spin Klin Ex.S - 5x3 Spin Klin Battery - Head Loss Graph

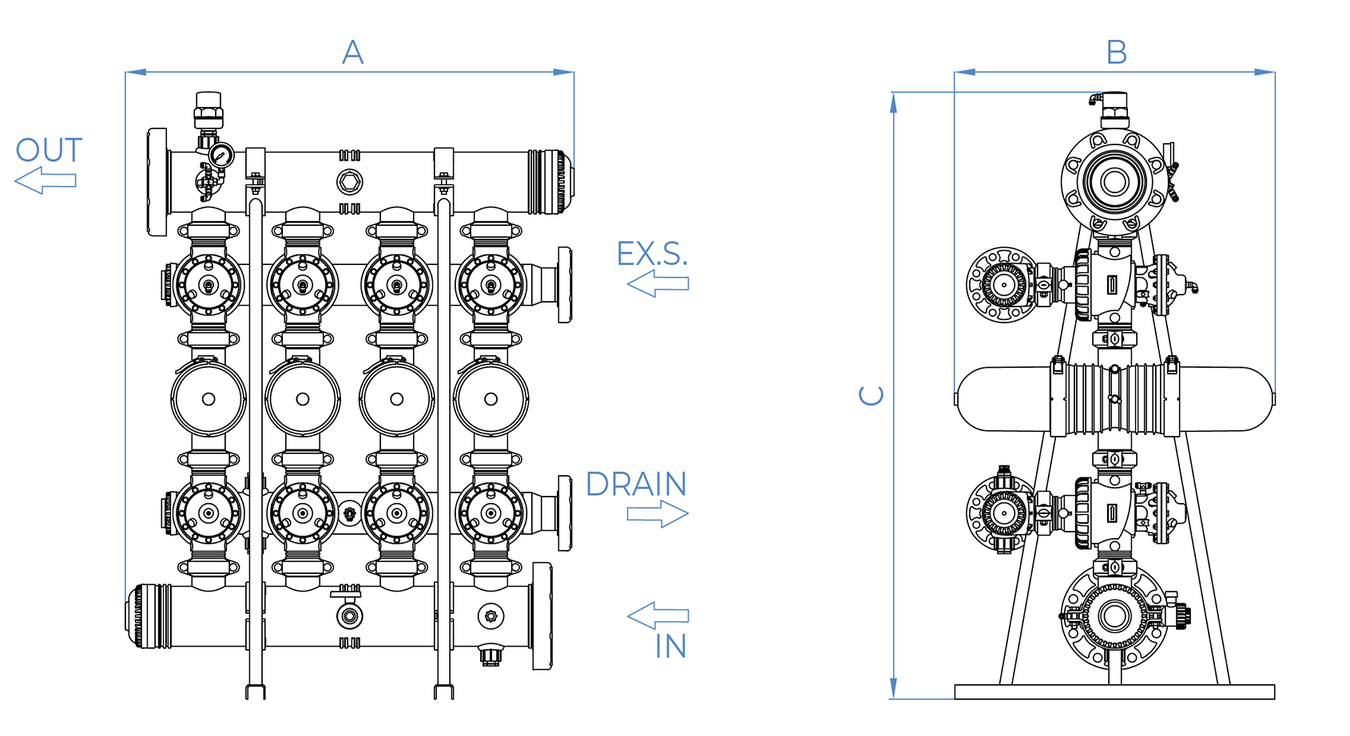

Typical Installation Drawing

Amiad - 3Inch Spin Klin Ext.S - Typical Installation Drawing

Arkal - 80mm Spin Klin Ext.S - Typical Installation Drawing

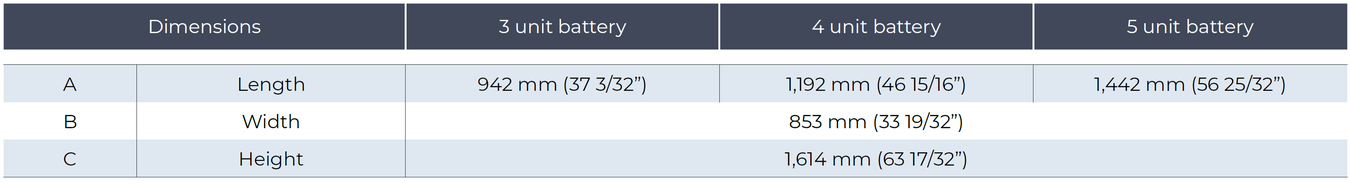

Dimensions

Amiad - 3Inch Spin Klin Ext.S - Dimensions

Arkal - 80mm Spin Klin Ext.S - Dimensions

Technical Specifications

Typical Installation

7 X 80mm SPIN KLIN Battery

Amiad - 3Inch Spin Klin - Typical Installation

Arkal - 80mm Spin Klin - Typical Installation

Spare Parts

Arkal - 80mm Spin Klin - Automatic Disc Filter

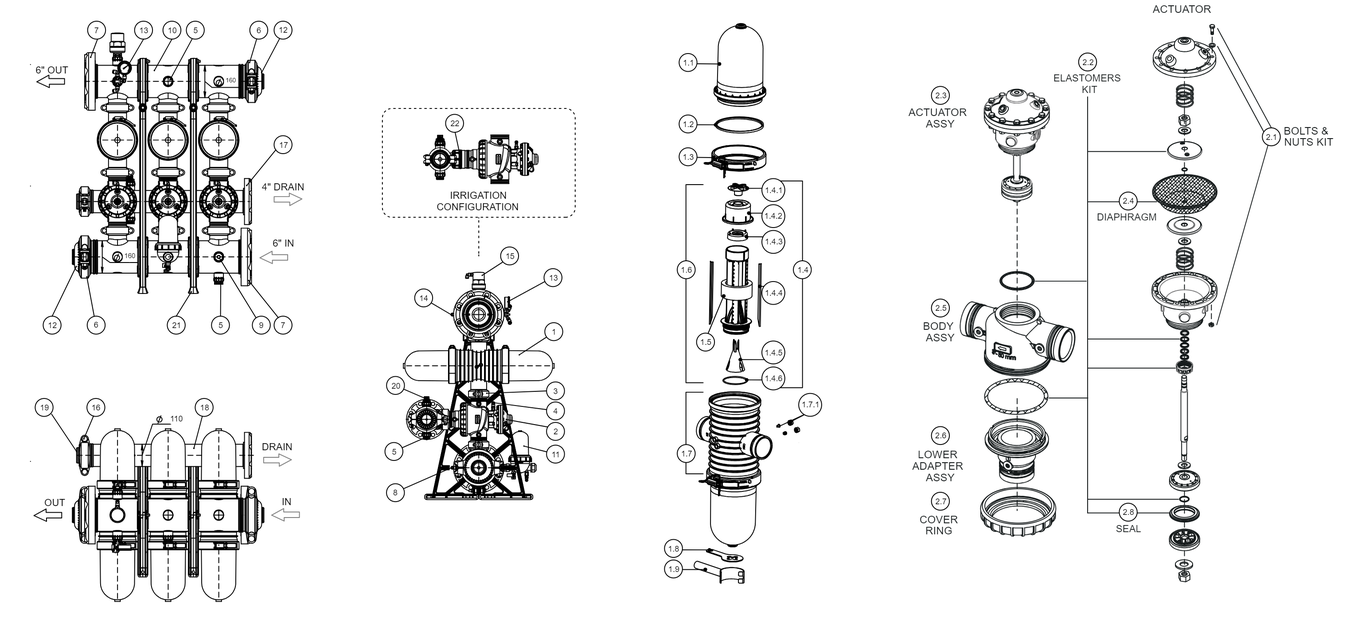

Deeco - 3 Inch - Spin Klin - Spare Parts
Pos. Part No. Description
1 600001-xxxxxx 3" SK RPA GRV PP
1.1 710103-004798 COVER 2"-3" FILTER RPP DW
1.1 710103-005233 COVER 2"-3" FILTER RPA BLACK
1.1 710103-010675 TRANSPARENT COVER 2"-3" SK PC
1.2 770104-000001 HYDRAULIC SEAL 2"-3" VITON 70 SHRE
1.2 770104-000248 HYDRAULIC SEAL 2"-3" EPDM
1.2 770104-000251 HYDRAULIC SEAL 2" NBR 70 SHORE
1.3 760108-000002 FILTER CLAMP 2"-3" S/ST304
1.4 700101-002255 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA
1.4 700101-002256 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA LCE
1.4 700101-002257 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPP EPDM SEALS DW
1.4 700101-002258 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA AW
1.4 700101-002259 SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA SW
1.4.1 710101-000435 2"SK BUTTERFLY NUT RPA BLACK
1.4.2 710101-000106 2"SK SPINE TIGHTENING CYLINDER RPA BLACK
1.1.3 710101-000436 SK SPINE PISTON HDPE NATURAL DW
1.4.4 760109-000045 ANTI FRICTION S/ST316 F/SK DW
1.4.4 760109-000467 ANTI FRICTION SUPER DUPLEX F/2.7SK DW
1.4.5 770104-000065 CONE MEMBRANE NATURAL 65 SHORE 2"SPIN KLIN (2.7 SPINE)
1.4.5 770104-000372 CONE MEMBRANE NATURAL 65 SHORE 2.8 2"SPIN KLIN
1.4.5 770104-000375 CONE MEMBRANE EPDM 70 SHORE 2.7SPIN KLIN DW
1.4.6 770104-000384 CONE MEMBRANE NATURAL 65 SHORE LCE 2.8 SPINE SK
1.4.6 770102-000034 PARKER O-RING 2-237 EPDM 70 SHORE YELLOW DOT
1.5 700101-000269 DISC SET PP 10MIC 2-3-4-6" SK
1.5 700101-001176 DISC SET PP 130MIC 2-3-4-6" SK DW
1.5 700101-001177 DISC SET PP 100MIC 2-3-4-6" SK DW
1.5 700101-001182 DISC SET PP 20MIC 2-3-4-6" SK DW
1.5 700101-001183 DISC SET PP 55MIC 2-3-4-6" SK DW
1.5 700101-001184 DISC SET PP 70MIC 2-3-4-6" SK DW
1.5 700101-001187 DISC SET PP 400MIC 2-3-4-6" SK DW
1.5 700101-001188 DISC SET PP 200MIC 2-3-4-6" SK DW
1.5 700101-001189 DISC SET PP 40MIC 2-3-4-6" SK DW
1.6 700101-002260 DISC ELEMENT PP 400MIC 2-3" SK RPA
1.6 700101-002261 DISC ELEMENT PP 70MIC 2-3" SK RPA
1.6 700101-002262 DISC ELEMENT PP 200MIC 2-3" SK RPA
1.6 700101-002263 DISC ELEMENT PP 100MIC 2-3" SK RPA
1.6 700101-002264 DISC ELEMENT PP 55MIC 2-3" SK RPA
1.6 700101-002265 DISC ELEMENT PP 40MIC 2-3" SK RPA
1.6 700101-002266 DISC ELEMENT PP 20MIC 2-3"SK RPA CLASSIC
1.6 700101-002267 DISC ELEMENT PP 130MIC 2-3" SK RPA
1.6 700101-002377 DISC ELEMENT PP 10MIC 2-3" SK RPA
1.7 700190-001156 3" SK GRV BODY COMPLEX ASSY
1.7.1 700190-001305 PRESSURE CHECK POINT ASSEMBLY
1.8 760109-000055 WRENCH GALVANIZED F/BUTTERFLY NUT
1.9 760109-000131 WRENCH GALVANIZED F/SK
2 730102-000133 ANGLE FLOW 3X3 350 GROOVED RPA BLACK AGRESSIVE WATER BERMAD
2 730102-000134 ANGLE FLOW 3X3 350 GROOVED RPA/DUPLEX BLACK BERMAD
2 730102-000176 ANGLE FLOW 3X3 350 GROOVED RPA BLACK BERMAD
2 730102-000179 STRAIGHT FLOW 3X3(2) 350 GROOVED/BSP RPA BLACK BERMAD
2 730102-000279 STRAIGHT FLOW 3X3(2) 350 GROOVED/BSP RPA BLACK BERMAD DW
2 730102-000289 ANGLE FLOW 3X3 350 GROOVED RPA BLACK BERMAD DW
2 730113-000405 STRAIGHT FLOW 3X3 AGRESSIVE WATER BERMAD
2 730113-000408 STRAIGHT FLOW 3X3 RPP/DUPLEX BERMAD
2.1 730113-000766 BOLTS-NUTS KIT F/3" 350 BERMAD
2.2 730113-000409 VALVE ASSY. F/3" STRAIGHT FLOW SUPER DUPLEX BERMAD SW
2.2 730113-000608 VALVE ASSY. F/3" STRAIGHT FLOW BERMAD
2.2 730113-000610 VALVE KIT F.3*3 BER.PL ANGLE FLOW VALVE
2.2 730113-000611 VALVE ASSY. F/3" STRAIGHT FLOW BERMAD WA
2.2 730113-000778 VALVE ASSY. F/3" ANGLE FLOW PLASTIC BERMAD WA
2.2 730113-000780 VALVE ASSY. F/3" ANGLE FLOW PLASTIC BERMAD WA-S.DUPLEX
2.2 730113-000812 ACTUATOR ASSY. F/3" STRAIGHT FLOW TYPE B PLASTIC BERMAD DW
2.2 730113-000863 ACTUATOR ASSY. F/3" ANGLE FLOW TYPE B PLASTIC BERMAD DW
2.3 730113-000767 SEALS + DIAPHRAGM KIT F/3" 350 BERMAD
2.3 730113-000814 SEALS + DIAPHRAGM KIT F/3" 350 BERMAD DW
2.4 730113-000538 DIAPHRAGM F/3" STRAIGHT FLOW BERMAD
2.5 730113-000396 BODY ASSY. F/3" VALVE PLASTIC BERMAD
2.5 730113-000776 BODY ASSY. F/3" 350 PLASTIC BERMAD WA
2.5 730113-000781 BODY ASSY. F/3" 350 PLASTIC BERMAD WA-S.DUPLEX
2.5 730113-000866 BODY ASSY. F/3" 350 BLACK PLASTIC BERMAD GRV DW
2.6 730113-000395 LOWER ADAPTOR F/3" STRAIGHT FLOW PLASTIC BERMAD
2.6 730113-000770 LOWER ADAPTOR F/3" 350 PLASTIC BERMAD GRV
2.6 730113-000777 LOWER ADAPTOR F/3" 350 PLASTIC BERMAD WA GRV/TRH
2.6 730113-000779 LOWER ADAPTOR F/3" 350 PLASTIC BERMAD WA GRV
2.6 730113-000782 LOWER ADAPTOR F/3" 350 PLASTIC BERMAD WA-S.DUPLEX GRV
2.6 730113-000783 LOWER ADAPTOR F/3" 350 PLASTIC BERMAD WA-S.DUPLEX GRV/TRH
2.6 730113-000864 LOWER ADAPTOR F/3" 350 BLACK PLASTIC BERMAD GRV DW
2.6 730113-000865 LOWER ADAPTOR F/3"/2" 350 BLACK PLASTIC BERMAD GRV/TRH DW
2.7 730113-000394 FIXING NUT F/3" STRAIGHT FLOW PLASTIC BERMAD
2.8 730113-000359 SEAL F/3"/2" VALVE BERMAD
2.8 730113-000816 SEAL F/3"/2" VALVE BERMAD DW
3 780102-000025 3" GRV CONNECTOR C/ST RED POLYESTER RAL3000
3 780102-000057 3" GRV CONNECTOR C/ST BLUE POLYESTER RAL5010 STYLE75 DW
4 720501-000007 L-CONNECTOR 1/8"M X8MM BSPT ACETAL BLACK JOHN-GUEST
5 700190-004893 1''PLUG TAVLIT ASSEMBLY WITH O-RING ID30 TH3MM EPDM
6 780102-000036 6" GRV CONNECTOR C/ST RED POLYESTER RAL3000
6 780102-000038 6" GRV CONNECTOR C/ST BLUE POLYESTER RAL5010
7 700190-000238 6" AKF UNIVERSAL ASSY
8 720501-000008 T-CONNECTOR 8MMX1/4"M X8MM BSPT ACETAL BLACK JOHN-GUEST
8 720501-000136 T-CONNECTOR 8MMX1/4"M X8MM BSPT RPP BLACK TEFEN
9 720501-000221 PLUG 1/4"M BSPT PA66 BLACK TEFEN
10 750101-004708 IN/OUT MANIFOLD PP BLACK 160MM 3X 3" SK GRV/GRV W/BUSHINGS
11 700190-000417 1'' CONTROL FILTER ASSY
11 700190-000420 1'' CONTROL FILTER ASSY
12 710101-000200 6" CAP GRV PP BLACK
13 700190-000351 PRESSURE GAUGE ASSEMBLY F/3" 8MM PL.J.G.
13 700190-003224 PRESSURE GAUGE ASSEMBLY F/3" 8MM TEF.
14 720501-000006 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK JOHN-GUEST
14 720501-000139 L-CONNECTOR 1/4"M X8MM BSPT ACETAL BLACK TEFEN
15 700190-000372 1''BARAK AIR REL.VAL.AS 8MM PL.J.G. ASSY
15 730108-000025 AIR RELEASE VALVE A.R.I BARAK 1" BSPT NYLON3 GREY 10BAR
16 780102-000055 4" GRV CONNECTOR C/ST BLUE POLYESTER RAL5010 STYLE75 DW
17 700190-000227 4" AKF UNIVERSAL ASSEMBLY
18 750101-004833 DRAIN MANIFOLD PP BLACK 90MM 3X 2" THR/F THR/GRV
18 750101-007535 DRAIN/EX.S.MANIFOLD PP BLACK 110MM 3X 3" SK GRV/GRV
19 710101-000165 CAP 3" PP GRV BLACK W/O R
19 710101-000433 CAP 4" PP GRV BLACK
20 700190-003406 1" VACUUM BREAKER (ARKAL/SIGMA) ASSEMBLY
21 700190-000231 ASSEMBLY PL.SUPPORT LEG F/160 MAN IWR
21 700190-000232 PL.SUPPORT LEG 304S/ST BOLTS FOR EXTR.160MAN. ASSY
22 700190-000195 ADAPTOR ASSY NUT+SEALS
