Amiad - TAF - Automatic Screen Filter

Amiad - TAF - Product Image
Brand: Amiad / Arkal
Category: Filtration, Automatic Filters - Screen
Size Range:

50-80mm

Filtration Degree:

10-500 micron

Product Description

The TAF Series of polymeric industrial water filters are compact and ideal for limited installation space and are suitable for a wide variety of industrial water treatment applications. These automatic filters are reliable, designed for long-term, simple operation and require minimal maintenance, saving time and labor costs.

The TAF Series includes 3 models, all with automatic cleaning based on pressure differential and/or time intervals for uninterrupted flow during flushing and are available with the option for continuous flushing.

Features and Benefits

  • Automatic & self-cleaning Flushes based on pressure differential and/or time.
  • Low power consumption Saves resources and costs.
  • Compact design Ideal for limited installation space.
Amiad - TAF - Features and Benefits

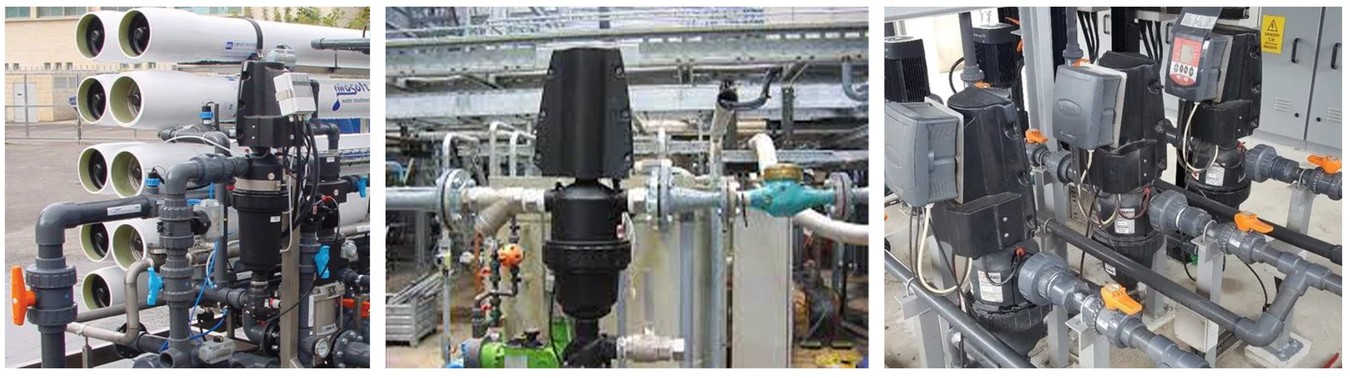

Amiad - TAF - Typical Installations

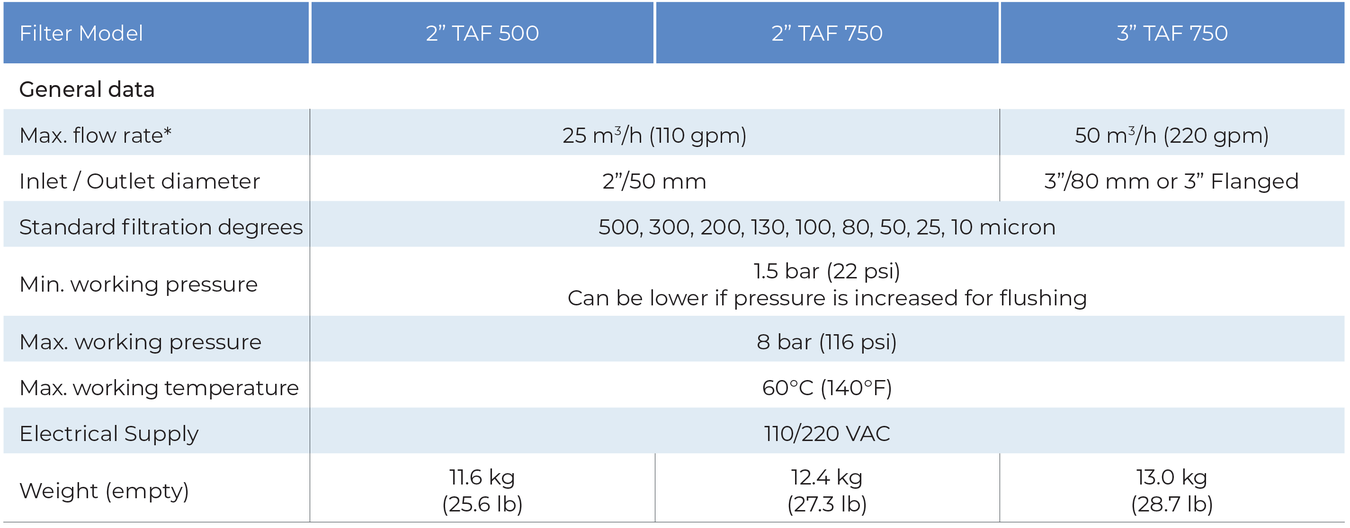

Technical Data

Amiad - TAF - General Data

Amiad - TAF - General Data

* Consult Deeco for optimum flow depending on filtration degree & water quality

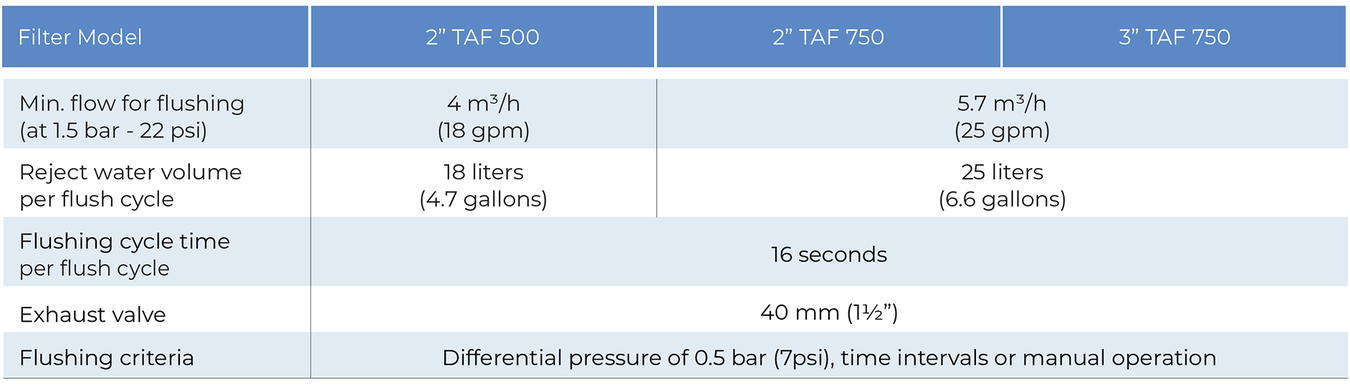

Flushing data

Amiad - TAF - Flushing Data

Amiad - TAF - Flushing Data

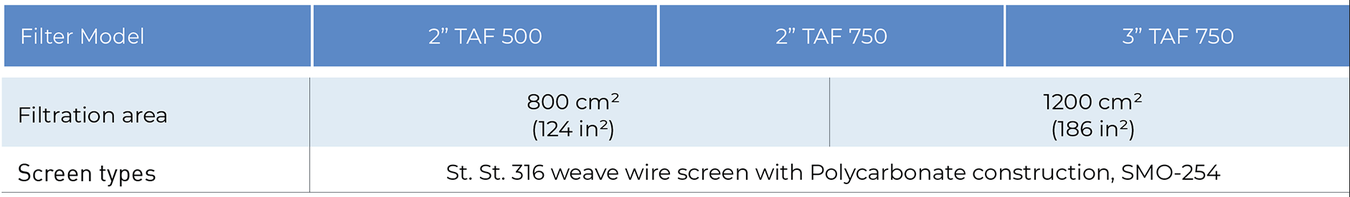

Screen Data

Amiad - TAF - Screen Data

Amiad - TAF - Screen Data

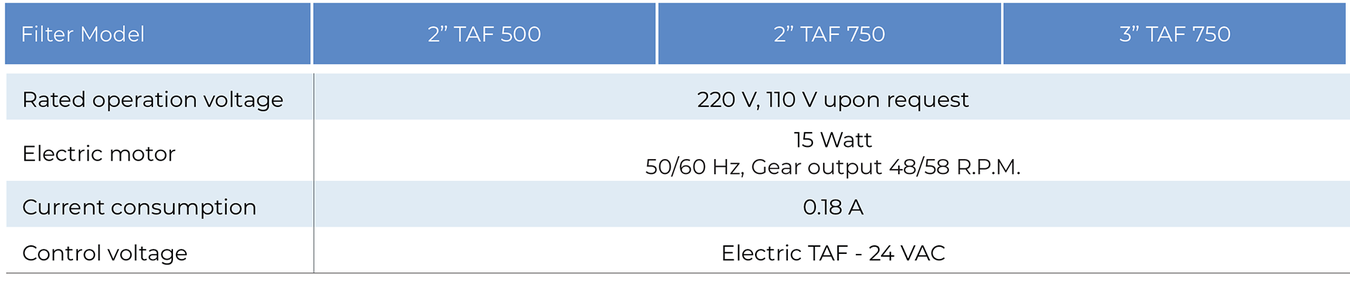

Electronic Control

Amiad - TAF - Electronic Data

Amiad - TAF - Electronic Control

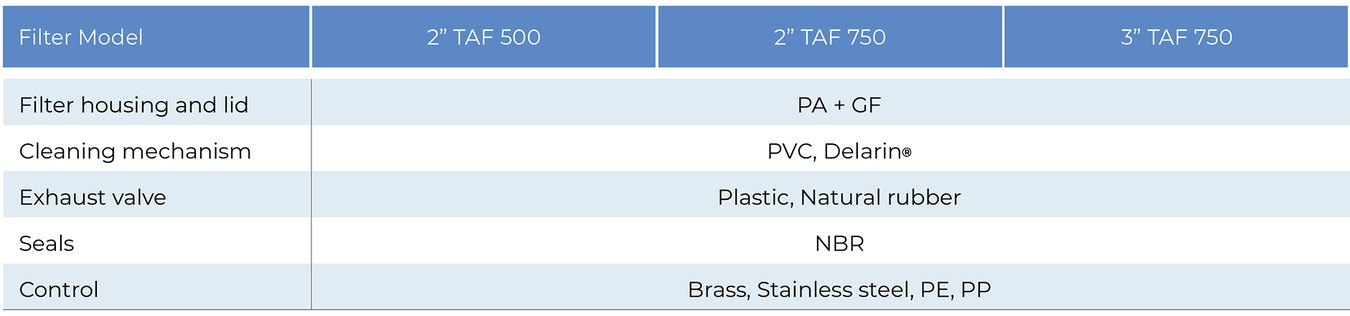

Construction materials

Amiad - TAF - Construction Materials

Amiad - TAF - Construction Materials

TAF Models and Head Loss Graphs

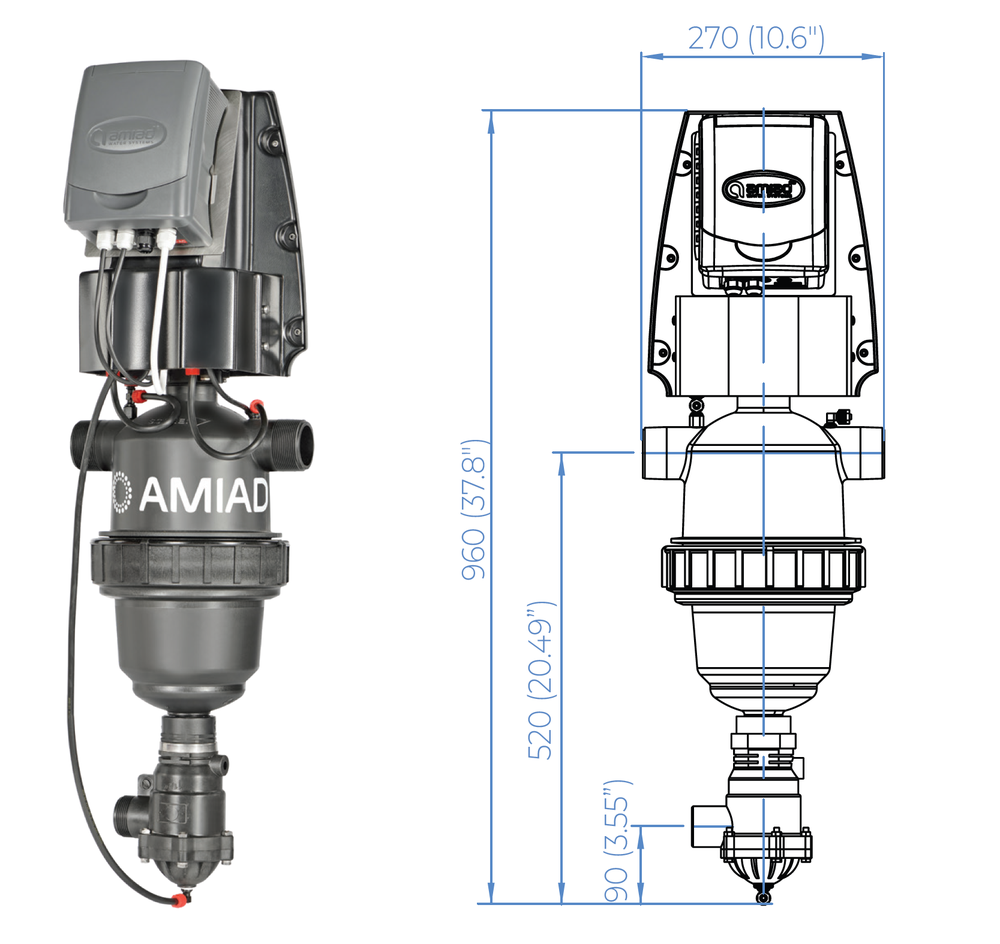

50mm TAF 500

Amiad - TAF - 2inch TAF 500

Amiad - TAF - 2" TAF 500

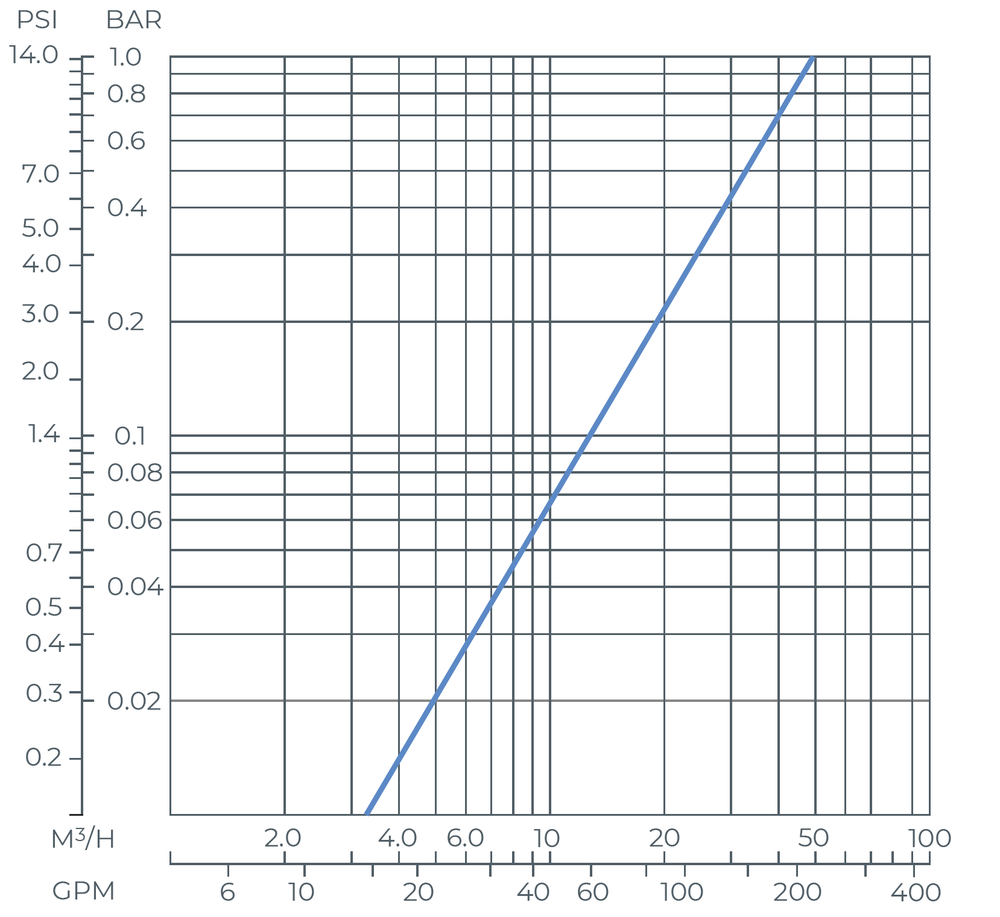

Head Loss Graph (in clean water)

Amiad - TAF - 2inch TAF 500 - Head Loss Graph

Amiad - TAF - 50mm TAF 500 - Head Loss Graph

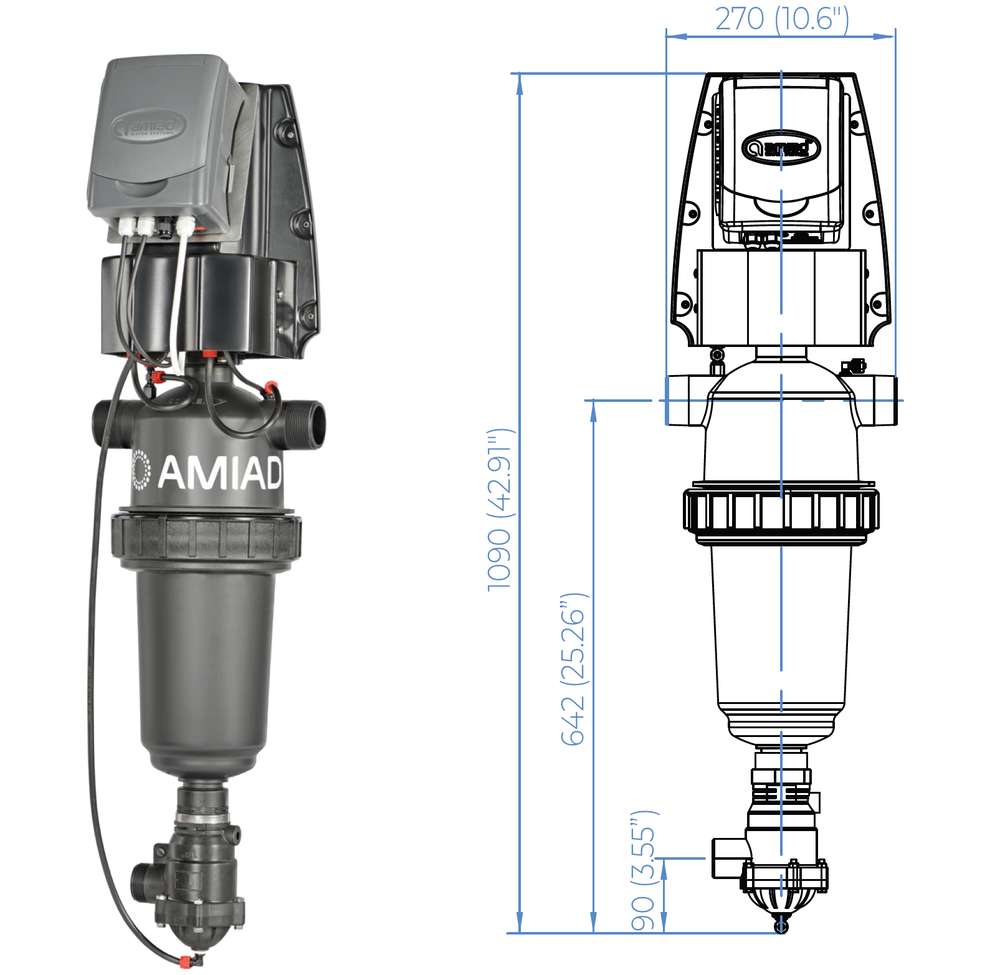

50mm TAF 750

Amiad - TAF - 2inch TAF 750

Amiad - TAF - 50mm TAF 750

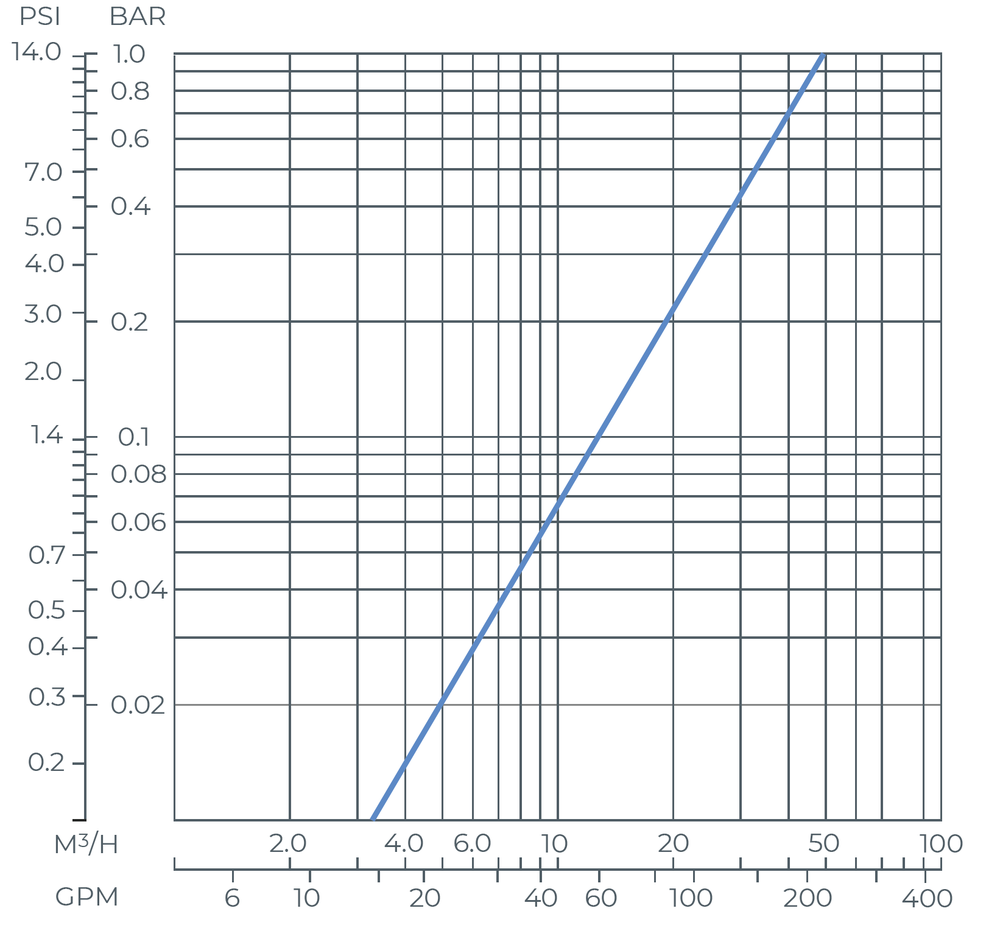

Head Loss Graph (in clean water)

Amiad - TAF - 2inch TAF 750 - Head Loss Graph

Amiad - TAF - 50mm TAF 750 - Head Loss Graph

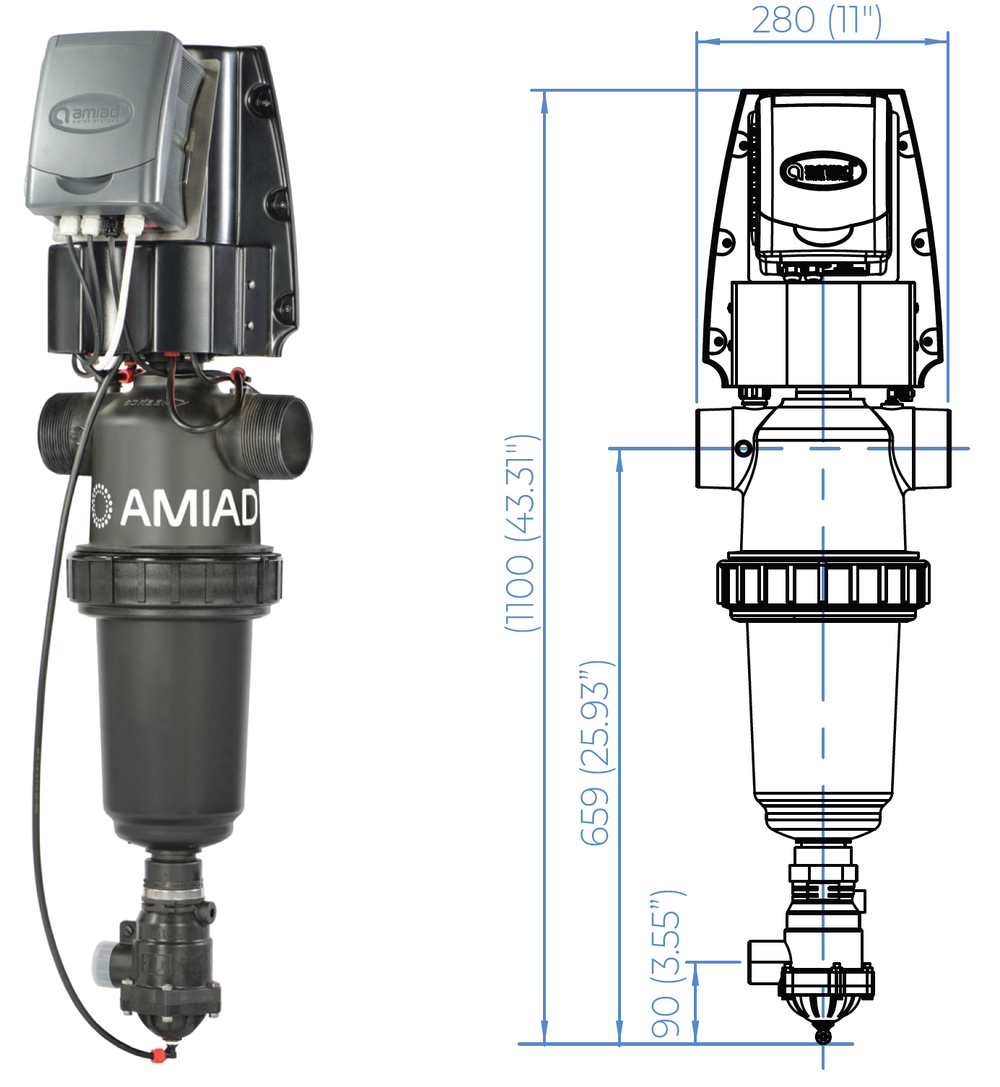

80mm TAF 750

Amiad - TAF - 3inch TAF 750

Amiad - TAF - 80mm TAF 750

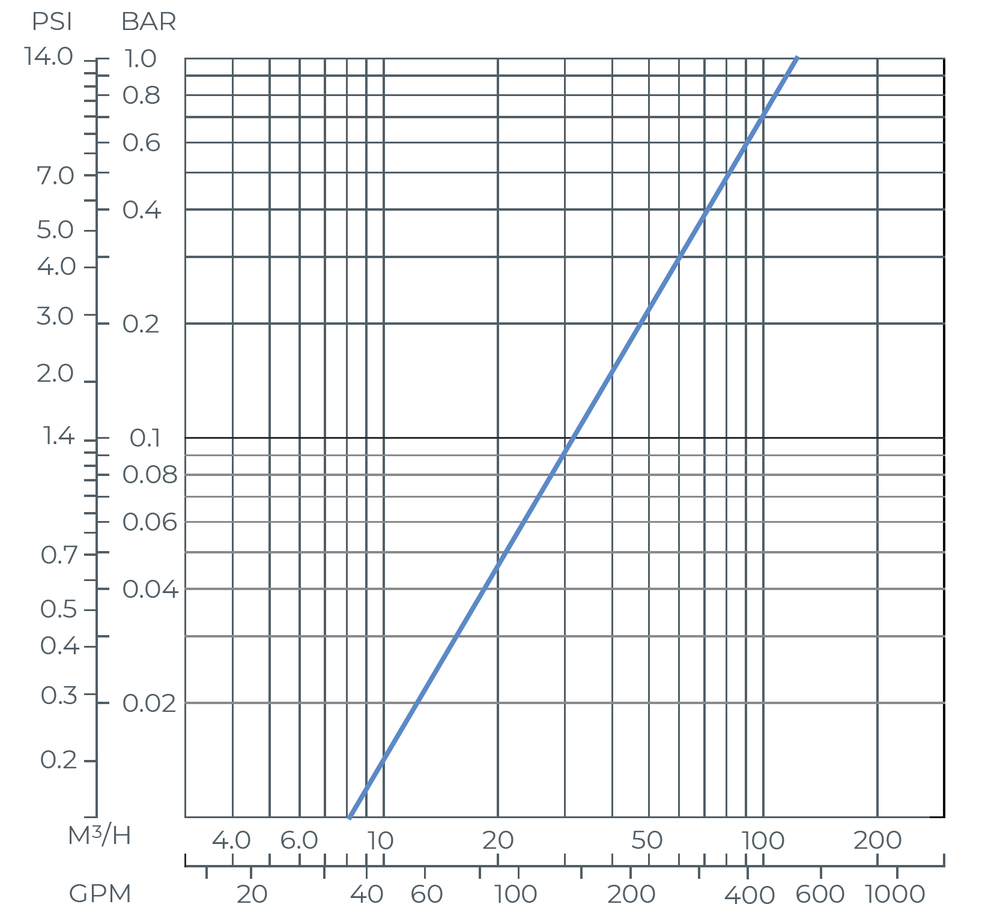

Head Loss Graph (in clean water)

Amiad - TAF - 3inch TAF 750 - Head Loss Graph

Amiad - TAF - 80mm TAF 750 - Head Loss Graph

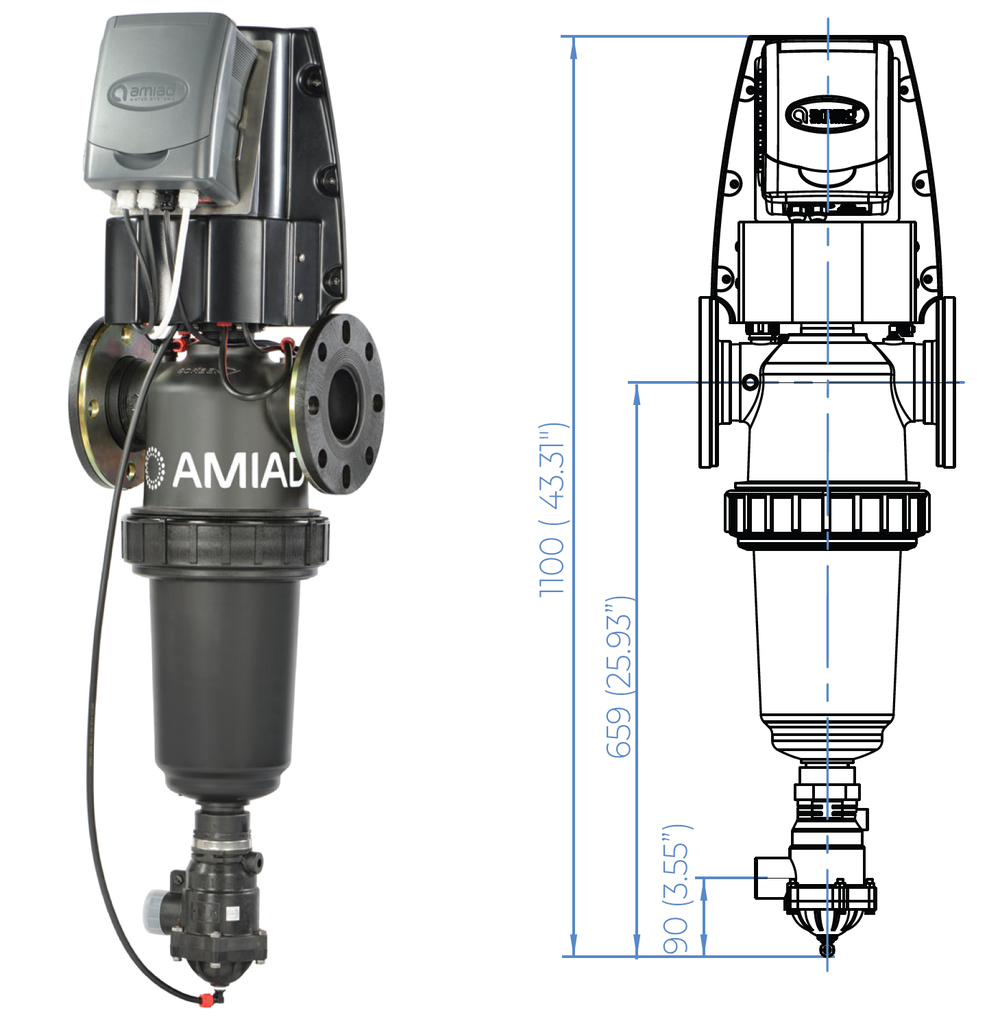

80mm TAF 750, FLANGS

Amiad - TAF - 3inch TAF 750 Flangs

Amiad - TAF - 80mm TAF 750 Flangs

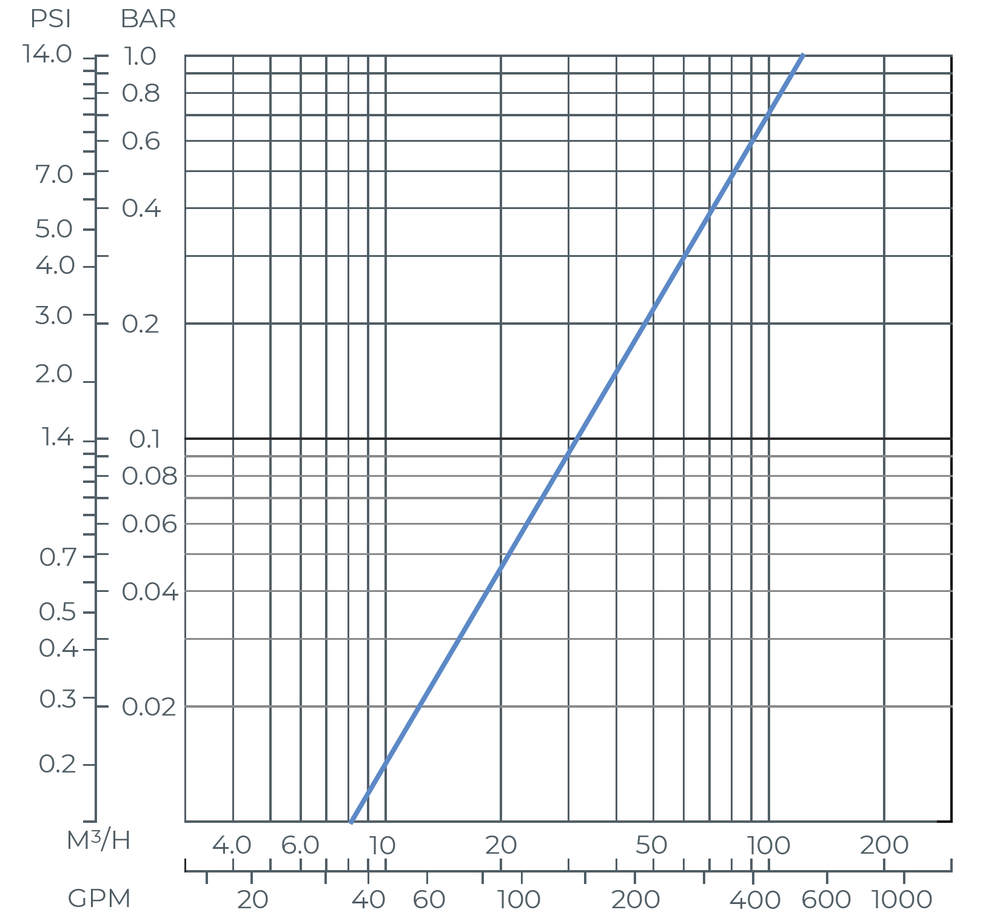

Head Loss Graph (in clean water)

Amiad - TAF - 3inch TAF 750 Flangs - Head Loss Graph

Amiad - TAF - 80mm TAF 750 Flangs - Head Loss Graph

Technical Specifications

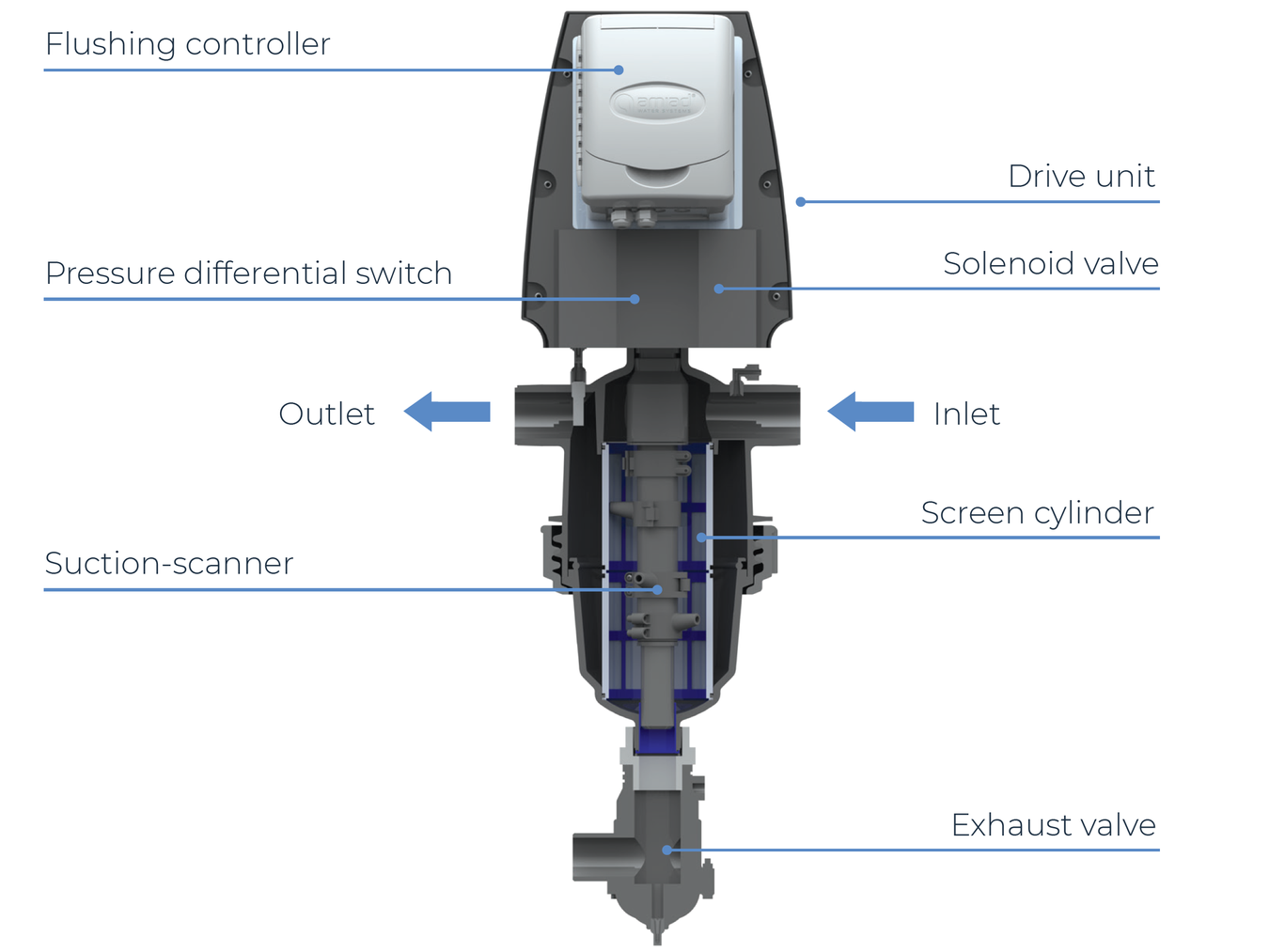

TAF Parts

Amiad - TAF - Parts

Amiad - TAF - Parts

Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.

Please contact us for more information.
