| Brand: | Bermad |
| Category: | Control Valves, 200 Series |
| Connection: | Female Threaded BSP |
| Size Range: | 40-50mm |
Product Description
The BERMAD Top Pilot Pressure Reducing Control Valves with solenoid control offer top performance, compact design, and intuitive plug-and-play operation, thanks to an innovative integrated pilot, equipped with a high-resolution adjustment dial for easy, quick & accurate calibration.
Model 22T-55-3W-X reduces higher upstream pressure to a calibrated constant downstream pressure, regardless of flow fluctuations, and opens fully when line pressure drops below setting. The valve opens & shuts in response to an electric signal.
Features and Benefits
- Line Pressure Driven, Hydraulically Controlled (on/Off)
- Protects downstream systems
- It opens fully when the line pressure drop
- 3-Way Integrated pilot - user-friendly design
- Adjustment knob and high-resolution scale for easy Adjustment knob and high-resolution scale for easy
- Compact “Box-Size” solution
- Solenoid control is easily added or removed
- Uniquely suitable to all size range up to 2”
- Smooth valve opening and closing
- Accurate and stable regulation
- Low operating pressure requirements
- Plastic Globe Hydro-Efficient Valve
- Unobstructed flow path
- Single moving part
- High flow capacity
- Highly durable, chemical and cavitation resistant
- Unitized Flexible Diaphragm and Guided Plug
- Excellent low-flow regulation performance
- Prevents diaphragm erosion and distortion
- Fully Supported & Balanced Diaphragm
- Requires low actuation pressure

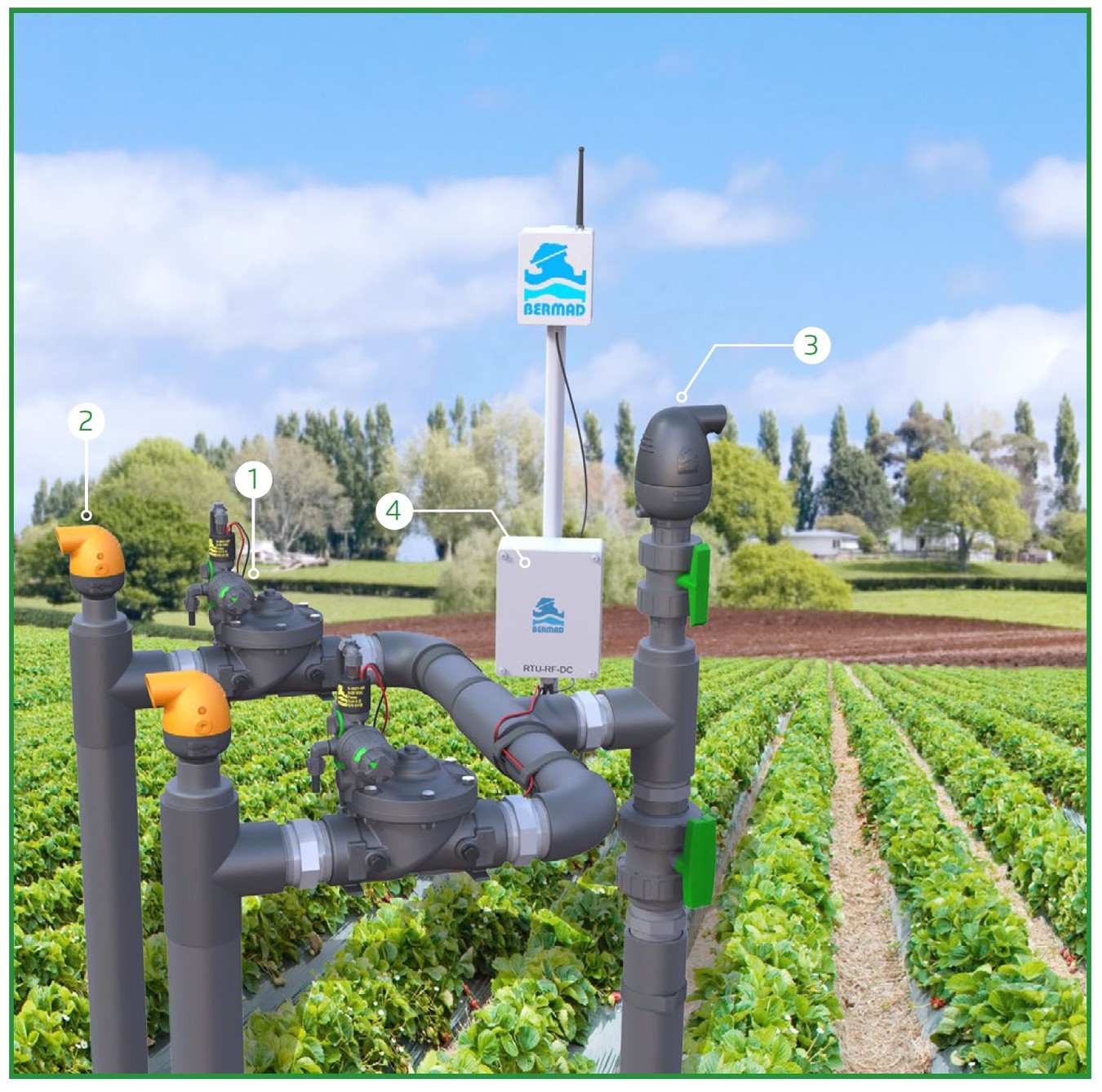

[1] BERMAD Model IR-22T-55-X establishes reduced pressure
zone, protecting laterals and distribution line.
[2] Kinetic Air Valve
[3] Combination Air Valve
[4] Remote Terminal Unit
Typical Application
- Computerized Irrigation Systems
- Systems Subject to Varying Supply Pressure
- Plot valves in Drip & Sprinklers irrigation systems
- Energy Saving Irrigation Systems
Technical Data

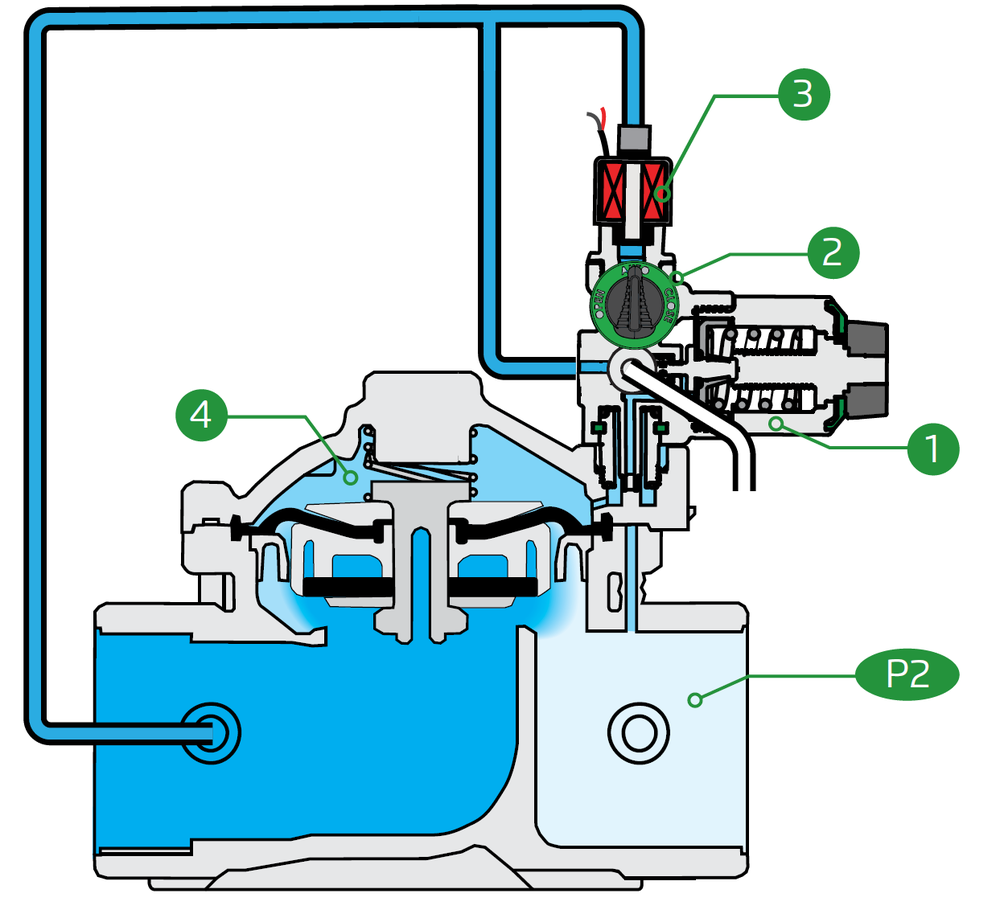

Operation
The Pressure Reducing Pilot 1 commands the Valve to throttle closed should Downstream Pressure P2 rise above the setting and to open fully when it drops below the setting. The Integrated Trio Selector 2 enables manual closing and opening override or electric control, in which the solenoid 3 connects valve control chamber 4 with line pressure to throttle close the valve or vents it through the pilot to open the valve
Materials
Body, Cover and Plug
- Polyamid 6 & 30% GF
Diaphragm
- NBR
Seals
- NBR
Spring
- Stainless Steel
Cover Bolts
- Stainless Steel
Pressure Rating
- 10 bar
Operating Pressure Range
- 0.5-10 bar
Setting Range
- 0.8-6 bar
Setting ranges vary according to specific pilot springs. Please consult Deeco.
Control Accessories

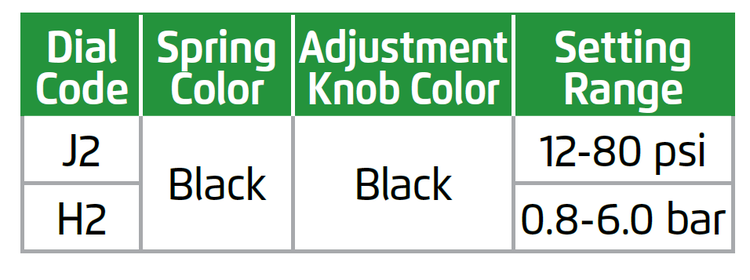

Pilot Spring Range
Solenoid Voltage Range
S-390-T-3W:
Continues voltage:
12VDC, 24VDC, 24VAC
S-392-T-3W:
Latch 9-20VDC

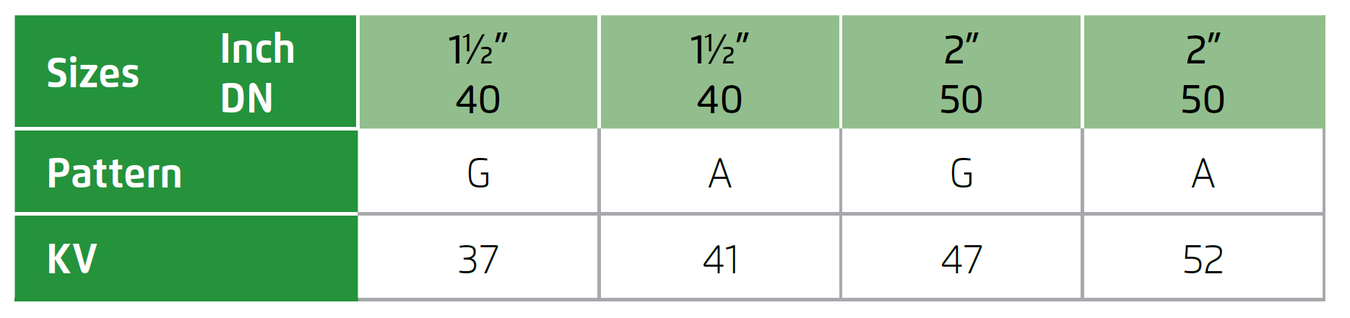

Flow Properties

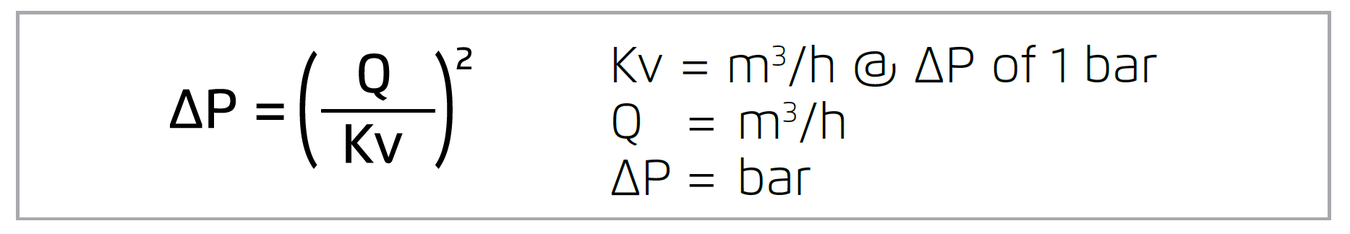

Valve Flow Coefficient

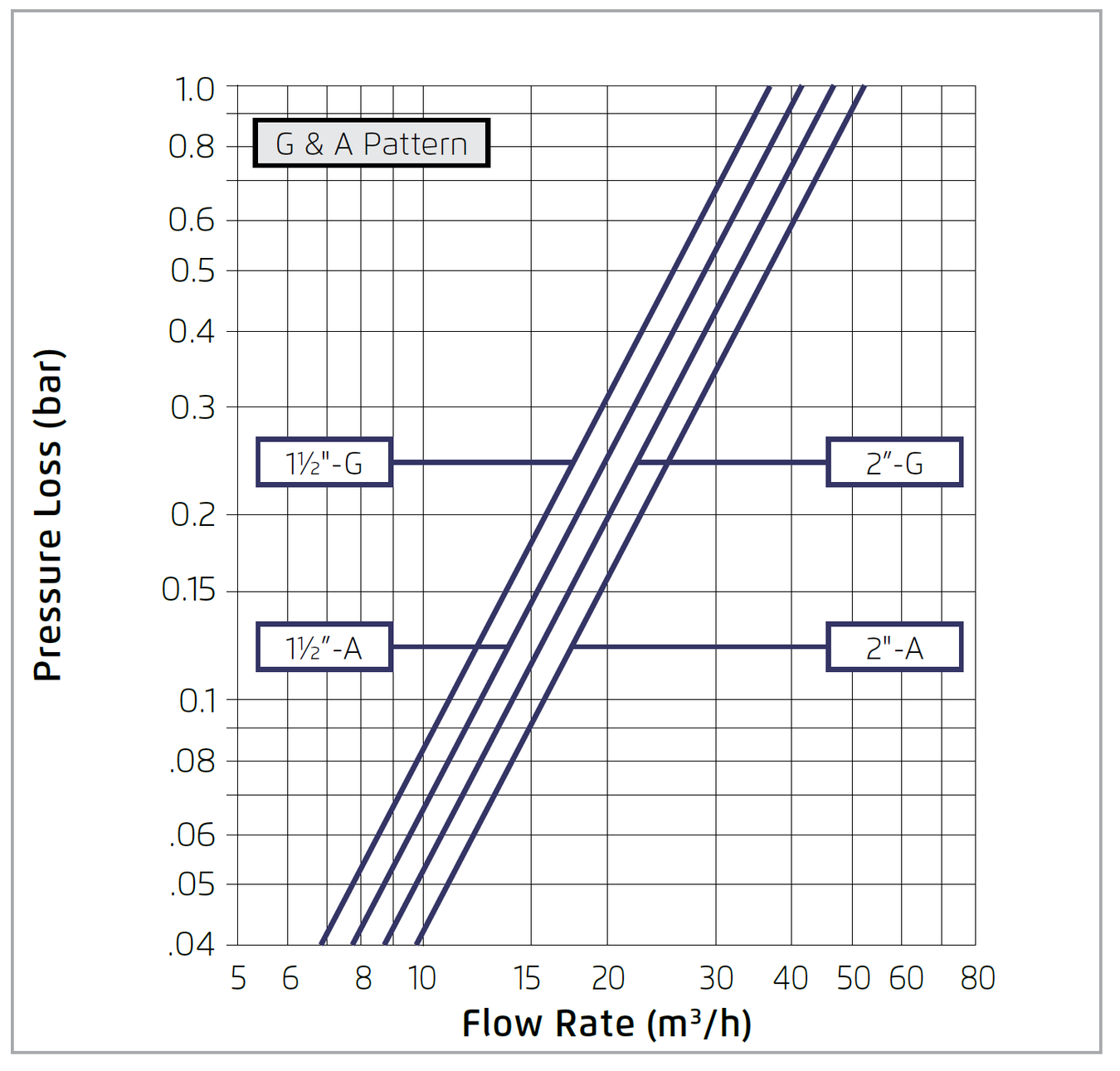

Flow Chart
Technical Specifications

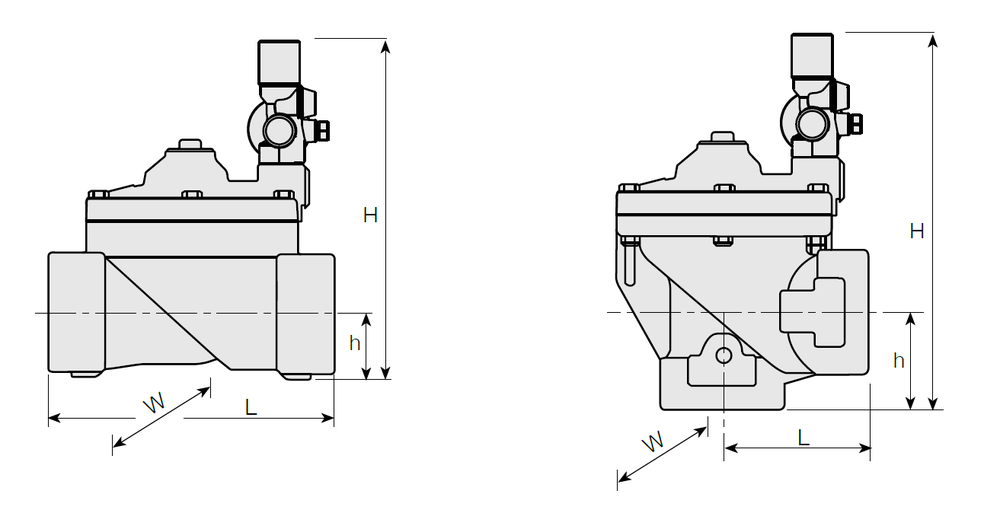

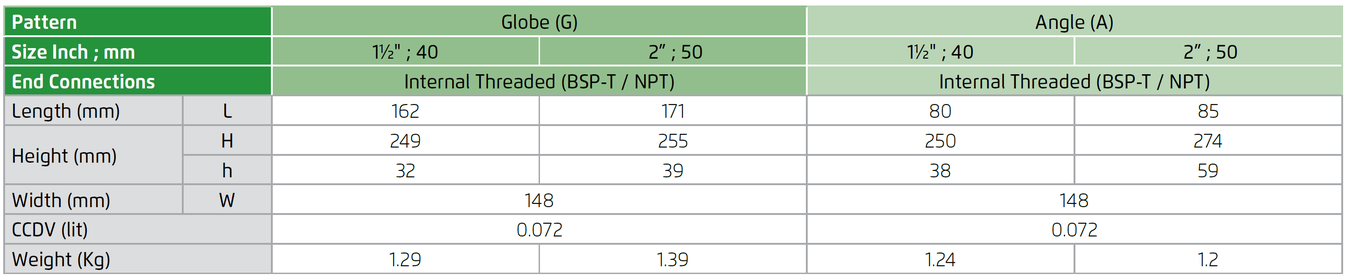

Dimensions and Weights
CCDV = Control Chamber Displacement Volume
Other End Connections are available on request. For dimensions and weights of adapters or valves with adapters please consult with customer service
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
