Bermad - Model 220-55 - 2 Way - Pressure Reducing Solenoid Valve

220-55-2W - Product image
Brand: Bermad
Category: Control Valves, 200 Series
Size Range:

40-50mm

Connection:

Female Threaded BSP

Engineering Data:

Bermad - Model 205 - Basic Hydraulic Valve

Product Description

The BERMAD Model 220-55 2-Way Pressure Reducing Valve with Solenoid Control is a hydraulically operated, diaphragm-actuated control valve that accurately reduces higher upstream pressure to very low and stable preset downstream pressure regardless of fluctuating demand or varying upstream pressure. This model either opens or shuts in response to an electric signal.

Features and Benefits

  • Line Pressure Driven, Electrically Controlled On/Off
    • Protects downstream systems
  • Pressure Reducing Servo Pilot Controlled
    • Dynamic integrated needle valve
    • Easily settable to 0.5 bar; 7 psi
    • Very low hysteresis
  • Plastic Globe Hydro-Efficient Valve
    • Unobstructed flow path
    • Single moving part
    • High flow capacity
    • Highly durable, chemical and cavitation resistant
  • Unitized Flexible Diaphragm and Guided Plug
    • Excellent low-flow regulation performance
    • Prevents diaphragm erosion and distortion
  • Fully Supported & Balanced Diaphragm
    • Requires low actuation pressure
  • User-Friendly Design
    • Simple in-line inspection and service

Bermad - 220-55-2W - Features and Benefits

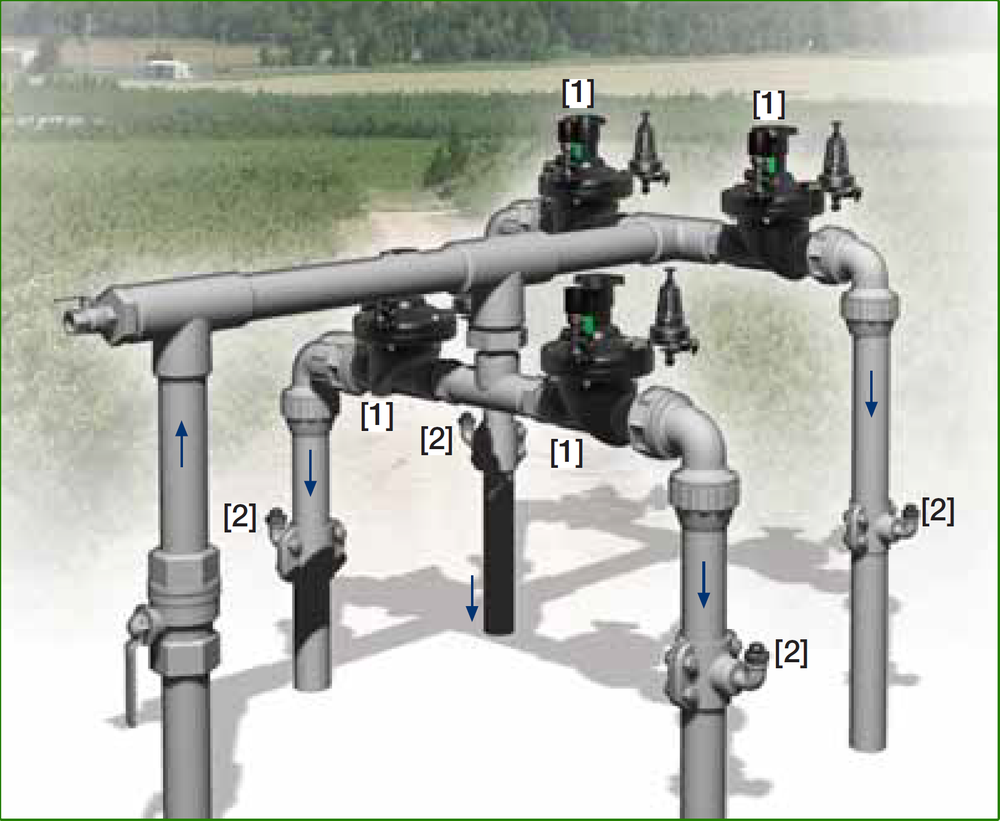

1. BERMAD Model IR-220-55-b opens in response to an electric signal and establishes a reduced pressure zone protecting laterals and distribution line.

2. BERMAD Vacuum Breaker Model ½”-ARV

Typical Applications

  • Computerized Irrigation Systems
  • Drip-Tape Systems
  • Low Set Pressure Applications
  • Remote and/or Elevated Plots
  • Distribution Centers
  • Energy Saving Irrigation Systems

Technical Data

Operation

Bermad - 220-55-2W - Operation

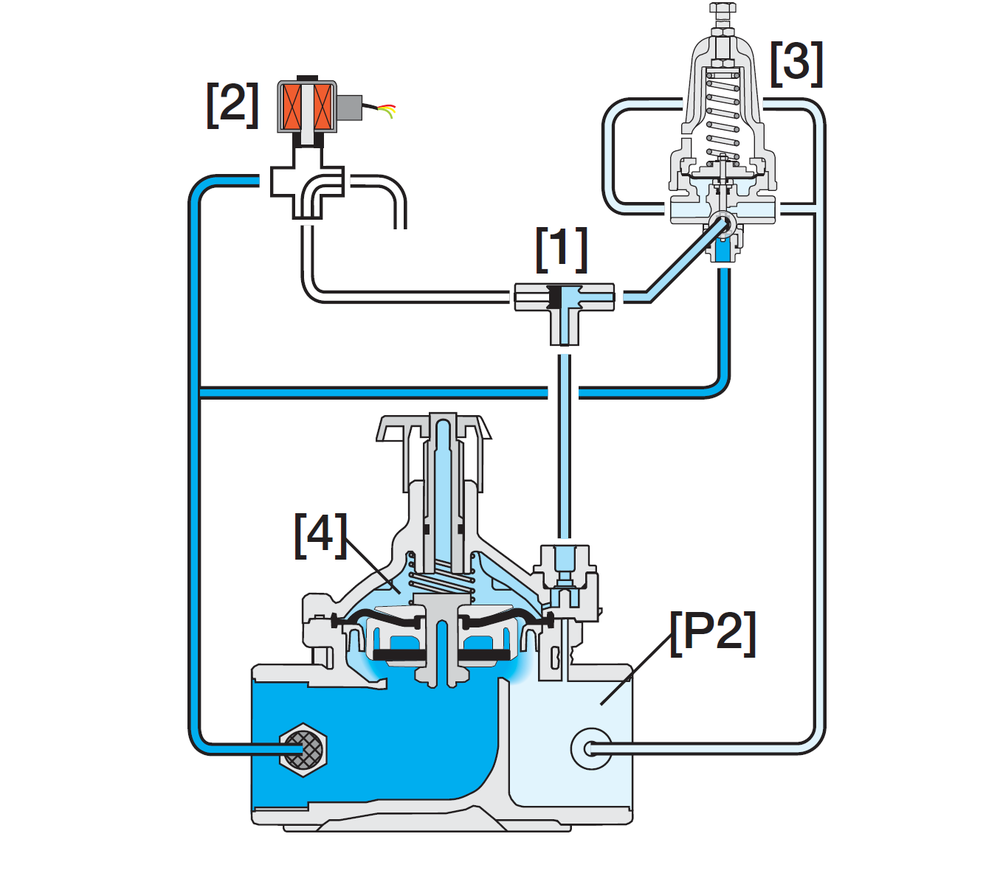

The Shuttle Valve [1] hydraulically connects the Solenoid [2] or the Pressure Reducing Servo Pilot (PRSP) [3] to the Valve Control Chamber [4]. When the solenoid is closed, the PRSP commands the Valve to throttle closed, preventing Downstream Pressure [P2] from rising above the pilot setting. In response to an electric signal, the solenoid switches, directing line pressure through the shuttle valve into the control chamber. This causes the Valve to shut. The solenoid also features local manual closing.

Materials

Body, Cover and Plug

  • Reinforced Nylon

Diaphragm

  • NR

Seals

  • NBR [Buna–N] and NR

Spring

  • Stainless Steel

Cover Bolts

  • Stainless Steel

Control Accessories

  • Plastic

Tubing and Fittings

  • Plastic

Sizes

  • DN40-50

Patterns

  • Globe: DN40 & 50
  • Angle: DN40 & 50

End Connections

  • Female Threaded BSP

Pressure Rating

  • 10 bar

Operating Pressure Range

  • 0.5-10 bar

Setting Range

  • 0.5-1.7 bar

Setting ranges vary according to specific pilot springs. Please consult Deeco

Solenoid Voltage Range

  • S-390 & S-400: 24 VAC, 12VDC, 24 VDC
  • S-392 & S-402: 9-20 VDC, Latch
  • S-982 & S-985: 12-50 VDC, Latch

Other voltages are available

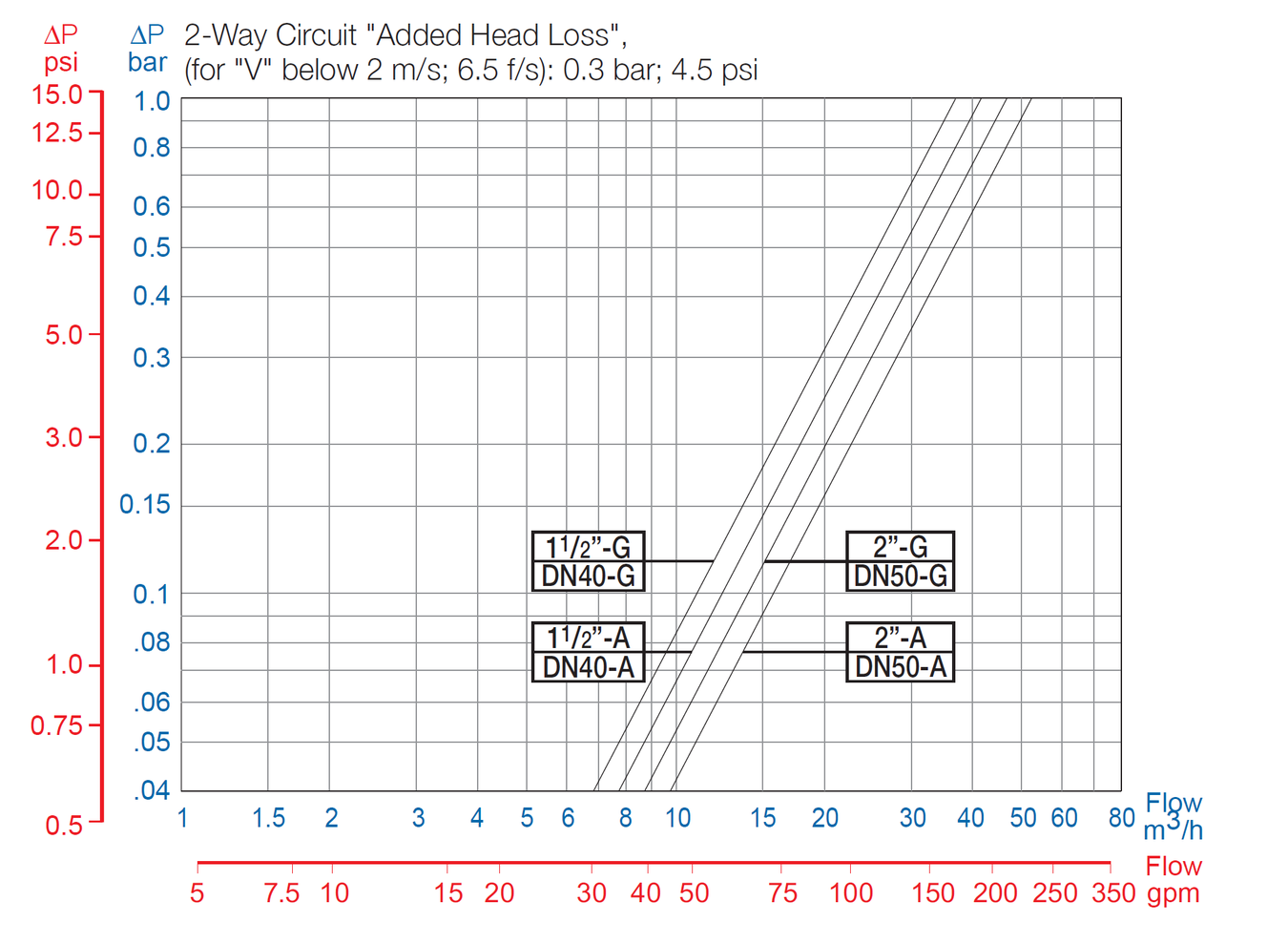

Flow Chart

Bermad - 220-55-2W - Flow Chart

Bermad - 220-55-2W - Flow Chart

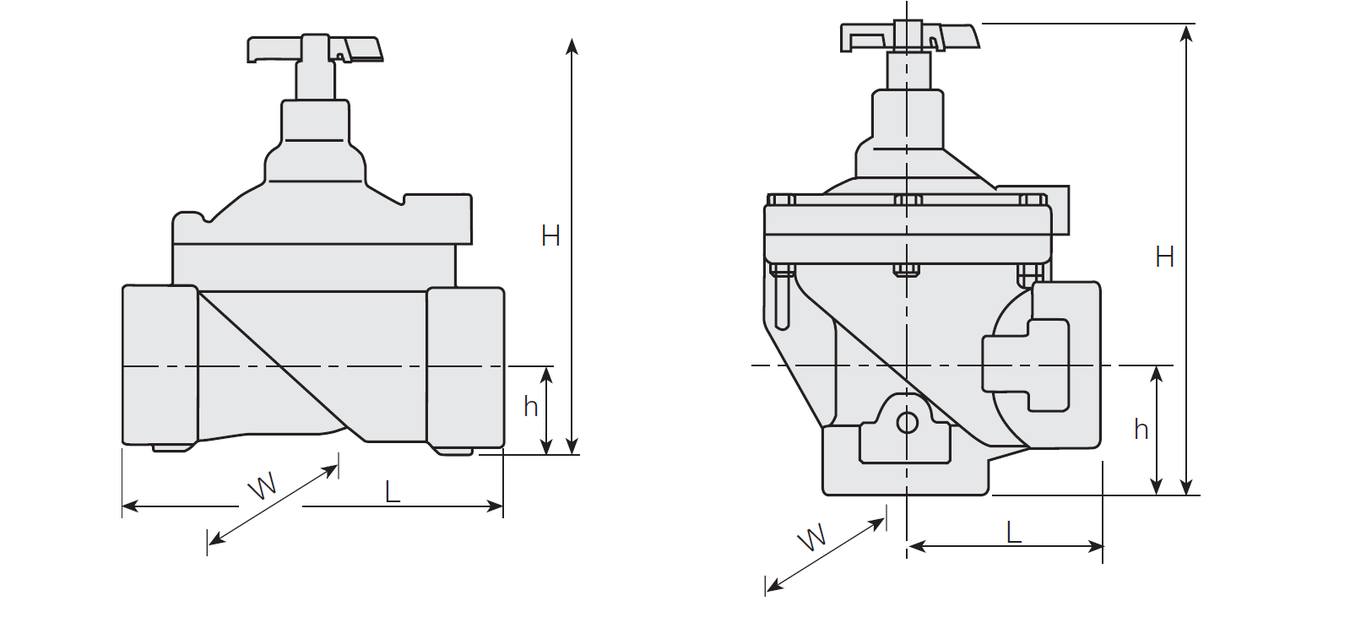

Technical Specifications

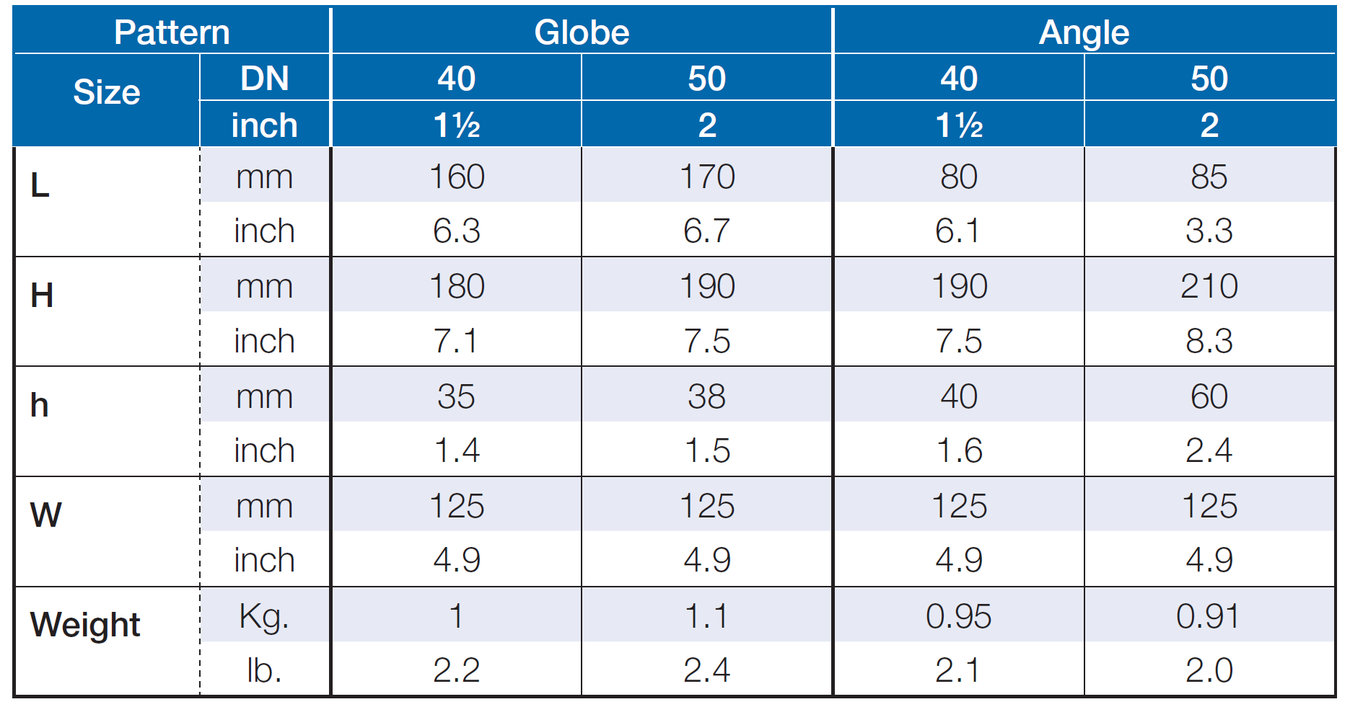

Dimensions and Weights

Bermad - 220-55-2W - Technical Specifications
Bermad - 220-55-2W - Dimensions and Weights

Bermad - 220-55-2W - Dimensions and Weights

Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.

Please consult with Deeco engineers for more information.

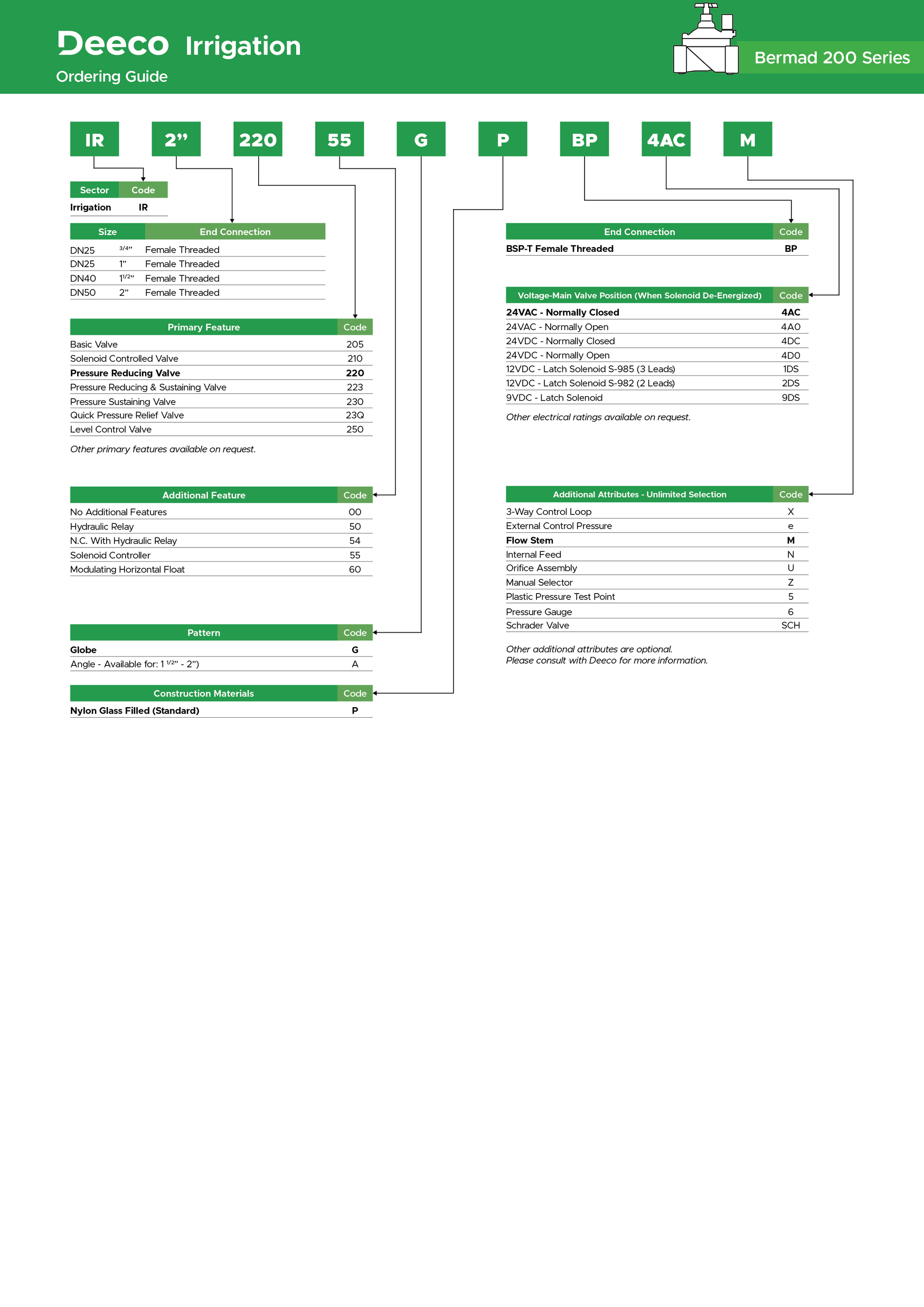

How-to-Order-guide-Bermad-Model-200-Series
