Bermad - Model 220-55-X 3 Way - Pressure Reducing Solenoid Valve

Deeco - Bermad - 220-55-3W - Product Image
Brand: Bermad
Category: Control Valves, 200 Series
Size Range:

40-50mm

Connection:

Female Threaded BSP

Engineering Data:

Bermad - Model 205 - Basic Hydraulic Valve

Product Description

The BERMAD Pressure Reducing Control Valve with Solenoid Control is a hydraulically operated, diaphragm-actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand and opens fully upon line pressure drop. The BERMAD Model 220-55-X 3W either opens or shuts in response to an electric signal.

Features & Benefits

  • Line Pressure Driven, Hydraulically Controlled
    • Protects downstream systems
    • Opens fully upon line pressure drop
    • Electrically controlled On/Off
  • Smooth valve opening and closing
    • Accurate and stable regulation
    • Low operating pressure requirements
  • Plastic Globe Hydro-Efficient Valve
    • Unobstructed flow path
    • Single moving part
    • High flow capacity
    • Highly durable, chemical and cavitation resistant
  • Unitized Flexible Diaphragm and Guided Plug
    • Excellent low flow regulation performance
    • Prevents diaphragm erosion and distortion
  • Fully Supported & Balanced Diaphragm
    • Requires low actuation pressure
  • User-Friendly Design
    • Simple in-line inspection and service

Bermad - 220-55-3W - Features and Benefits

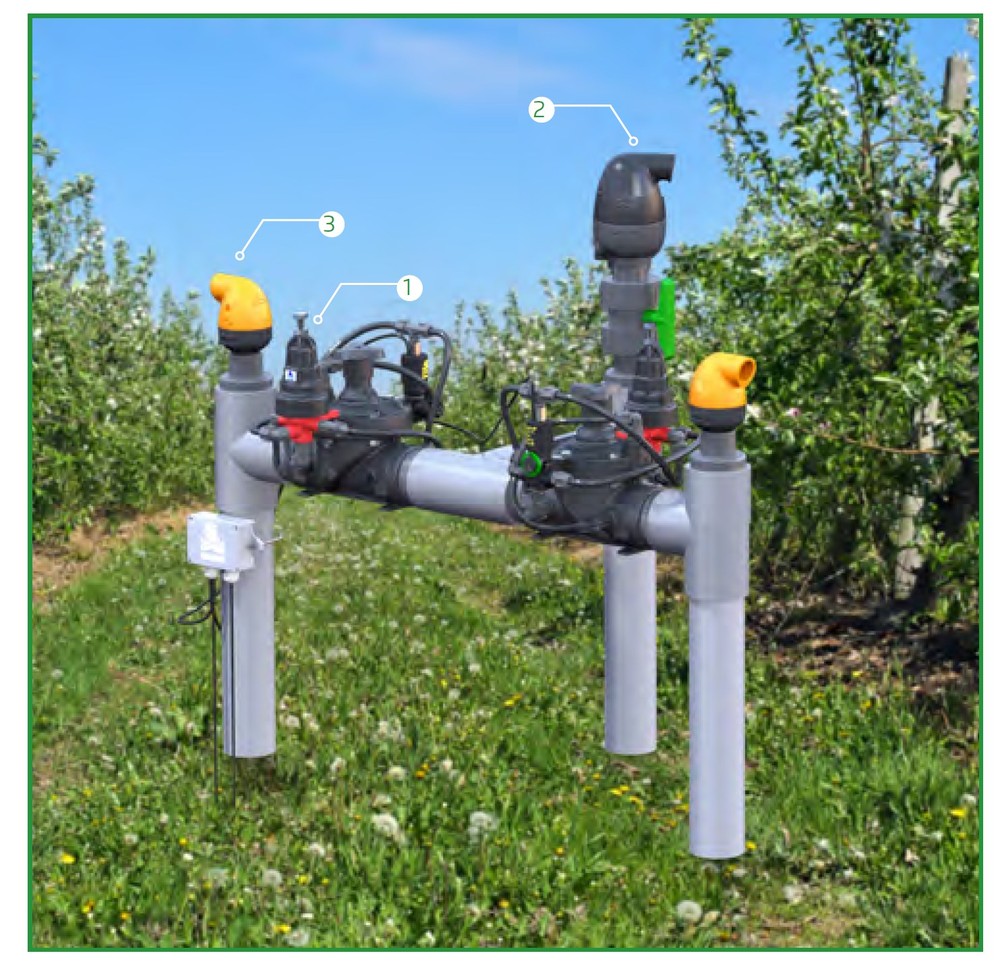

1. BERMAD Model IR-220-55-3W-X opens in response to an electric signal, and establishes a reduced pressure zone protecting laterals and distribution line

2. BERMAD Combination Air Valve Model IR-C10

3. BERMAD Kinetic Air Valve Model IR-K10

Typical Applications

  • Computerized Irrigation Systems
  • Drip Systems
  • Pressure Reducing Stations
  • Greenhouses Irrigation
  • Systems Subject to Varying Supply Pressure
  • Landscape
  • Energy Saving Irrigation Systems

Technical Data

Operation

Bermad - 220-55-3W - Operation

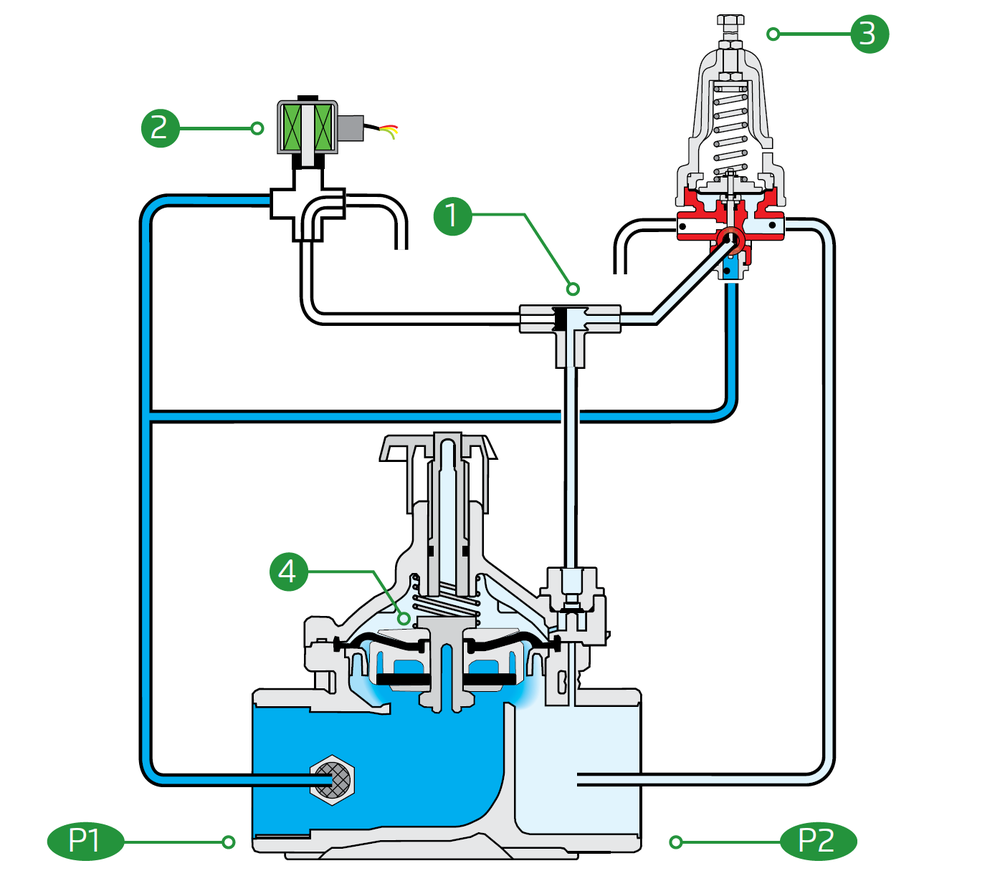

The Shuttle Valve 1 hydraulically connects the Solenoid 2 or the Pressure Reducing Pilot (PRP) 3 to the Valve Control Chamber 4. When the solenoid is closed, the PRP commands the Valve to throttle closed should Downstream Pressure P2 rise above the setting and to open fully when P2 is below the setting. In response to an electric signal, the solenoid switches, directing line pressure through the shuttle valve into the control chamber, shutting the Valve. The solenoid also features local manual closing.

Materials

Body & Cover

  • Black PA6+33%GF

Diaphragm

  • NBR

Seals

  • NBR

Spring

  • Stainless Steel

Cover Bolts

  • Stainless Steel

Control Accessories

  • Plastic

Tubing and Fittings

  • Plastic

Sizes

  • DN40-50

Patterns

  • Globe: DN40 & 50
  • Angle: DN40 & 50

End Connections

  • Female Threads BSP; NPT

Pressure Rating

  • 10 bar

Operating Pressure

Range

  • 0.5-10 bar

Setting Range

  • 1-7 bar

Setting ranges vary according to specific pilot springs. Please consult Deeco.

Solenoid Voltage Range

  • S-390 & S-400: 24 VAC, 12VDC, 24 VDC
  • S-392-T & S-402: 9-20 VDC, Latch
  • S-982 & S-985: 12-50 VDC, Latch

Other voltages available

Flow Properties

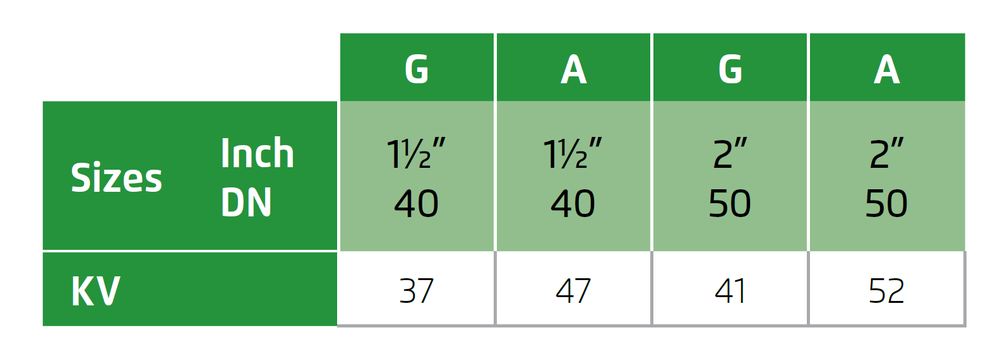

Bermad - 220-55-3W - Flow Properties

Bermad - 220-55-3W - Flow Properties

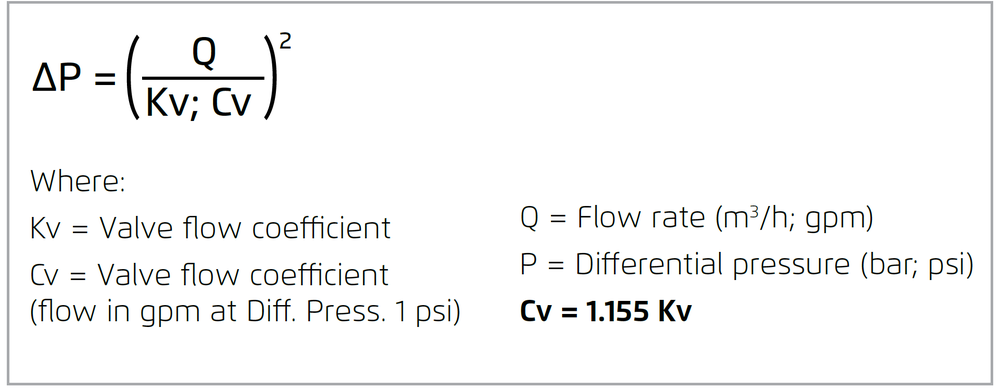

Valve Flow Coefficient, Kv or Cv

Bermad - 220-55-3W - Valve Flow Coefficient

Bermad - 220-55-3W - Valve Flow Coefficient

Flow Chart

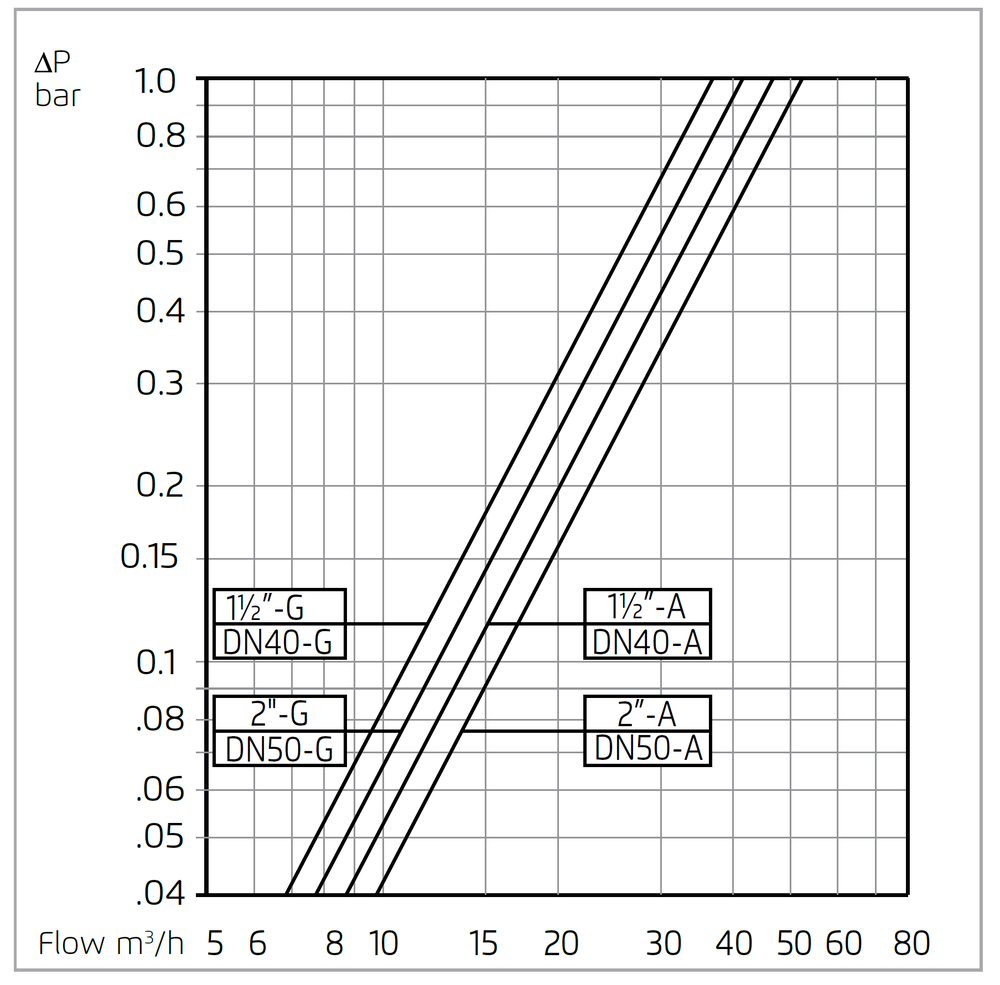

Bermad - 220-55-3W - Flow Chart

Bermad - 220-55-3W - Flow Chart

Technical Specifications

Dimensions and Weights

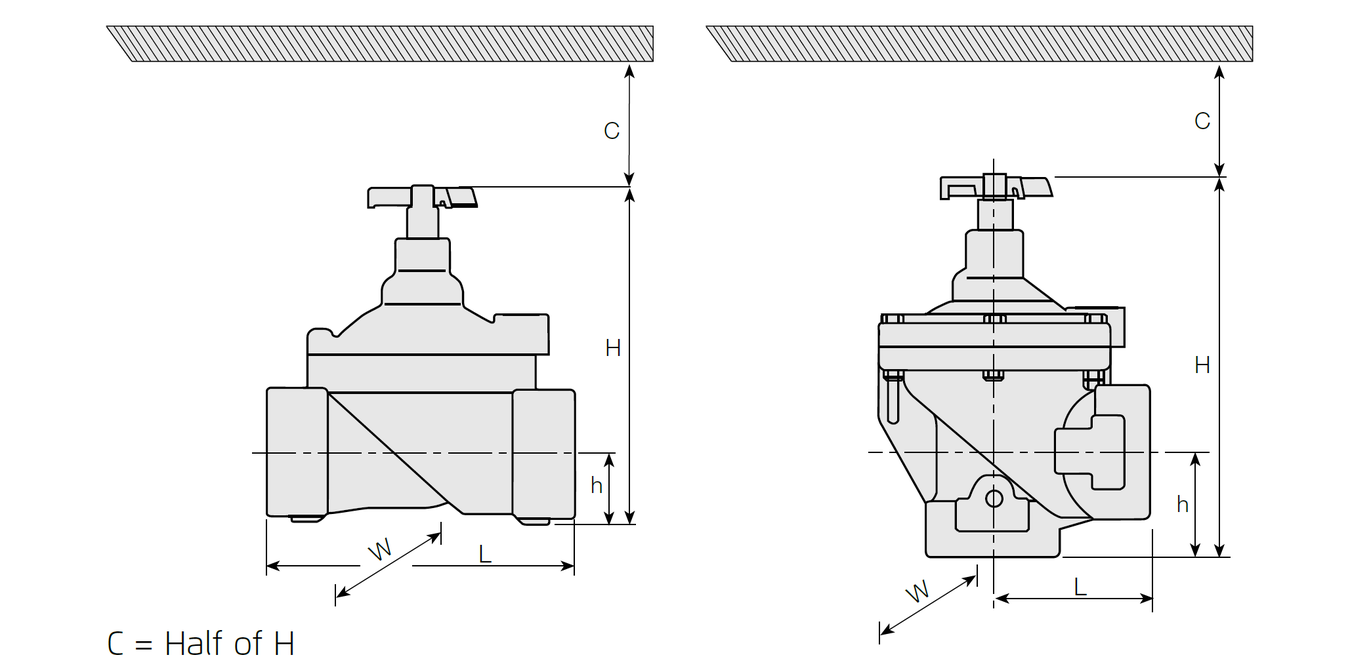

Bermad - 220-55-3W - Technical Specifications

Bermad - 220-55-3W - Technical Specifications

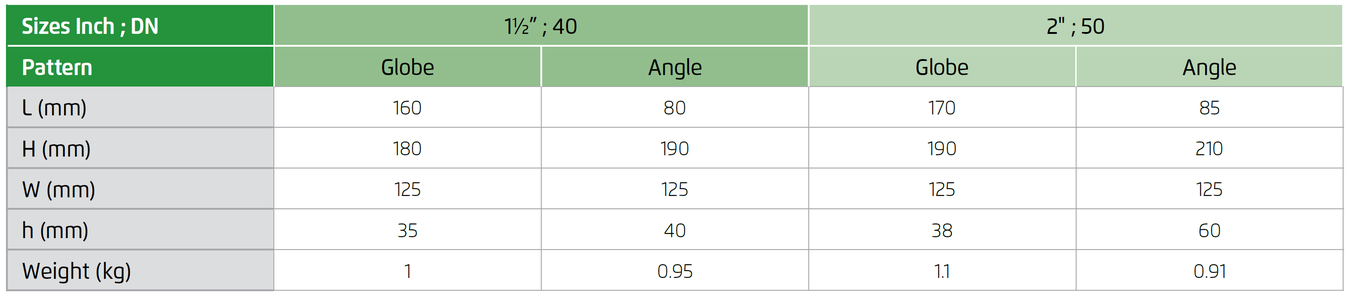

Bermad - 220-55-3W - Dimensions and Weights
