Bermad - Model 205 - Basic Hydraulic Valve

205-basic valve - Image
Brand: Bermad
Category: Control Valves, 200 Series
Size Range:

20-50mm

Connection:

Female Threaded BSP

Product Description

The BERMAD Model 205 Hydraulic Control Valve is a hydraulically operated, diaphragm-actuated control valve that opens and shuts in response to a local or remote pressure command.

Features & Benefits

  • Line Pressure Driven, Hydraulically Controlled
    • Hydraulically controlled On/Off
  • Plastic Globe Hydro-Efficient Valve
    • Unobstructed flow path
    • Single moving part
    • High flow capacity
    • Highly durable, chemical and cavitation resistant
  • Unitized Flexible Diaphragm and Guided Plug
    • Excellent low-flow regulation performance
    • Prevents diaphragm erosion and distortion
  • Fully Supported & Balanced Diaphragm
    • Requires low actuation pressure
  • User-Friendly Design
    • Simple in-line inspection and service
Bermad - 205 - Features and Benefots

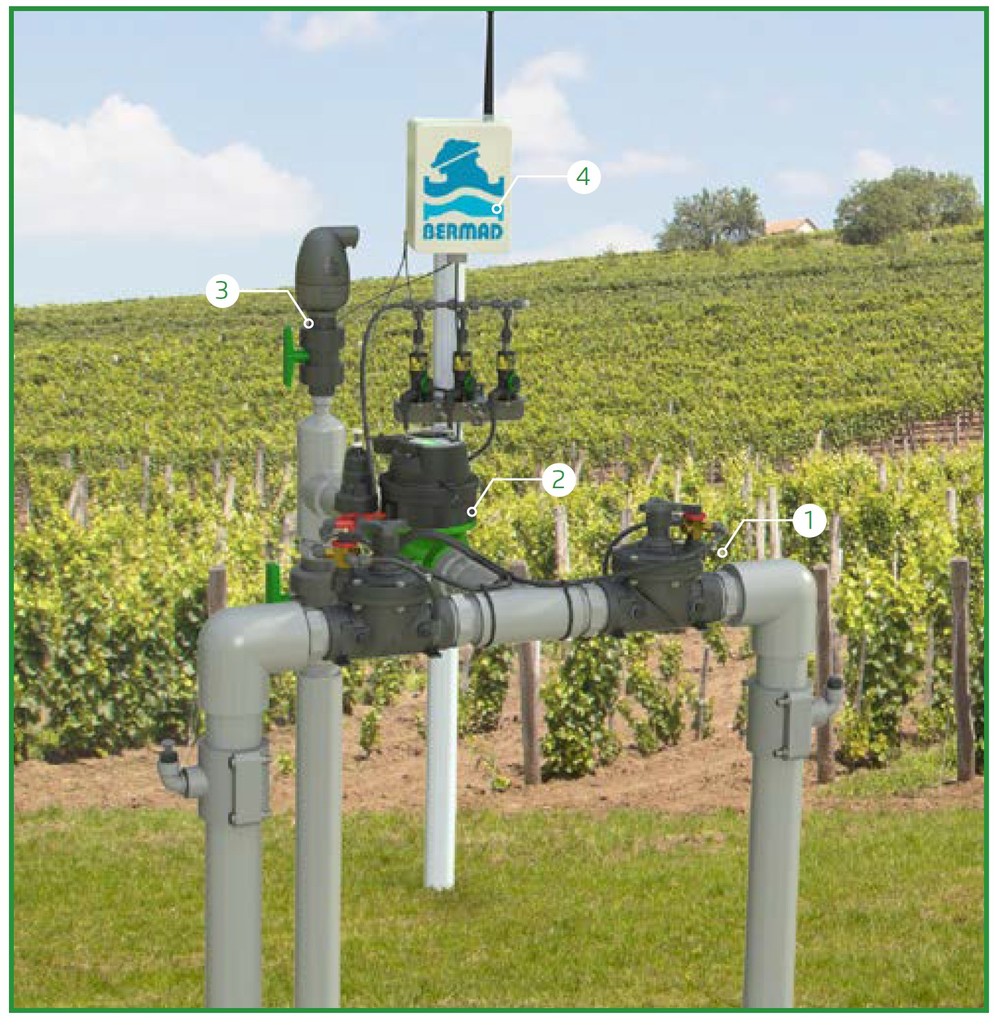

1. BERMAD Model IR-205-Z opens upon local manual command.

2. BERMAD Pressure Reducing Hydrometer Model IR-920-M0-KXZ

3. BERMAD Combination Air Valve Model IR-C10

4. RTU

Typical Applications

  • Computerized Irrigation Systems
  • Distribution Centers
  • Systems Subject to Varying Supply Pressure
  • Landscape

Technical Data

Operation

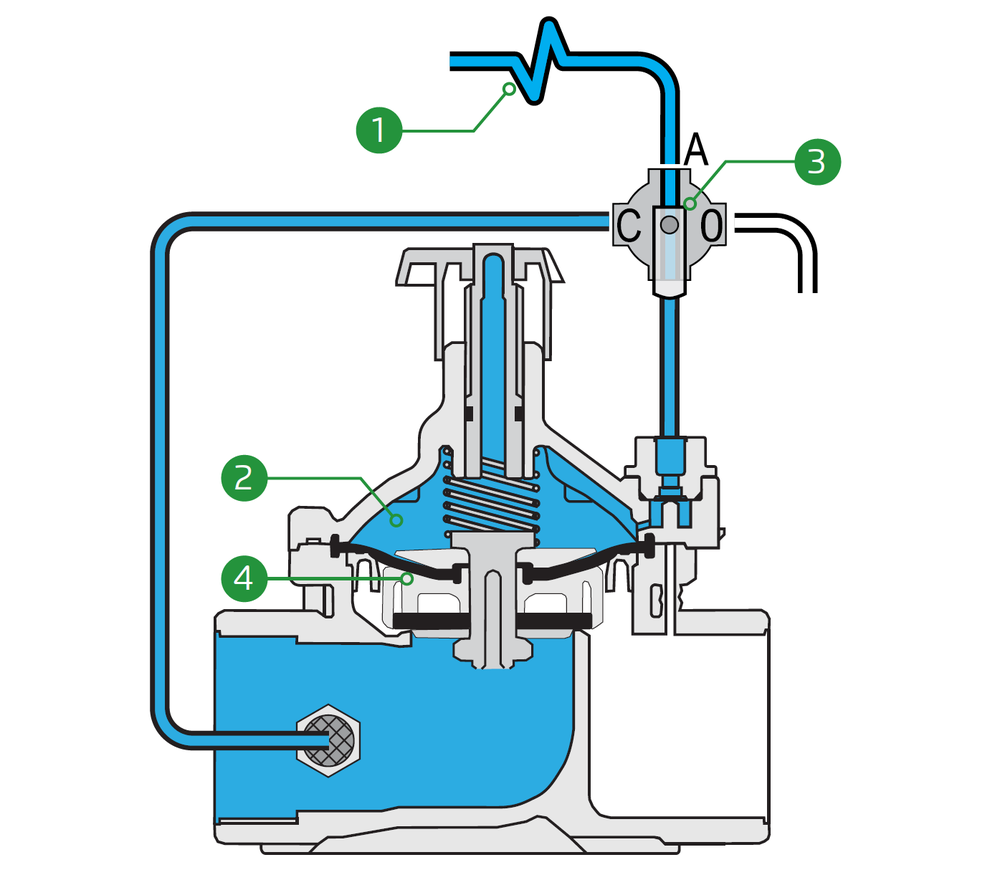

Bermad - 205 - Operation

Hydraulic Command 1 is applied to Control Chamber 2 through the Manual Selector 3. This creates a superior closing force that moves the Diaphragm Assembly 4 to a closed position. Discharging of pressure from the control chamber, by turning the manual selector, causes the line pressure acting on the lower side of the diaphragm assembly to move the valve to an open position

Materials

Body, Cover and Plug

  • Polyamid 6 & 30% GF

Diaphragm

  • NBR

Seals

  • NBR

Spring

  • Stainless Steel

Cover Bolts

  • Stainless Steel

Pressure Rating

  • 10 bar.

Operating Pressure Range

  • 0.5-10 bar.

Control Accessories

Tubing and Fittings

  • Plastic

Flow Properties

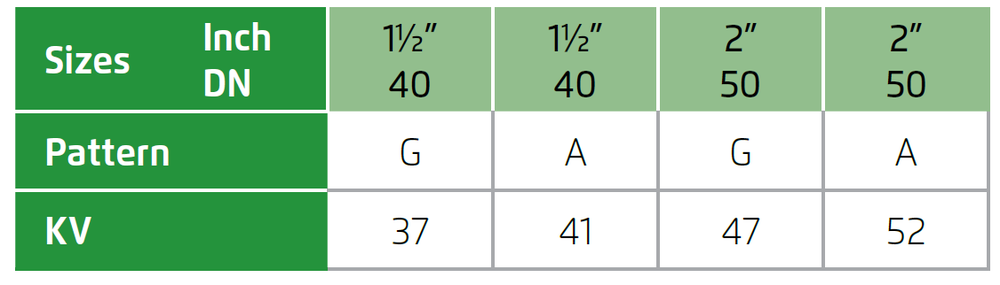

Bermad - 205 - Flow Properties

Bermad - 205 - Flow Properties

Valve Flow Coefficient

Bermad - 205 - Valve Coefficient

Bermad - 205 - Valve Coefficient

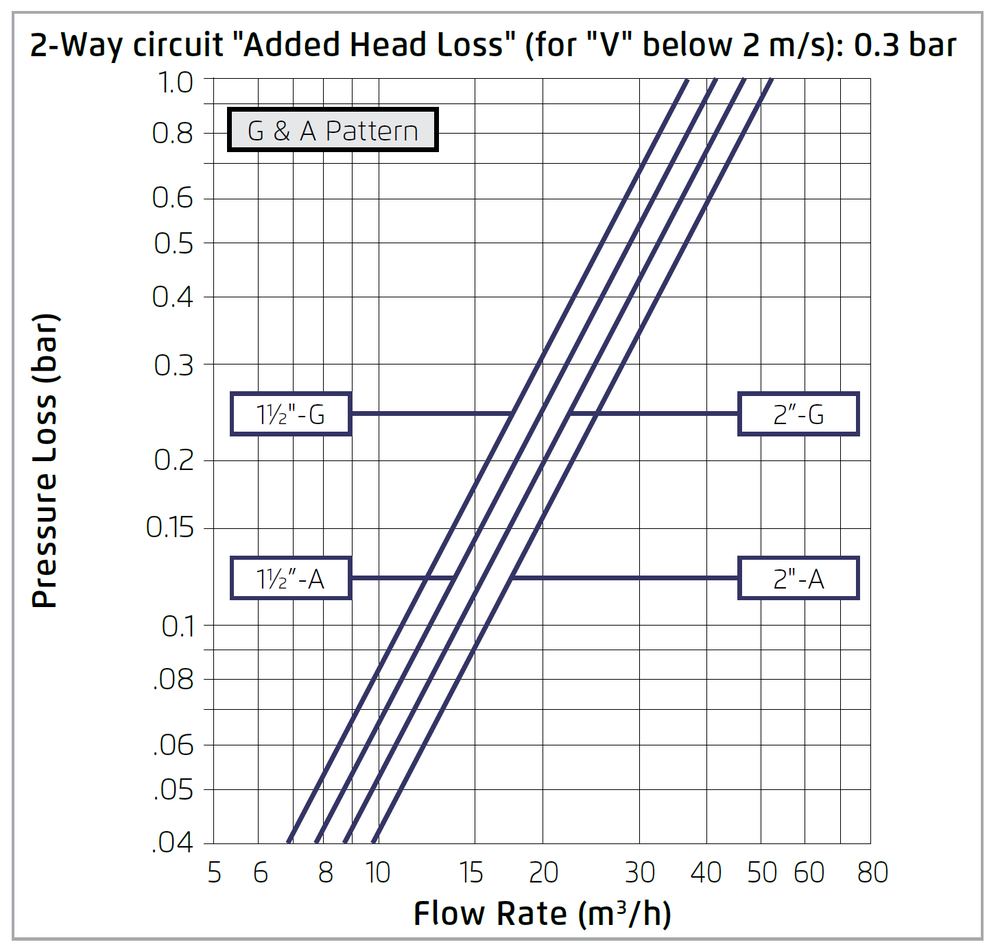

Flow Chart

Bermad - 205 - Flow Chart

Bermad - 205 - Flow Chart

Technical Specifications

Dimensions & Weights

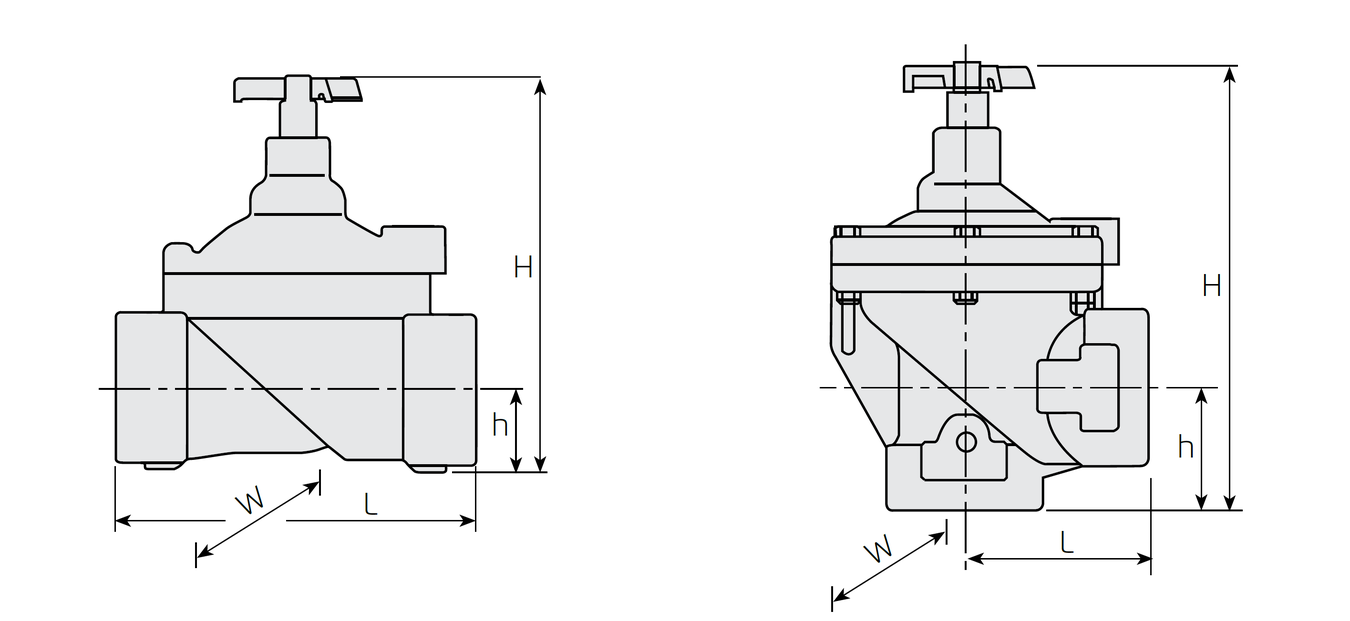

Bermad - 205 - Technical Specification

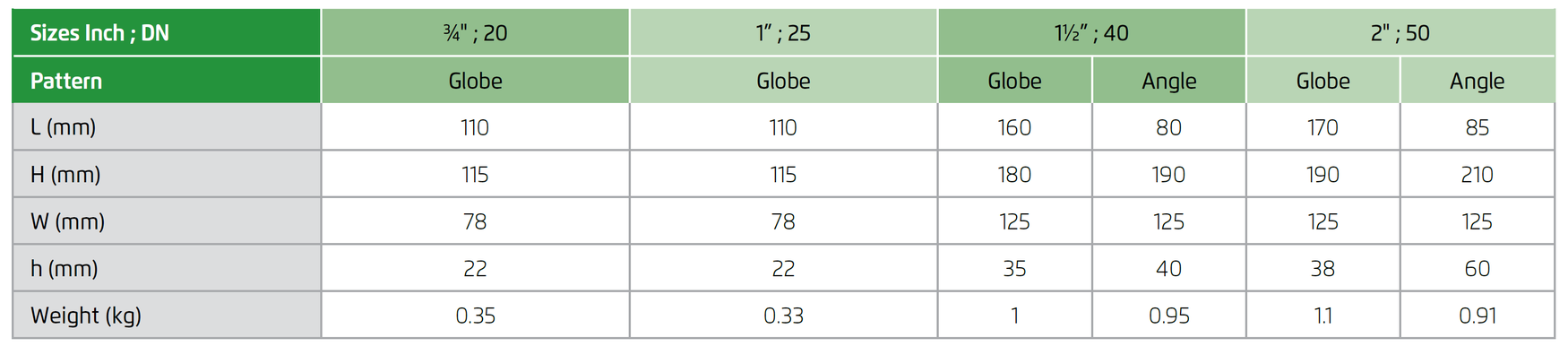

Bermad - 205 - Dimensions and Weight

Bermad - 205 - Dimensions and Weight

Spare Parts

Pos. Product Code Size Product Description

1

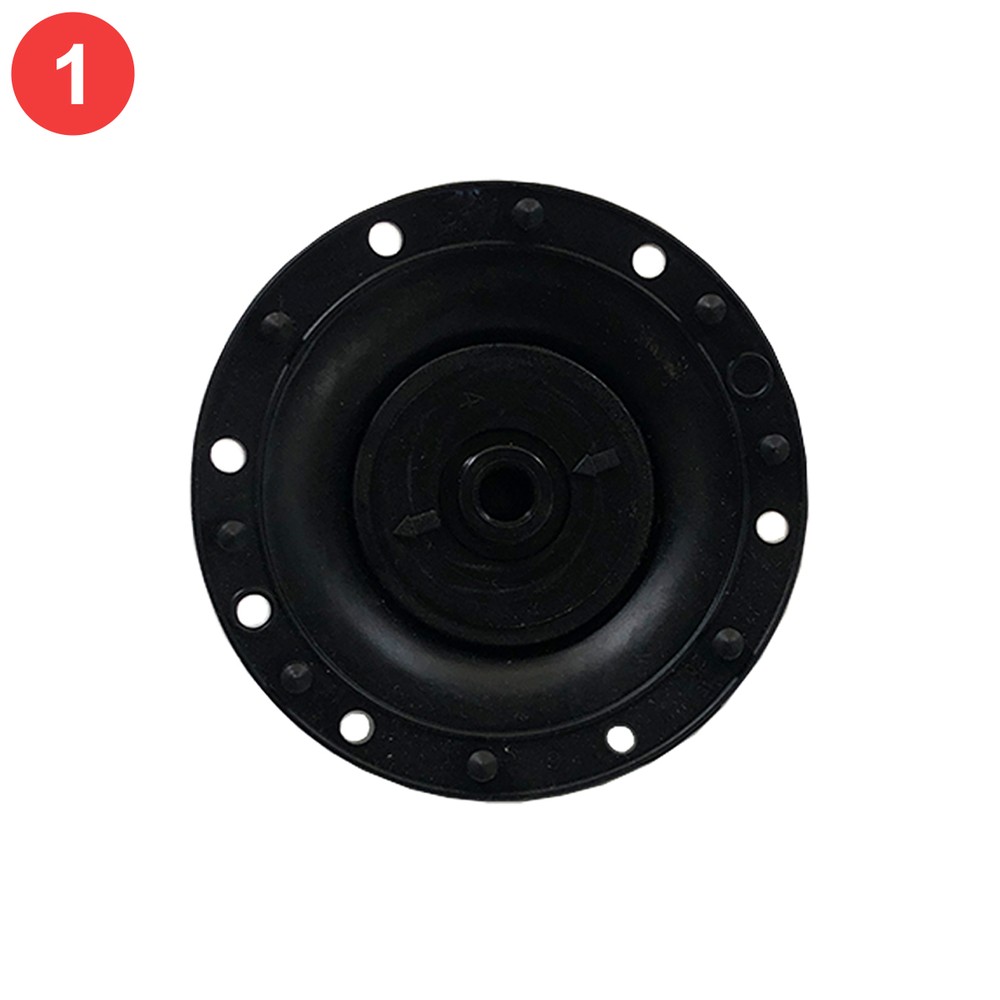

205020G-4

20-25mm

Diaphragm Assembly for 200 Series Hydraulic Valve

2

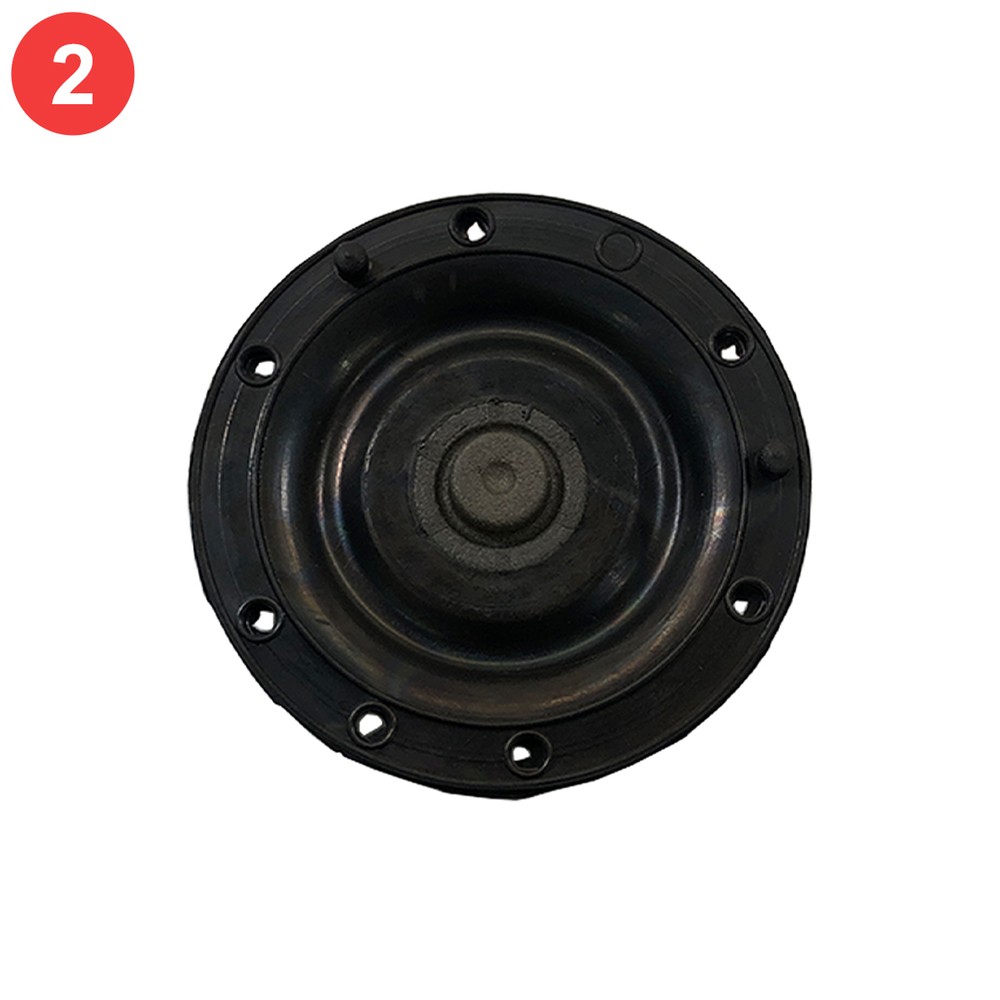

205020G-4MC

20-25mm

Diaphragm Assembly - Multi Cycle for 200 Series Hydraulic Valve

3

205040-11

40-50mm

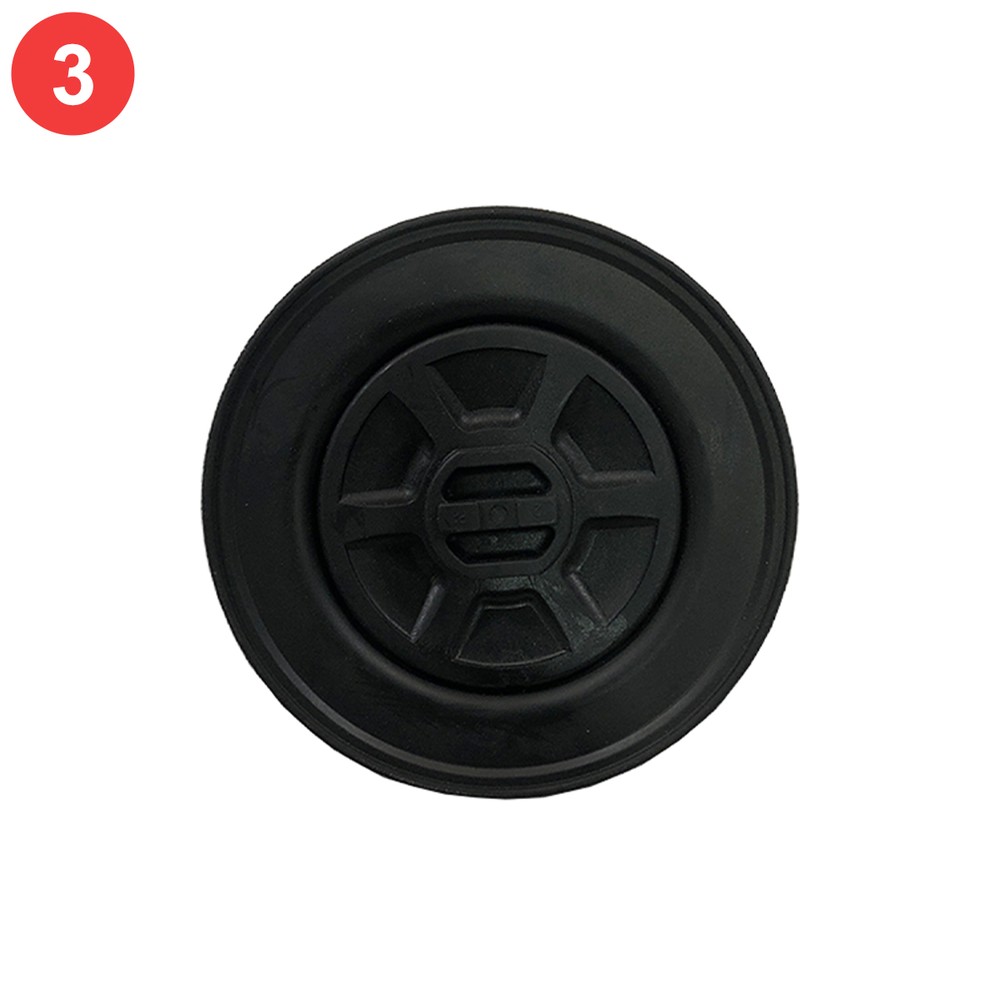

Diaphragm Assembly for 200 Series Hydraulic Valve

4

210020G-4

20-25mm

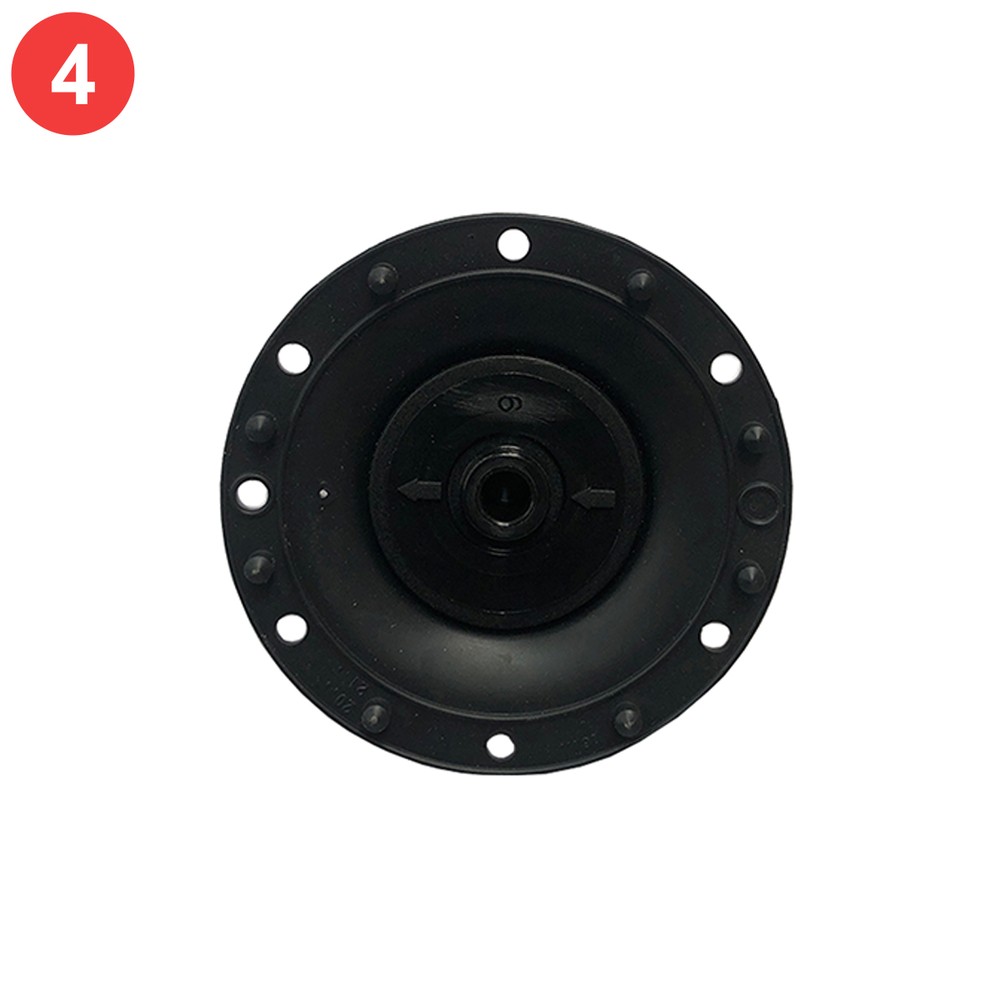

Diaphragm Assembly for 210 Series Solenoid Valve

5

210040-29

40-50mm

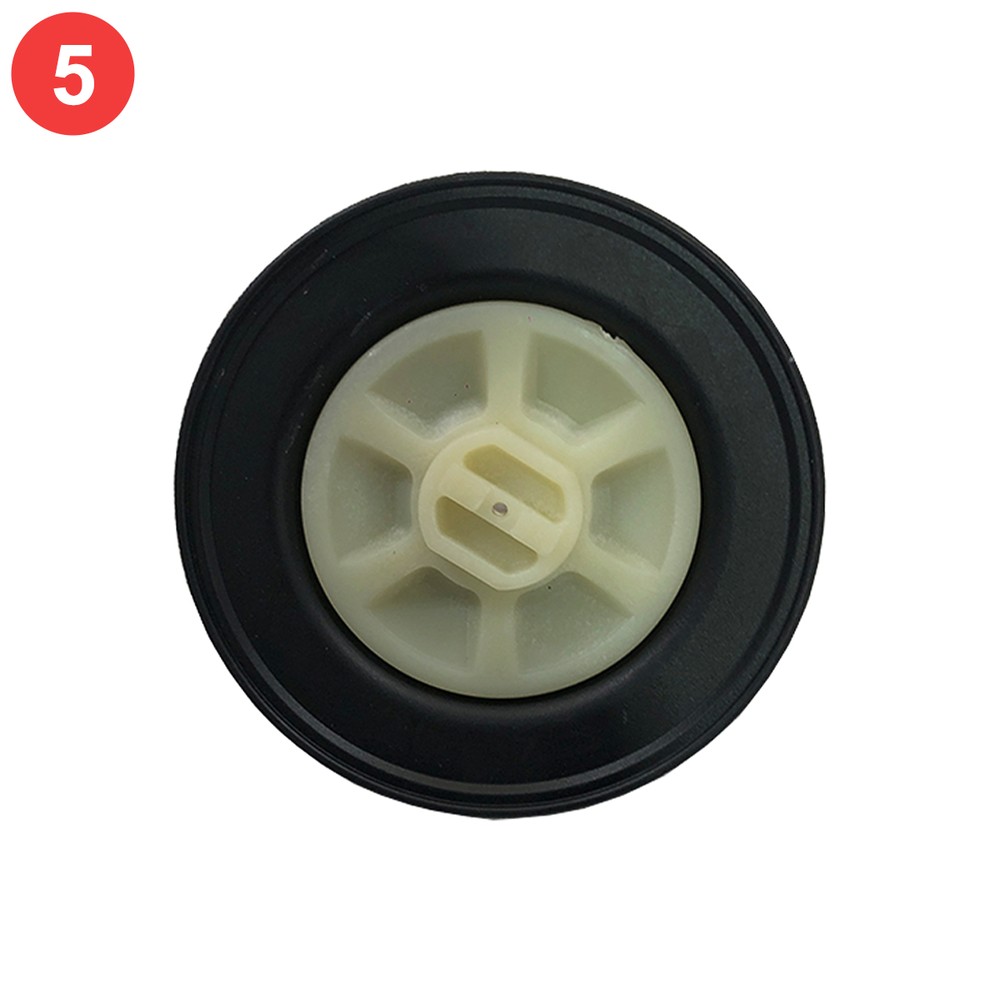

Diaphragm Assembly for 210 Series Solenoid Valve

Pos. Product Code Size Product Description

1

210020G-2 TRIO

20-25mm

Cover for 210 Series Solenoid Valve - TRIO

2

210040-18 TRIO

40-50mm

Cover for 210 Series Solenoid Valve - TRIO

Pos. Product Code Size Product Description

1

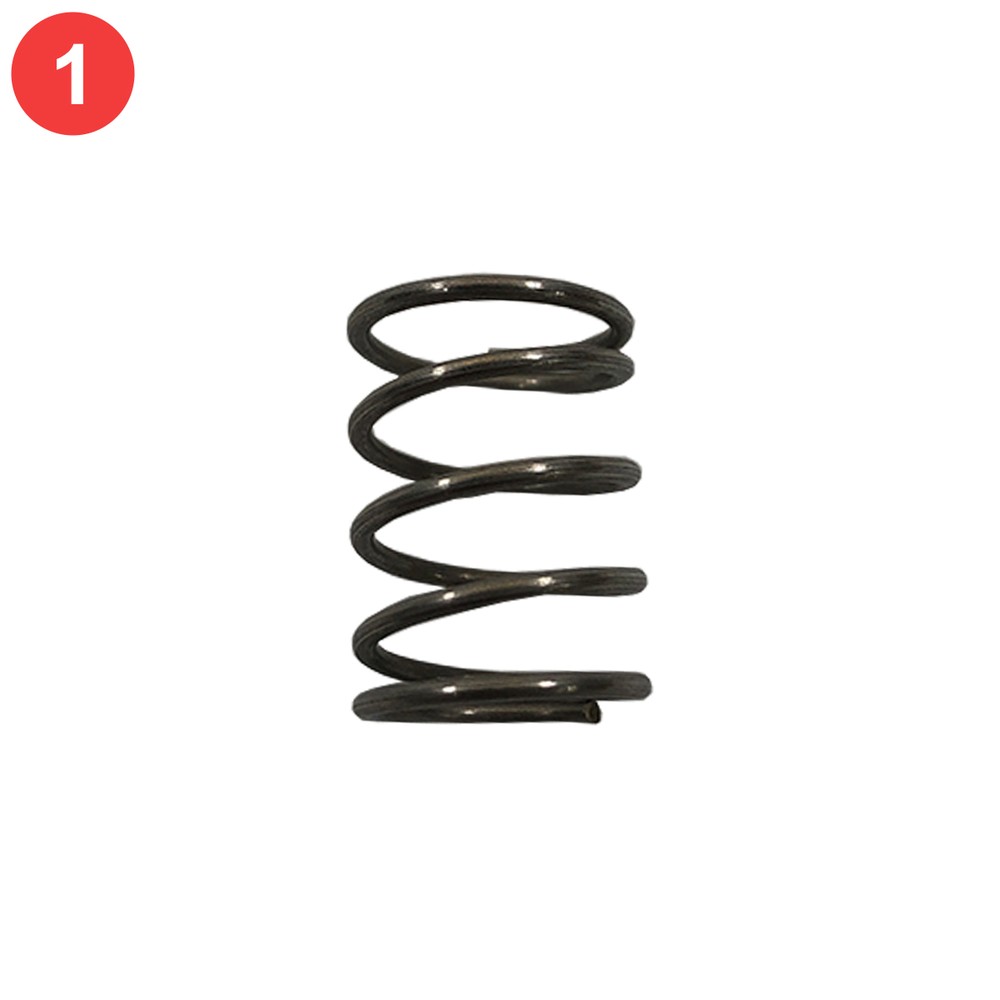

205020G-5

20-25mm

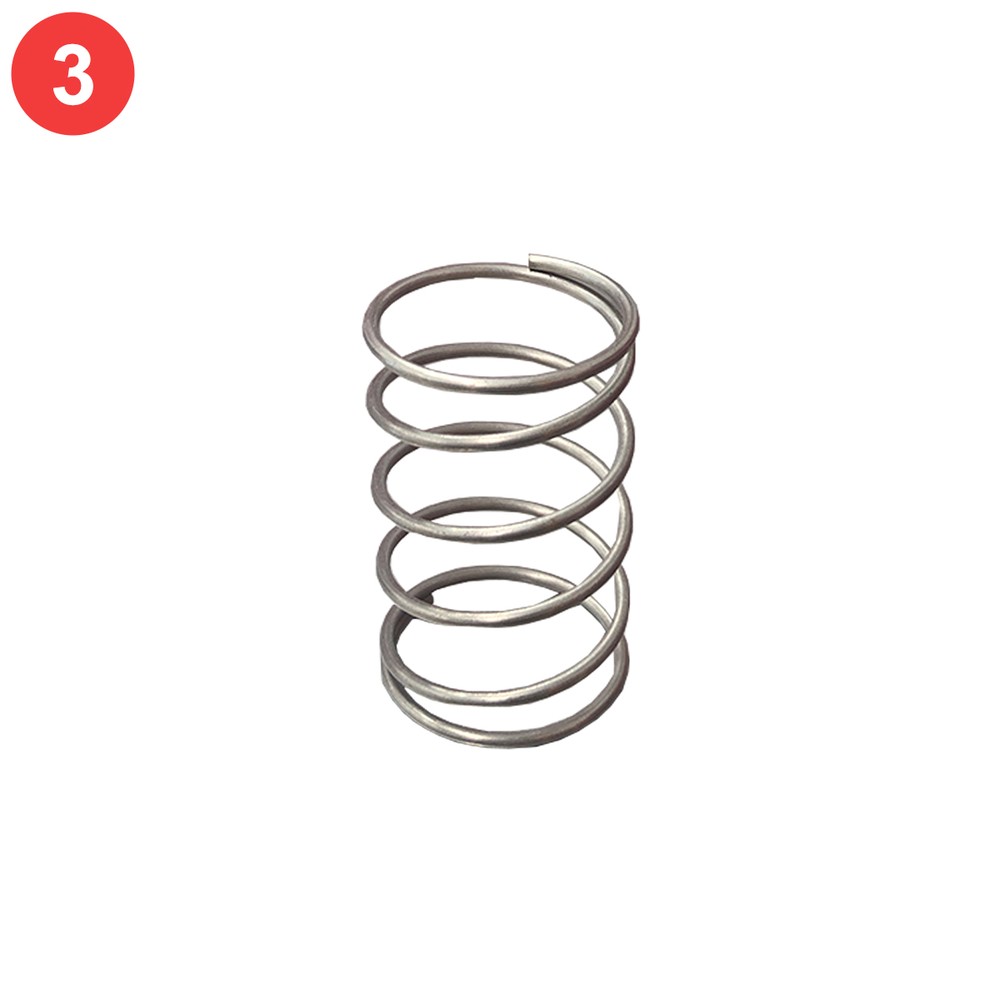

Spring - 205/210 Series Valve

2

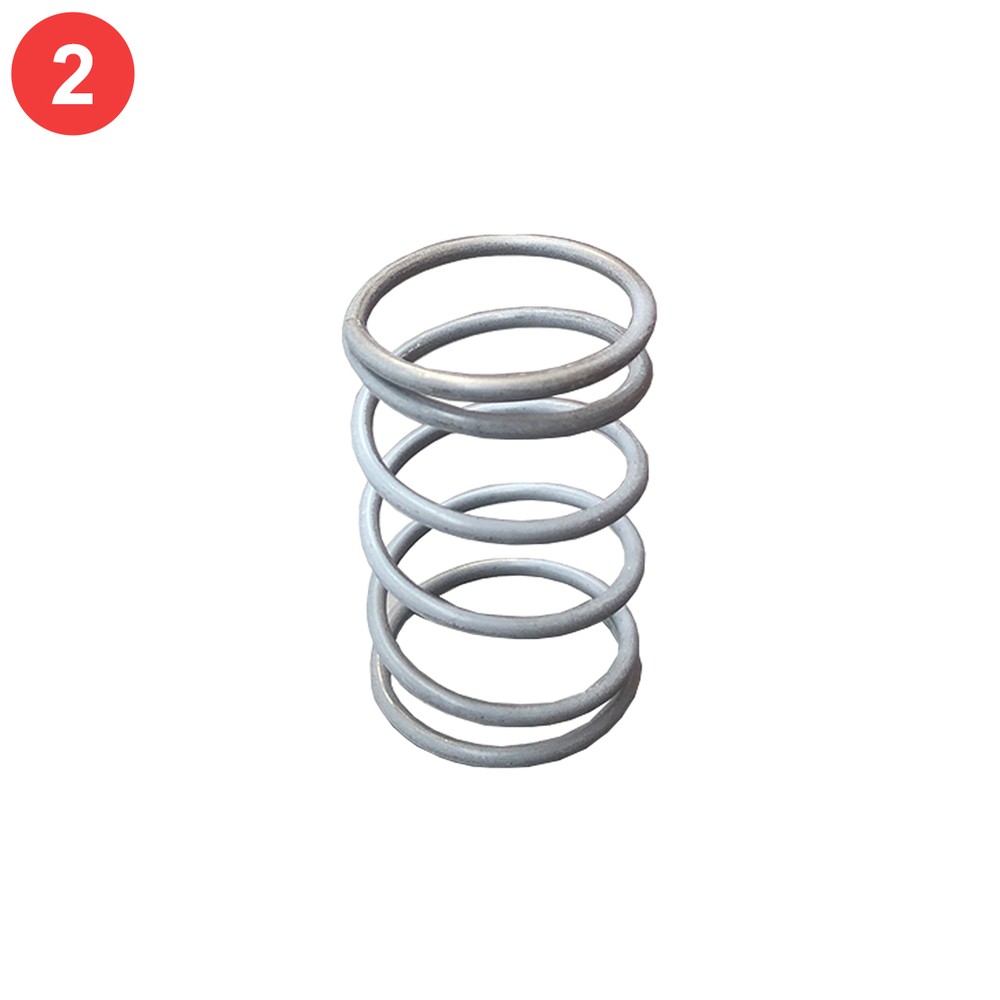

405040-4

40-50mm

Spring - 205/210 Series Valve (Also 40mm 405)

3

210040-16

40-50mm

Spring Light - 210 Series Solenoid Valve

Pos. Product Code Description

1

FT8

Bermad 8mm PE Control Valve Tubing - Per Meter

2

FT18

Bermad 8 mm Straight Tube/Thread 1/8"

3

FT28

Bermad 8mm - Elbow Tube/Thread 1/8"

4

FT58

Bermad 8mm Elbow Tube/Thread 1/4"

5

FT88

Bermad 8mm Connector Tube/Tube

6

FT98

Bermad 8mm Tee Connector Tube/Tube/Tube

7

FT98/1

Bermad 8mm Tee Connector Tube/Thread/Tube. 1/8"

8

FT98/1-FT

Bermad 8mm Tube Orifice Tee Connector. Tube/Thread/Tube. 1/8" with 1.0mm restrictor

9

FT48

Bermad Thread/Thread Reducer. 1/4"M x 1/8"F

10

FT38

Bermad Plug. Threaded BSP 1/8"

11

FT34

Bermad Plug. Threaded BSP 1/4"

12

FTPS8

Bermad 8mm Pressure Selector. Tee Tube/Tube/Tube

13

FF8PLR

Bermad 1/4" x 1/8" Inline Finger Filter Plastic

14

FF8SR

Bermad 1/4" Inline Finger Filter Stainless

Standard Adjustment Range 1-7 Bar with other spring ranges available on request

Pos. Product Code Description

1

PG63/6

Stainless Cased Oil Filled Pressure Gauge. 600kPA / 90PSI

2

PG63/10

Stainless Cased Oil Filled Pressure Gauge. 1000kPA / 150 PSI

3

PG63/16

Stainless Cased Oil Filled Pressure Gauge. 1600kPA / 230 PSI

4

0310

Ravit Pressure Gauge Probe / Needle

5

2020

Ravit Pressure Test Point / Valve

6

SCHRADER

Schrader Test Point

7

SCHRADER GF

Schrader pressure Gauge Fitting

Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.

Please consult with Deeco engineers for more information.

Ordering Guide

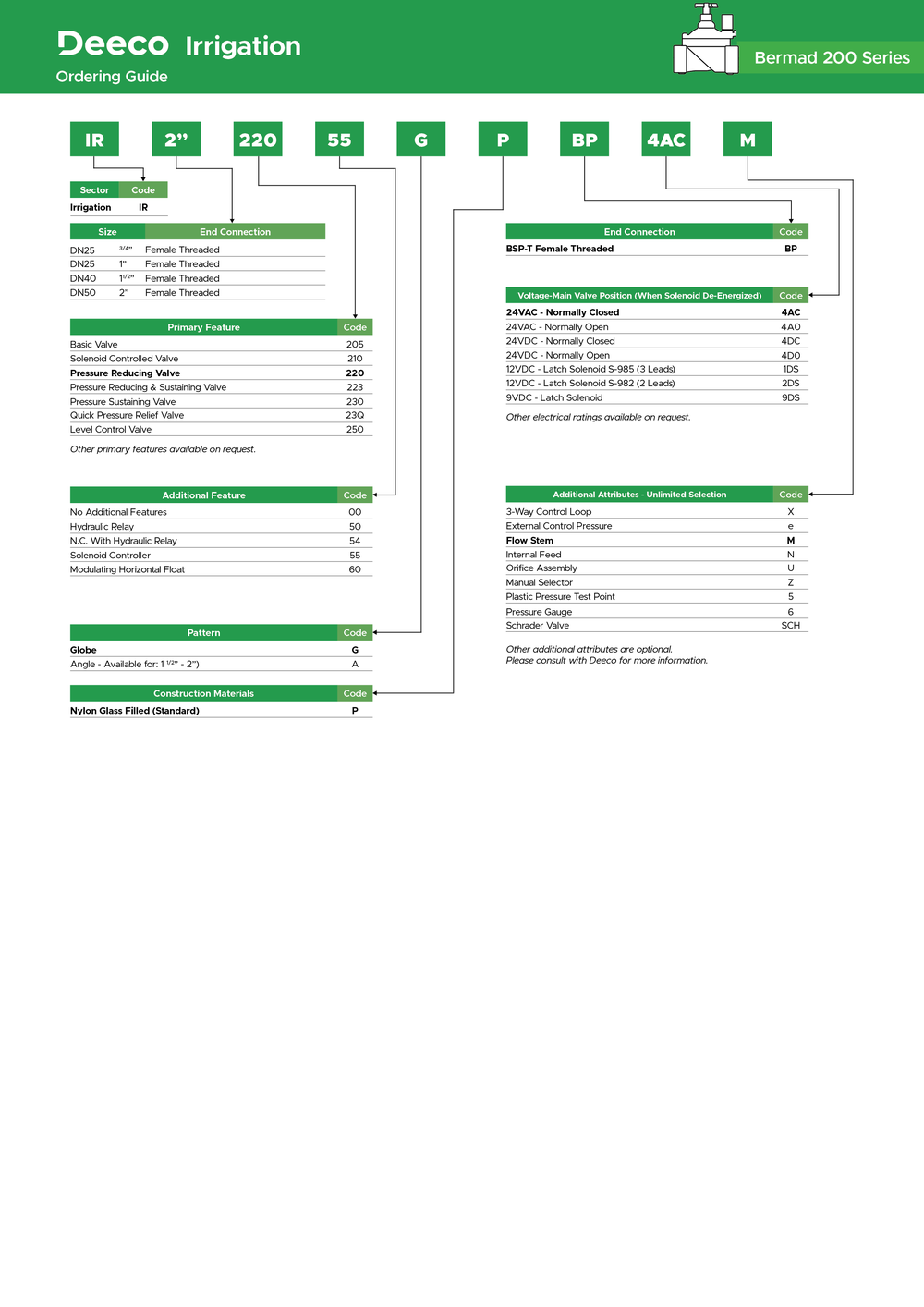

How-to-Order-guide-Bermad-Model-200-Series
