| Brand: | Bermad |
| Category: | Control Valves, 200 Series |
| Size Range: | 50-150 mm |
| Connection: | Female Threaded BSP |
| Engineering Data: |
Product Description
The BERMAD Pressure Reducing Valve is a hydraulically operated, diaphragm-actuated control valve that accurately reduces higher upstream pressure to very low and stable preset downstream pressure regardless of fluctuating demand or varying upstream pressure.
Features and Benefits
- Line Pressure Driven, Hydraulically Controlled
- Protects downstream systems
- Pressure Reducing Servo Pilot Controlled
- Dynamic integrated needle valve
- Easily settable to 0.5 bar; 7 psi
- Very low hysteresis
- Plastic Globe Hydro-Efficient Valve
- Unobstructed flow pat
- Single moving part
- High flow capacity
- Highly durable, chemical and cavitation resistant
- Unitized Flexible Diaphragm and Guided Plug
- Excellent low-flow regulation performance
- Prevents diaphragm erosion and distortion
- Fully Supported & Balanced Diaphragm
- Requires low actuation pressure
- User-Friendly Design
- Simple in-line inspection and service

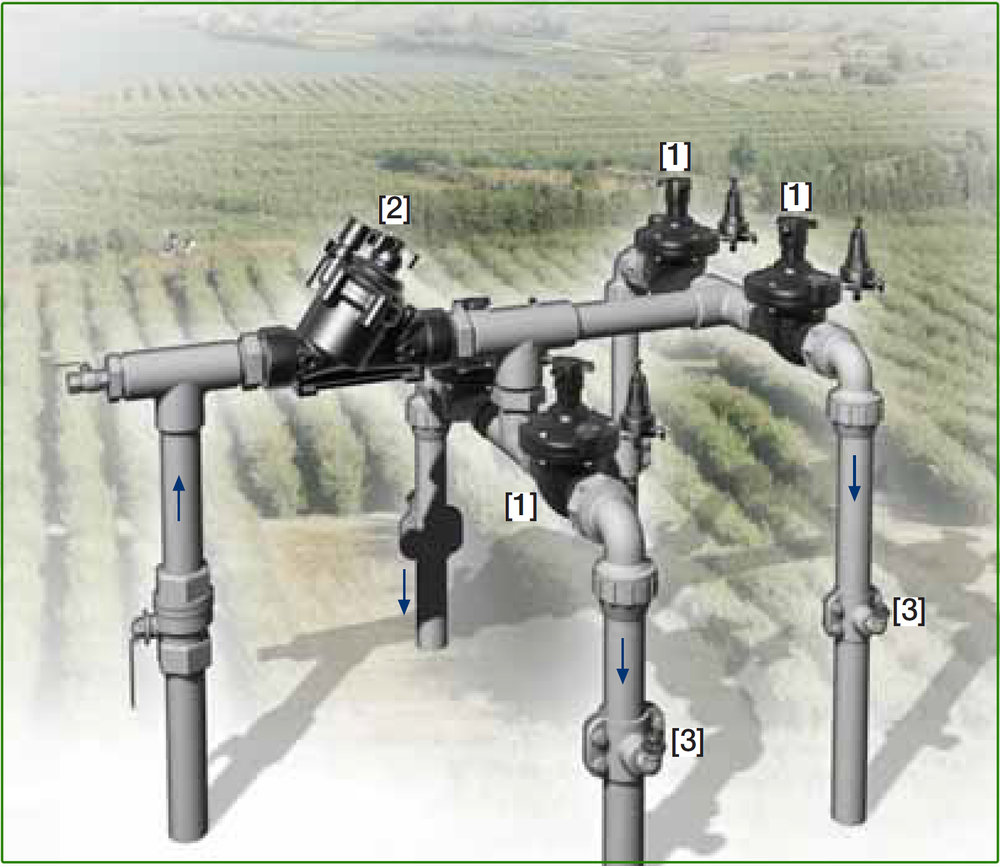

1. BERMAD Model IR-220-bZ establishes a reduced pressure zone, protecting laterals and the distribution line.
2. BERMAD Solenoid Controlled Valve Model IR-110-N1
3. BERMAD Vacuum Breaker Model ½”-ARV
Typical Applications
- Drip-Tape Systems
- Low Set Pressure Applications
- Low Supplied Pressure Irrigation Systems
- Energy Saving Irrigation Systems
Technical Data
Operation

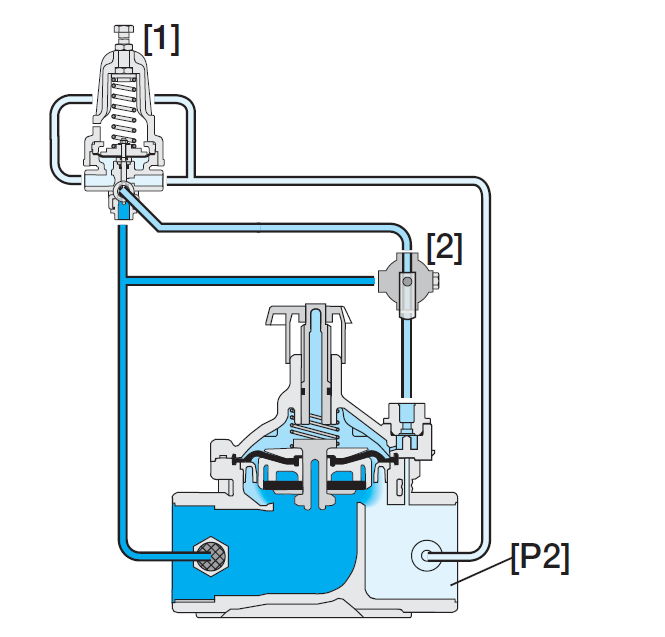

The Pressure Reducing Servo Pilot [1] commands the Valve to throttle closed, preventing Downstream Pressure [P2] from rising above the pilot setting, and to modulate open when [P2] drops below the pilot setting. The Manual Selector [2] enables local manual closing.
Materials
Body, Cover and Plug
- Reinforced Nylon
Diaphragm
- NR
Seals
- NBR [Buna–N] and NR
Spring
- Stainless Steel
Cover Bolts
- Stainless Stee
Control Accessories
- Plastic
Tubing and Fittings
- Plastic
Sizes
- DN40-50
Patterns
- Globe: DN40 & 50
- Angle: DN40 & 50
End Connections
- Female Threaded BSP
Pressure Rating
- 10 bar
Operating Pressure Range
- 0.5-10 bar
Setting Range
- 0.5-1.7 bar
Setting ranges vary according to specific pilot springs. Please consult Deeco.

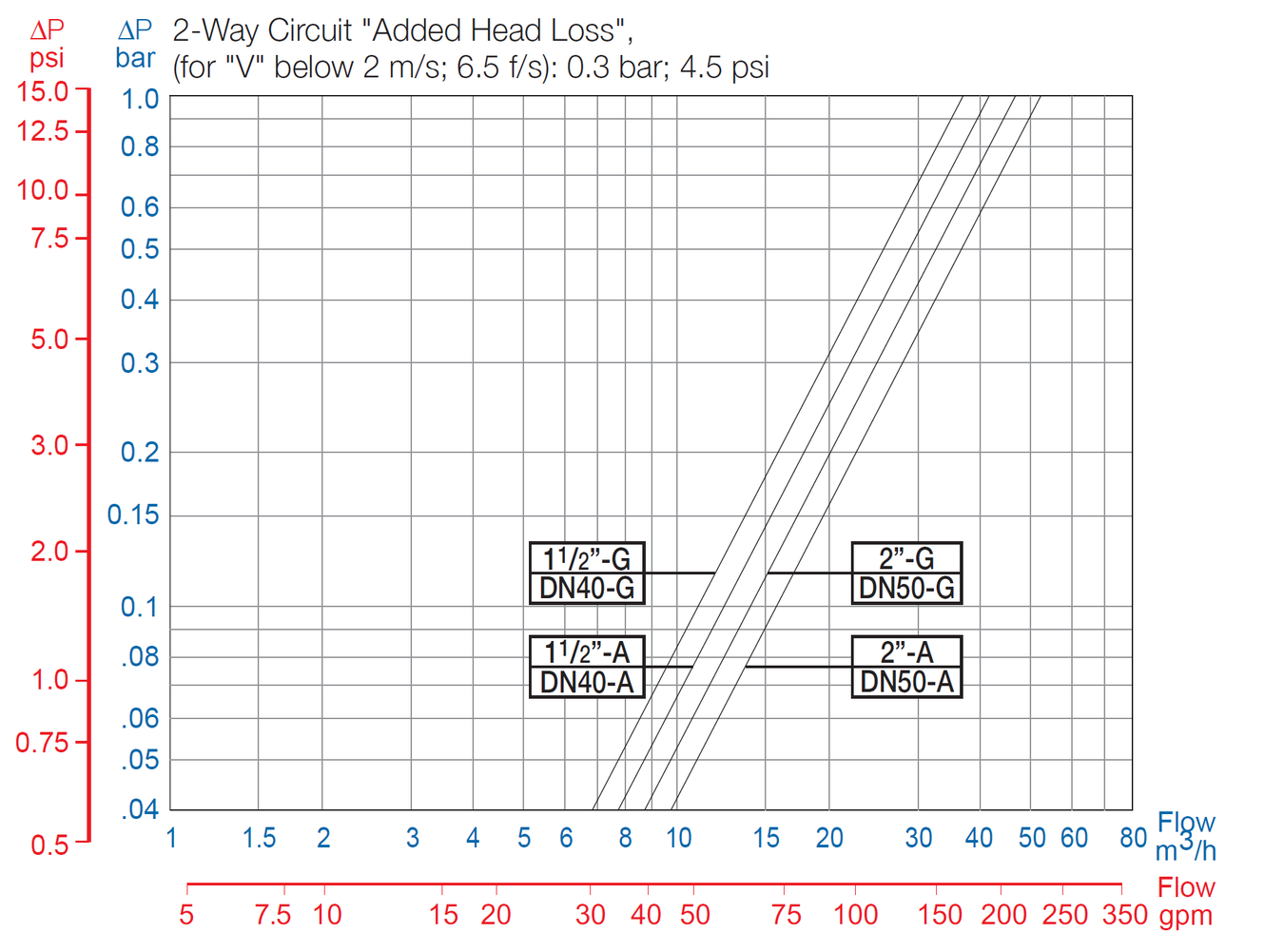

Flow Chart
Bermad - 220-2W - Flow Chart
Technical Specifications

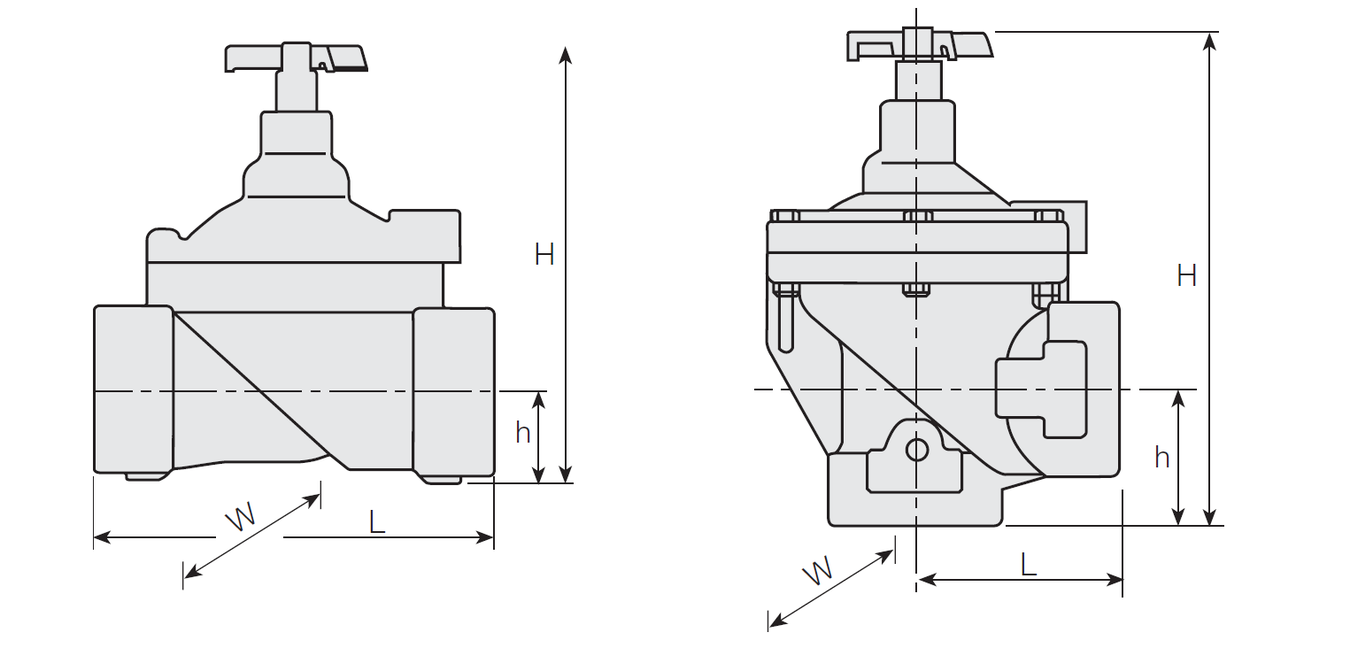

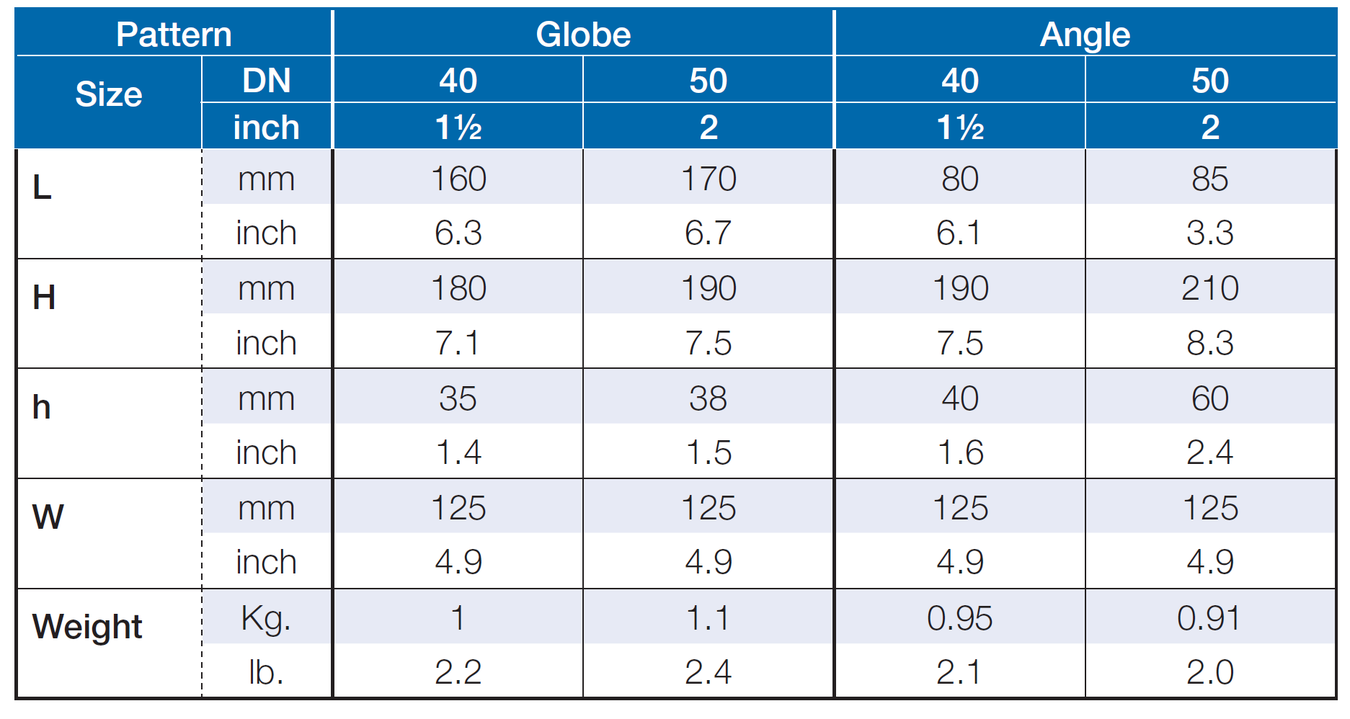

Dimensions and Weights
Bermad - 220-2W - Dimensions and Weights
For Spare Parts & Repair Kits - Please refer to the base model:
Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
