| Brand: | Bermad |
| Category: | Control Valves, 700 Series |
| Size Range: | 50-600mm |
| Connection: | EN: 50-400mm - Flanged ES: 65-600mm - Flanged |
| Engineering Data: |

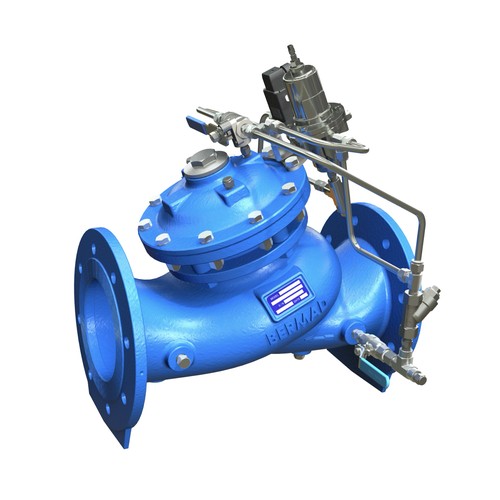

Product Description

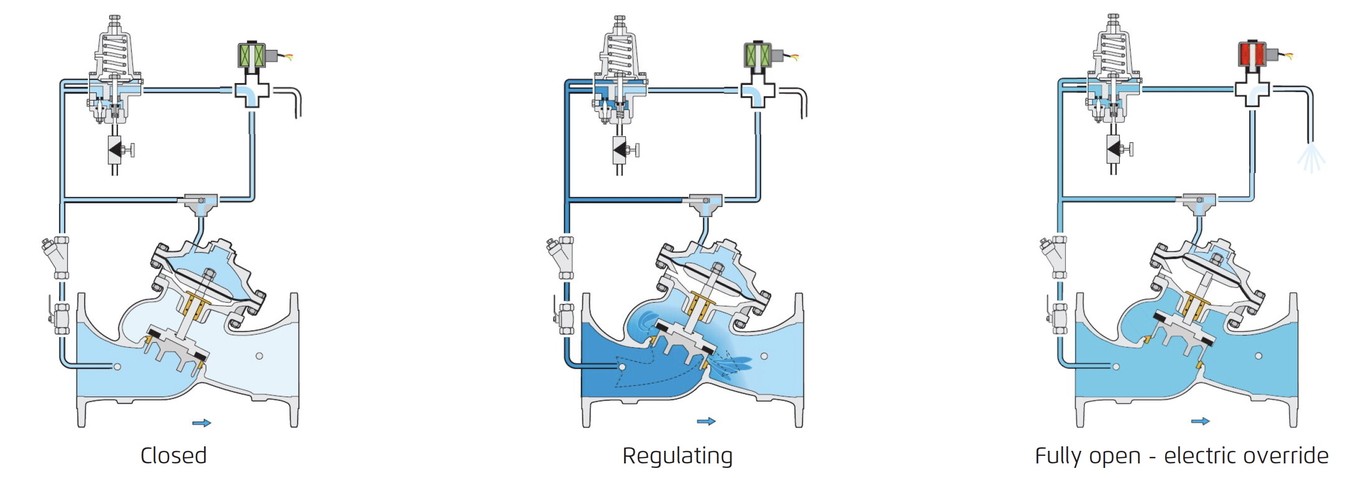

Hydraulically operated, pressure relief/sustaining control valve that can fulfill either of two separate functions: When installed in‑line, it sustains minimum pre‑set, upstream (back) pressure, regardless of fluctuating flow or varying downstream pressure. When installed as a circulation valve, it relieves excessive line pressure when above maximum pre‑set. This valve is a double chamber configuration using 3‑way control, being extremely responsive regardless of operating conditions, allowing full opening without the risk of hydraulic lock out. In response to an electric signal the valve switches between regulation mode and a fully open mode to override the regulation and to reduce pressure loss across the valve to a minimum. The BERMAD 700 SIGMA EN/ES series valves are hydraulic globe valves with a raised seat and double chamber actuator. They provide unobstructed flow, effective high‑pressure modulation, and minimal cavitation, complying with various potable water standards.
Feature and Benefits
Designed to - stand up to the toughest conditions
- Excellent anti-cavitation properties
- Wide flow range
- High stability and accuracy
- Drip tight sealing
- Double chamber design
- Moderated valve reaction
- Protected diaphragm
- Optional operation in very low pressure
- Moderated closing curve
- Flexible design - Easy addition of features
- Obstacle free flow pass
- V-Port Throttling Plug (Optional) - Very stable at low flow
- Coֺmpatible with various standards
- High quality materials
- In-line serviceable - Easy maintenance
Typical Applications
- Filtration system ‑ Fully open with minimum pressure loss during filtration, switching to regulation and sustaining the required pressure for efficient backflush
- Water delivery system ‑ Prioritizing upstream over downstream demand
- Pumping stations ‑ Ensure operating point on pump curve

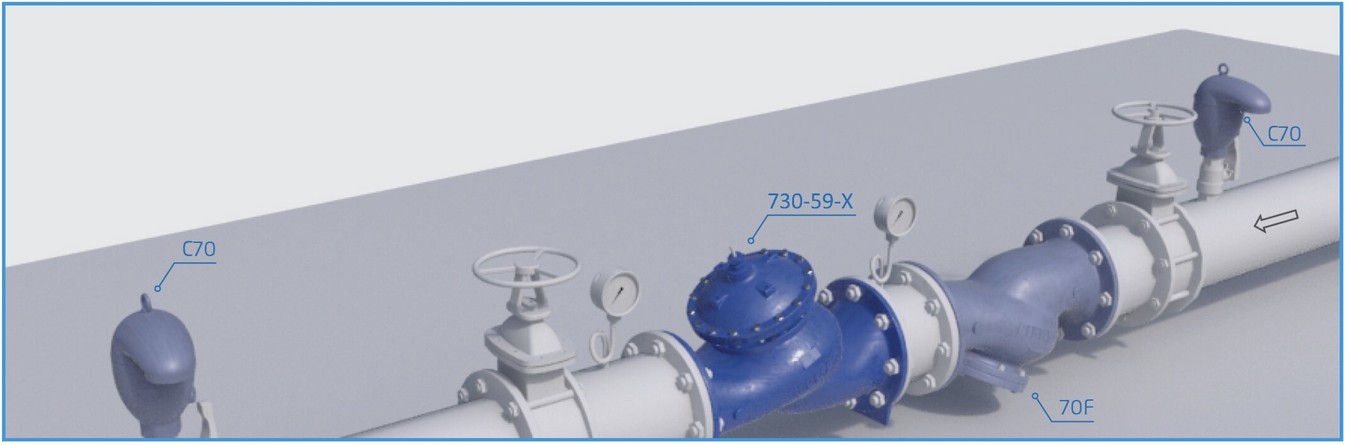

Typical Installation
Technical Data
This drawing refers to 1½ – 12”; 40-300 mm sized valves only. For other sizes please refer to the Model’s IOM.
Main Valve
Size Range:
- EN Series: 1½"-16”; DN40-400
- ES Series: 2½"-24”; DN65-600
Pattern: "Y" (pattern)
Pressure Rating: 25 bar
End Connection: Flanged
Temperature Rating: 60°C
Plug Types: Flat disc, V-port, Cavitation cage
Optional higher temperature: Available on request
Standard Materials:
Body & Cover: Ductile Iron
Bolts, Nuts & Studs: Stainless Steel
Internals: Stainless Steel, Tin Bronze, Coated Steel & POM
Diaphragm: Fabric-reinforced synthetic rubber
Seals: Synthetic rubber
Coating: Dark blue Fusion bonded epoxy
Control System
Standard Materials:
Accessories: Stainless Steel, Bronze & Brass
Tubing: Stainless Steel or Copper
Fittings: Stainless Steel or Brass
Pilot standard materials:
Body: Stainless Steel, Bronze & Brass
Elastomers: Synthetic Rubber
Internals and Spring: Stainless Steel
Pilot Options:
Various pilots and calibration springs are available.
Select according to valve size and operating conditions.
For more details check relevant pilots product pages.
Solenoid standard materials:
Body: Brass or Stainless Steel
Elastomers: NBR or FPM
Enclosure: Molded Epoxy
Voltages:
(AC): 24, 110-120, 220-240, (50-60Hz)
(DC): 12, 24, 110, 220
Power Consumption:
(AC): 30VA, inrush; 15VA (8W), holding or 70VA, inrush; 40VA (17.1W), holding
(DC): 8-11.6W
Values may vary according to specific solenoid model.
For more details check solenoid product page.
Notes
- Inlet Pressure, Outlet Pressure and Flow-rate are required for optimal sizing and cavitation analysis.
- Recommended continuous flow velocity: 0.1-6.0 m/sec;
- Minimum operating pressure: 0.7 bar; 10 psi. For lower pressure requirements consult factory.

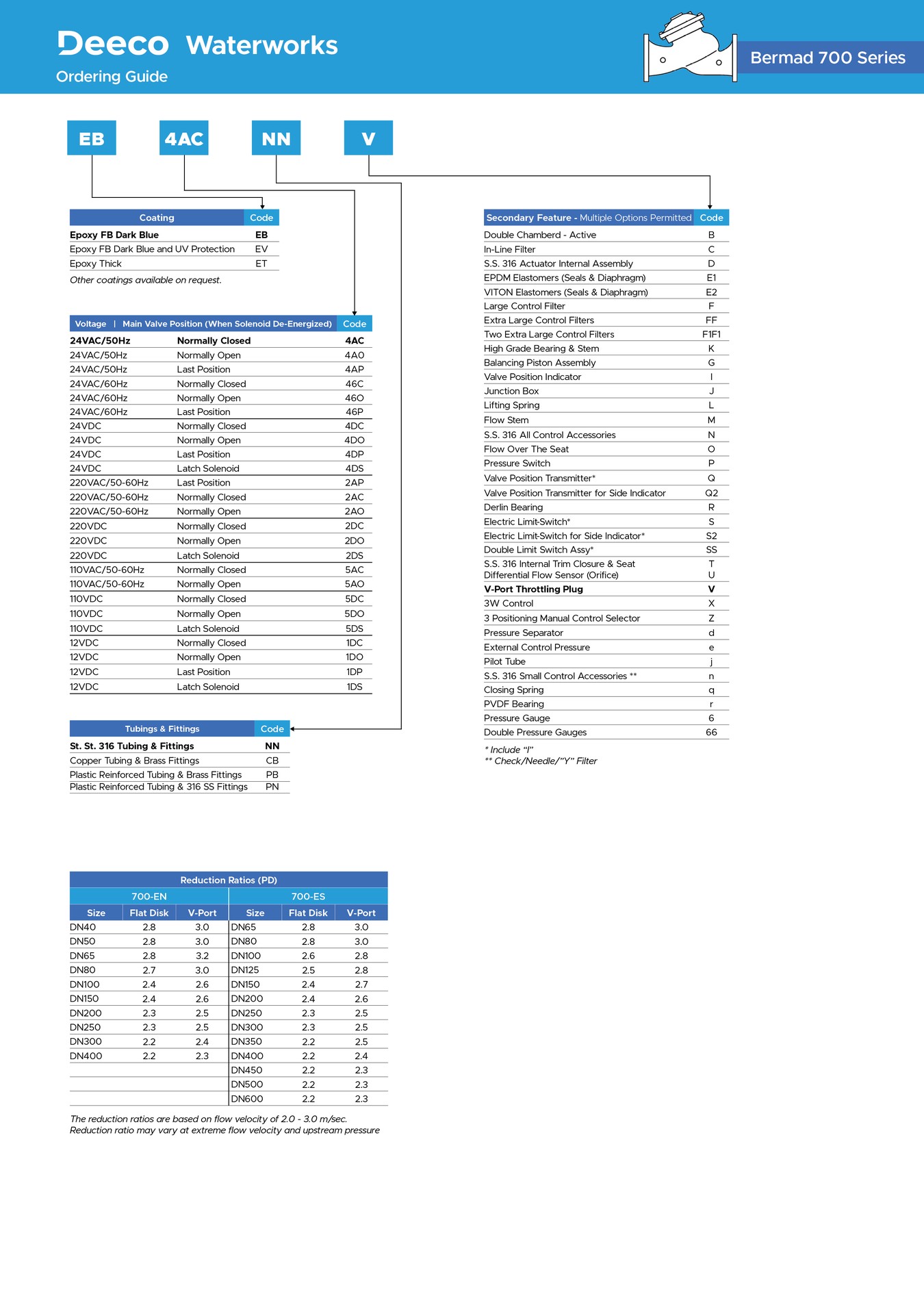

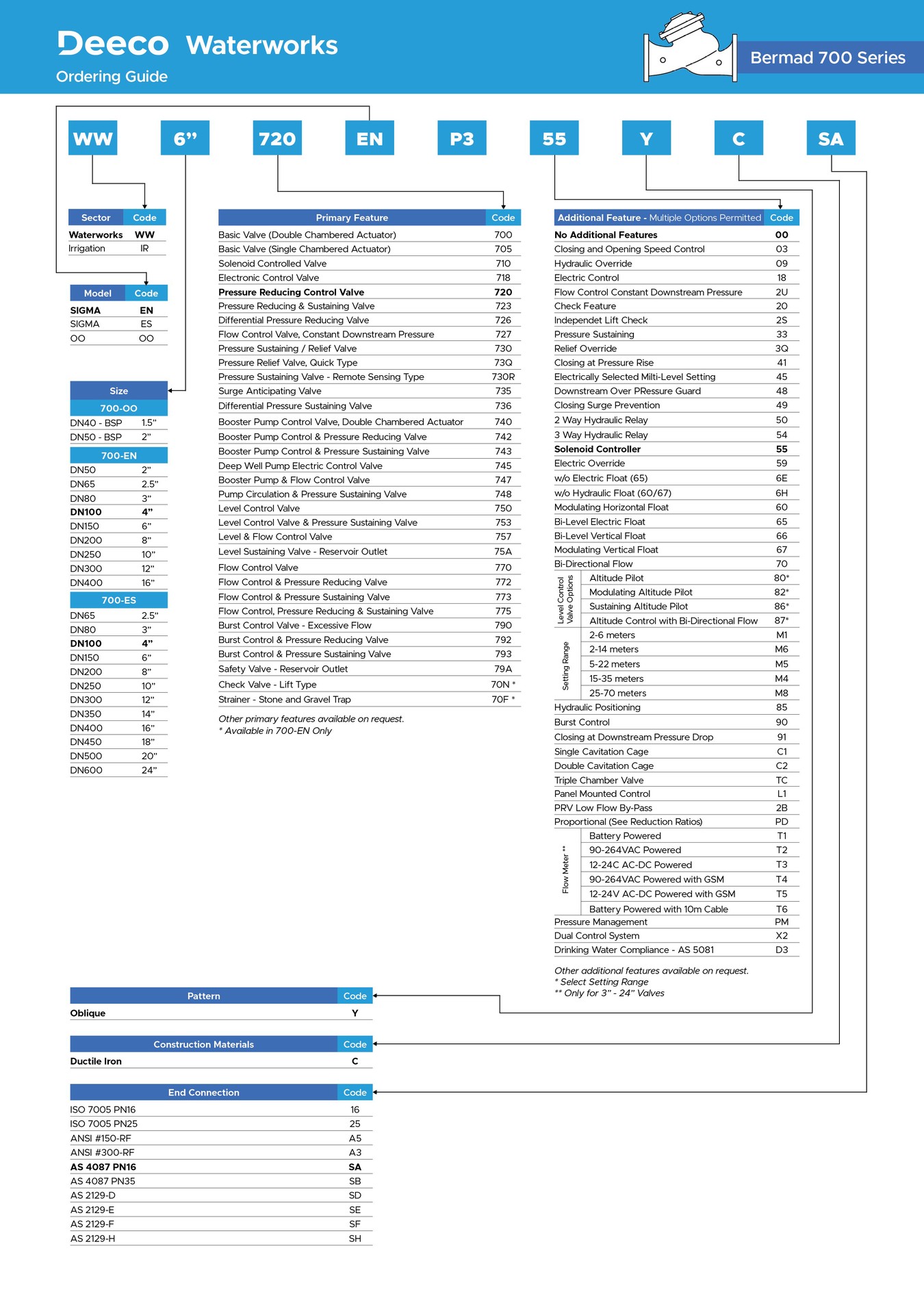

Due to the wide range of options available and criteria for correct model selection, pricing and configuration are available on application only.
Please consult with Deeco engineers for more information.
