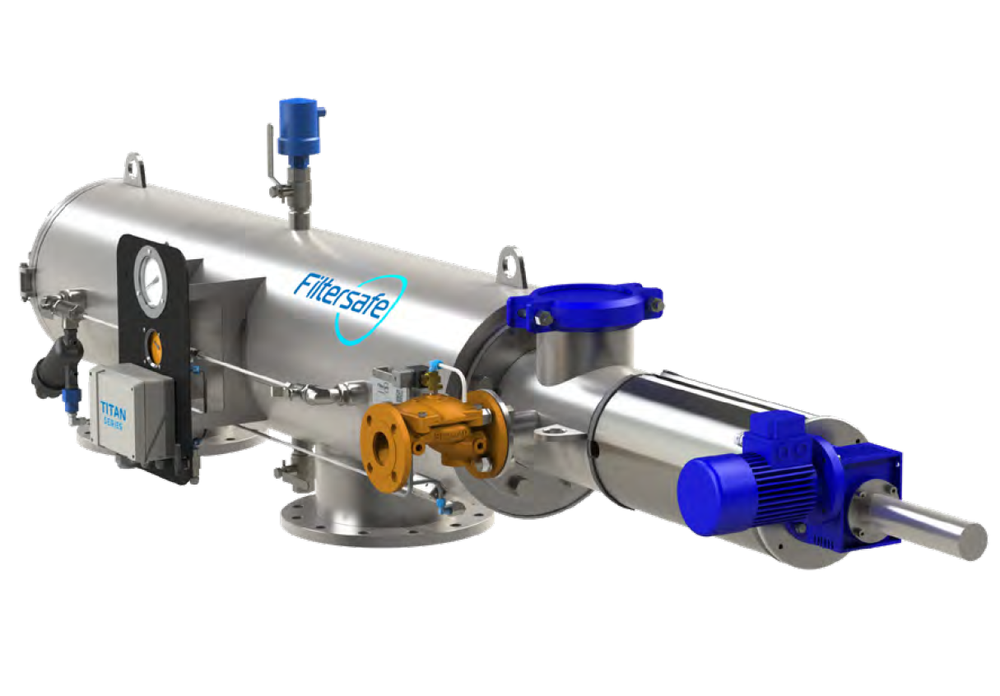

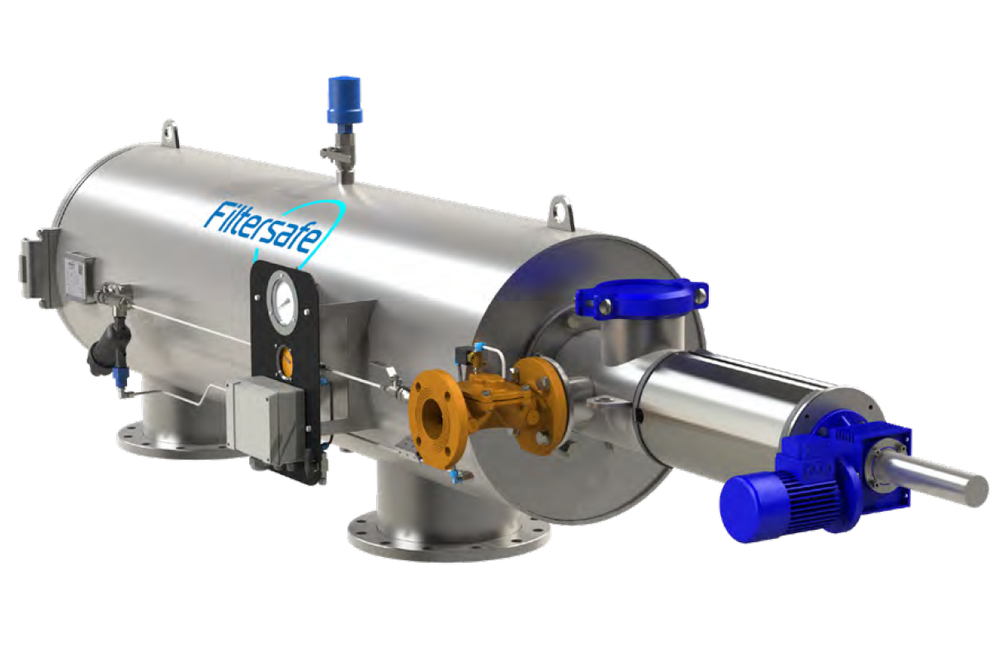

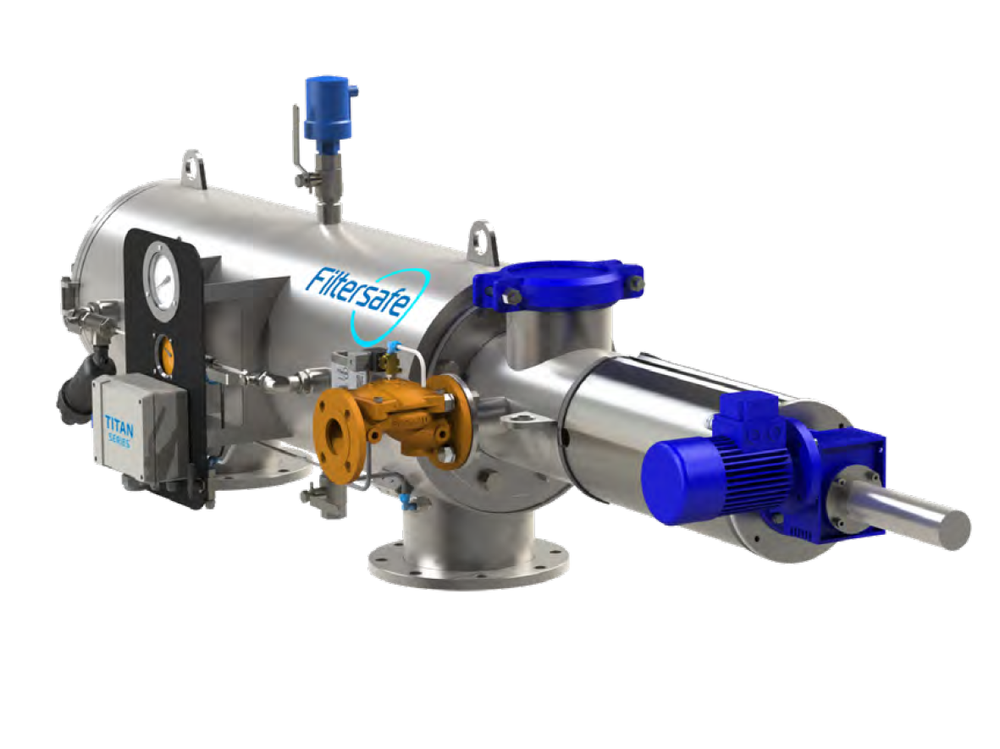

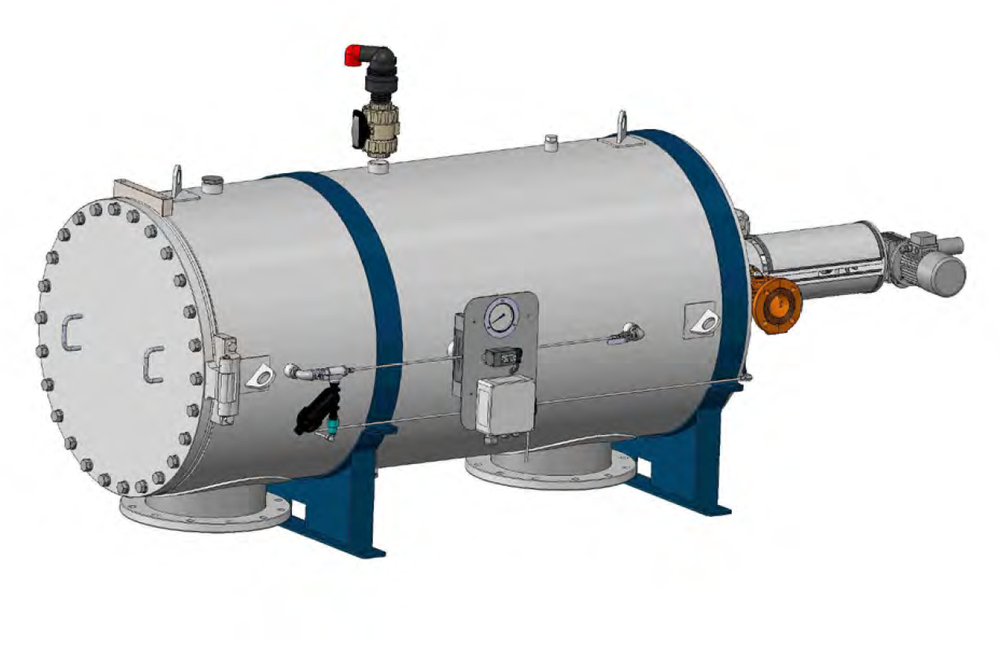

Filtersafe - Titan Series - Automatic Self-Cleaning Screen Filter

Brand:	Filtersafe
Category:	Filtration, Automatic Filters - Screen
Filtration Degree:	10-500 micron

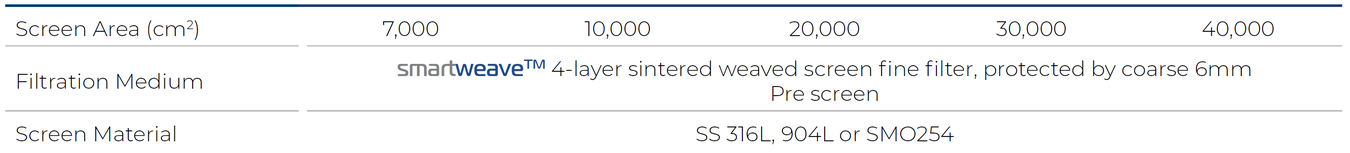

Screen Area:	7000-40000 cm²

Product Description

The Filtersafe TITAN Automatic Screen Filters offer superior and reliable filtration technology suited for removing suspended solids from water in the industrial, agricultural, and municipal sectors down to 10 microns. The TITAN filter offers the largest screen area in a horizontal configuration, resulting in lower installation and operational costs, easier service and maintenance, and increased safety, given the filter installation at human height.

Features and Benefits

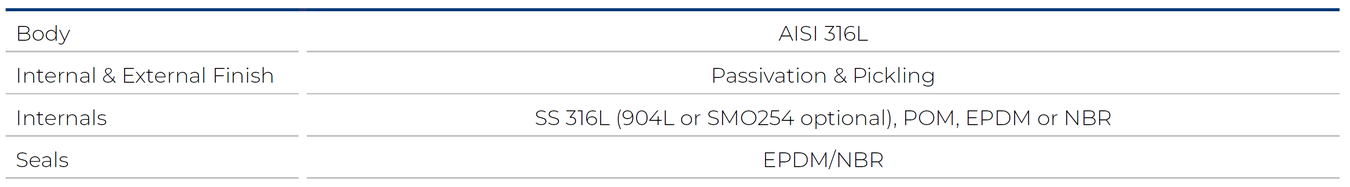

Full 316 Stainless-Steel Construction
Largest Screen Area in a Horizontal Filter
Continual operation – No downtime when flushing.
Easy Maintenance – No Need for Walkways and Lifting Cranes
No need to disassemble electrical components for maintenance
Internal screen slider system for quick removal and reassembly
Internal screen slider system for quick removal and reassembly
Designed for High TSS Applications
Optional NSF61 Drinking Water Certified Model Available

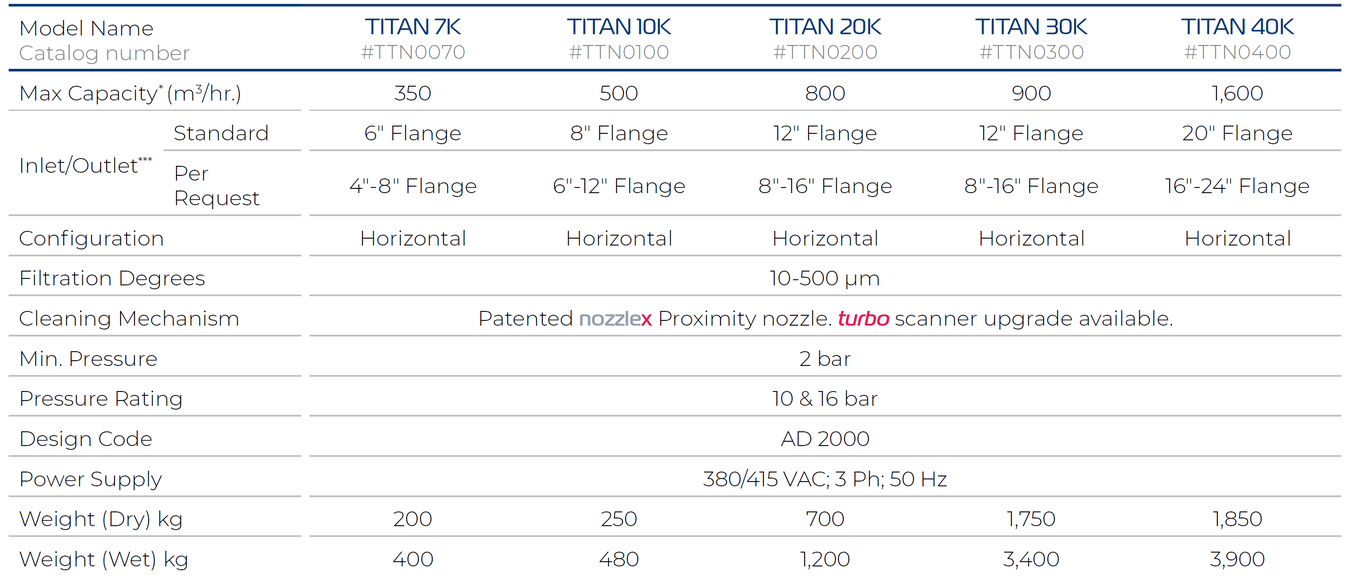

Up to 2,800 m³/h Max. Flow Rate
10 – 500 μm Filtration Degree
10 & 16 bar Max. Operating Pressure
Low flush flow
2 bar (30 psi) Min. Operating Pressure
Up to 40,000 cm2 filter area
AD 2000 Design code
Temp 60°C

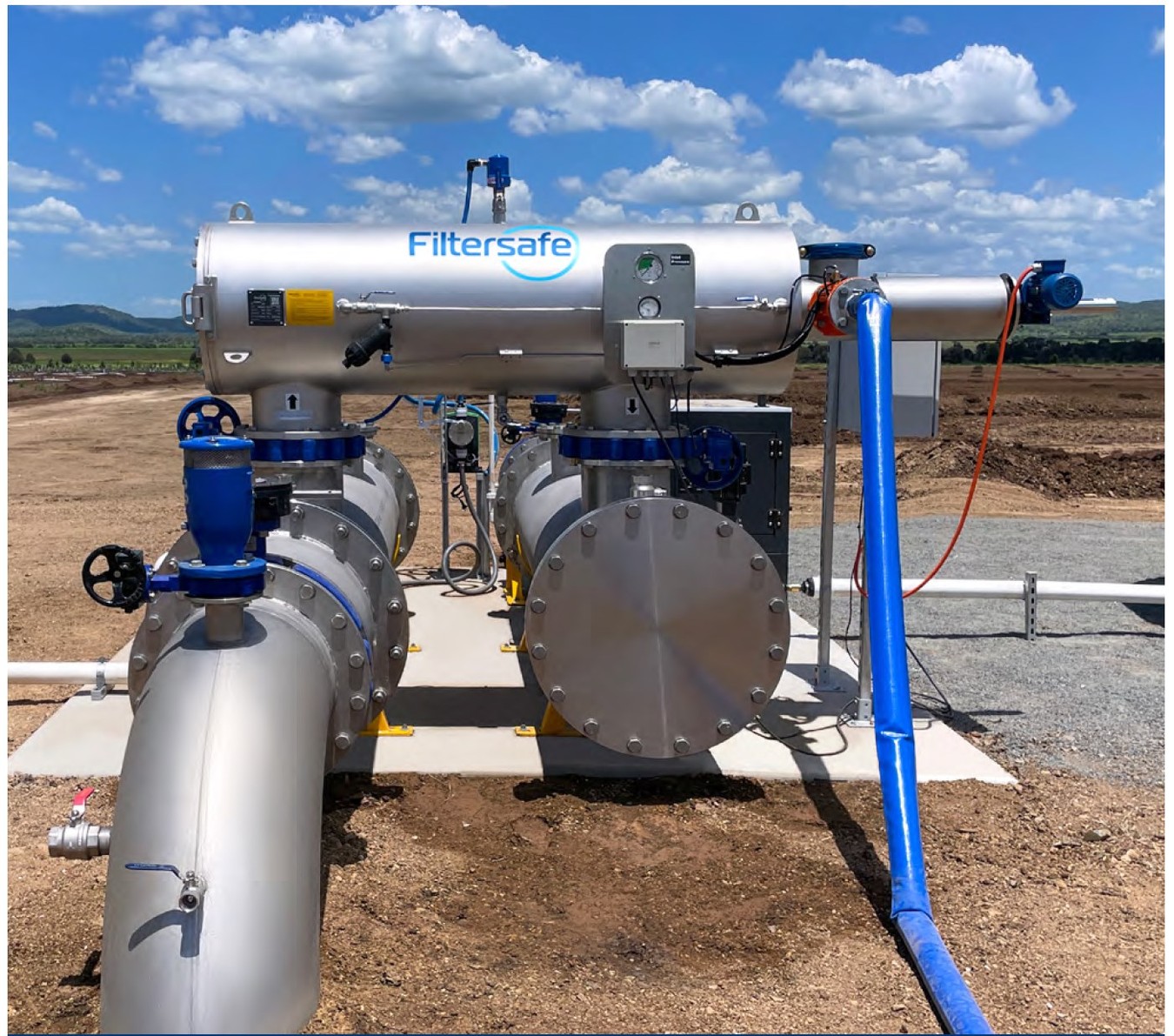

Filtersafe - Titan Series - Typical Installation

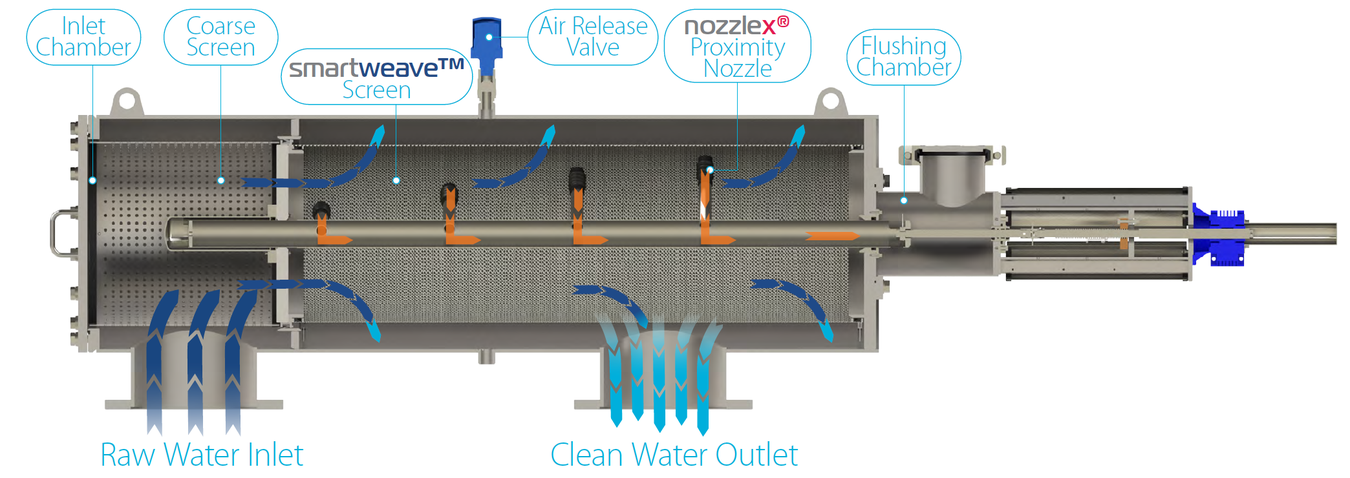

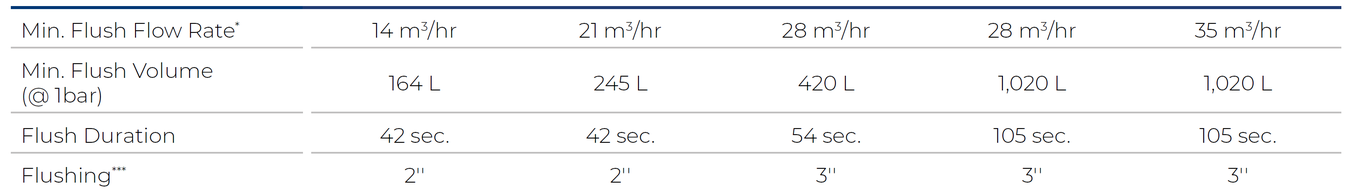

Cleans while in operation:

Cleaning is initiated by either differential pressure (DP) build-up across the smartweave fine screen when it's dirty, by a timer, or by manual flush which is controlled by an external PLC controller.
The cleaning cycle starts by opening the flush valve, allowing water from the clean side of the screen to reverse back through the screen surface at high velocity, dislodging entrapped particles off the screen to the nozzlex cleaning nozzles and expelled from the filter.
The cleaning mechanism is rotated by a drive motor and moved laterally with the cleaning nozzles to completely clean the screen. The filter remains online during the cleaning process allowing for a continuous flow of clean filtered water downstream without any interruption.

All settings are determined by the controller. Cleaning cycle initiation is possible via a preselected DP level, specific time, or combination of both. The length of the flush is customizable.

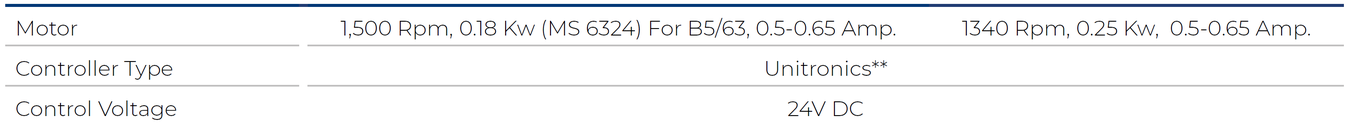

Robust Controller

The Unitronics PLC Jazz Controller automatically manages the flushing of your TITAN filters.

One board can control up to 4 filters.
Quick & intuitive setup
Wide voltage range, 3 phase 190 – 480V, 50/60Hz + PE.
Useful hard-wire interface for customer monitoring and operation.

Optional:

Modbus TCP (Ethernet) communication interface for detailed system monitoring

Unique, patented and cutting-edge technologies

Patented proximity nozzles for maximum filter efficiency, improved flow rate, and shorter filtering process.

Filtersafe’s® smartweave™ multi-layered sintered screen is a unique and exclusive weave-wire mesh specifically designed for challenging water conditions.

Whether seawater, brackish water, turbid river water, or industrial wastewater, the smartweave™ screen automatically filters out all particles above the chosen micron rating.

Multi-layered sintered structure smartweave™ is comprised of four stainless steel weave-wire screen layers that create an extra durable, reliable screen. To learn more about our smartweave™ technology, please read our article on how our technology works here.

Self cleaning cycle for maximum filter efficiency, improved flow rate, and shorter filtering process.

nozzlex® scans the entire smartweave™ screen removing all matter, disposing of the reject water through the flushing chamber. The patented nozzles remove 100% of matter that builds upon the screen, which increases the filter’s flow rate and gives you more filtered water for whatever you need – perhaps filling up your ballast tanks quickly, or pretreatment filtration for desalination. The most innovative aspect of the nozzlex technology is that it has absolutely ZERO wear on the screen, due to the firm but minimal force the nozzle is calculated to have with the screen. This extends the lifespan of the nozzles, the screen, and your filter system as a whole.

EVERCLEAR® produces unparalleled removal rates of organic matter and TSS – an imperative in combating marine bio-invasions.

At the heart of every Filtersafe® filter lies an advanced automated filter cleaning sequence in EVERCLEAR. Its success largely revolves around a set of uniquely crafted and patented technologies:

smartweave™ high-performance filtration screens
nozzlex™ proximity nozzles

The exclusive combination of these technologies enables EVERCLEAR™ to deliver unparalleled filtration performance under even the most strenuous water conditions.
