Filtersafe - Trident H Series - Automatic Hydraulic Self-Cleaning Filter

Filtersafe’s first automatic hydraulic self-cleaning filter is designed for near-zero maintenance. The Trident H will work constantly anywhere, providing a constant stream of clean, filtered water even during the flushing cycle. The Trident Hydraulic series is ideal for agricultural applications, as the filter does not require being attached to a power source.

Features and Benefits

• Full operation even during the cleaning cycle
• Full 316 stainless-steel construction
• 4-Layer sintered screen with class-leading effective screen area
• Continual operation – No downtime when flushing.
• Highly effective cleaning with over 99% recovery rate and full-screen recovery

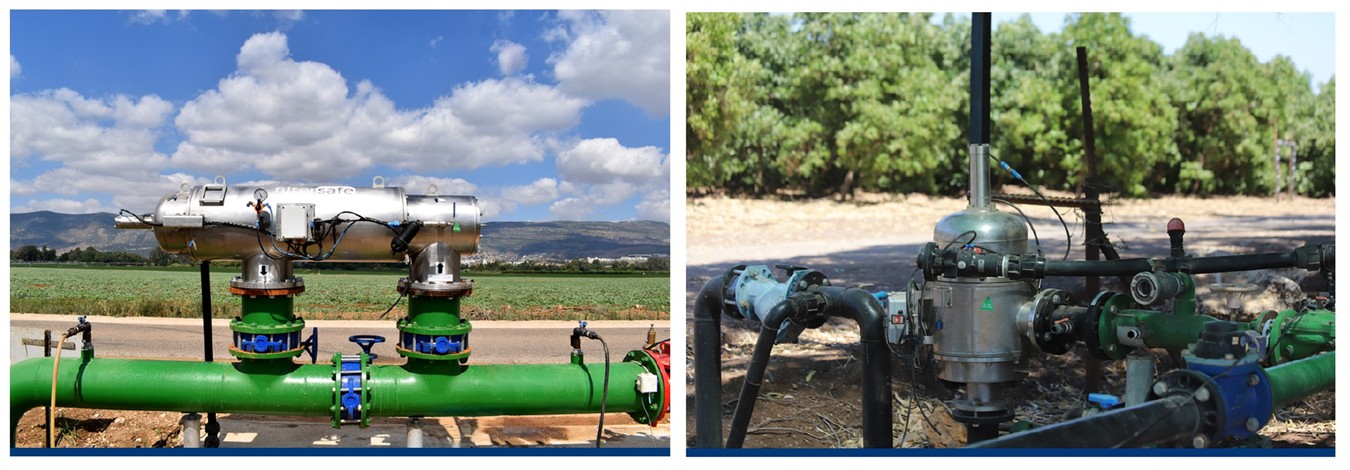

• Horizontal and vertical models available to suit your needs
• Easy access to internal parts
• Failsafe NC Flush Valve
• Bluetooth DC Powered Controller
• Just Plug & Play!
• Up to 600 m3/h Max. Flow Rate
• 80 – 500 μm Filtration Degree
• 10 bar Operating Pressure
• Less than 1% Backwash Water Consumption
• 2 bar (30 psi) Min. Operating Pressure
• Up to 12,000 cm2 filter area
• AD 2000 Design code
• Temp 65°C

Automatic Hydraulic Self-Cleaning Screen Filter Technology

Smartweave high-performance filtration screens

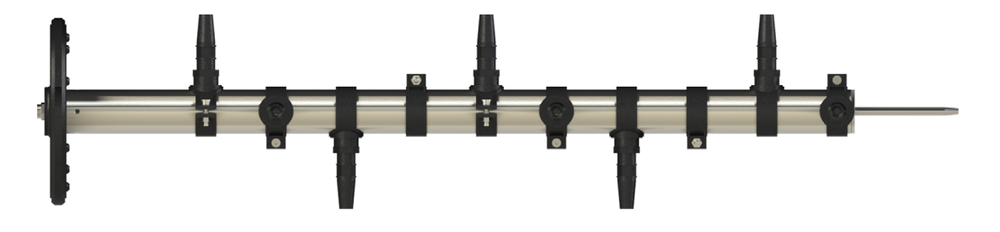

Cleaning: Hydraulic drive

• Reliable Turbine Drive System
• Helical Scanner
• Low Water Use
• Low-pressure Operation 2 Bar
• Large Nozzle Size
• Low Maintenance
• Filtration Process Continues During Flush Cycl

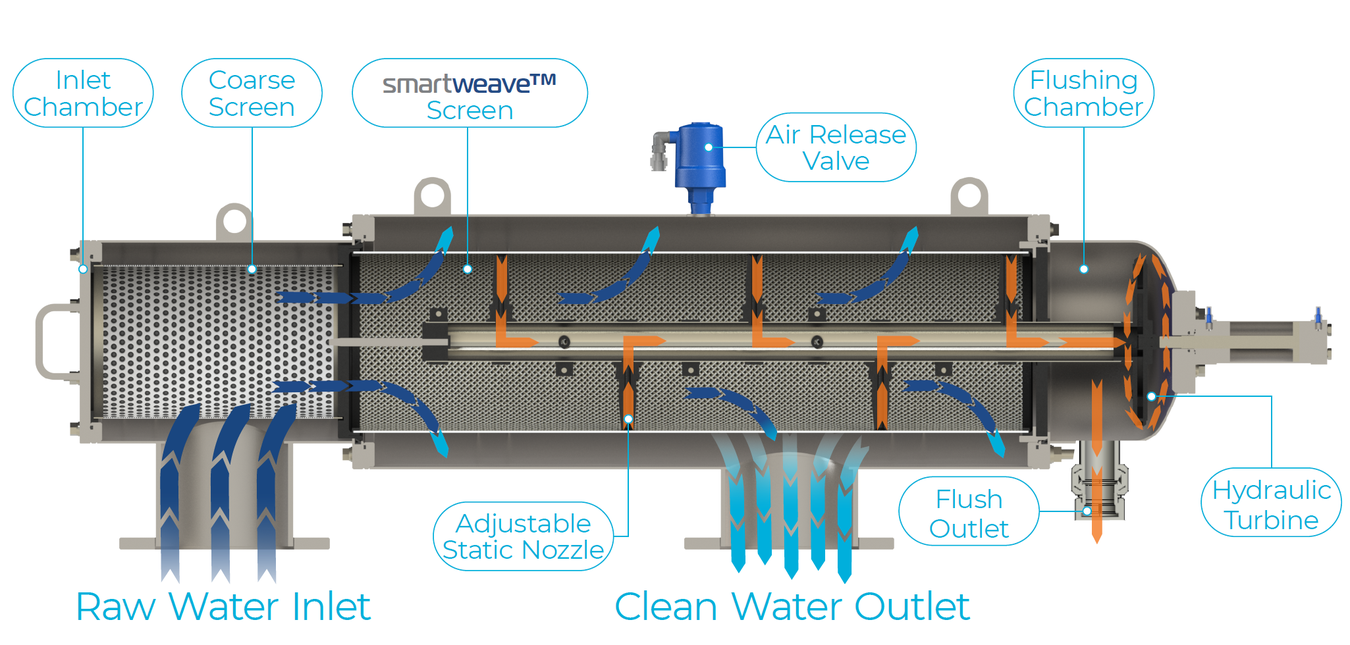

Cleans while in operation:

1. The smartweave screen traps unwanted particles. The differential pressure (DP) between the inlet and outlet triggers the flush cycle via a solenoid.
2. The flush enables water from the clean side of the screen to flow back through the screen into the scanner nozzle, removing captured particles on the screen surface.
3. At the same time, the hydraulic turbine rotates the scanner, and the piston moves the scanner in a linear motion ensuring full coverage of the screen.
4. All debris leaves the filter through the scanner and flush valve. The flushing cycle ends and the filter returns to its original state.

All settings are determined by the controller. Cleaning cycle initiation is possible via a preselected DP level, specific time, or combination of both. The length of the flush is customizable.

Robust Controller

The Filtron 1-10 & BT Controller automatically manages the flushing of your Trident H filters. Giving you easy access and control.

• Large LCD-display and and 4 keys built for simplicity.
• Robust and accurate embedded differential pressure sensor (durable up to 18 bar).
• BLE (Bluetooth low energy) transmitter for easy programming with a smartphone App for up to 10 meters away.
• Backflushing triggered by time, DP, or both.
• Easy manual backflush button.
• 24V AC and 12V DC latch solenoid operation

Bluetooth Controller App

The clear and user-friendly Controller App allows to remotely:

• Supervise current backflush/irrigation status
• Make changes in backflush/irrigation programs
• Detect hardware problems such as looping warning
• Open / Close outputs manually
• Displays the Bluetooth reception, Controller name, Flush state, and battery voltage level.

Patented proximity nozzles for maximum filter efficiency, improved flow rate, and shorter filtering process.

Filtersafe’s® smartweave™ multi-layered sintered screen is a unique and exclusive weave-wire mesh specifically designed for challenging water conditions.

Whether seawater, brackish water, turbid river water, or industrial wastewater, the smartweave™ screen automatically filters out all particles above the chosen micron rating.

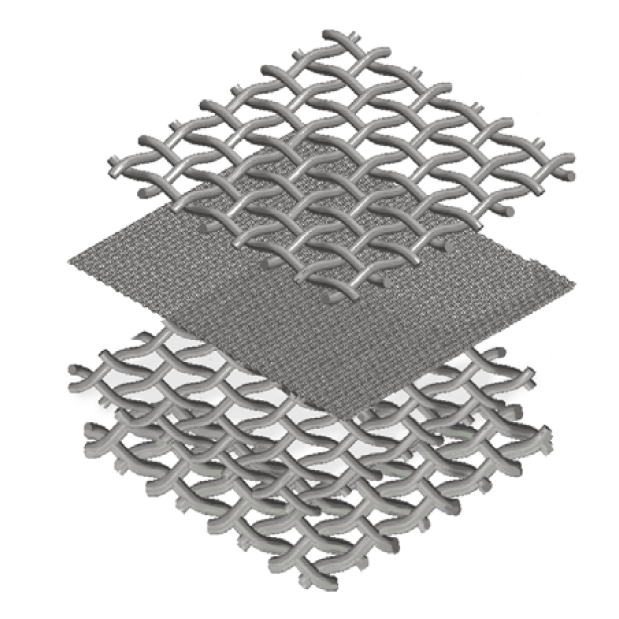

Multi-layered sintered structure smartweave™ is comprised of four stainless steel weave-wire screen layers that create an extra durable, reliable screen. To learn more about our smartweave™ technology, please read our article on how our technology works here.

Self cleaning cycle for maximum filter efficiency, improved flow rate, and shorter filtering process.

nozzlex® scans the entire smartweave™ screen removing all matter, disposing of the reject water through the flushing chamber. The patented nozzles remove 100% of matter that builds upon the screen, which increases the filter’s flow rate and gives you more filtered water for whatever you need – perhaps filling up your ballast tanks quickly, or pretreatment filtration for desalination. The most innovative aspect of the nozzlex technology is that it has absolutely ZERO wear on the screen, due to the firm but minimal force the nozzle is calculated to have with the screen. This extends the lifespan of the nozzles, the screen, and your filter system as a whole.

EVERCLEAR® produces unparalleled removal rates of organic matter and TSS – an imperative in combating marine bio-invasions.

At the heart of every Filtersafe® filter lies an advanced automated filter cleaning sequence in EVERCLEAR. Its success largely revolves around a set of uniquely crafted and patented technologies:

• smartweave™ high-performance filtration screens
• nozzlex™ proximity nozzles

The exclusive combination of these technologies enables EVERCLEAR™ to deliver unparalleled filtration performance under even the most strenuous water conditions.

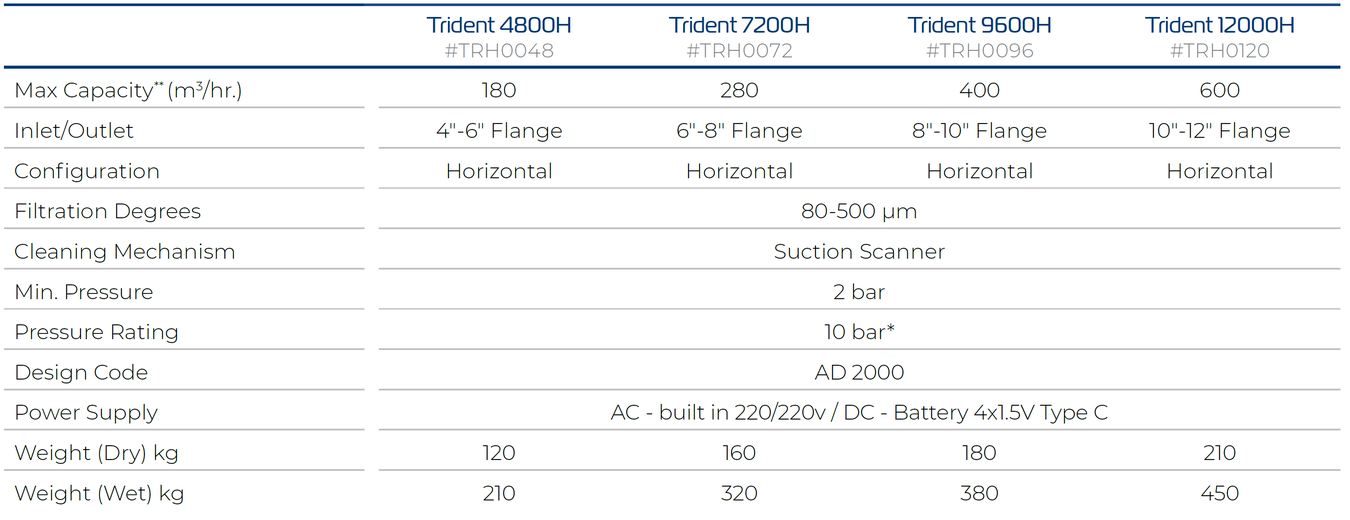

General Data

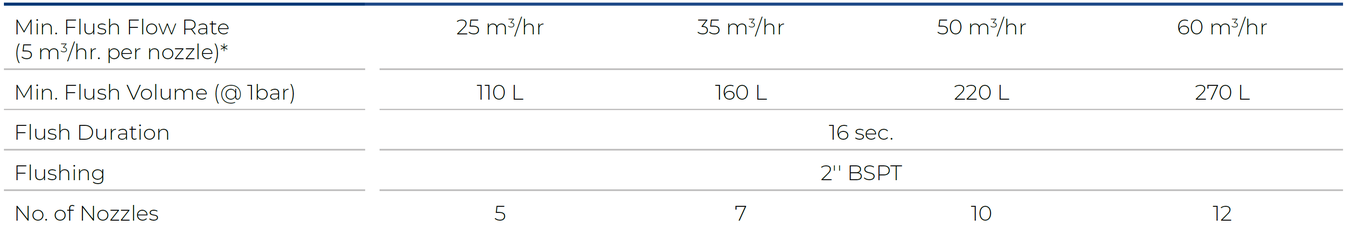

Operation

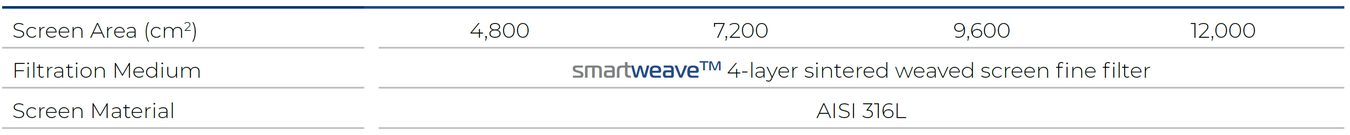

Screen Data

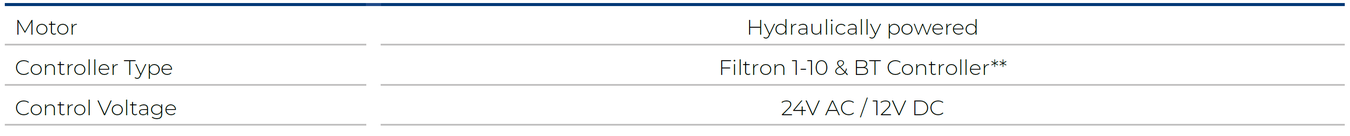

Control & Electricity

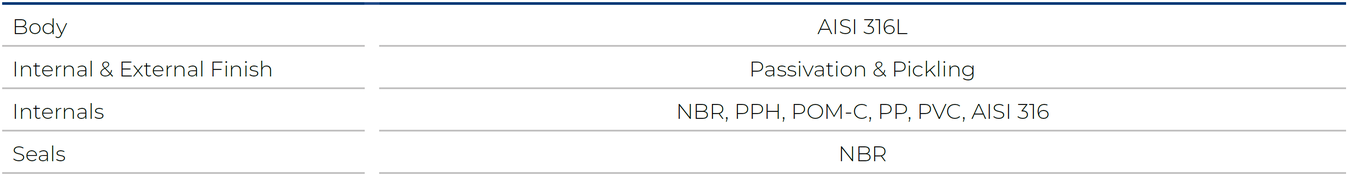

Construction Materials

*Dependent on filtration degree, water quality, and inlet size. Contact us for more information.

**Other Equipment & Materials are available on request.

Trident H Series Models and Head Loss Graphs

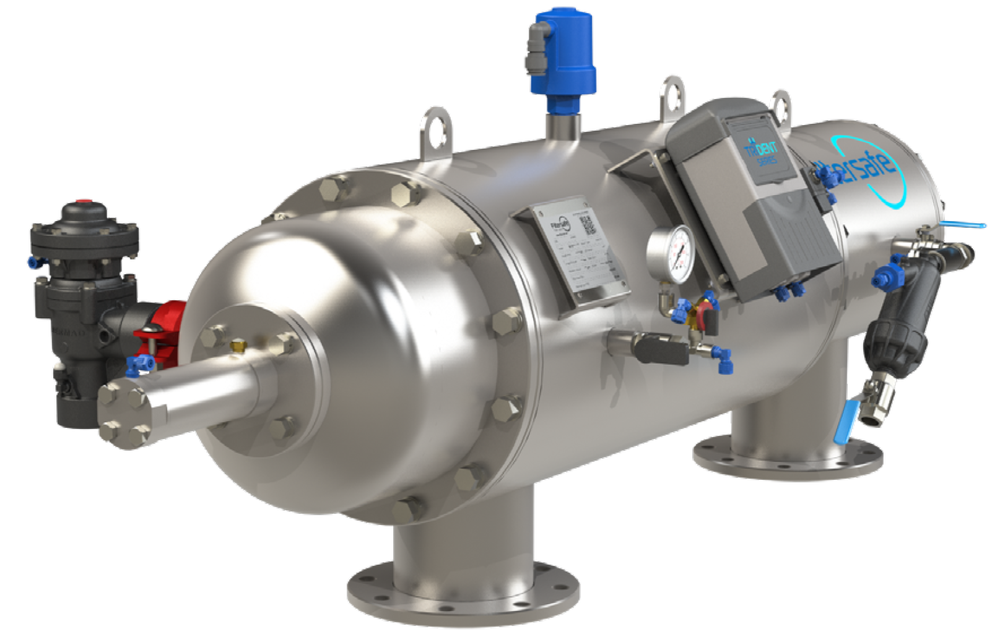

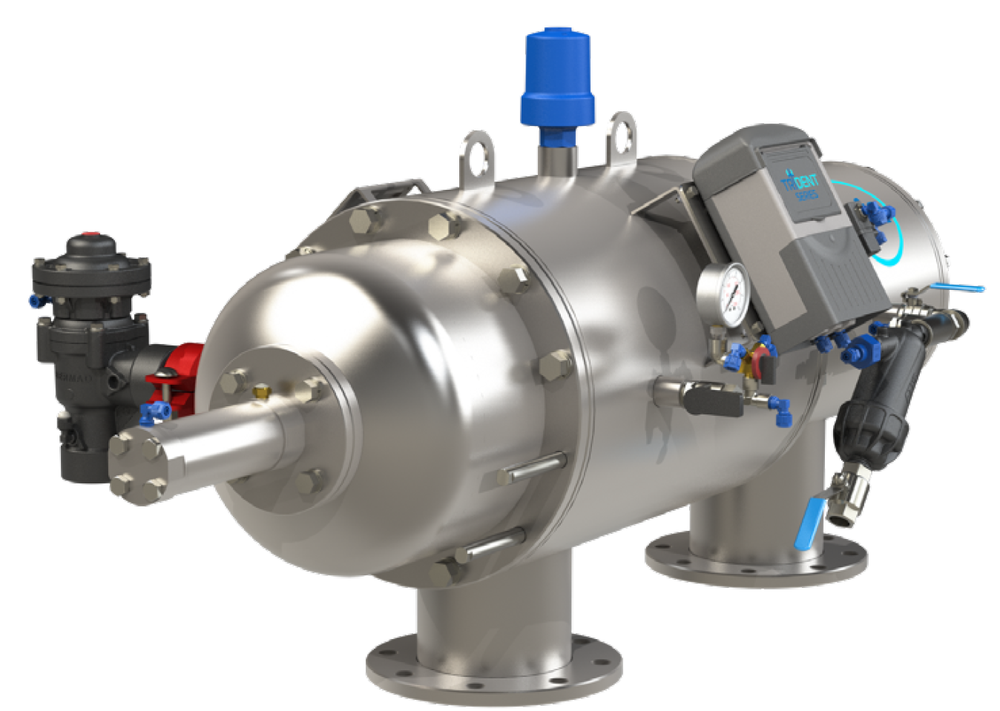

Trident 4800H

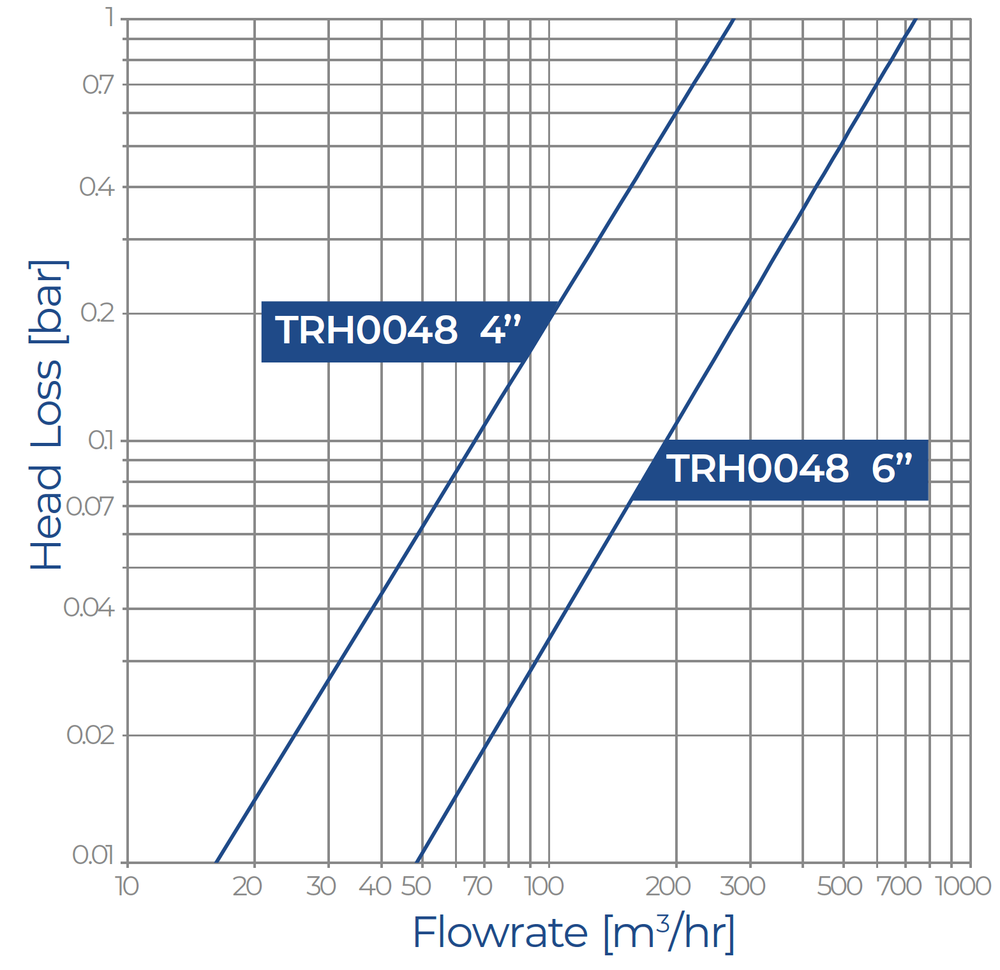

Head Loss Graph

Trident 7200H

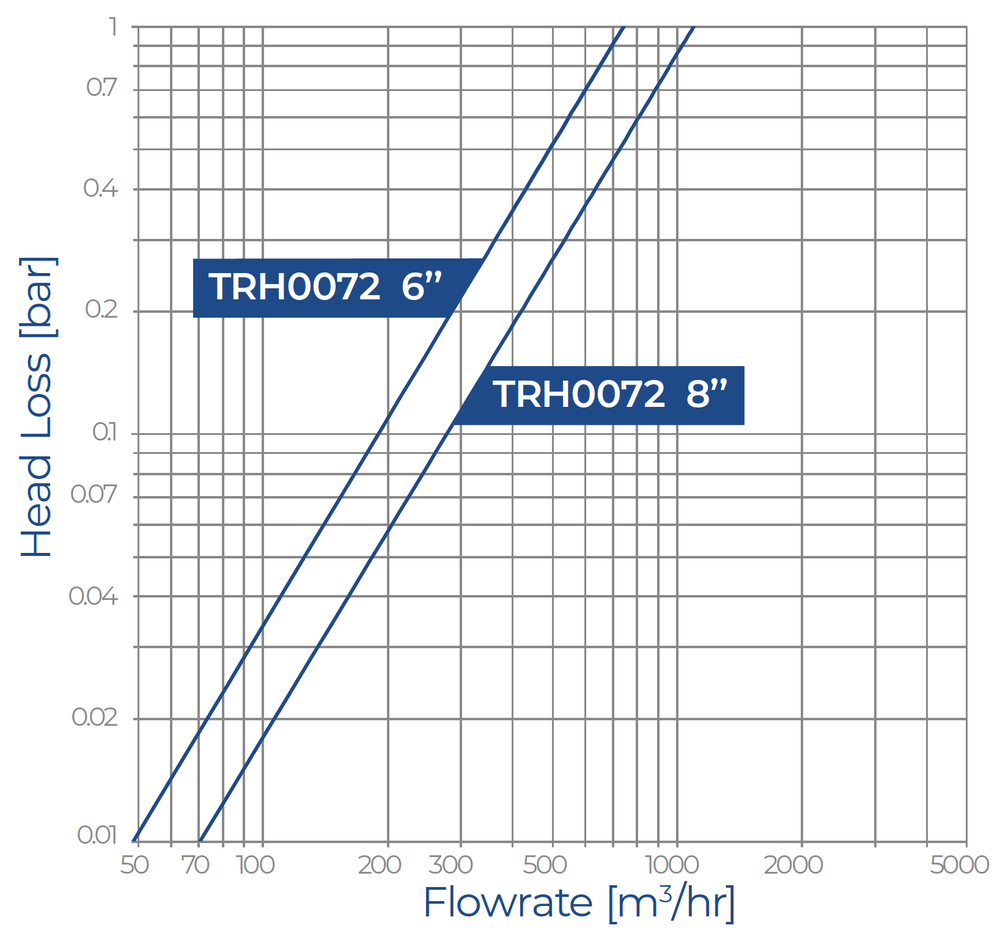

Head Loss Graph

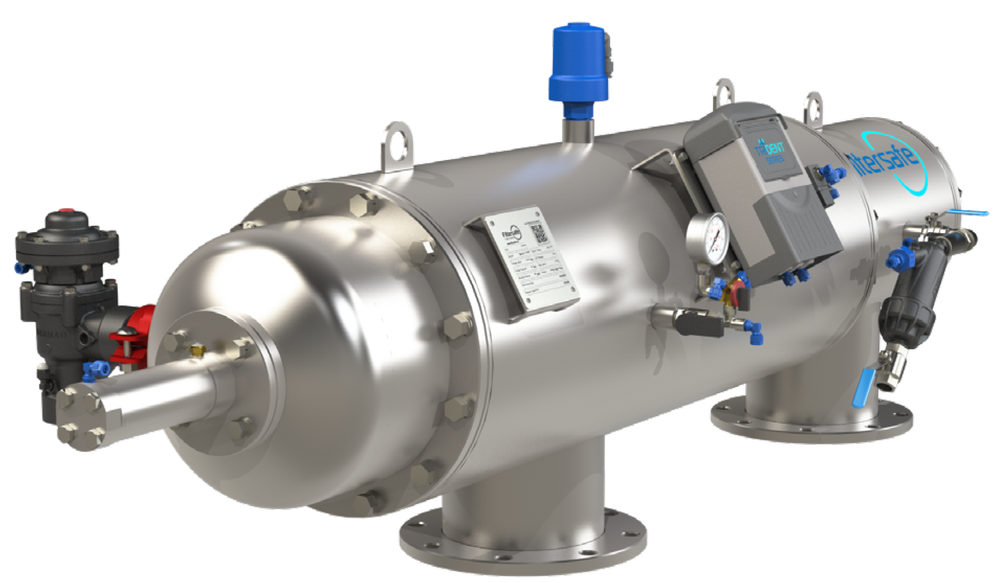

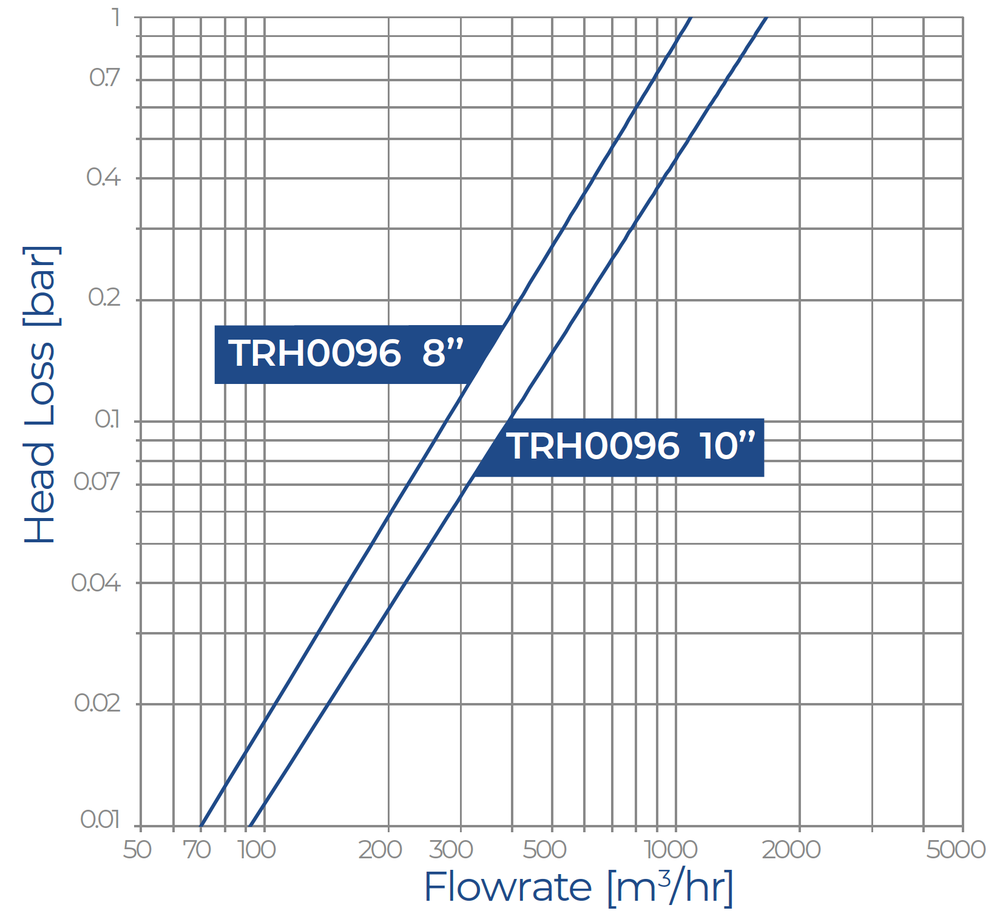

Trident 9600H

Head Loss Graph

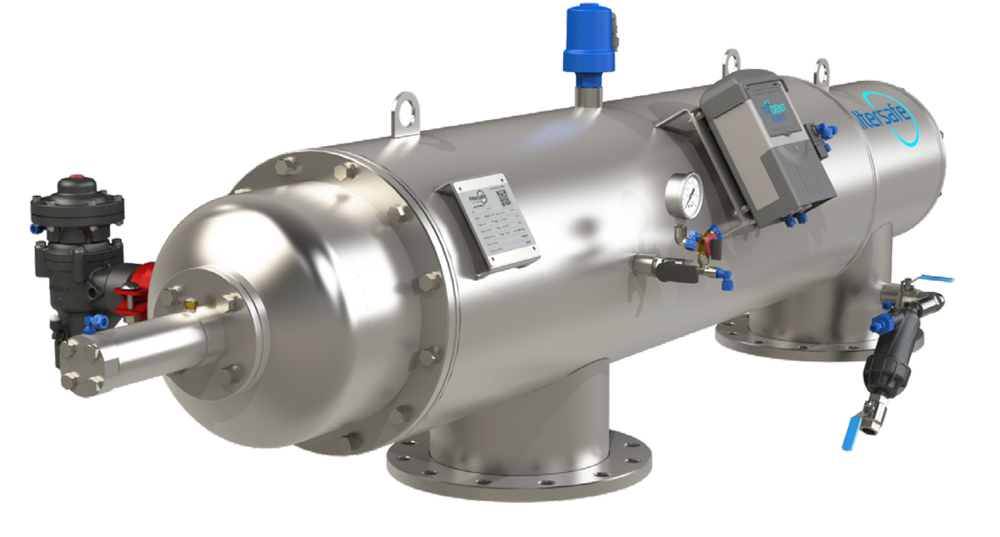

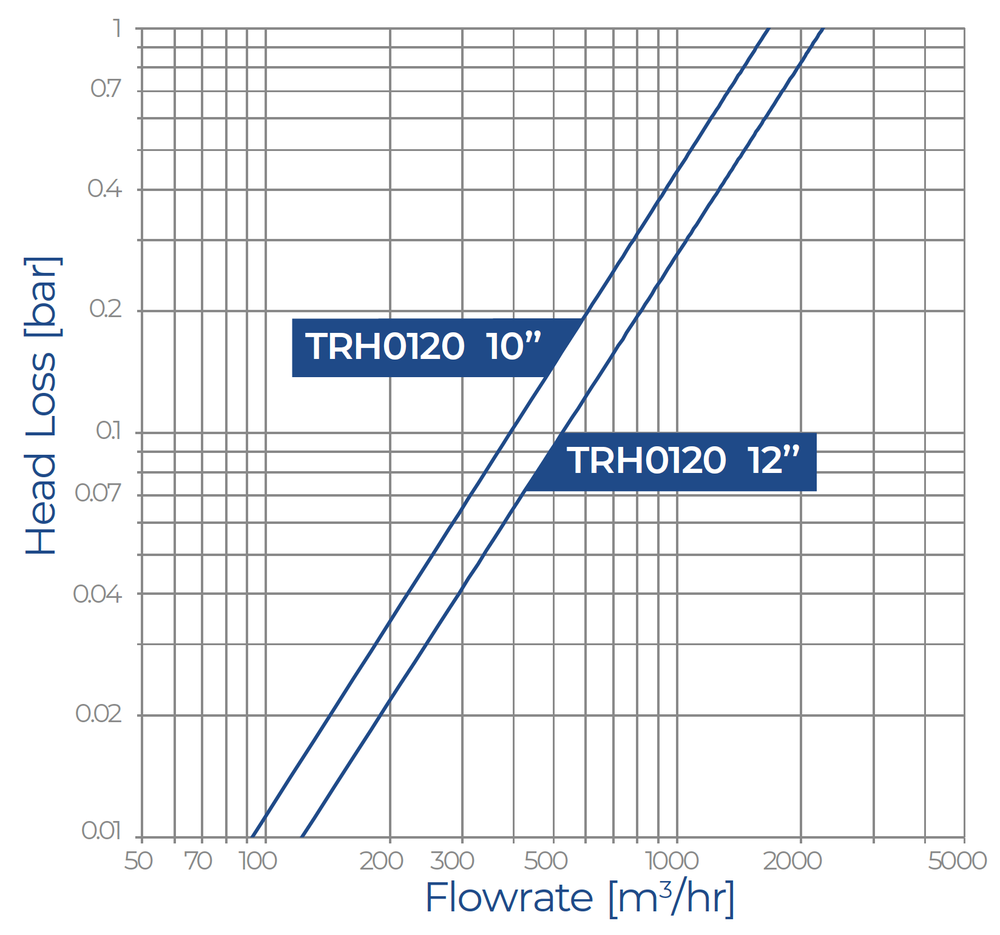

Trident 12000H

Head Loss Graph

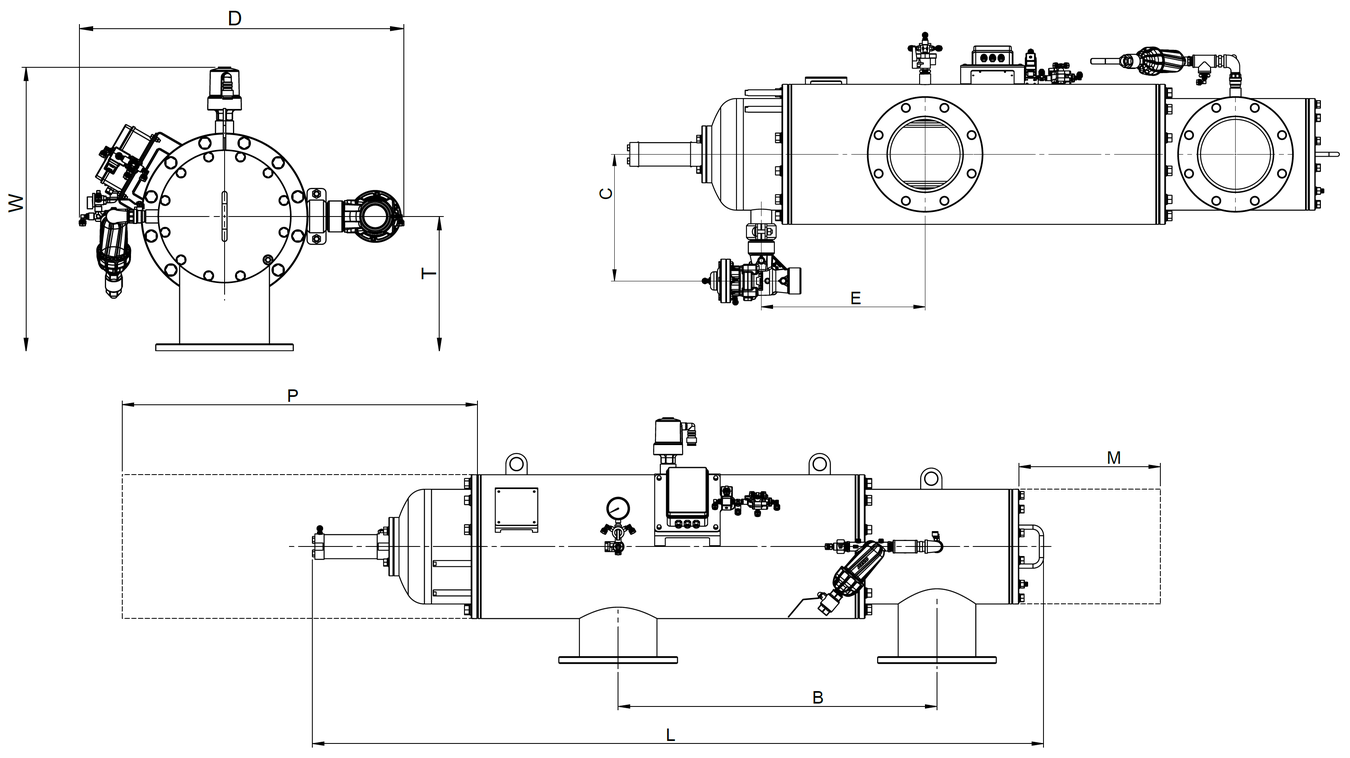

Dimensional Drawing

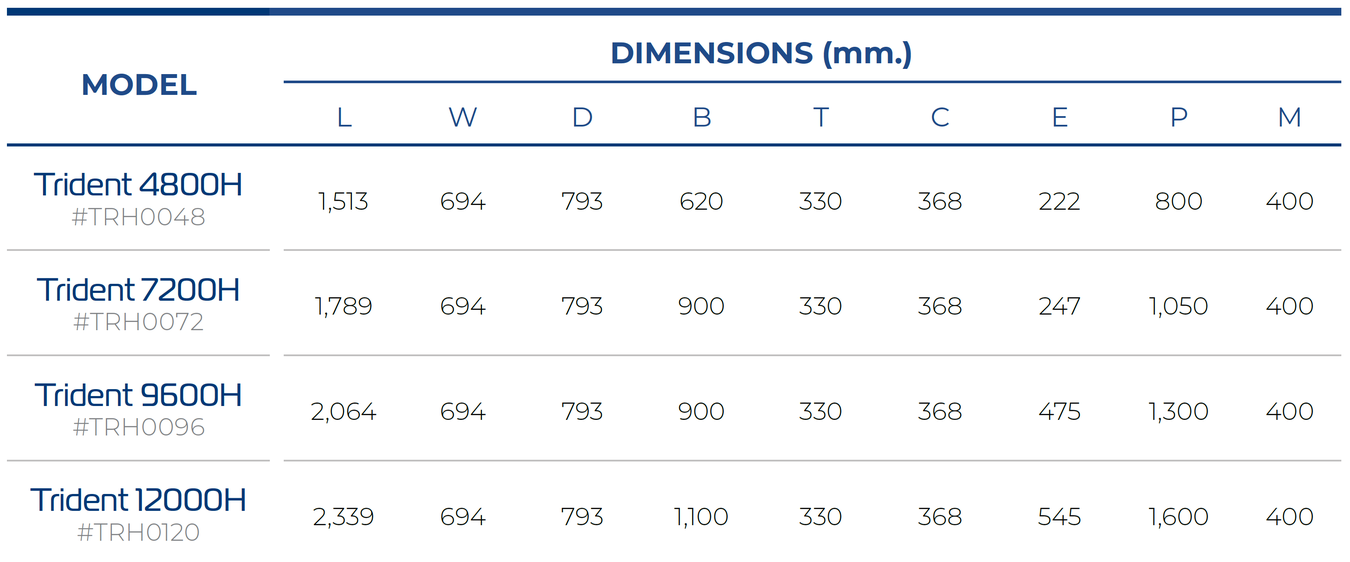

Dimensions
