| Brand: | Bermad |
| Category: | Control Valves, PN16 Metal Pilots |
| Pressure Range: | 1-10 Bar |
Product Description
This is a 2-way direct acting pilot valve, actuated by a pressure-responsive diaphragm, which seeks to reach equilibrium between hydraulic and set spring forces. When used in a pressure relief/sustaining circuit, the pilot modulates open as upstream pressure rises above the set point.
Features
- Differential pressure sensing
- Direct pressure gauge installation
Typical Applications
- Pressure Sustaining valves sizes 11/2-6” (Standard model PC-30-M)
- Differential pressure sustaining Valves sizes 11/2-6” (Modified to differential sensing PC-30-M-D)
Technical Data
Pressure Rating
- 16 bar; 232 ps
Working Temperature
- Water up to 80˚C; 180˚F
Flow Factor
- Kv 0.65 m3/h @ 1bar ∆P; Cv 0.75 GPM @ 1psi ∆P
Standard Materials
Body & Cover: Brass
Elastomers: NBR
Internals: Stainless Steel & Brass
Spring: Galvanized Stee
Ports
- 1/4" NPT

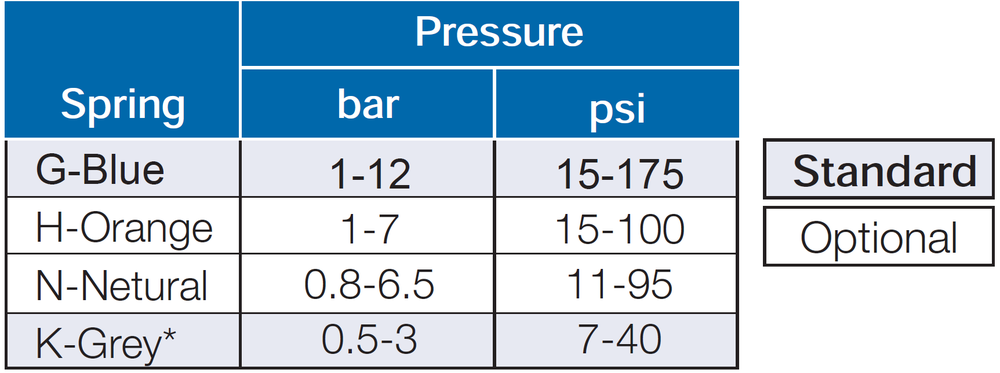

Adjustment Range
* For PC-30-M-D-differential sensing
Connections
0 - Downstream
1 - Sensing/pressure gauge
2 - Sensing/Pressure gauge
3 - Valve control chamber
4 - Upstream (through internal restriction)

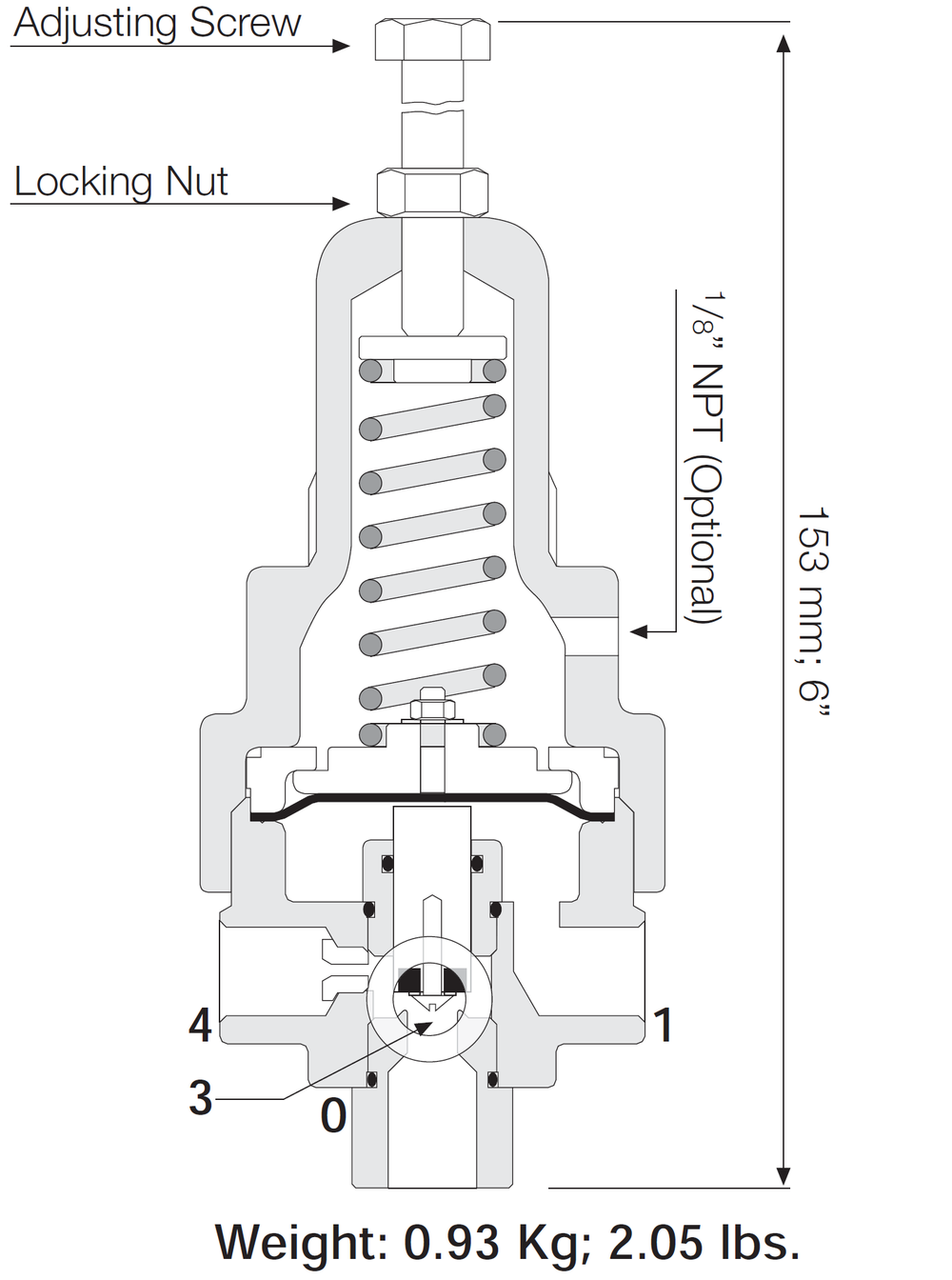

Technical Specifications
Repair Kits
| Product Code | Description |
|---|---|
| PC30A-RK | Repair Kit for Brass Bermad 2-Way Pressure Sustaining Pilot. |

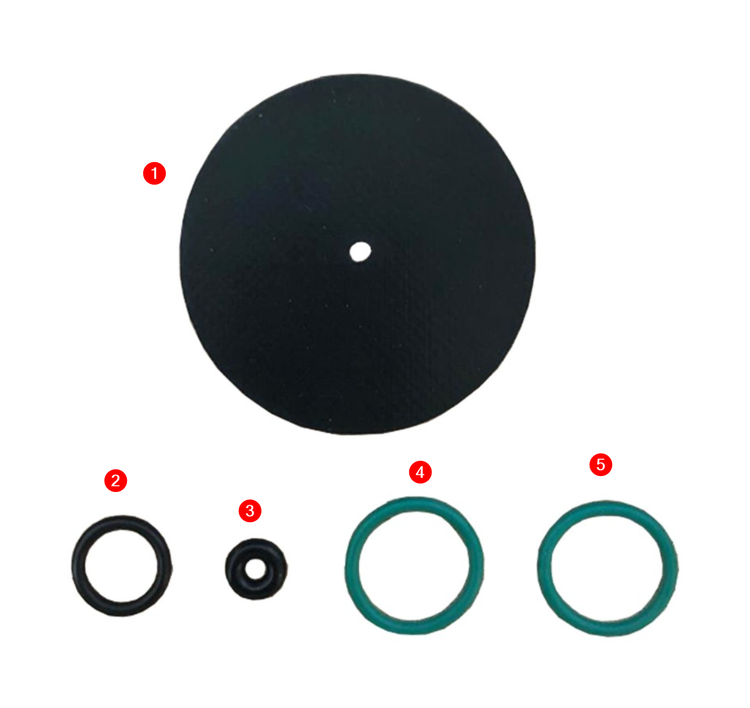

| Pos. | Product Description | Qty |
|---|---|---|
| 1 | Diaphragm | 1 |
| 2 | O-Ring Upper Guide | 1 |
| 3 | O-Ring | 1 |
| 4 | O-Ring Green for Body Assembly | 1 |
| 5 | O-Ring Green for Body Assembly | 1 |
Spare Parts
| Product Code | Description |
|---|---|

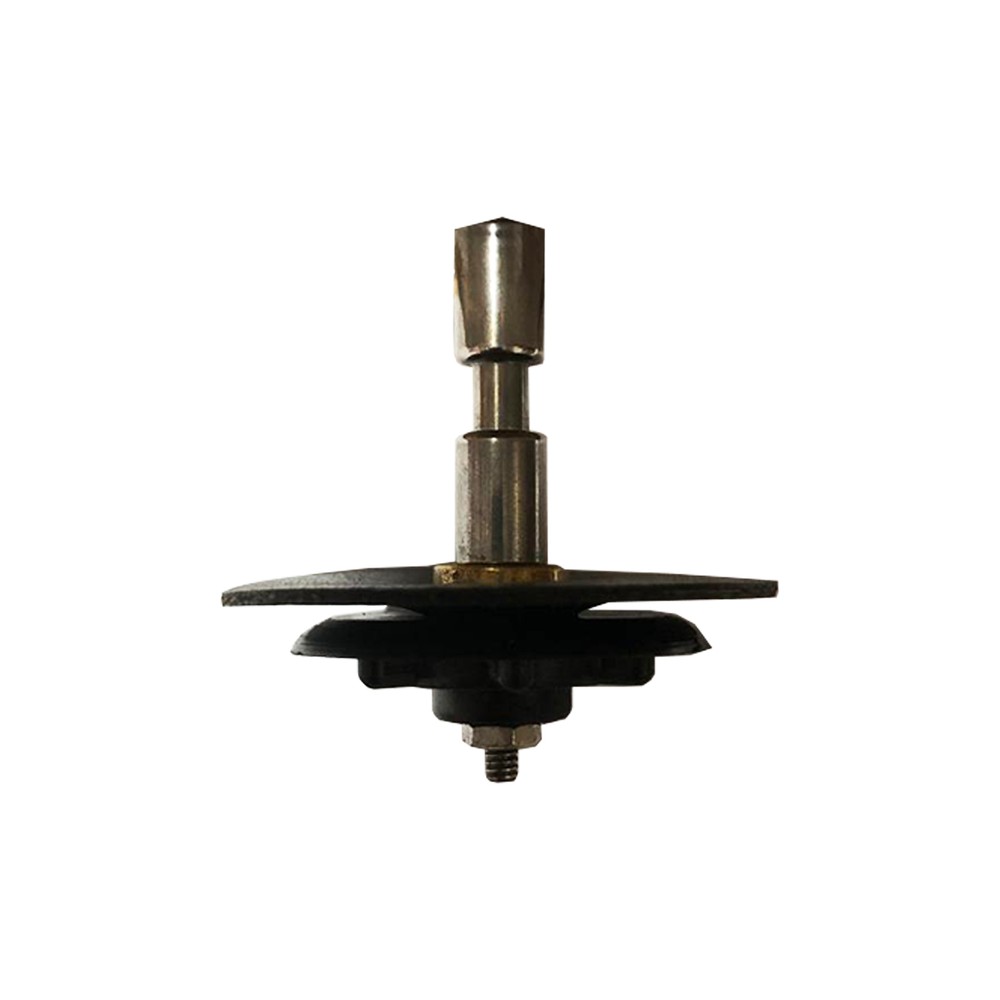

| PCP30A-30 | Diaphragm Assembly |
For Spare Parts Diagram Click Here

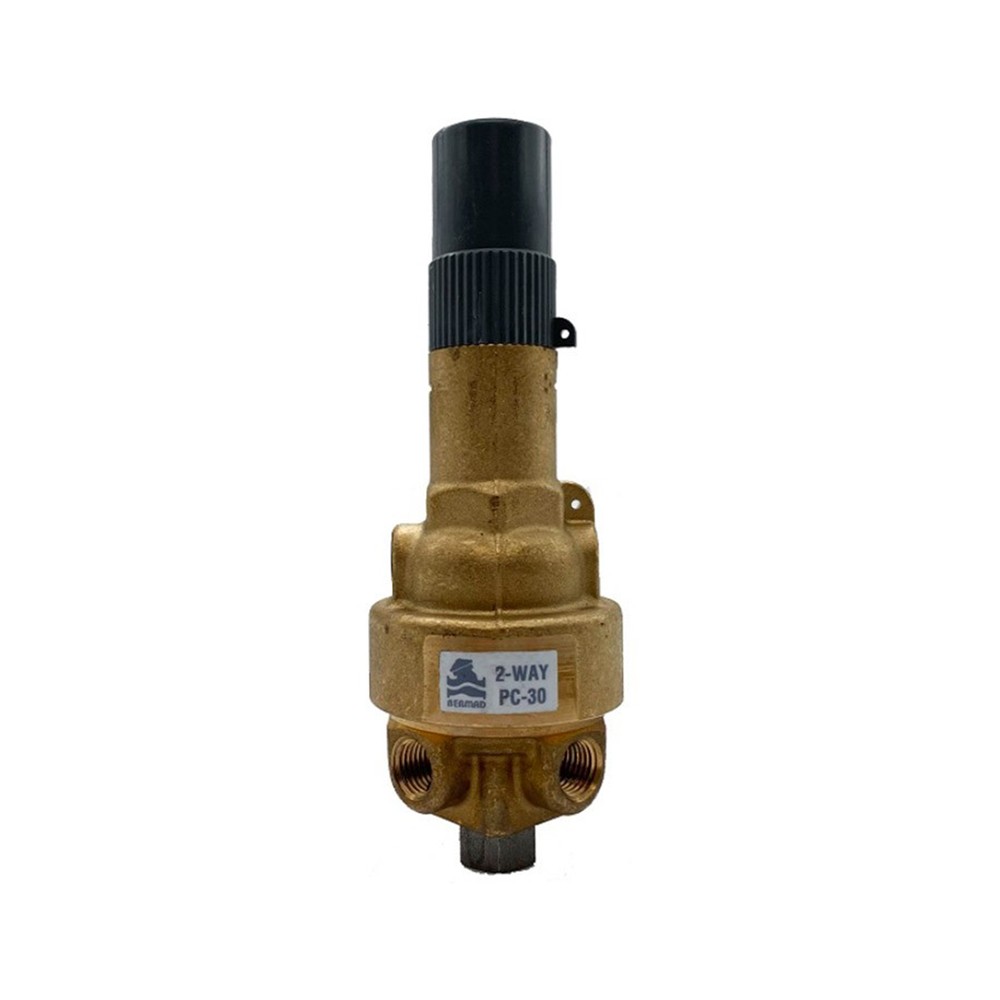

Bermad - Model PC-30-M - 2 Way Sustaining Pilot
Bermad - PC30A
| Product Code | Rating | Description |
|---|---|---|
| PC30A | PN16 | Brass Bermad 2 Way Pressure Sustaining Pilot. C/W Spring V(1-10 Bar) |
