| Brand: | Bermad |
| Category: | Control Valves, PN10 Plastic Pilots |
| Pressure Range: | 0.8-6.5 Bar |
Product Description
This is a 2-way direct acting pilot valve, actuated by a pressure-responsive diaphragm, which seeks to reach equilibrium between hydraulic and set spring forces. When used in a pressure relief/sustaining circuit, the pilot modulates open as upstream pressure rises above the set point.
Features
- Differential pressure sensing
Typical Applications
- Pressure Sustaining valves size 11/2-4” (Standard model PC-30-P).
- Differential pressure sustaining Valves sizes 11/2-4” (Modified to differential sensing PC-30-P-D)
Technical Data
Pressure Rating
- 10 bar; 145 psi
Working Temperature
- Water up to 50˚C; 122˚F
Flow Factor
- Kv 0.29 m3/h @ 1bar ∆P; Cv 0.33 GPM @ 1psi ∆P
Standard Materials
Body & Cover: Polyamide 6 + 30% F.G.
Elastomers: NBR
Internals: Stainless Steel & Brass
Spring: Galvanized Steel
Ports
- 1/8" NPT

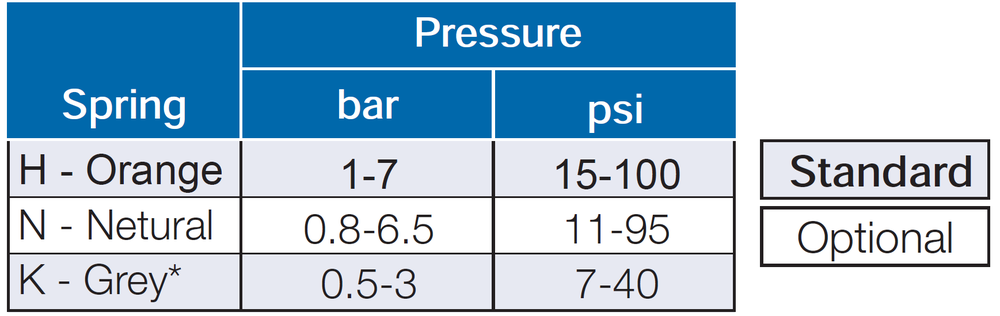

Adjustment Range
* For PC-30-P-D - differential sensing.
Connections
0 - Downstream
1 - Remote sensing
2 - Plugged
3 - Upstream (downstream from inlet restriction and from control chamber connection)

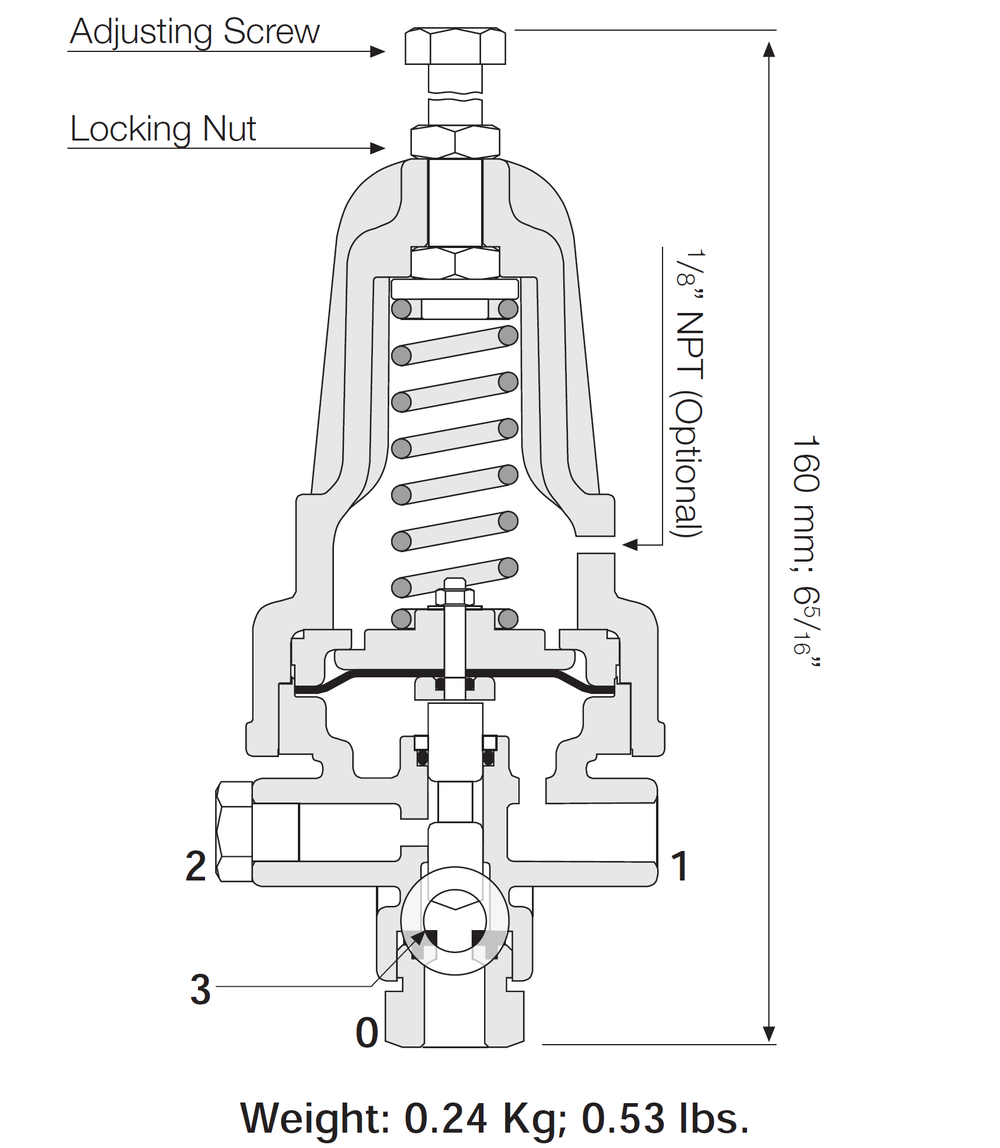

Technical Specifications
Spare parts
| Product Code | Description |
|---|---|
| PCP30A-30 | Diaphragm Assembly |
For Spare Parts Diagram Click Here

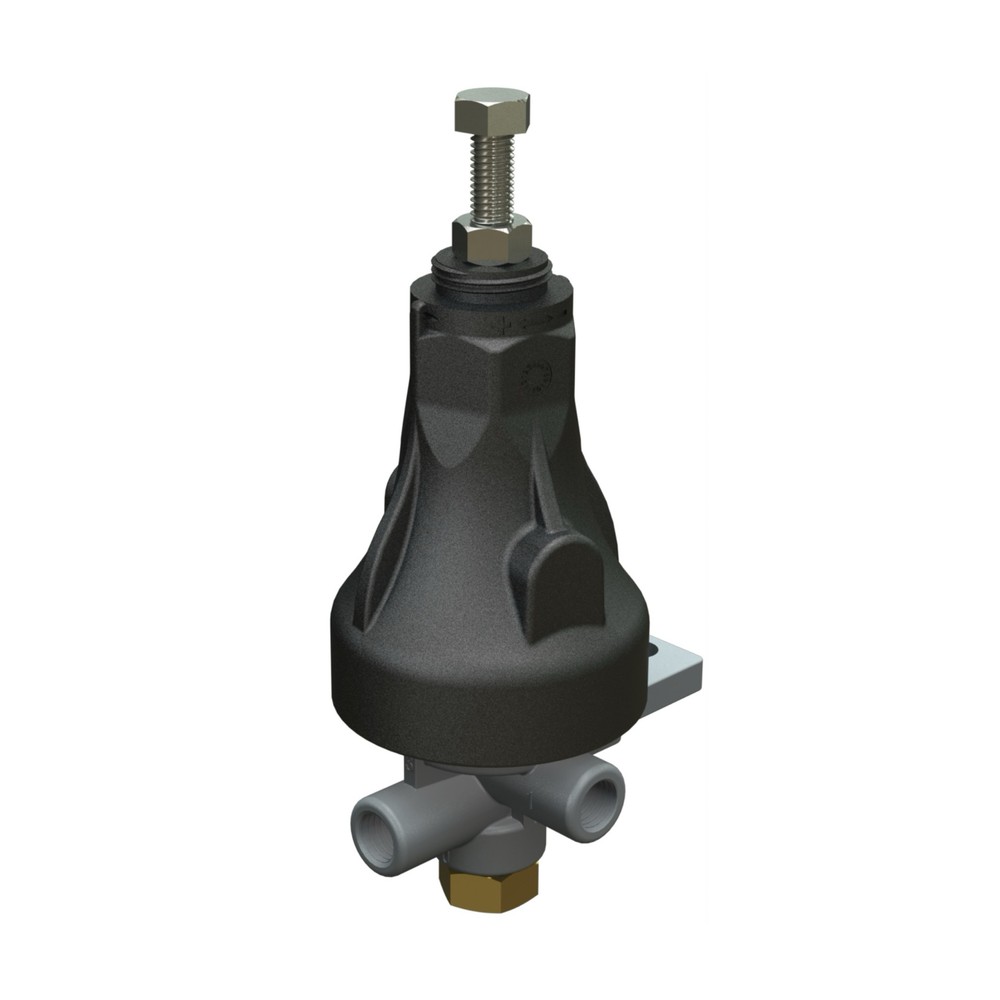

Bermad - Model PC-30-P - 2 Way Sustaining Pilot
Bermad - PCP30A
| Product Code | Description | |
|---|---|---|
| PCP30A | PN10 | Plastic Bermad 2 Way Pressure Sustaining Pilot. C/W Spring N (0.8-6.5 Bar) |
