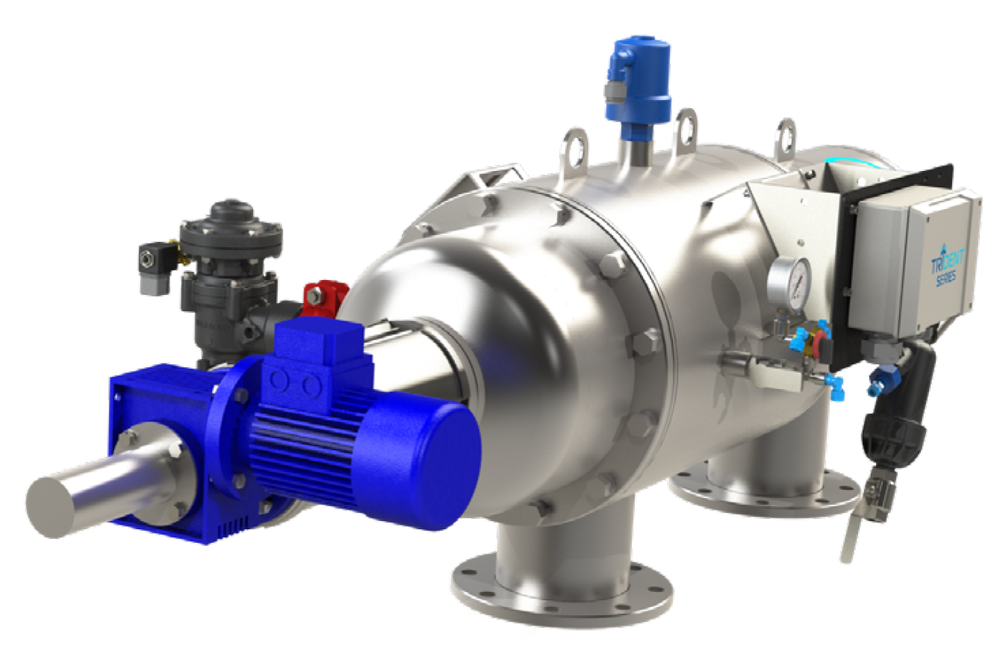

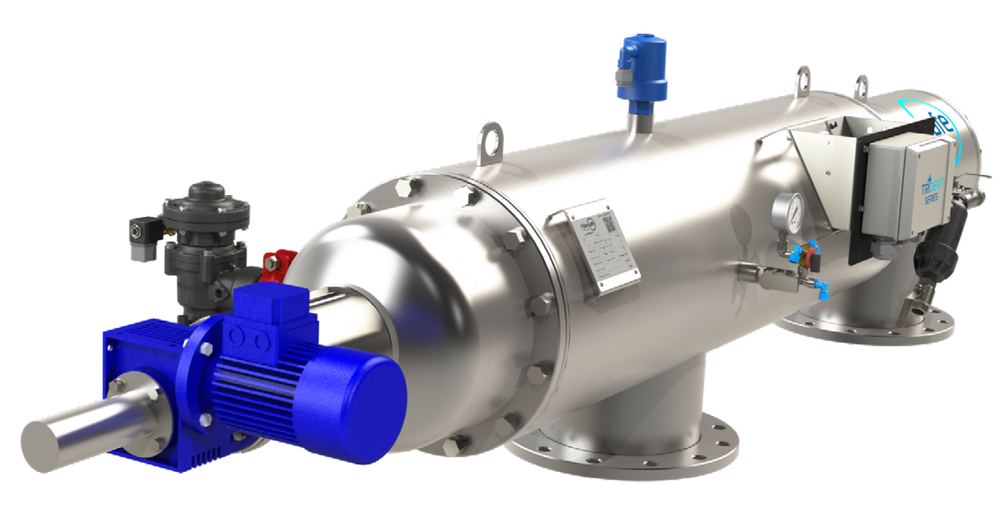

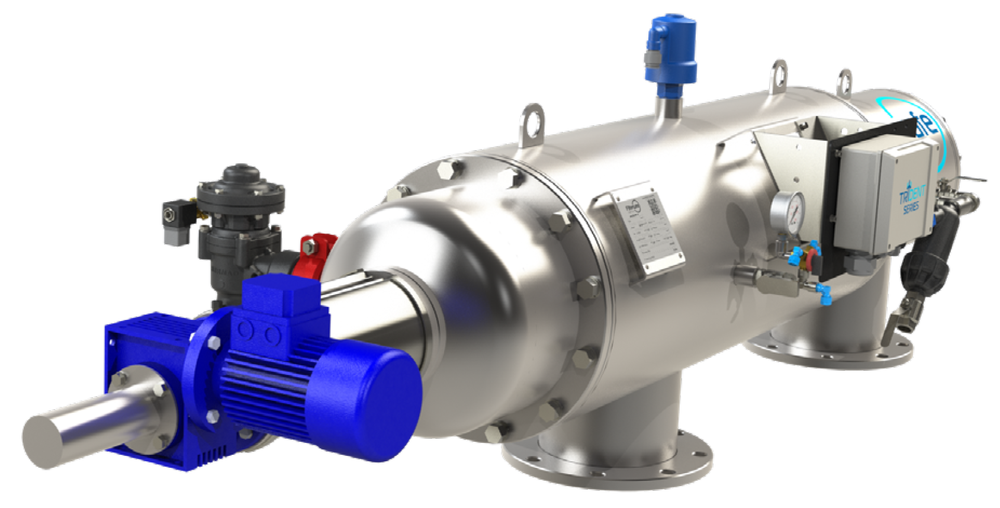

Filtersafe - Trident E Series - Automatic Electric Self-Cleaning Screen Filter

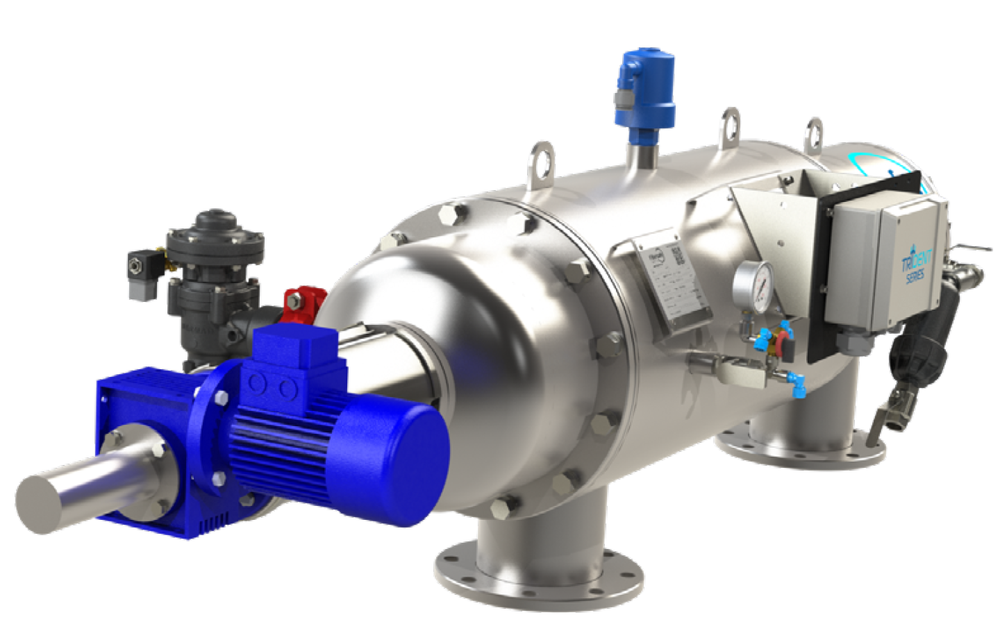

Filtersafe - Trident E Series - Product Image

Brand:	Filtersafe
Category:	Filtration, Automatic Filters - Screen
Filtration Degree:	80-500 micron
Filter Area:	upto 12000 cm²

Product Description

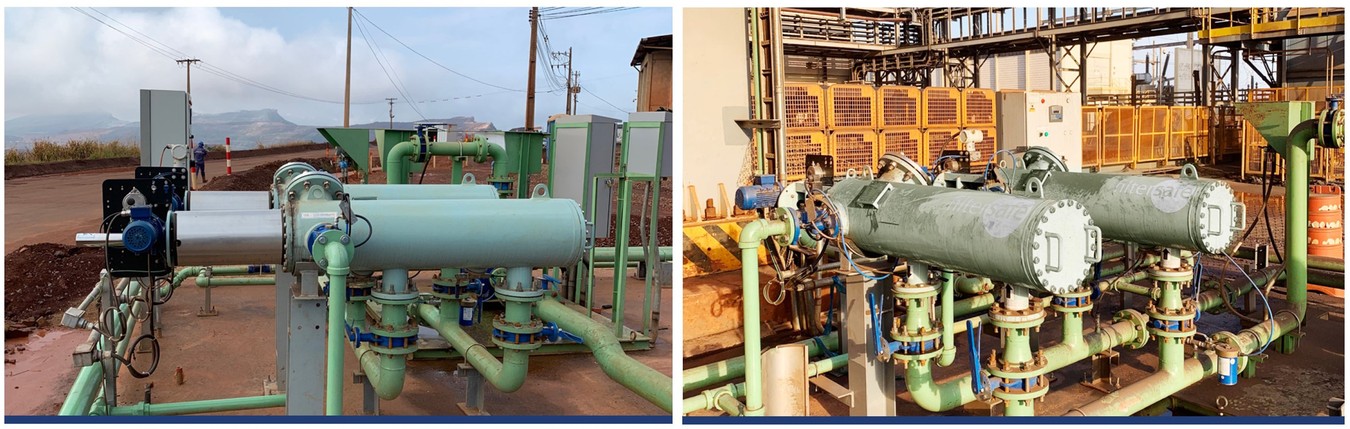

The Filtersafe TRIDENT E Automatic Screen filters are durable and reliable with a large preliminary screen that is ideal for situations with challenging water and low-pressure requirements, such as Greenhouses, Drip Irrigation, or other Industrial and Municipal needs with high loads of TSS. The TRIDENT E provides an uninterrupted supply of clean filtered water even during the flushing cycle.

Features and Benefits

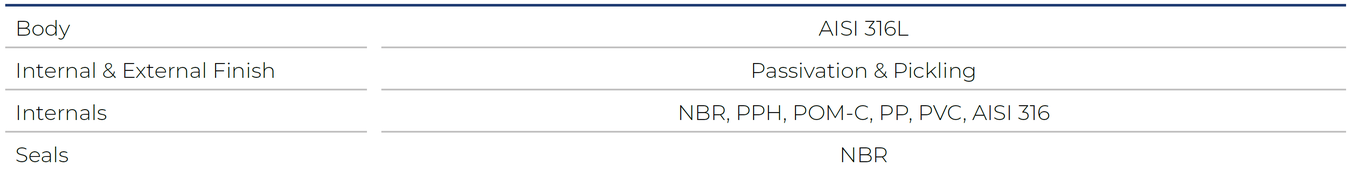

Full 316 Stainless Steel Construction
nozzlex Patented Proximity Nozzles + 4 Layer smartweave Sintered Screen EVERCLEAR Automatic Self-Cleaning Process
Large Preliminary Screen Protection for Direct Primary Water Sourcing
Horizontal and Vertical Models Available
Ideal for Low Pressure
The Filters are Plug & Play
High Flow & Large Filtration Area
Failsafe NC Flush Valve
Up to 600 m³/h Max. Flow Rate
80 – 500 μm Filtration Degree
10 bar Max. Operating Pressure
Low flush flow
1.6 bar (23 psi) Min. Operating Pressure
Up to 12,000 cm2 filter area
AD 2000 Design code
Temp 65°C

Cleans while in Operation

The cleaning is initiated by either differential pressure (DP) build-up across the smartweave fine screen when it’s dirty, by a timer, or by manual flush which an external PLC controller controls.

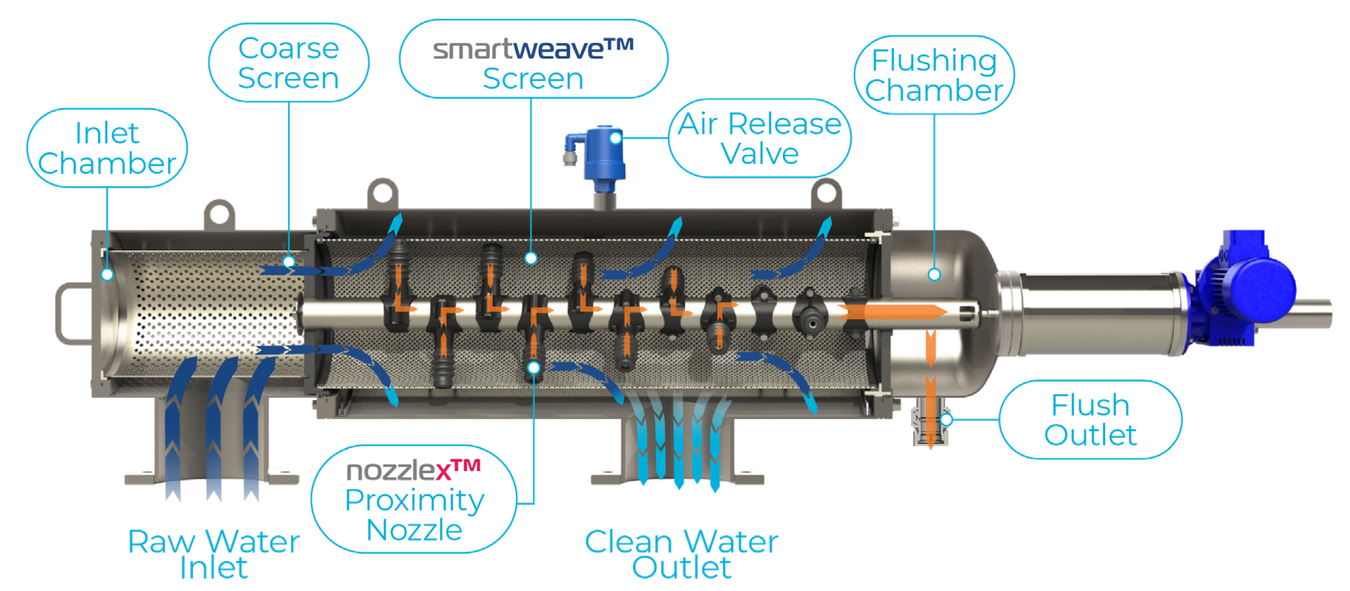

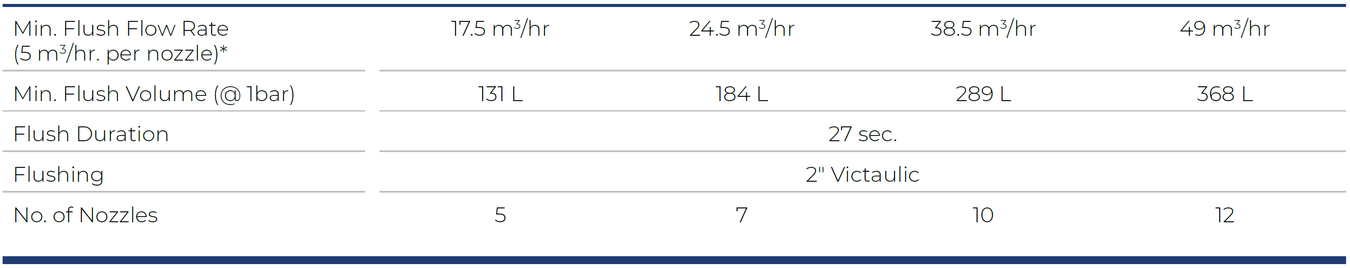

The cleaning cycle starts by opening the flush valve, allowing water from the clean side of the screen to reverse back through the screen surface at high velocity, dislodging entrapped particles off the screen to the nozzlex cleaning nozzles and expelled from the filter.
The cleaning mechanism is rotated by a drive motor and moved laterally with the cleaning nozzles to completely clean the screen. The filter remains online during the cleaning process allowing for a continuous flow of clean filtered water downstream without interruption.

All settings are determined by the controller. Cleaning cycle initiation is possible via a preselected DP level, specific time, or combination of both. The length of the flush is customizable.

Filtersafe - Trident E Series - Cleaning

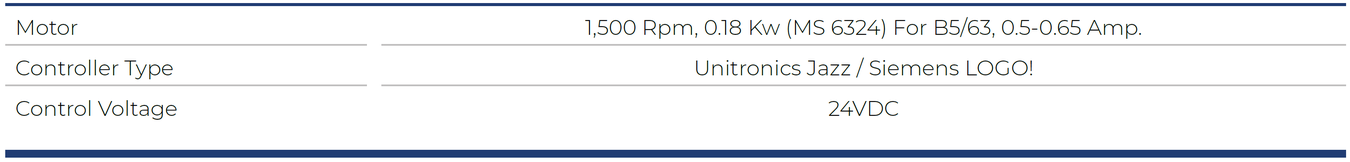

Robust Controllers

Our controllers automatically manage the flushing of your Trident E filters

Quick & intuitive setup
Wide voltage range.
Useful hard-wire interface for customer monitoring and operation.

Optional:

Modbus TCP (Ethernet) communication interface for detailed system monitoring.

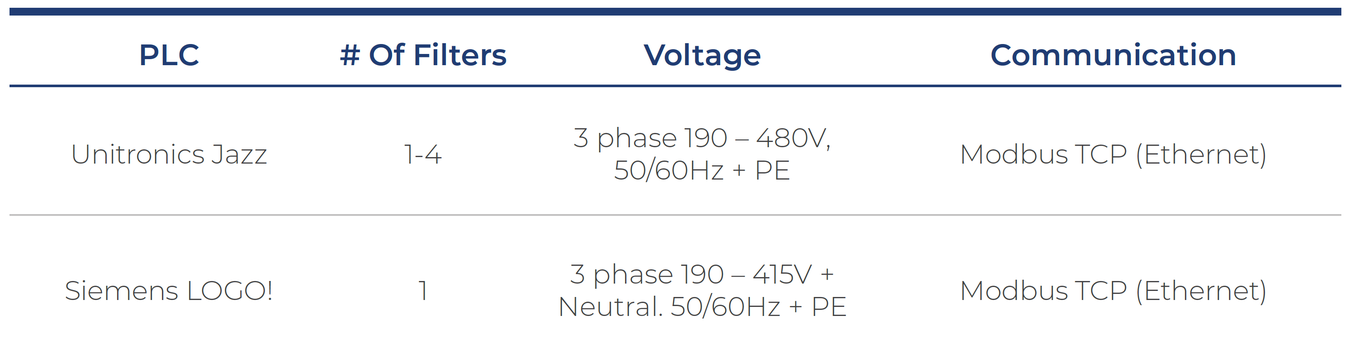

Choose between the Unitronics Jazz! the controller that can control up to 4 filters and the Siemens LOGO! controller for a Cost-effective solution for stand-alone applications.

Filtersafe - Trident E Series - Unitronic Jazz

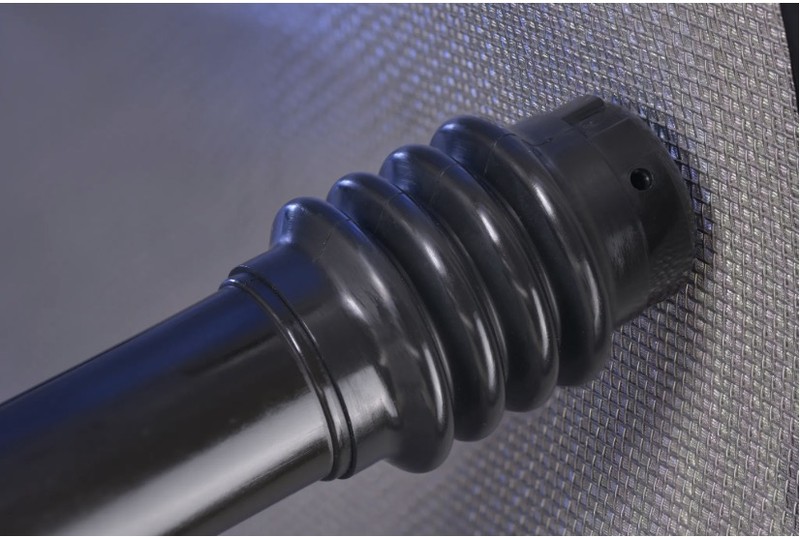

Patented proximity nozzles for maximum filter efficiency, improved flow rate, and shorter filtering process.

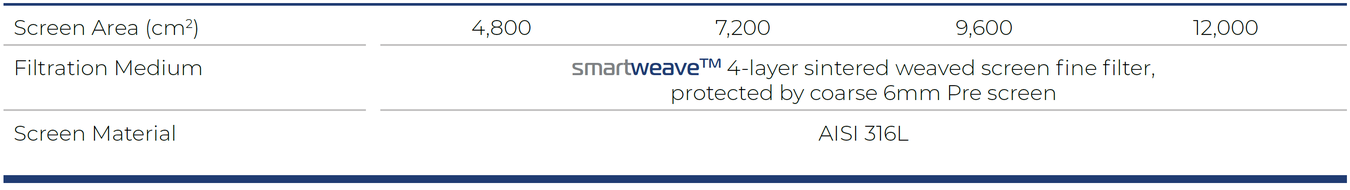

Filtersafe’s® smartweave™ multi-layered sintered screen is a unique and exclusive weave-wire mesh specifically designed for challenging water conditions.

Whether seawater, brackish water, turbid river water, or industrial wastewater, the smartweave™ screen automatically filters out all particles above the chosen micron rating.

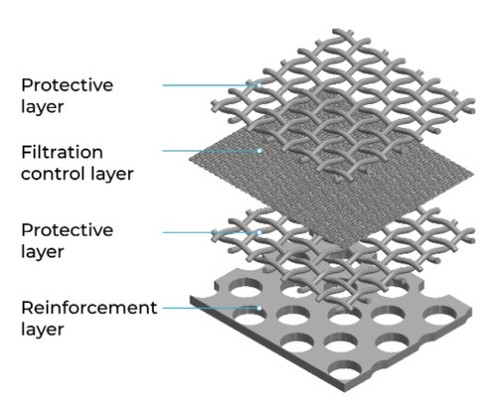

Multi-layered sintered structure smartweave™ is comprised of four stainless steel weave-wire screen layers that create an extra durable, reliable screen. To learn more about our smartweave™ technology, please read our article on how our technology works here.

Self cleaning cycle for maximum filter efficiency, improved flow rate, and shorter filtering process.

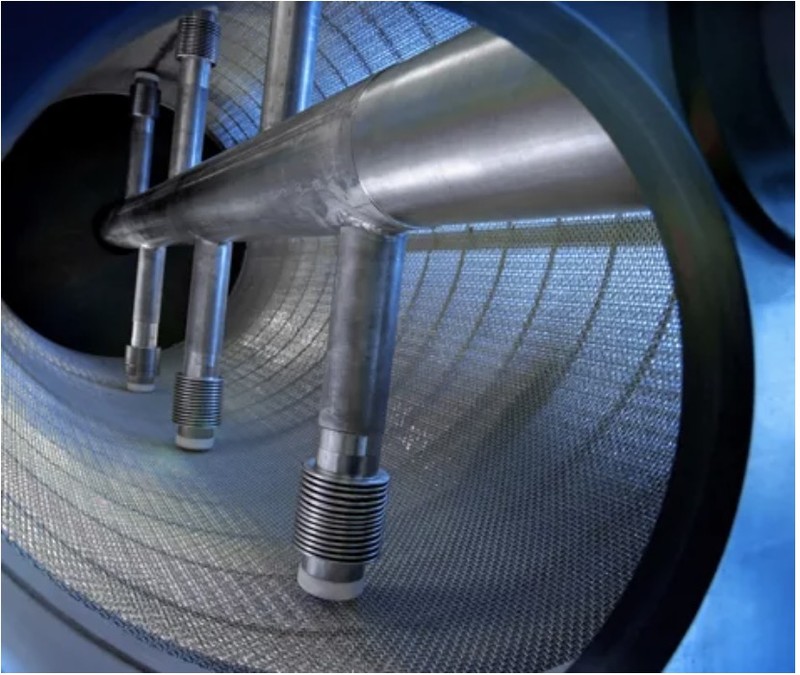

nozzlex® scans the entire smartweave™ screen removing all matter, disposing of the reject water through the flushing chamber. The patented nozzles remove 100% of matter that builds upon the screen, which increases the filter’s flow rate and gives you more filtered water for whatever you need – perhaps filling up your ballast tanks quickly, or pretreatment filtration for desalination. The most innovative aspect of the nozzlex technology is that it has absolutely ZERO wear on the screen, due to the firm but minimal force the nozzle is calculated to have with the screen. This extends the lifespan of the nozzles, the screen, and your filter system as a whole.

EVERCLEAR® produces unparalleled removal rates of organic matter and TSS – an imperative in combating marine bio-invasions.

At the heart of every Filtersafe® filter lies an advanced automated filter cleaning sequence in EVERCLEAR. Its success largely revolves around a set of uniquely crafted and patented technologies:

smartweave™ high-performance filtration screens
nozzlex™ proximity nozzles

The exclusive combination of these technologies enables EVERCLEAR™ to deliver unparalleled filtration performance under even the most strenuous water conditions.
