![Green Mist - Product Image](https://deeco-production.s3.amazonaws.com/images/Green_Mist_-_Product_Image.2e16d0ba.fill-500x500.jpg)
Brand: | NaanDanJain |
Category: | Sprinklers, Micro Sprinklers |
Product Description
Green Mist Micro Sprinkler is designed to meet the dual demands of misting and irrigation over propagation benches. This versatile emitter ensures precise and uniform coverage, creating an optimal environment for plant growth and propagation success.
The Green Mist Micro Sprinkler generates an ideal droplet size, preventing mist drift and ensuring efficient water usage. Additionally, it guarantees symmetrical water distribution, eliminating any inconsistencies in your propagation area, and provides uniform irrigation even at "dead corners".
Designed for reliability, the Green Mist Micro Sprinkler features a Low-Pressure Leakage Prevention Device (LPD) that enables perfect pulsed operation. This not only enhances the overall efficiency of the system but also contributes to water conservation.
We understand the importance of cost-effectiveness in agricultural operations. That's why the Green Mist Micro Sprinkler not only delivers top-notch performance but also comes at a low cost. The ideal solution for achieving propagation excellence.

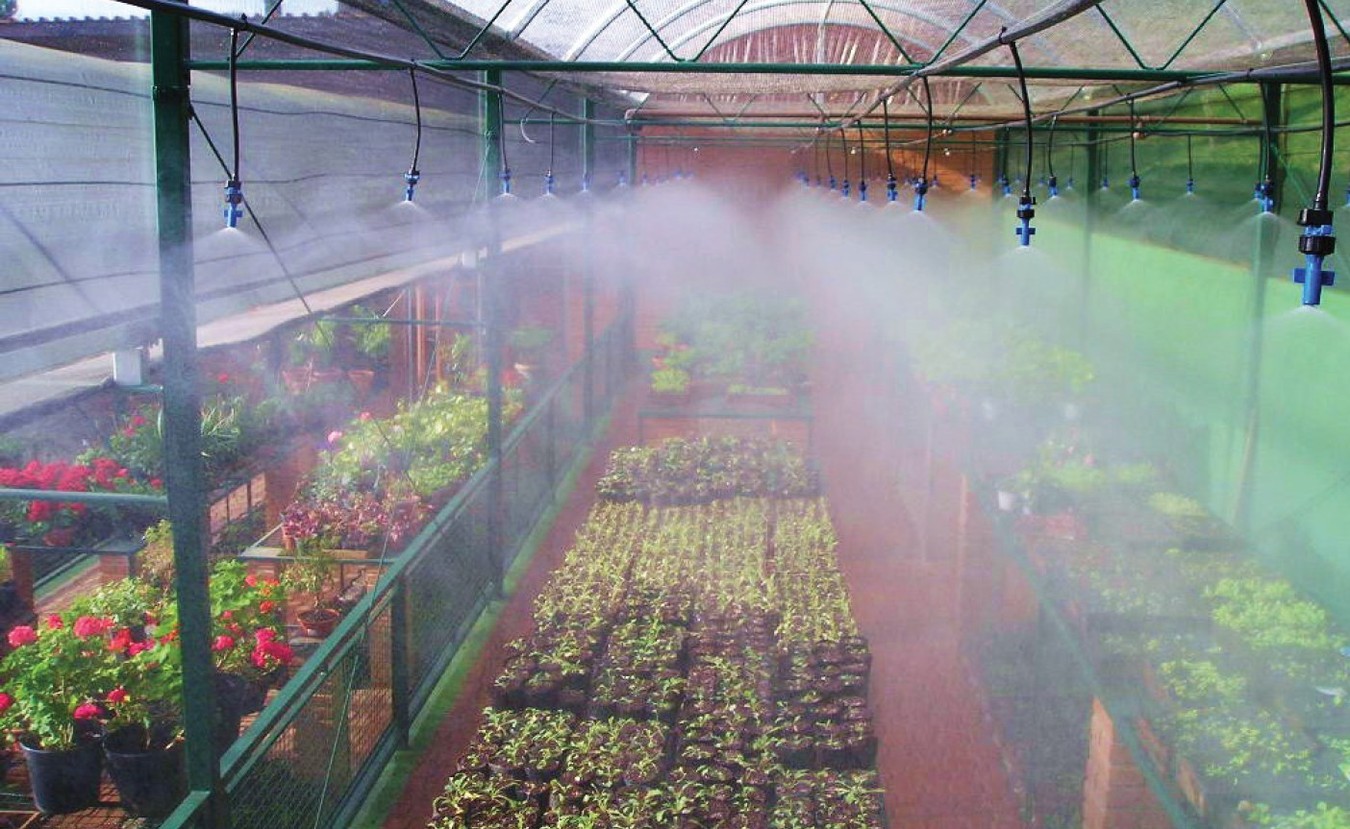

Features & Benefits
- Ideal droplet size prevents drift of fine mist
- No dripping during the operation
- Symmetrical water distribution with no deflection or “dead corners”
![Green Mist - Features and Benefits](https://deeco-production.s3.amazonaws.com/images/Green_Mist_-_Features_and_Benefits.width-1350.jpg)
Technical Data
Recommended Working Pressure
- 2.0-3.5 bar
Filtration Requirements
- 150 microns
Flow Rate
- 30-40 l/h
Wetted Diameter
- 1.2 m

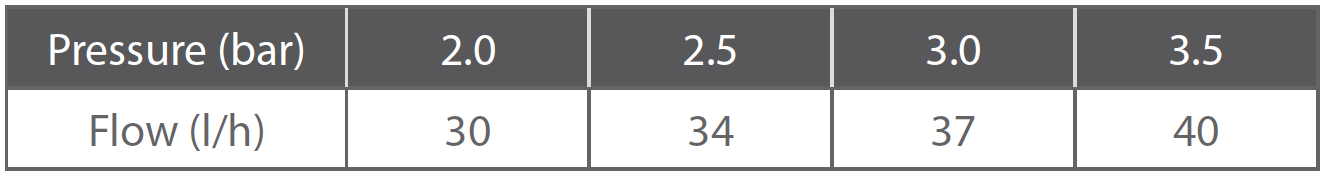

Flow Rate vs Pressure
![Green mist - Flow rate vs Pressure](https://deeco-production.s3.amazonaws.com/images/Green_mist_-_Flow_rate_vs_Pressure.width-1350.png)

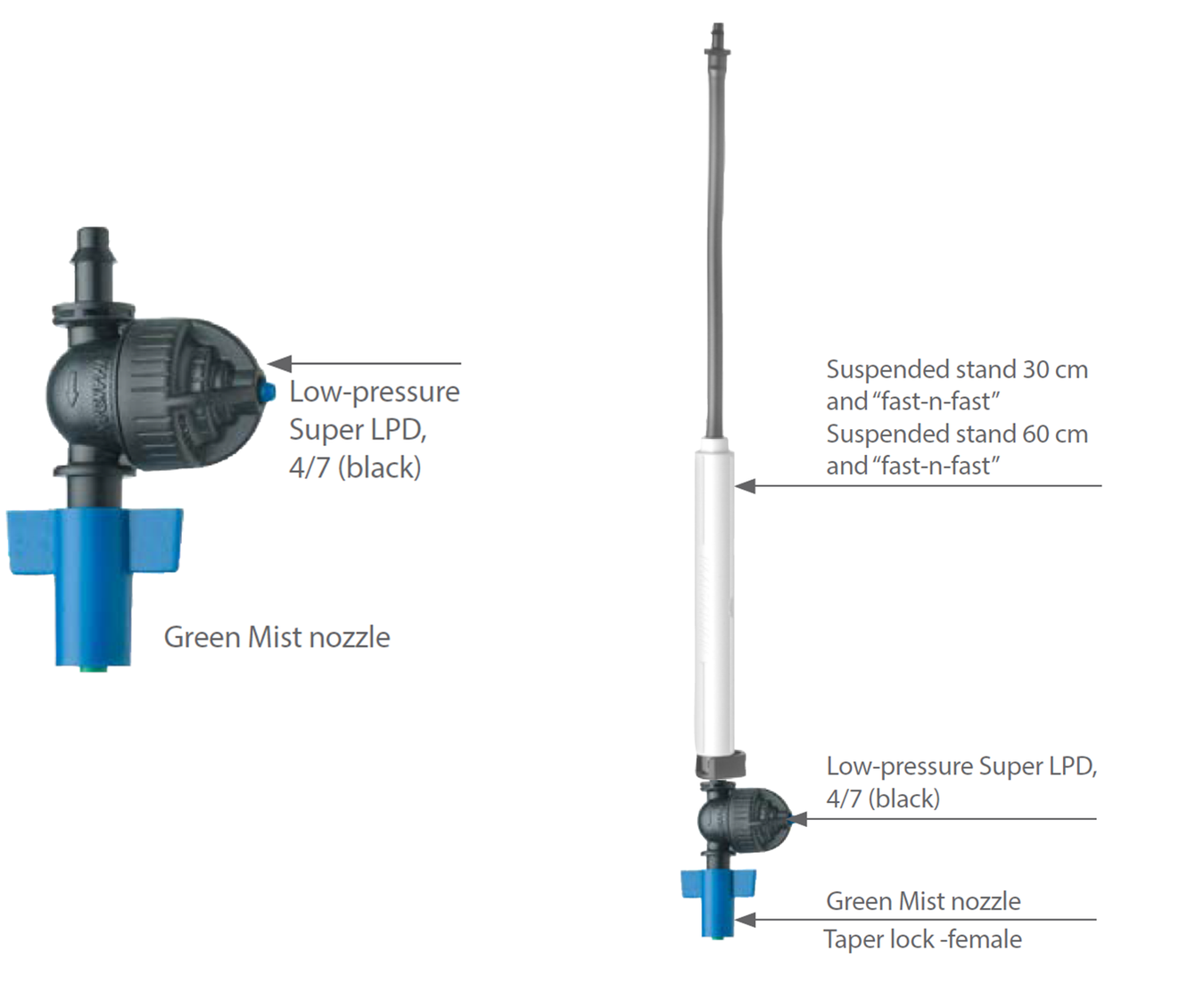

Product Components
![Green mist - Product Components](https://deeco-production.s3.amazonaws.com/images/Green_mist_-_Product_Components.width-1350.png)
Technical Specifications

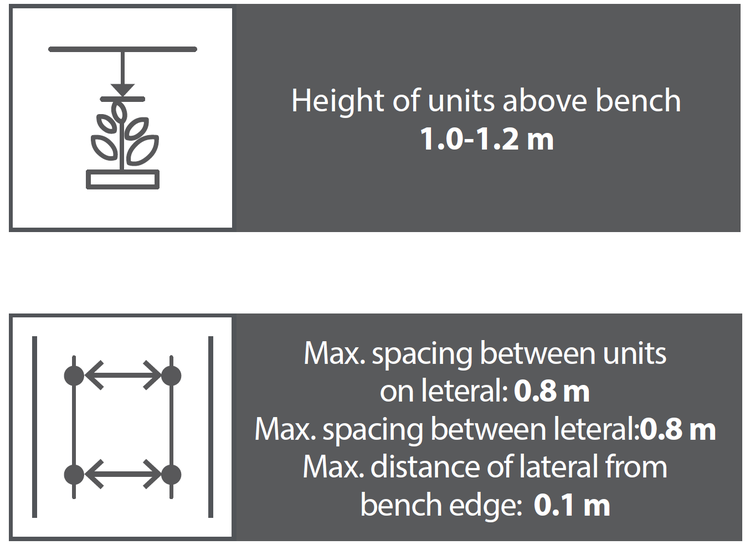

Installation Instructions
![Green mist - Installation Instructions](https://deeco-production.s3.amazonaws.com/images/Green_mist_-_Installation_Instructions.width-750.png)

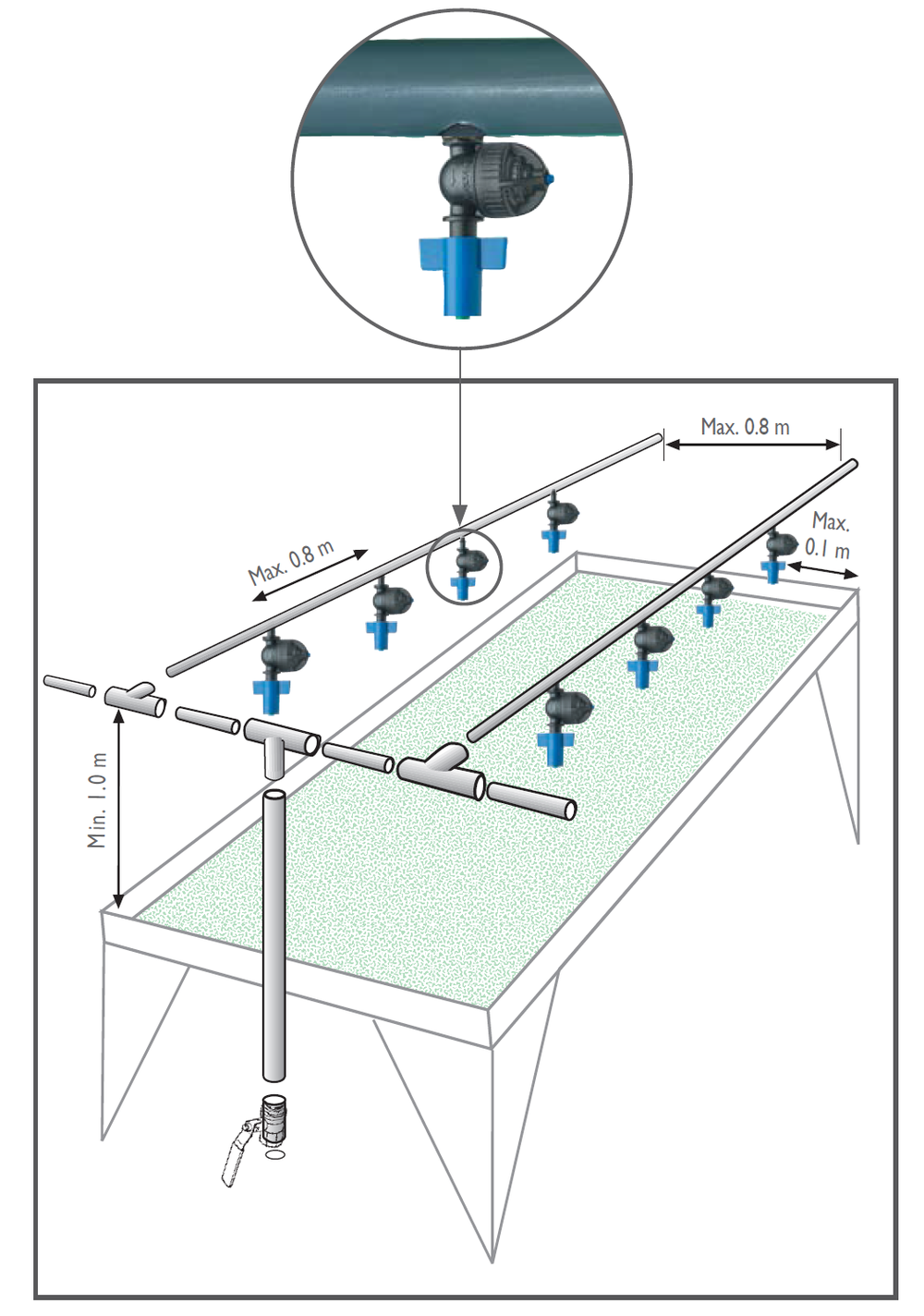

Schematic Layout of PVC installation
![Green mist - Installation](https://deeco-production.s3.amazonaws.com/images/Green_mist_-_Installation.width-1000.png)
Green mist
Dual-purpose emitter for misting & irrigation over propagation benches
Product Code | Description |
---|---|
199802 | Green mist head |
199832 | Green mist head on super LPD black, barb 4/7 |
1998021 | Green mist head on butterfly 4/7 |
Suspended Tube Assemblies
4/7 barb inlet with stabilizer
Product Code | Description | Outlet Connection |
---|---|---|
797136 | Suspended stand 20cm, butterfly, suit push fit base | Push fit |
797140 | Suspended stand 30cm, butterfly, suit push fit base | Push fit |
797143 | Suspended stand 60cm, butterfly, suit push fit base | Push fit |
797122 | Suspended stand 20cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797124 | Suspended stand 30cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797129 | Suspended stand 60cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797443 | Suspended stand 30cm, + Super LPD, suit push fit base | Push fit |
797446 | Suspended stand 60cm, + Super LPD, suit push fit base | Push fit |
Product Code | Description | Outlet Connection |
---|---|---|
797179 | Suspended stand 20cm, butterfly, suit push fit base | Push fit |
797180 | Suspended stand 30cm, butterfly, suit push fit base | Push fit |
797182 | Suspended stand 60cm, butterfly, suit push fit base | Push fit |
797189 | Suspended stand 20cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797190 | Suspended stand 30cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797192 | Suspended stand 60cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797473 | Suspended stand 30cm + Super LPD, suit push fit base | Push fit |
797476 | Suspended stand 60cm + Super LPD, suit push fit base | Push fit |
Product Code | Description | Outlet Connection |
---|---|---|
797431 | Suspended stand 20cm, male bayonet + butterfly, suit push fit base | Push fit |
797430 | Suspended stand 30cm, male bayonet + butterfly, suit push fit base | Push fit |
797125 | Suspended stand 30cm, male bayonet + fast-n-fast, suit 4/7 barb base | F-N-F |
797126 | Suspended stand 60cm, male bayonet + fast-n-fast, suit 4/7 barb base | F-N-F |
484921 | Adaptor 1/2" MBSP x female bayonet |
*must order adaptor and suspended stand.
