| Brand: | NaanDanJain |
| Category: | Sprinklers, Micro Sprinklers |
Product Description

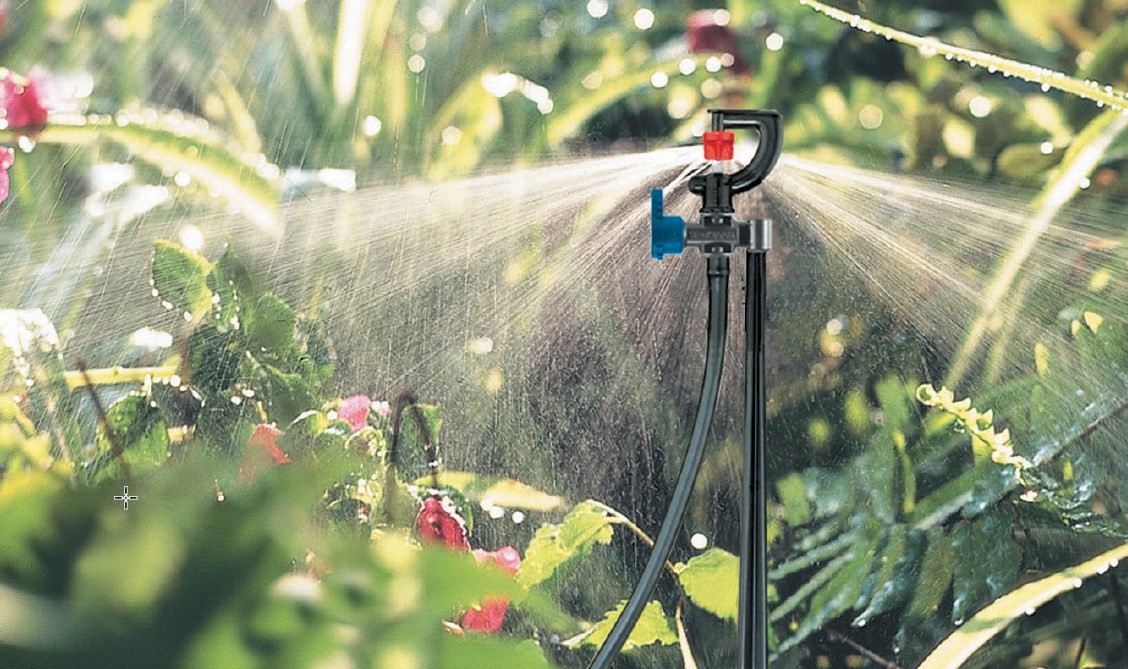

The Modular is a micro-sprinkler with a broad range of wetted diameters and flow rates.
Features and Benefits
- A broad range of wetted diameters and flow rates
- Full and part circle patterns
- Small, medium, or large droplets are produced by different sprayers, swivels, or anti-mist devices
Technical Data
Recommended Working Pressure
- 1.5-3.0 bar
Flow Rate
- 25-400 l/h
Wetting Diameter
- 1-10m
Filtration Requirements
- Purple and brown nozzles: 130 microns
- Other nozzles: 200 microns

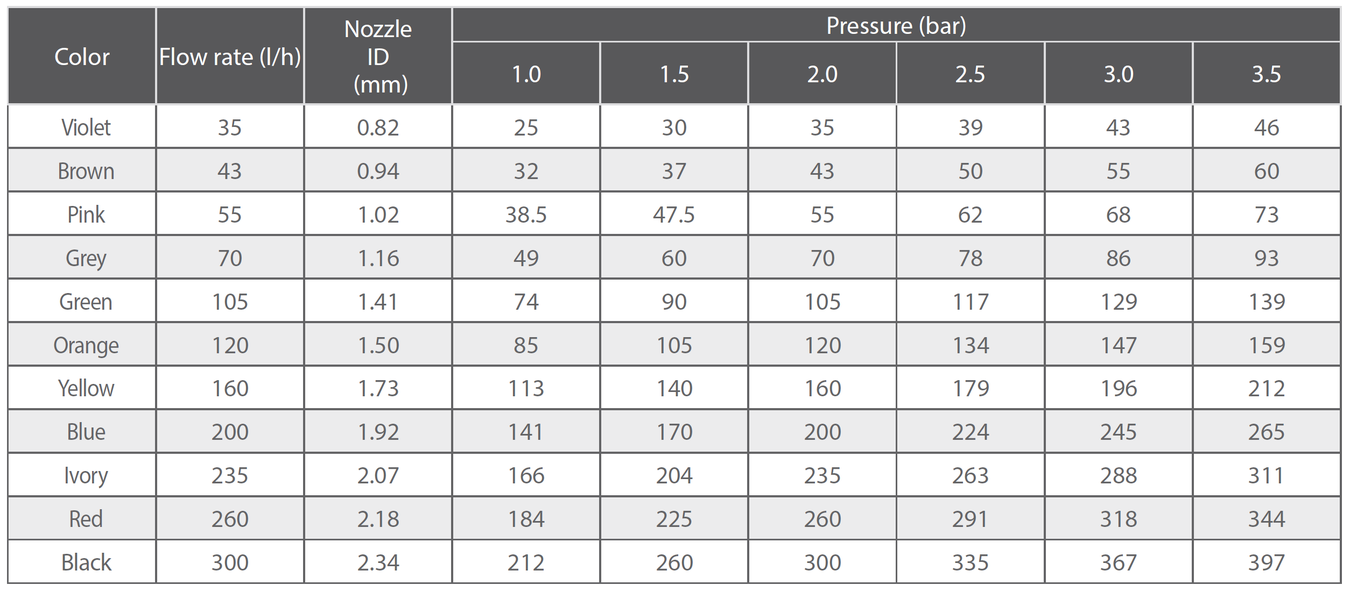

Modular Nozzle and Flow rate vs Pressure

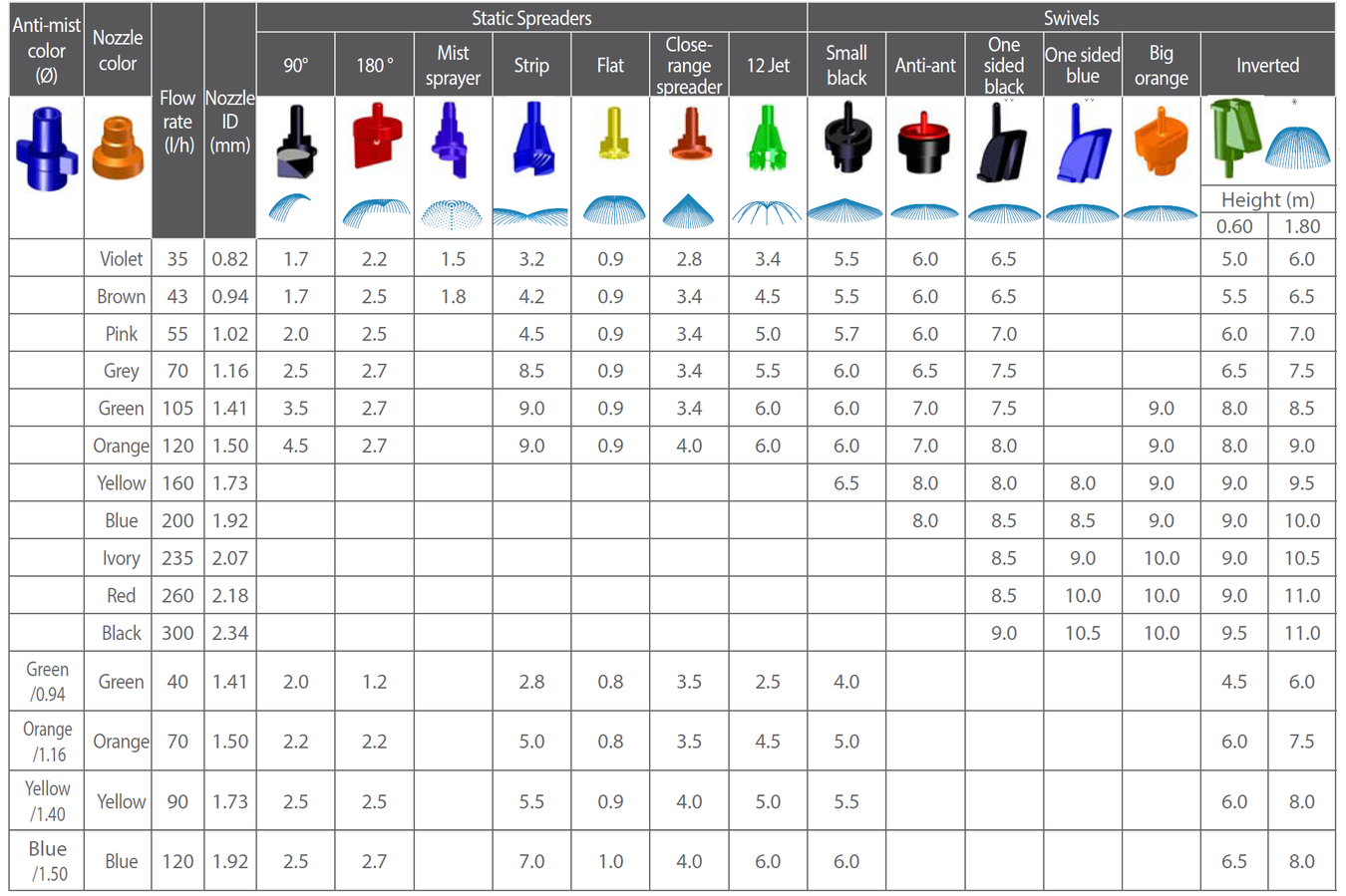

Wetted Diameter (m)
at 2.0 Bar and 0.25 m above ground level
Tested under laboratory conditions
* Inverted swivel tested at 0.6m and 1.8 m
** Only for upright uses

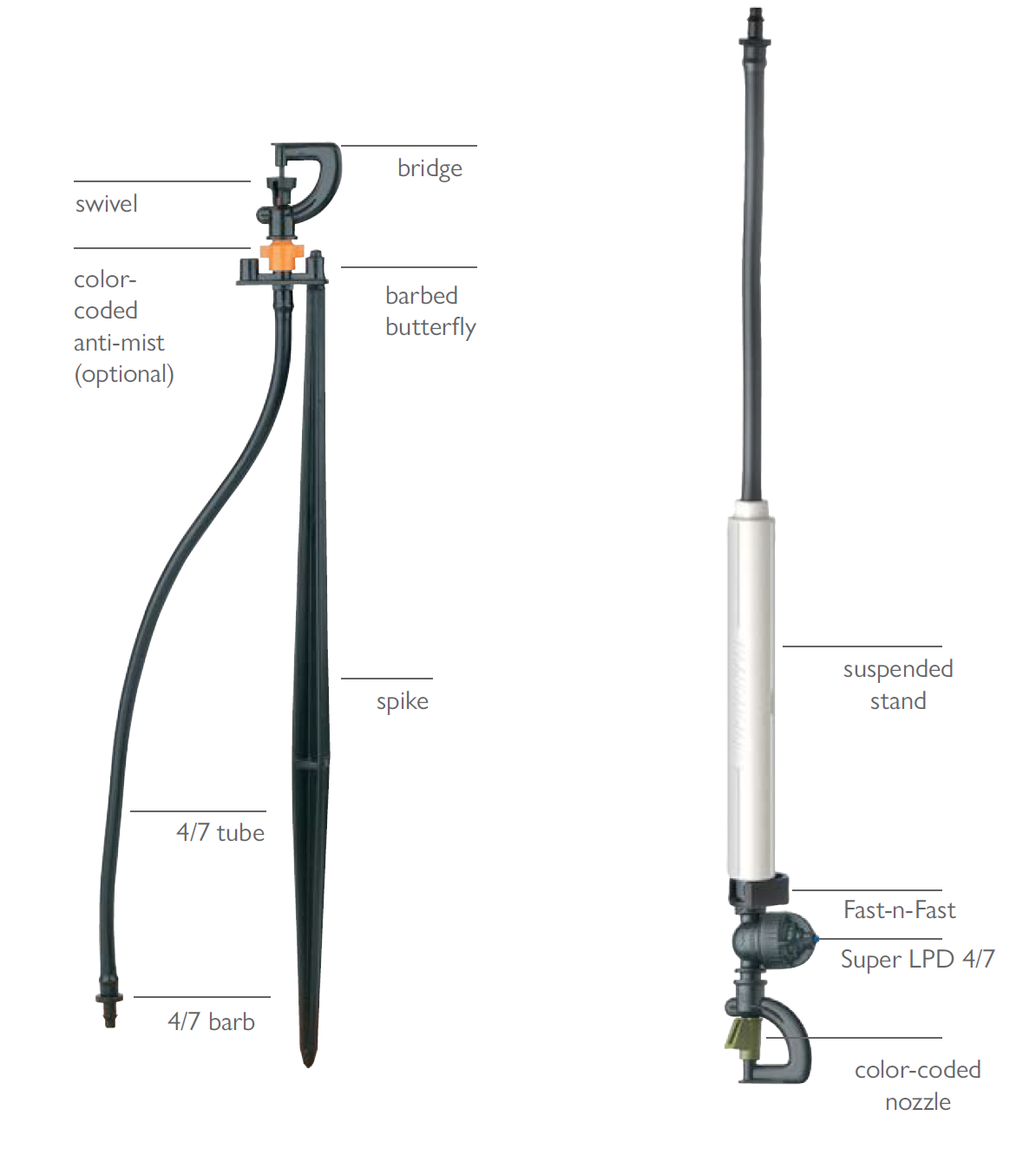

Product Components
NaanDanJain - Modular - Micro Sprinkler
MICRO SPRINKLER FOR HOME AND COMMERCIAL LANDSCAPE, GREENHOUSE, NURSERY, AND AGRICULTURAL APPLICATIONS
90° Deflector - Black
| Product Code | Description | Colour |
|---|---|---|
251104 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
251100 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
251109 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
251102 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
251105 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
| Product Code | Description | Colour |
|---|---|---|
251204 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
251200 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
251209 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
251202 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
251205 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
| Product Code | Description | Colour |
|---|---|---|
251304 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
251300 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
251309 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
251302 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
251305 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
| Product Code | Description | Colour |
|---|---|---|
251504 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
251500 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
251509 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
251502 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
251505 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
| Product Code | Description | Colour |
|---|---|---|
251604 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
251600 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
251609 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
251602 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
251605 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
| Product Code | Description | Colour |
|---|---|---|
251704 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
251700 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
251709 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
251702 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
251705 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
| Product Code | Description | Colour |
|---|---|---|
251804 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
251800 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
| Product Code | Description | Colour |
|---|---|---|
252304 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
252300 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
252309 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
252302 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
252305 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
252306 |
Modular c/w 160 lph nozzle, push-fit housing |
Yellow |
| Product Code | Description | Colour |
|---|---|---|
252402 |
Modular c/w 35 lph nozzle, push-fit housing |
Green |
252405 |
Modular c/w 43 lph nozzle, push-fit housing |
Orange |
252406 |
Modular c/w 70 lph nozzle, push-fit housing |
Yellow |
252403 |
Modular c/w 105 lph nozzle, push-fit housing |
Blue |
252401 |
Modular c/w 120 lph nozzle, push-fit housing |
Ivory |
252407 |
Modular c/w 160 lph nozzle, push-fit housing |
Red |
252408 |
Modular c/w 300 lph nozzle, push-fit housing |
Black |
| Product Code | Description | Colour |
|---|---|---|
252904 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
252900 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
252909 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
252902 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
252905 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
252906 |
Modular c/w 160 lph nozzle, push-fit housing |
Yellow |
252903 |
Modular c/w 200 lph nozzle, push-fit housing |
Blue |
| Product Code | Description | Colour |
|---|---|---|
254304 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
254300 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
254309 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
254302 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
254305 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
254306 |
Modular c/w 160 lph nozzle, push-fit housing |
Yellow |
254303 |
Modular c/w 200 lph nozzle, push-fit housing |
Blue |
254301 |
Modular c/w 235 lph nozzle, push-fit housing |
Ivory |
254307 |
Modular c/w 260 lph nozzle, push-fit housing |
Red |
254308 |
Modular c/w 300 lph nozzle, push-fit housing |
Black |
| Product Code | Description | Colour |
|---|---|---|
254206 |
Modular c/w 160 lph nozzle, push-fit housing |
Yellow |
254203 |
Modular c/w 200 lph nozzle, push-fit housing |
Blue |
254201 |
Modular c/w 235 lph nozzle, push-fit housing |
Ivory |
252907 |
Modular c/w 260 lph nozzle, push-fit housing |
Red |
252908 |
Modular c/w 300 lph nozzle, push-fit housing |
Black |
| Product Code | Description | Colour |
|---|---|---|
254504 |
Modular c/w 35 lph nozzle, push-fit housing |
Violet |
254500 |
Modular c/w 43 lph nozzle, push-fit housing |
Brown |
254509 |
Modular c/w 70 lph nozzle, push-fit housing |
Grey |
254502 |
Modular c/w 105 lph nozzle, push-fit housing |
Green |
254505 |
Modular c/w 120 lph nozzle, push-fit housing |
Orange |
254506 |
Modular c/w 160 lph nozzle, push-fit housing |
Yellow |
254503 |
Modular c/w 200 lph nozzle, push-fit housing |
Blue |
254501 |
Modular c/w 235 lph nozzle, push-fit housing |
Ivory |
254507 |
Modular c/w 260 lph nozzle, push-fit housing |
Red |
254508 |
Modular c/w 300 lph nozzle, push-fit housing |
Black |
