| Brand: | NaanDanJain |
| Category: | Sprinklers, Micro Sprinklers |
Product Description
The Super Fogger micro sprinkler is an optimal and economical solution for cooling, humidifying, and chemical spraying in greenhouses.

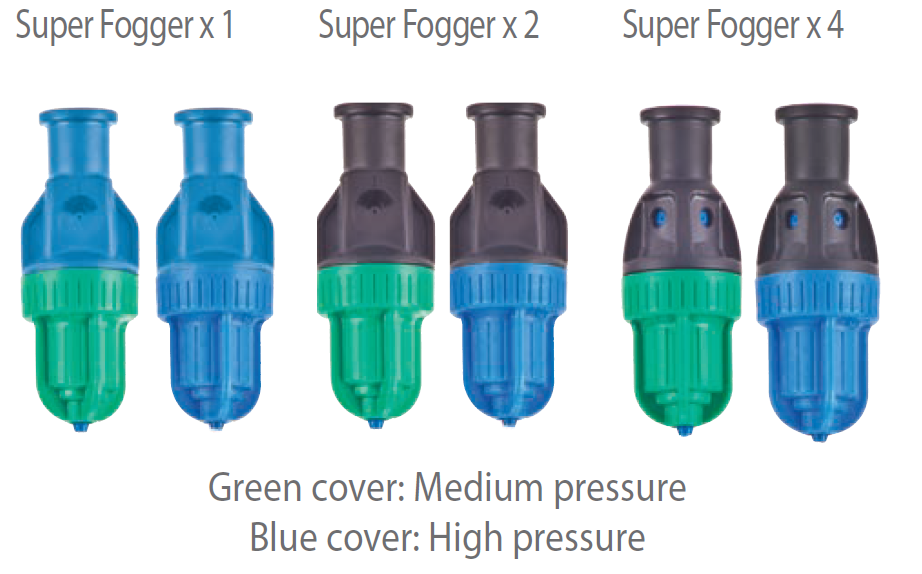

Available in single, two, and four outlets, the Super Fogger provides flexible options for various applications.
Built with a Leakage Prevention Device (LPD) in both high-pressure (blue cover) and medium-pressure (green cover) models, it ensures secure operation.
Designed for minimal foliage wetting during pulsed operation, it produces very small droplets, making it ideal for pesticide applications. With easy installation and service, chemical-resistant raw materials, and connections for both PE and PVC pipes, it's a reliable and convenient choice for greenhouse operations.
Featuring multi connections for PE pipes and 3/8” thread for PVC pipes, the Super Fogger accommodates different setups. Its unique design, which includes a built-in LPD and a unique filter for extra protection, reduces the need for additional components.
Offering low maintenance and various connections, outlets, and pressures, the Super Fogger stands out as an optimal and economical solution for greenhouse applications.

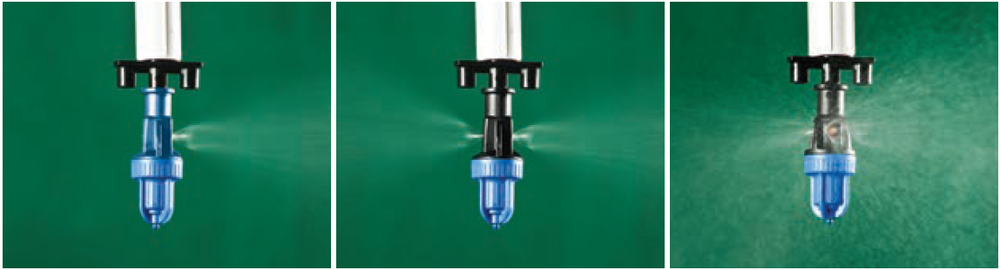

Features & Benefits
- One, two, and four outlets are available
- Built-in anti-leak device
- Very small droplets for minimal foliage wetting during pulsed operation

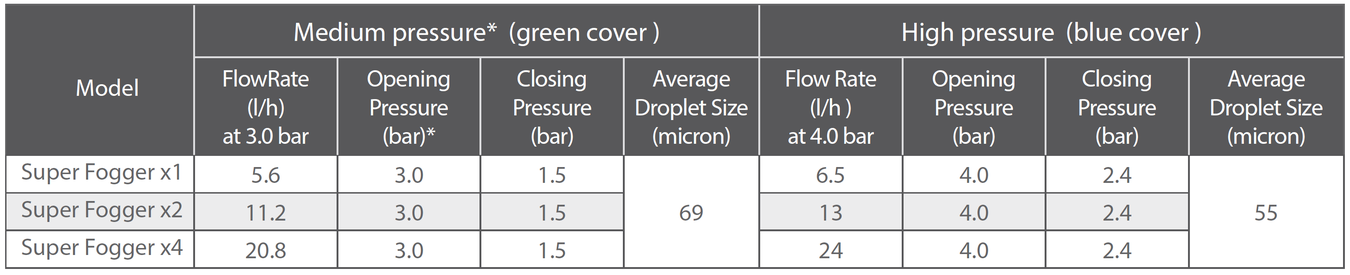

Technical Data
Recommended Working Pressure
- High 4.0 bar
- Medium 3.0 bar
Filtration Requirements:
- 0.8-1.2 mm nozzles: 130 microns
- >1.3mm nozzles: 200 microns
*Medium pressure model, maximal operation pressure 3.5 bar.

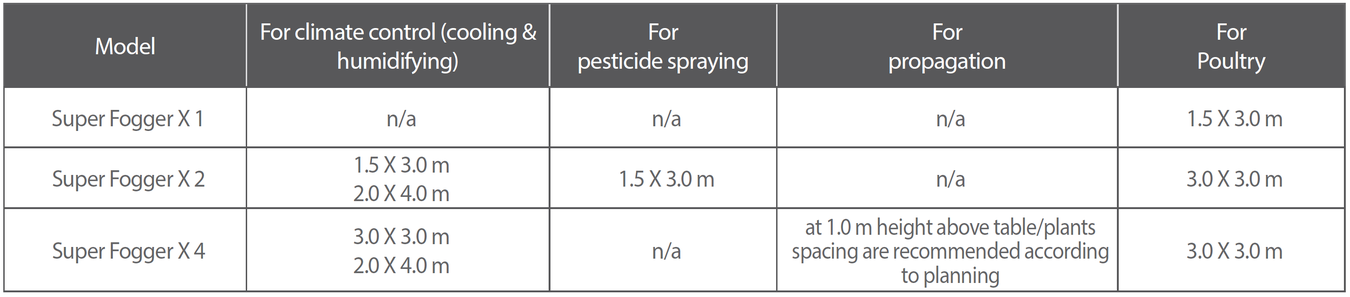

Applications & recommended spacing*
* Spacing: Distance between heads X distance between laterals
* Recommended spacing in the table are general.
* Correct & required spacing according to the specific conditions (contact our experts).

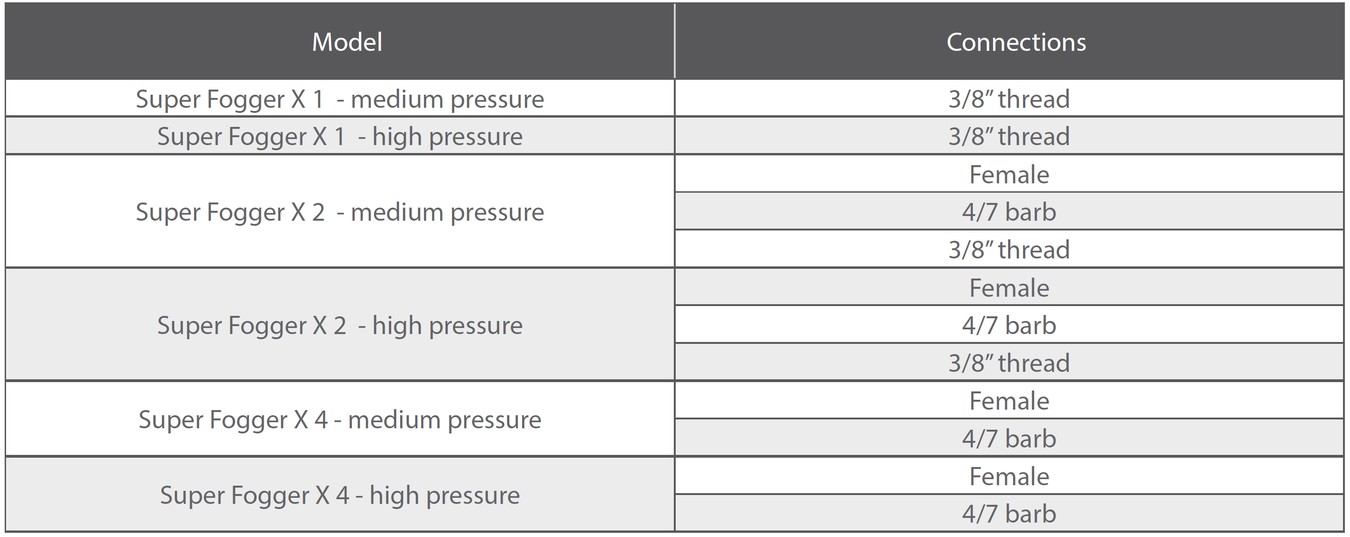

Models & connections
Super Fogger x 2
Two-sided Fogger with integrated LPD
| Product Code | Description | Colour |
|---|---|---|
| 197808 | Super fogger, female, blue (high-pressure) | Blue |
| 197208 | Super fogger, barbed 4/7, blue (high-pressure) | Blue |
| 197408 | Super fogger, threaded 3/8 W/W, blue (high-pressure) | Blue |
| 197802 | Super fogger, female, green (medium-prressure) | Green |
| 197202 | Super fogger, barbed 4/7, green (medium pressure) | Green |
| 197402 | Super fogger, threaded 3/8 W/W, green (medium-pressure) | Green |
Four-sided Fogger with integrated LPD
| Product Code | Description | Colour |
|---|---|---|
| 197842 | Super fogger x 4, female, green (medium pressure) | Green |
| 197242 | Super fogger x 4, barbed 4/7, green (medium pressure) | Green |
| 197848 | Super fogger x 4 female, blue (high pressure) | Blue |
| 197248 | Super fogger x 4, barbed 4/7, blue(high pressure) | Blue |
Suspended Tube Assemblies
4/7 barb inlet with stabilizer
| Product Code | Description | Outlet Connection |
|---|---|---|
| 797136 | Suspended stand 20cm, butterfly, suit push fit base | Push fit |
| 797140 | Suspended stand 30cm, butterfly, suit push fit base | Push fit |
| 797143 | Suspended stand 60cm, butterfly, suit push fit base | Push fit |
| 797122 | Suspended stand 20cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
| 797124 | Suspended stand 30cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
| 797129 | Suspended stand 60cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
| 797443 | Suspended stand 30cm, + Super LPD, suit push fit base | Push fit |
| 797446 | Suspended stand 60cm, + Super LPD, suit push fit base | Push fit |
| Product Code | Description | Outlet Connection |
|---|---|---|
| 797179 | Suspended stand 20cm, butterfly, suit push fit base | Push fit |
| 797180 | Suspended stand 30cm, butterfly, suit push fit base | Push fit |
| 797182 | Suspended stand 60cm, butterfly, suit push fit base | Push fit |
| 797189 | Suspended stand 20cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
| 797190 | Suspended stand 30cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
| 797192 | Suspended stand 60cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
| 797473 | Suspended stand 30cm + Super LPD, suit push fit base | Push fit |
| 797476 | Suspended stand 60cm + Super LPD, suit push fit base | Push fit |
| Product Code | Description | Outlet Connection |
|---|---|---|
| 797431 | Suspended stand 20cm, male bayonet + butterfly, suit push fit base | Push fit |
| 797430 | Suspended stand 30cm, male bayonet + butterfly, suit push fit base | Push fit |
| 797125 | Suspended stand 30cm, male bayonet + fast-n-fast, suit 4/7 barb base | F-N-F |
| 797126 | Suspended stand 60cm, male bayonet + fast-n-fast, suit 4/7 barb base | F-N-F |
| 484921 | Adaptor 1/2" MBSP x female bayonet |
*must order adaptor and suspended stand.
