![Super LPD - Product Image](https://deeco-production.s3.amazonaws.com/images/Super_LPD_-_Product_Image.2e16d0ba.fill-500x500.jpg)
Brand: | NaanDanJain |
Category: | Sprinklers, Micro Sprinklers |
Product Description
Super LPD - Leakage Prevention Device ensures no drop goes to waste through unnecessary drainage: more sustainable irrigation without compromising efficiency.
Super LPD offers great flexibility with adjustable high and low opening and closing pressure while keeping your system ready to go with water under pressure, allowing for an immediate start-up when you need it the most.
Its modular design is compatible with all micro-sprinklers. Choose the connection style that suits you, whether it's the tapered connection or the bayonet connection (available with black low-pressure LPD).
Super LPD maintains minimal pressure loss even with high flow rates. Its one-stage opening ensures simplicity – it's either completely opened or closed. Plus, cleaning and maintenance are very simple, thanks to its easy-dismantle design.
Consider your unique needs with three types of Super LPD: the Black Low-Pressure Super LPD for micro sprinklers, the Green Medium-Pressure Super LPD for foggers, and the Blue High-Pressure Super LPD for foggers.
Features & Benefits
- Prevents drainage through emitters
- Keeps system filled with water under pressure, enabling immediate start-up
- Minimal pressure loss, even with high flow rates
![Super LPD - Features and Benefits](https://deeco-production.s3.amazonaws.com/images/Super_LPD_-_Features_and_Benefits.width-1350.jpg)

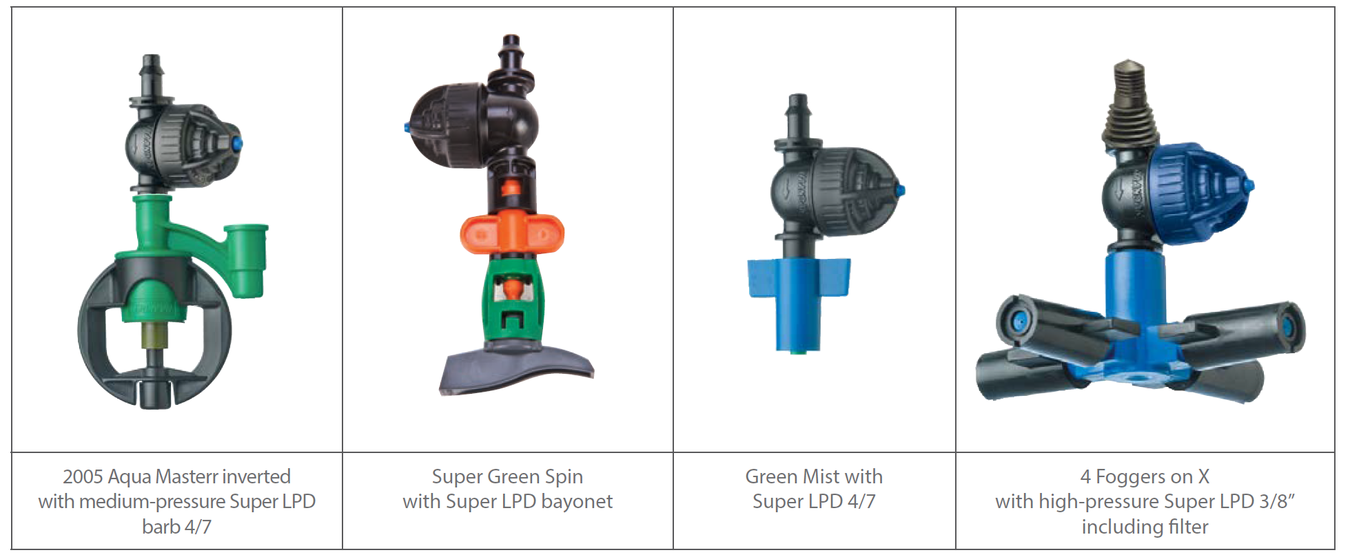

Application Examples
![Super LPD - Application Examples](https://deeco-production.s3.amazonaws.com/images/Super_LPD_-_Application_Examples.width-1350.png)

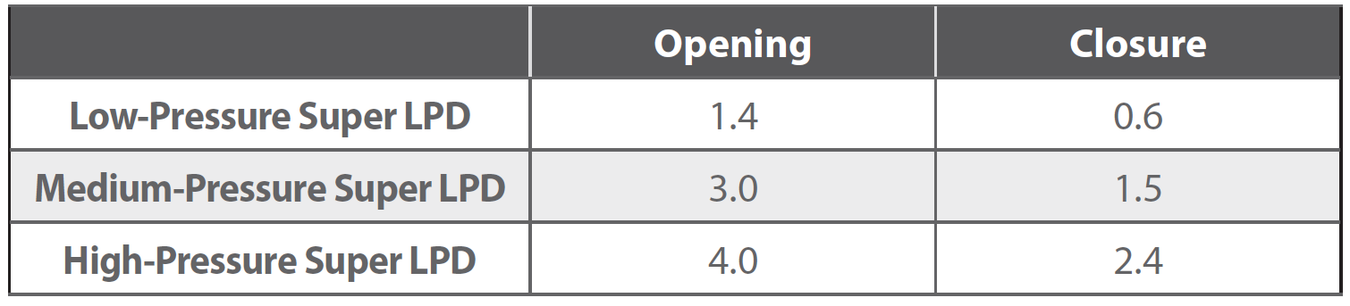

Technical Data
Operating Pressure (bar)
![Super LPD - Operating Pressure](https://deeco-production.s3.amazonaws.com/images/Super_LPD_-_Operating_Pressure.width-1350.png)

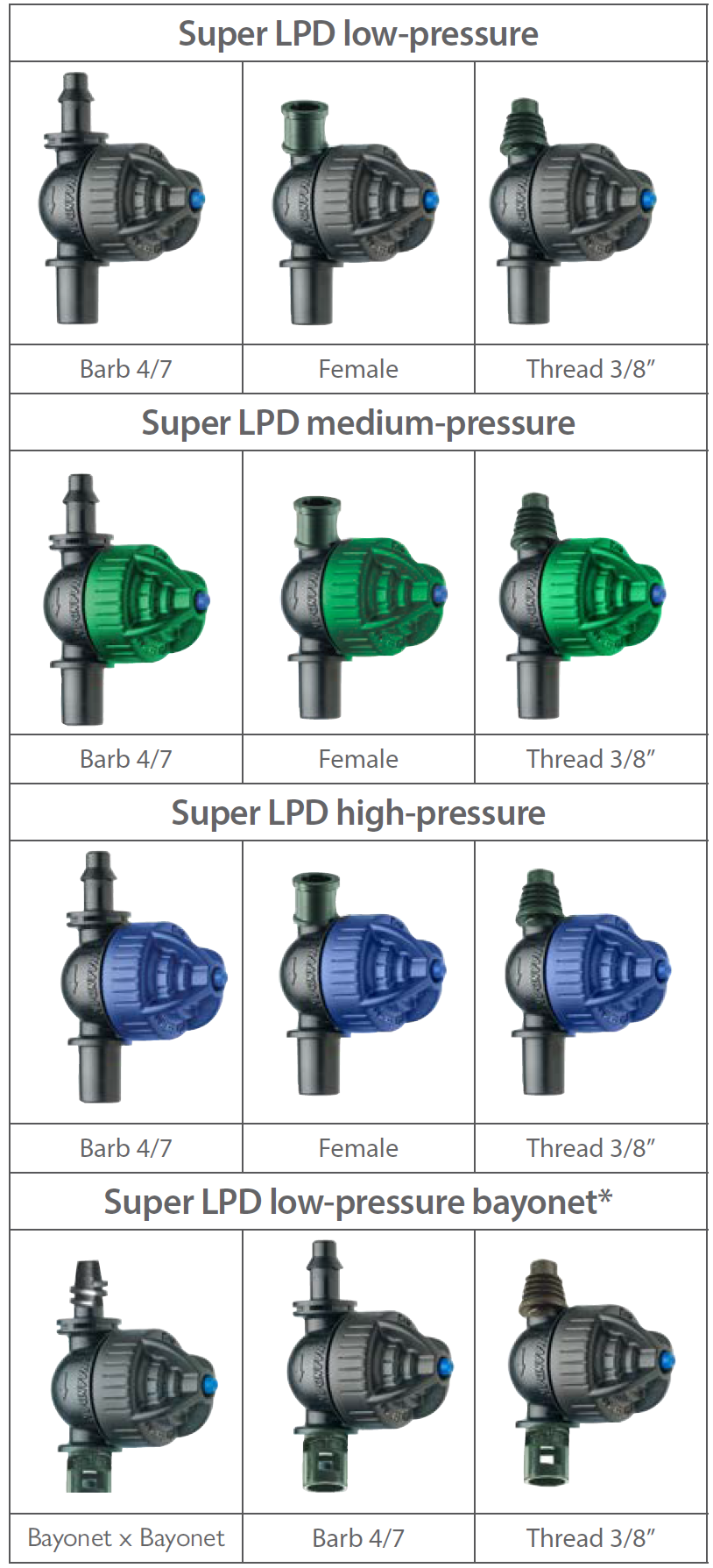

Models & Connections
![Super LPD - Operating Pressure](https://deeco-production.s3.amazonaws.com/images/Super_LPD_-_Pressure.width-1000.png)
Super LPD
Leakage Prevention Device
Product Code | Description | Body Colour |
---|---|---|
790308 | Super LPD Black, female inlet, suit Greenmist, Greenspin and Modular | Black |
790328 | Super LPD Black, barb 4/7 inlet, suit Greenmist, Greenspin and Modular | Black |
790348 | Super LPD Black, 3/8" W/W inlet, suit Greenmist, Greenspin and Modular | Black |
790302 | Super LPD Green, female inlet, suit Fogger medium pressure | Green |
790322 | Super LPD Green, barb 4/7 inlet, suit Fogger medium pressure | Green |
790342 | Super LPD Green, 3.8" W/W inlet, suit Fogger medium pressure | Green |
790303 | Super LPD Blue, female inlet, suit Fogger high pressure | Blue |
790323 | Super LPD Blue, barb 4/7 inlet, suit Fogger high pressure | Blue |
790343 | Super LPD Blue, 3/8" W/W inlet, suit Fogger high pressure | Blue |
Leakage Prevention Device
Product Code | Description | Body Colour |
---|---|---|
790388 | Super LPD N/fim male inlet x NDJ male outlet LP | Black |
790428 | Super LPD 4/7 barb inle x N/fim female outlet LP | Black |
790448 | Super LPD 3/8" WW inlet x N/fim female outlet LP | Black |
790488 | Super LPD N/fim male inlet x N/fim female outlet LP | Black |
790382 | Super LPD N/fim male inlet x NDJ male outlet MP | Green |
790422 | Super LPD 4/7 barb inlet x N/fim female outlet MP | Green |
790442 | Super LPD 3/8" WW inlet x N/fim female outlet MP | Green |
790482 | Super LPD n/fim male inlet x N/fim female outlet MP | Green |
790383 | Super LPD N/fim male inlet x NDJ male outlet HP | Blue |
790423 | Super LPD 4/7 barb inlet x N/fim female outlet HP | Blue |
790443 | Super LPD 3/8" WW inlet x N/fim female outlet HP | Blue |
790483 | Super LPD N/fim male inlet x N/fim female outlet HP | Blue |
Suspended Tube Assemblies
4/7 barb inlet with stabilizer
Product Code | Description | Outlet Connection |
---|---|---|
797136 | Suspended stand 20cm, butterfly, suit push fit base | Push fit |
797140 | Suspended stand 30cm, butterfly, suit push fit base | Push fit |
797143 | Suspended stand 60cm, butterfly, suit push fit base | Push fit |
797122 | Suspended stand 20cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797124 | Suspended stand 30cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797129 | Suspended stand 60cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797443 | Suspended stand 30cm, + Super LPD, suit push fit base | Push fit |
797446 | Suspended stand 60cm, + Super LPD, suit push fit base | Push fit |
Product Code | Description | Outlet Connection |
---|---|---|
797179 | Suspended stand 20cm, butterfly, suit push fit base | Push fit |
797180 | Suspended stand 30cm, butterfly, suit push fit base | Push fit |
797182 | Suspended stand 60cm, butterfly, suit push fit base | Push fit |
797189 | Suspended stand 20cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797190 | Suspended stand 30cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797192 | Suspended stand 60cm, fast-n-fast, suit 4/7 barbed base | F-N-F |
797473 | Suspended stand 30cm + Super LPD, suit push fit base | Push fit |
797476 | Suspended stand 60cm + Super LPD, suit push fit base | Push fit |
Product Code | Description | Outlet Connection |
---|---|---|
797431 | Suspended stand 20cm, male bayonet + butterfly, suit push fit base | Push fit |
797430 | Suspended stand 30cm, male bayonet + butterfly, suit push fit base | Push fit |
797125 | Suspended stand 30cm, male bayonet + fast-n-fast, suit 4/7 barb base | F-N-F |
797126 | Suspended stand 60cm, male bayonet + fast-n-fast, suit 4/7 barb base | F-N-F |
484921 | Adaptor 1/2" MBSP x female bayonet |
*must order adaptor and suspended stand.
