Sensus - WPDF - Strainer

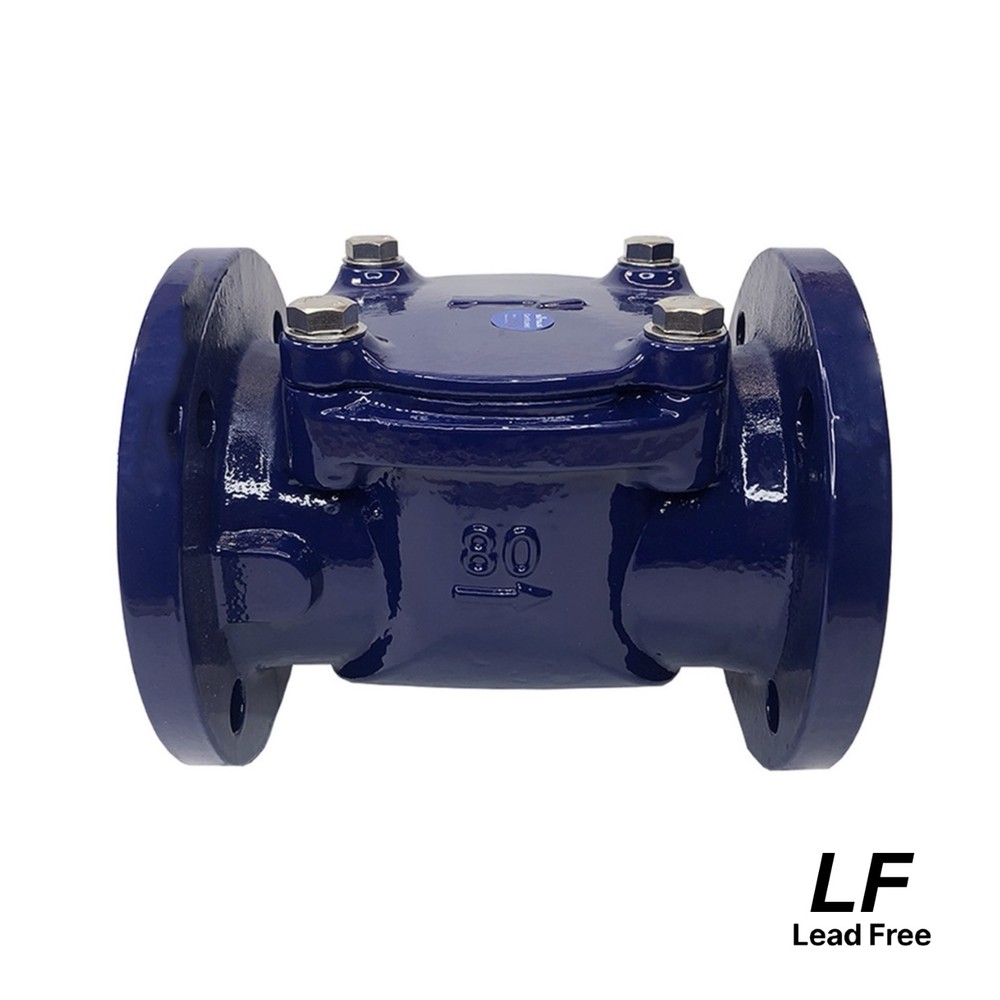

Sensus - WPDF - Product Image
Brand: Sensus
Category: Metering, Accessories , Bulk Water Meters
Size Range:

50-200mm

Product Description

WP-F Dynamic is a protection sieve that is installed to protect a water meter from damage. The heavy-duty sieve element retains any large particles. Cleaning of pipes after maintenance or rupture in the pipe.

Features & Benefits

  • Small head loss
  • Sieve elements for use with all WP-Dynamic and MeiStream bodies
  • Identical sieve elements for DN 40...65 and DN 80 + 100

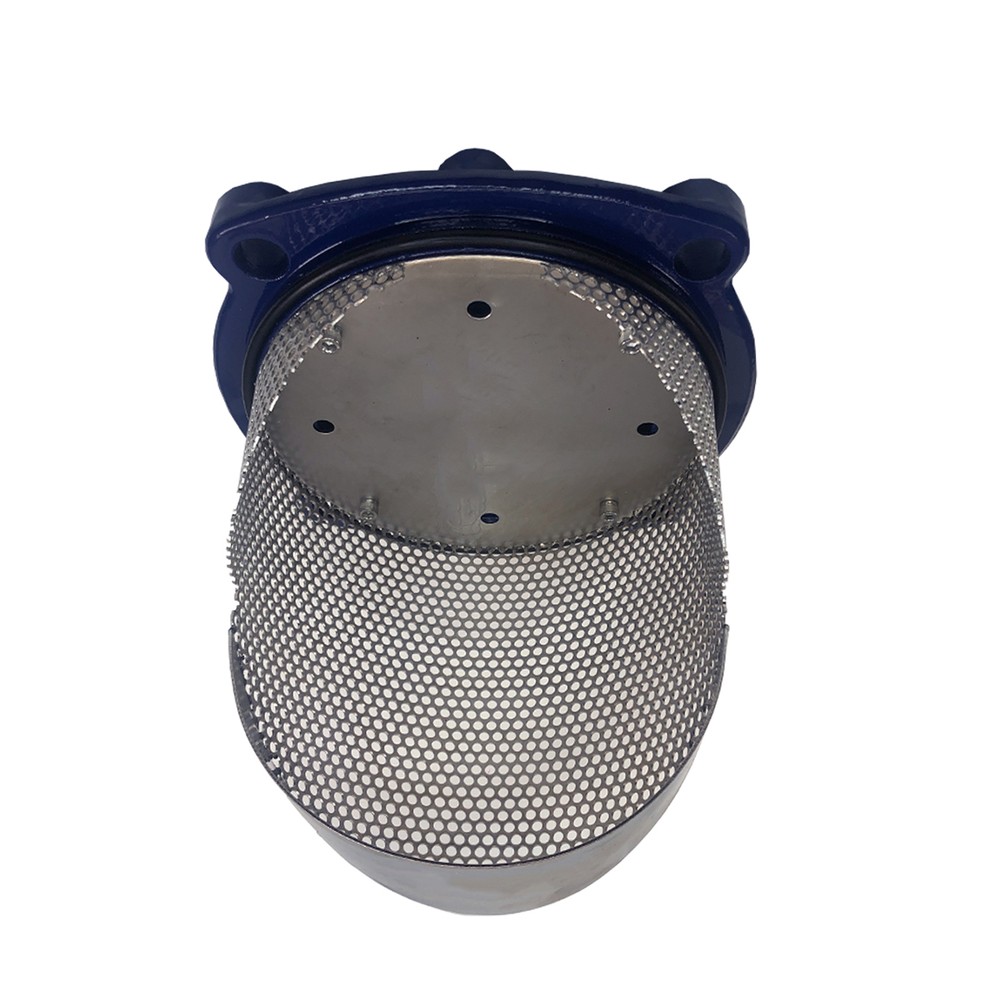

  • Stainless steel sieve element
  • Sieve element easy to remove for cleaning
  • Powder-coated body for maximum corrosion protection

Typical Applications

  • The protection sieve will be installed to protect the water meter from damage.
  • The heavy-duty sieve element retains any large particles
  • Cleaning of pipes after maintenance or rupture in the pipe
  • Max. working pressure 16 bar
  • Max. water temperature 50 °C

Technical Data

Materials

  • Body - Cast Iron
  • Cover flange - Cast Iron
  • Sieve element - Stainless Steel
  • Bolts - Stainless Steeel

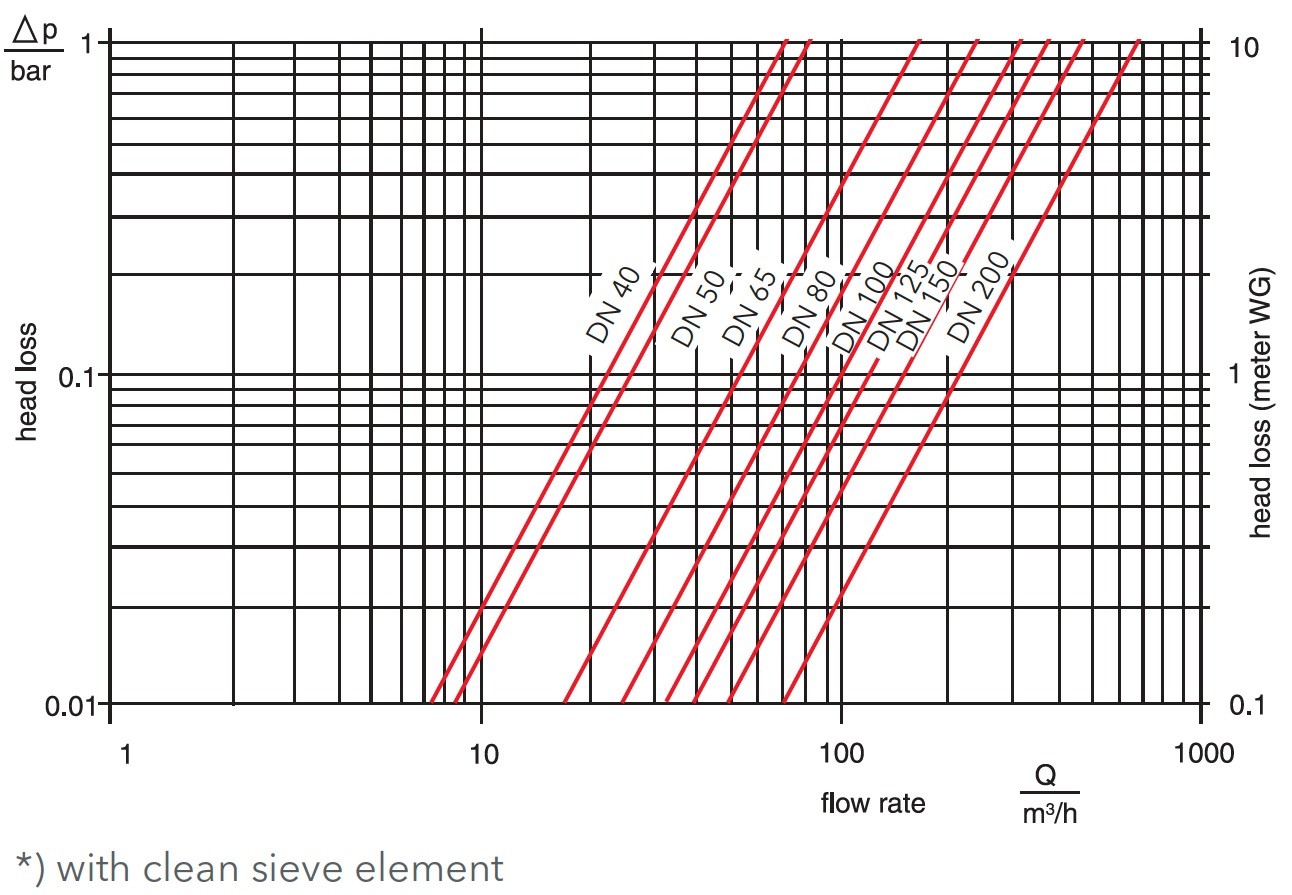

Typical Head Loss Curve *)

Sensus - WPDF - Typical Head Loss

Sensus - WPDF - Typical Head Loss

Technical Specifications

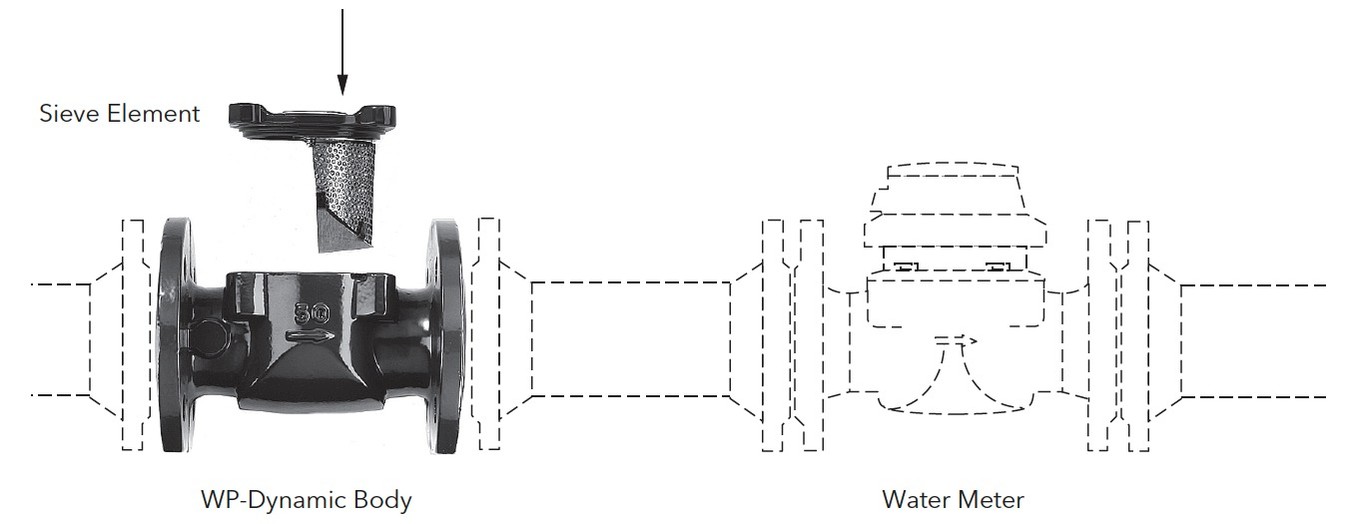

Installation

Sensus - WPDF - Installation

Sensus - WPDF - Installation

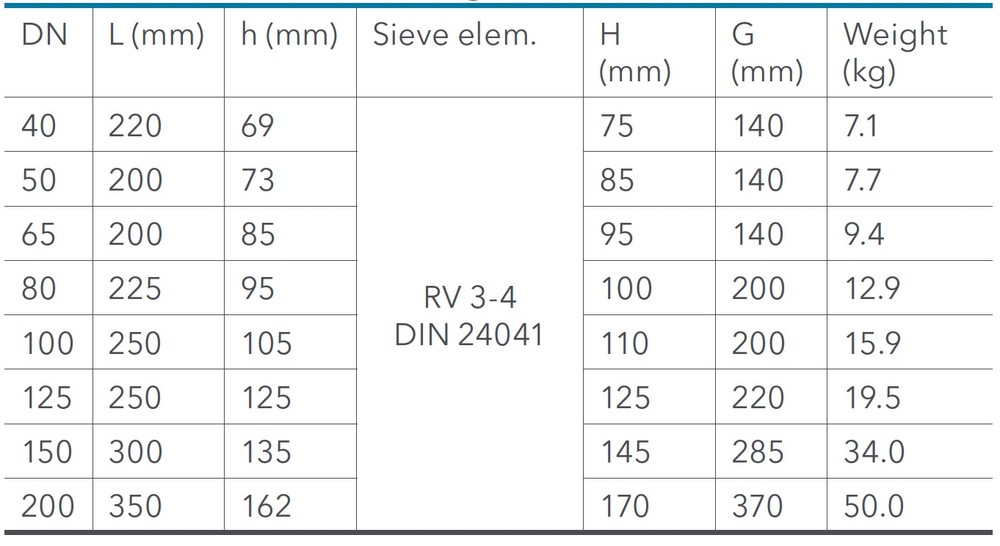

Dimensions and Weight

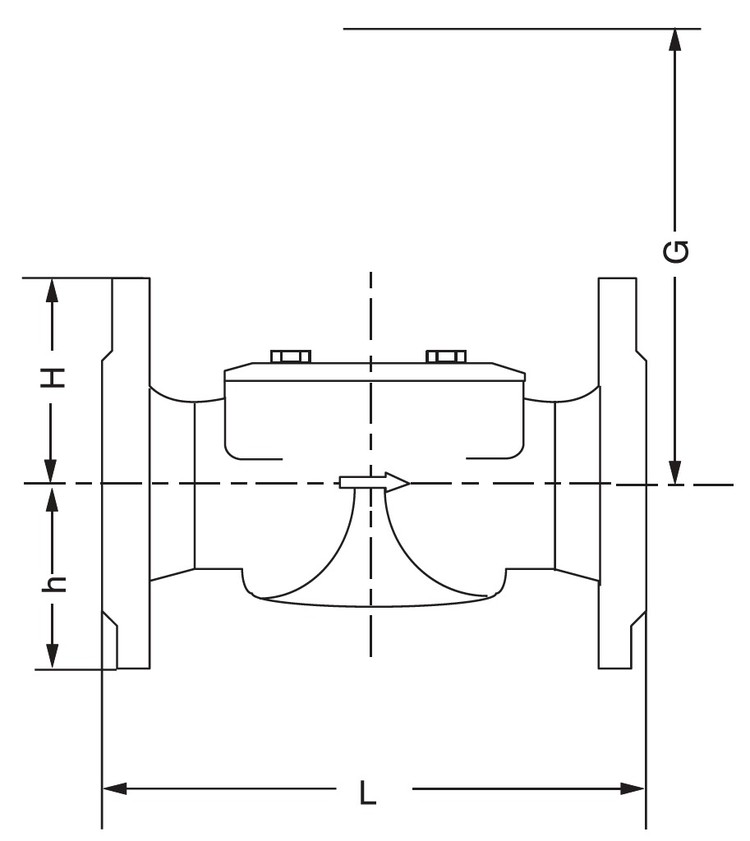

Sensus - WPDF - Dimensional Diagram

Sensus - WPDF - Dimensional Diagram

Sensus - WPDF - Dimensions and weight

Sensus - WPDF - Strainer

Top Entry Meter Strainer - Inline

Product Code Size Description
WPDF050 50mm Low Head Loss, Easy to Clean Strainer, Body Length 200mm.
WPDF065 65mm Low Head Loss, Easy to Clean Strainer, Body Length 200mm.
WPDF080 80mm Low Head Loss, Easy to Clean Strainer, Body Length 225mm.
WPDF100 100mm Low Head Loss, Easy to Clean Strainer, Body Length 250mm.
WPDF150 150mm Low Head Loss, Easy to Clean Strainer, Body Length 300mm.
WPDF200 200mm Low Head Loss, Easy to Clean Strainer, Body Length 350mm.
