Brand: | Sensus |
Category: | Metering, Bulk Water Meters |
Size Range: | 40-200mm |
Connection: | Flanged |
Performance: | OIML R49:R315 |
Product Description

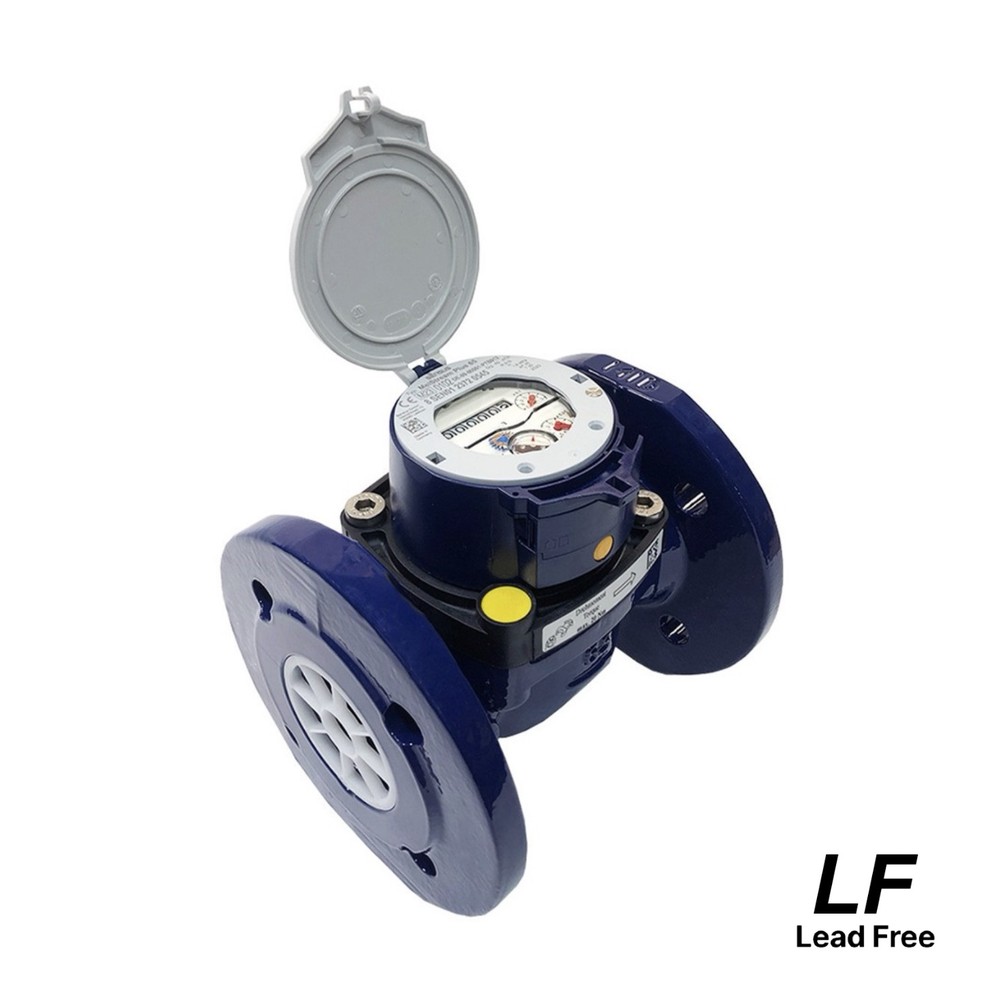

German-made HIGH-PERFORMANCE COLD WATER METER, Class C Performance Capable Industrial, Municipal, Commercial and District Metering Applications Meistream Plus replaces the need to use combination meters.
Individually tested and certified to ISO/EEC Class C, Hydro-dynamically balanced rotor, IP68 rated copper/glass rotatable register, pulse-Opto and automatic meter read/radio read output options. Lowest starting flow. Large Turbine meters are available. 50°C maximum water temperature. OIML Class 2 Pattern Approved Certified. ISO/EEC approved interchangeable measuring element. Flanged to AS4087 PN16
![Sensus - Meistream Plus](https://deeco-production.s3.amazonaws.com/images/MS100_1_copy.2e16d0ba.fill-1000x1000.jpg)

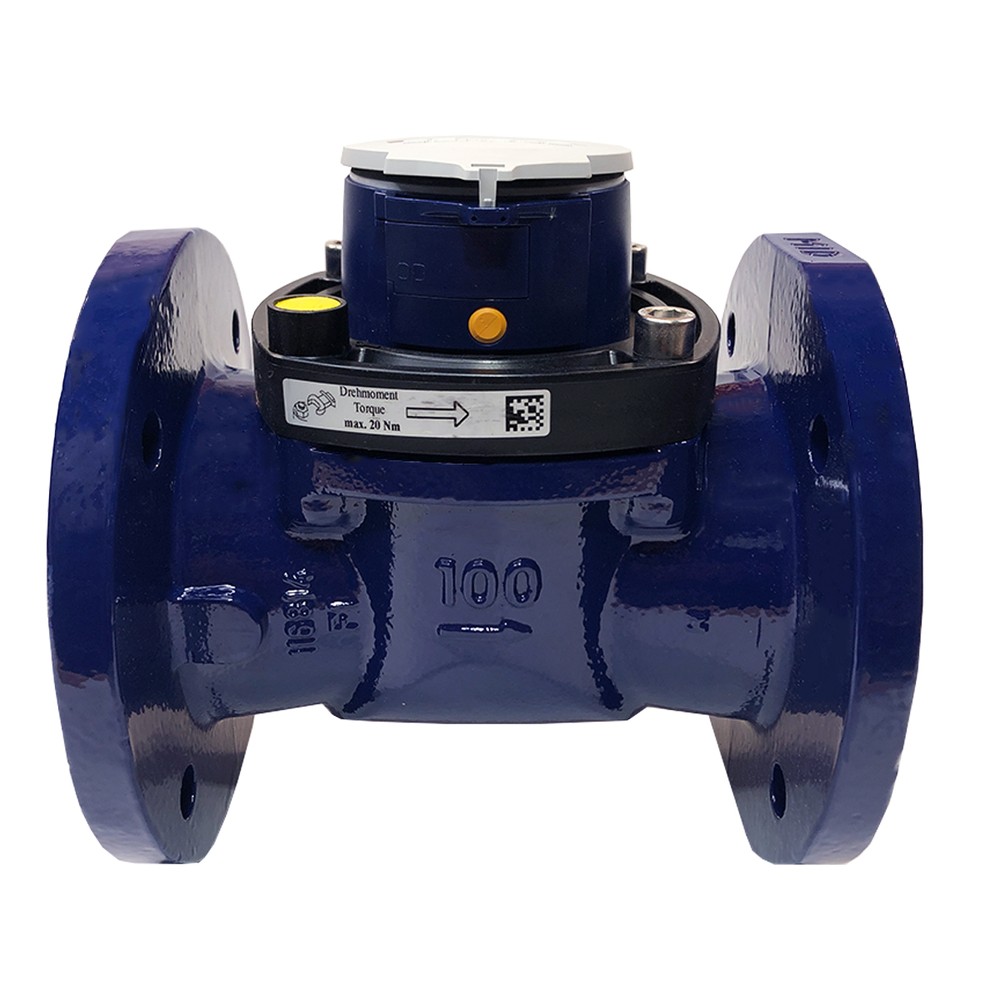

Sensus - MS+100
![MS+100 2 copy](https://deeco-production.s3.amazonaws.com/images/MS100_2_copy_4XNyaUR.2e16d0ba.fill-1000x1000.jpg)

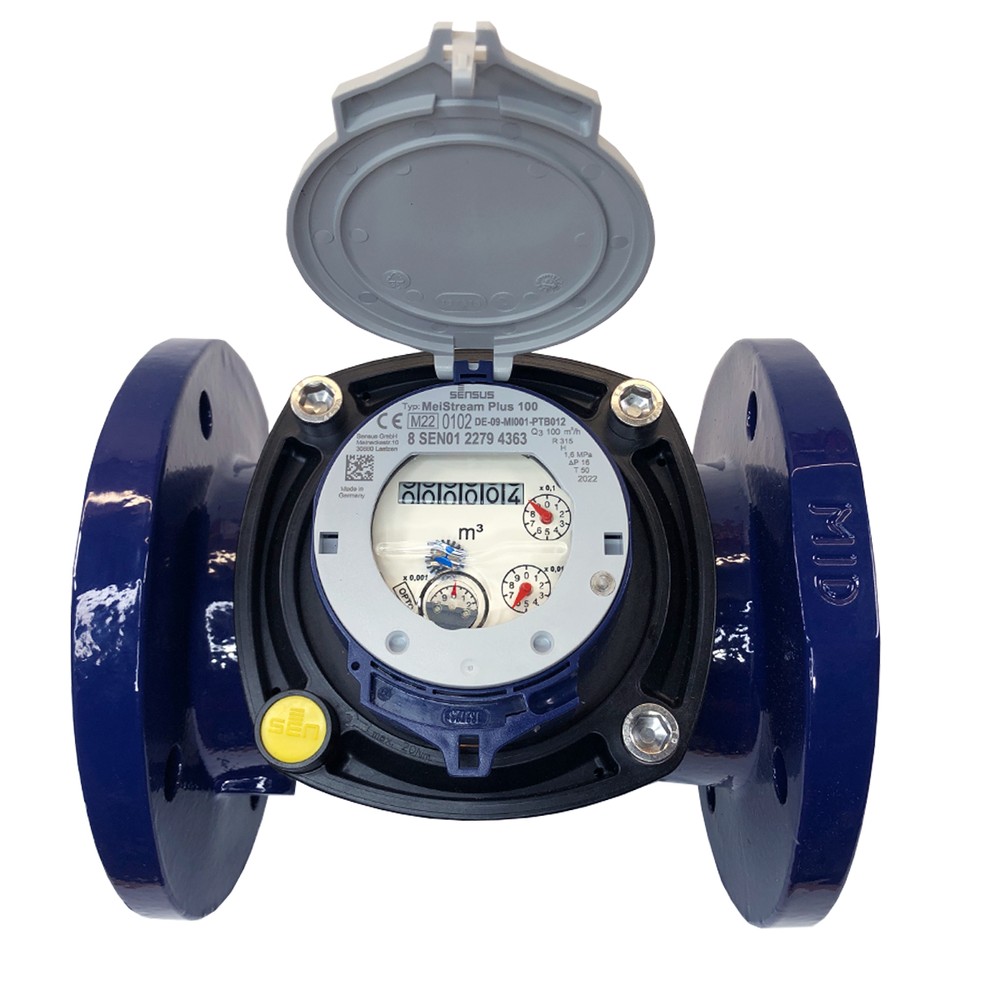

Sensus - MS+100
![Sensus - Meistream Plus - 100mm](https://deeco-production.s3.amazonaws.com/images/MS100_3_copy.2e16d0ba.fill-1000x1000.jpg)

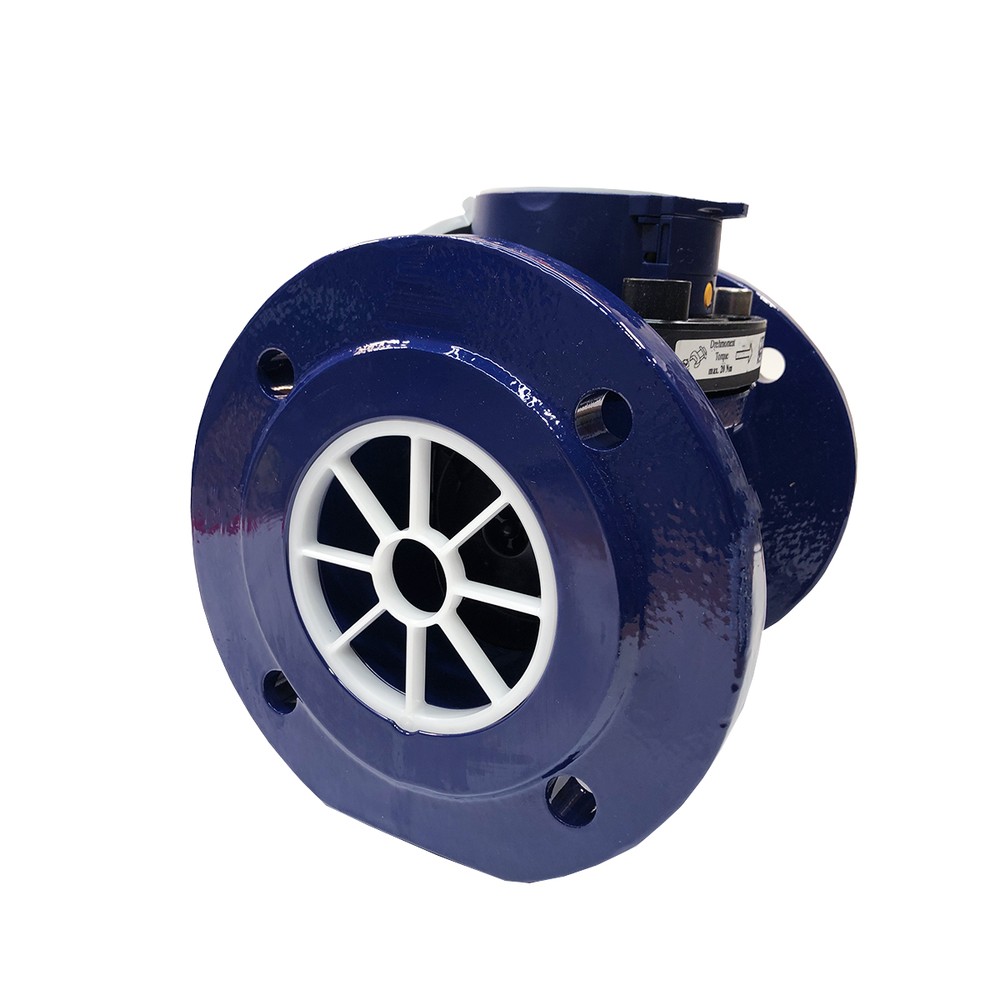

Sensus - MS+100
Features & Benefits
- Meter with MID pattern approval acc. to annex MI001
- Exchangeable metrological unit with MID pattern approval acc. to annex MI001
- Unique measuring range; Q3/Q1 ≥ 315 in horizontal installation
- High overload capability
- No straight inlet length necessary (U0D0 acc. to OIML R49:2013 and ISO 4064-1:2017)
- Drinking water approved acc. to AS4020.
- Meter body in short (WP) and long (WS) overall length acc. to DIN 19625 and ISO 4064-1:2017 available
- The meter can be submerged; protection class IP68
- Used materials are temperature resistant up to 70 °C
- Register prepared for HRI-Mei pick-up
Additional Features & Accessories
Available options
- With encoder register for direct meter readout via data protocol (M-Bus, MiniBus, Sensus, IEC 1107)
- HRI-Mei factory mounted
- Version for use in hazardous areas
- ¼" pressure monitoring port
Approval Mark
- Meter cpl. and exchangeable metrological module
- Marking CE M-XX* 0102
- DE-09-MI001-PTB 012
* year of production
Typical Applications
- Measurement for billing of cold potable water up to 50 °C
- Measurement of medium and high flowrates
- Measurement of low flow, e. g. in light load periods
- For leakage control
Technical Data
Materials
- Body - Cast Iron
- Metrological module - Engineering polymer
- Other used materials - Brass, Stainless Steel
Environmental Conditions
According to ISO 4064-1:2017
Environmental class O acc. to OIML R49-1:2013
Environmental temperature: 5 °C ... 70 °C
Mechanical, environmental conditions: class M2
Approval Mark
Meter cpl. and exchangeable metrological module Marking CE M-XX* 0102
DE-09-MI001-PTB 012
*Year of production
Metrological / Performance Data
METROLOGICAL DATA ACC. TO MANUFACTURERS VALUES

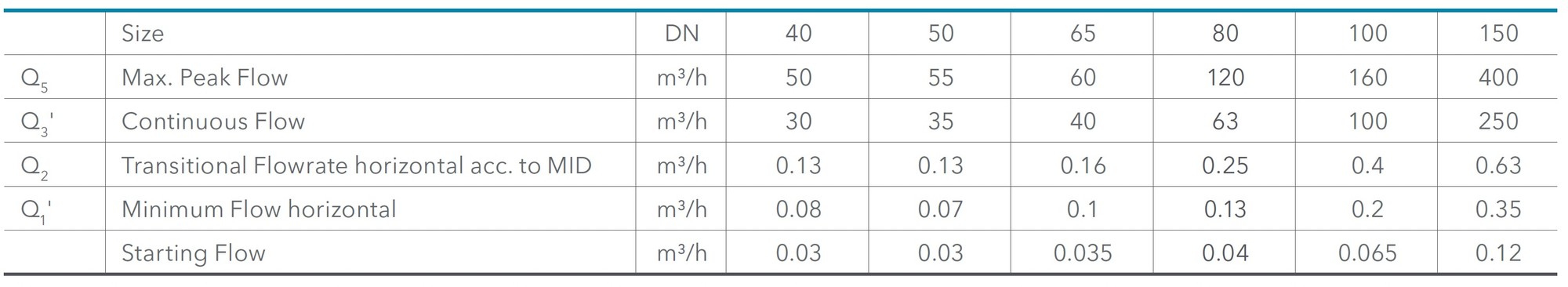

![Sensus - Meistream Plus - Metrological Data](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Metrological_Data.width-2000.jpg)
Sensus - Meistream Plus - Metrological Data
METROLOGICAL DATA ACC. TO 2014/32/EU (MID)

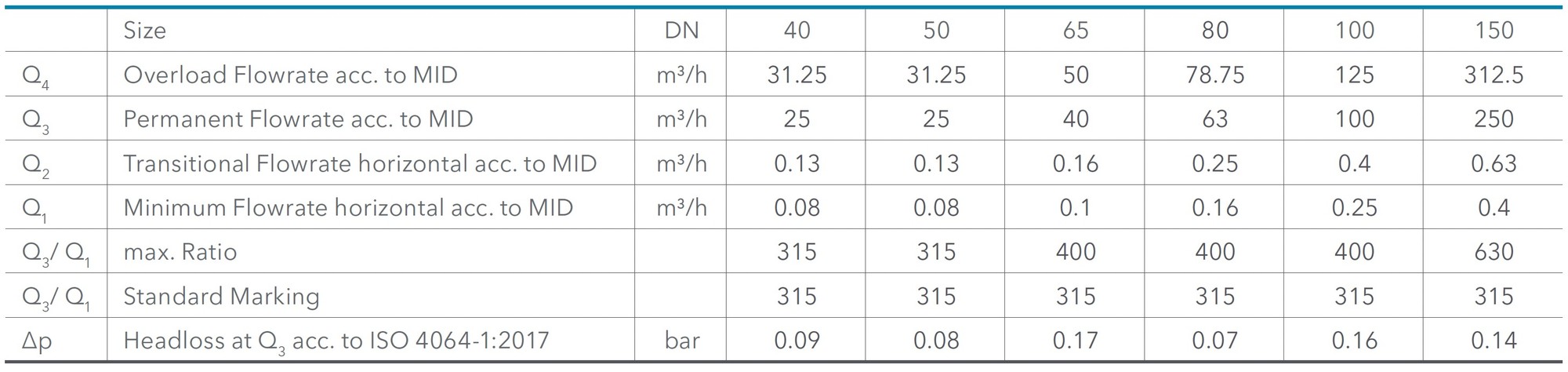

![Sensus - Meistream Plus - Metrological Data](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Metrological_Data2.width-2000.jpg)
Sensus - Meistream Plus - Metrological Data

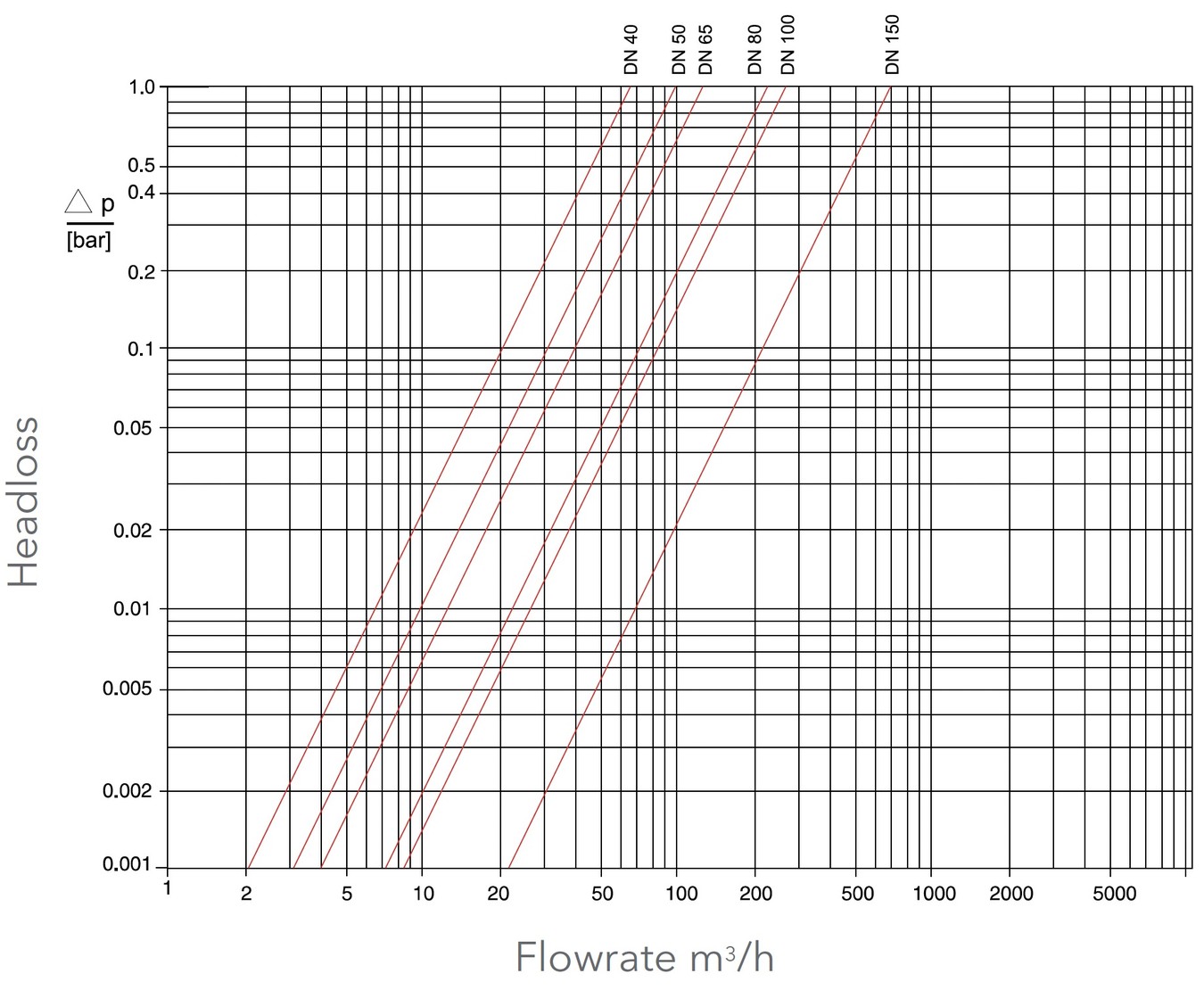

Typical Headloss Curve
![Sensus - Meistream Plus - Typical Headloss Curve](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Typical_HEadloss_Cu.width-1350.jpg)
Sensus - Meistream Plus - Typical Headloss Curve
Typical Accuracy Curve
![Sensus - Meistream Plus - Typical Error Curve](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Typical_Error_Curve.width-1350.jpg)

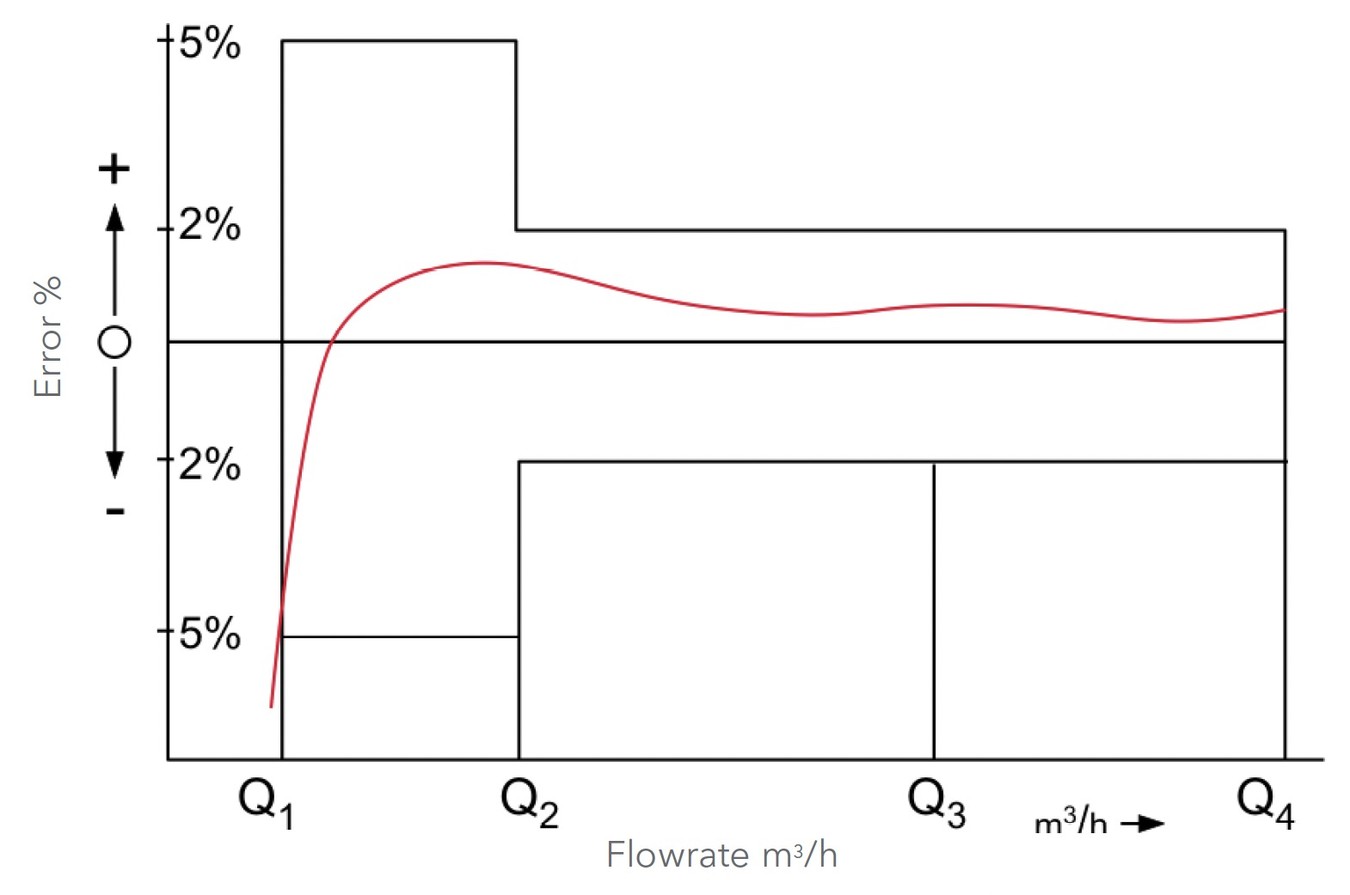

Sensus - Meistream Plus - Typical Accuracy Curve
Technical Specifications
Dial

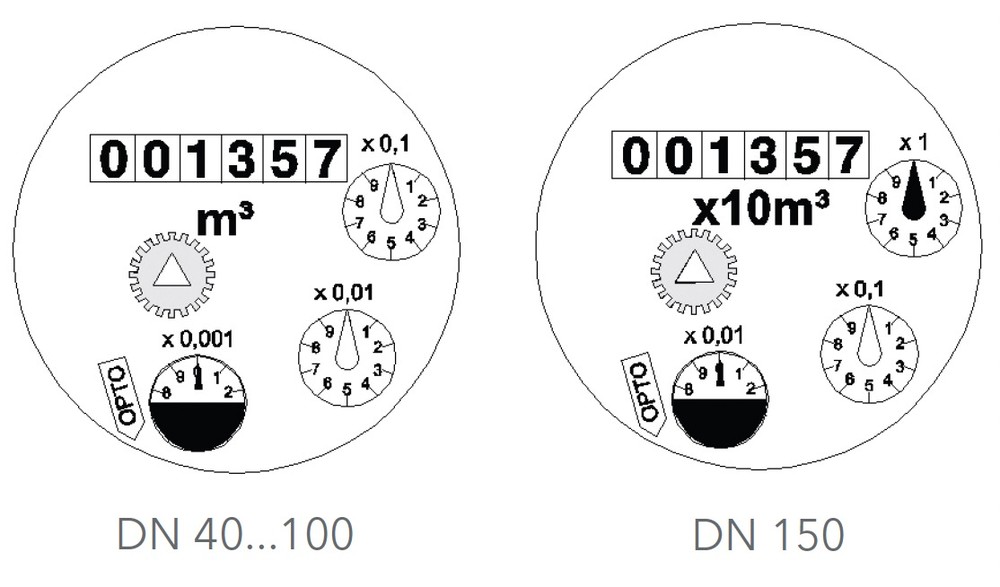

![Sensus - Meistream Plus - Dial](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Dial.width-1000.jpg)
Sensus - Meistream Plus - Dial

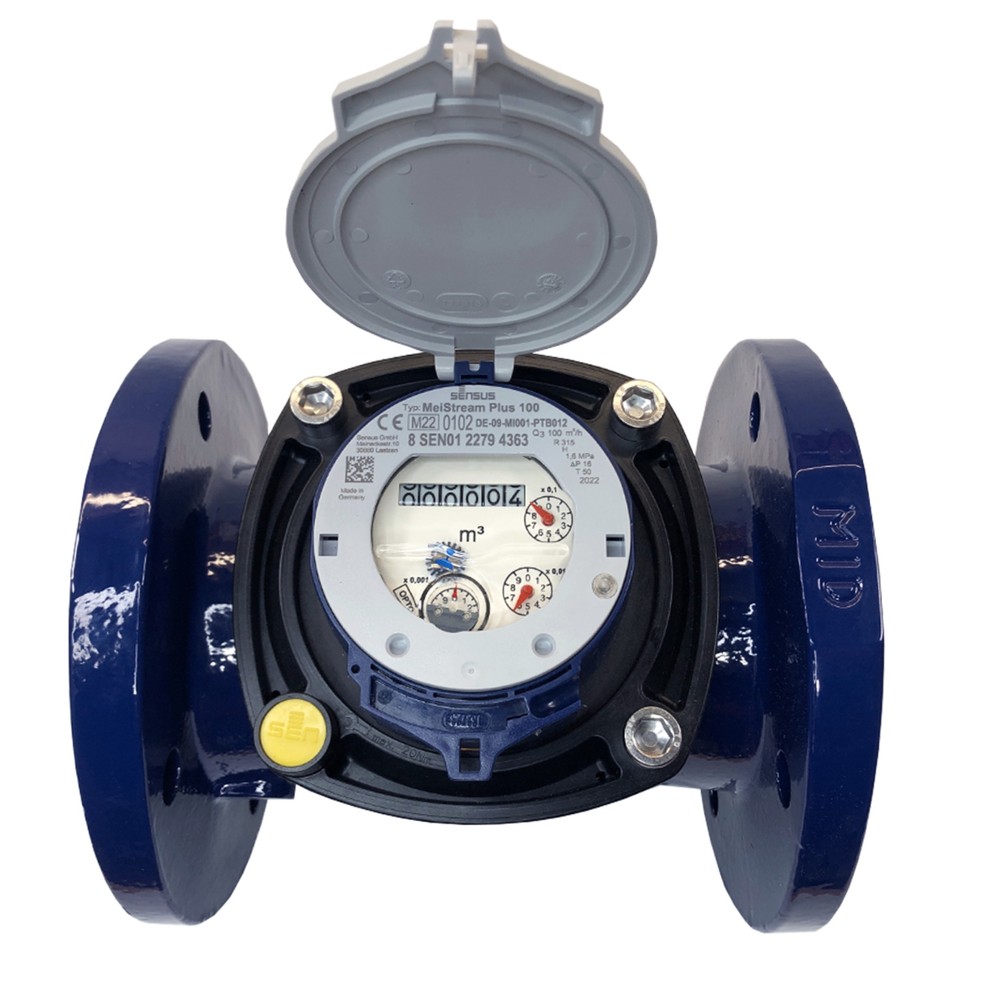

![Sensus - Meistream Plus - product Image](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_product_Image.width-1000.jpg)
Sensus - Meistream Plus - Dial

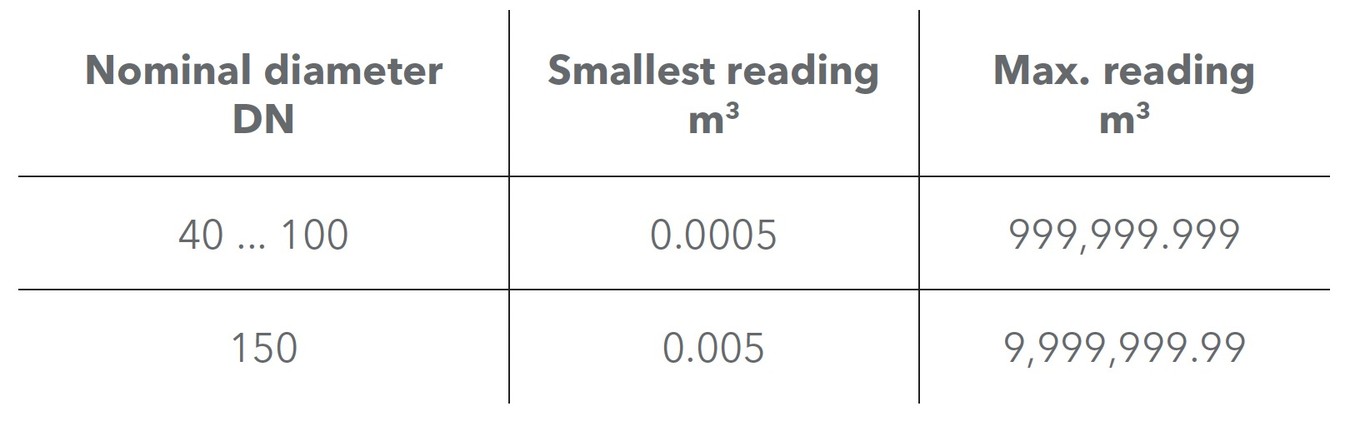

![Sensus - Meistream Plus - Dial](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Dial2.width-1350.jpg)
Sensus - Meistream Plus - Dial
Pulse Values

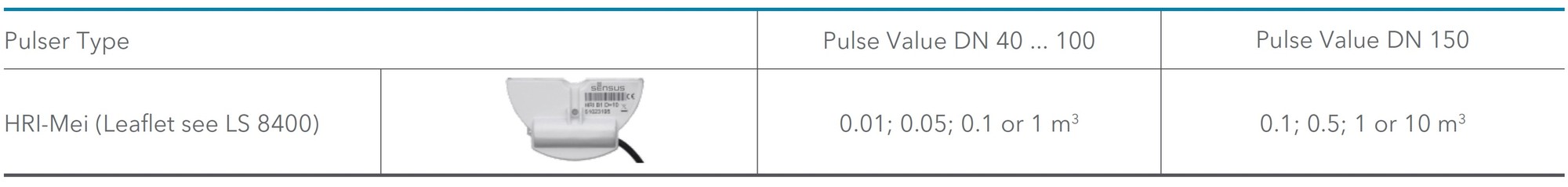

![Sensus - Meistream Plus - Pulse values](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Pulse_values.width-2000.jpg)
Sensus - Meistream Plus - Pulse values

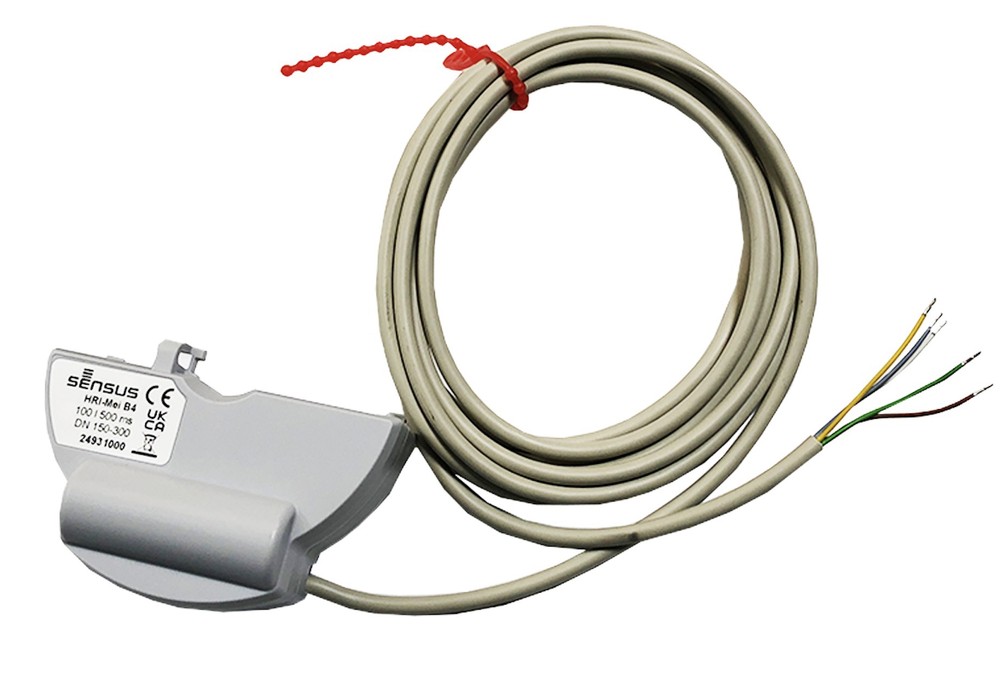

![Sensus - Meistream Plus - Pulse HRI MEI](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Pulse_HRI_MEI.width-1000.jpg)
Sensus - Meistream Plus - Pulse HRI MEI
Installation
Installation Requirements
- Unrestricted straight pipe upstream 0 x DN
- No abrupt restrictions directly downstream of the meter

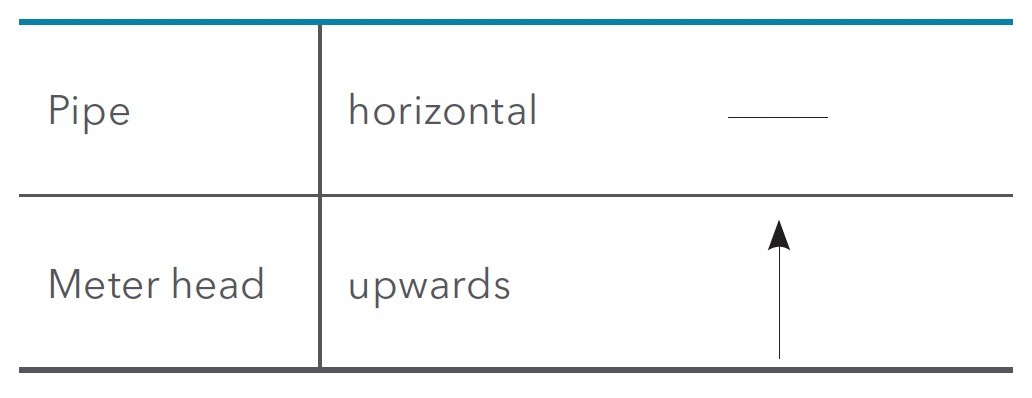

![Sensus - Meistream Plus - Installation](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Installation.width-1350.jpg)
Sensus - Meistream Plus - Installation.jpg
Dimensions and Weight
![Sensus - Dimensions Picture.jpg](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Dimensions_Picture.width-750.jpg)

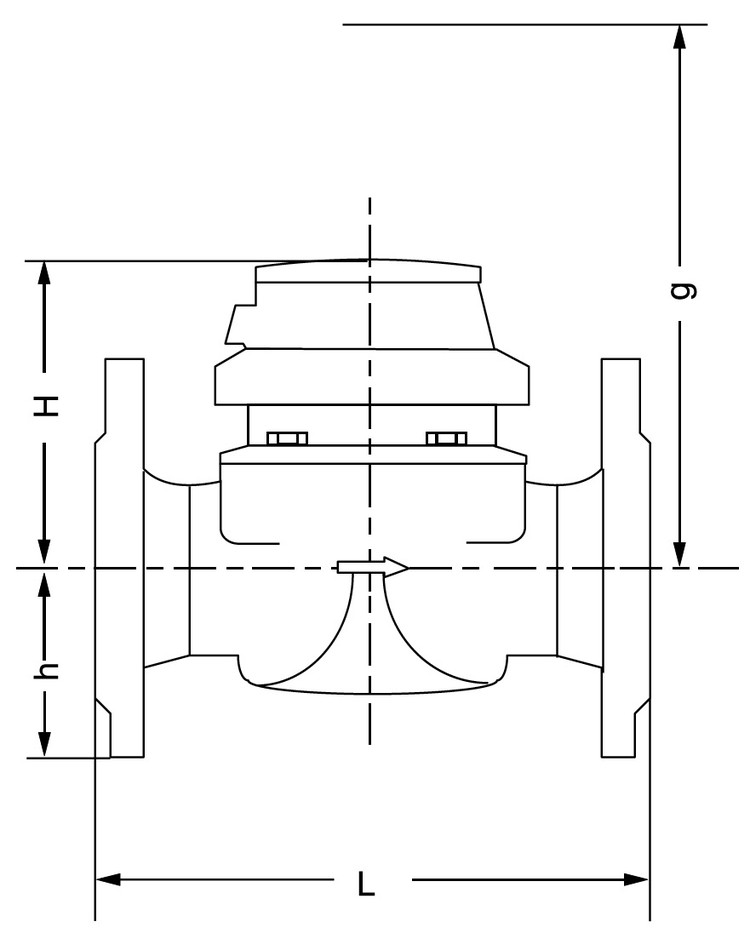

Sensus - Meistream Plus - Dimension picture

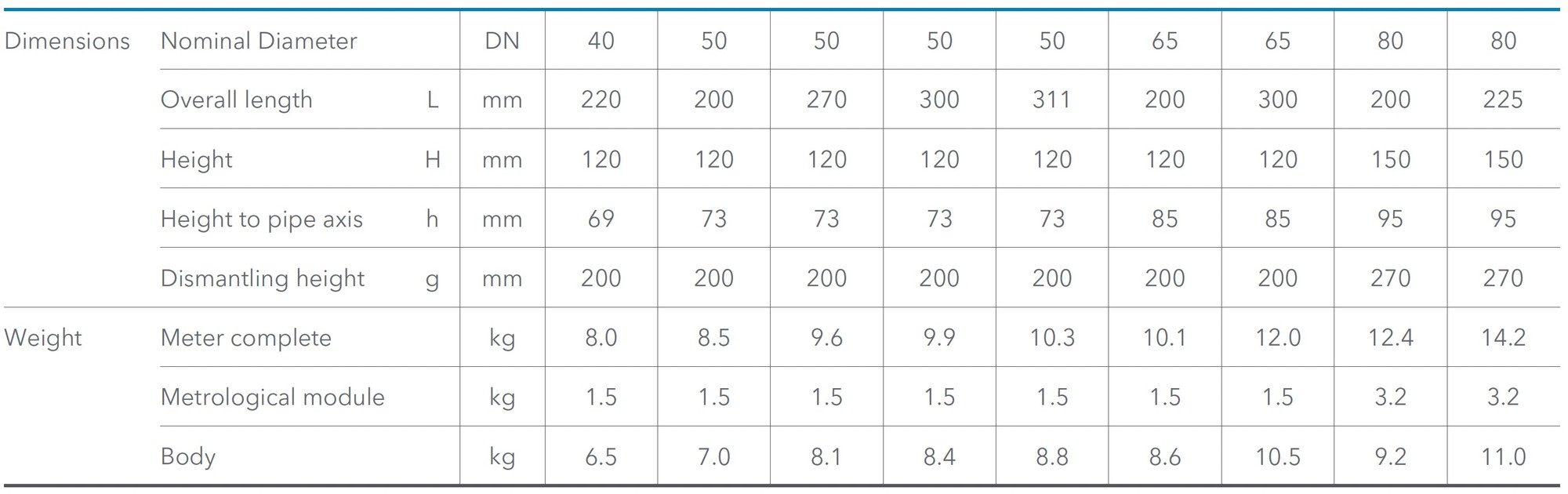

![Sensus - Meistream Plus - Dimensions and weight](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Dimensions_and_weig.width-2000.jpg)
Sensus - Meistream Plus - Dimensions and weight

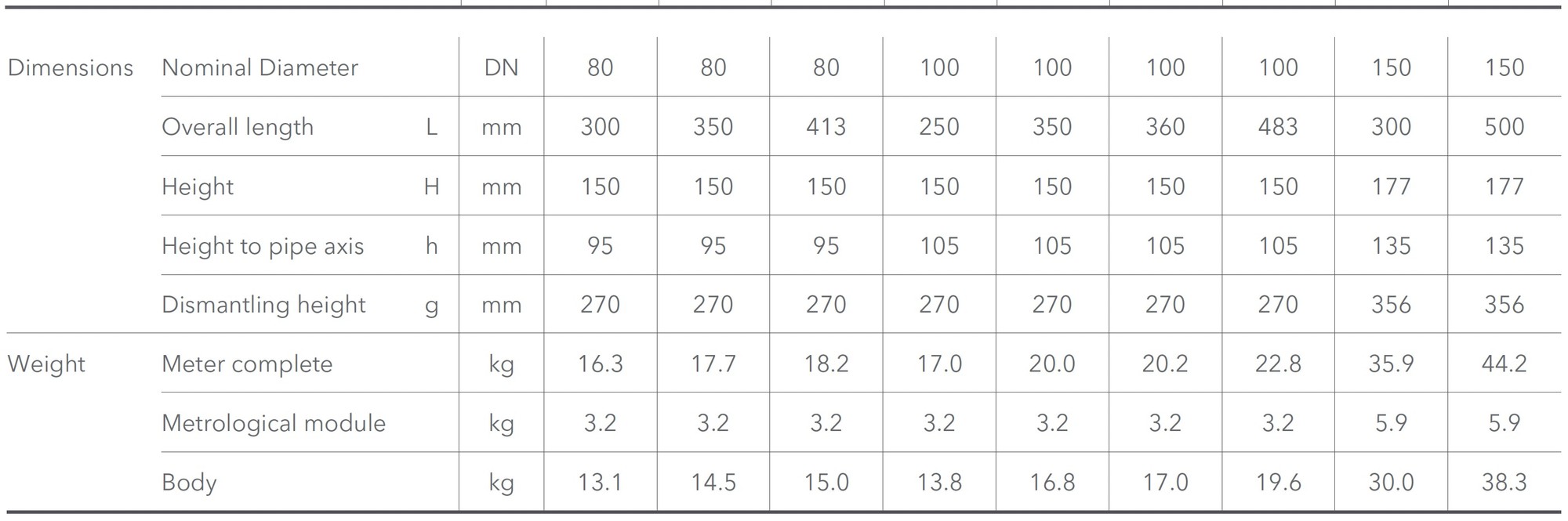

![Sensus - Meistream Plus - Dimensions and weight](https://deeco-production.s3.amazonaws.com/images/Sensus_-_Meistream_Plus_-_Dimensions_and_weig.width-2000_VZfQ5XQ.jpg)
Sensus - Meistream Plus - Dimensions and weight
Spare Parts
Pre-Calibrated Mechanism Insert for Meistream Plus Water Meter
OIML R49:R315
![MS+040M 1 copy](https://deeco-production.s3.amazonaws.com/images/MS040M_1_copy.2e16d0ba.fill-1000x1000.jpg)

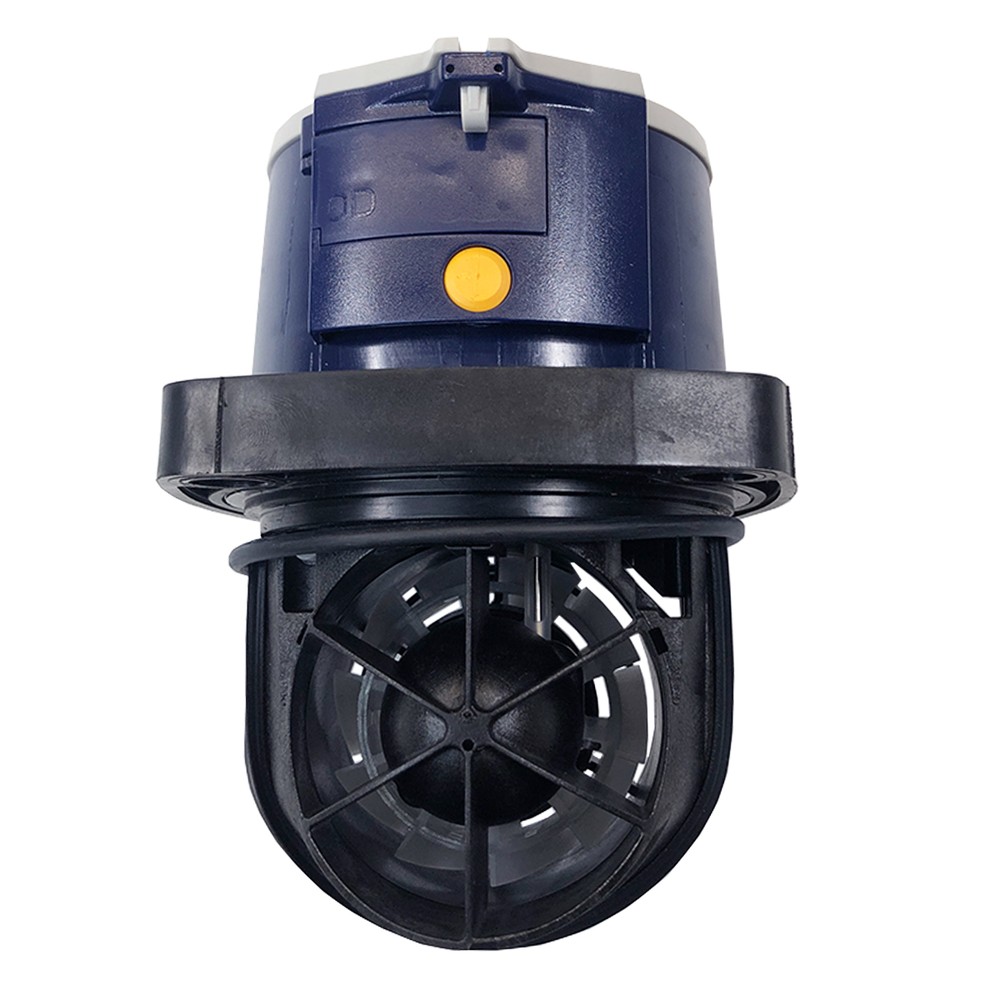

Sensus - MS+040M
Product Code | Size | Description |
---|---|---|
MS+040M | 40mm | High Accuracy Complete Meter Mechanism.OIML R49:R315. |
MS+050M | 50mm | High Accuracy Complete Meter Mechanism.OIML R49:R315. |
MS+065M | 65mm | High Accuracy Complete Meter Mechanism.OIML R49:R315. |
MS+080M | 80mm | High Accuracy Complete Meter Mechanism.OIML R49:R315. |
MS+100M | 100mm | High Accuracy Complete Meter Mechanism.OIML R49:R315. |
MS+125M | 125mm | High Accuracy Complete Meter Mechanism.OIML R49:R315. |
MS+150M | 150mm | High Accuracy Complete Meter Mechanism.OIML R49:R315. |
MS200M | 200mm | High Accuracy Complete Meter Mechanism.OIML R49:100. |
Sensus - Meistream Plus - Water Meter
Dynamic Helical Meter. OIML R49:R315
![Sensus - MS+ - Product Image](https://deeco-production.s3.amazonaws.com/images/Deeco_-_Sensus_-_MeistreamPlus_-.2e16d0ba.fill-1000x1000.jpg)
Sensus - MS+100
Product Code | Size | Description |
---|---|---|
MS+040 | 40mm | High Accuracy Class C Bulk Water Meter. OIML R49:R315, Q3 25m³/h, Body Length 220mm |
MS+050 | 50mm | High Accuracy Class C Bulk Water Meter. OIML R49:R315, Q3 25m³/h, Body Length 200mm |
MS+065 | 65mm | High Accuracy Class C Bulk Water Meter. OIML R49:R315, Q3 40m³/h, Body Length 200mm |
MS+080 | 80mm | High Accuracy Class C Bulk Water Meter. OIML R49:R315, Q3 63m³/h, Body Length 225mm |
MS+100 | 100mm | High Accuracy Class C Bulk Water Meter. OIML R49:R315, Q3 100m³/h, Body Length 250mm |
MS+150 | 150mm | High Accuracy Class C Bulk Water Meter. OIML R49:R315, Q3 250m³/h, Body Length 300mm |
MS200 | 200mm | High Accuracy Bulk Water Meter. OIML R49:R100, Q3 630m³/h, Body Length 350mm |
Pulse Output
![Hri-Mei](https://deeco-production.s3.amazonaws.com/images/Hri-Mei.2e16d0ba.fill-1000x1000.jpg)
Sensus - HRI-Mei
Product Code | Size | Description |
---|---|---|
HRI Mei 40 - 10L/P | 40-125mm | Pulse Output HRI-Mei for Meistream 40-125mm - 10L/P - Model B4 |
HRI Mei 40 - 100L/P | 40-125mm | Pulse Output HRI-Mei for Meistream 40-125mm - 100L/P - Model B4 |
HRI Mei 40 - 1000L/P | 40-125mm | Pulse Output HRI-Mei for Meistream 40-125mm - 1000L/P - Model B4 |
HRI Mei 150 - 100L/P | 150-300mm | Pulse Output HRI-Mei for Meistream 150-300mm - 100L/P - Model B4 |
HRI Mei 150 - 1000L/P | 150-300mm | Pulse Output HRI-Mei for Meistream 150-300mm - 1000L/P - Model B4 |
