Zurn Wilkins - 350 ASTDAL Series - Backflow Preventer

The Zurn Wilkins 350 ASTDAL Series Backflow Preventer is designed to safeguard against back siphonage and back pressure in low health hazards and fire protection applications. It offers enhanced protection by incorporating a metered bypass system, allowing for efficient and accurate leak detection and identification of any unauthorized water usage. This proactive approach helps reduce expenses linked to maintenance and repairs. The Zurn Wilkins Compound Check included in the assembly ensures minimal head loss, and the backflow installation is approved for both horizontal and vertical positions.

Features and Benefits

• Sizes: 100, 150, 200mm
• Maximum working water pressure: 12 Bar
• Maximum working water temperature: 60°C
• Hydrostatic test pressure: 24 Bar
• End connections: Grooved AWWA C606


Typical Application

Designed for installation on water lines in fire protection systems to protect against both back siphonage and backpressure of polluted water into the potable water supply. Model 350 ASTDAL shall provide protection where a potential health hazard does not exist. Incorporates metered bypass to detect leaks and unauthorized water use.

Standards Compliance

• ASSE® Listed 1048 (Sizes 2 1/2" thru 12")
• CSA® Certified B64.5 (Sizes 2 1/2" thru 8", & 12")
• AWWA Compliant C510 (Sizes 2 1/2" thru 12"), and C550
• UL® Classified (Sizes 2 1/2" thru 12")
• C-UL® Classified (Sizes 2 1/2" thru 12")
• FM® Approved (Sizes 2 1/2" thru 10")
• NYC MEA 147-99-M Vol 4 (2-1/2" - 10)
• Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California (Sizes 2 1/2" thru 12")
• Meets the requirements of NSF/ANSI/CAN 61*

*(0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)

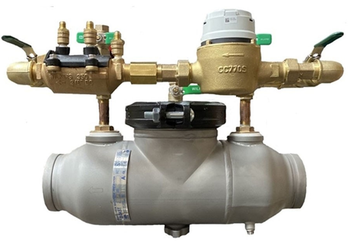

By-Pass Backflow Assembly 20mm Model 350LXL

Materials

Main valve body: Stainless Steel 300 Series

Access covers: Stainless Steel 300 Series

Internals: Stainless Steel 300 Series, NORYL™

Fasteners: Stainless Steel 300 Series

Elastomers: EPDM (FDA approved)
Buna Nitrile (FDA approved)

Polymers: NORYL™

Springs: Stainless Steel 300 Series

Flow Characteristics

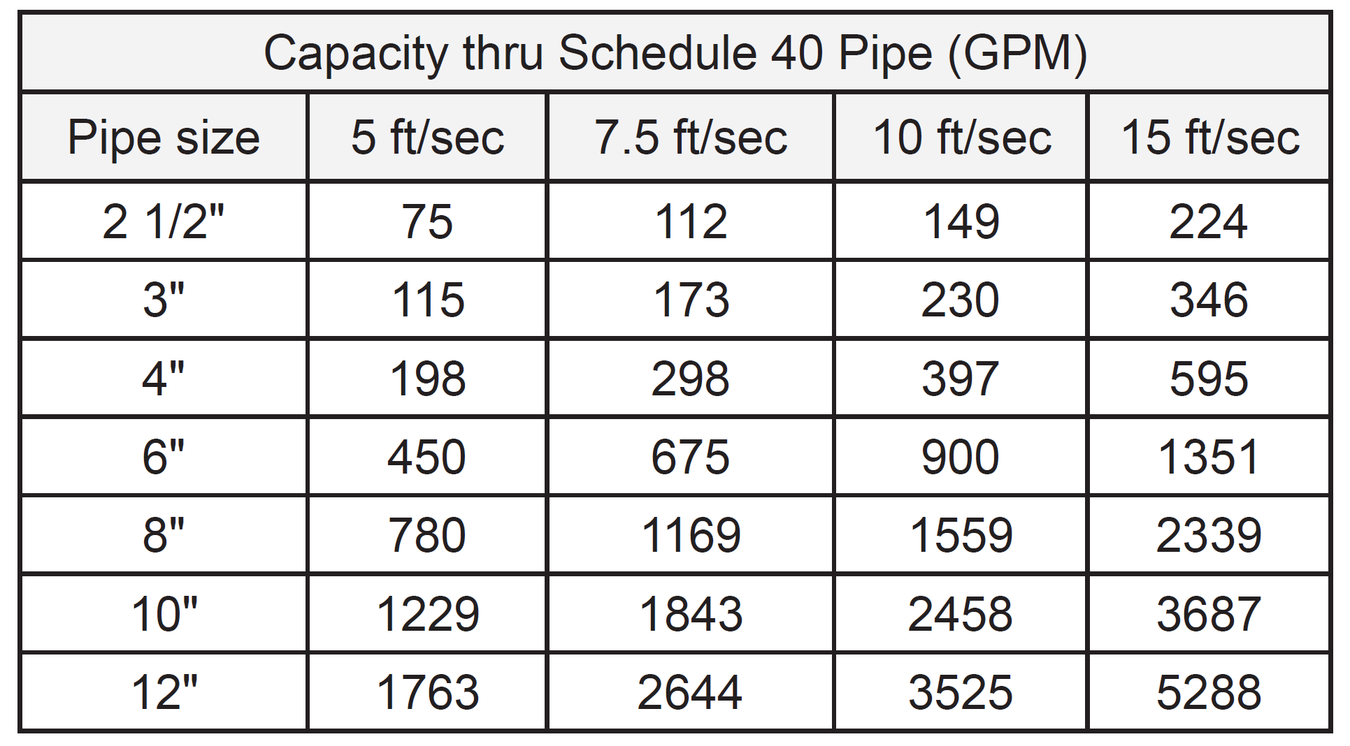

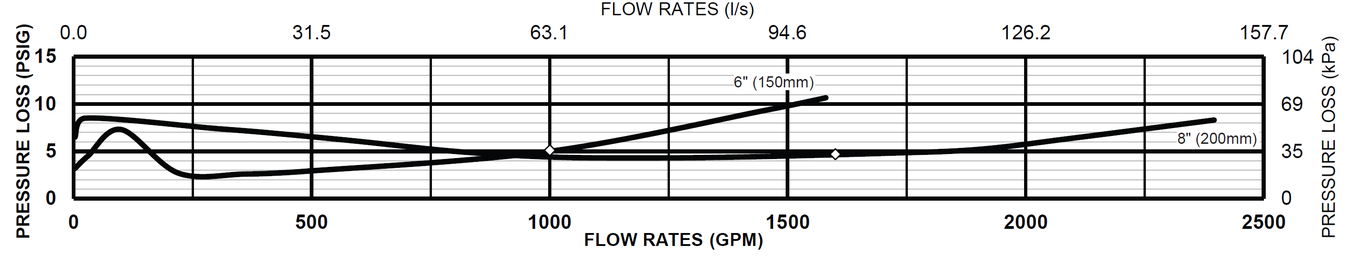

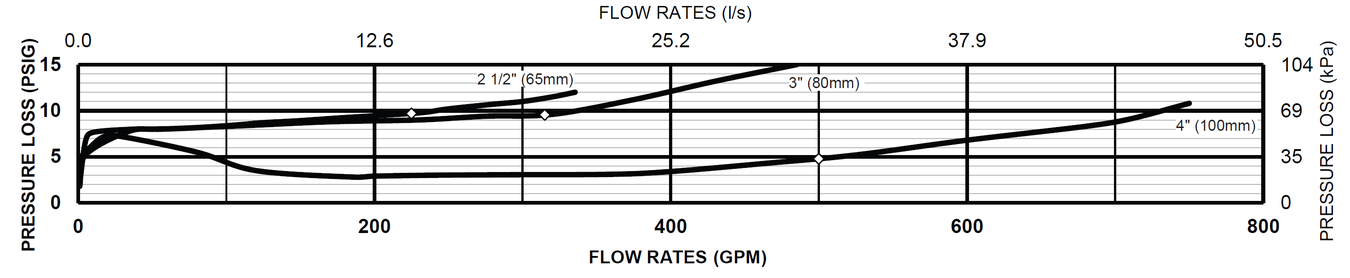

Model 350 ASTDAL 2 1/2", 3" & 4" (STANDARD & METRIC)

Model 350 ASTDAL 6" & 8" (STANDARD & METRIC)

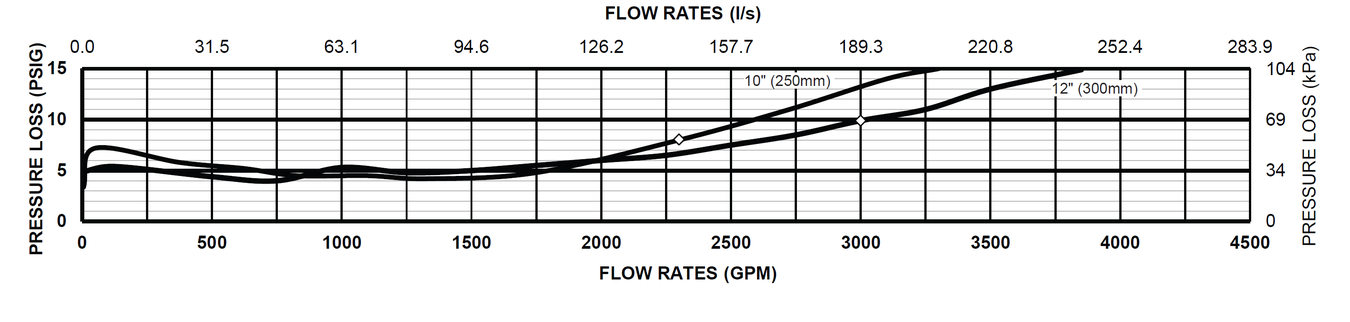

Model 350 ASTDAL 10" & 12" (STANDARD & METRIC)

The Double Check Detector Backflow Prevention Assembly shall be certified to NSF/ANSI/CAN 61, ASSE® Listed 1048, and supplied with full port gate valves. The main body and access cover shall be epoxy-coated ductile iron (ASTM A 536), the seat ring and check valve shall be Noryl™, the stem shall be stainless steel (ASTM A 276) and the seat disc elastomers shall be EPDM. The first and second check valves shall be accessible for maintenance without removing the device from the line. The Double Check Detector Backflow Prevention Assembly shall be a ZURN WILKINS Model 350 ASTDAL.

Typical Installation

Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted at a minimum of 12" (305mm) and a maximum of 30" (762mm) above adequate drains with sufficient side clearance for testing and maintenance. The installation shall be made so that no part of the unit can be submerged.

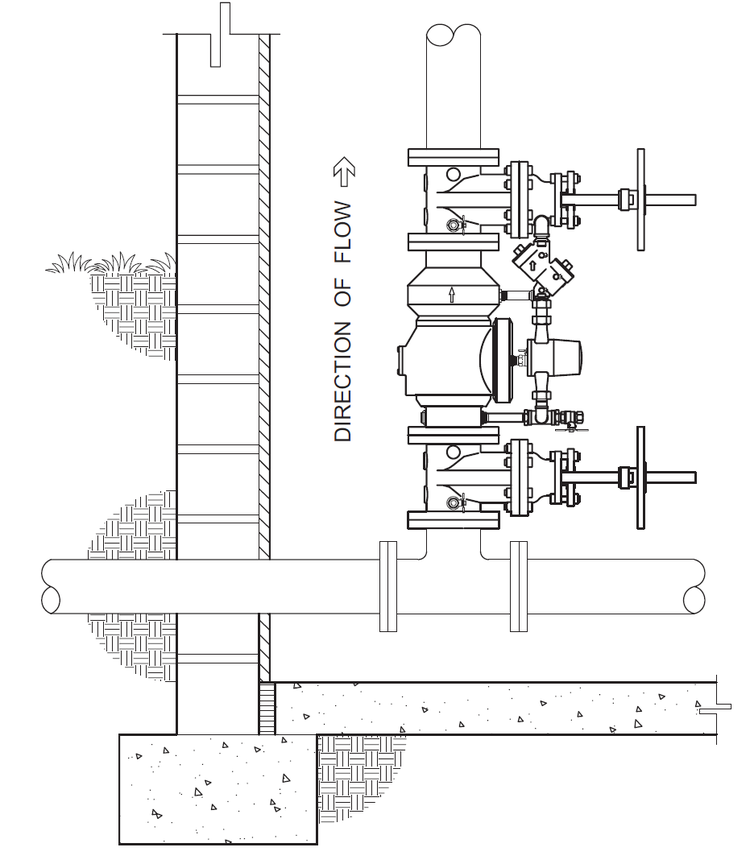

Vertical Installation

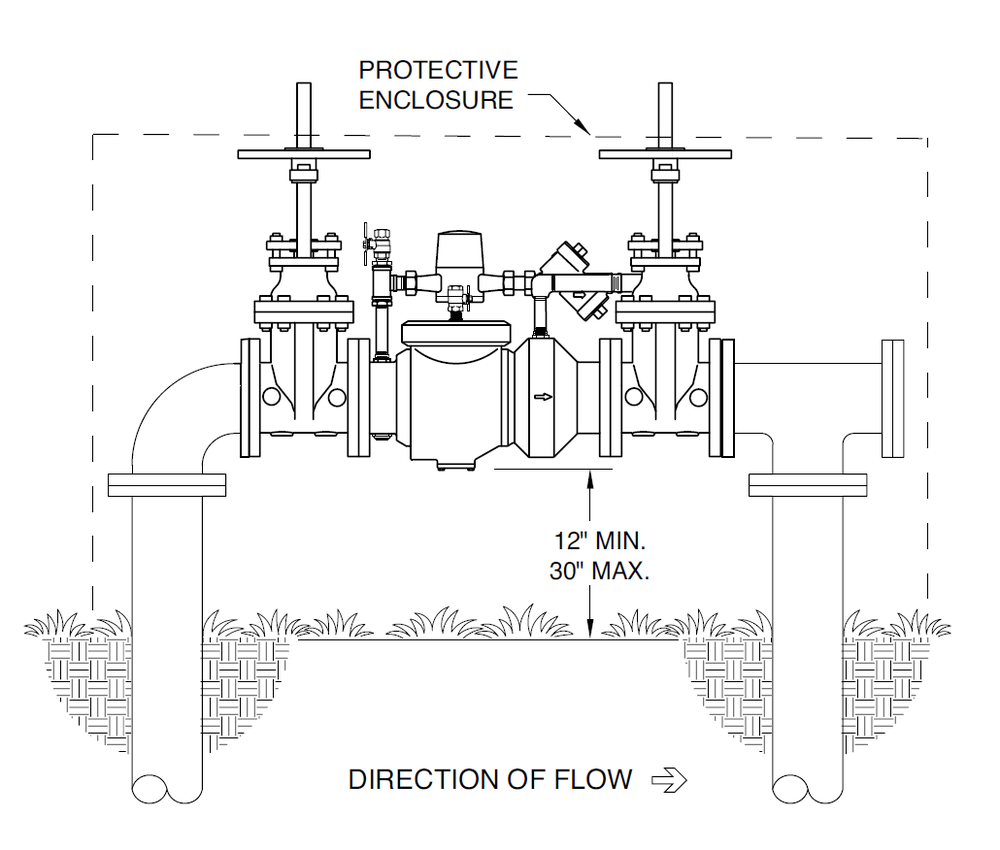

Outdoor Installation
