Brand: | Zurn Wilkins |
Category: | Backflow Prevention, 460 Series |
Size Range: | 15, 20, 25mm |
Connection: | Threaded Female BSPT |
Product Description
The innovative design protects against spillage that a normal Pressure Vacuum Breaker exhibits during start-up, allowing for indoor installation. The air inlet closes before the check valve opens. Wilkins’ designs continue to set the standard in water control products and the Model 460 Spill Resistant Pressure Vacuum Breaker is evidence of this continued effort. With unique design features, the 460 has unsurpassed reliability and in-line maintainability of any valve in its class. A Phillips screwdriver is all that is needed to work on the 460 - the bonnet tool and seat tool are built into the canopy and bonnet of the valve. The internal cartridge pulls out of the body with no threading, making the 460 the easiest-to-maintain SPVB on the market. Currently available in 15, 20 and 25mm.
Features
- Sizes: 15, 20, 25mm
- Maximum working water pressure 150 PSI
- Maximum working water temperature 180°F
- Hydrostatic test pressure 300 PSI
- Threaded Female BSPT
Replaceable thermoplastic modular cartridge Spill resistant feature for indoor use
Typical Application
Designed for installation on indoor and outdoor point-of-use applications to protect against back siphonage of contaminated water into the water supply. During startup and operation, a separate diaphragm seals the air inlet from the water supply preventing spillage. The assembly is designed for use under constant pressure and provides protection where a potential health hazard exists.
Standards Compliance
- ASSE® Listed 1056
- IAPMO® Listed
- CSA® Certified
- Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Accessories
- Repair kit (complete)
- Repair kit (rubber only)
- Water hammer arrester (Model 1250)
- QT-SET Quick Test Fitting Set
Technical Data
Materials
Main valve body: Cast Bronze ASTM B 584
Elastomers: Silicone (FDA Approved)
Buna Nitrile (NSF Listed)
Polymers: Polypropylene (FDA Approved)
Delrin™ (NSF Listed)
Springs: Stainless Steel, 300 Series
Flow Characteristics

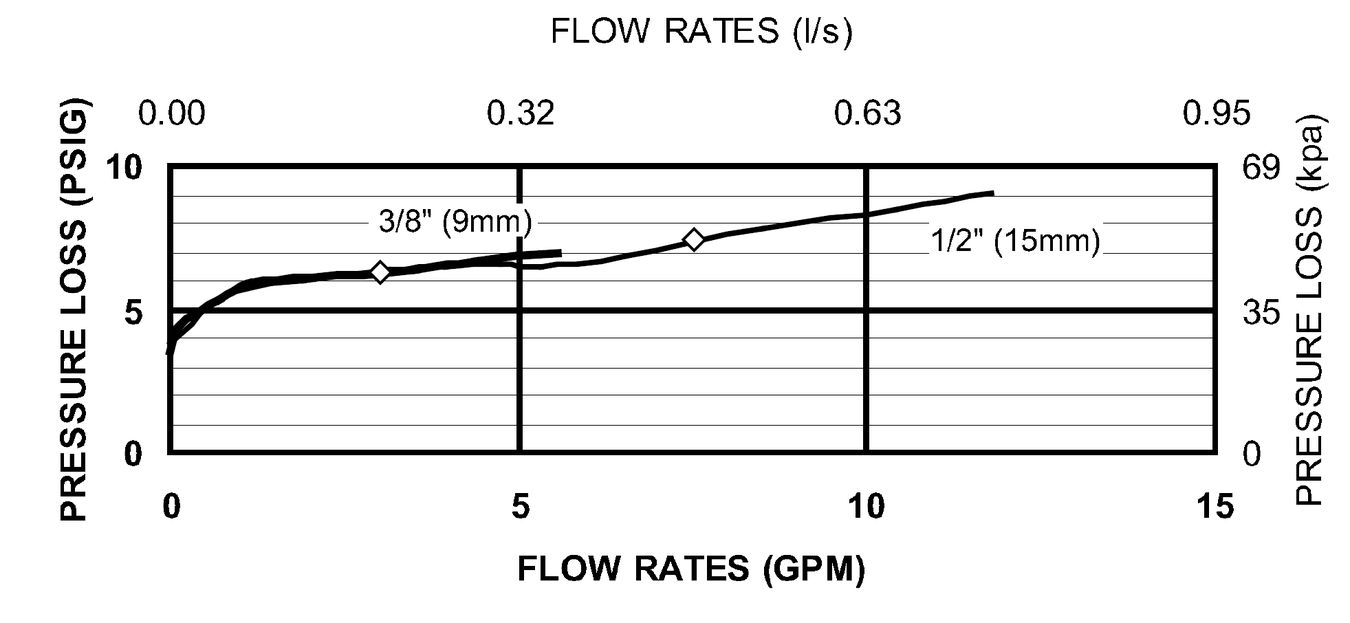

Model 460 3/8" & 1/2" (Standard & Metric)
Zurn Wilkins - 460 Series - Flow Characteristics - Model 460 3/8" & 1/2"

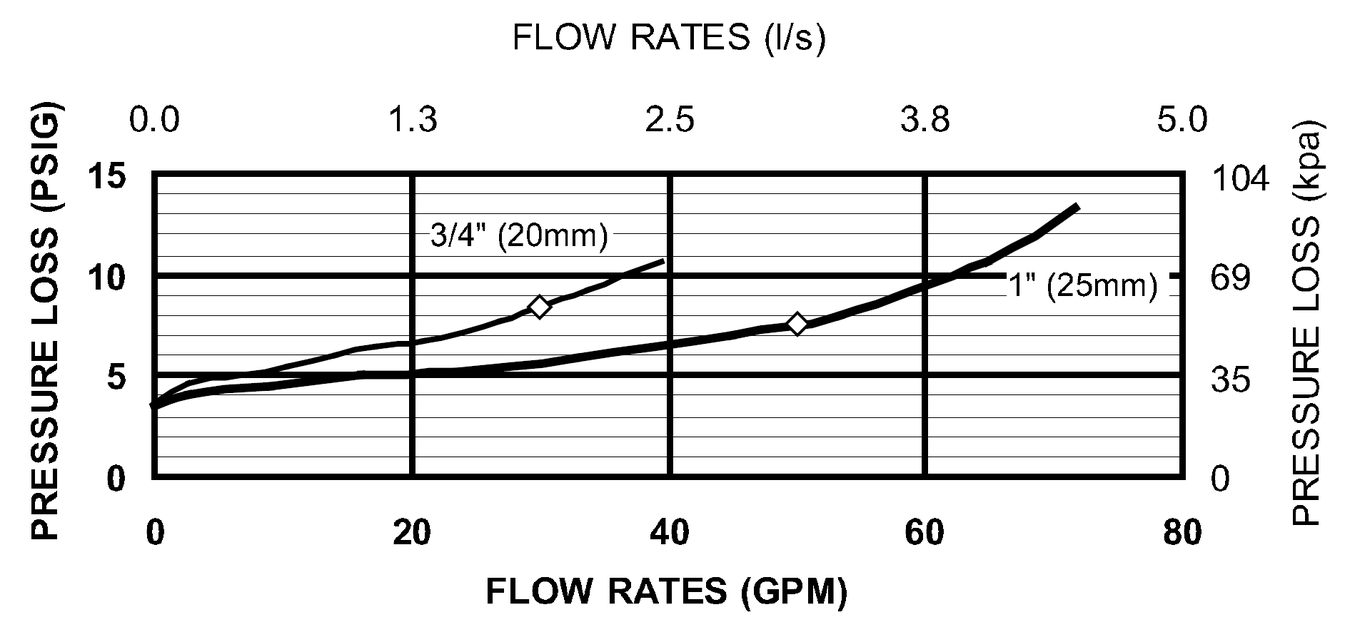

Model 460 3/4" & 1" (Standard & Metric)
Zurn Wilkins - 460 Series - Flow Characteristics - Model 460 3/4" & 1"
Typical Installation
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be installed in accordance with the manufacturers’ instructions and the latest version of the Uniform Plumbing Code. The critical level mark on the assembly shall be mounted at a minimum of 12” (305mm) above the highest downstream piping or outlet. Install with sufficient side clearance for testing and maintenance. The installation shall ensure that no part of the assembly can be submerged. A spill-resistant pressure vacuum breaker cannot be installed where back pressure could occur
Outdoor Installation

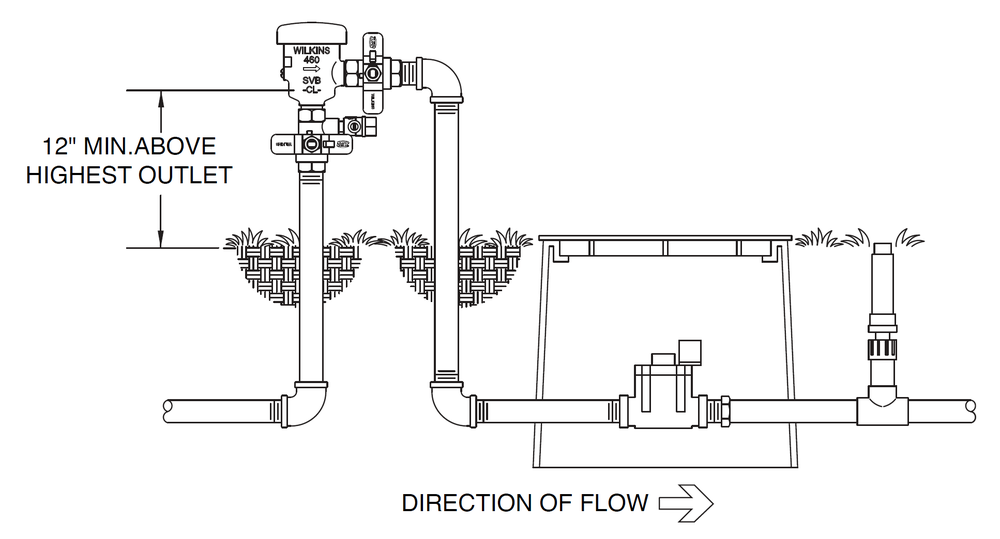

Zurn Wilkins - 460 Series - Outdoor Installation
Indoor Installation

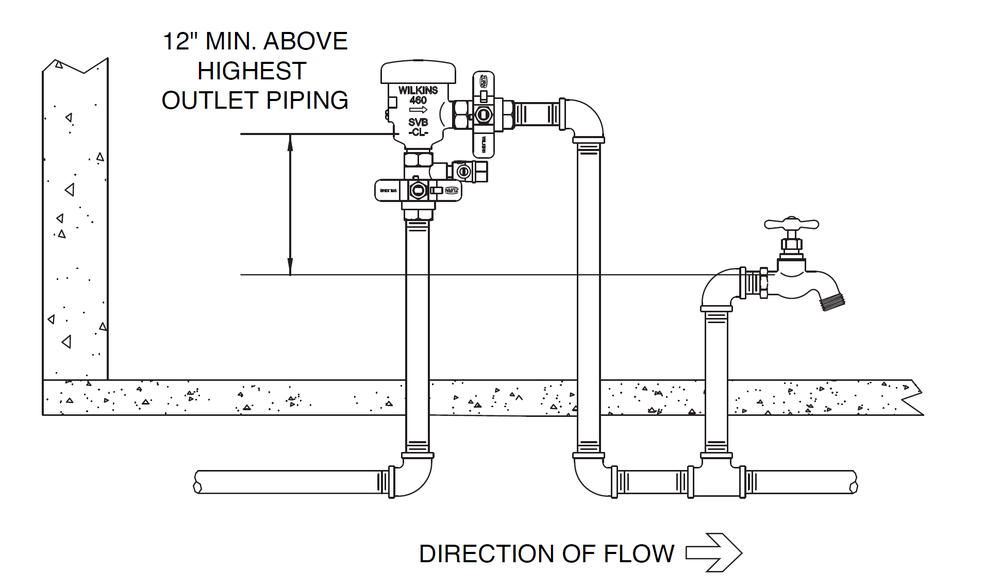

Zurn Wilkins - 460 Series - Indoor Installation

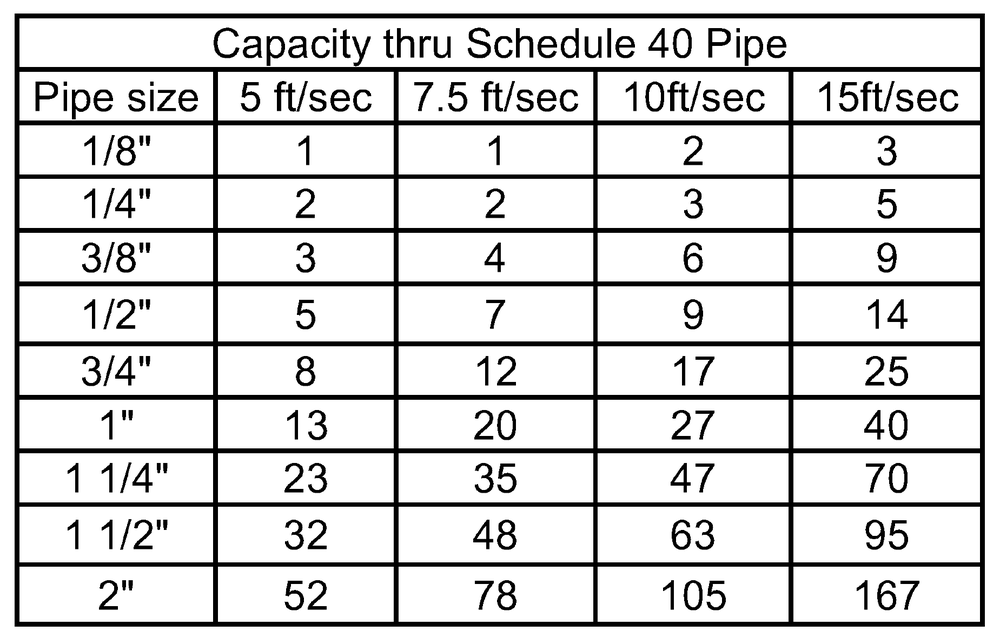

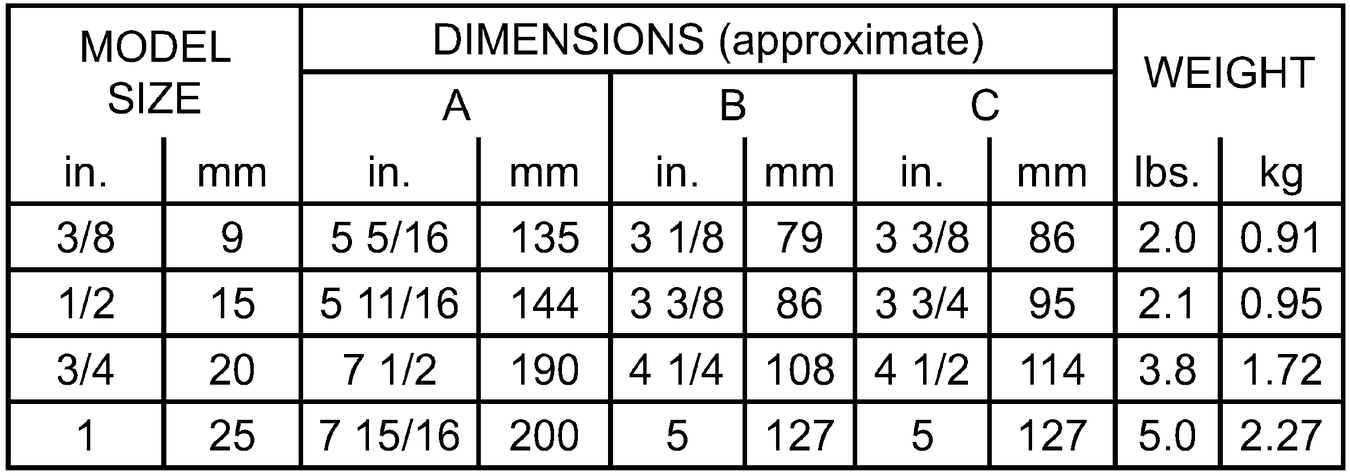

Dimensions and Weights

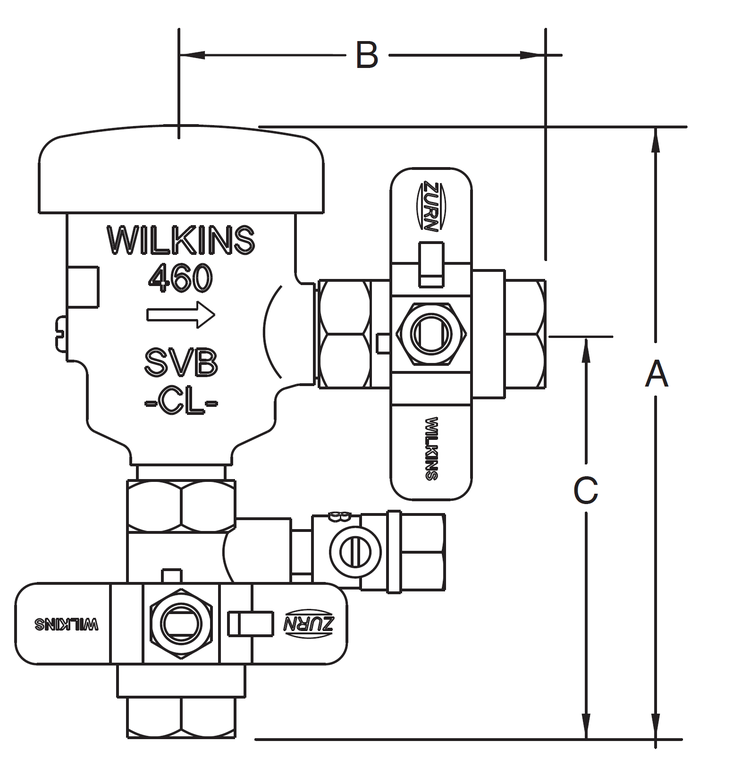

Zurn Wilkins - 460 Series - Backflow Preventer
Vacuum relief check valve with two resilient seated test cocks and two isolating ball valves. Max pressure 10 Bar.
Product Code | Size | Description |
---|---|---|

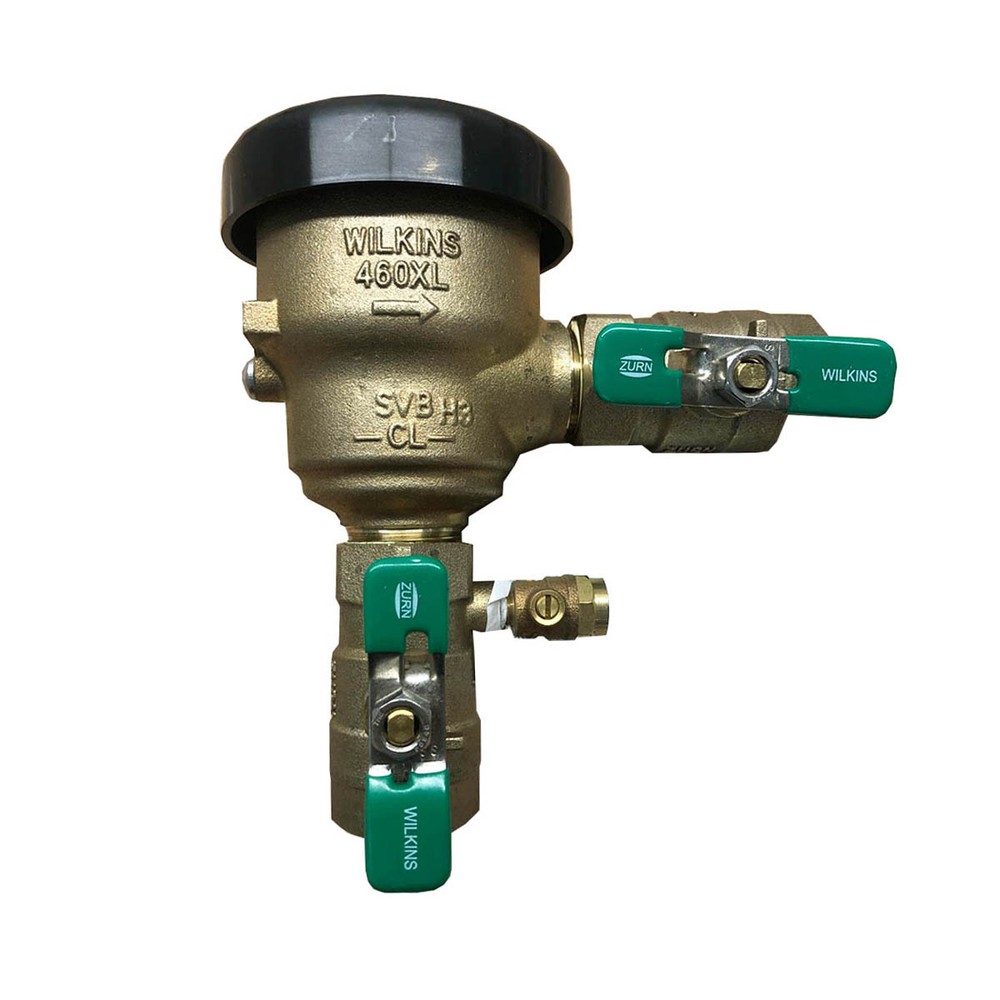

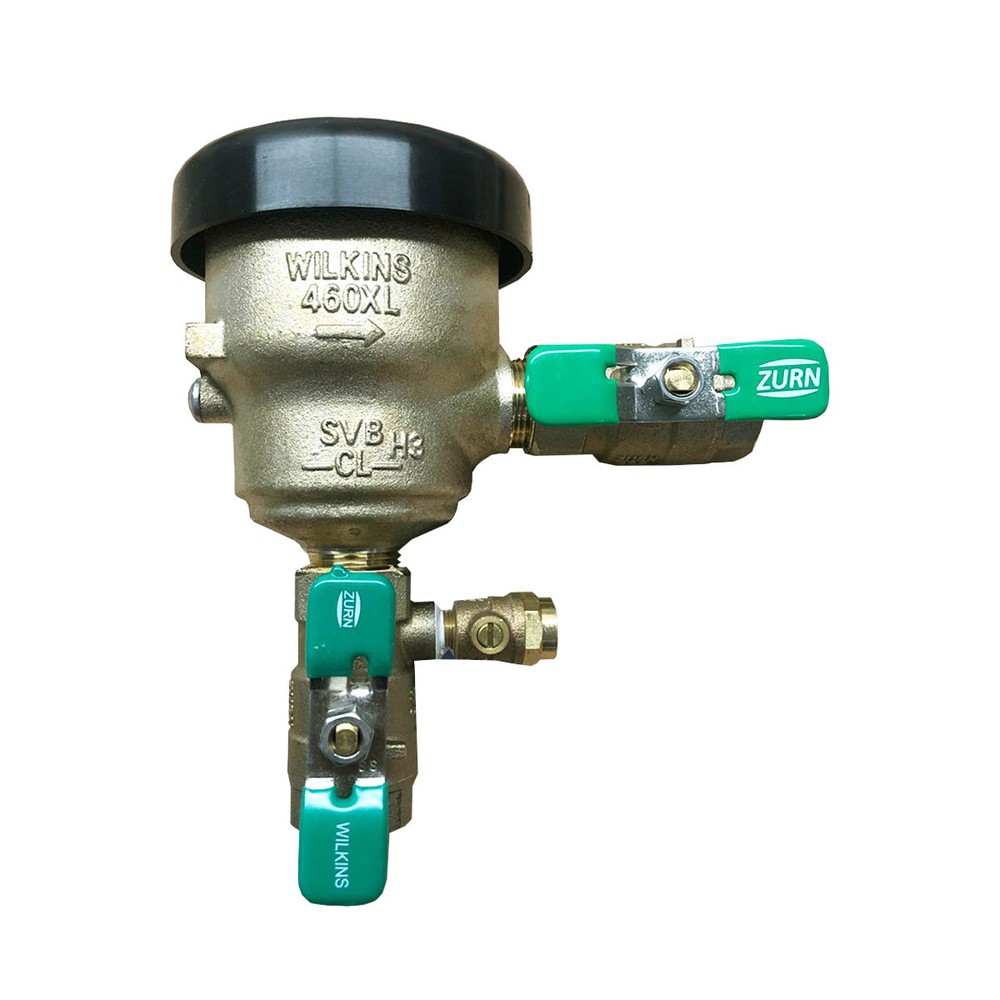

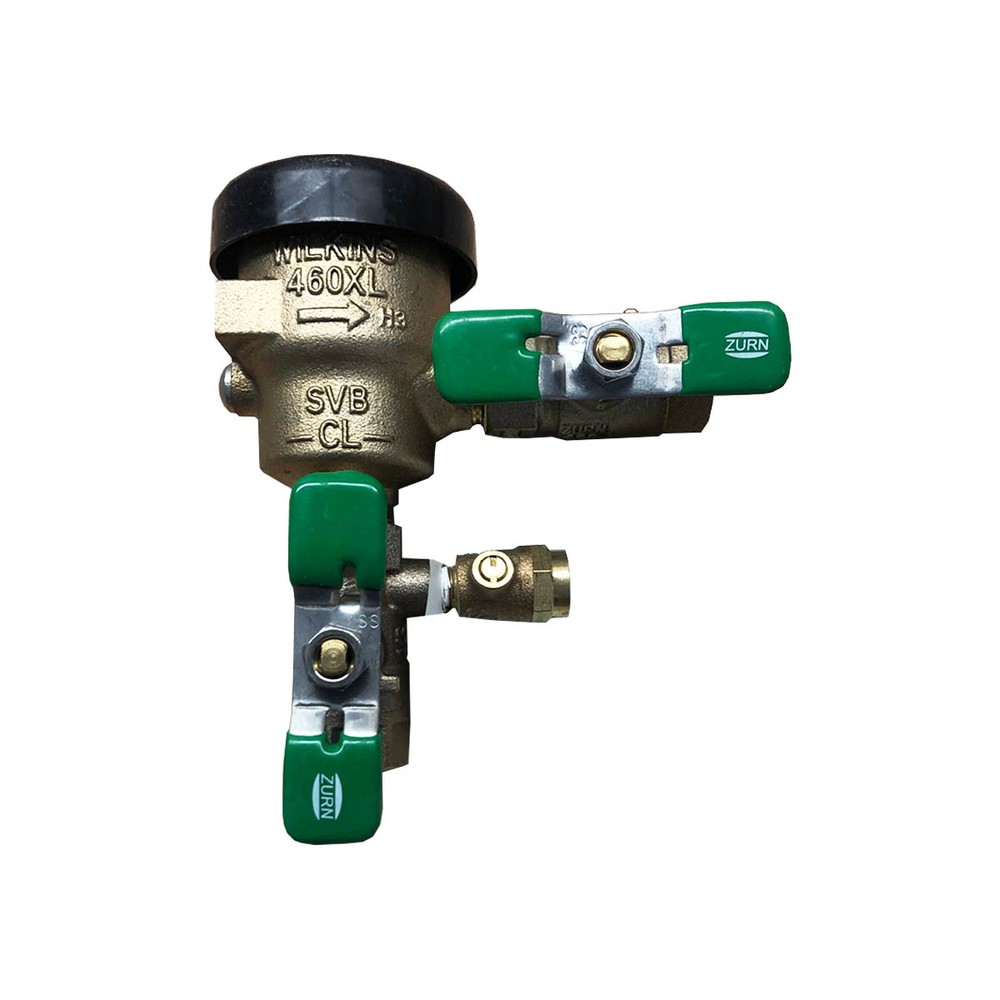

460XL015 | 15mm | Spill Proof Pressure Vacuum Breaker - Model 460 - Threaded BSP Female |
460XL020 | 20mm | Spill Proof Pressure Vacuum Breaker - Model 460 - Threaded BSP Female |
460XL025 | 25mm | Spill Proof Pressure Vacuum Breaker - Model 460 - Threaded BSP Female |
