Azud - Helix Automatic Series - 201 DLP - Automatic Self-Cleaning Disc Filter

Azud - Helix Automatic - 201 - Product Image
Brand: Azud
Category: Filtration, Automatic Filters - Disc.
Filtration Degree:

100-400 micron

Product Description

Self-cleaning equipment with disc filtering element and 2" valves for exclusive use for irrigation water filtration application.
Maximum flow of 24m3/h (106gpm)

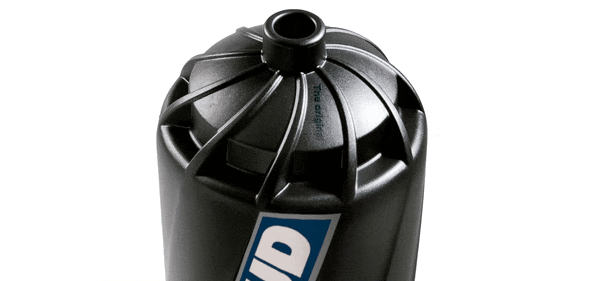

1702371631623

Features and Benefits

  • Disc filtration. Maximum Safety: Its careful design and manufacture guarantee an extended lifespan, resistance and high filtration quality.
  • Azud HELIX device: Patented clogging retardant device. Performance optimization, minimum frequency,, and intensity of the maintenance labors.
  • Self-cleaning filtering element: Maximum water saving and efficiency in the backwashing phase. Large filtration area. Filtration degrees 100, 130, 200 and 400 microns.
  • Maximum ease of transportation and installation: Factory-assembled equipment
  • Manufactured in plastic materials.
  • Low maintenance: No tools required. Maximum wear resistance of high-quality moving parts.
  • Water and energy savings.

Technology

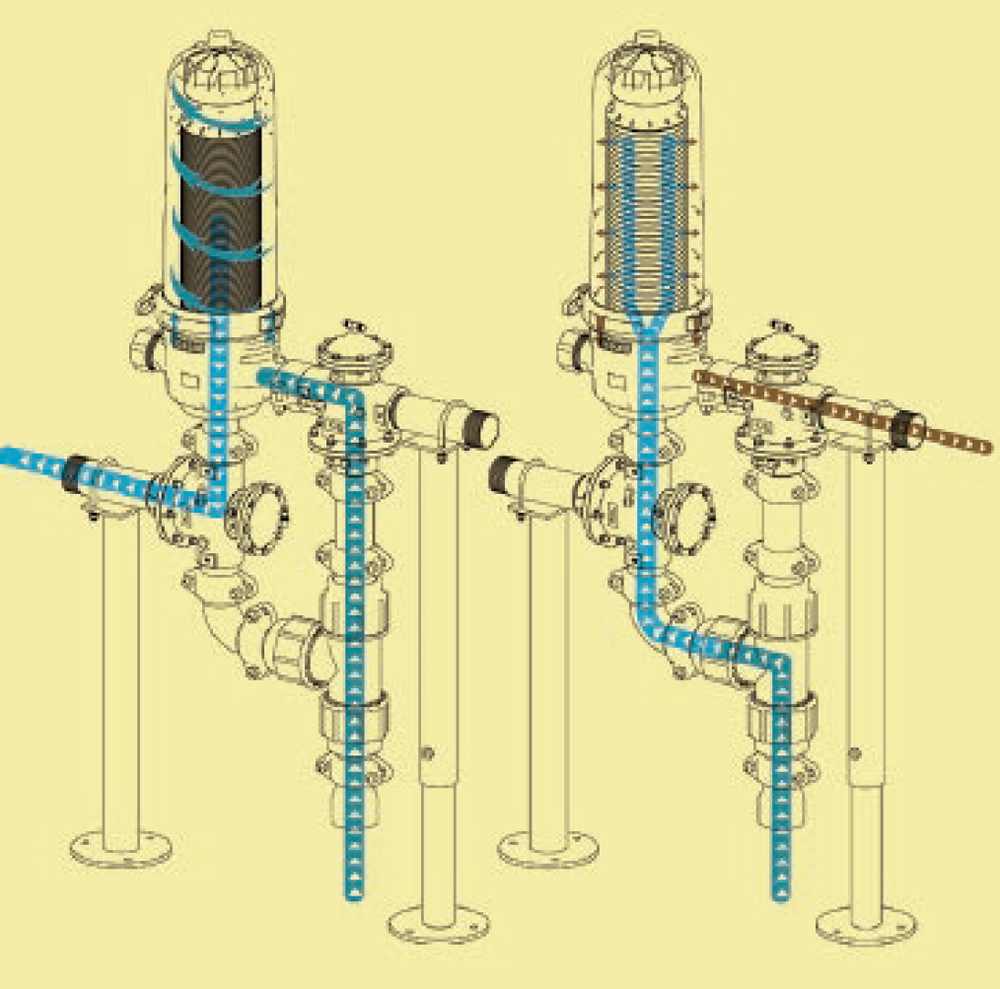

Azud - Helix Automatic - 201- Technology

Filtration phase: Water flows through the anti-clogging AZUD HELIX deflector before being in-depth filtered by the disc stack.
This device generates a centrifugal helical effect that throws the heaviest particles away from the disc stack. This AZUD's patent avoids the sudden clogging of the filter, minimizing the backwash frequency.

Self-Cleaning Phase: Backflushing valves reverse the flow direction allowing the water, previously filtered by the auxiliary filter, to flow in the opposite direction. Thus, the backflushing is activated, the disc stack is decompressed, and the cleaning water flushes out the particles retained by the discs to the drainage.

The filtration phase is resumed when the disc stack is being compressed again.

During the self-cleaning phase, no production of filtered water is done.

Technical Data

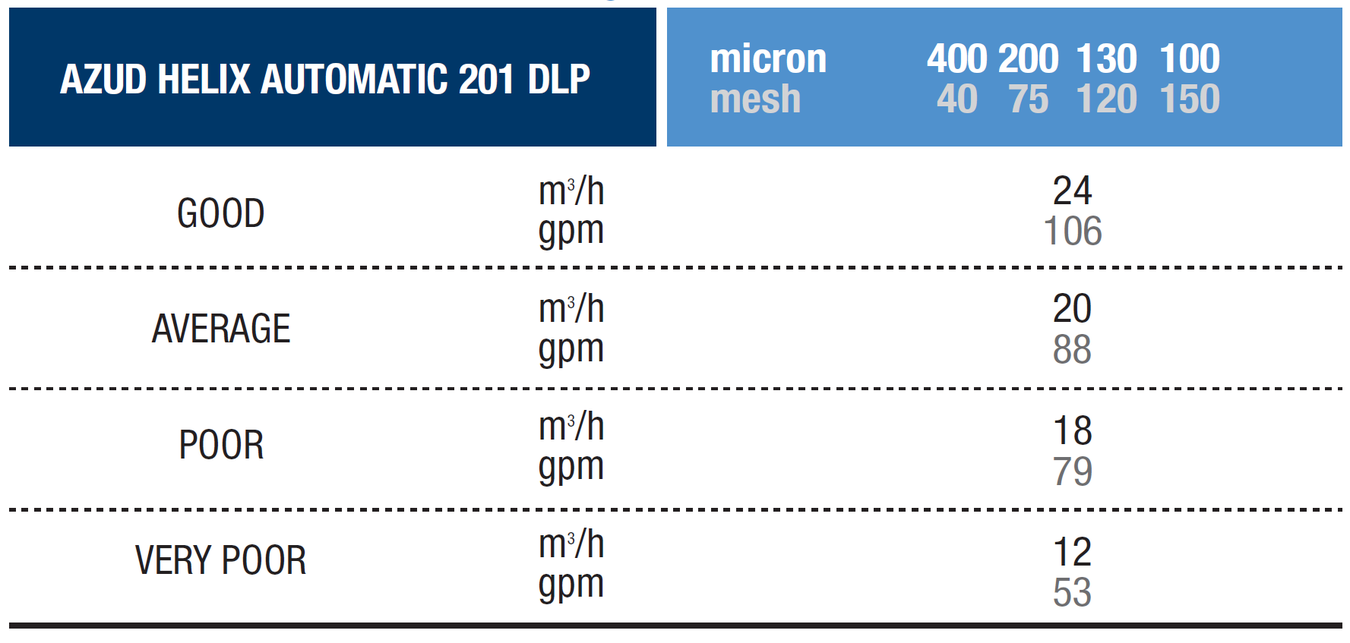

Filtration Maximum Flow per filter

AZUD HELIX AUTOMATIC filter filtering surface 1.620 cm²

Azud - Helix Automatic - 201- Max flow per filter

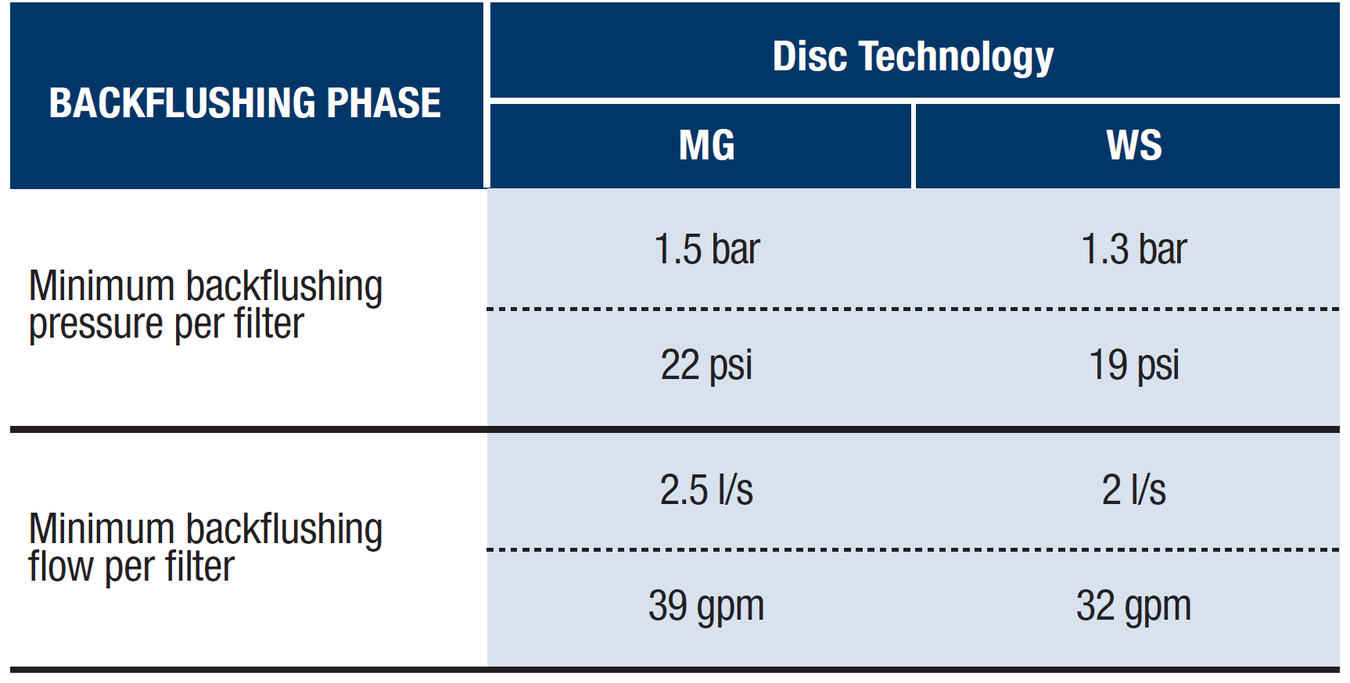

Minimum Backflushing Phase per filter

Azud - Helix Automatic - 201- Backflush phase

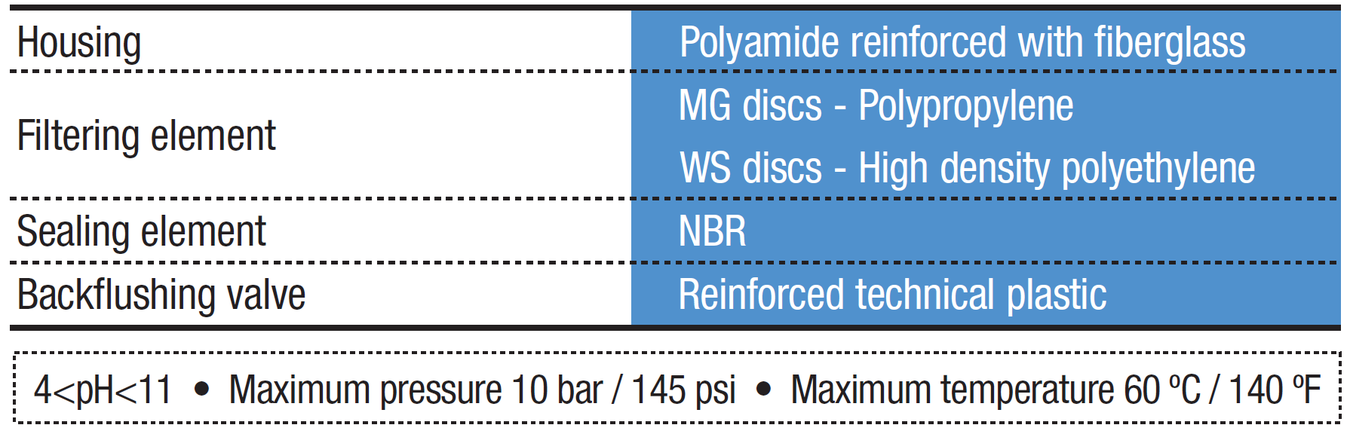

Construction Materials

Azud - Helix Automatic - 201- Construction Materials

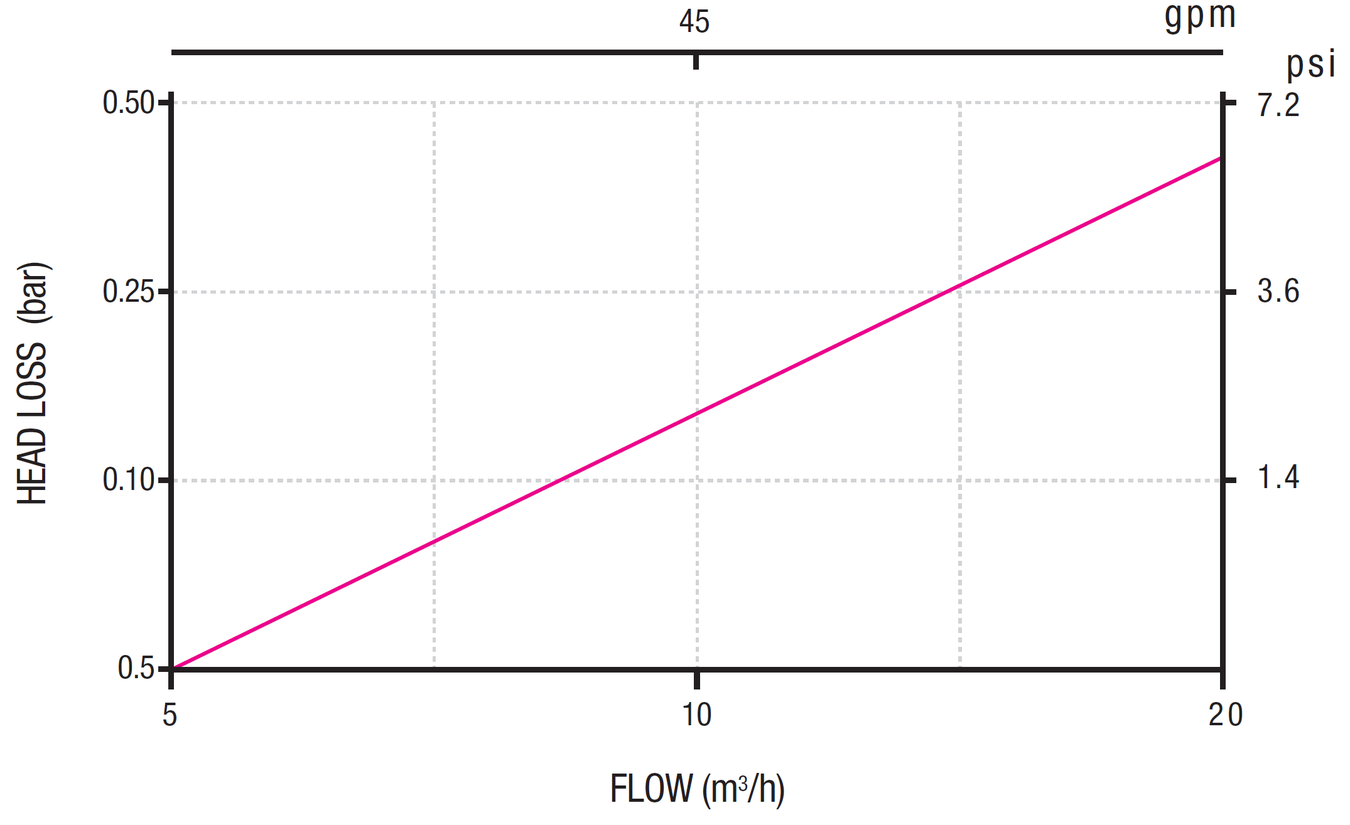

Head Loss Graph

130 micron

Azud - Helix Automatic - 201- Head Loss

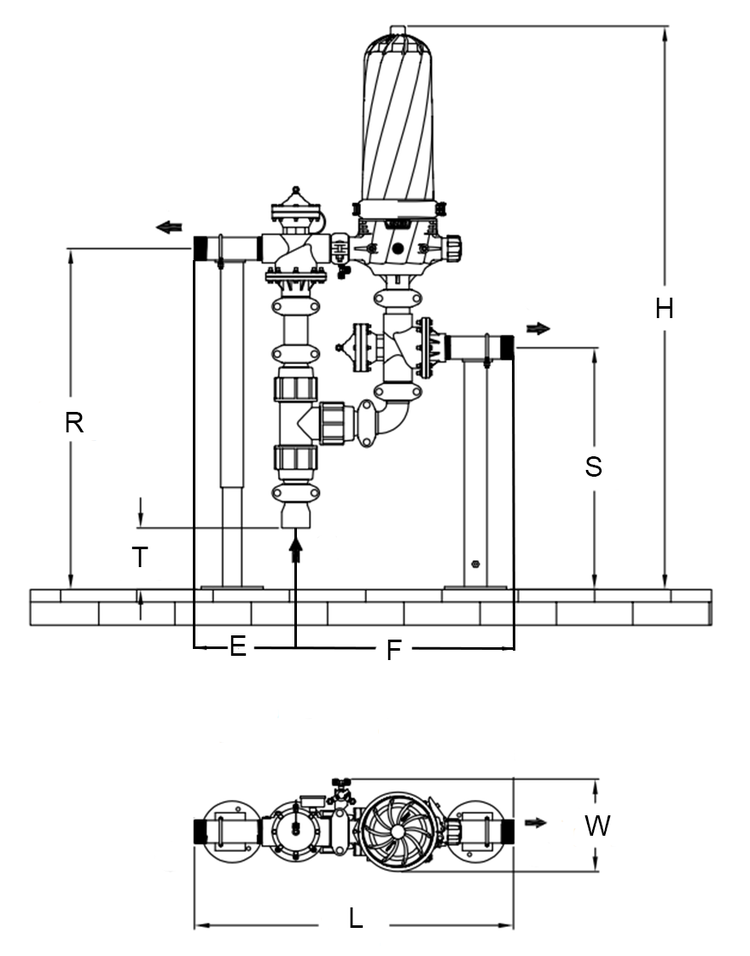

Dimensional Drawing

AZUD -201 DLP - Dimensional Drawing

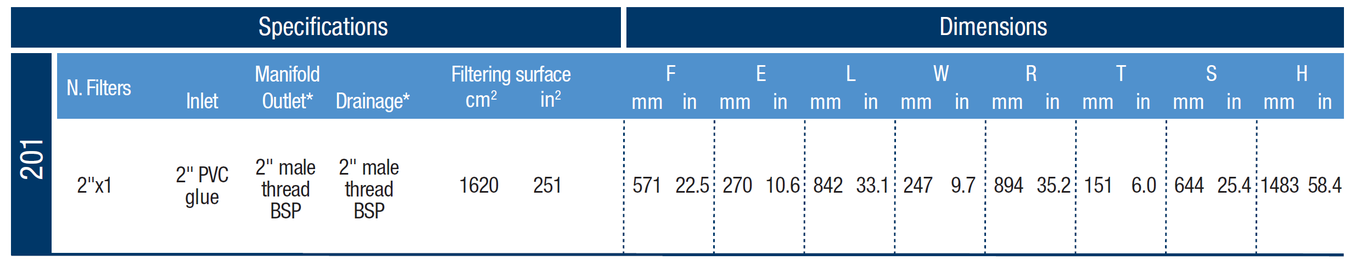

Dimensions

Azud - Helix Automatic - 201- Dimensions

*It is available in the male thread NPT. For other configurations, contact Deeco.

Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.

Please contact us for more information.

Accessories

AC mains, or On-board battery powered (specific with order) C/W on-board digital PD and display, Bluetooth communications for programming and data collection, Bridge mounted pre-plumbed and wired solenoids.

Product Code Size Description
FILTRON xx 1COM - Tailgil Filtron AC or DC Complete with Digital PD and 1 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 2COM - Tailgil Filtron AC or DC Complete with Digital PD and 2 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 3COM - Tailgil Filtron AC or DC Complete with Digital PD and 3 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 4COM - Tailgil Filtron AC or DC Complete with Digital PD and 4 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 5COM - Tailgil Filtron AC or DC Complete with Digital PD and 5 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 6COM - Tailgil Filtron AC or DC Complete with Digital PD and 6 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 7COM - Tailgil Filtron AC or DC Complete with Digital PD and 7 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 8COM - Tailgil Filtron AC or DC Complete with Digital PD and 8 Solenoid – Pre Programmed, Plumbed/Wired

Other controller options available on request. Please consult with Deeco.
