Azud - Spiral Clean - Semi Automatic Mesh Filter

Deeco - Azud - Spiral Clean - Product Image
Brand: Azud
Category: Filtration, Semi-Automatic Filters
Filtration Degree:

100-200 micron

Product Description

AZUD SPIRAL CLEAN is a range of semi-automatic mesh filters for exclusive use in water filtration for irrigation. This range of filters stands out for its low maintenance and optimum filtration safety, together with its large filter surface.
Its ergonomic design allows for quick and easy cleaning without the need to dismantle it or stop the installation.

Features and Benefits

  • Large Screen Area: Up to 1730 cm ² (268 in²)
  • Filtration with Screen Filter element: The material of construction of the screen is stainless steel. Filtration Degrees 100, 130, 200 micron.
  • Non-stop working: It is not necessary to stop the filtered water supply during the cleaning process.
  • Easy and effective cleaning: The cleaning mechanism, consisting of a hand crank, scanner, and suction nozzles, guarantees an efficient cleaning of the filter element without dismantling the filter.
  • Low maintenance: No tools are needed.
  • Modularity, Versatility, and Compatibility: the system permits a wide range of possibilities with a minimal number of components.
  • Manufactured in technical plastic
  • Water and energy saving.

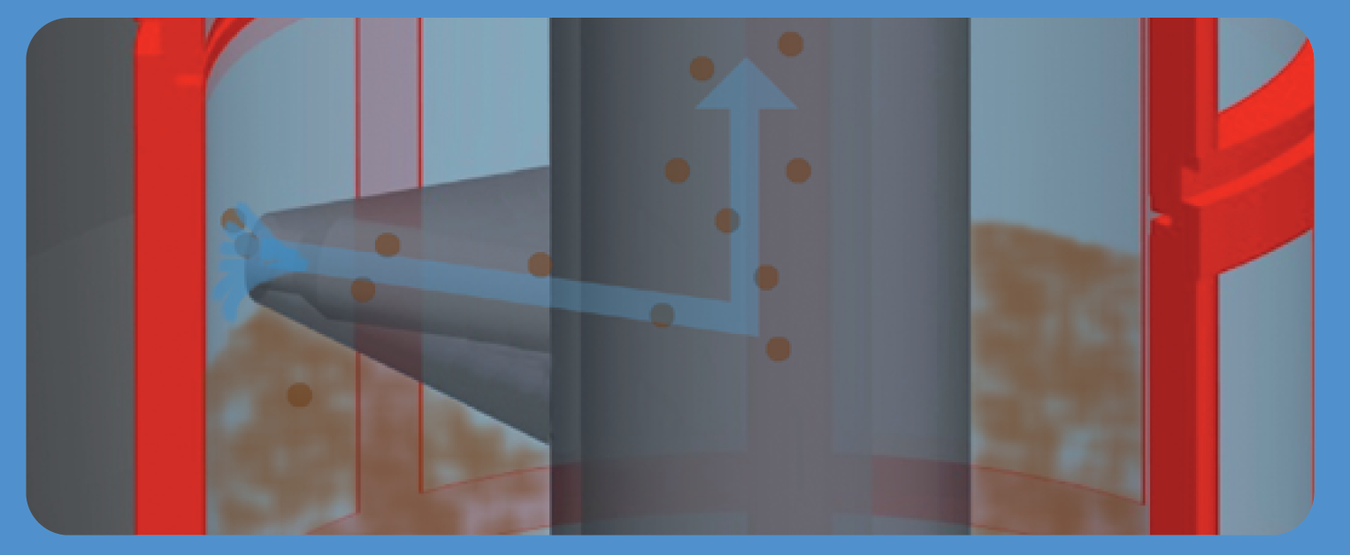

Technology

Deeco - Spiral Clean - Technology

Azud Spiral Clean has a wide surface screen filtering element. Water flows OUT-IN through the filtering element while particles bigger than the filtration degree are trapped in the screen.
During the cleaning phase, the rotatory movement of the handle allows the rotation of the nozzles. The said nozzles suction the particles retained on the screen surface and discharge them through the drain valve.

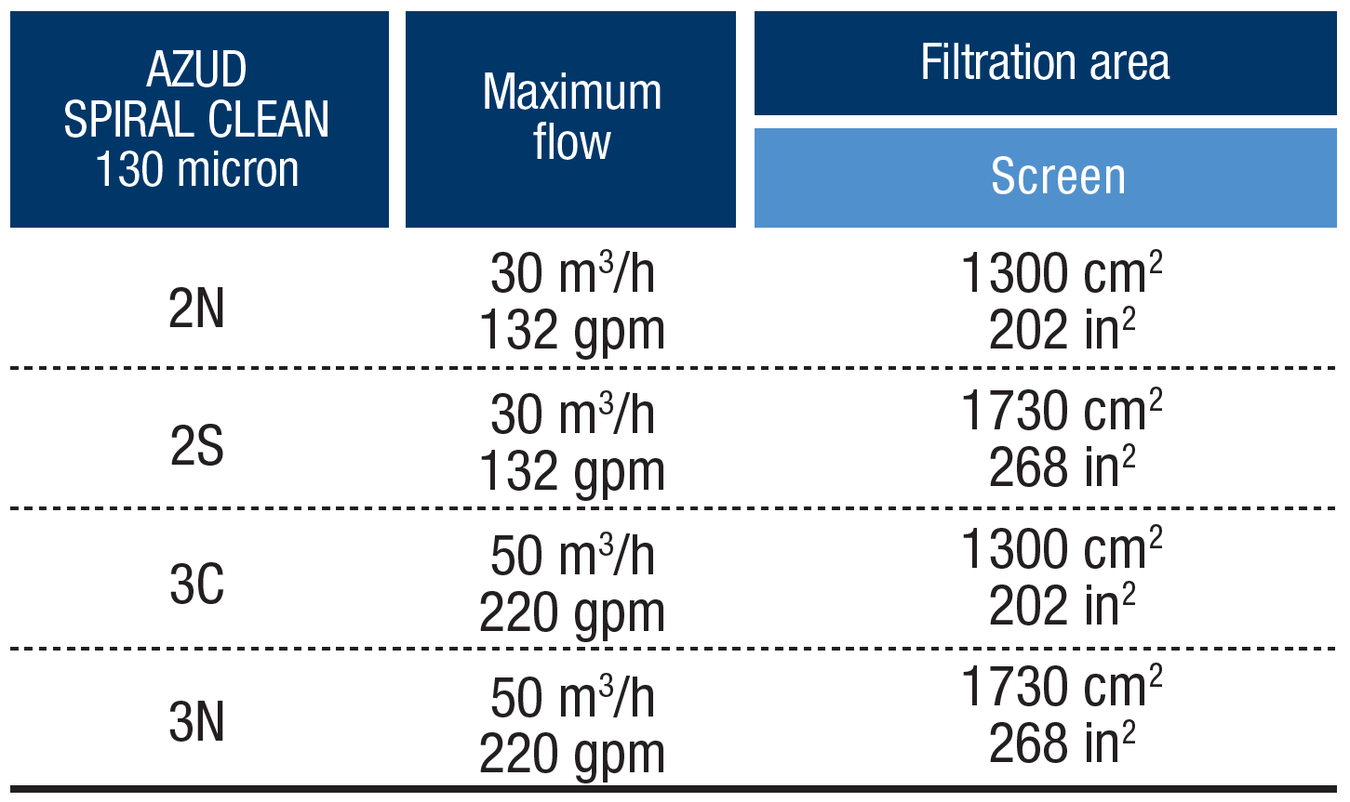

Technical Data

Deeco - Spiral Clean - Technical Data

Minimum Pressure: 2 Bar/29 psi.
The flow rate is given by the filter conditions the frequency of the flushing activation.
Other filtration grades are available.

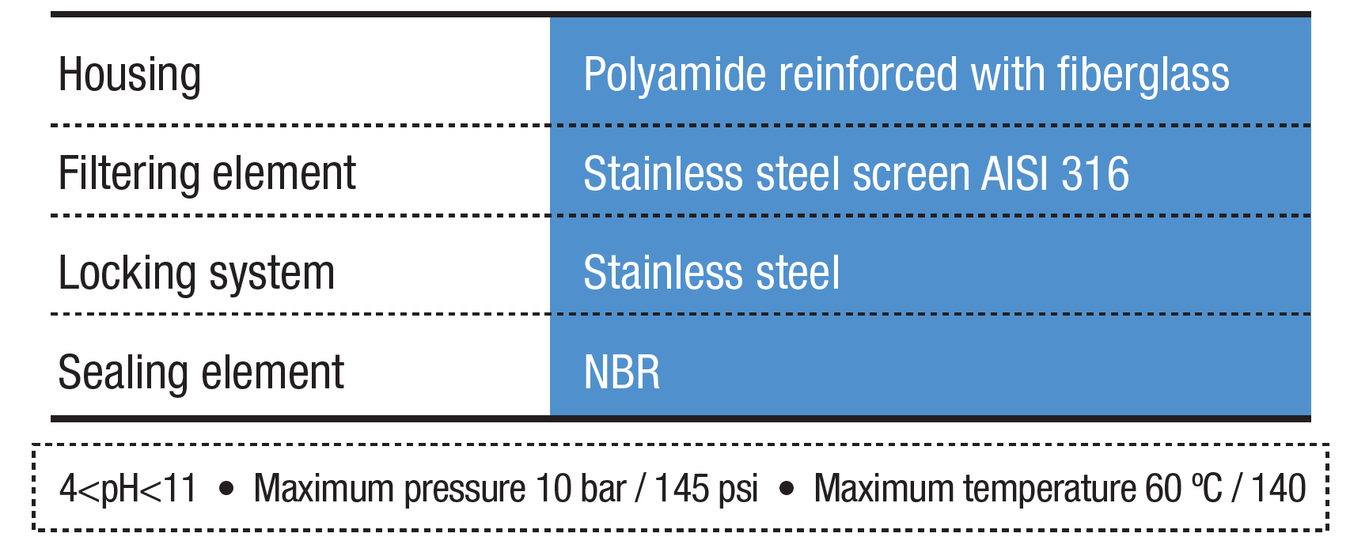

Construction Materials

Deeco - Spiral Clean - Construction Materials

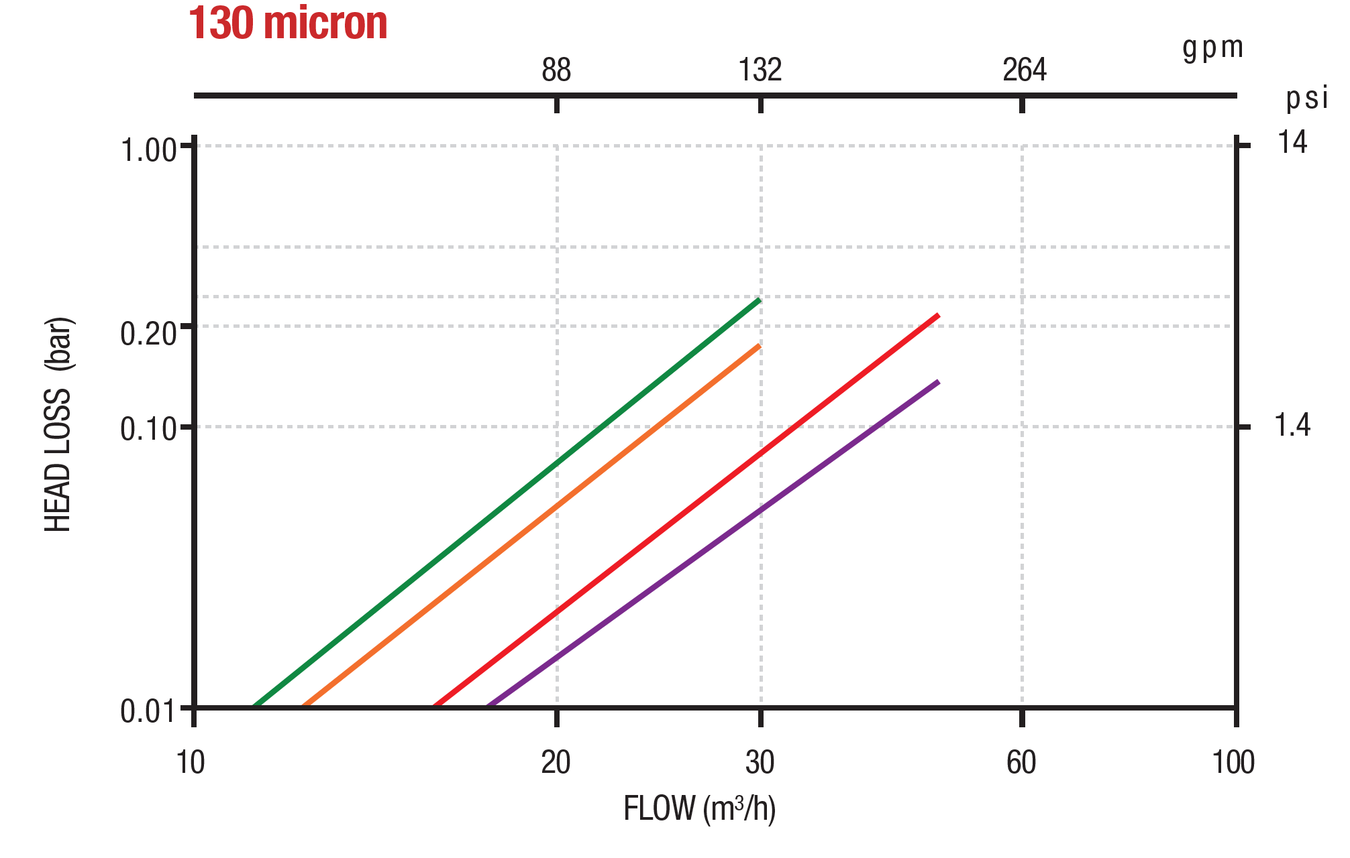

Head Loss Graph

Deeco - Spiral Clean - Head Loss Graph
Deeco - Spiral Clean - Head Loss Graph 2

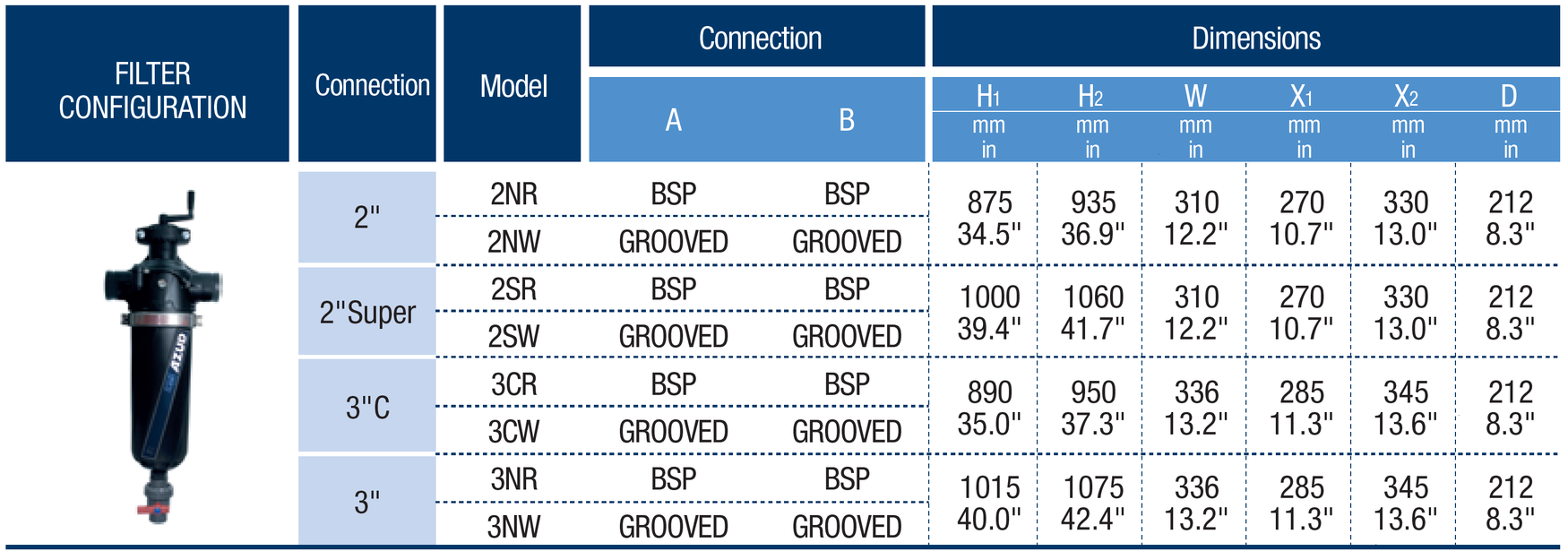

Dimensions and Weights

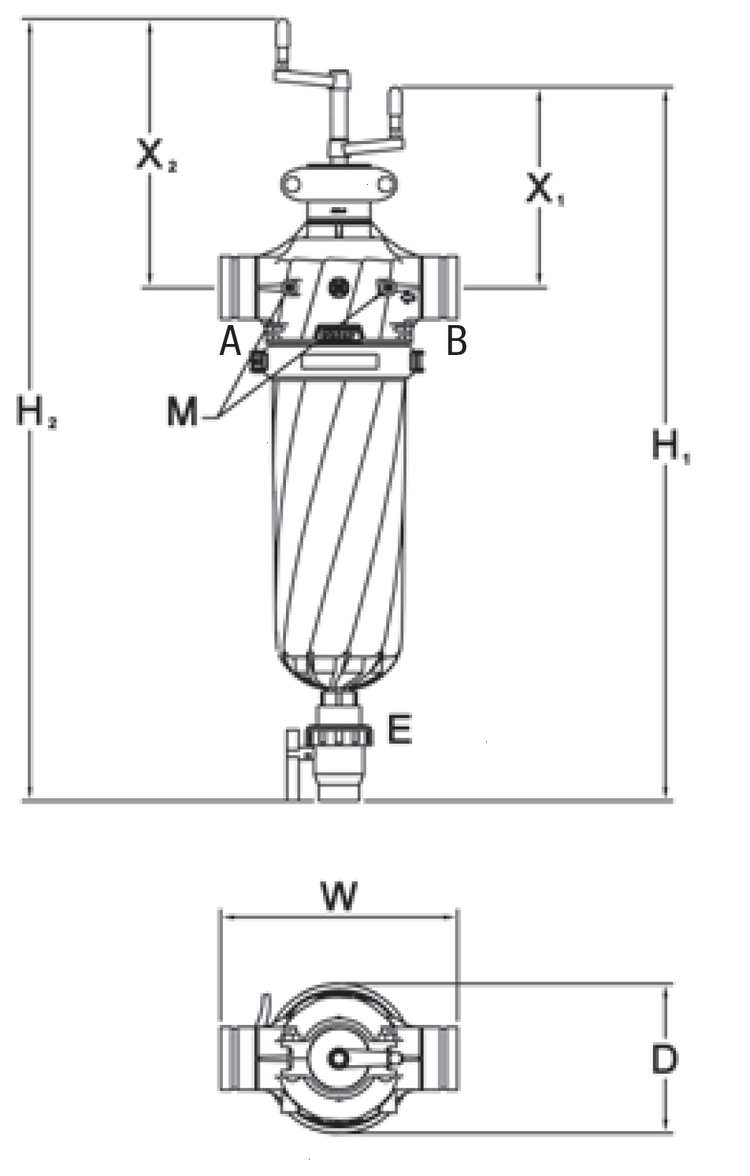

Deeco - Spiral Clean - Dimensional drawing
Deeco - Spiral Clean - Dimensions and Weights

Connection E 1 1/2" BSP
Connection M 1/4" BSP
Body available in NPT thread

KIT DPI is available. DPI: Device that indicates the differential pressure in which the filter should be flushed.

Azud - Spiral Clean - Semi Automatic Mesh Filter

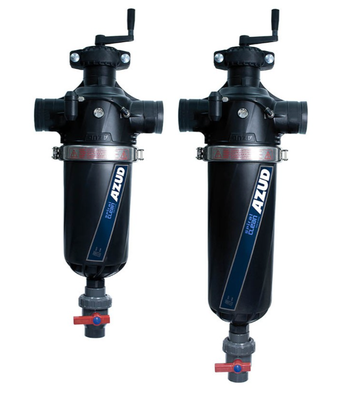

Spirla clean
Product Code Size Pressure Rating Description
17B2NRD6-XXX 50mm 10 Bar SPIRAL CLEAN Screen Filter 130 or 200μm c/w DPI kit - BSP Threaded
17B2SR-XXX 50Smm 10 Bar SPIRAL CLEAN Screen Filter 130 or 200μm c/w DPI kit - BSP Threaded
17B3CR-XXX 80mm 10 Bar SPIRAL CLEAN Screen Filter c/w DPI kit - BSP Threaded
17B3NR-XXX 80Smm 10 Bar SPIRAL CLEAN Screen Filter c/w DPI kit - BSP Threaded

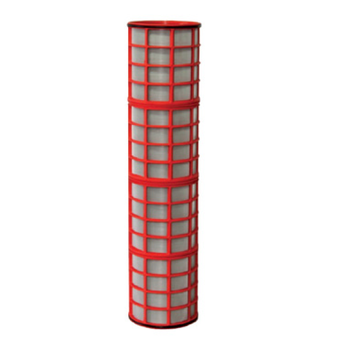

Spirla clean elements
Product Code Size Description
17C200M8 50-80mm SPIRAL CLEAN Screen 100μm - Yellow
17C200M6 50-80mm SPIRAL CLEAN Screen 130μm - Red
17C200M0 50-80mm SPIRAL CLEAN Screen 200μm - Green
17C300M8 50S-80Smm SPIRAL CLEAN Screen 100μm - Green
17C300M6 50S-80Smm SPIRAL CLEAN Screen 130μm - Green
17C300M0 50S-80Smm SPIRAL CLEAN Screen 200μm - Green
