Azud - Helix Automatic Series - 4DCL - Automatic Self Cleaning Disc Filter

Deeco - Azud - Helix Automatic 4DCL - Product Image
Brand: Azud
Category: Filtration, Automatic Filters - Disc.
Filtration Degree:

100-400 micron

Product Description

The Azud Helix Automatic 4DCL is an in-line self-cleaning equipment with disc filtering elements with 3” and 4” valves. Suitable for a maximum flow of 768 cubic meters per hour (per battery).

The Helix system optimizes performance and energy savings and minimizes the frequency of backwashing, thereby saving water. A patented design and high quality materials used in manufacturing guarantee maximum safety and extended life with high resistance. The modular configuration allows design options based on customer preferences or available space.

  • Automatic operation: 110 VAC, 220 VAC, or 12 VDC.
  • Special options are available for extreme pressures (low, high) and water conditions (sea or saline water, potable,  acidic). Possible to perform backwashing with compressed air, minimizing water loss during backwashing.
1702371631623

Features and Benefits

  • Disc filtration. Maximum Safety: Its careful design and manufacture guarantee an extended lifespan, resistance, and high filtration quality.
  • Azud Helix Device: Patented clogging retardant device. Performance optimization, minimum frequency, and intensity of the maintenance labor.
  • Self-cleaning filtering element: Maximum water saving and efficiency in the backwashing phase. large filtration area. Filtration degrees 100,130, 200 and 400 micron.
  • Modularity, versatility, and compatibility: The modular system allows for a wide range of configurations with a minimal number of components.
  • Maximum ease of transportation and installation: Equipped with a self-supporting structure for easy transport. Includes leveling device.
  • Manufactured in plastic materials.
  • Low maintenance: No tools required. Maximum wear resistance of high-quality moving parts.
  • Water and energy savings

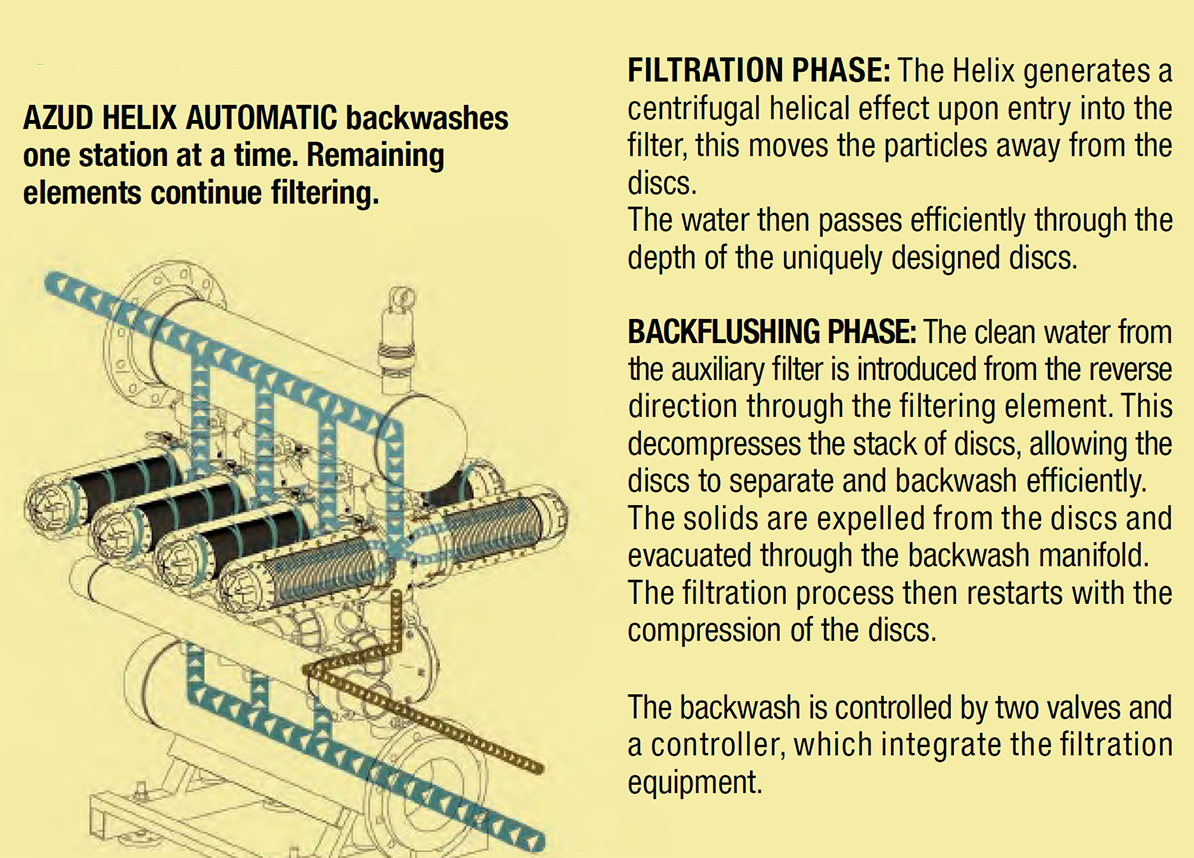

Technology

Deeco - Helix Automatic 4DCL - Technology

Technical Data

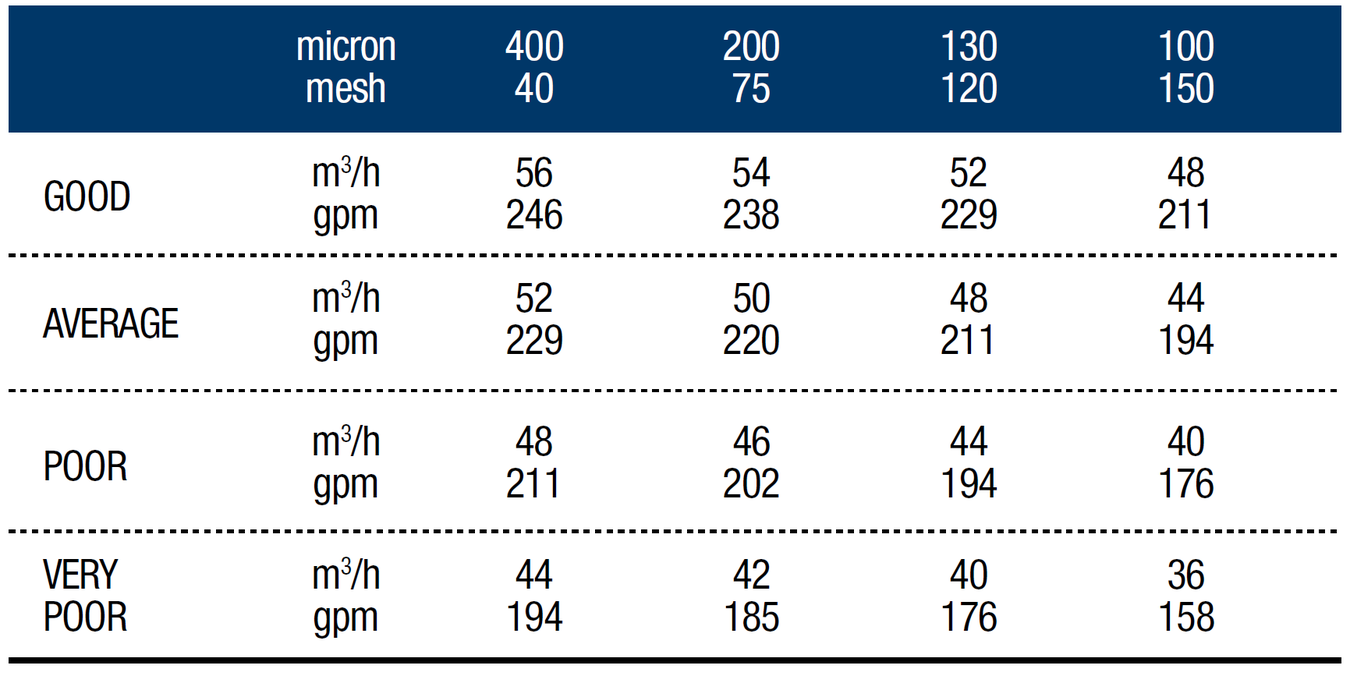

Filtration Maximum Flow per filter

Azud Helix Automatic filter filtering surface area 3240cm²

Deeco - Helix Automatic 4DCL - Max. Flow

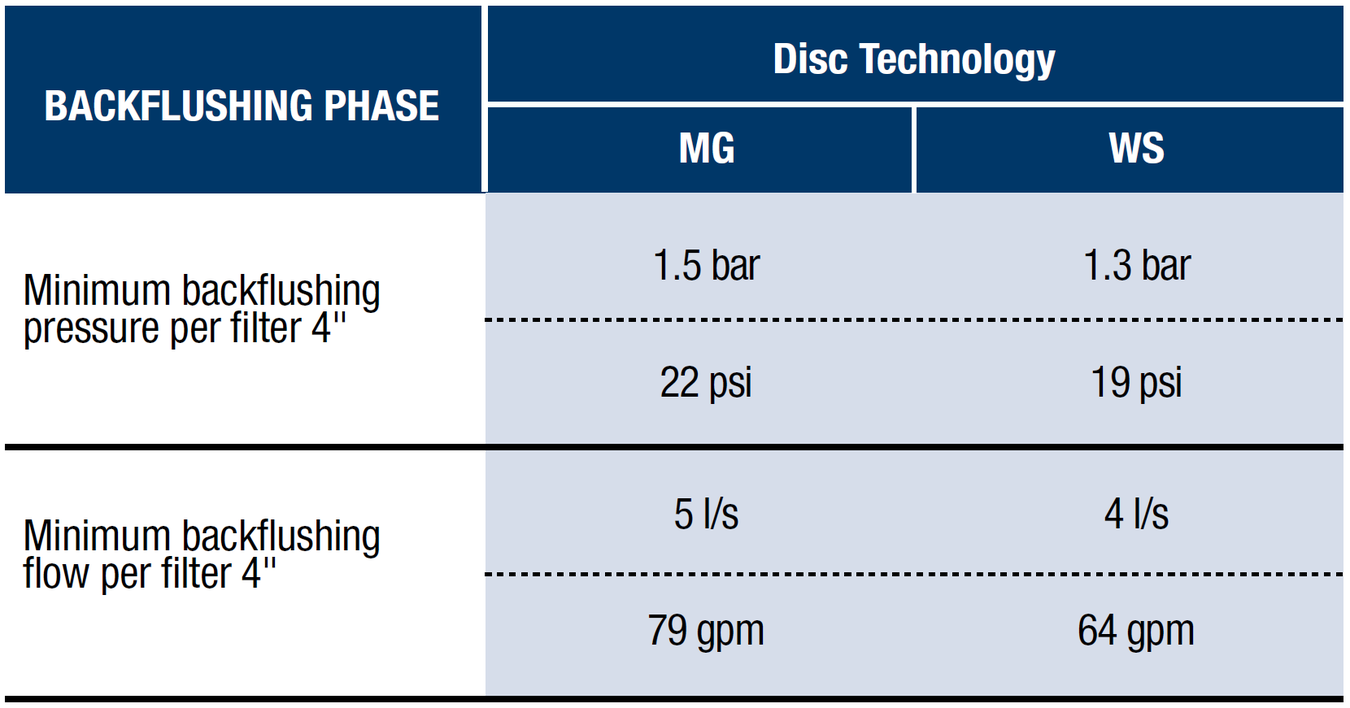

Minimum Backflushing Pressure per filter

Deeco - Helix Automatic 4DCL - Min.Backflushing pressure per filter

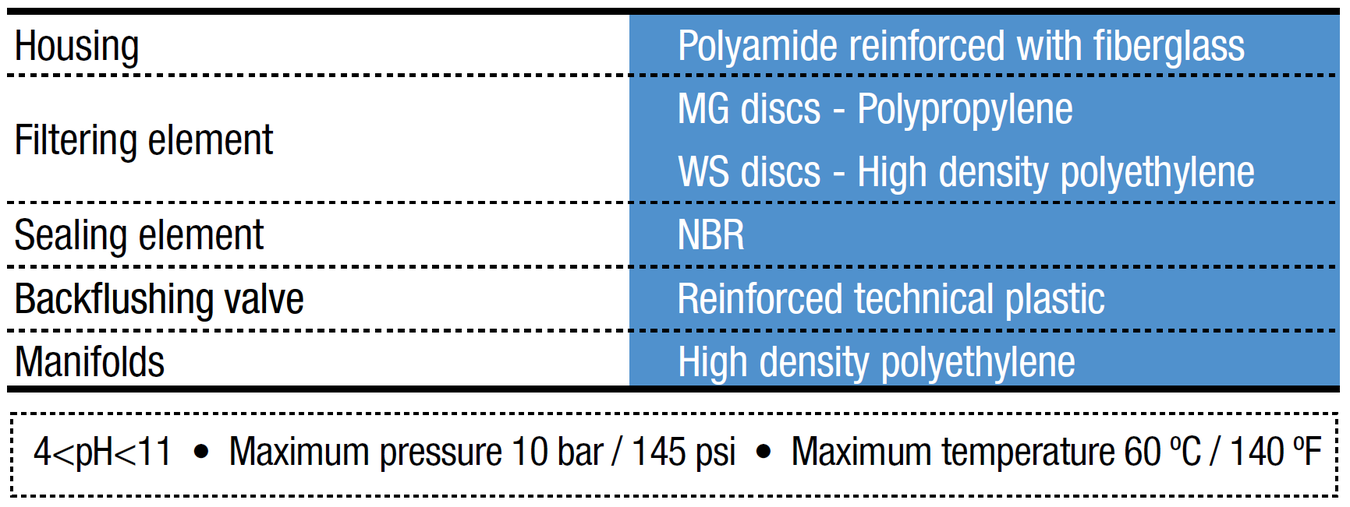

Construction Materials

Deeco - Helix Automatic 4DCL - Construction Materials

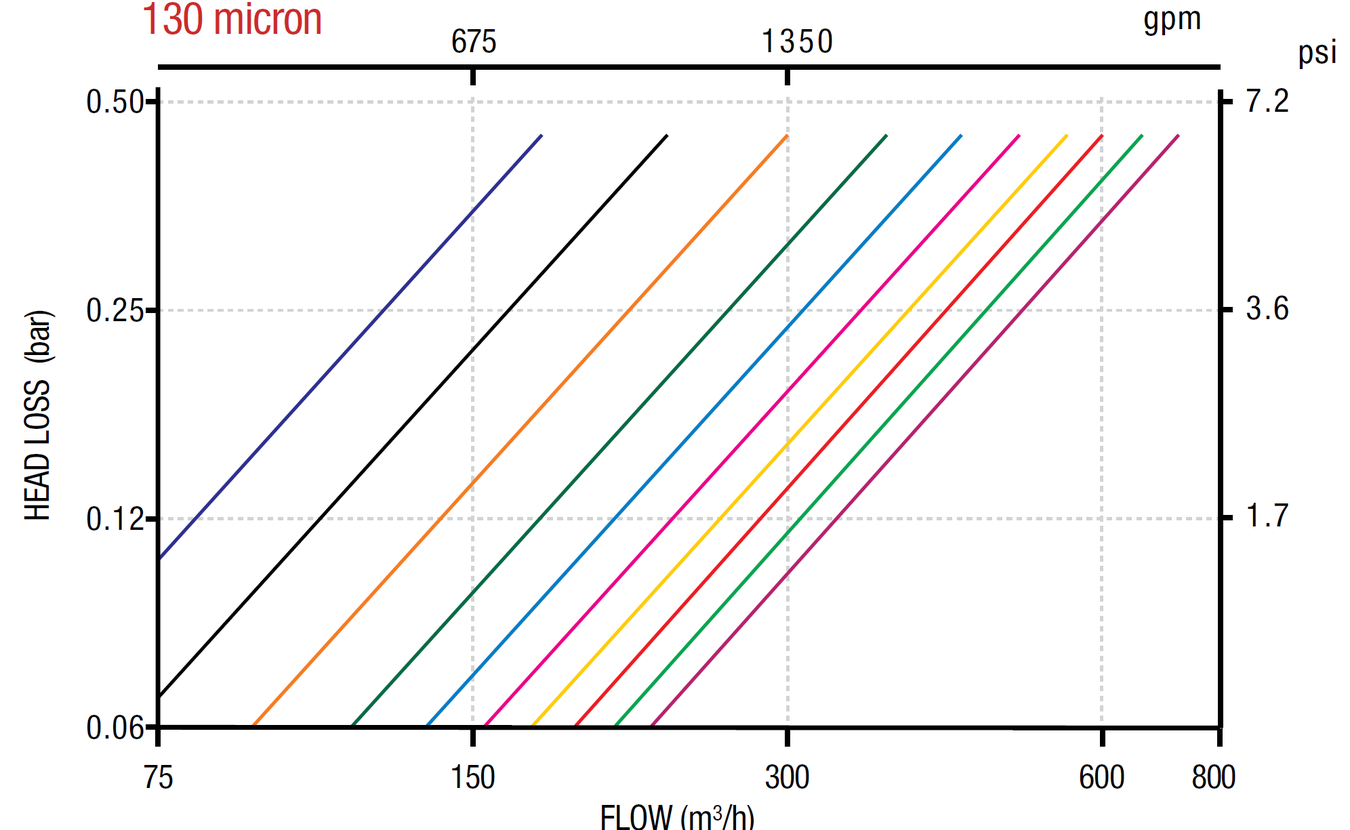

Head Loss Graph

Deeco - Helix Automatic 4DCL - Head Loss Graph

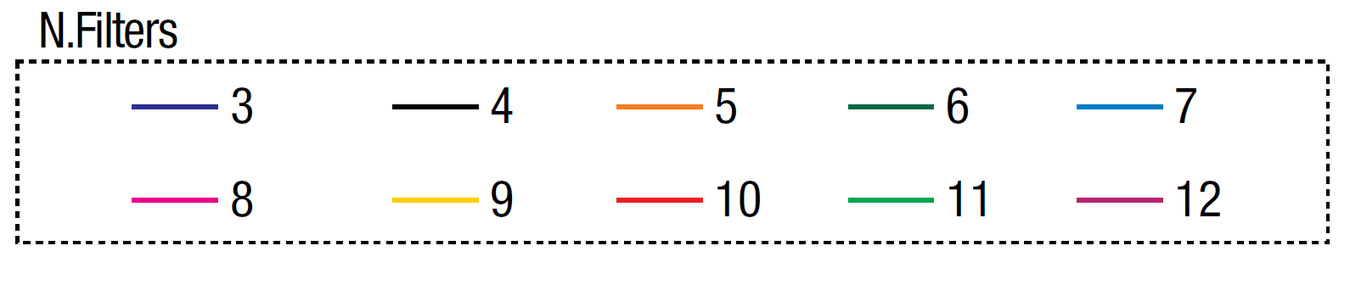

Deeco - Helix Automatic 4DCL - Head Loss Graph 2

Dimensions and Weights

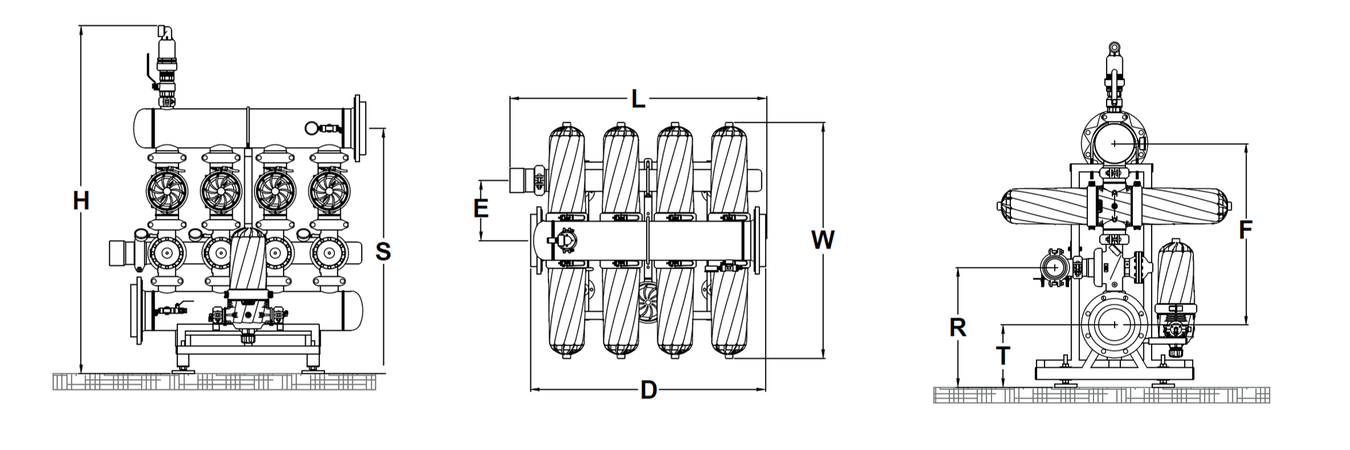

Deeco - Helix Automatic 4DCL - Dimensional Drawing

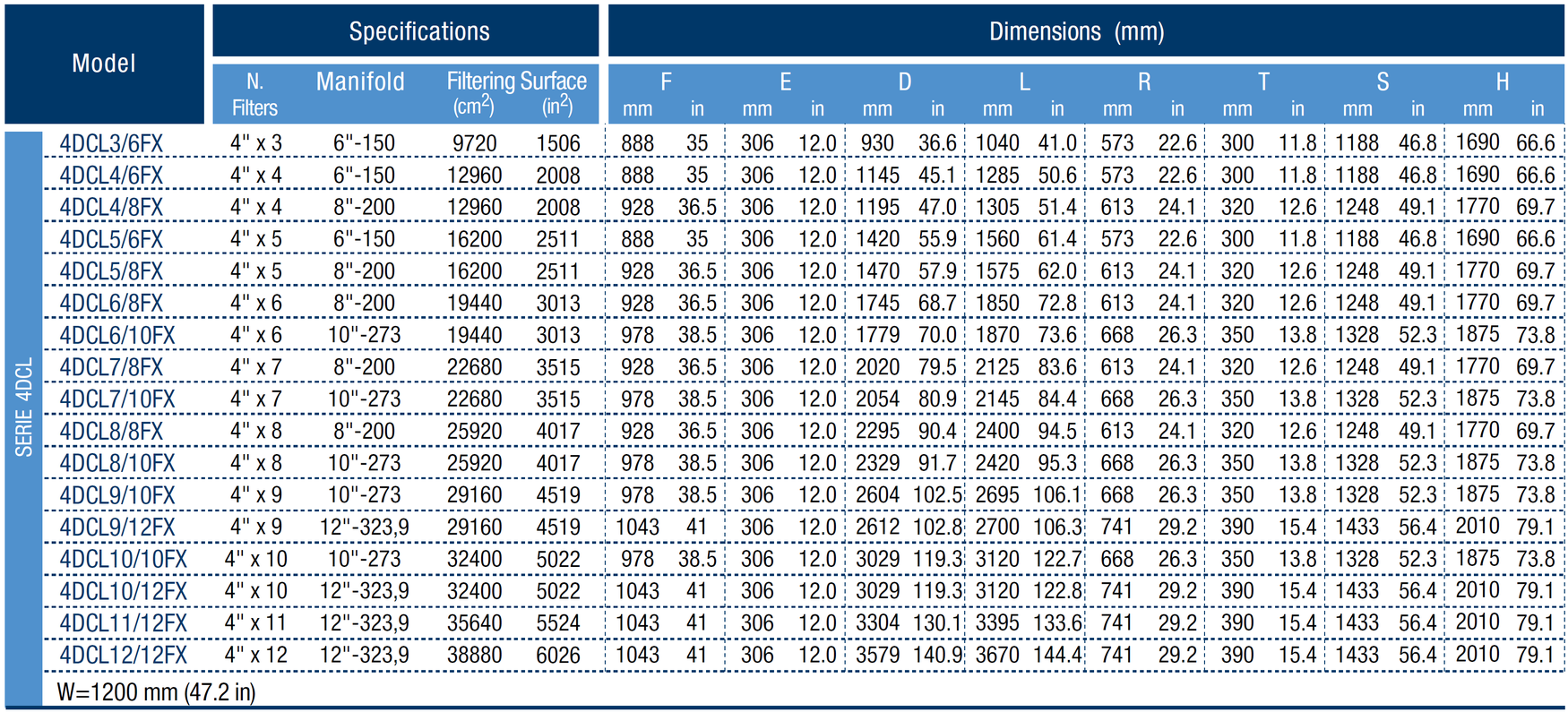

Deeco - Helix Automatic 4DCL - Dimensions and Weights

4" drainage manifold - Grooved Connection.

Dimensions of the models with flange connection.

For other configurations, consult Deeco.

Due to the wide range of options and criteria for correct model selection, pricing and configuration are available on application only.

Please contact us for more information.

Accessories

AC mains, or On-board battery powered (specific with order) C/W on-board digital PD and display, Bluetooth communications for programming and data collection, Bridge mounted pre-plumbed and wired solenoids.

Product Code Size Description
FILTRON xx 1COM - Tailgil Filtron AC or DC Complete with Digital PD and 1 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 2COM - Tailgil Filtron AC or DC Complete with Digital PD and 2 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 3COM - Tailgil Filtron AC or DC Complete with Digital PD and 3 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 4COM - Tailgil Filtron AC or DC Complete with Digital PD and 4 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 5COM - Tailgil Filtron AC or DC Complete with Digital PD and 5 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 6COM - Tailgil Filtron AC or DC Complete with Digital PD and 6 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 7COM - Tailgil Filtron AC or DC Complete with Digital PD and 7 Solenoid – Pre Programmed, Plumbed/Wired
FILTRON xx 8COM - Tailgil Filtron AC or DC Complete with Digital PD and 8 Solenoid – Pre Programmed, Plumbed/Wired

Other controller options available on request. Please consult with Deeco.
