Brand: | NaanDanJain |
Category: | Sprinklers, Micro Sprinklers |
Product Description
The flipper is a micro sprinkler ideal for frost protection. It spreads water in an extended, narrow strip, precisely targeting vine rows for maximum effectiveness. Water savings can reach up to 70% compared to traditional overhead systems.
As the Flipper micro sprinkler operates with large droplets, the cooling effect during system initiation is minimized. It’s designed for safety and reliability and ensures secure operation even in frost conditions. It requires low installation and pumping costs and its dry pathways not only reduce waterlogging but also facilitate immediate access for workers and equipment after operation, enhancing the overall operational efficiency.
Features & Benefits
- Spread water in a very long and narrow strip
- Saves up to 70% of water compared to conventional overhead systems
- Safe operation under frost conditions
![Acrobat_eRGLeYHsrE](https://deeco-production.s3.amazonaws.com/images/Flipper_-_Features_and_Beneefits.width-1350.jpg)
Technical Data
Recommended Working Pressure
- 2.0-3.0 bar
Flow Rate
- 25-45 l
Filtration requirements
- 130 microns

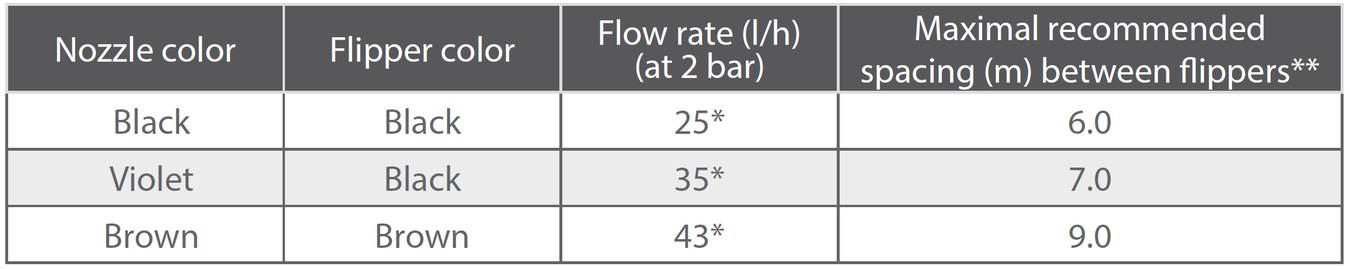

Performance Table
![Performance Table - Flipper](https://deeco-production.s3.amazonaws.com/images/Performance_Table_-_Flipper.width-1350.png)
* For regulated unit: 2.5-4.0 bar
** When Flippers mounted 1.0 m above the target

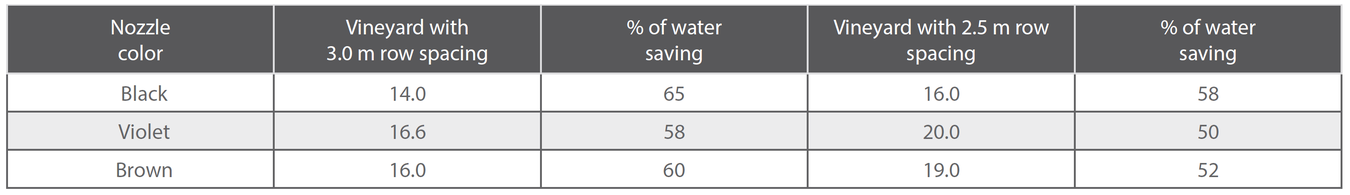

Amount of water (m3/ha/hr) required by flipper
frost protection system* and water saving compared to conventional 40 m3/ha/hr system
![Flipper - Amount of water](https://deeco-production.s3.amazonaws.com/images/Flipper_-_Amount_of_water.width-1350.png)
* When Flippers are at maximal spacing, at 2 bar

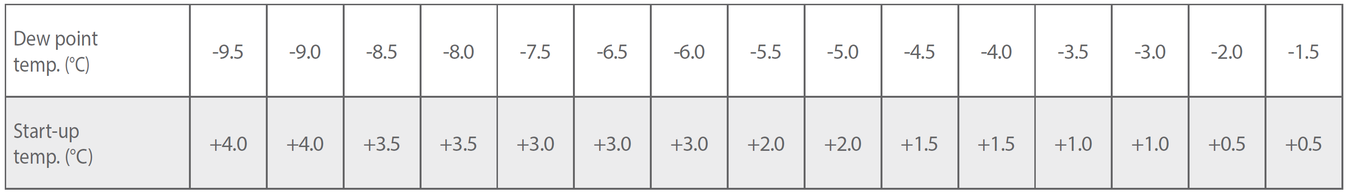

Recommended start-up temperatures
for frost protection at various dew points
![Recommended start - up temperatures](https://deeco-production.s3.amazonaws.com/images/Recommended_start_-_up_temperatures.width-1350.png)

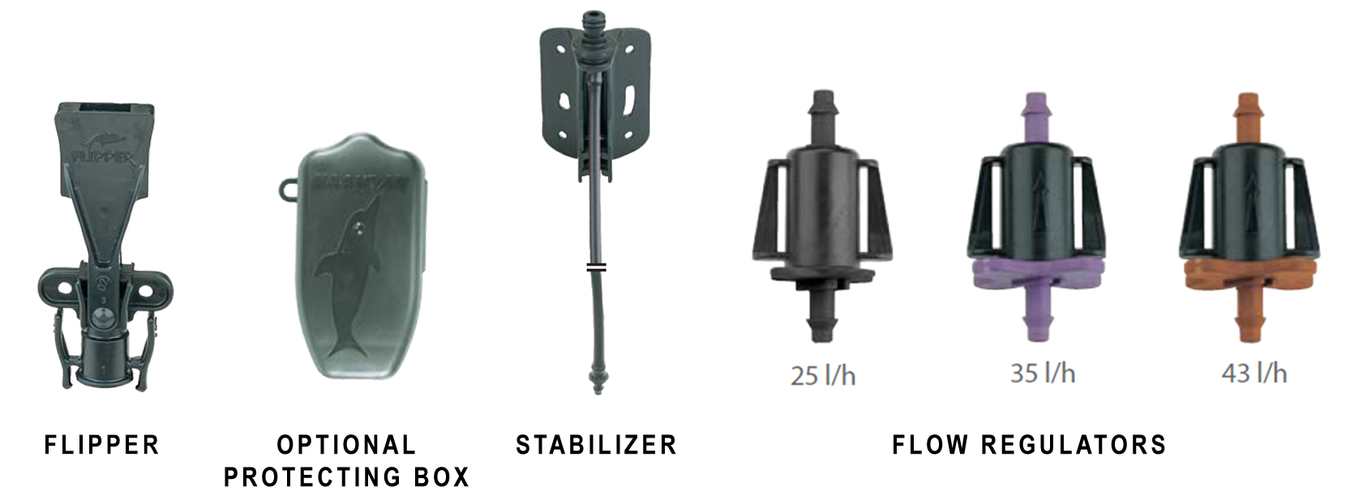

Product Components
![Photoshop_EmrBtS0IVo](https://deeco-production.s3.amazonaws.com/images/Photoshop_a3oppHNk3r.width-1350.png)
NaanDanJain - Flipper - Micro Sprinkler
![172708](https://deeco-production.s3.amazonaws.com/images/172708.2e16d0ba.fill-1000x1000.jpg)

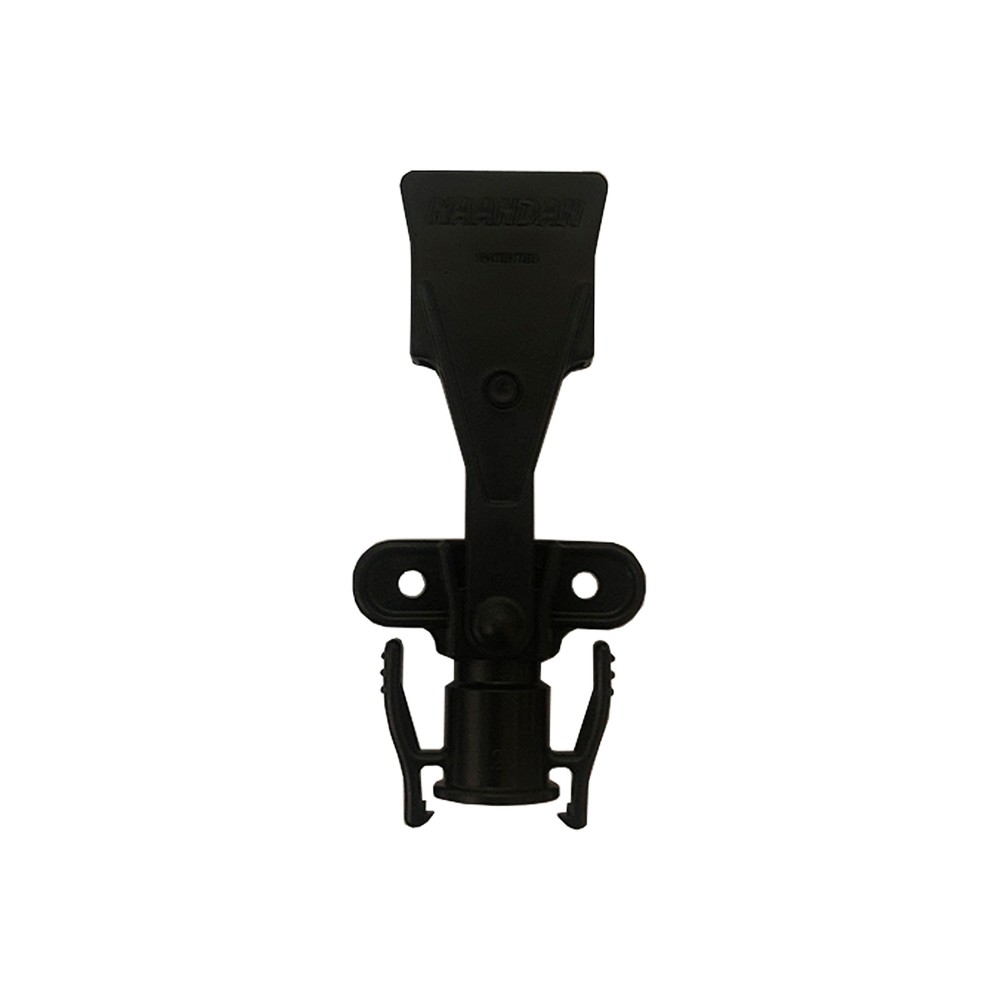

172708
![WPD250-Coming Soon](https://deeco-production.s3.amazonaws.com/images/WPD250-Coming_Soon.2e16d0ba.fill-1000x1000.jpg)
172704
![172700](https://deeco-production.s3.amazonaws.com/images/172700.2e16d0ba.fill-1000x1000.jpg)

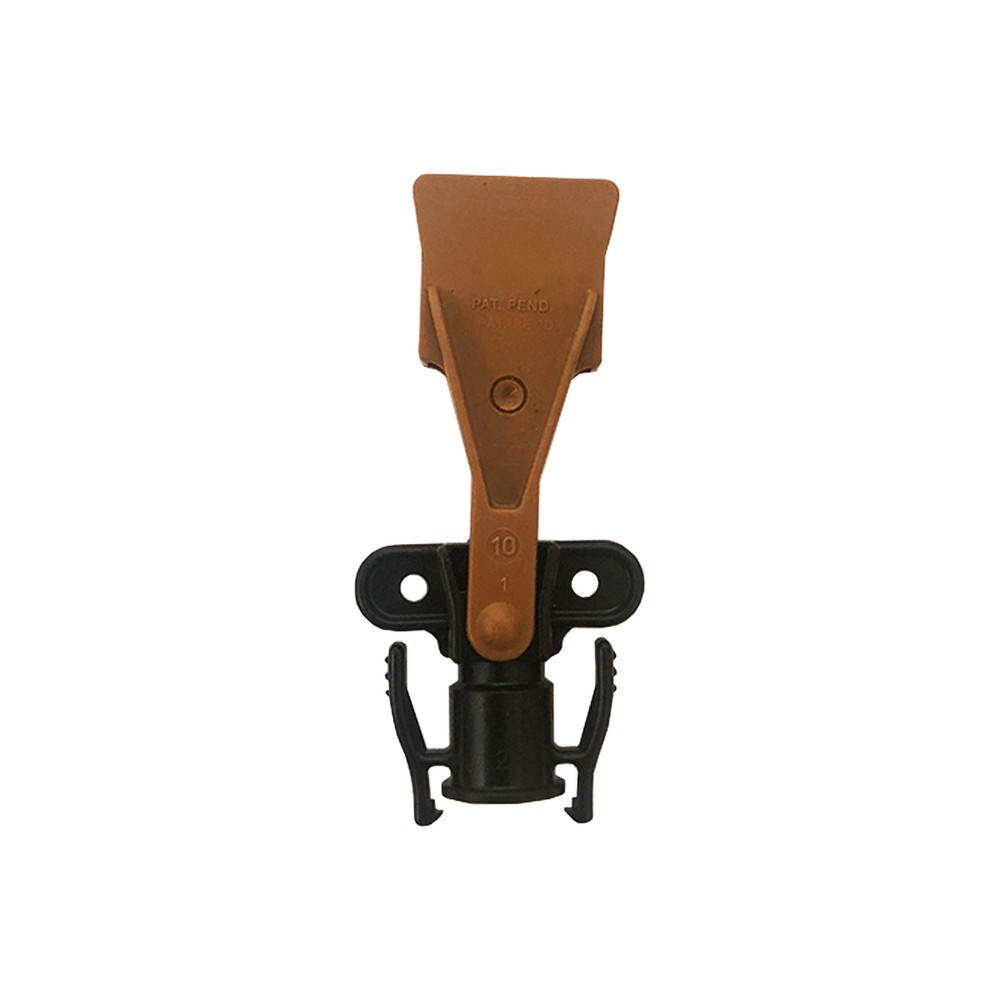

172700
Product Code | Description | Nozzle |
---|---|---|
172708 | Flipper c/w 25lph nozzle, quick connect housing | Black |
172704 | Flipper c/w 35lph mozzle, quick connect housing | Violet |
172700 | Flipper c/w 43 lph nozzle, quick connect housing | Brown |
Accessories
Product Code | Description | Colour |
---|---|---|
771908 | Flow regulator 25 lph, barbed housing | Black |
771904 | Flow regulator 35 lph, barbed housing | Violet |
771900 | Flow regulator 43 lph, barbed housing | Brown |
870300 | Protection box suit flipper | |
772020 | Mounting deviced suit flipper (new) barb x oring bayonet | |
772503 | Mounting deviced suit flipper (new) + 30cm tube barb 4/7 | |
772520 | Mounting deviced suit flipper (new) + 200cm tube barb 4/7 |
