NaanDanJain - Model 5022 SD-U - Plastic Sprinkler

Product Description

1/2” Male; plastic sprinkler with super diffuser blue (SD) hammer, low flow bayonet nozzles, red sleeve

NDJ, The Benchmark for Uniformity

  • SD sprinklers are based on an innovative concept and a unique hammer with SD (Super Diffuser) plate, designed for a higher level of distribution uniformity.
  • SD sprinklers are designed to perform even at low pressure.
  • The hydrodynamic design of the nozzle and special arc water passage facilitates a wider radius of throw, which reduces the number of sprinklers required per unit area.
  • SD sprinklers are less sensitive to clogging and have higher wind resistance.

Here’s how to recognize a Genuine NaanDanJain SD Sprinkler:

NaanDanJain - Genuine Sprinkler - Image

Structure and Features

  • Unique hammer combined with SD (Super Diffuser) plate –
    designed for uniform distribution with single or dual nozzles.
  • Recommended operating pressure range of 2.5 to 4.0 bar.
  • High distribution uniformity up to 14m spacing.
  • Reduced sensitivity to clogging and higher resistance to wind
  • Designed for short irrigation cycles for germination
  • Color-coded bayonet nozzles for easy service
  • High impact and heavy-duty plastic materials for resistance to corrosion, chemicals and radiation

Applications

  • Irrigation and germination of vegetables, flowers and nursery crops. The 5022 SD sprinkler uses 3.0, 3.2, 3.5 and 4.0mm main nozzles.

Technical Data

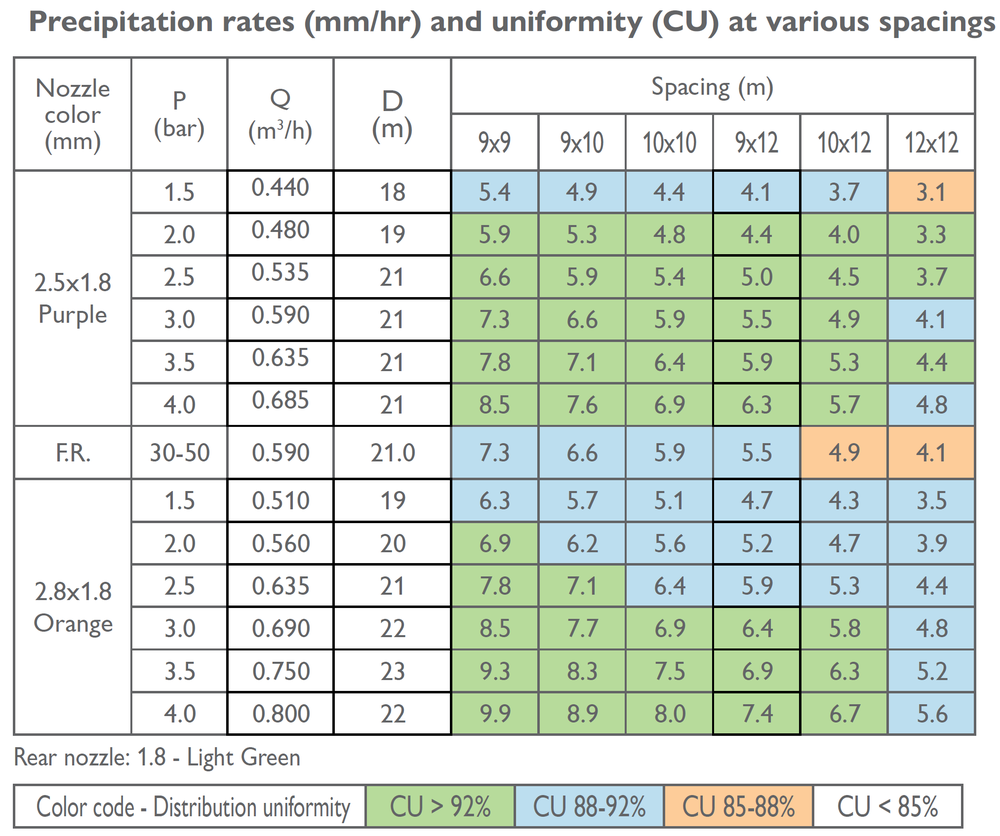

5022 SD-U PERFORMANCE TABLE, Dual nozzle, Blue short SD

Amiad - Steel - Performance Data 1

* Performance table prepared under laboratory conditions

* For windy conditions use closer spacing

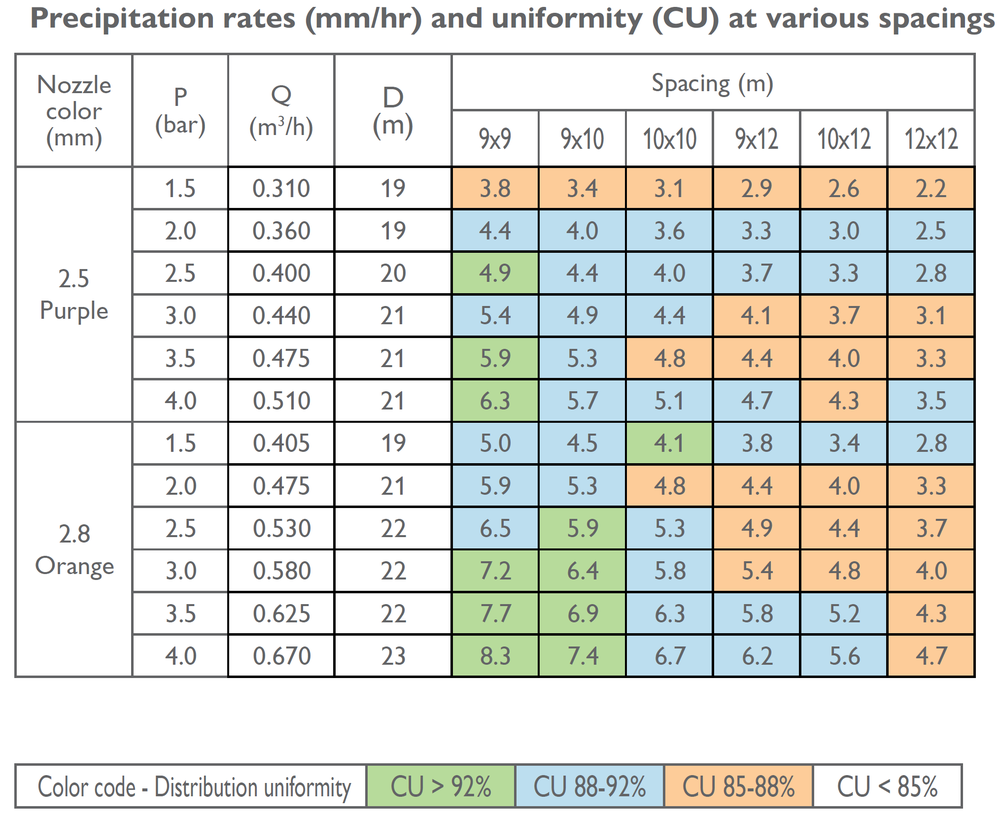

5022 SD-U PERFORMANCE TABLE, Single nozzle, Blue short SD

Amiad - Steel - Performance Data 2

For single nozzle or dual nozzle sprinkler, be sure using the recommended SD unit (appears above the performance table)

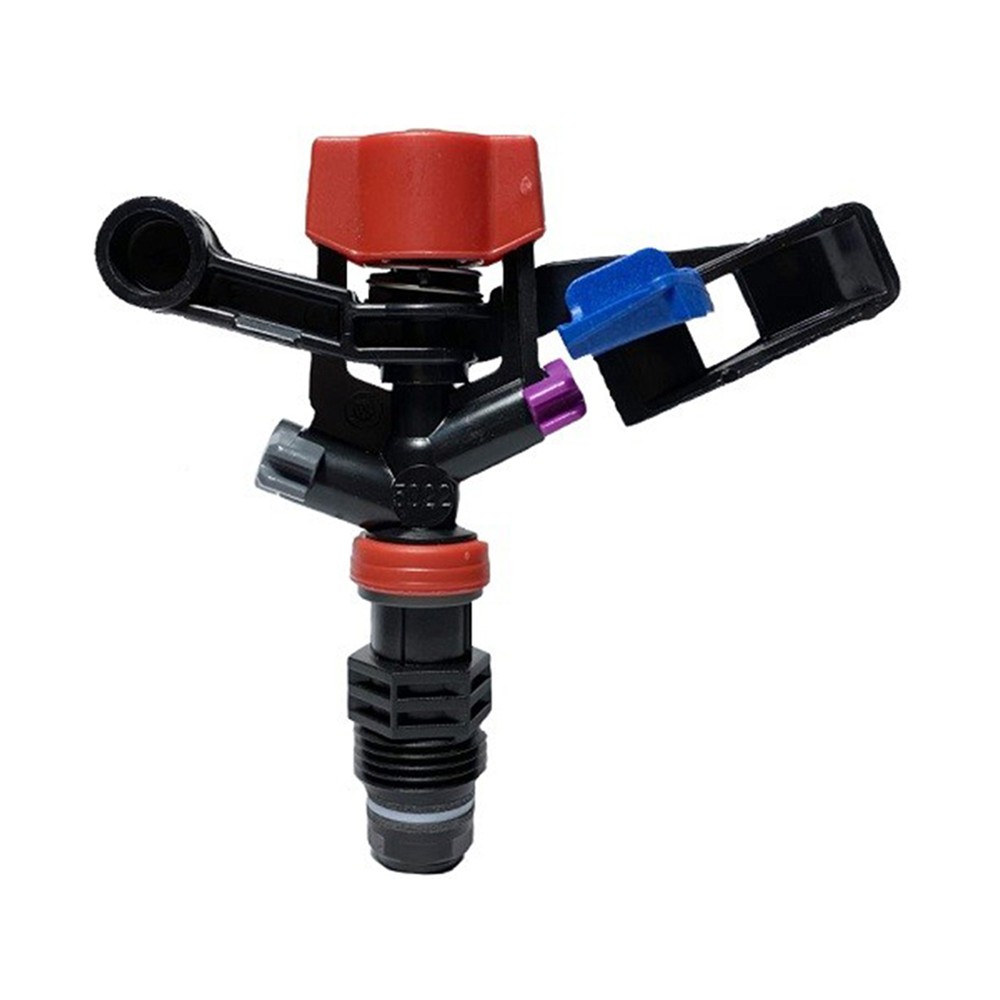

NaanDanJain - Model 5022 SD-U - Plastic Sprinkler

1/2” Male, plastic sprinkler with super diffuser blue (SD) hammer, low flow bayonet nozzles, red sleeve.

Product Code Size Description Nozzle Box Quantity
51527011 2.5mm 5022SD-U Sprinkler c/w 2.5mm Nozzle Purple 100

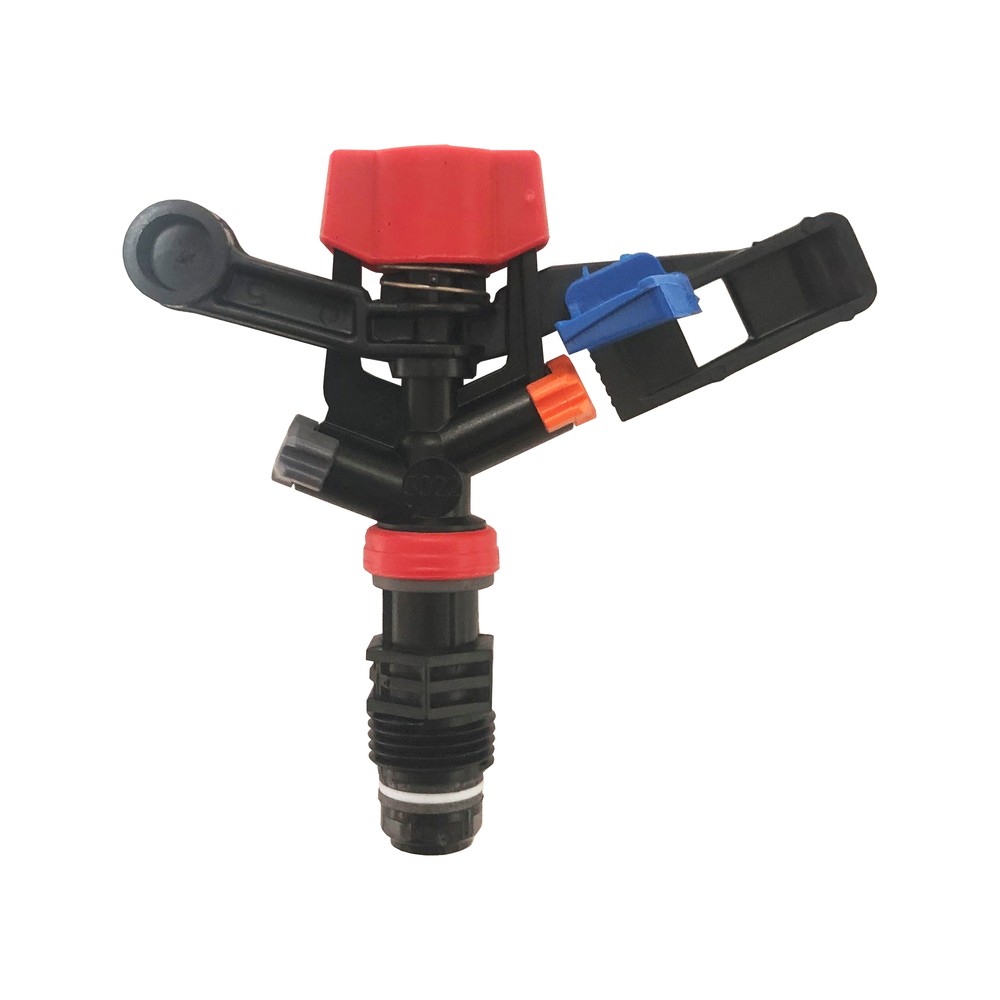

51527021 2.8mm 5022SD-U Sprinkler c/w 2.8mm Nozzle Orange 100
Product Code Size Description Colour
NA582251 2.5mm 5022 Bayonet 2.5mm - Nozzle - Violet Violet
NA582281 2.8mm 5022 Bayonet 2.8mm - Nozzle - Orange Orange
NA582301 3.0mm 5022 Bayonet 3.0mm - Nozzle - Red Red
NA582321 3.2mm 5022 Bayonet 3.2mm - Nozzle - Green Green
NA582351 3.5mm 5022 Bayonet 3.5mm - Nozzle - Blue Blue
NA582401 4.0mm 5022 Bayonet 4.0mm - Nozzle - Black Black
NA583181 1.8mm 5022 Bayonet 1.8mm - Nozzle - Green Green
NA583251 2.5mm 5022 Bayonet 2.5mm - Nozzle - Grey Grey
NA582001 - Back Plug B/Jet 5022SD -
